Isuzu WW
▶
TRUCKS
▶
CXH
▶
10930 - CXH RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-87 - COUPLING; INJECTION PUMP
▶
0-87 — COUPLING; INJECTION PUMP
(#25585) — 14 parça
◀

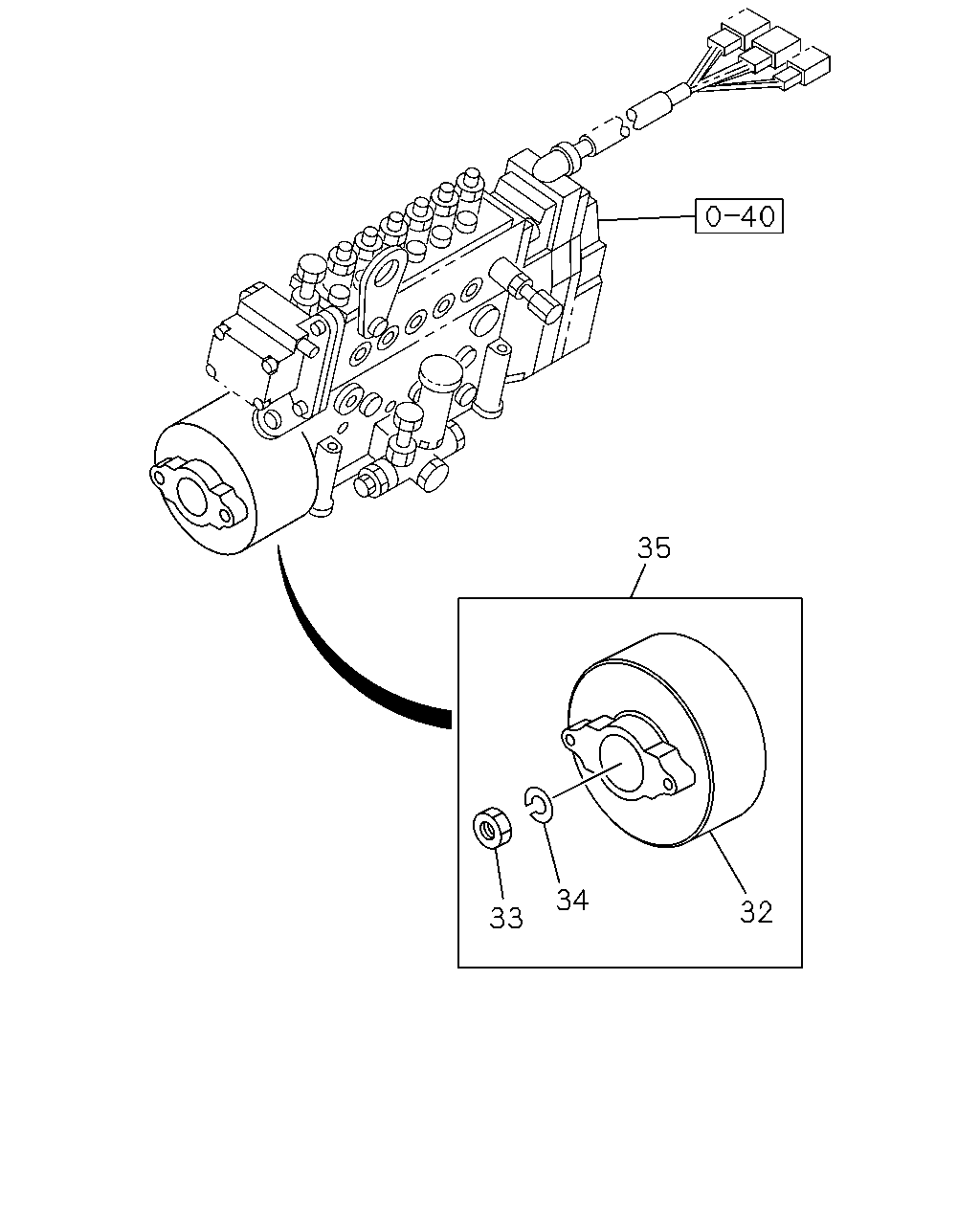

[087A] DAMPER ASM (4 parça)

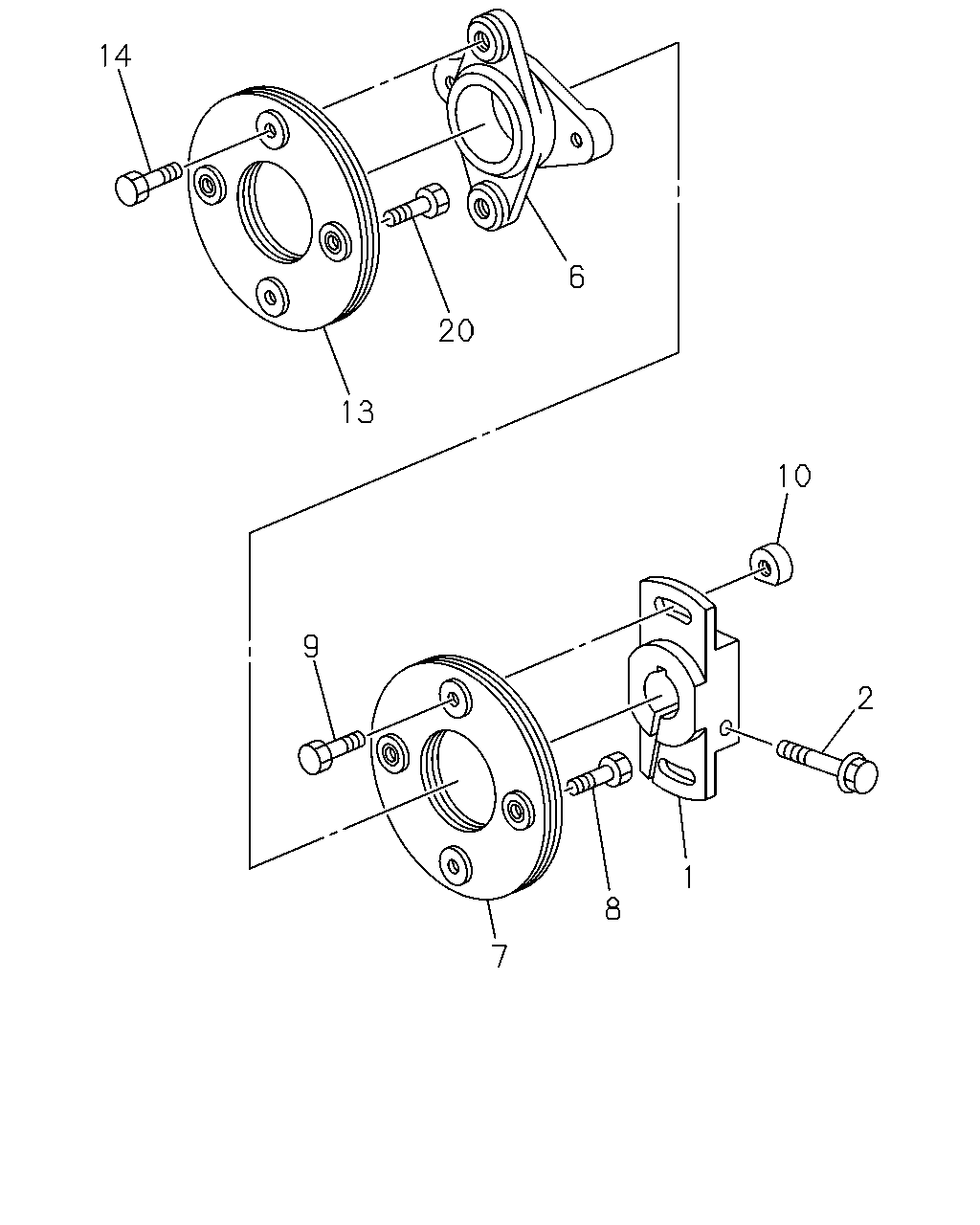

[087A] COMPONENT;DRIVE COUPLING (10 parça)
▶
35
34
32
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
DAMPER; INJ PUMP
1-15744-015-0
01
1
0309-
33
NUT; DAMPER
1-19179-020-0
01
1
0309-
34
WASHER; DAMPER
1-19179-002-0
01
1
0309-
35
DAMPER ASM; INJ PUMP
1-15744-017-0
01
1
0309-
14
6
20
13
10
9
2
1
8
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COUPLING; INJ PUMP DRIVE
1-15782-020-0
01
1
0309-
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-177-0
01
1
0309-
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-176-0
01
1
0309-
7
PLATE; COUPLING,COUPLING SIDE
1-15789-173-0
01
1
0309-
8
BOLT; PLATE TO CROSS COUPLING
1-15789-175-0
02
1
0309-
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15789-172-0
02
1
0309-
10
NUT; PLATE TO COUPLING,INJ PUMP
1-15789-174-0
02
1
0309-
13
PLATE; COUPLING,TIMER SIDE,INJ PUMP
1-15789-173-0
01
1
0309-
14
BOLT; PLATE TO CROSS COUPLING,TIMER SI
1-15789-175-0
02
1
0309-
20
BOLT; COUPLING TO INJ PUMP
1-15789-175-0
02
1
0309-
