0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#25579) — 105 parça

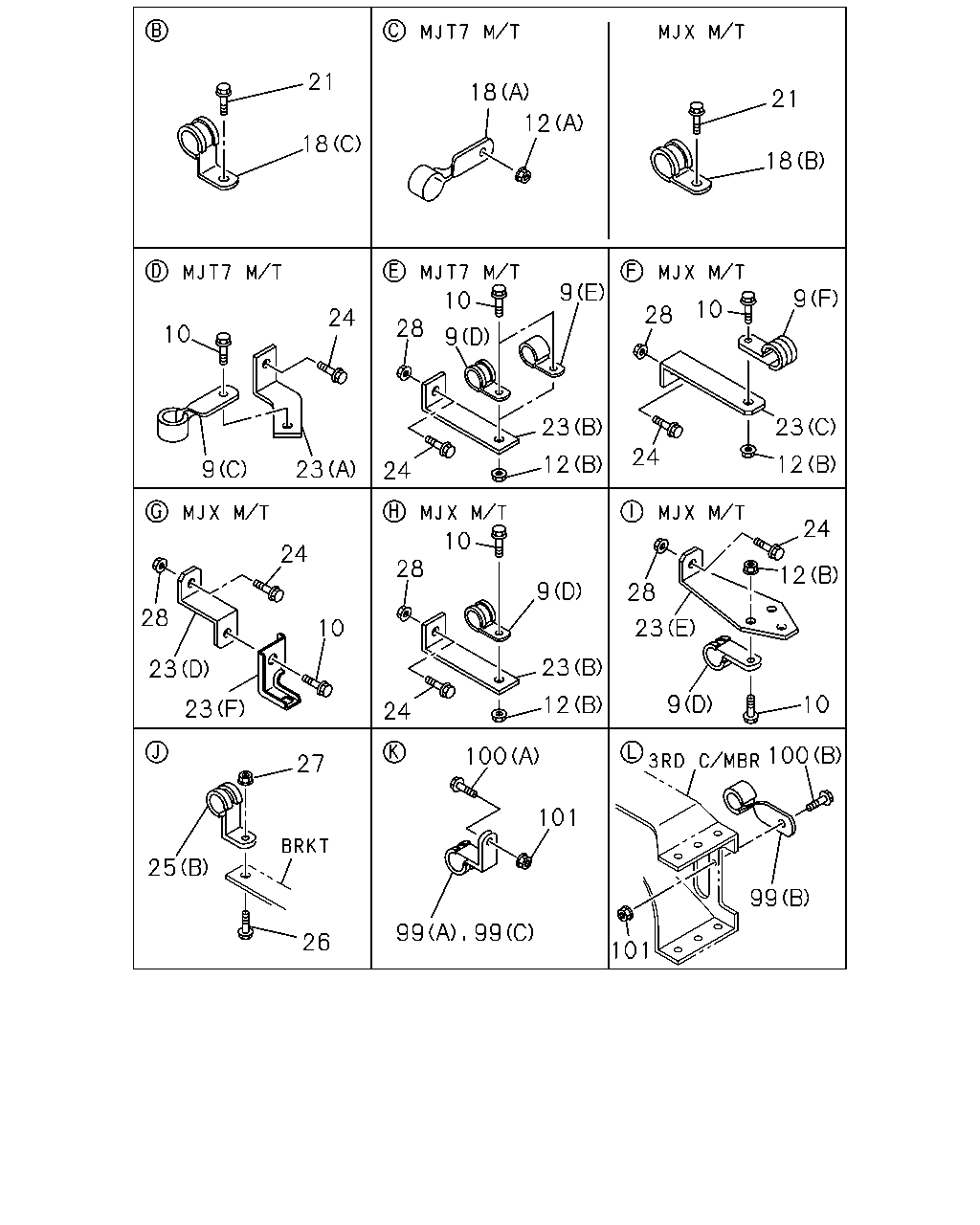

21 18 21 12 18 18 10 9 9 10 28 24 28 10 9 23 23 24 12 12 9 23 24 10 24 24 28 12 9 28 28 23 10 23 23 9 10 12 23 24 100 100 27 101 25 99 99 99 26 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	CLIP; BATTERY CABLE MJT7 M/T<Y9E> (C) ID=20 L=50	1-09700-679-1	01	1	0309-0309
9	CLIP; BATTERY CABLE (C) ID=20 L=50	1-09700-679-1	01	1	0310-
9	CLIP; BATTERY CABLE MJT7 M/T<Y9E> (D) ID=18 L=28	1-09701-067-0	01	1	0309-
9	CLIP; BATTERY CABLE MJT7 M/T<Y9E> (E) ID=19 L=28	9-09525-856-0	02	1	0309-
9	CLIP; BATTERY CABLE MJX M/T<Y9N> (D) ID=18 L=28	1-09701-067-0	02	1	0309-
9	CLIP; BATTERY CABLE MJX M/T<Y9N> (F) ID=21 L=24	8-94176-807-1	01	1	0309-0309
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	0309-
9	CLIP; BATTERY CABLE (B) L=250	5-09707-030-1	01	1	0309-
10	BOLT; BATTERY CABLE CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28680-820-0	04	1	0309-
10	BOLT; BATTERY CABLE CLIP MJX M/T<Y9N> M8X20 FLANGE	0-28680-820-0	03	1	0309-
12	NUT; BATTERY CABLE CLIP MJX M/T<Y9N> (B) M8 FLANGE	0-91150-108-0	02	1	0310-
12	NUT; BATTERY CABLE CLIP (B) M8 FLANGE	0-91150-108-0	03	1	0309-0309
12	NUT; BATTERY CABLE CLIP MJT7 M/T<Y9E> (B) M8 FLANGE	0-91150-108-0	03	1	0310-
12	NUT; BATTERY CABLE CLIP (A) M10 FLANGE	0-91150-210-0	01	1	0309-
18	CLIP; BATTERY CABLE MJT7 M/T<Y9E> (A) ID=18 L=54	1-09701-106-0	01	1	0309-
18	CLIP; BATTERY CABLE MJX M/T<Y9N> (B) ID=21 L=24	8-94176-807-1	01	1	0309-
18	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0309-
21	BOLT; CLIP CABLE MJX M/T<Y9N> M8X16 FLANGE	0-28080-816-0	02	1	0309-
21	BOLT; CLIP CABLE EXC. MJX M/T<Y9N> M8X16 FLANGE	0-28080-816-0	01	1	0309-
23	BRACKET; CABLE CLIP TO FRAME MJT7 M/T<Y9E> (A)	1-47479-642-0	01	1	0309-0309
23	BRACKET; CABLE CLIP TO FRAME (A)	1-47479-642-0	01	1	0310-
23	BRACKET; CABLE CLIP TO FRAME MJT7 M/T<Y9E> (B) L=95	1-82699-085-0	03	1	0309-
23	BRACKET; CABLE CLIP TO FRAME MJX M/T<Y9N> (C) L=112	1-47475-694-1	01	1	0309-0309
23	BRACKET; CABLE CLIP TO FRAME MJX M/T<Y9N> (D)	1-47476-658-0	01	1	0309-
23	BRACKET; CABLE CLIP TO FRAME MJX M/T<Y9N> (E)	1-47479-779-0	01	1	0309-
23	BRACKET; CABLE CLIP TO FRAME MJX M/T<Y9N> (B) L=95	1-82699-085-0	01	1	0309-
23	BRACKET; CABLE CLIP TO FRAME MJX M/T<Y9N> (F)	8-97304-944-0	01	1	0309-
24	BOLT; BRKT TO FRAME MJT7 M/T<Y9E> M8X25 FLANGE	0-28680-825-0	03	1	0309-0309
24	BOLT; BRKT TO FRAME MJT7 M/T<Y9E> M8X20 FLANGE	0-28680-820-0	01	1	0310-
24	BOLT; BRKT TO FRAME MJX M/T<Y9N> M8X25 FLANGE	0-28680-825-0	04	1	0309-0309
24	BOLT; BRKT TO FRAME MJX M/T<Y9N> M8X20 FLANGE	0-28680-820-0	02	1	0310-
24	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28680-820-0	01	1	0309-0309
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28680-825-0	03	1	0310-
25	CLIP; BATTERY CABLE TO BRKT (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0309-
25	CLIP; BATTERY CABLE TO BRKT (B) ID=18 H=23 L=28	1-09701-070-0	03	1	0309-
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X20 FLANGE	0-28680-820-0	04	1	0309-
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91150-108-0	04	1	0309-
28	NUT; BRKT TO FRAME MJT7 M/T<Y9E> M8 FLANGE	0-91150-108-0	03	1	0309-0309
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	03	1	0310-
28	NUT; BRKT TO FRAME MJX M/T<Y9N> M8 FLANGE	0-91150-108-0	04	1	0309-0309
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	03	1	0309-
99	CLIP; BATTERY CABLE (B) ID=18 L=54	1-09701-068-0	01	1	0309-
99	CLIP; BATTERY CABLE (C) ID=18 L=25 H=50	1-09701-096-0	01	1	0309-
100	BOLT; BATTERY CABLE CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	0309-
100	BOLT; BATTERY CABLE CLIP (A) M8X25 FLANGE	0-28680-825-0	04	1	0309-
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	05	1	0309-

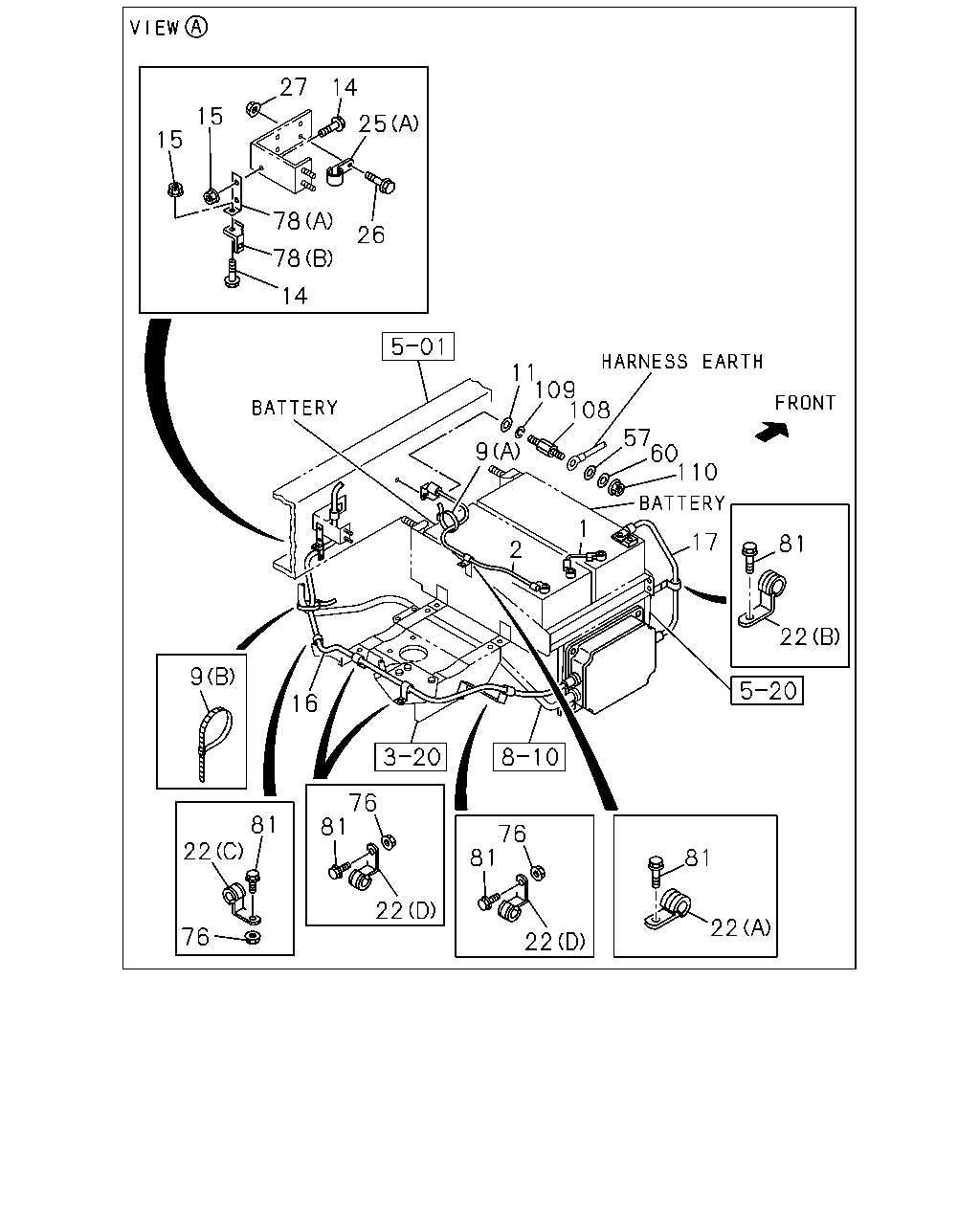

27 14 15 25 15 78 26 78 14 11 109 108 57 60 110 9 1 17 81 2 22 9 16 76 81 81 22 76 81 81 22 22 76 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY BATTERY 115F51 N120<SJ3> <+> TO <-> L=265	1-82650-388-1	01	1	0309-
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8> <+> TO <-> L=450	1-82650-389-1	01	1	0309-
2	CABLE; BATTERY <-> TO FRAME L=680	1-82650-385-1	01	1	0309-
9	CLIP; BATTERY CABLE MJT7 M/T<Y9E> (C) ID=20 L=50	1-09700-679-1	01	1	0309-0309
9	CLIP; BATTERY CABLE (C) ID=20 L=50	1-09700-679-1	01	1	0310-
9	CLIP; BATTERY CABLE MJT7 M/T<Y9E> (D) ID=18 L=28	1-09701-067-0	01	1	0309-
9	CLIP; BATTERY CABLE MJT7 M/T<Y9E> (E) ID=19 L=28	9-09525-856-0	02	1	0309-
9	CLIP; BATTERY CABLE MJX M/T<Y9N> (D) ID=18 L=28	1-09701-067-0	02	1	0309-
9	CLIP; BATTERY CABLE MJX M/T<Y9N> (F) ID=21 L=24	8-94176-807-1	01	1	0309-0309
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	0309-
9	CLIP; BATTERY CABLE (B) L=250	5-09707-030-1	01	1	0309-
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	0309-
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28680-820-0	02	1	0309-
15	NUT; BRKT CLIP M8 FLANGE	0-91150-108-0	02	1	0309-
16	CABLE; STARTER TO RELAY MJT7 M/T<Y9E> MIXER TRUCK<RA2> L=5970	1-82652-895-0	01	1	0312-
16	CABLE; STARTER TO RELAY MJT7 M/T<Y9E> L=6030	1-82652-867-1	01	1	0309-0311
16	CABLE; STARTER TO RELAY MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> L=6030	1-82652-867-1	01	1	0312-
16	CABLE; STARTER TO RELAY MJX M/T<Y9N> L=5890	1-82652-886-3	01	1	0309-
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0309-
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	04	1	0309-
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0309-
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0309-
22	CLIP; BATTERY CABLE (C) ID=18 L=25 H=50	1-09701-096-0	01	1	0309-
25	CLIP; BATTERY CABLE TO BRKT (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0309-
25	CLIP; BATTERY CABLE TO BRKT (B) ID=18 H=23 L=28	1-09701-070-0	03	1	0309-
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X20 FLANGE	0-28680-820-0	04	1	0309-
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91150-108-0	04	1	0309-
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0309-
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0309-
76	NUT; BATTERY CABLE M8 FLANGE	0-91150-108-0	05	1	0309-
78	BRACKET; CLIP BATTERY (A) L=90 B=25	1-47476-630-0	01	1	0309-
78	BRACKET; CLIP BATTERY (B)	8-97304-944-0	01	1	0309-
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28680-825-0	07	1	0309-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0309-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	0309-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0309-

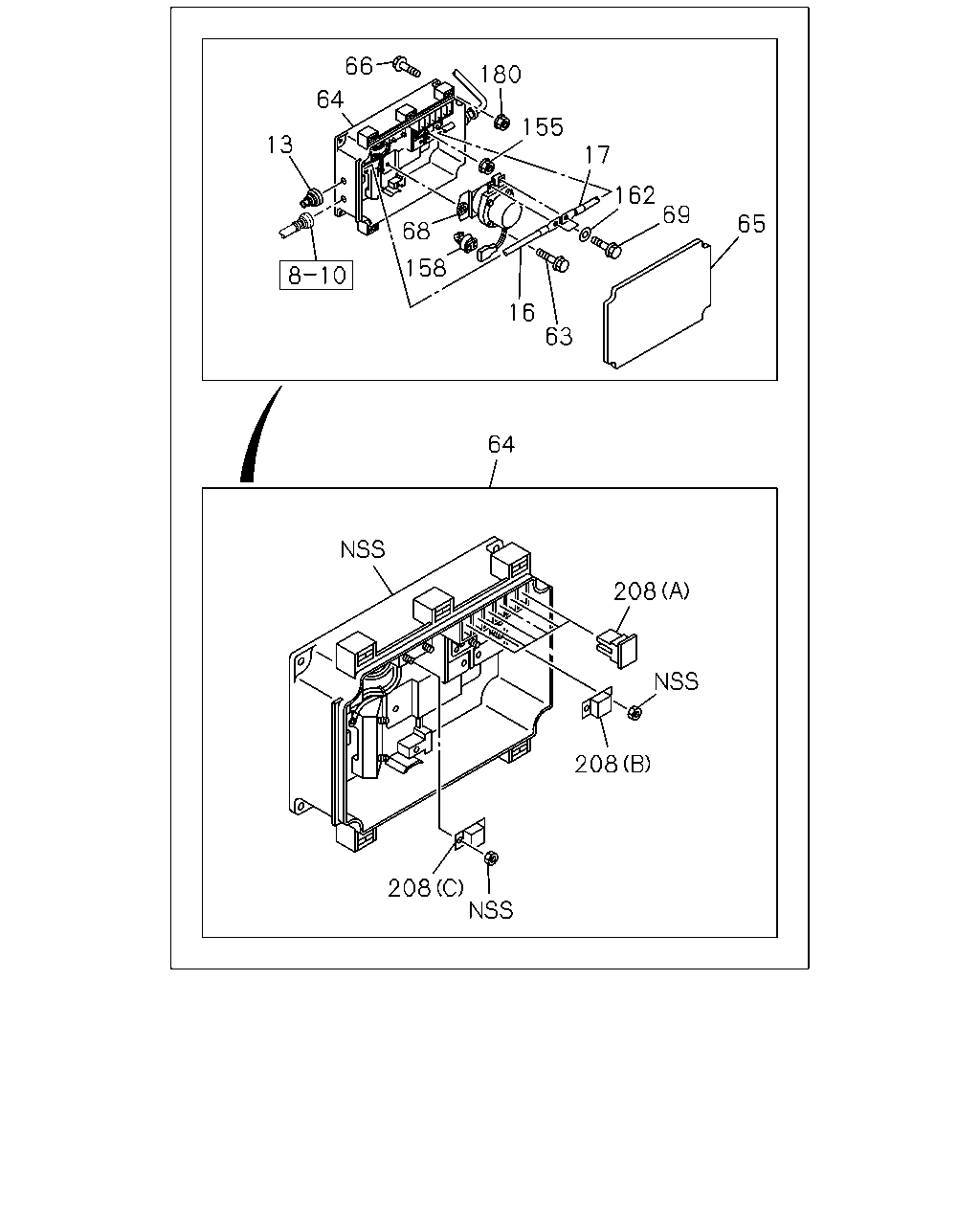

66 180 64 155 13 17 162 69 65 68 158 16 63 64 208 208 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0309-
16	CABLE; STARTER TO RELAY MJT7 M/T<Y9E> MIXER TRUCK<RA2> L=5970	1-82652-895-0	01	1	0312-
16	CABLE; STARTER TO RELAY MJT7 M/T<Y9E> L=6030	1-82652-867-1	01	1	0309-0311
16	CABLE; STARTER TO RELAY MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> L=6030	1-82652-867-1	01	1	0312-
16	CABLE; STARTER TO RELAY MJX M/T<Y9N> L=5890	1-82652-886-3	01	1	0309-
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0309-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0309-
64	BOX; BATTERY RELAY	1-82510-506-4	01	1	0309-
65	COVER; BATTERY RELAY	1-82510-505-2	01	1	0309-
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0309-
68	RELAY; BATTERY	1-82550-313-0	01	1	0309-
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0309-
155	NUT; RELAY,BATTERY M8 FLANGE	0-91150-108-0	01	1	0309-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	0309-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	0309-
180	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	0309-
208	FUSE (C) 80A	1-82516-031-0	01	1	0309-
208	FUSE (B) 100A	1-82516-032-0	01	1	0309-
208	FUSE (A) 40A GREEN	8-94468-662-0	05	1	0309-

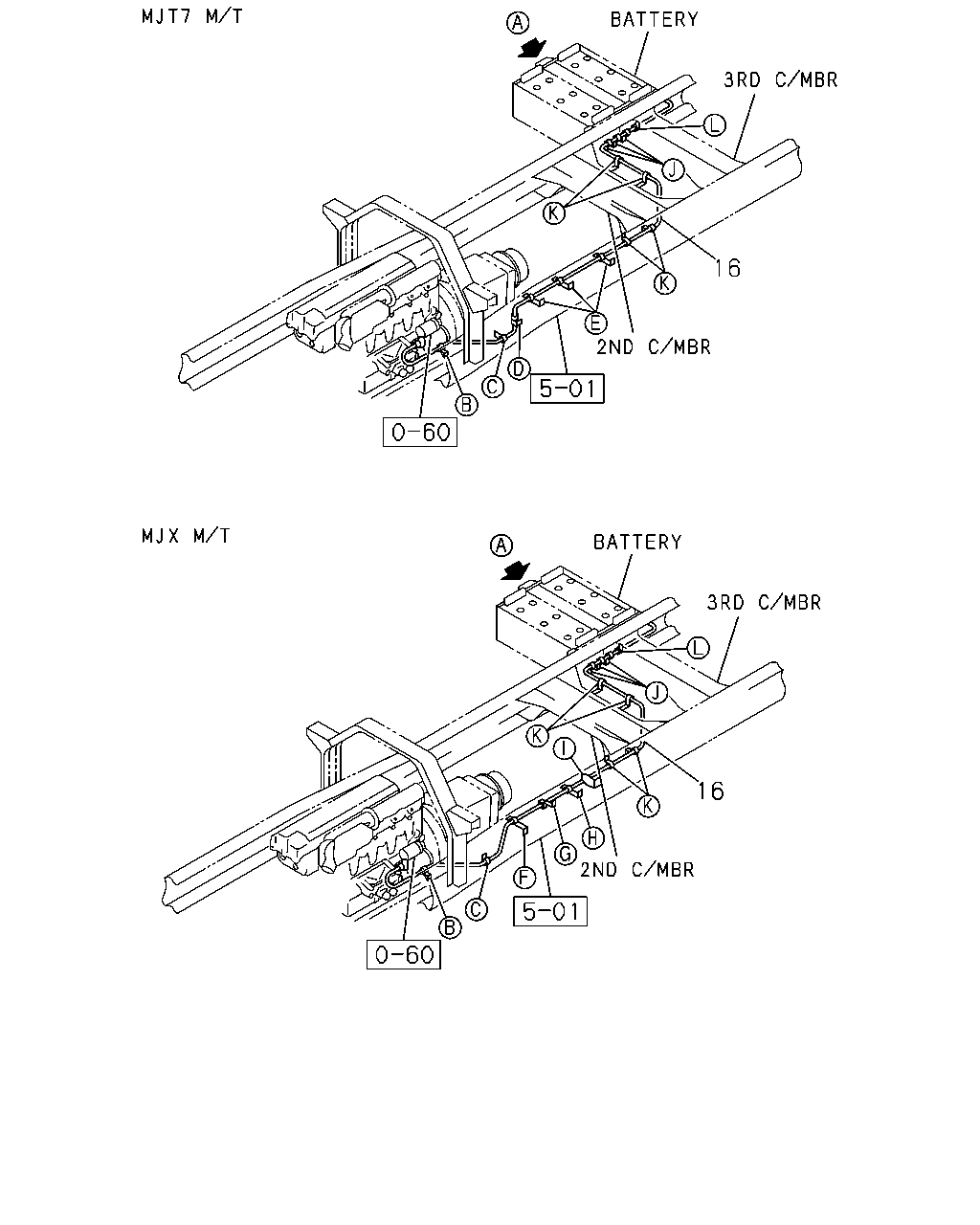

16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CABLE; STARTER TO RELAY MJT7 M/T<Y9E> MIXER TRUCK<RA2> L=5970	1-82652-895-0	01	1	0312-
16	CABLE; STARTER TO RELAY MJT7 M/T<Y9E> L=6030	1-82652-867-1	01	1	0309-0311
16	CABLE; STARTER TO RELAY MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> L=6030	1-82652-867-1	01	1	0312-
16	CABLE; STARTER TO RELAY MJX M/T<Y9N> L=5890	1-82652-886-3	01	1	0309-
