0-57 — EMISSION PIPING (#25577) — 22 parça

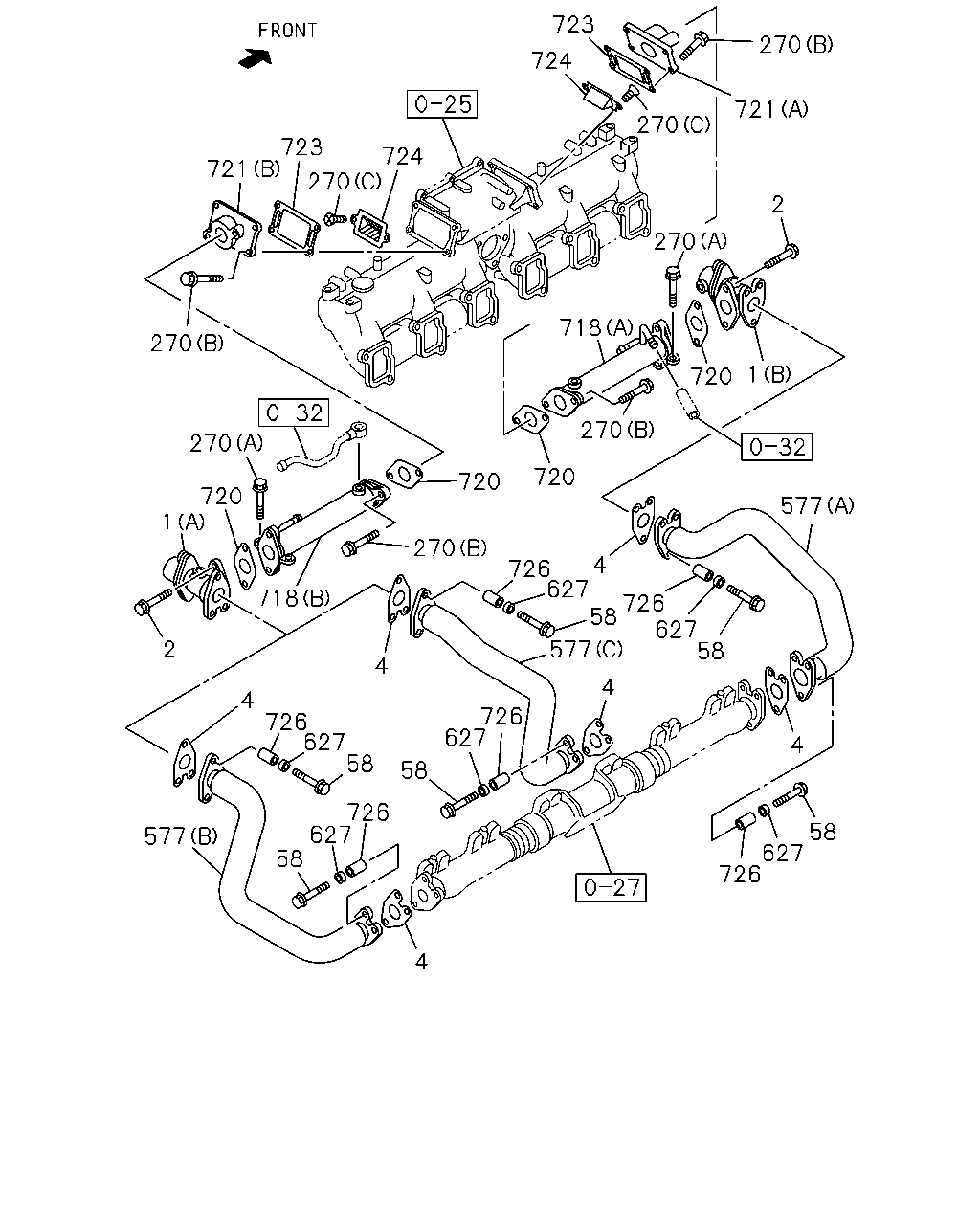

çizim 24668
723 270 724 721 270 723 721 724 270 2 270 718 270 1 720 270 270 720 720 720 577 1 718 270 726 4 627 726 58 627 58 2 577 4 4 4 726 627 726 627 58 4 58 726 627 58 58 627 726 577 4
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; EGR
(B) 		1-16110-015-2 01 1 0309-
1 VALVE; EGR
(A) 		1-16110-016-2 01 1 0309-
2 BOLT; EGR VLV
M10X20 FLANGE 		0-28181-020-0 04 1 0309-
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16157-015-0 04 1 0309-
58 BOLT; PIPE
M10X55 FLANGE 		8-94399-863-1 12 1 0309-
270 BOLT
(A) M10X20 FLANGE 		0-28181-020-0 04 1 0309-
270 BOLT
(B) M10X30 FLANGE 		0-28181-030-0 12 1 0309-
270 BOLT
(C) M6X12 HEX SOCKET 		9-05820-612-0 04 1 0309-
577 PIPE; AIR,EGR
ENGINE REAR PTO<SV1> (C) 		1-16181-102-3 01 1 0309-
577 PIPE; AIR,EGR
(A) 		1-16181-083-2 01 1 0309-
577 PIPE; AIR,EGR
EXC. ENGINE REAR PTO<SV1> (B) 		1-16181-084-2 01 1 0309-
627 WASHER; LK,EGR PIPE
T=2.2 		1-09556-015-0 12 1 0309-
718 COOLER; EGR
(A) 		1-16127-016-2 01 1 0309-
718 COOLER; EGR
(B) 		1-16127-017-2 01 1 0309-
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16157-016-0 04 1 0309-
721 DUCT; COOLER
(A) 		1-16183-035-1 01 1 0309-
721 DUCT; COOLER
(B) 		1-16183-036-1 01 1 0309-
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16185-004-0 02 1 0309-
724 VALVE; REED 8-98186-738-0 02 1 0309-
726 TUBE; DISTANCE
L=28 		8-97250-073-1 12 1 0309-
çizim 25275
49
BalonParca AdiParca NoAdetTipApplied Date
49 CLIP; HOSE
ID=10 & 10 		1-09709-277-1 01 1 0311-
49 CLIP; HOSE
ID=10 & 10 		1-09709-277-1 01 1 0309-0309
