Isuzu WW
▶
TRUCKS
▶
CXH
▶
10930 - CXH RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶

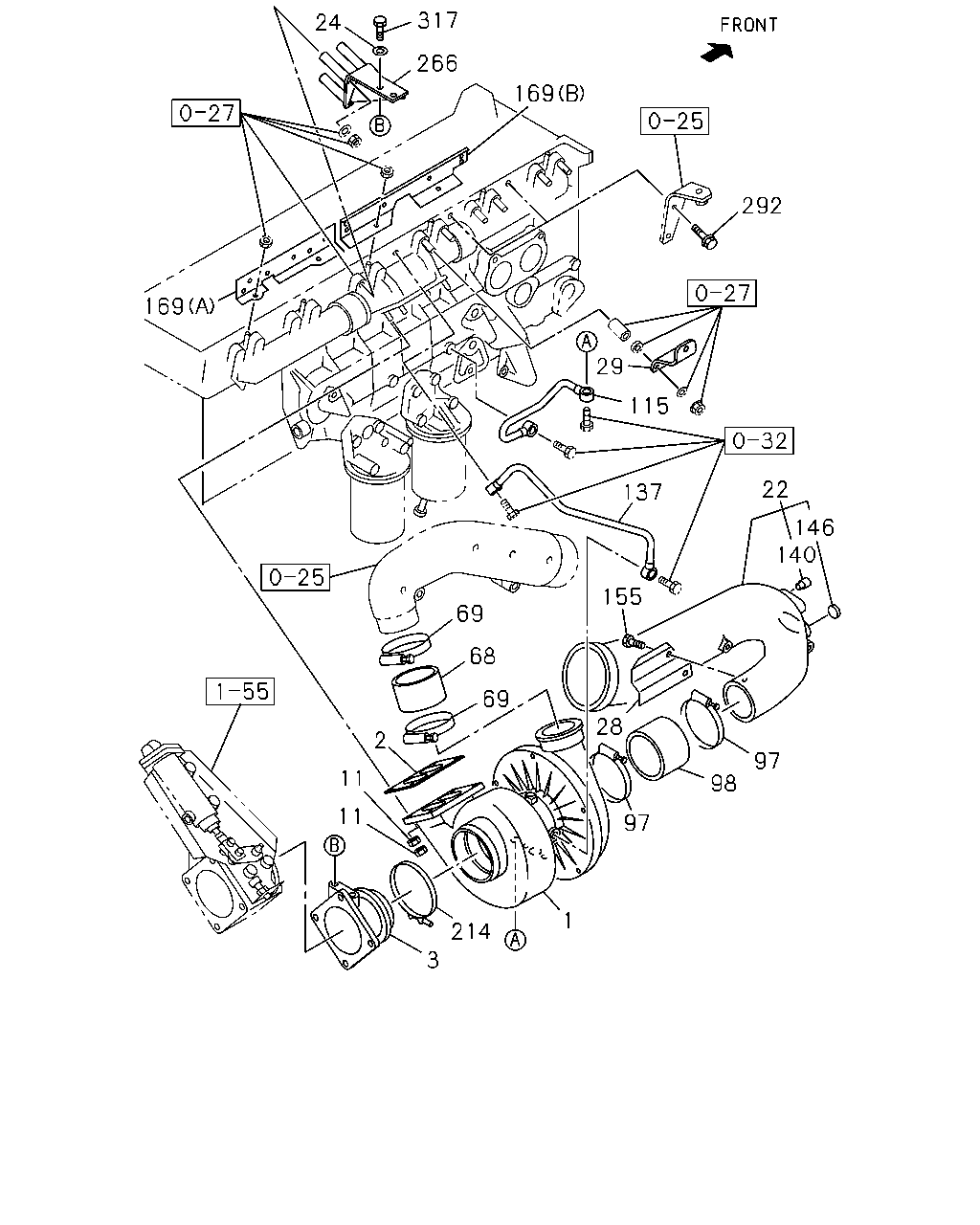

0-36 — TURBOCHARGER SYSTEM
(#25567) — 24 parça
317
24
266
169
292
169
29
115
22
137
146
140
155
69
68
69
28
2
97
98
11
97
1
214
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
1-14400-402-2
01
1
0309-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-187-0
01
1
0309-
3
PIPE; EXH,TURBOCHARGER
1-14144-633-3
01
1
0309-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
08
1
0309-
22
DUCT; INL,ACL TO TURBOCHARGER
AIR COMPRESSOR HEAVY DUTY VAR2(E6A)
1-14134-445-1
01
1
0309-
22
DUCT; INL,ACL TO TURBOCHARGER
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)
1-14134-331-3
01
1
0309-
24
WASHER; PL,PIPE
ID=10.5 OD=22
1-09500-007-0
02
1
0309-
28
PROTECTOR; HEAT,HOSE,AIR DUCT
1-14181-272-0
01
1
0309-
29
BRACKET; INL PIPE,ACL TO TURBOCHARGER
1-14119-392-0
01
1
0309-
68
HOSE; RUBBER,TURBOCHARGER TO INL COVER
1-09361-125-0
01
1
0309-
69
CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85
1-09707-202-0
02
1
0309-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=104-139
1-09707-200-0
02
1
0309-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
1-09360-988-0
01
1
0309-
115
PIPE; WATER,TURBOCHARGER OUT
1-13721-797-0
01
1
0309-
137
PIPE; WATER,TURBOCHARGER IN
1-13721-968-0
01
1
0309-
140
PIPE; AIR PIPE
AIR COMPRESSOR HEAVY DUTY VAR2(E6A)
9-14119-228-1
02
1
0309-
146
PLUG; INL PIPE
OD=30
8-94241-638-0
01
1
0309-
155
BOLT; HEAT PROTECTOR
M8X12 FLANGE
0-28080-812-0
02
1
0309-
169
PROTECTOR; HEAT,HD COVER
(B)
1-14181-302-1
01
1
0309-
169
PROTECTOR; HEAT,HD COVER
(A)
1-14181-320-0
01
1
0309-
214
BAND; "V",TURBOCHARGER TO EXH PIPE
1-09709-094-1
01
1
0309-
266
BRACKET; EXH PIPE
1-14149-219-3
01
1
0309-
292
BOLT; BRKT TO CYL HD
M10X16 FLANGE
0-28181-016-0
04
1
0309-
317
BOLT; EXH PIPE
M10X20
1-09020-073-2
02
1
0309-
