0-35 — ENGINE CONTROL VALVE AND LEVER (#25566) — 11 parça

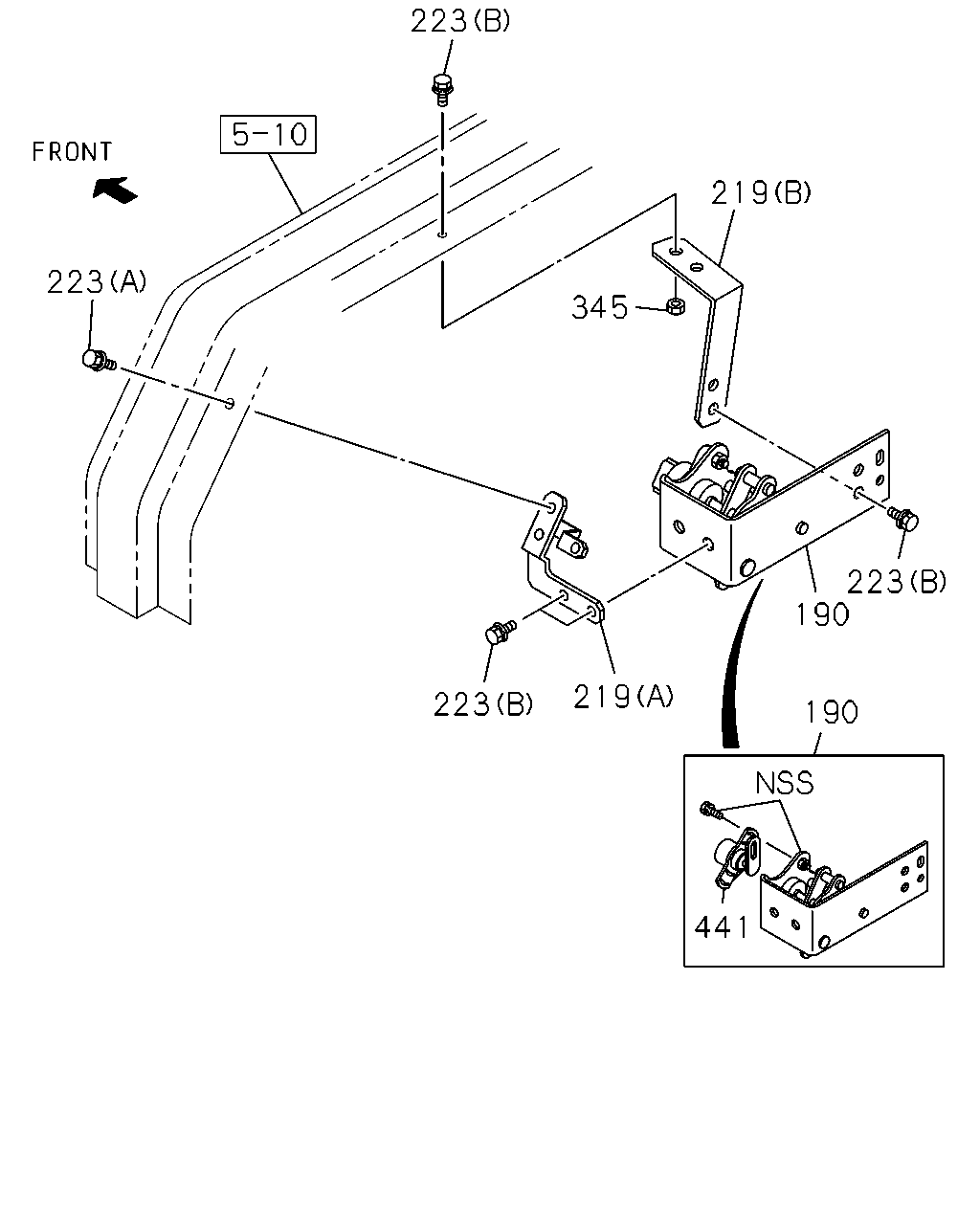

çizim 84921
223 219 223 345 223 190 219 223 190 441
BalonParca AdiParca NoAdetTipApplied Date
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-97219-466-3 01 1 0309-
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (A) 		1-23335-580-0 01 1 0309-
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (B) 		1-23335-581-0 01 1 0309-
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE 		0-28680-820-0 05 1 0309-
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0309-
345 NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE 		0-91150-108-0 01 1 0309-
441 SENSOR; THROTTLE POSITION
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-97200-308-0 01 1 0309-

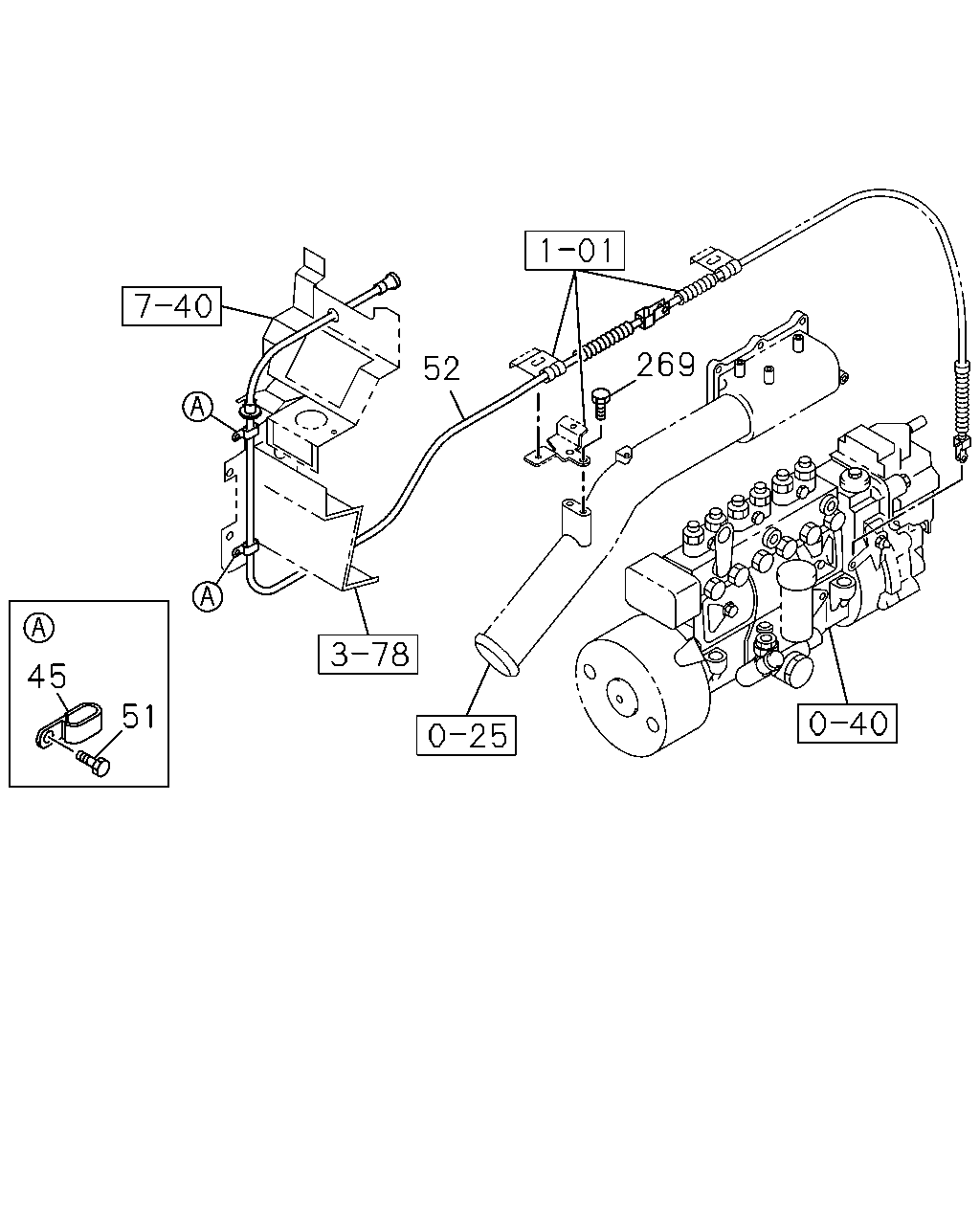

çizim 84956
269 52 45 51
BalonParca AdiParca NoAdetTipApplied Date
45 CLIP; FUEL CUT CABLE
ID=11 L=20 		9-09525-035-0 02 1 0309-
51 BOLT; CLIP,FUEL CUT CABLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0309-
52 CABLE; FUEL CUT
L=3479 		1-73907-677-0 01 1 0309-
269 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 0309-
