Sayfa 8-20 - Isuzu EPC

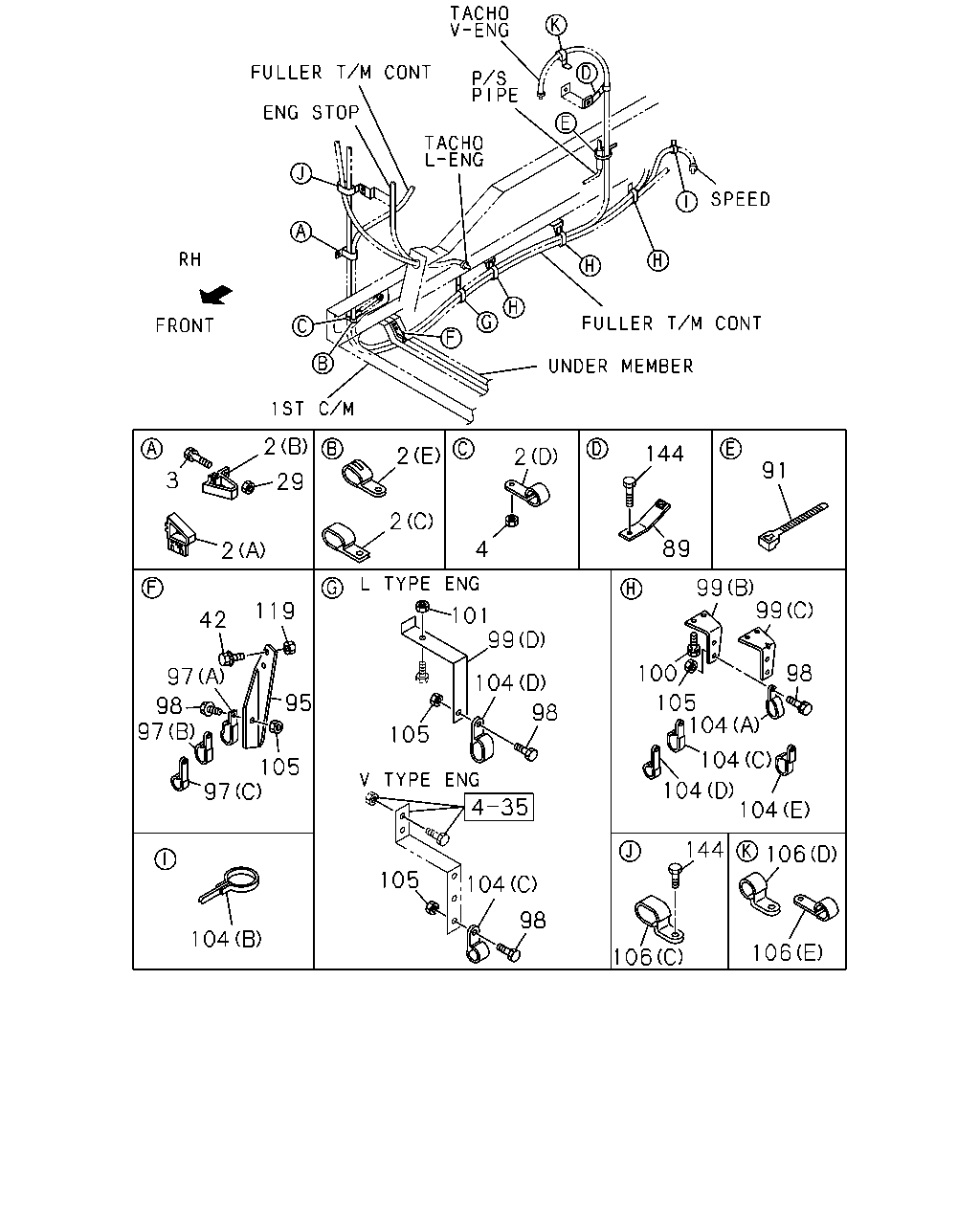

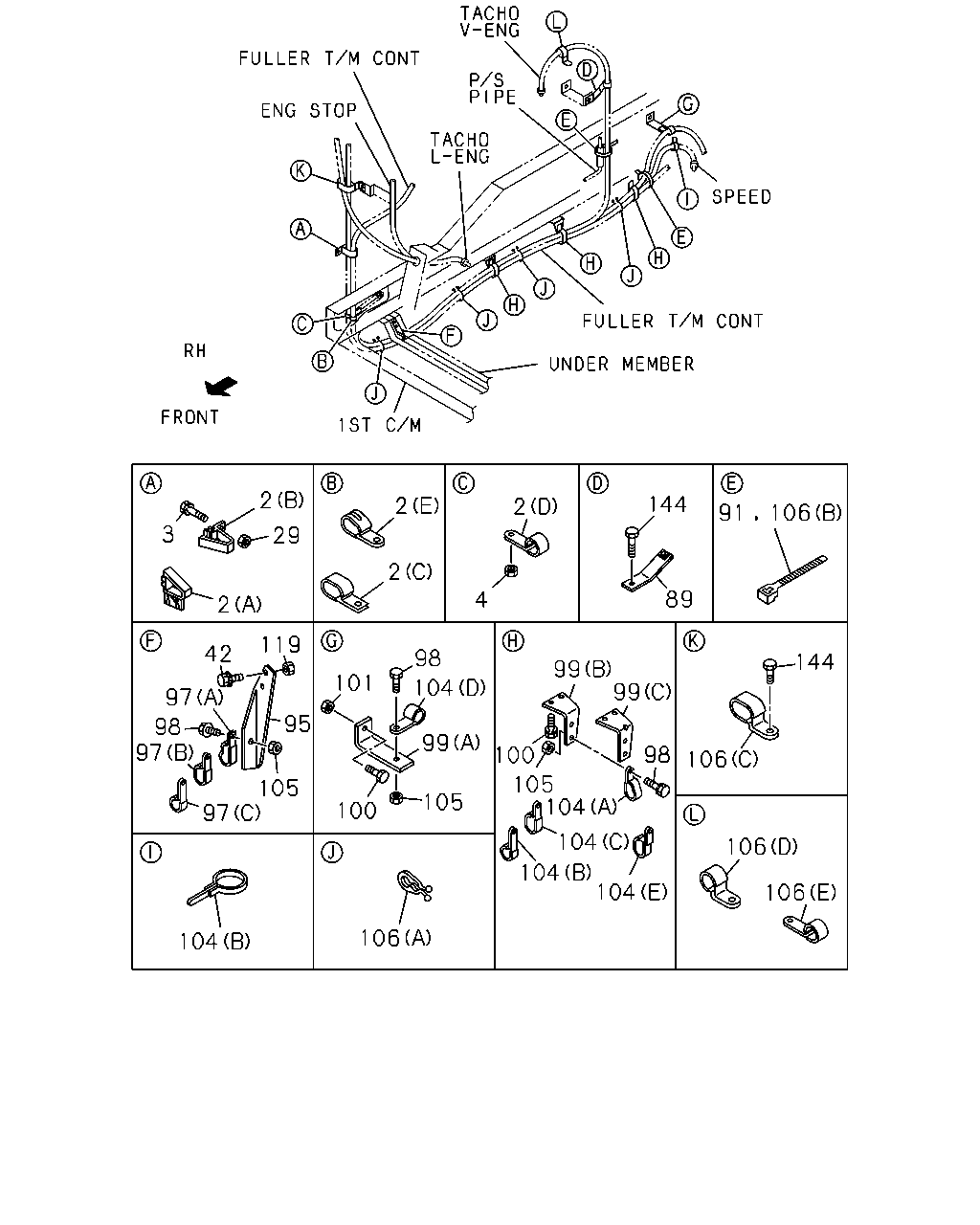

8-20 — METER CABLE (#2556) — 299 parça

2 144 2 2 91 3 29 2 89 4 2 99 99 119 101 99 42 98 100 97 104 105 104 95 98 97 98 105 104 105 97 104 104 144 106 105 104 98 104 106 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CLIP; FLEX SHAFT (D) ID=8 L=31	1-09700-112-1	01	1	9002-
2	CLIP; FLEX SHAFT FULLER M/T<X9B> (C) ID=19.5X2 L=24.5	9-09917-356-0	01	1	9002-
2	CLIP; FLEX SHAFT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (B)	1-09700-772-2	01	1	9307-
2	CLIP; FLEX SHAFT REINFORCEMENT BUMPER<VG7> (A)	1-09700-780-1	01	1	9002-
2	CLIP; FLEX SHAFT EXC. REINFORCEMENT BUMPER<VG7> (B)	1-09700-772-2	01	1	9002-9306
2	CLIP; FLEX SHAFT 10PD1 STD ENG(40L) EXC. FULLER M/T<X9B> (E) ID=10.5 & 14.5 L=20	1-09701-085-0	01	1	9002-
3	BOLT; FLEX SHAFT,CLIP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M8X25 FLANGE	0-28080-825-0	01	1	9307-
3	BOLT; FLEX SHAFT,CLIP REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9002-9204
3	BOLT; FLEX SHAFT,CLIP REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-
3	BOLT; FLEX SHAFT,CLIP EXC. REINFORCEMENT BUMPER<VG7> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204
3	BOLT; FLEX SHAFT,CLIP EXC. REINFORCEMENT BUMPER<VG7> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302
3	BOLT; FLEX SHAFT,CLIP EXC. REINFORCEMENT BUMPER<VG7> M8X25 FLANGE	0-28080-825-0	01	1	9303-9306
3	BOLT; FLEX SHAFT,CLIP 10PD1 STD ENG(40L) M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204
3	BOLT; FLEX SHAFT,CLIP 10PD1 STD ENG(40L) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
3	BOLT; FLEX SHAFT,CLIP 10PD1 STD ENG(40L) M8X20 FLANGE	0-28080-820-0	01	1	9303-
4	NUT; FLEX SHAFT CLIP M8	9-09110-408-0	01	1	9002-
29	NUT; CLIP,METER FLEX SHAFT REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	02	1	9002-
29	NUT; CLIP,METER FLEX SHAFT EXC. REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	01	1	9002-9306
29	NUT; CLIP,METER FLEX SHAFT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	01	1	9307-
42	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
42	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
42	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9303-
89	BRACKET; CLIP TACHOMETER 10PD1 STD ENG(40L)	1-83129-037-1	01	1	9002-
91	CLIP; BAND 10PD1 STD ENG(40L) L=140	5-09707-031-1	01	1	9002-
95	BRACKET; CLIP,UNDER MEMBER	1-47465-665-2	01	1	9002-
97	CLIP; SHAFT UNDER MEMBER L TYPE ENG<90L> FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=20	1-09701-085-0	01	1	9002-
97	CLIP; SHAFT UNDER MEMBER L TYPE ENG<90L> ISUZU M/T<X9A> (C) ID=11 L=16	9-09525-026-0	01	1	9002-9306
97	CLIP; SHAFT UNDER MEMBER L TYPE ENG<90L> ISUZU M/T<X9A> (C) ID=11 L=16	9-09525-025-0	01	1	9307-
97	CLIP; SHAFT UNDER MEMBER 10PD1 STD ENG(40L) FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=21	1-09701-084-0	01	1	9002-
97	CLIP; SHAFT UNDER MEMBER 10PD1 STD ENG(40L) ISUZU M/T<X9A> (B) ID=11X2 L=16	9-09535-026-0	01	1	9002-9306
97	CLIP; SHAFT UNDER MEMBER 10PD1 STD ENG(40L) ISUZU M/T<X9A> (B) ID=11X2 L=16	9-09535-025-0	01	1	9307-
98	BOLT; CLIP M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204
98	BOLT; CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302
98	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9303-
98	BOLT; CLIP M8X20 W/LK&PL WASHER	9-01960-820-0	03	1	9002-9204
98	BOLT; CLIP M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	9205-
98	BOLT; CLIP ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9411-
98	BOLT; CLIP FRONT STABILIZER SHAFT<F59> M8X20 FLANGE	0-28080-820-0	01	1	9307-9501
98	BOLT; CLIP FRONT STABILIZER SHAFT<F59> L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9502-
98	BOLT; CLIP FRONT STABILIZER SHAFT<F59> V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE	0-28080-820-0	01	1	9502-
98	BOLT; CLIP FULLER M/T<X9B> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9010-9204
98	BOLT; CLIP FULLER M/T<X9B> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-
99	BRACKET; FRAME (B)	1-46147-049-1	03	1	9002-9110
99	BRACKET; FRAME (C)	1-46147-183-0	03	1	9111-9410
99	BRACKET; FRAME 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> (C)	1-46147-183-0	03	1	9411-
99	BRACKET; FRAME EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-46147-183-0	03	1	9411-
99	BRACKET; FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (C)	1-46147-183-0	02	1	9502-
99	BRACKET; FRAME FULLER M/T<X9B> (A) L=105 B=25	1-47476-161-0	01	1	9010-9306
99	BRACKET; FRAME L TYPE ENG<90L> FULLER M/T<X9B> (A) L=105 B=25	1-47476-161-0	01	1	9307-
99	BRACKET; FRAME L TYPE ENG<90L> FRONT STABILIZER SHAFT<F59> (D)	1-46147-169-1	01	1	9307-
100	BOLT; BRKT FRAME M8X20 W/LK&PL WASHER	9-01960-820-0	06	1	9002-9002
100	BOLT; BRKT FRAME M8X20 W/LK WASHER	9-01900-820-0	06	1	9003-9204
100	BOLT; BRKT FRAME M8X20 W/LK WASHER	0-50040-820-0	06	1	9205-9302
100	BOLT; BRKT FRAME M8X20 FLANGE	0-28080-820-0	06	1	9303-9312
100	BOLT; BRKT FRAME M8X25 FLANGE	0-28080-825-0	06	1	9401-9410
100	BOLT; BRKT FRAME 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28080-825-0	06	1	9411-
100	BOLT; BRKT FRAME EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28080-825-0	06	1	9411-
100	BOLT; BRKT FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X25 FLANGE	0-28080-825-0	04	1	9502-
100	BOLT; BRKT FRAME FULLER M/T<X9B> M8X25 W/LK WASHER	9-01900-825-0	01	1	9010-9204
100	BOLT; BRKT FRAME FULLER M/T<X9B> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302
100	BOLT; BRKT FRAME FULLER M/T<X9B> M8X25 FLANGE	0-28080-825-0	01	1	9303-9306
100	BOLT; BRKT FRAME L TYPE ENG<90L> FULLER M/T<X9B> M8X25 FLANGE	0-28080-825-0	01	1	9307-
100	BOLT; BRKT FRAME L TYPE ENG<90L> FRONT STABILIZER SHAFT<F59> M8X30 FLANGE	0-28080-830-0	01	1	9307-
101	NUT; BRKT FRAME FULLER M/T<X9B> M8	9-09110-408-0	01	1	9010-9306
101	NUT; BRKT FRAME L TYPE ENG<90L> FRONT STABILIZER SHAFT<F59> M8	9-09110-408-0	01	1	9307-
101	NUT; BRKT FRAME L TYPE ENG<90L> FULLER M/T<X9B> M8	9-09110-408-0	01	1	9307-
104	CLIP; SHAFT,FRAME (B) ID=11 L=41	1-09700-403-0	01	1	9002-9009
104	CLIP; SHAFT,FRAME ISUZU M/T<X9A> (B) ID=11 L=41	1-09700-403-0	01	1	9010-
104	CLIP; SHAFT,FRAME (D) ID=11 L=16	9-09525-025-0	01	1	9307-9410
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> FRONT STABILIZER SHAFT<F59> (D) ID=11 L=16	9-09525-025-0	01	1	9307-9410
104	CLIP; SHAFT,FRAME L TYPE ENG<90L> (C) ID=11 L=16	9-09525-025-0	01	1	9411-9501
104	CLIP; SHAFT,FRAME L TYPE ENG<90L> FRONT STABILIZER SHAFT<F59> (C) ID=11 L=16	9-09525-025-0	01	1	9411-9501
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (C) ID=11 L=16	9-09525-025-0	01	1	9411-9501
104	CLIP; SHAFT,FRAME (C) ID=11 L=16	9-09525-025-0	01	1	9502-
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> FRONT STABILIZER SHAFT<F59> (C) ID=11 L=16	9-09525-025-0	01	1	9502-
104	CLIP; SHAFT,FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (E) ID=11 & 11	1-09700-734-0	01	1	9411-
104	CLIP; SHAFT,FRAME L TYPE ENG<90L> FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=20	1-09701-085-0	03	1	9002-
104	CLIP; SHAFT,FRAME L TYPE ENG<90L> ISUZU M/T<X9A> (C) ID=11 L=16	9-09525-026-0	03	1	9002-9306
104	CLIP; SHAFT,FRAME L TYPE ENG<90L> ISUZU M/T<X9A> (C) ID=11 L=16	9-09525-025-0	02	1	9307-
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> FRONT STABILIZER SHAFT<F59> (C) ID=11X2 L=16	9-09535-025-0	01	1	9307-9410
104	CLIP; SHAFT,FRAME FRONT STABILIZER SHAFT<F59> V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (C) ID=11X2 L=16	9-09535-025-0	01	1	9411-9501
104	CLIP; SHAFT,FRAME FRONT STABILIZER SHAFT<F59> V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (C) ID=11X2 L=16	9-09535-025-0	01	1	9502-
104	CLIP; SHAFT,FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (C) ID=11X2 L=16	9-09535-025-0	01	1	9502-
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=21	1-09701-084-0	02	1	9002-
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=20	1-09701-085-0	01	1	9002-9306
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> ISUZU M/T<X9A> (D) ID=11 L=16	9-09525-026-0	01	1	9002-9009
104	CLIP; SHAFT,FRAME FULLER M/T<X9B> (D) ID=11 L=16	9-09525-026-0	01	1	9010-9306
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> ISUZU M/T<X9A> (D) ID=11 L=16	9-09525-026-0	01	1	9010-9306
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> ISUZU M/T<X9A> (C) ID=11X2 L=16	9-09535-026-0	02	1	9002-9306
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> ISUZU M/T<X9A> (C) ID=11X2 L=16	9-09535-025-0	02	1	9307-9410
104	CLIP; SHAFT,FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (C) ID=11X2 L=16	9-09535-025-0	02	1	9411-9501
104	CLIP; SHAFT,FRAME ISUZU M/T<X9A> V TYPE ENG<91L> (C) ID=11X2 L=16	9-09535-025-0	02	1	9411-9501
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> ISUZU M/T<X9A> (C) ID=11X2 L=16	9-09535-025-0	02	1	9502-
105	NUT; CLIP M8	9-09110-408-0	04	1	9002-9410
105	NUT; CLIP M8	9-09110-408-0	03	1	9411-
105	NUT; CLIP M8	9-09110-408-0	01	1	9010-
106	CLIP; SPEEDOMETER CABLE (C) ID=11 & 11	1-09700-734-0	01	1	9002-
106	CLIP; SPEEDOMETER CABLE FULLER M/T<X9B> (B) L=140	5-09707-031-1	01	1	9008-
106	CLIP; SPEEDOMETER CABLE L TYPE ENG<90L> FULLER M/T<X9B> (A) ID=13.5 & 11	1-09709-123-0	05	1	9002-
106	CLIP; SPEEDOMETER CABLE V TYPE ENG<91L> (D) ID=11 L=28	9-09525-055-0	01	1	9002-9306
106	CLIP; SPEEDOMETER CABLE V TYPE ENG<91L> (E) ID=11 H=20 L=20	5-09700-351-0	01	1	9307-
106	CLIP; SPEEDOMETER CABLE V TYPE ENG<91L> FULLER M/T<X9B> (A) ID=13.5 & 11	1-09709-123-0	02	1	9002-
106	CLIP; SPEEDOMETER CABLE V TYPE ENG<91L> FULLER M/T<X9B> (A) ID=13.5 & 9.5 & 11	1-09709-124-0	03	1	9002-
119	NUT; BRKT M8	9-09110-408-0	02	1	9002-
144	BOLT; CLIP SHAFT M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9007
144	BOLT; CLIP SHAFT M8X20 W/LK WASHER	9-01900-820-0	02	1	9008-9204
144	BOLT; CLIP SHAFT M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302
144	BOLT; CLIP SHAFT M8X20 FLANGE	0-28080-820-0	02	1	9303-
144	BOLT; CLIP SHAFT 10PD1 STD ENG(40L) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204
144	BOLT; CLIP SHAFT 10PD1 STD ENG(40L) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
144	BOLT; CLIP SHAFT 10PD1 STD ENG(40L) M8X20 FLANGE	0-28080-820-0	01	1	9303-

5 1 5 32 165 164 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> MJA6 M/T<X9S> TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4300	1-83123-543-1	01	1	9002-9410
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) MJA7 M/T<X9Q> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4300	1-83123-543-1	01	1	9002-9410
1	SHAFT; FLEX,SPD TO CONN 6RB1 STD ENG(07L) TACHOGRAPH 120KM/H<SM8> MJA6 M/T<X9S> L=4300	1-83123-543-1	01	1	9411-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) MJA7 M/T<X9Q> EXC. TACHOGRAPH 120KM/H<SM8>,ANTI NOISE EQUIPMENT<SV9> L=4300	1-83123-543-1	01	1	9411-
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> MJA6 M/T<X9S> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4350	1-83123-649-0	01	1	9002-
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> MJA7 M/T<X9Q> TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4350	1-83123-586-0	01	1	9002-
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> MJA7 M/T<X9Q> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4500	1-83123-544-1	01	1	9002-
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11609B M/T FULLER(X4Z) FINAL GEAR 39/8 18.5"(W3D) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> RR TIRE 11.00-20<97X> L=4250	1-83123-483-1	01	1	9002-9004
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11609B M/T FULLER(X4Z) FINAL GEAR 38/7 18.5"(W3E) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4250	1-83123-483-1	01	1	9002-9004
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) FINAL GEAR 39/8 18.5"(W3D) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> RR TIRE 11.00-20<97X> L=4250	1-83123-483-1	01	1	9005-9011
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) FINAL GEAR 38/7 18.5"(W3E) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4250	1-83123-483-1	01	1	9005-9011
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 41/8 18.5"(W3M) RR TIRE 11.00-20<97X> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4250	1-83123-483-1	01	1	9005-9011
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) FINAL GEAR 39/8 18.5"(W3D) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> RR TIRE 11.00-20<97X> L=4250	1-83123-483-1	01	1	9012-9311
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 43/11 18.5"(W3W) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4250	1-83123-483-1	01	1	9012-9311
1	SHAFT; FLEX,SPD TO CONN 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) RT11609A M/T FULLER(PQ4),RTX11609B M/T FULLER(X8W) FINAL GEAR 38/7 18.5"(W3E) TACHOGRAPH 120KM/H<SM8> L=4250	1-83123-483-1	01	1	9312-
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 43/11 18.5"(W3W) EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4300	1-83123-580-0	01	1	9002-9311
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00-20<97X> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4300	1-83123-580-0	01	1	9002-9311
1	SHAFT; FLEX,SPD TO CONN 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) RT11609A M/T FULLER(PQ4),RTX11609B M/T FULLER(X8W) FINAL GEAR 38/7 18.5"(W3E) EXC. TACHOGRAPH 120KM/H<SM8> L=4300	1-83123-580-0	01	1	9312-
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE10.00-20<96X> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4350	1-83123-581-0	01	1	9002-9311
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) FINAL GEAR 39/8 18.5"(W3D) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE10.00-20<96X> L=4300	1-83123-582-0	01	1	9002-9311
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00-20<97X> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4400	1-83123-583-0	01	1	9002-9311
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11613 M/T FULLER(MV6) FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 43/11 18.5"(W3W) EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4400	1-83123-583-0	01	1	9002-9311
1	SHAFT; FLEX,SPD TO CONN 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) RTO11613 M/T FULLER(MV6) FINAL GEAR 43/11 18.5"(W3W) EXC. TACHOGRAPH 120KM/H<SM8> L=4400	1-83123-583-0	01	1	9312-9503
1	SHAFT; FLEX,SPD TO CONN 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 43/11 18.5"(W3W) EXC. TACHOGRAPH 120KM/H<SM8> L=4400	1-83123-583-0	01	1	9504-
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 18.5"(W3D) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> RR TIRE 11.00-20<97X> L=4350	1-83123-584-0	01	1	9002-9311
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11613 M/T FULLER(MV6) FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 43/11 18.5"(W3W) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4350	1-83123-584-0	01	1	9002-9311
1	SHAFT; FLEX,SPD TO CONN 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) RTO11613 M/T FULLER(MV6) FINAL GEAR 43/11 18.5"(W3W) TACHOGRAPH 120KM/H<SM8> L=4350	1-83123-584-0	01	1	9312-9410
1	SHAFT; FLEX,SPD TO CONN 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) RTO11613 M/T FULLER(MV6) FINAL GEAR 43/11 18.5"(W3W) TACHOGRAPH 120KM/H<SM8> L=4350	1-83123-584-0	01	1	9411-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> MJA7 M/T<X9Q> EXC. TACHOGRAPH 120KM/H<SM8> L=4350	1-83123-584-0	01	1	9411-
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE10.00-20<96X> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4450	1-83123-587-0	01	1	9002-9311
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 18.5"(W3D) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE10.00-20<96X> L=4400	1-83123-588-0	01	1	9002-9311
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) MJA6 M/T<X9S> TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4100	1-83123-520-1	01	1	9002-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) MJA6 M/T<X9S> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4150	1-83123-573-0	01	1	9002-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) MJA7 M/T<X9Q> TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4250	1-83123-747-1	01	1	9002-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 18.5"(W3D) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> RR TIRE 11.00-20<97X> L=4150	1-83123-605-1	01	1	9002-9004
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 38/7 18.5"(W3E) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4150	1-83123-605-1	01	1	9002-9004
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 18.5"(W3D) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> RR TIRE 11.00-20<97X> L=4150	1-83123-605-1	01	1	9005-9311
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 38/7 18.5"(W3E) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4150	1-83123-605-1	01	1	9005-9311
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 41/8 18.5"(W3M) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> RR TIRE 10.00-20<96X> L=4150	1-83123-605-1	01	1	9005-9311
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 38/7 18.5"(W3E) TACHOGRAPH 120KM/H<SM8> L=4150	1-83123-605-1	01	1	9312-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE10.00-20<96X> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4250	1-83123-606-0	01	1	9002-9011
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE10.00-20<96X> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4250	1-83123-606-0	01	1	9012-9311
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 41/8 18.5"(W3M) RR TIRE 11.00-20<97X> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4250	1-83123-606-0	01	1	9012-9311
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 18.5"(W3D) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE10.00-20<96X> L=4200	1-83123-607-0	01	1	9002-9011
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 18.5"(W3D) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE10.00-20<96X> L=4200	1-83123-607-0	01	1	9012-9311
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 41/8 18.5"(W3M) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> RR TIRE 11.00-20<97X> L=4200	1-83123-607-0	01	1	9012-9311
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00-20<97X> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4200	1-83123-651-0	01	1	9002-9004
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 38/7 18.5"(W3E) EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4200	1-83123-651-0	01	1	9002-9004
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00-20<97X> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4200	1-83123-651-0	01	1	9005-9311
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 38/7 18.5"(W3E) EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4200	1-83123-651-0	01	1	9005-9311
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 41/8 18.5"(W3M) RR TIRE 10.00-20<96X> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4200	1-83123-651-0	01	1	9005-9311
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 38/7 18.5"(W3E) EXC. TACHOGRAPH 120KM/H<SM8> L=4200	1-83123-651-0	01	1	9312-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) FINAL GEAR 41/8 18.5"(W3M) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> RR TIRE 11.00-20<97X> L=4200	1-83123-482-1	01	1	9005-9011
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4) FINAL GEAR 39/8 18.5"(W3D) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> RR TIRE 11.00-20<97X> L=4050	1-83123-481-1	01	1	9002-9311
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4) FINAL GEAR 38/7 18.5"(W3E) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4050	1-83123-481-1	01	1	9002-9311
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4) FINAL GEAR 39/8 18.5"(W3D) TACHOGRAPH 120KM/H<SM8> RR TIRE 11.00-20<97X> L=4050	1-83123-481-1	01	1	9312-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4) FINAL GEAR 39/8 18.5"(W3D) TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE10.00-20<96X> L=4100	1-83123-604-0	01	1	9002-
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00-20<97X> EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4100	1-83123-650-0	01	1	9002-9311
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4) FINAL GEAR 38/7 18.5"(W3E) EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH MILES/HOUR<UC5> L=4100	1-83123-650-0	01	1	9002-9311
1	SHAFT; FLEX,SPD TO CONN 10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4) FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00-20<97X> EXC. TACHOGRAPH 120KM/H<SM8> L=4100	1-83123-650-0	01	1	9312-
5	SHAFT; FLEX,TACHOMETER TO ENG 10PD1 STD ENG(40L) (B) L=200	1-83123-450-1	01	1	9002-
5	SHAFT; FLEX,TACHOMETER TO ENG 10PD1 STD ENG(40L) (A) L=4600	1-83123-475-1	01	1	9002-9410
5	SHAFT; FLEX,TACHOMETER TO ENG 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) L=4600	1-83123-475-1	01	1	9411-
5	SHAFT; FLEX,TACHOMETER TO ENG 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> (A) L=4750	1-83123-848-1	01	1	9411-
5	SHAFT; FLEX,TACHOMETER TO ENG 6RA1TC ENG(19L) (A) L=1900	1-83123-490-1	01	1	9002-9306
5	SHAFT; FLEX,TACHOMETER TO ENG 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (A) L=1800	1-83123-627-0	01	1	9002-
32	BOX; GEAR,FLEX SHAFT FULLER M/T<X9B> FINAL GEAR 38/7 18.5"(W3E) RR TIRE 11.00-20<97X>	1-83126-110-0	01	1	9002-
32	BOX; GEAR,FLEX SHAFT FULLER M/T<X9B> FINAL GEAR 38/7 18.5"(W3E) RR TIRE 11.00R20<85X>,RR TIRE 10.00-20<96X>	1-83126-285-0	01	1	9005-
32	BOX; GEAR,FLEX SHAFT FULLER M/T<X9B> FINAL GEAR 38/7 18.5"(W3E) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE10.00-20<96X>	1-83126-109-0	01	1	9002-9004
32	BOX; GEAR,FLEX SHAFT FULLER M/T<X9B> FINAL GEAR 38/7 18.5"(W3E) RR TIRE 10.00R20<87X>	1-83126-109-0	01	1	9005-
32	BOX; GEAR,FLEX SHAFT FULLER M/T<X9B> FINAL GEAR 39/8 18.5"(W3D) RR TIRE 11.00-20<97X>	1-83126-107-0	01	1	9002-
32	BOX; GEAR,FLEX SHAFT FULLER M/T<X9B> FINAL GEAR 41/8 18.5"(W3M) RR TIRE 10.00-20<96X>	1-83126-286-0	01	1	9005-
32	BOX; GEAR,FLEX SHAFT FULLER M/T<X9B> FINAL GEAR 43/11 18.5"(W3W) RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X>	1-83126-293-0	01	1	9012-
32	BOX; GEAR,FLEX SHAFT FULLER M/T<X9B> FINAL GEAR 43/11 18.5"(W3W) RR TIRE 11.00R20<85X>,RR TIRE 11.00-20<97X>	1-83126-294-0	01	1	9012-
48	GROMMET; FLEX SHAFT	1-09333-093-1	01	1	9002-
164	COVER; GROMMET	1-73997-758-0	01	1	9002-
165	SCREW; GROMMET M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9002-

2 144 2 2 91 106 3 29 2 89 4 2 119 42 98 144 99 99 101 104 97 95 98 97 99 98 100 106 100 105 104 105 97 105 104 106 104 104 106 106 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CLIP; FLEX SHAFT (D) ID=8 L=31	1-09700-112-1	01	1	9002-
2	CLIP; FLEX SHAFT FULLER M/T<X9B> (C) ID=19.5X2 L=24.5	9-09917-356-0	01	1	9002-
2	CLIP; FLEX SHAFT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (B)	1-09700-772-2	01	1	9307-
2	CLIP; FLEX SHAFT REINFORCEMENT BUMPER<VG7> (A)	1-09700-780-1	01	1	9002-
2	CLIP; FLEX SHAFT EXC. REINFORCEMENT BUMPER<VG7> (B)	1-09700-772-2	01	1	9002-9306
2	CLIP; FLEX SHAFT 10PD1 STD ENG(40L) EXC. FULLER M/T<X9B> (E) ID=10.5 & 14.5 L=20	1-09701-085-0	01	1	9002-
3	BOLT; FLEX SHAFT,CLIP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M8X25 FLANGE	0-28080-825-0	01	1	9307-
3	BOLT; FLEX SHAFT,CLIP REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9002-9204
3	BOLT; FLEX SHAFT,CLIP REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-
3	BOLT; FLEX SHAFT,CLIP EXC. REINFORCEMENT BUMPER<VG7> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204
3	BOLT; FLEX SHAFT,CLIP EXC. REINFORCEMENT BUMPER<VG7> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302
3	BOLT; FLEX SHAFT,CLIP EXC. REINFORCEMENT BUMPER<VG7> M8X25 FLANGE	0-28080-825-0	01	1	9303-9306
3	BOLT; FLEX SHAFT,CLIP 10PD1 STD ENG(40L) M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204
3	BOLT; FLEX SHAFT,CLIP 10PD1 STD ENG(40L) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
3	BOLT; FLEX SHAFT,CLIP 10PD1 STD ENG(40L) M8X20 FLANGE	0-28080-820-0	01	1	9303-
4	NUT; FLEX SHAFT CLIP M8	9-09110-408-0	01	1	9002-
29	NUT; CLIP,METER FLEX SHAFT REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	02	1	9002-
29	NUT; CLIP,METER FLEX SHAFT EXC. REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	01	1	9002-9306
29	NUT; CLIP,METER FLEX SHAFT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	01	1	9307-
42	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
42	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
42	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9303-
89	BRACKET; CLIP TACHOMETER 10PD1 STD ENG(40L)	1-83129-037-1	01	1	9002-
91	CLIP; BAND 10PD1 STD ENG(40L) L=140	5-09707-031-1	01	1	9002-
95	BRACKET; CLIP,UNDER MEMBER	1-47465-665-2	01	1	9002-
97	CLIP; SHAFT UNDER MEMBER L TYPE ENG<90L> FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=20	1-09701-085-0	01	1	9002-
97	CLIP; SHAFT UNDER MEMBER L TYPE ENG<90L> ISUZU M/T<X9A> (C) ID=11 L=16	9-09525-026-0	01	1	9002-9306
97	CLIP; SHAFT UNDER MEMBER L TYPE ENG<90L> ISUZU M/T<X9A> (C) ID=11 L=16	9-09525-025-0	01	1	9307-
97	CLIP; SHAFT UNDER MEMBER 10PD1 STD ENG(40L) FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=21	1-09701-084-0	01	1	9002-
97	CLIP; SHAFT UNDER MEMBER 10PD1 STD ENG(40L) ISUZU M/T<X9A> (B) ID=11X2 L=16	9-09535-026-0	01	1	9002-9306
97	CLIP; SHAFT UNDER MEMBER 10PD1 STD ENG(40L) ISUZU M/T<X9A> (B) ID=11X2 L=16	9-09535-025-0	01	1	9307-
98	BOLT; CLIP M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204
98	BOLT; CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302
98	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9303-
98	BOLT; CLIP M8X20 W/LK&PL WASHER	9-01960-820-0	03	1	9002-9204
98	BOLT; CLIP M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	9205-
98	BOLT; CLIP ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9411-
98	BOLT; CLIP FRONT STABILIZER SHAFT<F59> M8X20 FLANGE	0-28080-820-0	01	1	9307-9501
98	BOLT; CLIP FRONT STABILIZER SHAFT<F59> L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9502-
98	BOLT; CLIP FRONT STABILIZER SHAFT<F59> V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE	0-28080-820-0	01	1	9502-
98	BOLT; CLIP FULLER M/T<X9B> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9010-9204
98	BOLT; CLIP FULLER M/T<X9B> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-
99	BRACKET; FRAME (B)	1-46147-049-1	03	1	9002-9110
99	BRACKET; FRAME (C)	1-46147-183-0	03	1	9111-9410
99	BRACKET; FRAME 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> (C)	1-46147-183-0	03	1	9411-
99	BRACKET; FRAME EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-46147-183-0	03	1	9411-
99	BRACKET; FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (C)	1-46147-183-0	02	1	9502-
99	BRACKET; FRAME FULLER M/T<X9B> (A) L=105 B=25	1-47476-161-0	01	1	9010-9306
99	BRACKET; FRAME L TYPE ENG<90L> FULLER M/T<X9B> (A) L=105 B=25	1-47476-161-0	01	1	9307-
99	BRACKET; FRAME L TYPE ENG<90L> FRONT STABILIZER SHAFT<F59> (D)	1-46147-169-1	01	1	9307-
100	BOLT; BRKT FRAME M8X20 W/LK&PL WASHER	9-01960-820-0	06	1	9002-9002
100	BOLT; BRKT FRAME M8X20 W/LK WASHER	9-01900-820-0	06	1	9003-9204
100	BOLT; BRKT FRAME M8X20 W/LK WASHER	0-50040-820-0	06	1	9205-9302
100	BOLT; BRKT FRAME M8X20 FLANGE	0-28080-820-0	06	1	9303-9312
100	BOLT; BRKT FRAME M8X25 FLANGE	0-28080-825-0	06	1	9401-9410
100	BOLT; BRKT FRAME 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28080-825-0	06	1	9411-
100	BOLT; BRKT FRAME EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28080-825-0	06	1	9411-
100	BOLT; BRKT FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> M8X25 FLANGE	0-28080-825-0	04	1	9502-
100	BOLT; BRKT FRAME FULLER M/T<X9B> M8X25 W/LK WASHER	9-01900-825-0	01	1	9010-9204
100	BOLT; BRKT FRAME FULLER M/T<X9B> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302
100	BOLT; BRKT FRAME FULLER M/T<X9B> M8X25 FLANGE	0-28080-825-0	01	1	9303-9306
100	BOLT; BRKT FRAME L TYPE ENG<90L> FULLER M/T<X9B> M8X25 FLANGE	0-28080-825-0	01	1	9307-
100	BOLT; BRKT FRAME L TYPE ENG<90L> FRONT STABILIZER SHAFT<F59> M8X30 FLANGE	0-28080-830-0	01	1	9307-
101	NUT; BRKT FRAME FULLER M/T<X9B> M8	9-09110-408-0	01	1	9010-9306
101	NUT; BRKT FRAME L TYPE ENG<90L> FRONT STABILIZER SHAFT<F59> M8	9-09110-408-0	01	1	9307-
101	NUT; BRKT FRAME L TYPE ENG<90L> FULLER M/T<X9B> M8	9-09110-408-0	01	1	9307-
104	CLIP; SHAFT,FRAME (B) ID=11 L=41	1-09700-403-0	01	1	9002-9009
104	CLIP; SHAFT,FRAME ISUZU M/T<X9A> (B) ID=11 L=41	1-09700-403-0	01	1	9010-
104	CLIP; SHAFT,FRAME (D) ID=11 L=16	9-09525-025-0	01	1	9307-9410
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> FRONT STABILIZER SHAFT<F59> (D) ID=11 L=16	9-09525-025-0	01	1	9307-9410
104	CLIP; SHAFT,FRAME L TYPE ENG<90L> (C) ID=11 L=16	9-09525-025-0	01	1	9411-9501
104	CLIP; SHAFT,FRAME L TYPE ENG<90L> FRONT STABILIZER SHAFT<F59> (C) ID=11 L=16	9-09525-025-0	01	1	9411-9501
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (C) ID=11 L=16	9-09525-025-0	01	1	9411-9501
104	CLIP; SHAFT,FRAME (C) ID=11 L=16	9-09525-025-0	01	1	9502-
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> FRONT STABILIZER SHAFT<F59> (C) ID=11 L=16	9-09525-025-0	01	1	9502-
104	CLIP; SHAFT,FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (E) ID=11 & 11	1-09700-734-0	01	1	9411-
104	CLIP; SHAFT,FRAME L TYPE ENG<90L> FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=20	1-09701-085-0	03	1	9002-
104	CLIP; SHAFT,FRAME L TYPE ENG<90L> ISUZU M/T<X9A> (C) ID=11 L=16	9-09525-026-0	03	1	9002-9306
104	CLIP; SHAFT,FRAME L TYPE ENG<90L> ISUZU M/T<X9A> (C) ID=11 L=16	9-09525-025-0	02	1	9307-
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> FRONT STABILIZER SHAFT<F59> (C) ID=11X2 L=16	9-09535-025-0	01	1	9307-9410
104	CLIP; SHAFT,FRAME FRONT STABILIZER SHAFT<F59> V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (C) ID=11X2 L=16	9-09535-025-0	01	1	9411-9501
104	CLIP; SHAFT,FRAME FRONT STABILIZER SHAFT<F59> V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (C) ID=11X2 L=16	9-09535-025-0	01	1	9502-
104	CLIP; SHAFT,FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (C) ID=11X2 L=16	9-09535-025-0	01	1	9502-
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=21	1-09701-084-0	02	1	9002-
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> FULLER M/T<X9B> (A) ID=10.5 & 14.5 L=20	1-09701-085-0	01	1	9002-9306
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> ISUZU M/T<X9A> (D) ID=11 L=16	9-09525-026-0	01	1	9002-9009
104	CLIP; SHAFT,FRAME FULLER M/T<X9B> (D) ID=11 L=16	9-09525-026-0	01	1	9010-9306
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> ISUZU M/T<X9A> (D) ID=11 L=16	9-09525-026-0	01	1	9010-9306
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> ISUZU M/T<X9A> (C) ID=11X2 L=16	9-09535-026-0	02	1	9002-9306
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> ISUZU M/T<X9A> (C) ID=11X2 L=16	9-09535-025-0	02	1	9307-9410
104	CLIP; SHAFT,FRAME ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (C) ID=11X2 L=16	9-09535-025-0	02	1	9411-9501
104	CLIP; SHAFT,FRAME ISUZU M/T<X9A> V TYPE ENG<91L> (C) ID=11X2 L=16	9-09535-025-0	02	1	9411-9501
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> ISUZU M/T<X9A> (C) ID=11X2 L=16	9-09535-025-0	02	1	9502-
105	NUT; CLIP M8	9-09110-408-0	04	1	9002-9410
105	NUT; CLIP M8	9-09110-408-0	03	1	9411-
105	NUT; CLIP M8	9-09110-408-0	01	1	9010-
106	CLIP; SPEEDOMETER CABLE (C) ID=11 & 11	1-09700-734-0	01	1	9002-
106	CLIP; SPEEDOMETER CABLE FULLER M/T<X9B> (B) L=140	5-09707-031-1	01	1	9008-
106	CLIP; SPEEDOMETER CABLE L TYPE ENG<90L> FULLER M/T<X9B> (A) ID=13.5 & 11	1-09709-123-0	05	1	9002-
106	CLIP; SPEEDOMETER CABLE V TYPE ENG<91L> (D) ID=11 L=28	9-09525-055-0	01	1	9002-9306
106	CLIP; SPEEDOMETER CABLE V TYPE ENG<91L> (E) ID=11 H=20 L=20	5-09700-351-0	01	1	9307-
106	CLIP; SPEEDOMETER CABLE V TYPE ENG<91L> FULLER M/T<X9B> (A) ID=13.5 & 11	1-09709-123-0	02	1	9002-
106	CLIP; SPEEDOMETER CABLE V TYPE ENG<91L> FULLER M/T<X9B> (A) ID=13.5 & 9.5 & 11	1-09709-124-0	03	1	9002-
119	NUT; BRKT M8	9-09110-408-0	02	1	9002-
144	BOLT; CLIP SHAFT M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9007
144	BOLT; CLIP SHAFT M8X20 W/LK WASHER	9-01900-820-0	02	1	9008-9204
144	BOLT; CLIP SHAFT M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302
144	BOLT; CLIP SHAFT M8X20 FLANGE	0-28080-820-0	02	1	9303-
144	BOLT; CLIP SHAFT 10PD1 STD ENG(40L) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204
144	BOLT; CLIP SHAFT 10PD1 STD ENG(40L) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
144	BOLT; CLIP SHAFT 10PD1 STD ENG(40L) M8X20 FLANGE	0-28080-820-0	01	1	9303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
