Isuzu WW
▶
TRUCKS
▶
CXH
▶
10930 - CXH RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶
0-11 — CYLINDER HEAD
(#25552) — 61 parça
◀

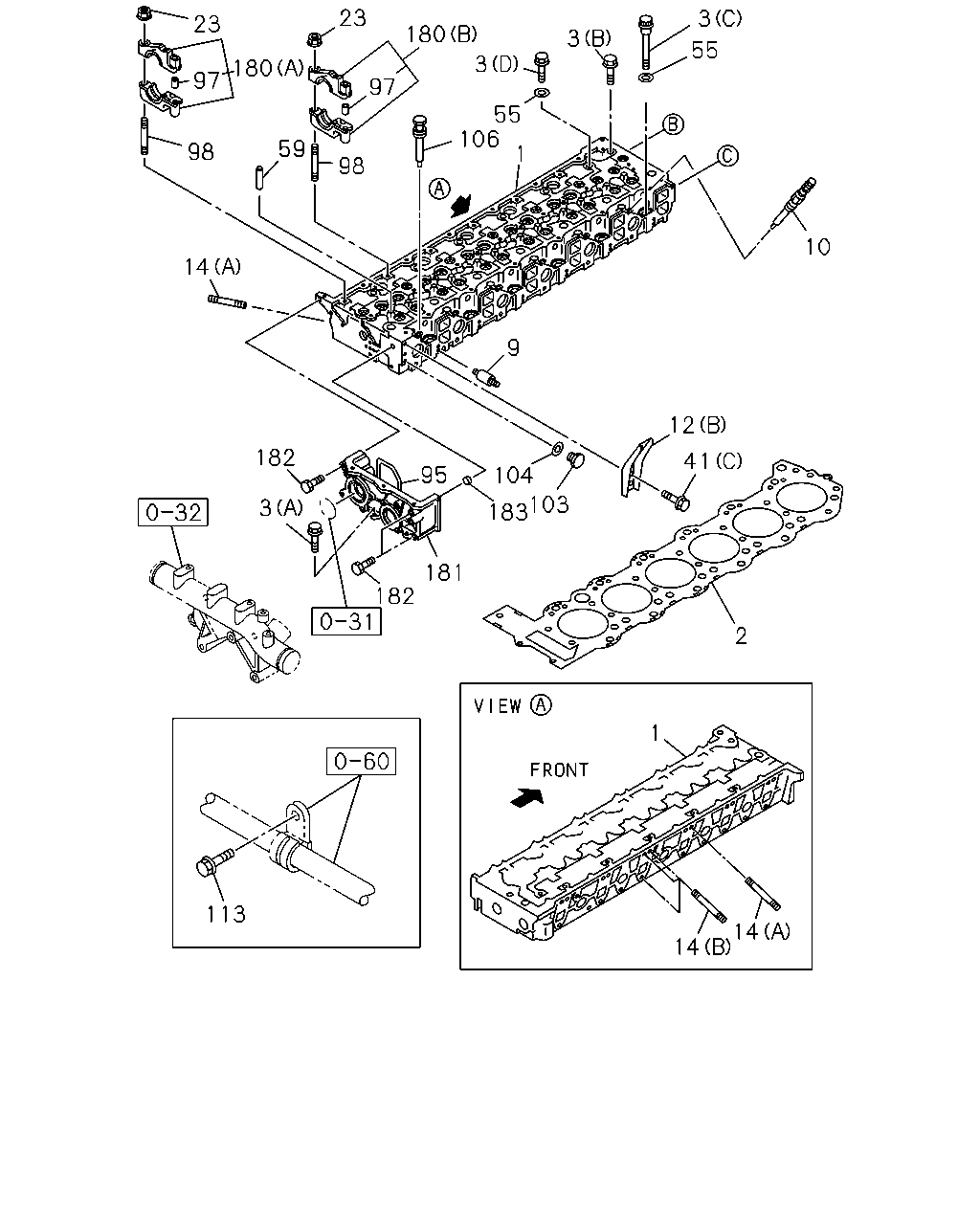

[011A] HD ASM,ENG HANGER AND OTHER PARTS (36 parça)
[011A] COMPONENT;CYL HEAD (13 parça)
[011A] DETAIL;ENG RR HANGER (12 parça)
▶
23
3
23
180
3
55
3
180
97
97
55
106
59
98
1
98
10
14
9
12
182
41
95
104
103
183
3
181
182
2
1
113
14
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
1-11110-896-8
01
1
0309-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11141-265-3
01
1
0309-
3
BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE
0-28181-035-0
02
1
0309-
3
BOLT; CYL HD TO BLOCK
(B) M12X120 FLANGE
0-28186-212-0
01
1
0309-
3
BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE
1-09070-141-0
06
1
0309-
3
BOLT; CYL HD TO BLOCK
(D) M18X159
1-09070-142-0
20
1
0309-
9
STUD; INL MANIF
M10X13,M10X17 L=65
1-09309-008-0
12
1
0309-
10
PLUG; GLOW
1-82513-043-1
06
1
0309-
12
HANGER; ENG,RR
ENGINE REAR PTO<SV1> (A)
1-11777-264-0
01
1
0309-
12
HANGER; ENG,RR
ENGINE REAR PTO<SV1> (C)
1-11777-272-0
01
1
0309-
12
HANGER; ENG,RR
(B)
1-11777-217-0
01
1
0309-
12
HANGER; ENG,RR
EXC. ENGINE REAR PTO<SV1> (D)
1-11777-239-1
01
1
0309-
12
HANGER; ENG,RR
EXC. ENGINE REAR PTO<SV1> (E)
1-11777-263-0
01
1
0309-
14
STUD; EXH MANIF
(A) M10X95 L=110
1-09302-063-0
15
1
0309-
14
STUD; EXH MANIF
(B) M10X130 L=145
1-09302-107-0
03
1
0309-
23
NUT; CAM BRKT
M4 FLANGE
1-09440-004-0
14
1
0309-
41
BOLT; ENG HANGER
ENGINE REAR PTO<SV1> (B) M12X120 FLANGE
0-28186-212-0
02
1
0309-
41
BOLT; ENG HANGER
ENGINE REAR PTO<SV1> (A) M12X37
8-94440-908-0
02
1
0309-
41
BOLT; ENG HANGER
(C) M12X25 FLANGE
0-28191-225-0
02
1
0309-
41
BOLT; ENG HANGER
EXC. ENGINE REAR PTO<SV1> (B) M12X120 FLANGE
0-28186-212-0
01
1
0309-
41
BOLT; ENG HANGER
EXC. ENGINE REAR PTO<SV1> (E) M12X30 FLANGE
0-28191-230-0
02
1
0309-
41
BOLT; ENG HANGER
EXC. ENGINE REAR PTO<SV1> (D) M14X120 FLANGE
0-28986-412-0
01
1
0309-
55
WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29
1-09503-032-0
26
1
0309-
59
GUIDE; BRIDGE
1-11729-005-0
12
1
0309-
95
GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09623-403-0
01
1
0309-
97
DOWEL; CAM BRKT SET
OD=16
1-13119-005-0
28
1
0309-
98
STUD; CAM BRKT
M12X100 L=120
8-94397-322-0
14
1
0309-
103
PLUG; HD
M10X7
1-09604-094-0
01
1
0309-
104
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2
1-09630-083-0
01
1
0309-
106
PLUG; GLOW PLUG HOLE
1-11119-018-0
06
1
0309-
113
BOLT; CLIP
M8X12 FLANGE
0-28080-812-0
01
1
0309-
180
BRACKET SET; CAM,CYL HD
(A)
1-12516-148-1
01
1
0309-
180
BRACKET SET; CAM,CYL HD
(B)
1-12516-152-1
06
1
0309-
181
CASE; HEAD GEAR
1-11310-055-0
01
1
0309-
182
BOLT; CASE
M10X80
9-05921-080-0
07
1
0309-
183
DOWEL; CYL HEAD
1-13119-004-0
02
1
0309-

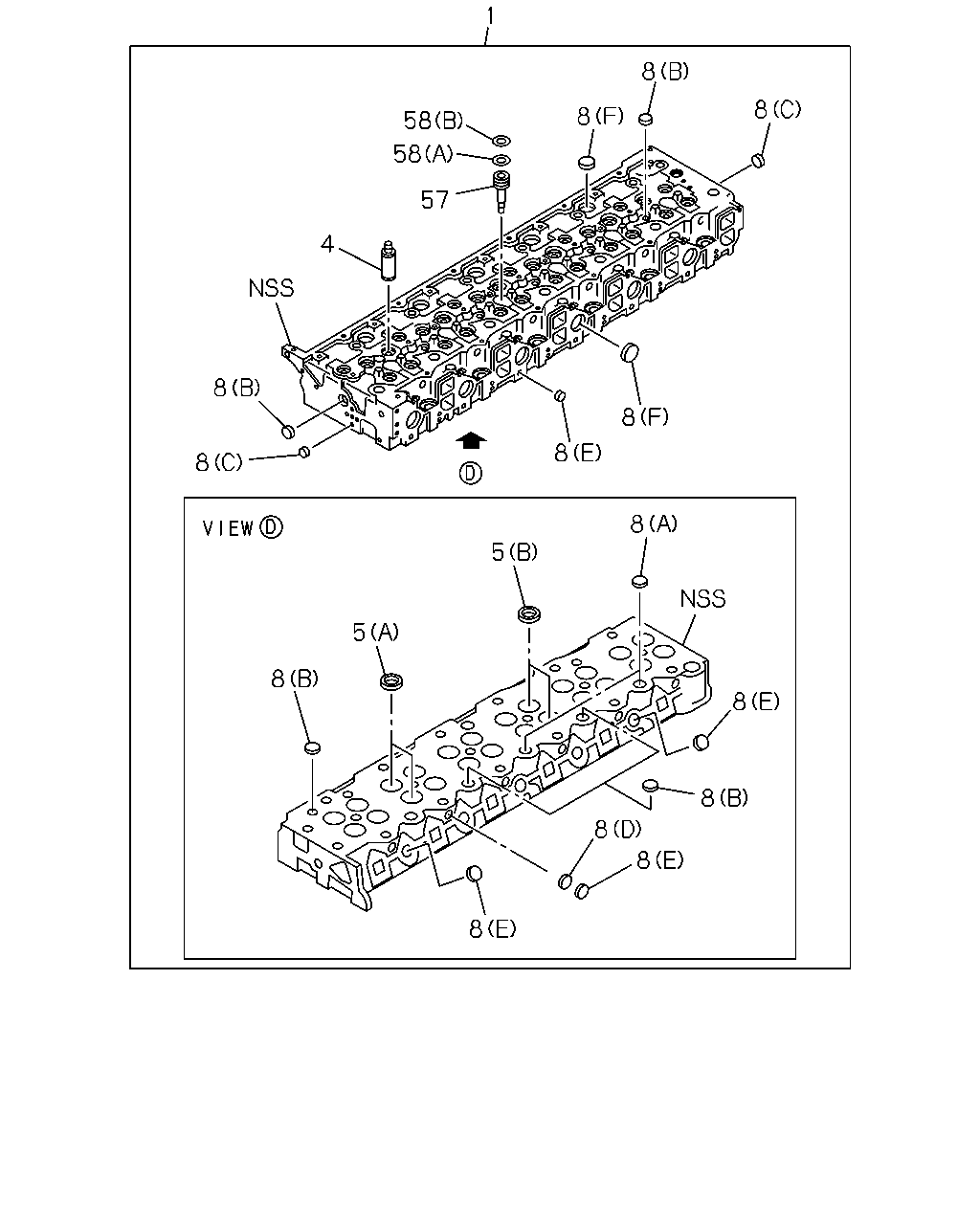

1
8
8
8
58
57
4
8
8
8
8
8
5
5
8
8
8
8
8
8
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
1-11110-896-8
01
1
0309-
4
GUIDE; VLV
1-11721-012-0
24
1
0309-
5
SEAT; VLV INSERT
(A) EXHAUST
1-11711-074-0
12
1
0309-
5
SEAT; VLV INSERT
(B) INLET
1-11715-109-0
12
1
0309-
8
CUP; SEALING,WATER JACKET
(A) OD=32
1-09600-012-2
02
1
0309-
8
CUP; SEALING,WATER JACKET
(B) OD=25
1-09600-016-0
10
1
0309-
8
CUP; SEALING,WATER JACKET
(C) OD=12.3
5-09600-013-0
02
1
0309-
8
CUP; SEALING,WATER JACKET
(D) OD=16
5-11129-006-0
06
1
0309-
8
CUP; SEALING,WATER JACKET
(E) OD=18
5-11219-008-0
12
1
0309-
8
CUP; SEALING,WATER JACKET
(F) OD=40
8-94241-637-0
18
1
0309-
57
SLEEVE; NOZZLE HOLDER
1-11129-067-0
06
1
0309-
58
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=30.9 BLACK
8-97233-126-0
06
1
0309-
58
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=30.9 RED
8-97233-127-0
06
1
0309-
12
12
41
41
41
12
41
132
12
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
HANGER; ENG,RR
ENGINE REAR PTO<SV1> (A)
1-11777-264-0
01
1
0309-
12
HANGER; ENG,RR
ENGINE REAR PTO<SV1> (C)
1-11777-272-0
01
1
0309-
12
HANGER; ENG,RR
(B)
1-11777-217-0
01
1
0309-
12
HANGER; ENG,RR
EXC. ENGINE REAR PTO<SV1> (D)
1-11777-239-1
01
1
0309-
12
HANGER; ENG,RR
EXC. ENGINE REAR PTO<SV1> (E)
1-11777-263-0
01
1
0309-
41
BOLT; ENG HANGER
ENGINE REAR PTO<SV1> (B) M12X120 FLANGE
0-28186-212-0
02
1
0309-
41
BOLT; ENG HANGER
ENGINE REAR PTO<SV1> (A) M12X37
8-94440-908-0
02
1
0309-
41
BOLT; ENG HANGER
(C) M12X25 FLANGE
0-28191-225-0
02
1
0309-
41
BOLT; ENG HANGER
EXC. ENGINE REAR PTO<SV1> (B) M12X120 FLANGE
0-28186-212-0
01
1
0309-
41
BOLT; ENG HANGER
EXC. ENGINE REAR PTO<SV1> (E) M12X30 FLANGE
0-28191-230-0
02
1
0309-
41
BOLT; ENG HANGER
EXC. ENGINE REAR PTO<SV1> (D) M14X120 FLANGE
0-28986-412-0
01
1
0309-
132
WASHER; PL,ENG HANGER
ENGINE REAR PTO<SV1> ID=12.5 OD=26
9-09164-612-0
02
1
0309-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
