◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#2555) — 714 parça

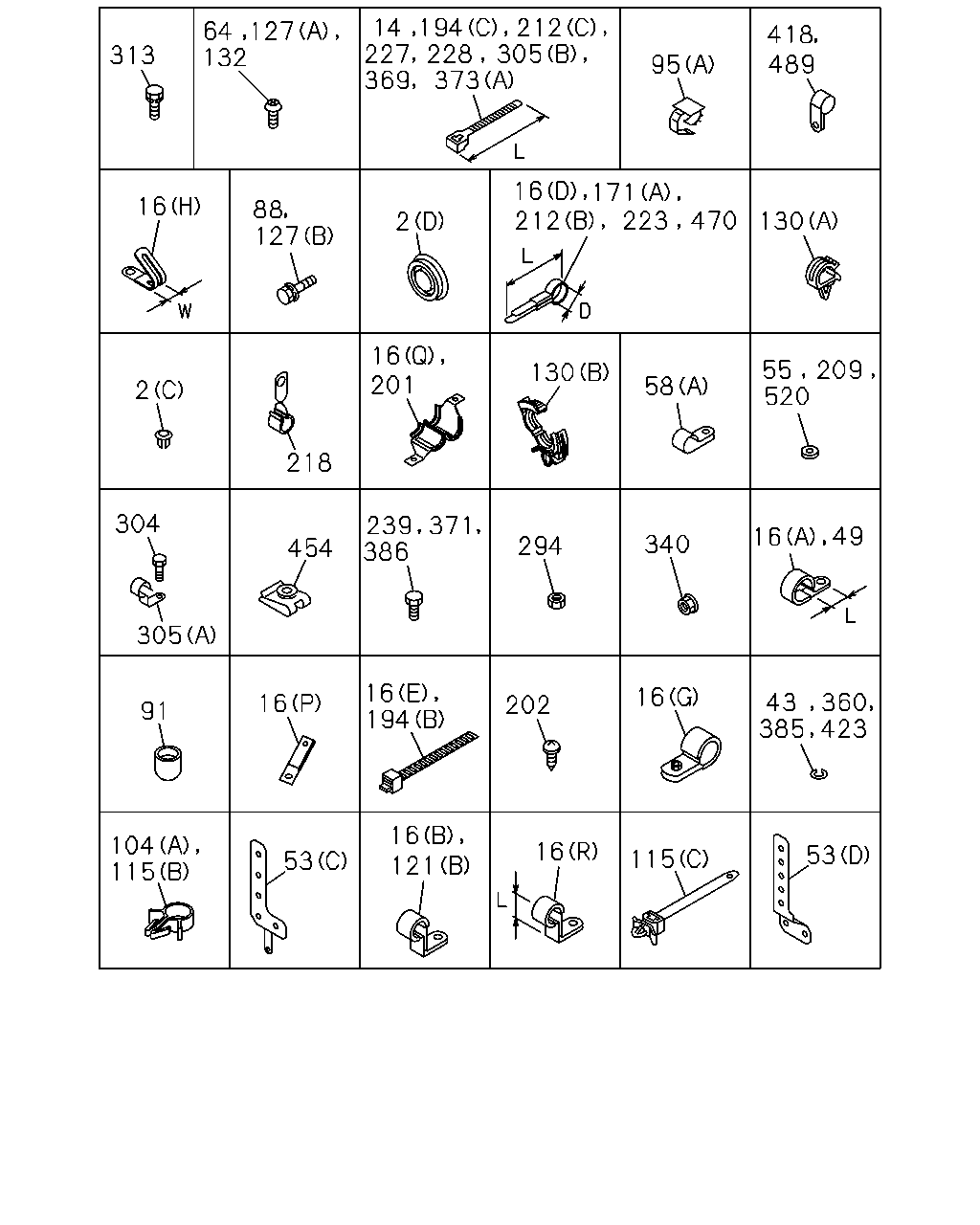

çizim 93725
132 418 489 313 95 16 171 16 88 127 130 2 16 201 520 130 58 2 218 304 386 16 340 294 454 305 16 194 16 16 202 91 16 121 104 115 16 53 115 53 64 127 14 194 212 227 228 305 369 373 212 223 470 55 209 49 239 371 43 360 385 423
BalonParca AdiParca NoAdetTipApplied Date
2 GROMMET; CLIP HOLE,HARNESS
(D) OD=48.5 		1-73907-231-0 01 1 9202-
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO CAB TILT<WV2> (C) OD=12.8 		1-09983-065-0 07 1 9002-
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB(W14) (B) OD=47 		1-09983-039-1 01 1 9002-
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB(W14) (C) OD=12.8 		1-09983-065-0 01 1 9002-
2 GROMMET; CLIP HOLE,HARNESS
EXC. DELUXE CAB(W14) (B) OD=47 		1-09983-039-1 02 1 9002-
2 GROMMET; CLIP HOLE,HARNESS
EXC. DELUXE CAB(W14) (C) OD=12.8 		1-09983-065-0 02 1 9002-
2 GROMMET; CLIP HOLE,HARNESS
EXC. LAMPS FOUR ROOF MARKER<PJ5> (A) ID=20 OD=40 		1-09983-077-0 01 1 9002-
14 CLIP; BAND,HARNESS
L=140 		5-09707-031-1 01 1 9307-
14 CLIP; BAND,HARNESS
FULLER M/T<X9B> L=140 		5-09707-031-1 02 1 9002-
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 12 1 9002-
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 01 1 9002-
16 CLIP; HARNESS
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 9002-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9002-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 01 1 9002-
16 CLIP; HARNESS
(Q) WO/SPONGE RUBBER 		1-09709-103-1 01 1 9002-
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9002-
16 CLIP; HARNESS
(R) ID=11 H=20 L=20 		5-09700-351-0 01 1 9002-
16 CLIP; HARNESS
(C) L=140 		5-09707-031-0 01 1 9002-9402
16 CLIP; HARNESS
(C) L=140 		5-09707-031-1 01 1 9403-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-1 01 1 9403-
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9002-
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 05 1 9002-9309
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 9310-
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-9306
16 CLIP; HARNESS
FULLER M/T<X9B> (A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-9306
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-
16 CLIP; HARNESS
FULLER M/T<X9B> (A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9002-9306
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9002-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9002-
16 CLIP; HARNESS
(A) ID=11 L=28 		9-09525-055-0 01 1 9002-
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-9306
16 CLIP; HARNESS
(D) ID=6 L=36 		9-09917-423-0 01 1 9002-
16 CLIP; HARNESS
(D) ID=18 L=48 		9-09917-429-0 02 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 9002-9306
16 CLIP; HARNESS
(D) ID=18 L=48 		9-09917-429-0 02 1 9002-
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 9002-
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9002-9306
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 04 1 9002-
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 09 1 9104-
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9307-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9307-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-1 01 1 9307-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (S) ID=13 H=46 L=12 		1-09700-493-0 01 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) L=50 ID=11 L=50 		9-09525-085-0 02 1 9104-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 02 1 9002-9010
16 CLIP; HARNESS
FULLER M/T<X9B> (B) ID=12 H=24 L=20 		1-09700-605-0 02 1 9002-
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 9307-
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9307-
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9307-
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008
16 CLIP; HARNESS
L TYPE ENG<90L> (B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-
16 CLIP; HARNESS
L TYPE ENG<90L> (H) ID=18 L=44 		8-94225-185-0 01 1 9307-9309
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 02 1 9310-
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) ID=11 L=28 		9-09525-052-0 01 1 9002-
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-1 01 1 9002-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002-9306
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002-
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9307-
16 CLIP; HARNESS
10PD1 STD ENG(40L) (H) ID=18 L=44 		8-94225-185-0 02 1 9307-9309
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 01 1 9310-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9401-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (D) ID=11 L=41 		1-09700-403-0 02 1 9401-
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=11 L=41 		1-09700-403-0 02 1 9401-
43 WASHER; LK,HARNESS
L TYPE ENG<90L> ID=5.1 		9-09150-505-0 01 1 9002-
49 CLIP; GEN HARNESS
ID=19 L=20 		9-09525-832-0 01 1 9002-
53 BRACKET; HARNESS
(B) 		1-82699-199-0 01 1 9002-
53 BRACKET; HARNESS
(A) 		1-82699-390-2 01 1 9002-
53 BRACKET; HARNESS
AUTO ENG SHUTOFF(KB6) (C) 		1-71907-151-0 01 1 9307-9307
53 BRACKET; HARNESS
AUTO ENG SHUTOFF(KB6) (D) 		1-71997-996-1 01 1 9308-
55 WASHER; PL,CLIP
L TYPE ENG<90L> ID=5.3 		9-09160-505-0 01 1 9002-
58 CLIP; INST HARNESS,SW ACCEL
(A) ID=6.5 		8-94206-730-0 01 1 9002-9108
58 CLIP; INST HARNESS,SW ACCEL
(B) ID=7-10 		8-94472-578-0 01 1 9109-
64 SCREW; CLIP
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002-
64 SCREW; CLIP
M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 9002-9112
88 BOLT; DOOR HARNESS EARTH
DELUXE CAB(W14) M6X22 W/LK&PL WASHER 		1-09980-537-0 01 1 9002-9303
88 BOLT; DOOR HARNESS EARTH
DELUXE CAB(W14) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304-
91 CAP; BOLT,HARNESS 1-82699-340-0 02 1 9004-
95 CLIP; CABLE
(B) L=135 		1-09987-143-1 02 1 9002-9201
95 CLIP; CABLE
(B) L=175 		8-94155-593-1 02 1 9202-9205
95 CLIP; CABLE
INTAKE HEATER<SL2> (B) L=175 		8-94155-593-1 01 1 9206-
95 CLIP; CABLE
(A) 		1-09987-155-1 03 1 9002-
104 CLIP; HEADLAMP HARNESS
(B) ID=9 		5-09707-027-0 02 1 9002-
104 CLIP; HEADLAMP HARNESS
(C) L=112 		8-94232-618-0 08 1 9002-9302
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=20 		9-09525-832-0 01 1 9002-
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=32 		9-09525-862-0 01 1 9002-
104 CLIP; HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 08 1 9303-
104 CLIP; HEADLAMP HARNESS
AUTO CAB TILT<WV2> (A) ID=12 		1-09987-201-0 09 1 9002-
104 CLIP; HEADLAMP HARNESS
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=142 		8-94232-619-0 02 1 9307-
115 CLIP; DOOR HARNESS
DELUXE CAB(W14) (B) ID=9 		5-09707-027-0 01 1 9002-
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (A) 1 SET=5 PIECE 		1-09987-214-0 09 1 9205-
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=9 		5-09707-027-0 02 1 9205-9305
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) L=142 		8-94232-619-0 02 1 9306-
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (A)(4 PIECE SET) ID=15 		1-09987-115-0 01 1 9205-
121 CLIP; FACIA HARNESS
(A) ID=21 L=28 		1-09700-673-1 01 1 9002-
121 CLIP; FACIA HARNESS
(B) ID=23 H=23 L=24 		1-09700-738-0 03 1 9002-
121 CLIP; FACIA HARNESS
(A) ID=16 L=20 		9-09525-532-0 01 1 9002-
121 CLIP; FACIA HARNESS
(A) ID=19 L=20 		9-09525-832-0 01 1 9002-
121 CLIP; FACIA HARNESS
(B) ID=16 H=24 L=20 		9-09527-015-0 02 1 9002-
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-430-0 01 1 9002-9003
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-584-0 01 1 9004-9303
127 SCREW; FACIA HARNESS CLIP
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304-
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		1-09981-375-0 01 1 9002-9304
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9305-
127 SCREW; FACIA HARNESS CLIP
(A) M6X16 W/LK WASHER 		9-03910-616-0 02 1 9002-
130 CLIP; WASHER HARNESS
(A) ID=6.5 		8-94206-730-0 02 1 9002-9202
130 CLIP; WASHER HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 9203-9301
132 SCREW; HARNESS
NEW ZEALAND EQUIPMENT(PK5) M5X12 W/LK&PL WASHER 		1-09981-464-0 02 1 9211-
171 CLIP; STARTER HARNESS
AUTO CAB TILT<WV2> (A) ID=15 L=45 		1-09700-402-0 02 1 9206-9306
171 CLIP; STARTER HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 04 1 9206-9306
171 CLIP; STARTER HARNESS
L TYPE ENG<90L> (B) L=140 		5-09707-031-1 02 1 9002-
171 CLIP; STARTER HARNESS
V TYPE ENG<91L> (B) L=140 		5-09707-031-1 05 1 9002-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 03 1 9002-
194 CLIP; BAND
(A) L=140 		5-09707-031-1 03 1 9002-
194 CLIP; BAND
(A) L=140 		5-09707-031-1 03 1 9002-
194 CLIP; BAND
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) L=140 		5-09707-031-1 03 1 9002-
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-1 06 1 9002-
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 9307-
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) (B) L=180 		1-09707-162-1 01 1 9307-
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) (B) L=180 		1-09707-162-0 01 1 9002-9306
194 CLIP; BAND
L TYPE ENG<90L> (C) L=250 		5-09707-030-1 01 1 9307-
194 CLIP; BAND
(C) L=250 		5-09707-030-1 01 1 9307-
194 CLIP; BAND
(C) L=250 		5-09707-030-0 01 1 9002-9306
201 CLIP; RR COMB CONN
WO/SPONGE RUBBER 		1-09709-103-1 02 1 9002-
202 SCREW; RR COMB LAMP CONN
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 9002-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9002-
212 CLIP; HORN HARNESS
(A) ID=11 L=30 		1-09700-511-0 01 1 9002-
212 CLIP; HORN HARNESS
(C) L=250 		5-09707-030-1 01 1 9002-
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 02 1 9111-
212 CLIP; HORN HARNESS
(D) L=150 		1-09707-145-1 01 1 9305-
218 CLIP; BAND,RR COMB
ID=15 L=42 		1-09700-479-0 02 1 9002-
223 CLIP; AIR TANK HARNESS
ID=15 L=45 		1-09700-402-0 05 1 9002-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> ID=11 L=41 		1-09700-403-0 02 1 9002-
227 CLIP; FOG LAMP HARNESS
L=140 		5-09707-031-1 02 1 9002-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-031-1 05 1 9002-
239 BOLT; GRAND
M5X8 		9-92040-508-0 01 1 9002-9204
239 BOLT; GRAND
M5X8 		0-20800-508-0 01 1 9205-
294 NUT
M6 		9-09110-406-0 01 1 9002-
294 NUT
M8 		9-09110-408-0 07 1 9002-
304 BOLT; ENG HARNESS CLIP
10PD1 STD ENG(40L) M10X16 W/LK WASHER 		9-01931-016-0 04 1 9002-9004
304 BOLT; ENG HARNESS CLIP
10PD1 STD ENG(40L) M10X16 W/LK WASHER 		1-09033-012-0 04 1 9005-
305 CLIP; ENG HARNESS
10PD1 STD ENG(40L) (A) ID=11 H=20 L=17.5 		1-09700-562-1 06 1 9002-
305 CLIP; ENG HARNESS
10PD1 STD ENG(40L) (B) L=140 		5-09707-031-1 02 1 9002-
313 BOLT; BRKT
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204
313 BOLT; BRKT
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302
313 BOLT; BRKT
M6X20 FLANGE 		0-28080-620-0 01 1 9303-
313 BOLT; BRKT
M8X16 W/LK WASHER 		9-01900-816-0 02 1 9002-9204
313 BOLT; BRKT
M8X16 W/LK WASHER 		0-50040-816-0 02 1 9205-9302
313 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 9303-9306
313 BOLT; BRKT
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9002-9204
313 BOLT; BRKT
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9302
313 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 03 1 9307-
313 BOLT; BRKT
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		9-01900-830-0 01 1 9002-9204
313 BOLT; BRKT
10PD1 STD ENG(40L) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9205-9302
313 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 01 1 9303-9306
313 BOLT; BRKT
10PD1 STD ENG(40L) M8X30 FLANGE 		0-28080-830-0 01 1 9303-9306
313 BOLT; BRKT
10PD1 STD ENG(40L) M8X30 FLANGE 		0-28080-830-0 01 1 9307-
340 NUT; HARNESS CAB TO FRAME
M6 FLANGE 		0-91150-106-0 02 1 9002-
360 WASHER; LK,CLIP
ID=5.1 		9-09150-505-0 01 1 9002-
369 CLIP; BAND EDS HARNESS
L=140 		5-09707-031-1 02 1 9002-
371 BOLT; GEN HARNESS
L TYPE ENG<90L> M5X8 		9-92040-508-0 01 1 9002-9204
371 BOLT; GEN HARNESS
L TYPE ENG<90L> M5X8 		0-20800-508-0 01 1 9205-
371 BOLT; GEN HARNESS
V TYPE ENG<91L> M6X14 W/LK WASHER 		9-01900-614-0 01 1 9002-9204
371 BOLT; GEN HARNESS
V TYPE ENG<91L> M6X14 W/LK WASHER 		0-50040-614-0 01 1 9205-9302
371 BOLT; GEN HARNESS
V TYPE ENG<91L> M6X16 FLANGE 		0-28080-616-0 01 1 9303-
373 CLIP; BAND,GEN HARNESS
L TYPE ENG<90L> (A) L=250 		5-09707-030-0 01 1 9002-9003
373 CLIP; BAND,GEN HARNESS
V TYPE ENG<91L> (B) L=300 		1-09707-001-1 02 1 9002-
385 WASHER; LK,CAB EARTH
ID=8.2 		9-09150-508-0 02 1 9002-9212
386 BOLT; GRAND HARNESS
M8X20 		9-02040-820-0 02 1 9002-9204
386 BOLT; GRAND HARNESS
M8X20 		0-20800-820-0 02 1 9205-9212
386 BOLT; GRAND HARNESS
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9301-
418 CLIP; LAMP HARNESS
NEW ZEALAND EQUIPMENT(PK5) ID=6 		9-09524-532-0 02 1 9002-
423 WASHER; HARNESS,EARTH
ID=6.4 		1-09503-263-0 01 1 9301-
454 NUT
M6 FLANGE 		1-09466-001-0 02 1 9002-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 9002-
489 CLIP; HARNESS,OIL PRESS SW
10PD1 STD ENG(40L) ID=11 L=20 		9-09525-035-0 01 1 9002-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9301-9404
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 02 1 9405-

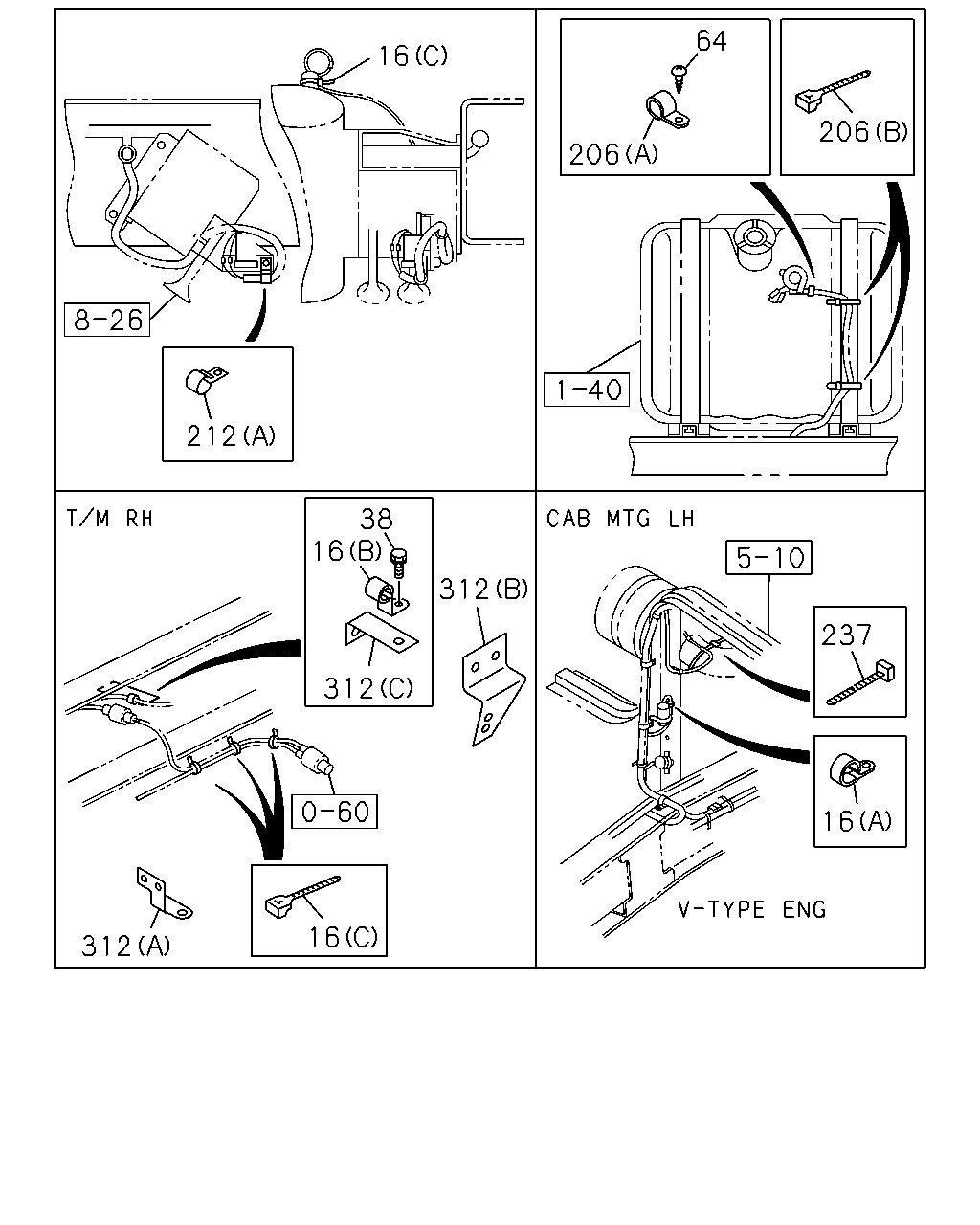

çizim 94251
64 16 206 206 212 38 16 312 237 312 16 16 312
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 12 1 9002-
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 01 1 9002-
16 CLIP; HARNESS
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 9002-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9002-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 01 1 9002-
16 CLIP; HARNESS
(Q) WO/SPONGE RUBBER 		1-09709-103-1 01 1 9002-
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9002-
16 CLIP; HARNESS
(R) ID=11 H=20 L=20 		5-09700-351-0 01 1 9002-
16 CLIP; HARNESS
(C) L=140 		5-09707-031-0 01 1 9002-9402
16 CLIP; HARNESS
(C) L=140 		5-09707-031-1 01 1 9403-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-1 01 1 9403-
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9002-
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 05 1 9002-9309
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 9310-
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-9306
16 CLIP; HARNESS
FULLER M/T<X9B> (A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-9306
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-
16 CLIP; HARNESS
FULLER M/T<X9B> (A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9002-9306
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9002-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9002-
16 CLIP; HARNESS
(A) ID=11 L=28 		9-09525-055-0 01 1 9002-
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-9306
16 CLIP; HARNESS
(D) ID=6 L=36 		9-09917-423-0 01 1 9002-
16 CLIP; HARNESS
(D) ID=18 L=48 		9-09917-429-0 02 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 9002-9306
16 CLIP; HARNESS
(D) ID=18 L=48 		9-09917-429-0 02 1 9002-
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 9002-
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9002-9306
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 04 1 9002-
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 09 1 9104-
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9307-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9307-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-1 01 1 9307-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (S) ID=13 H=46 L=12 		1-09700-493-0 01 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) L=50 ID=11 L=50 		9-09525-085-0 02 1 9104-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 02 1 9002-9010
16 CLIP; HARNESS
FULLER M/T<X9B> (B) ID=12 H=24 L=20 		1-09700-605-0 02 1 9002-
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 9307-
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9307-
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9307-
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008
16 CLIP; HARNESS
L TYPE ENG<90L> (B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-
16 CLIP; HARNESS
L TYPE ENG<90L> (H) ID=18 L=44 		8-94225-185-0 01 1 9307-9309
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 02 1 9310-
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) ID=11 L=28 		9-09525-052-0 01 1 9002-
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-1 01 1 9002-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002-9306
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002-
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9307-
16 CLIP; HARNESS
10PD1 STD ENG(40L) (H) ID=18 L=44 		8-94225-185-0 02 1 9307-9309
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 01 1 9310-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9401-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (D) ID=11 L=41 		1-09700-403-0 02 1 9401-
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=11 L=41 		1-09700-403-0 02 1 9401-
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 24 1 9002-9009
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 24 1 9010-9204
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 16 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 16 1 9303-
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302-
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		9-01900-818-0 02 1 9002-9204
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 09 1 9002-9204
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 09 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 14 1 9303-
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 03 1 9002-9002
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 03 1 9003-9106
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9107-
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		9-01960-620-0 01 1 9002-9204
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9205-9306
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102-
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28010-825-0 07 1 9011-9204
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 07 1 9205-9306
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307-
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9307-
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28080-816-0 01 1 9307-9308
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28080-816-0 02 1 9309-
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303-9306
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9307-
64 SCREW; CLIP
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002-
64 SCREW; CLIP
M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 9002-9112
206 CLIP; FUEL TANK HARNESS
(A) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 9002-9306
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 03 1 9002-
212 CLIP; HORN HARNESS
(A) ID=11 L=30 		1-09700-511-0 01 1 9002-
212 CLIP; HORN HARNESS
(C) L=250 		5-09707-030-1 01 1 9002-
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 02 1 9111-
212 CLIP; HORN HARNESS
(D) L=150 		1-09707-145-1 01 1 9305-
237 CLIP; BAND,ACL
L=600 		1-09707-107-1 01 1 9002-
237 CLIP; BAND,ACL
L=140 		5-09707-031-1 01 1 9002-
312 BRACKET; CLIP HARNESS
(C) L=95 		1-82699-085-0 01 1 9002-
312 BRACKET; CLIP HARNESS
10PD1 STD ENG(40L) (C) L=95 		1-82699-085-0 01 1 9002-
312 BRACKET; CLIP HARNESS
(B) 		1-82699-141-1 01 1 9002-
312 BRACKET; CLIP HARNESS
10PD1 STD ENG(40L) (A) 		1-82699-348-0 01 1 9002-
çizim 95101
38 16 171 27 231
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 12 1 9002-
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 01 1 9002-
16 CLIP; HARNESS
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 9002-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9002-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 01 1 9002-
16 CLIP; HARNESS
(Q) WO/SPONGE RUBBER 		1-09709-103-1 01 1 9002-
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9002-
16 CLIP; HARNESS
(R) ID=11 H=20 L=20 		5-09700-351-0 01 1 9002-
16 CLIP; HARNESS
(C) L=140 		5-09707-031-0 01 1 9002-9402
16 CLIP; HARNESS
(C) L=140 		5-09707-031-1 01 1 9403-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-1 01 1 9403-
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9002-
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 05 1 9002-9309
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 9310-
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-9306
16 CLIP; HARNESS
FULLER M/T<X9B> (A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-9306
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-
16 CLIP; HARNESS
FULLER M/T<X9B> (A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9002-9306
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9002-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9002-
16 CLIP; HARNESS
(A) ID=11 L=28 		9-09525-055-0 01 1 9002-
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-9306
16 CLIP; HARNESS
(D) ID=6 L=36 		9-09917-423-0 01 1 9002-
16 CLIP; HARNESS
(D) ID=18 L=48 		9-09917-429-0 02 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 9002-9306
16 CLIP; HARNESS
(D) ID=18 L=48 		9-09917-429-0 02 1 9002-
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 9002-
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9002-9306
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 04 1 9002-
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 09 1 9104-
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9307-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9307-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-1 01 1 9307-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (S) ID=13 H=46 L=12 		1-09700-493-0 01 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) L=50 ID=11 L=50 		9-09525-085-0 02 1 9104-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 02 1 9002-9010
16 CLIP; HARNESS
FULLER M/T<X9B> (B) ID=12 H=24 L=20 		1-09700-605-0 02 1 9002-
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 9307-
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9307-
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9307-
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008
16 CLIP; HARNESS
L TYPE ENG<90L> (B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-
16 CLIP; HARNESS
L TYPE ENG<90L> (H) ID=18 L=44 		8-94225-185-0 01 1 9307-9309
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 02 1 9310-
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) ID=11 L=28 		9-09525-052-0 01 1 9002-
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-1 01 1 9002-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002-9306
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002-
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9307-
16 CLIP; HARNESS
10PD1 STD ENG(40L) (H) ID=18 L=44 		8-94225-185-0 02 1 9307-9309
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 01 1 9310-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9401-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (D) ID=11 L=41 		1-09700-403-0 02 1 9401-
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=11 L=41 		1-09700-403-0 02 1 9401-
27 PROTECTOR; EDGE
120X150 		1-72370-001-0 01 1 9002-
27 PROTECTOR; EDGE
150X315 		1-72370-002-0 01 1 9002-
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 24 1 9002-9009
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 24 1 9010-9204
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 16 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 16 1 9303-
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302-
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		9-01900-818-0 02 1 9002-9204
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 09 1 9002-9204
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 09 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 14 1 9303-
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 03 1 9002-9002
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 03 1 9003-9106
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9107-
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		9-01960-620-0 01 1 9002-9204
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9205-9306
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102-
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28010-825-0 07 1 9011-9204
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 07 1 9205-9306
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307-
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9307-
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28080-816-0 01 1 9307-9308
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28080-816-0 02 1 9309-
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303-9306
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9307-
171 CLIP; STARTER HARNESS
AUTO CAB TILT<WV2> (A) ID=15 L=45 		1-09700-402-0 02 1 9206-9306
171 CLIP; STARTER HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 04 1 9206-9306
171 CLIP; STARTER HARNESS
L TYPE ENG<90L> (B) L=140 		5-09707-031-1 02 1 9002-
171 CLIP; STARTER HARNESS
V TYPE ENG<91L> (B) L=140 		5-09707-031-1 05 1 9002-
231 CLIP; BAND,OIL PRESS
L=250 		5-09707-030-1 01 1 9002-

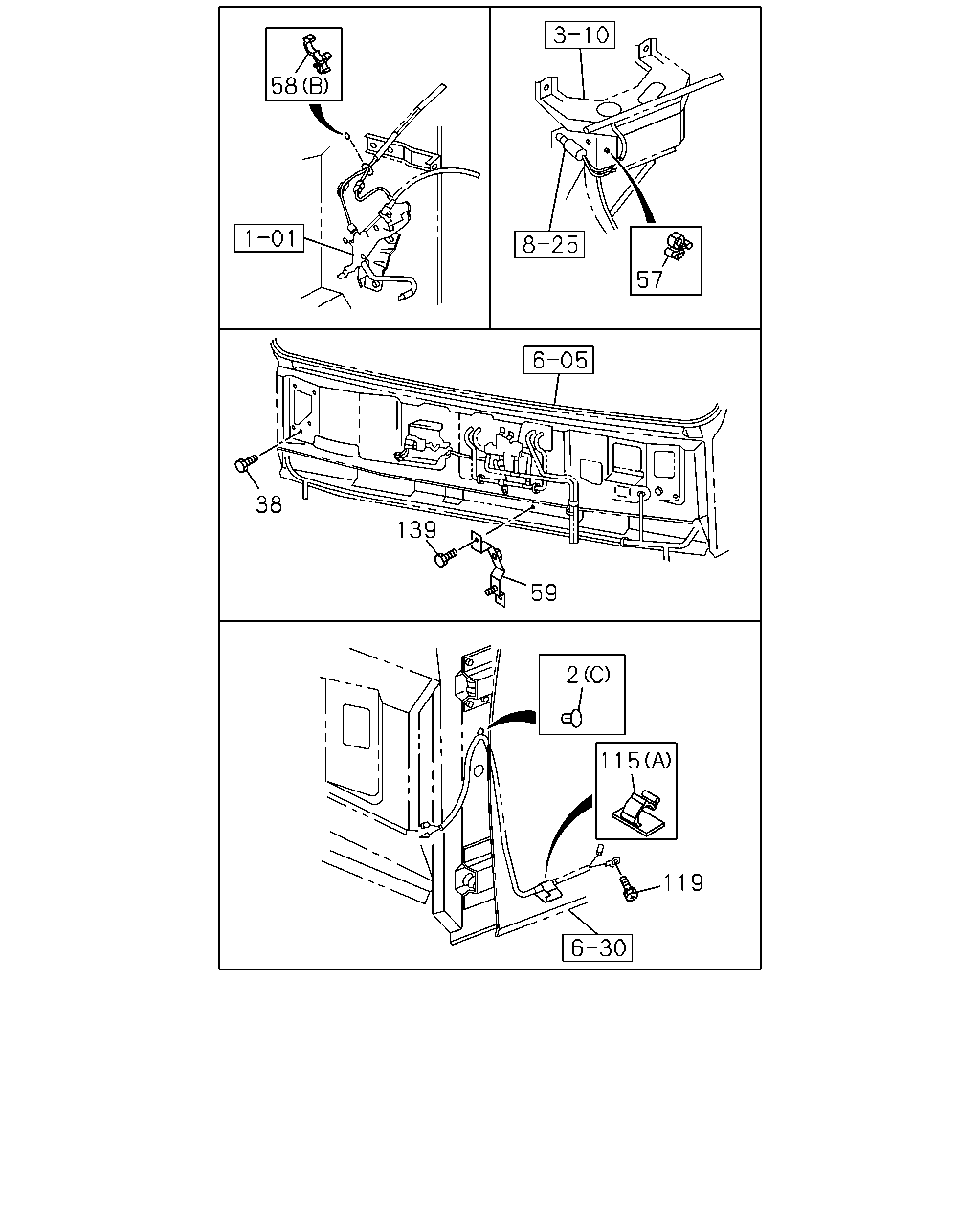

çizim 95154
58 57 38 139 59 2 115 119
BalonParca AdiParca NoAdetTipApplied Date
2 GROMMET; CLIP HOLE,HARNESS
(D) OD=48.5 		1-73907-231-0 01 1 9202-
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO CAB TILT<WV2> (C) OD=12.8 		1-09983-065-0 07 1 9002-
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB(W14) (B) OD=47 		1-09983-039-1 01 1 9002-
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB(W14) (C) OD=12.8 		1-09983-065-0 01 1 9002-
2 GROMMET; CLIP HOLE,HARNESS
EXC. DELUXE CAB(W14) (B) OD=47 		1-09983-039-1 02 1 9002-
2 GROMMET; CLIP HOLE,HARNESS
EXC. DELUXE CAB(W14) (C) OD=12.8 		1-09983-065-0 02 1 9002-
2 GROMMET; CLIP HOLE,HARNESS
EXC. LAMPS FOUR ROOF MARKER<PJ5> (A) ID=20 OD=40 		1-09983-077-0 01 1 9002-
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 24 1 9002-9009
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 24 1 9010-9204
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 16 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 16 1 9303-
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302-
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		9-01900-818-0 02 1 9002-9204
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 09 1 9002-9204
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 09 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 14 1 9303-
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 03 1 9002-9002
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 03 1 9003-9106
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9107-
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		9-01960-620-0 01 1 9002-9204
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9205-9306
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102-
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28010-825-0 07 1 9011-9204
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 07 1 9205-9306
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307-
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9307-
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28080-816-0 01 1 9307-9308
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28080-816-0 02 1 9309-
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303-9306
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9307-
57 CLIP; INST HARNESS,SW CLU 1-09987-161-0 01 1 9002-
58 CLIP; INST HARNESS,SW ACCEL
(A) ID=6.5 		8-94206-730-0 01 1 9002-9108
58 CLIP; INST HARNESS,SW ACCEL
(B) ID=7-10 		8-94472-578-0 01 1 9109-
59 BRACKET; FRAME HARNESS 1-82699-264-0 01 1 9002-
115 CLIP; DOOR HARNESS
DELUXE CAB(W14) (B) ID=9 		5-09707-027-0 01 1 9002-
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (A) 1 SET=5 PIECE 		1-09987-214-0 09 1 9205-
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=9 		5-09707-027-0 02 1 9205-9305
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) L=142 		8-94232-619-0 02 1 9306-
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (A)(4 PIECE SET) ID=15 		1-09987-115-0 01 1 9205-
119 SCREW; DOOR HARNESS EARTH
DELUXE CAB(W14) M4X13 		1-09981-148-0 01 1 9002-9202
119 SCREW; DOOR HARNESS EARTH
DELUXE CAB(W14) EXC. POWER WINDOW<A30> M4X13 		1-09981-148-0 01 1 9203-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M4X13 		1-09981-148-0 02 1 9205-
139 BOLT; BRKT
M6X20 		1-09980-279-0 02 1 9002-
139 BOLT; BRKT
10PD1 STD ENG(40L) M10X20 W/LK WASHER 		9-01931-020-0 01 1 9002-9002
139 BOLT; BRKT
10PD1 STD ENG(40L) M10X20 W/LK WASHER 		0-50051-020-0 01 1 9003-

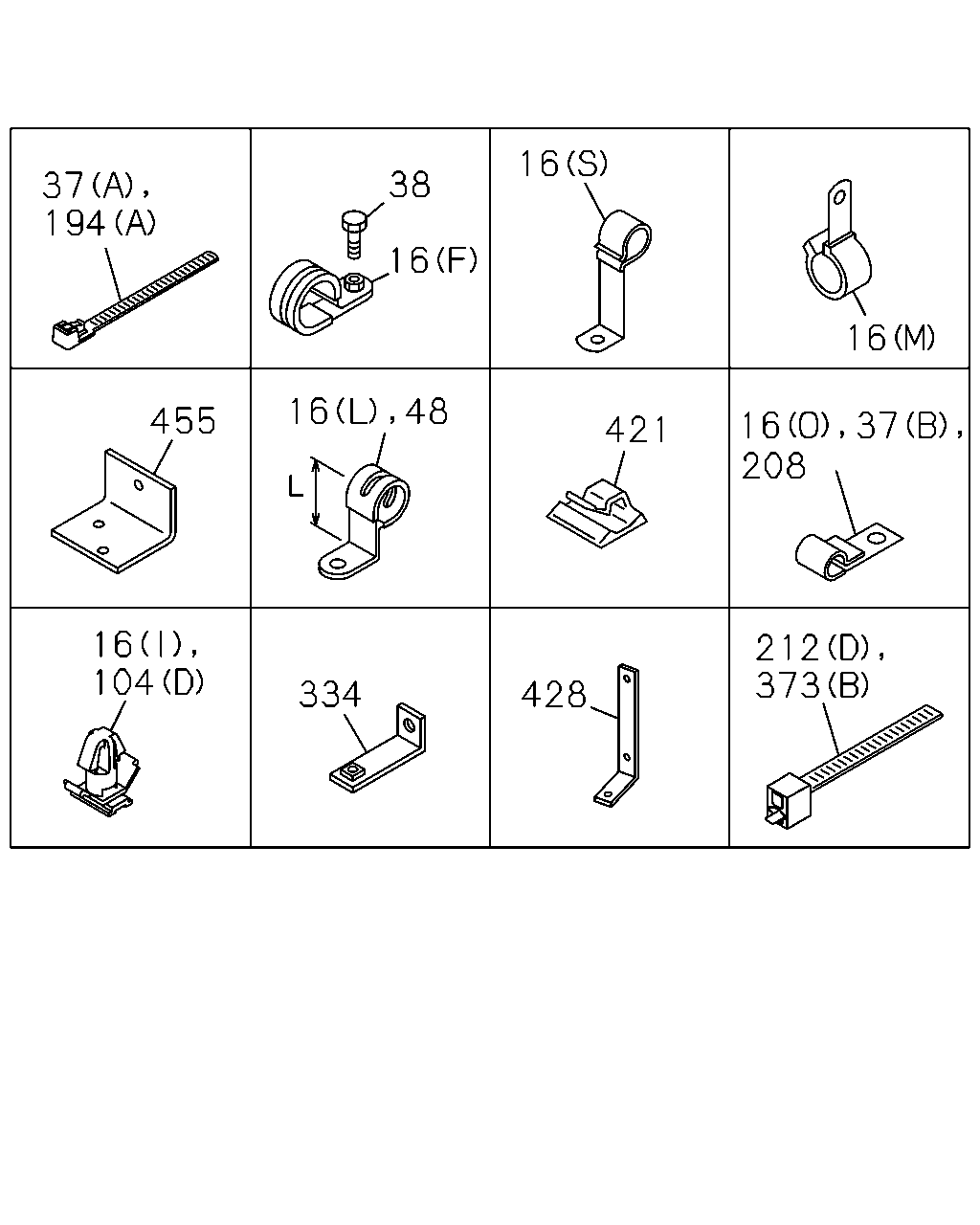

çizim 95489
16 38 37 194 16 16 455 208 421 16 104 212 373 334 428 16 48 16 37
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 12 1 9002-
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 01 1 9002-
16 CLIP; HARNESS
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 9002-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9002-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 01 1 9002-
16 CLIP; HARNESS
(Q) WO/SPONGE RUBBER 		1-09709-103-1 01 1 9002-
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9002-
16 CLIP; HARNESS
(R) ID=11 H=20 L=20 		5-09700-351-0 01 1 9002-
16 CLIP; HARNESS
(C) L=140 		5-09707-031-0 01 1 9002-9402
16 CLIP; HARNESS
(C) L=140 		5-09707-031-1 01 1 9403-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-1 01 1 9403-
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9002-
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 05 1 9002-9309
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 9310-
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-9306
16 CLIP; HARNESS
FULLER M/T<X9B> (A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-9306
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-
16 CLIP; HARNESS
FULLER M/T<X9B> (A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9002-9306
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9002-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9002-
16 CLIP; HARNESS
(A) ID=11 L=28 		9-09525-055-0 01 1 9002-
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-9306
16 CLIP; HARNESS
(D) ID=6 L=36 		9-09917-423-0 01 1 9002-
16 CLIP; HARNESS
(D) ID=18 L=48 		9-09917-429-0 02 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 9002-9306
16 CLIP; HARNESS
(D) ID=18 L=48 		9-09917-429-0 02 1 9002-
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 9002-
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9002-9306
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 04 1 9002-
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 09 1 9104-
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9307-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9307-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-1 01 1 9307-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (S) ID=13 H=46 L=12 		1-09700-493-0 01 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) L=50 ID=11 L=50 		9-09525-085-0 02 1 9104-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 02 1 9002-9010
16 CLIP; HARNESS
FULLER M/T<X9B> (B) ID=12 H=24 L=20 		1-09700-605-0 02 1 9002-
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 9307-
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9307-
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9307-
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008
16 CLIP; HARNESS
L TYPE ENG<90L> (B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-
16 CLIP; HARNESS
L TYPE ENG<90L> (H) ID=18 L=44 		8-94225-185-0 01 1 9307-9309
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 02 1 9310-
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) ID=11 L=28 		9-09525-052-0 01 1 9002-
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-1 01 1 9002-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002-9306
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002-
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9307-
16 CLIP; HARNESS
10PD1 STD ENG(40L) (H) ID=18 L=44 		8-94225-185-0 02 1 9307-9309
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 01 1 9310-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9401-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (D) ID=11 L=41 		1-09700-403-0 02 1 9401-
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=11 L=41 		1-09700-403-0 02 1 9401-
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (B) ID=11 L=30 		1-09700-511-0 01 1 9002-
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-1 01 1 9307-
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 24 1 9002-9009
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 24 1 9010-9204
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 16 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 16 1 9303-
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302-
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		9-01900-818-0 02 1 9002-9204
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 09 1 9002-9204
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 09 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 14 1 9303-
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 03 1 9002-9002
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 03 1 9003-9106
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9107-
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		9-01960-620-0 01 1 9002-9204
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9205-9306
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102-
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28010-825-0 07 1 9011-9204
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 07 1 9205-9306
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307-
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9307-
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28080-816-0 01 1 9307-9308
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28080-816-0 02 1 9309-
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303-9306
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9307-
48 CLIP; FRAME HARNESS
ID=20 L=27 		1-09700-861-0 04 1 9002-
48 CLIP; FRAME HARNESS
ID=24.5 L=25 		1-09700-862-0 13 1 9002-
104 CLIP; HEADLAMP HARNESS
(B) ID=9 		5-09707-027-0 02 1 9002-
104 CLIP; HEADLAMP HARNESS
(C) L=112 		8-94232-618-0 08 1 9002-9302
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=20 		9-09525-832-0 01 1 9002-
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=32 		9-09525-862-0 01 1 9002-
104 CLIP; HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 08 1 9303-
104 CLIP; HEADLAMP HARNESS
AUTO CAB TILT<WV2> (A) ID=12 		1-09987-201-0 09 1 9002-
104 CLIP; HEADLAMP HARNESS
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=142 		8-94232-619-0 02 1 9307-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 03 1 9002-
194 CLIP; BAND
(A) L=140 		5-09707-031-1 03 1 9002-
194 CLIP; BAND
(A) L=140 		5-09707-031-1 03 1 9002-
194 CLIP; BAND
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) L=140 		5-09707-031-1 03 1 9002-
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-1 06 1 9002-
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 9307-
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) (B) L=180 		1-09707-162-1 01 1 9307-
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) (B) L=180 		1-09707-162-0 01 1 9002-9306
194 CLIP; BAND
L TYPE ENG<90L> (C) L=250 		5-09707-030-1 01 1 9307-
194 CLIP; BAND
(C) L=250 		5-09707-030-1 01 1 9307-
194 CLIP; BAND
(C) L=250 		5-09707-030-0 01 1 9002-9306
208 CLIP; HARNESS,MAG VLV
ID=11 L=30 		1-09700-511-0 01 1 9002-9306
212 CLIP; HORN HARNESS
(A) ID=11 L=30 		1-09700-511-0 01 1 9002-
212 CLIP; HORN HARNESS
(C) L=250 		5-09707-030-1 01 1 9002-
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 02 1 9111-
212 CLIP; HORN HARNESS
(D) L=150 		1-09707-145-1 01 1 9305-
334 BRACKET
AUTO CAB TILT<WV2> L=55 		1-47475-304-0 01 1 9206-9306
373 CLIP; BAND,GEN HARNESS
L TYPE ENG<90L> (A) L=250 		5-09707-030-0 01 1 9002-9003
373 CLIP; BAND,GEN HARNESS
V TYPE ENG<91L> (B) L=300 		1-09707-001-1 02 1 9002-
421 CLIP; FLOOR HARNESS
DELUXE CARPET<BF2> NYLON TUBE AIR PIPING<Z29> 		1-09987-055-0 01 1 9002-9003
421 CLIP; FLOOR HARNESS
EXC. DELUXE CARPET<BF2> 		1-09987-055-0 01 1 9002-9003
421 CLIP; FLOOR HARNESS
DELUXE CARPET<BF2> NYLON TUBE AIR PIPING<Z29> 1 SET=5 PIECE 		1-09987-214-0 01 1 9004-
421 CLIP; FLOOR HARNESS
EXC. DELUXE CARPET<BF2> 1 SET=5 PIECE 		1-09987-214-0 01 1 9004-
428 BRACKET 1-82699-109-0 01 1 9002-
455 BRACKET; POWER TILT HARNESS
AUTO CAB TILT<WV2> 		1-82699-125-0 01 1 9002-

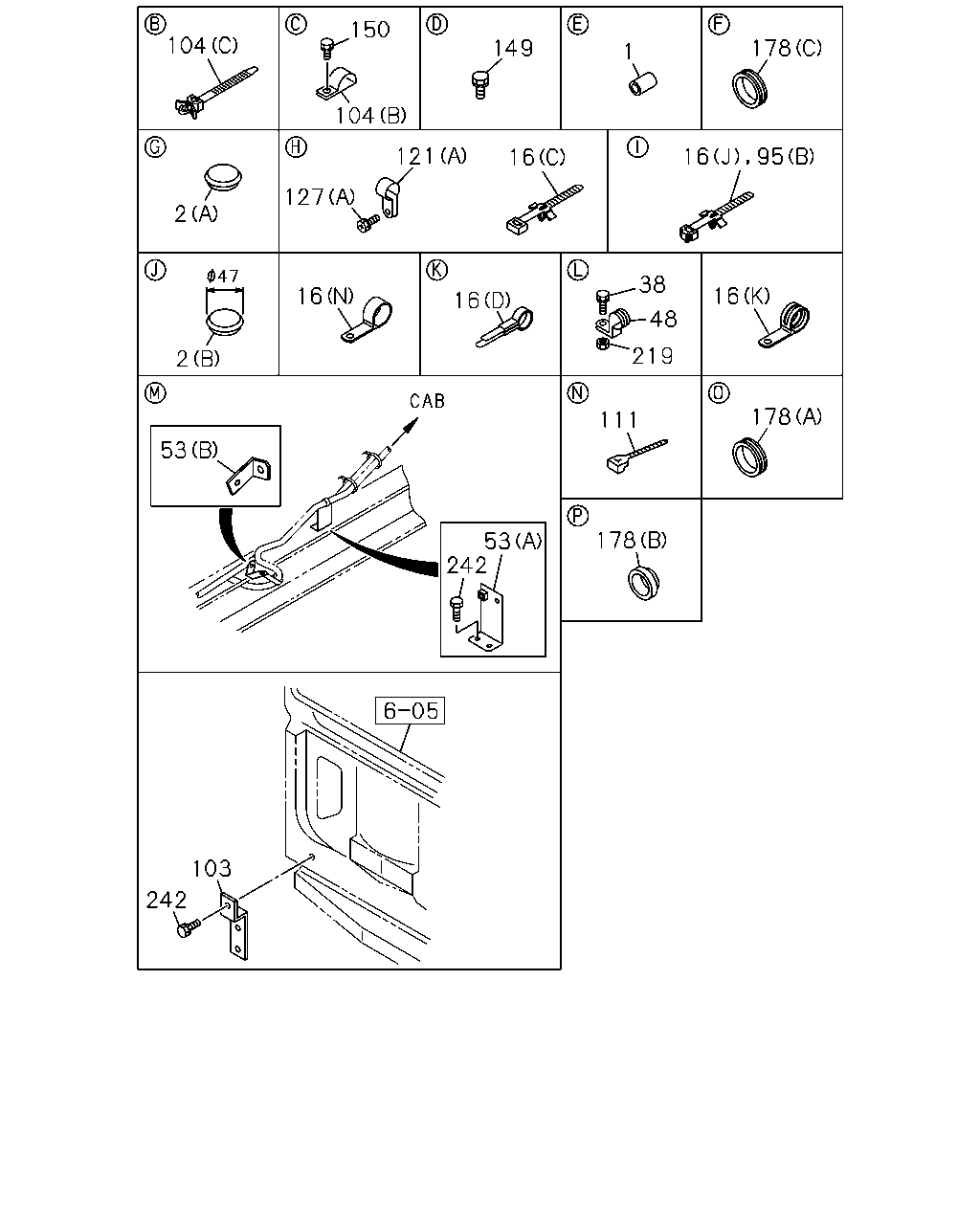

çizim 95518
104 150 149 178 1 104 121 16 127 2 38 16 16 16 48 219 2 178 111 53 178 53 242 103 242 16 95
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
ID=15 OD=19 L=20 		1-09337-007-0 01 1 9002-
1 SLEEVE; RUBBER
L TYPE ENG<90L> ID=15 OD=19 L=20 		1-09337-007-0 01 1 9002-
2 GROMMET; CLIP HOLE,HARNESS
(D) OD=48.5 		1-73907-231-0 01 1 9202-
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO CAB TILT<WV2> (C) OD=12.8 		1-09983-065-0 07 1 9002-
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB(W14) (B) OD=47 		1-09983-039-1 01 1 9002-
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB(W14) (C) OD=12.8 		1-09983-065-0 01 1 9002-
2 GROMMET; CLIP HOLE,HARNESS
EXC. DELUXE CAB(W14) (B) OD=47 		1-09983-039-1 02 1 9002-
2 GROMMET; CLIP HOLE,HARNESS
EXC. DELUXE CAB(W14) (C) OD=12.8 		1-09983-065-0 02 1 9002-
2 GROMMET; CLIP HOLE,HARNESS
EXC. LAMPS FOUR ROOF MARKER<PJ5> (A) ID=20 OD=40 		1-09983-077-0 01 1 9002-
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 12 1 9002-
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 01 1 9002-
16 CLIP; HARNESS
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 9002-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9002-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 01 1 9002-
16 CLIP; HARNESS
(Q) WO/SPONGE RUBBER 		1-09709-103-1 01 1 9002-
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9002-
16 CLIP; HARNESS
(R) ID=11 H=20 L=20 		5-09700-351-0 01 1 9002-
16 CLIP; HARNESS
(C) L=140 		5-09707-031-0 01 1 9002-9402
16 CLIP; HARNESS
(C) L=140 		5-09707-031-1 01 1 9403-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-1 01 1 9403-
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9002-
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 05 1 9002-9309
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 9310-
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-9306
16 CLIP; HARNESS
FULLER M/T<X9B> (A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-9306
16 CLIP; HARNESS
(A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-
16 CLIP; HARNESS
FULLER M/T<X9B> (A) L=20 ID=11 L=20 		9-09525-032-0 01 1 9002-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9002-9306
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9002-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9002-
16 CLIP; HARNESS
(A) ID=11 L=28 		9-09525-055-0 01 1 9002-
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-9306
16 CLIP; HARNESS
(D) ID=6 L=36 		9-09917-423-0 01 1 9002-
16 CLIP; HARNESS
(D) ID=18 L=48 		9-09917-429-0 02 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 9002-9306
16 CLIP; HARNESS
(D) ID=18 L=48 		9-09917-429-0 02 1 9002-
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 9002-
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9002-9306
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 04 1 9002-
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 09 1 9104-
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9307-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9307-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-1 01 1 9307-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (S) ID=13 H=46 L=12 		1-09700-493-0 01 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 9002-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) L=50 ID=11 L=50 		9-09525-085-0 02 1 9104-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 02 1 9002-9010
16 CLIP; HARNESS
FULLER M/T<X9B> (B) ID=12 H=24 L=20 		1-09700-605-0 02 1 9002-
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 9307-
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9307-
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9307-
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008
16 CLIP; HARNESS
L TYPE ENG<90L> (B) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-
16 CLIP; HARNESS
L TYPE ENG<90L> (H) ID=18 L=44 		8-94225-185-0 01 1 9307-9309
16 CLIP; HARNESS
(H) ID=18 L=44 		8-94225-185-0 02 1 9310-
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) ID=11 L=28 		9-09525-052-0 01 1 9002-
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-1 01 1 9002-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002-9306
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002-
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9307-
16 CLIP; HARNESS
10PD1 STD ENG(40L) (H) ID=18 L=44 		8-94225-185-0 02 1 9307-9309
16 CLIP; HARNESS
10PD1 STD ENG(40L) (M) ID=15 L=35 		1-09700-507-0 01 1 9310-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9401-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (D) ID=11 L=41 		1-09700-403-0 02 1 9401-
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=11 L=41 		1-09700-403-0 02 1 9401-
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 24 1 9002-9009
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 24 1 9010-9204
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 16 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 16 1 9303-
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302-
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		9-01900-818-0 02 1 9002-9204
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 09 1 9002-9204
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 09 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 14 1 9303-
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 03 1 9002-9002
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 03 1 9003-9106
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9107-
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		9-01960-620-0 01 1 9002-9204
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9205-9306
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102-
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28010-825-0 07 1 9011-9204
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 07 1 9205-9306
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307-
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9307-
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28080-816-0 01 1 9307-9308
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28080-816-0 02 1 9309-
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		9-01910-616-0 01 1 9002-9005
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9006-9302
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9303-9306
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9307-
48 CLIP; FRAME HARNESS
ID=20 L=27 		1-09700-861-0 04 1 9002-
48 CLIP; FRAME HARNESS
ID=24.5 L=25 		1-09700-862-0 13 1 9002-
53 BRACKET; HARNESS
(B) 		1-82699-199-0 01 1 9002-
53 BRACKET; HARNESS
(A) 		1-82699-390-2 01 1 9002-
53 BRACKET; HARNESS
AUTO ENG SHUTOFF(KB6) (C) 		1-71907-151-0 01 1 9307-9307
53 BRACKET; HARNESS
AUTO ENG SHUTOFF(KB6) (D) 		1-71997-996-1 01 1 9308-
95 CLIP; CABLE
(B) L=135 		1-09987-143-1 02 1 9002-9201
95 CLIP; CABLE
(B) L=175 		8-94155-593-1 02 1 9202-9205
95 CLIP; CABLE
INTAKE HEATER<SL2> (B) L=175 		8-94155-593-1 01 1 9206-
95 CLIP; CABLE
(A) 		1-09987-155-1 03 1 9002-
103 BRACKET; HD LAMP HARNESS
POWER WINDOW<A30> 		1-61470-692-0 01 1 9307-
104 CLIP; HEADLAMP HARNESS
(B) ID=9 		5-09707-027-0 02 1 9002-
104 CLIP; HEADLAMP HARNESS
(C) L=112 		8-94232-618-0 08 1 9002-9302
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=20 		9-09525-832-0 01 1 9002-
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=32 		9-09525-862-0 01 1 9002-
104 CLIP; HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 08 1 9303-
104 CLIP; HEADLAMP HARNESS
AUTO CAB TILT<WV2> (A) ID=12 		1-09987-201-0 09 1 9002-
104 CLIP; HEADLAMP HARNESS
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=142 		8-94232-619-0 02 1 9307-
111 CLIP; STOP LAMP SW HARNESS
L=140 		5-09707-031-1 01 1 9002-
121 CLIP; FACIA HARNESS
(A) ID=21 L=28 		1-09700-673-1 01 1 9002-
121 CLIP; FACIA HARNESS
(B) ID=23 H=23 L=24 		1-09700-738-0 03 1 9002-
121 CLIP; FACIA HARNESS
(A) ID=16 L=20 		9-09525-532-0 01 1 9002-
121 CLIP; FACIA HARNESS
(A) ID=19 L=20 		9-09525-832-0 01 1 9002-
121 CLIP; FACIA HARNESS
(B) ID=16 H=24 L=20 		9-09527-015-0 02 1 9002-
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-430-0 01 1 9002-9003
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-584-0 01 1 9004-9303
127 SCREW; FACIA HARNESS CLIP
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304-
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		1-09981-375-0 01 1 9002-9304
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9305-
127 SCREW; FACIA HARNESS CLIP
(A) M6X16 W/LK WASHER 		9-03910-616-0 02 1 9002-
149 BOLT; HEADLAMP HARNESS EARTH
M6X22 W/LK&PL WASHER 		1-09980-537-0 01 1 9002-9303
149 BOLT; HEADLAMP HARNESS EARTH
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304-
150 BOLT; CLIP
M6X16 W/LK&PL WASHER 		1-09980-497-0 03 1 9002-
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9002-9306
178 GROMMET; HARNESS
(C) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9002-
178 GROMMET; HARNESS
(A) ID=32 OD=40 T=18 		1-09891-003-0 03 1 9002-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=17 		9-09956-092-1 01 1 9002-9009
178 GROMMET; HARNESS
(A) ID=19 OD=23 T=18 		9-09956-130-1 01 1 9002-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=22 		9-09956-181-0 02 1 9002-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-1 01 1 9002-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9307-
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (A) ID=28 OD=35 		1-09332-127-0 01 1 9206-9306
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (A) ID=28 OD=35 T=17 		9-09956-256-1 01 1 9206-9306
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9303-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9303-
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (A) ID=28 OD=35 T=12 		9-09956-725-0 01 1 9307-
219 NUT
M5 FLANGE 		5-09440-003-0 05 1 9002-
219 NUT
M6 		9-09110-406-0 01 1 9002-
219 NUT
M8 		9-09110-408-0 03 1 9002-
219 NUT
M5 		9-99110-405-0 01 1 9002-
219 NUT
M10 		9-09110-510-0 04 1 9307-
242 BOLT; BRKT,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 03 1 9002-9204
242 BOLT; BRKT,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 03 1 9205-9302
242 BOLT; BRKT,HARNESS
M8X30 FLANGE 		0-28080-830-0 03 1 9303-
242 BOLT; BRKT,HARNESS
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9206-9302
242 BOLT; BRKT,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306
242 BOLT; BRKT,HARNESS
POWER WINDOW<A30> M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9307-
242 BOLT; BRKT,HARNESS
AUTO ENG SHUTOFF(KB6) M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
