◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10929 - CXZ RHD ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#25549) — 121 parça

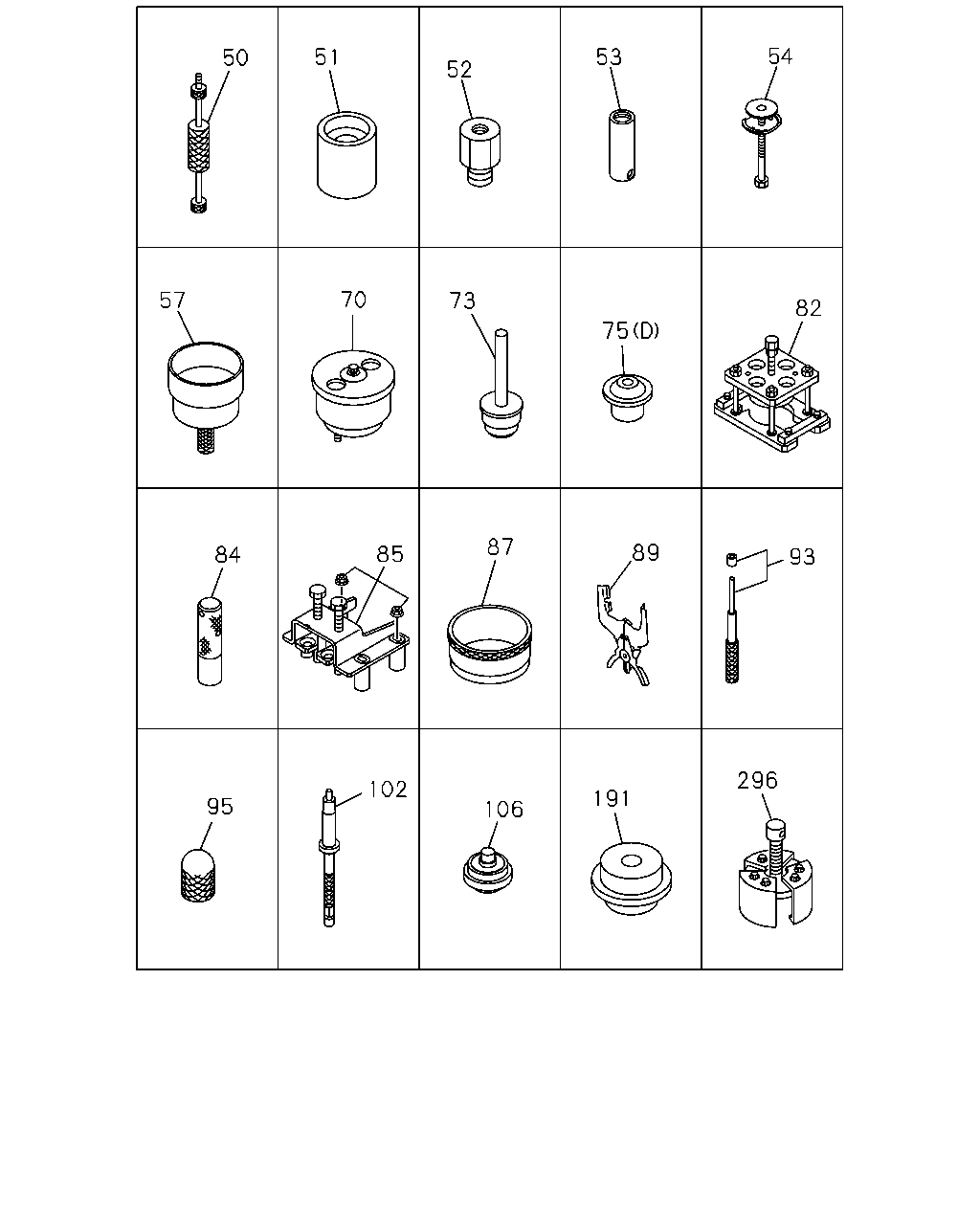

çizim 80109
54 51 53 50 52 70 57 73 82 75 87 89 85 84 93 296 102 191 95 106
BalonParca AdiParca NoAdetTipApplied Date A B
50 REPLACER; NOZZLE HOLDER
L=300 		1-85230-013-0 01 1 0308- ● ●
51 PULLER ASM; WATER PUMP 1-85220-047-0 01 1 0308- ● ●
52 REMOVER; WATER PUMP 1-85210-062-0 01 1 0308- ● ●
53 PULLER; TAPER BUSHING 1-85210-063-0 01 1 0308- ● ●
54 PULLER; THERMOSTAT SEAL 1-85210-067-0 01 1 0308- ● ●
57 TOOL; SETTING CRANK GEAR
OD=162 		1-85220-045-0 01 1 0308- ● ●
70 TOOL; SETTING,OIL SEAL 1-85220-043-0 01 1 0308- ● ●
73 TOOL; SETTING,THERMOSTAT SEAL 1-85221-034-0 01 1 0308- ● ●
75 TOOL; SETTING,OIL SEAL
(D) 		1-85220-049-0 01 1 0308- ● ●
75 TOOL; SETTING,OIL SEAL
(C) 		1-85221-096-0 01 1 0308- ● ●
75 TOOL; SETTING,OIL SEAL
(A) 		1-85221-168-0 01 1 0308-0408 ● ●
75 TOOL; SETTING,OIL SEAL
(B) 		1-85221-169-0 01 1 0308-0408 ● ●
82 PULLER ASM; CR/SHF GEAR 1-85210-064-0 01 1 0308- ● ●
84 REPLACER; VALVE SEAL
EXHAUST 		1-85221-184-0 01 1 0308- ● ●
84 REPLACER; VALVE SEAL
INLET 		1-85221-187-0 01 1 0308- ● ●
85 REPLACER ASM; VALVE SPR 1-85235-013-0 01 1 0308- ● ●
87 TOOL; PISTON 1-85220-059-0 01 1 0308- ● ●
89 TOOL; PISTON RING 1-85221-025-0 01 1 0308- ● ●
93 SETTING KIT; VALVE GUIDE
L=260 		9-85231-202-0 01 1 0308- ● ●
95 SETTING TOOL; BRIDGE GUIDE 9-85221-324-0 01 1 0308- ● ●
102 ADAPTER; COMP GAGE 1-85317-019-0 01 1 0308- ● ●
106 TOOL; SETTING PILOT BRG 1-85221-057-0 01 1 0308- ● ●
191 ADAPTER
INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-85216-009-0 01 1 0308- ● ●
296 REPLACER; SLINGER 1-85210-027-0 01 1 0308- ● ●

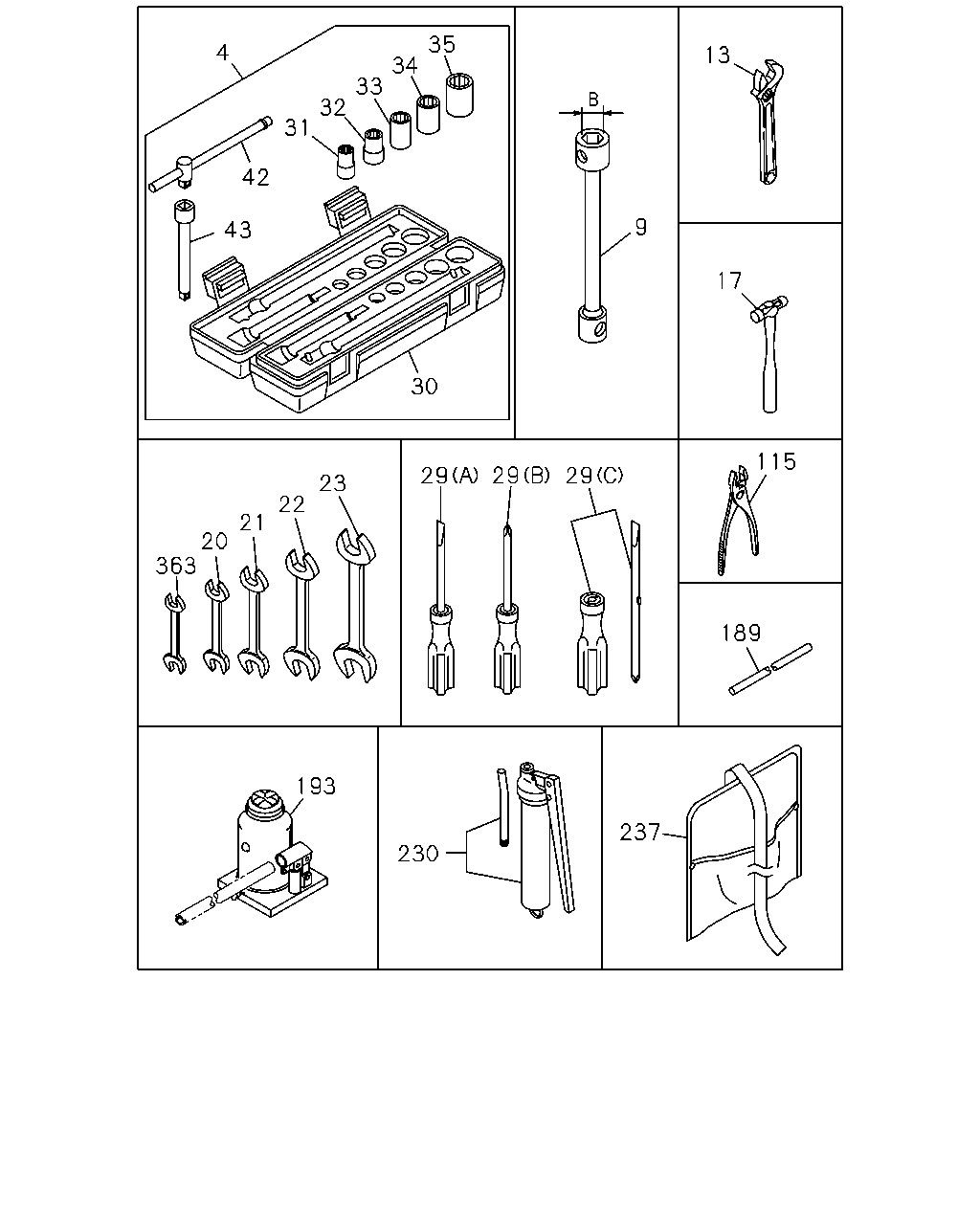

çizim 83624
35 34 33 32 4 13 31 42 9 43 17 30 115 29 29 29 23 22 21 20 363 189 193 237 230
BalonParca AdiParca NoAdetTipApplied Date A B
4 WRENCH KIT; SOCKET 1-85000-491-0 01 1 0308- ● ●
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> EXC. WHEEL 8STUD 8.25X22.5 165-13TC(SKV) B=33X30 L=450 		1-85111-033-1 01 1 0308-0404 ● ●
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) B=33X30 L=450 		1-85111-033-1 01 1 0405- ● ●
9 WRENCH; WHEEL PIN
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) B=41X21 L=440 		1-85113-015-1 01 1 0308-0404 ● ●
9 WRENCH; WHEEL PIN
WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) TOOL B KIT<SL1> B=41X21 L=440 		1-85113-015-1 01 1 0405- ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 0308- ● ●
17 HAMMER 9-85121-406-0 01 1 0308- ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 0308-0607 ● ●
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 0608- ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 0308-0607 ● ●
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 0608- ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 0308-0607 ● ●
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 0608- ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 0308-0607 ● ●
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 0608- ● ●
29 DRIVER; SCREW
(A) <-> L=285 		1-85151-004-0 01 1 0308- ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 0308- ● ●
29 DRIVER; SCREW
(B) <+> L=275 		9-09595-023-0 01 1 0308- ● ●
30 BOX; SOCKET WRENCH 1-85000-492-0 01 1 0308- ● ●
31 WRENCH; 12 1-85000-495-0 01 1 0308- ● ●
32 WRENCH; 14 1-85000-496-0 01 1 0308- ● ●
33 WRENCH; 17 1-85000-497-0 01 1 0308- ● ●
34 WRENCH; 19 1-85000-498-0 01 1 0308- ● ●
35 WRENCH; 22 1-85000-499-0 01 1 0308- ● ●
42 HANDLE; SLIDING 1-85000-500-0 01 1 0308- ● ●
43 BAR; EXTENSION,SOCKET WRENCH 1-85000-501-0 01 1 0308- ● ●
115 PLIER 5-85171-002-0 01 1 0308- ● ●
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 0308- ● ●
193 JACK ASM
15TON 		1-85510-019-2 01 1 0308- ● ●
230 PUMP; GREASE 1-85556-007-3 01 1 0308- ● ●
237 BAG; TOOL 8-97130-902-0 01 1 0308- ● ●
363 WRENCH; OPEN END 8X10
8X10 		9-99592-108-0 01 1 0308-0607 ● ●
363 WRENCH; OPEN END 8X10
8X10 		0-95902-508-0 01 1 0608- ● ●

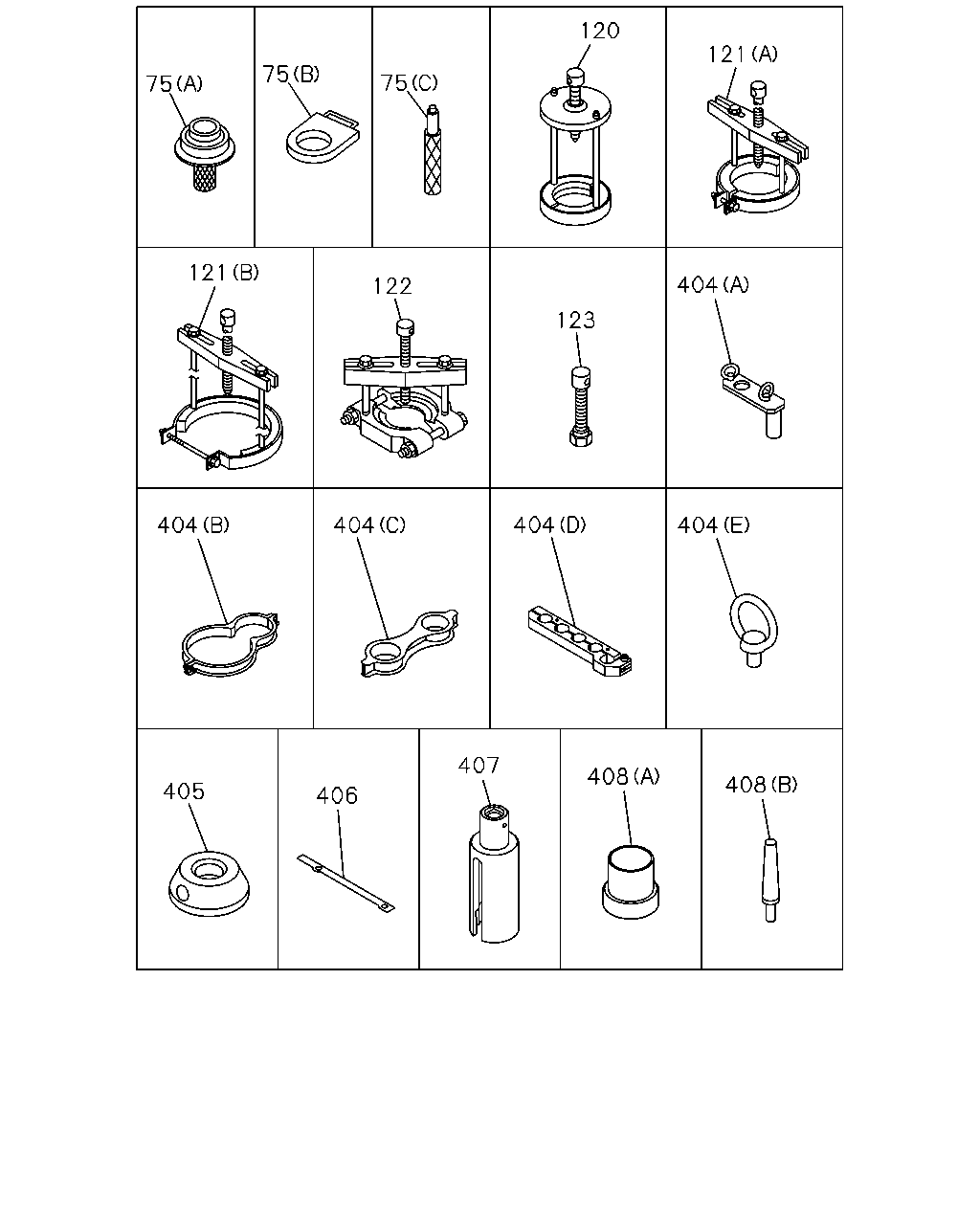

çizim 84119
120 121 75 75 75 121 404 122 123 404 404 404 404 407 408 408 405 406
BalonParca AdiParca NoAdetTipApplied Date A B
75 TOOL; SETTING,OIL SEAL
(D) 		1-85220-049-0 01 1 0308- ● ●
75 TOOL; SETTING,OIL SEAL
(C) 		1-85221-096-0 01 1 0308- ● ●
75 TOOL; SETTING,OIL SEAL
(A) 		1-85221-168-0 01 1 0308-0408 ● ●
75 TOOL; SETTING,OIL SEAL
(B) 		1-85221-169-0 01 1 0308-0408 ● ●
120 PULLER ASM; MAIN REAR BRG
L=285 		9-85210-184-0 01 1 0308- ● ●
121 PULLER ASM; COUNTER REAR
(B) 		1-85210-069-0 01 1 0308- ● ●
121 PULLER ASM; COUNTER REAR
(A) OD=146 		1-85210-074-0 01 1 0308- ● ●
122 PULLER ASM; COUNTER FRT 9-85210-195-0 01 1 0308- ● ●
123 PULLER; SPEEDOMETER BUSHING 9-85210-091-0 01 1 0308- ● ●
404 TOOL; SETTING,MAIN COUNTER
(A) 		1-85221-257-0 01 1 0308- ● ●
404 TOOL; SETTING,MAIN COUNTER
(B) 		1-85221-258-0 01 1 0308-0403 ● ●
404 TOOL; SETTING,MAIN COUNTER
(C) 		1-85221-259-0 01 1 0308- ● ●
404 TOOL; SETTING,MAIN COUNTER
(D) 		1-85221-260-0 01 1 0308- ● ●
404 TOOL; SETTING,MAIN COUNTER
(E) 		1-85221-262-0 02 1 0308- ● ●
405 GUIDE; COUNTER 1-85221-264-0 01 1 0308- ● ●
406 PLATE; SETTING 1-85221-266-0 01 1 0308-0403 ● ●
407 SOCKET; SW 1-85221-267-1 01 1 0308- ● ●
408 TOOL; SETTING,SHIFT ASSISTER
(A) 		1-85221-268-0 01 1 0308- ● ●
408 TOOL; SETTING,SHIFT ASSISTER
(B) 		1-85221-269-0 01 1 0308- ● ●

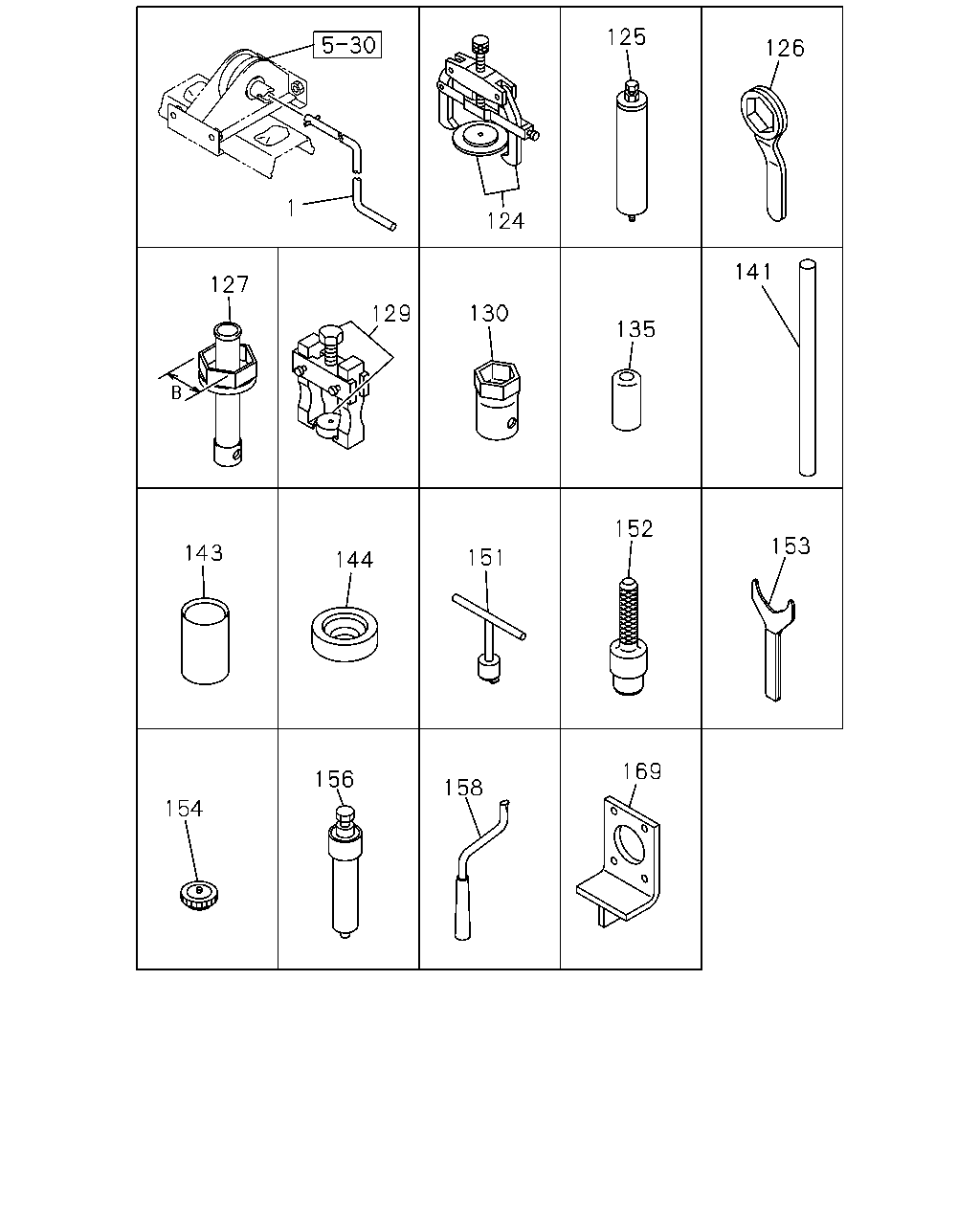

çizim 84838
125 126 1 124 141 127 130 129 135 152 153 143 151 144 169 156 158 154
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> 		9-23110-018-0 01 1 0308- ● ●
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 0308- ● ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0308- ● ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-0 01 1 0308- ● ●
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		9-85113-524-0 01 1 0308- ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0308- ● ●
130 WRENCH; BOX
B=63 		9-85111-368-0 01 1 0308- ● ●
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 0308- ● ●
141 HANDLE; WRENCH
OD=16 L=200 		9-85111-934-0 01 1 0308- ● ●
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 0308- ● ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 0308- ● ●
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 0308- ● ●
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 0308- ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0308- ● ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0308- ● ●
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 0308- ● ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0308- ● ●
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 0308- ● ●

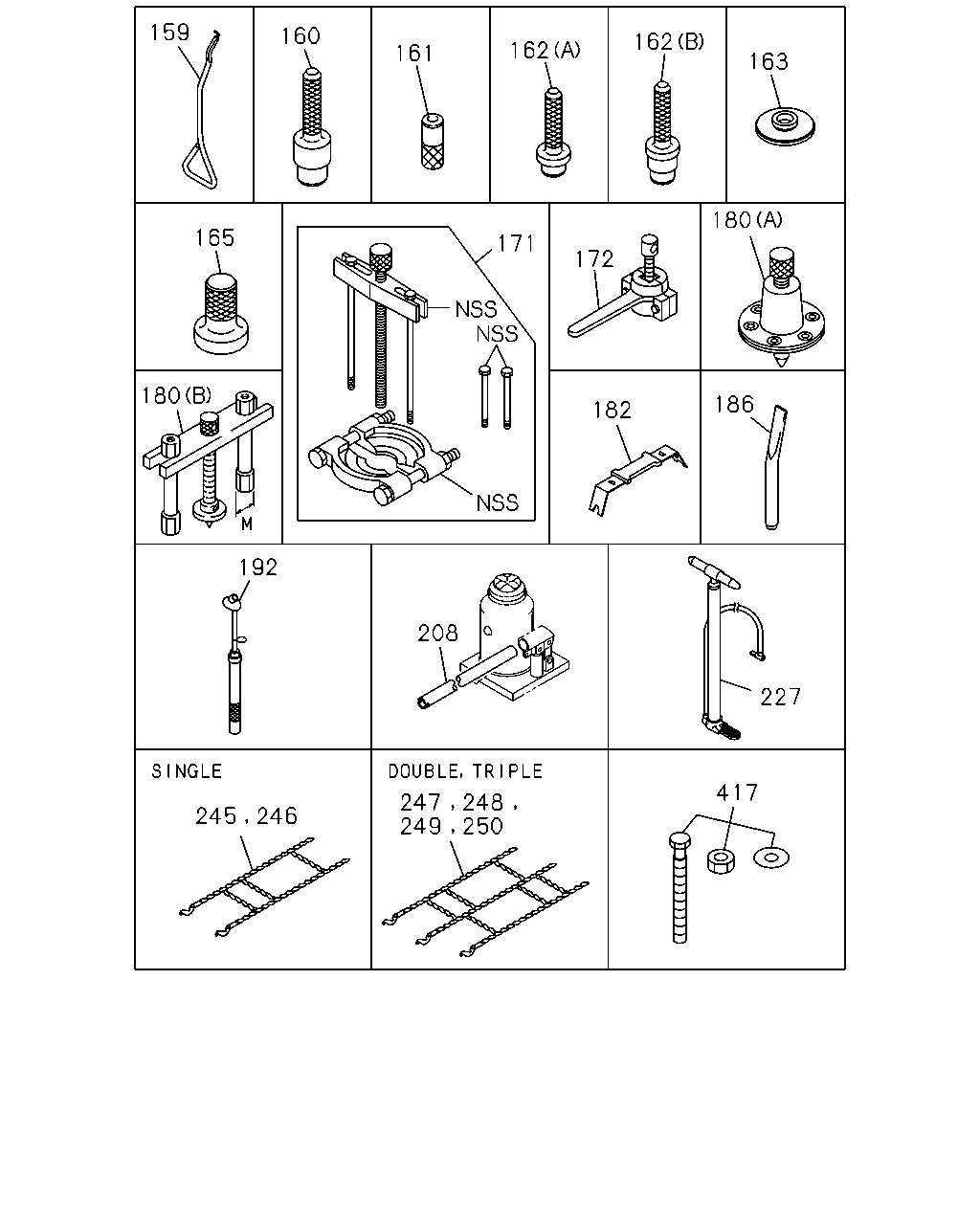

çizim 84839
159 160 162 162 161 163 180 165 171 172 180 186 182 192 208 227 417 247 249 248 250 245 246
BalonParca AdiParca NoAdetTipApplied Date A B
159 REMOVER; RETURN SPR 1-85237-023-0 01 1 0308- ● ●
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 0308- ● ●
161 REMOVER; TIE ROD ARM 1-85176-001-0 01 1 0308- ● ●
162 SETTING TOOL; NEEDLE BRG
(A) L=181 		1-85238-008-0 01 1 0308- ● ●
162 SETTING TOOL; NEEDLE BRG
(B) L=213 		1-85238-009-0 01 1 0308- ● ●
163 TOOL; SETTING
OD=150 		1-85221-167-0 01 1 0308- ● ●
165 SETTING TOOL; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-85221-177-0 01 1 0308- ● ●
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 0308- ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 0308- ● ●
180 PULLER; FRT & RR HUB
(A) 		1-85210-002-0 01 1 0308- ● ●
180 PULLER; FRT & RR HUB
INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M22 		1-85210-049-0 01 1 0308- ● ●
182 REMOVER ASM 1-85239-008-0 01 1 0308- ● ●
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 0308- ● ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0308- ● ●
192 GAUGE; TIRE PRESSURE
TIRE INFLATOR DEVICE<W47> 		1-85315-002-0 01 1 0308- ● ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0308- ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0308- ● ●
245 CHAIN; TIRE,SINGLE
9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 0308- ● ●
246 CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 0308- ● ●
246 CHAIN; TIRE,1000-20,SINGLE
11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 0308- ● ●
247 CHAIN; TIRE,750-20,DOUBLE
9.00-20 DOUBLE TYPE 		9-85591-255-0 AR 1 0308- ● ●
248 CHAIN; TIRE,1000-20,DOUBLE
10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 0308- ● ●
248 CHAIN; TIRE,1000-20,DOUBLE
11.00-20 DOUBLE TYPE 		9-85591-260-0 AR 1 0308- ● ●
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 AR 1 0308- ● ●
250 CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 0308- ● ●
250 CHAIN; TIRE,1000-20,TRIPLE
11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 0308- ● ●
417 BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 4-SETS 		1-85576-331-1 01 1 0308- ● ●
