Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10929 - CXZ RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶

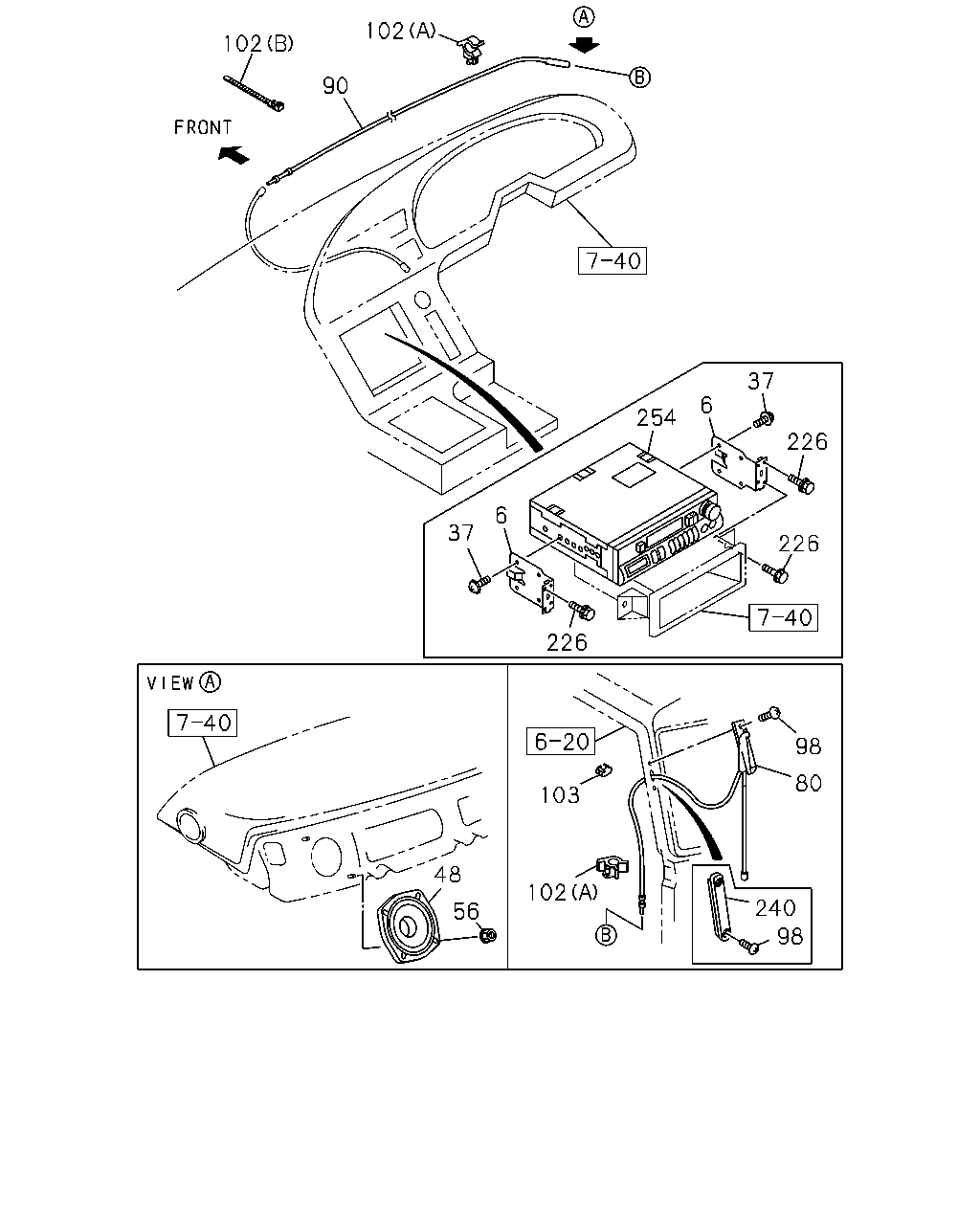

8-90 — RADIO AND TV
(#25548) — 21 parça
Tümü
A - CXZ5MC
B - CXZ5MF
102
102
90
37
6
254
226
6
37
226
226
98
80
103
48
102
240
56
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
BRACKET; RADIO TO PANEL
1-65671-551-4
02
1
0308-
●
●
37
SCREW; CASSETTE & RADIO
RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER
9-03920-510-0
04
1
0308-0604
●
●
37
SCREW; CASSETTE & RADIO
RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
0605-
●
●
48
SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>
1-84114-062-0
02
1
0308-0605
●
●
48
SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>
8-98046-216-0
02
1
0606-
●
●
48
SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3)
1-84114-050-0
02
1
0308-0308
●
●
48
SPEAKER; AUDIO
RADIO AM/FM STEREO & TAPE PLAYER(UN3)
1-84114-050-0
02
1
0308-0308
●
●
48
SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3)
1-84114-073-0
02
1
0309-
●
●
48
SPEAKER; AUDIO
RADIO AM/FM STEREO & TAPE PLAYER(UN3)
1-84114-073-0
02
1
0309-
●
●
56
NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5 FLANGE
1-09984-170-0
04
1
0308-
●
●
56
NUT; SPEAKER,RADIO OR STEREO
RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5 FLANGE
1-09984-170-0
04
1
0308-
●
●
80
ANTENNA
ANTENNA RADIO<U73>
1-84115-055-2
01
1
0308-
●
●
90
CABLE; ANTENNA,FEEDER
ANTENNA RADIO<U73>
1-84113-011-2
01
1
0308-
●
●
98
SCREW; TAP,ANTENNA
M5X11
1-09981-536-1
02
1
0308-
●
●
102
CLIP; CABLE
ANTENNA RADIO<U73> (A) W/PACKING ID=4.8
1-73907-618-0
05
1
0308-
●
●
102
CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8
8-94128-483-0
03
1
0308-
●
●
102
CLIP; CABLE
ANTENNA RADIO<U73> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) L=140
5-09707-031-1
01
1
0308-
●
●
103
GROMMET; ANTENNA HOLE,FRT
ANTENNA RADIO<U73>
8-97027-381-0
01
1
0308-
●
●
226
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0308-
●
●
240
COVER; ANTENNA
EXC. ANTENNA RADIO<U73>
1-79996-296-0
01
1
0308-
●
●
254
RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO & TAPE PLAYER(UN3) CLARION
1-84122-032-3
01
1
0308-
●
●
