◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#2554) — 108 parça
çizim 28771
28 5 7 4 28 356 41 355 2
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
1.1A 2P 		8-94249-985-0 02 1 9002-9409
2 DIODE; CABLE HARNESS
HONG KONG EQUIPMENT(PQ1) 2P 2.5A 		8-94136-639-0 01 1 9002-9409
2 DIODE; CABLE HARNESS
BLACK 2P-1.5A 		8-94422-639-1 01 1 9410-
2 DIODE; CABLE HARNESS
HONG KONG EQUIPMENT(PQ1) BLACK 2P-1.5A 		8-94422-639-1 01 1 9410-
4 BOX ASM; FUSE,HARNESS
7.5AX6 15AX11 		1-82510-249-0 01 1 9002-9306
4 BOX ASM; FUSE,HARNESS
7.5AX3 15AX11 		1-82510-250-0 01 1 9002-
4 BOX ASM; FUSE,HARNESS
HONG KONG EQUIPMENT(PQ1) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. POWER WINDOW<A30> 7.5AX6 15AX13 		1-82510-327-0 01 1 9203-9306
4 BOX ASM; FUSE,HARNESS
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 7.5AX6 15AX13 		1-82510-327-0 01 1 9307-
4 BOX ASM; FUSE,HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 7.5AX6 15AX11 		1-82510-249-0 01 1 9307-
4 BOX ASM; FUSE,HARNESS
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. ANTENNA RADIO<U73> 7.5AX6 15AX12 		1-82510-308-0 01 1 9004-9202
4 BOX ASM; FUSE,HARNESS
ANTENNA RADIO<U73> 7.5AX6 15AX12 		1-82510-308-0 01 1 9004-9202
4 BOX ASM; FUSE,HARNESS
NEW ZEALAND EQUIPMENT(PK5) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 7.5AX6 15AX12 		1-82510-308-0 01 1 9203-9306
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 AR 1 9002-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 AR 1 9002-
7 LINK ASM; FUSIBLE
BLUE & BLACK 		1-82659-112-0 01 1 9002-
7 LINK ASM; FUSIBLE
RED & BLUE 		1-82659-113-0 01 1 9002-
28 SCREW; FUSE BOX
M5X16 W/LK WASHER 		9-03910-516-0 04 1 9002-
41 PULLER; FUSE 8-94238-171-0 01 1 9002-
355 BOX; CONT,EXH TEMP
EXH HEAT WARNING<W50> 		1-81510-049-0 01 1 9002-
356 SCREW; CONT BOX
EXH HEAT WARNING<W50> M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002-

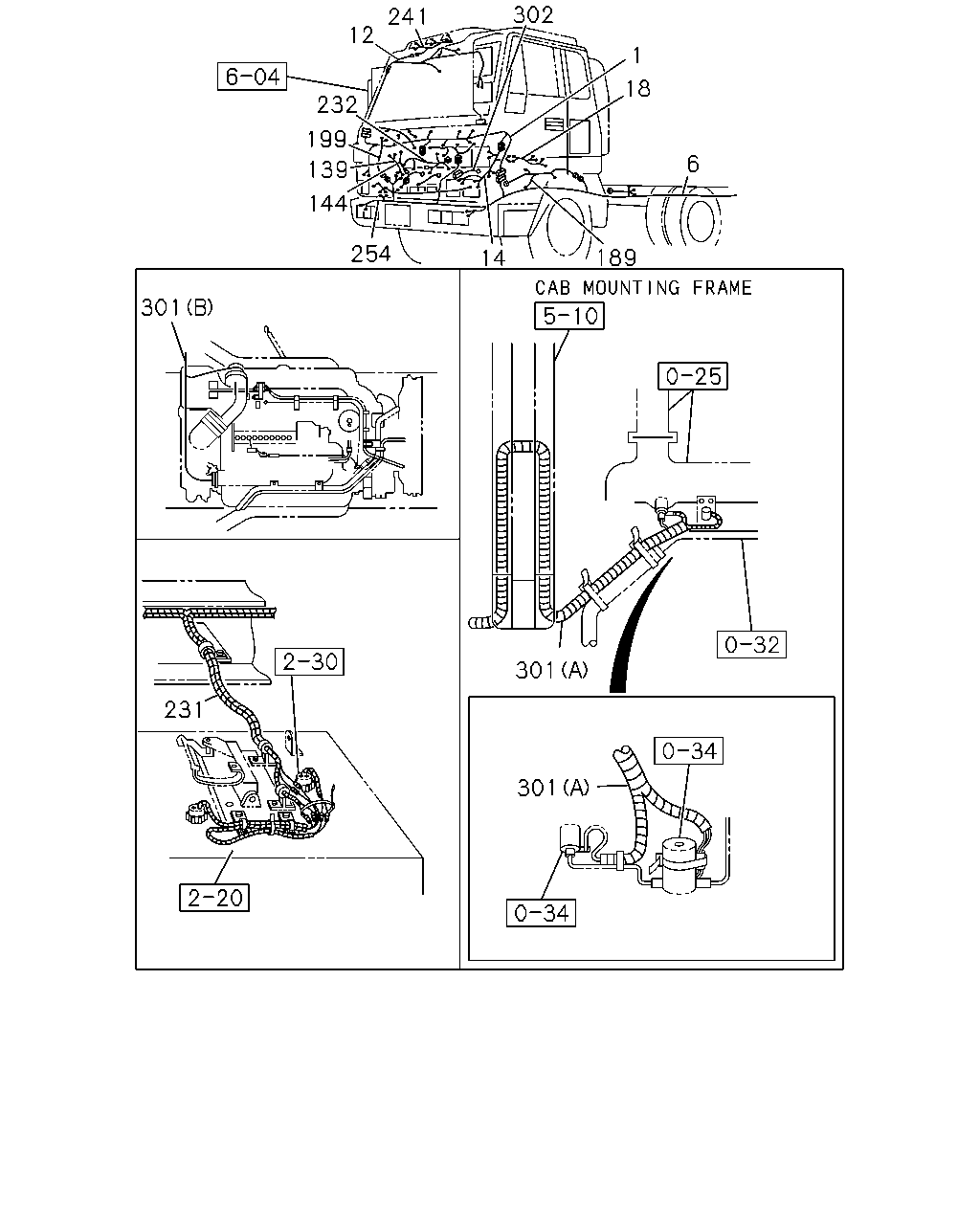

çizim 94369
302 241 12 1 18 232 199 139 144 6 254 189 14 301 301 231 301
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
HONG KONG EQUIPMENT(PQ1) EXC. POWER WINDOW<A30>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-82625-063-4 01 1 9307-
1 HARNESS; CAB
HONG KONG EQUIPMENT(PQ1) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> POWER WINDOW<A30> 		1-82624-963-1 01 1 9203-9306
1 HARNESS; CAB
HONG KONG EQUIPMENT(PQ1) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> POWER WINDOW<A30> 		1-82625-066-3 01 1 9307-
1 HARNESS; CAB
HONG KONG EQUIPMENT(PQ1) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. POWER WINDOW<A30> 		1-82624-964-0 01 1 9203-9306
1 HARNESS; CAB
HONG KONG EQUIPMENT(PQ1) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. POWER WINDOW<A30> 		1-82625-064-3 01 1 9307-
1 HARNESS; CAB
NEW ZEALAND EQUIPMENT(PK5) 		1-82623-693-0 01 1 9002-9003
1 HARNESS; CAB
NEW ZEALAND EQUIPMENT(PK5) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>,ANTENNA RADIO<U73> 		1-82623-693-0 01 1 9004-9306
1 HARNESS; CAB
NEW ZEALAND EQUIPMENT(PK5) EXC. POWER WINDOW<A30>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-82625-068-2 01 1 9307-
1 HARNESS; CAB
NEW ZEALAND EQUIPMENT(PK5) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. POWER WINDOW<A30> 		1-82625-069-1 01 1 9307-
1 HARNESS; CAB
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82623-690-0 01 1 9002-9202
1 HARNESS; CAB
EXC. NEW ZEALAND EQUIPMENT(PK5),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-82623-690-0 01 1 9203-9306
1 HARNESS; CAB
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-82623-690-3 01 1 9307-
1 HARNESS; CAB
POWER WINDOW<A30> HONG KONG EQUIPMENT(PQ1) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-82625-065-4 01 1 9307-
1 HARNESS; CAB
POWER WINDOW<A30> NEW ZEALAND EQUIPMENT(PK5) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-82625-071-1 01 1 9307-
1 HARNESS; CAB
POWER WINDOW<A30> NEW ZEALAND EQUIPMENT(PK5) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-82625-070-2 01 1 9307-
1 HARNESS; CAB
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. ANTENNA RADIO<U73> 		1-82624-126-1 01 1 9004-9202
1 HARNESS; CAB
ANTENNA RADIO<U73> 		1-82624-126-1 01 1 9004-9202
1 HARNESS; CAB
NEW ZEALAND EQUIPMENT(PK5) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-82624-126-1 01 1 9203-9306
6 HARNESS; FRAME
10PD1 STD ENG(40L) AUTO CAB TILT<WV2> 		1-82636-019-5 01 1 9002-9306
6 HARNESS; FRAME
10PD1 STD ENG(40L) EXC. AUTO CAB TILT<WV2> 		1-82636-013-5 01 1 9002-9306
6 HARNESS; FRAME
10PD1 STD ENG(40L) HONG KONG EQUIPMENT(PQ1) AUTO CAB TILT<WV2> 		1-82638-205-4 01 1 9307-
6 HARNESS; FRAME
10PD1 STD ENG(40L) HONG KONG EQUIPMENT(PQ1) EXC. AUTO CAB TILT<WV2> 		1-82638-204-4 01 1 9307-
6 HARNESS; FRAME
10PD1 STD ENG(40L) EXC. HONG KONG EQUIPMENT(PQ1) 		1-82638-203-4 01 1 9307-
6 HARNESS; FRAME
6RB1 STD ENG(07L) 		1-82638-197-6 01 1 9307-
6 HARNESS; FRAME
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC-N ENG(29L) AUTO CAB TILT<WV2> 		1-82636-017-4 01 1 9002-9306
6 HARNESS; FRAME
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC-N ENG(29L) EXC. AUTO CAB TILT<WV2> 		1-82636-010-4 01 1 9002-9306
6 HARNESS; FRAME
6RB1TC-N ENG(29L) HONG KONG EQUIPMENT(PQ1) AUTO CAB TILT<WV2> 		1-82638-199-6 01 1 9307-
6 HARNESS; FRAME
6RB1TC-N ENG(29L) HONG KONG EQUIPMENT(PQ1) EXC. AUTO CAB TILT<WV2> 		1-82638-198-6 01 1 9307-
6 HARNESS; FRAME
6RB1TC-N ENG(29L) NEW ZEALAND EQUIPMENT(PK5) 		1-82638-200-7 01 1 9307-
12 HARNESS; ROOF
NEW ZEALAND EQUIPMENT(PK5) 		1-82623-824-0 01 1 9002-9306
12 HARNESS; ROOF
NEW ZEALAND EQUIPMENT(PK5) 		1-82622-236-1 01 1 9307-
12 HARNESS; ROOF
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82623-823-0 01 1 9002-9306
12 HARNESS; ROOF
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82621-633-0 01 1 9307-
14 HARNESS; HEADLAMP
AUTO CAB TILT<WV2> EXC. HALOGEN HEADLAMPS<TT5> 		1-82623-743-1 01 1 9002-9202
14 HARNESS; HEADLAMP
AUTO CAB TILT<WV2> EXC. POWER WINDOW<A30>,HALOGEN HEADLAMPS<TT5> 		1-82623-743-1 01 1 9203-9306
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> AUTO CAB TILT<WV2> 		1-82623-746-1 01 1 9002-9202
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> AUTO CAB TILT<WV2> EXC. POWER WINDOW<A30> 		1-82623-746-1 01 1 9203-9306
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. AUTO CAB TILT<WV2> 		1-82623-745-0 01 1 9002-9202
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. POWER WINDOW<A30>,AUTO CAB TILT<WV2> 		1-82623-745-0 01 1 9203-9306
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), HONG KONG EQUIPMENT(PQ1),AUTO CAB TILT<WV2> 		1-82625-188-3 01 1 9307-
14 HARNESS; HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AUTO CAB TILT<WV2> 		1-82623-742-0 01 1 9002-9202
14 HARNESS; HEADLAMP
EXC. POWER WINDOW<A30>,HALOGEN HEADLAMPS<TT5>,AUTO CAB TILT<WV2> 		1-82623-742-0 01 1 9203-9306
14 HARNESS; HEADLAMP
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) AUTO CAB TILT<WV2> EXC. POWER WINDOW<A30> 		1-82625-076-3 01 1 9307-
14 HARNESS; HEADLAMP
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. POWER WINDOW<A30>,AUTO CAB TILT<WV2> 		1-82625-075-3 01 1 9307-
14 HARNESS; HEADLAMP
POWER WINDOW<A30> AUTO CAB TILT<WV2> EXC. HALOGEN HEADLAMPS<TT5> 		1-82624-966-1 01 1 9203-9306
14 HARNESS; HEADLAMP
POWER WINDOW<A30> HALOGEN HEADLAMPS<TT5> AUTO CAB TILT<WV2> 		1-82624-968-1 01 1 9203-9306
14 HARNESS; HEADLAMP
POWER WINDOW<A30> HALOGEN HEADLAMPS<TT5> EXC. AUTO CAB TILT<WV2> 		1-82624-967-0 01 1 9203-9306
14 HARNESS; HEADLAMP
POWER WINDOW<A30> EXC. HALOGEN HEADLAMPS<TT5>,AUTO CAB TILT<WV2> 		1-82624-965-0 01 1 9203-9306
14 HARNESS; HEADLAMP
POWER WINDOW<A30> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. AUTO CAB TILT<WV2> 		1-82625-077-3 01 1 9307-
14 HARNESS; HEADLAMP
POWER WINDOW<A30> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) AUTO CAB TILT<WV2> 		1-82625-078-3 01 1 9307-
14 HARNESS; HEADLAMP
EXC. POWER WINDOW<A30>,NEW ZEALAND EQUIPMENT(PK5), HONG KONG EQUIPMENT(PQ1),HALOGEN HEADLAMPS<TT5>, AUTOCAB TILT<WV2> 		1-82625-187-2 01 1 9307-
18 HARNESS; DOOR
DELUXE CAB(W14) 		1-82621-590-2 01 1 9002-9202
18 HARNESS; DOOR
DELUXE CAB(W14) EXC. POWER WINDOW<A30> 		1-82621-590-2 01 1 9203-9306
18 HARNESS; DOOR
DELUXE CAB(W14) EXC. POWER WINDOW<A30> 		1-82625-169-0 02 1 9307-
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82624-969-2 01 1 9203-
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82624-183-2 01 1 9203-
139 HARNESS; CAB COOLER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82621-839-2 01 1 9002-
144 HARNESS; TIMER,INT HTR
INTAKE HEATER<SL2> 		1-82621-925-0 01 1 9002-
189 HARNESS; EXT
AIR CONDITIONER MANUAL CONTROL(C60) L=950 		1-82657-035-1 01 1 9002-9102
189 HARNESS; EXT
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) L=950 		1-82636-289-0 01 1 9103-9306
189 HARNESS; EXT
AIR DRYER<PS7> L=350 		1-82635-830-0 01 1 9002-9306
189 HARNESS; EXT
AIR DRYER<PS7> L=350 		1-82638-215-0 01 1 9307-
189 HARNESS; EXT
FUEL TANK 200L+300L<W64> L=350 		1-82657-056-0 01 1 9002-9101
189 HARNESS; EXT
FUEL TANK 200L+300L<W64> L=350 		1-82657-064-0 01 1 9102-
189 HARNESS; EXT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) L=1300 		1-82636-290-0 01 1 9103-9308
189 HARNESS; EXT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) L=1240 		1-82636-395-0 01 1 9309-
189 HARNESS; EXT
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) L=950 		1-82636-289-0 01 1 9307-9308
189 HARNESS; EXT
10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) L=890 		1-82636-373-0 01 1 9309-
189 HARNESS; EXT
6RB1TC-N ENG(29L),10PD1 STD ENG(40L) HONG KONG EQUIPMENT(PQ1) L=500 		1-82657-044-0 01 1 9206-
199 HARNESS; STARTER
L TYPE ENG<90L> 		1-82640-488-0 01 1 9002-
199 HARNESS; STARTER
V TYPE ENG<91L> 		1-82640-482-1 01 1 9002-9306
199 HARNESS; STARTER
V TYPE ENG<91L> 		1-82640-548-0 01 1 9307-
231 HARNESS; TRANS
FULLER M/T<X9B> 		1-82632-941-0 01 1 9002-9306
231 HARNESS; TRANS
FULLER M/T<X9B> 		1-82638-178-0 01 1 9307-
232 HARNESS; CONSOLE BOX 1-82621-827-0 01 1 9002-9306
232 HARNESS; CONSOLE BOX
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82621-827-3 01 1 9307-
232 HARNESS; CONSOLE BOX
NEW ZEALAND EQUIPMENT(PK5) 		1-82624-858-4 01 1 9307-
241 HARNESS; MARKER LAMP
NEW ZEALAND EQUIPMENT(PK5) 		1-82622-237-0 01 1 9002-
254 HARNESS; CAB FLOOR
HONG KONG EQUIPMENT(PQ1) 		1-82623-414-0 01 1 9002-9306
254 HARNESS; CAB FLOOR
HONG KONG EQUIPMENT(PQ1) 		1-82625-058-1 01 1 9307-
254 HARNESS; CAB FLOOR
NEW ZEALAND EQUIPMENT(PK5) 		1-82622-235-0 01 1 9002-9306
254 HARNESS; CAB FLOOR
NEW ZEALAND EQUIPMENT(PK5) 		1-82624-857-3 01 1 9307-
254 HARNESS; CAB FLOOR
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-82621-829-1 01 1 9002-9306
254 HARNESS; CAB FLOOR
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-82625-057-2 01 1 9307-
301 HARNESS; INT HTR
L TYPE ENG<90L> INTAKE HEATER<SL2> (A) 		1-82640-246-2 01 1 9002-
301 HARNESS; INT HTR
V TYPE ENG<91L> INTAKE HEATER<SL2> (B) 		1-82640-286-0 01 1 9002-
302 HARNESS; POWER CAB TILT
AUTO CAB TILT<WV2> 		1-82632-915-0 01 1 9002-9306
302 HARNESS; POWER CAB TILT
AUTO CAB TILT<WV2> 		1-82638-145-2 01 1 9307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
