Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#25537) — 218 parça

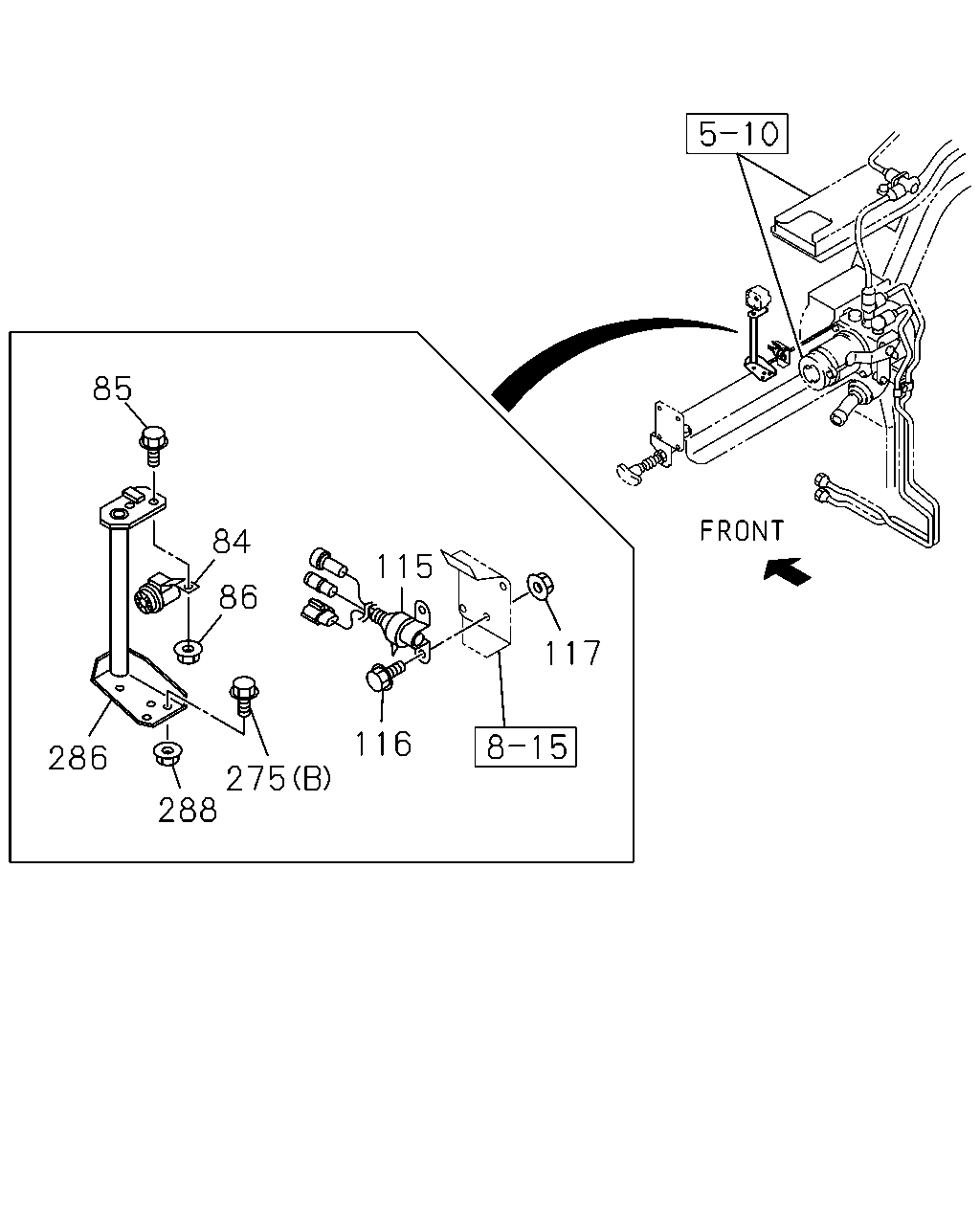

85 84 115 86 117 116 286 275 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-097-0	01	1	0308-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28680-820-0	01	1	0308-0512	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	0308-0602	●	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0308-	●	●
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	0308-0512	●	●
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91150-108-0	02	1	0308-0602	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
275	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	03	1	0308-0309	●	●
275	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0308-0309	●	●
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0308-	●	●
286	BRACKET	1-53457-113-0	01	1	0308-0309	●	●
288	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	02	1	0308-0309	●	●
288	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	03	1	0308-0309	●	●

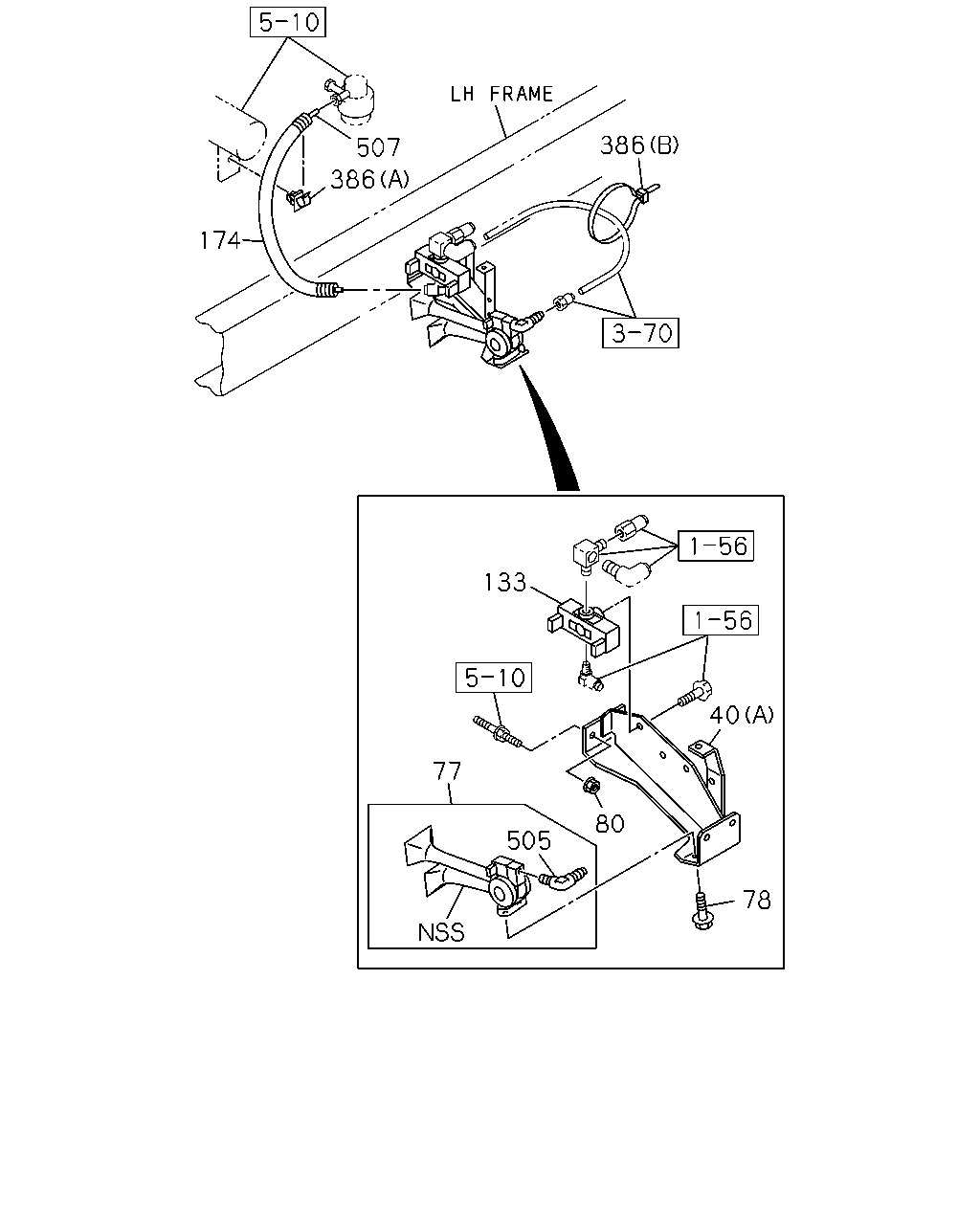

507 386 386 174 133 40 77 80 505 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV (A)	1-53457-117-0	01	1	0308-	●	●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0308-	●	●
77	HORN ASM	1-83430-041-2	01	1	0308-	●	●
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0308-0512	●	●
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
80	NUT; MAG VLV M12 FLANGE	0-91150-212-0	02	1	0308-0602	●	●
80	NUT; MAG VLV M12 FLANGE	0-91180-212-0	02	1	0603-	●	●
133	VALVE; MAG,AIR HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0308-	●	●
174	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	0308-	●	●
174	COVER FULL FLOATING CAB(W16) CAB UP +50MM<W60> L=800	1-83129-031-1	01	1	0308-	●	●
386	CLIP; HARNESS FULL FLOATING CAB(W16) (B) L=350	1-09707-183-0	01	1	0308-	●	●
386	CLIP; HARNESS FULL FLOATING CAB(W16) (A) ID=9.5	5-09709-020-0	01	1	0308-	●	●
505	JOINT; AIR HORN	1-83439-006-0	01	1	0308-	●	●
507	TUBE; NYLON FULL FLOATING CAB(W16) CAB UP +50MM<W60> SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0308-	●	●
507	TUBE; NYLON CAB UP +110MM<TGG> FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0308-	●	●

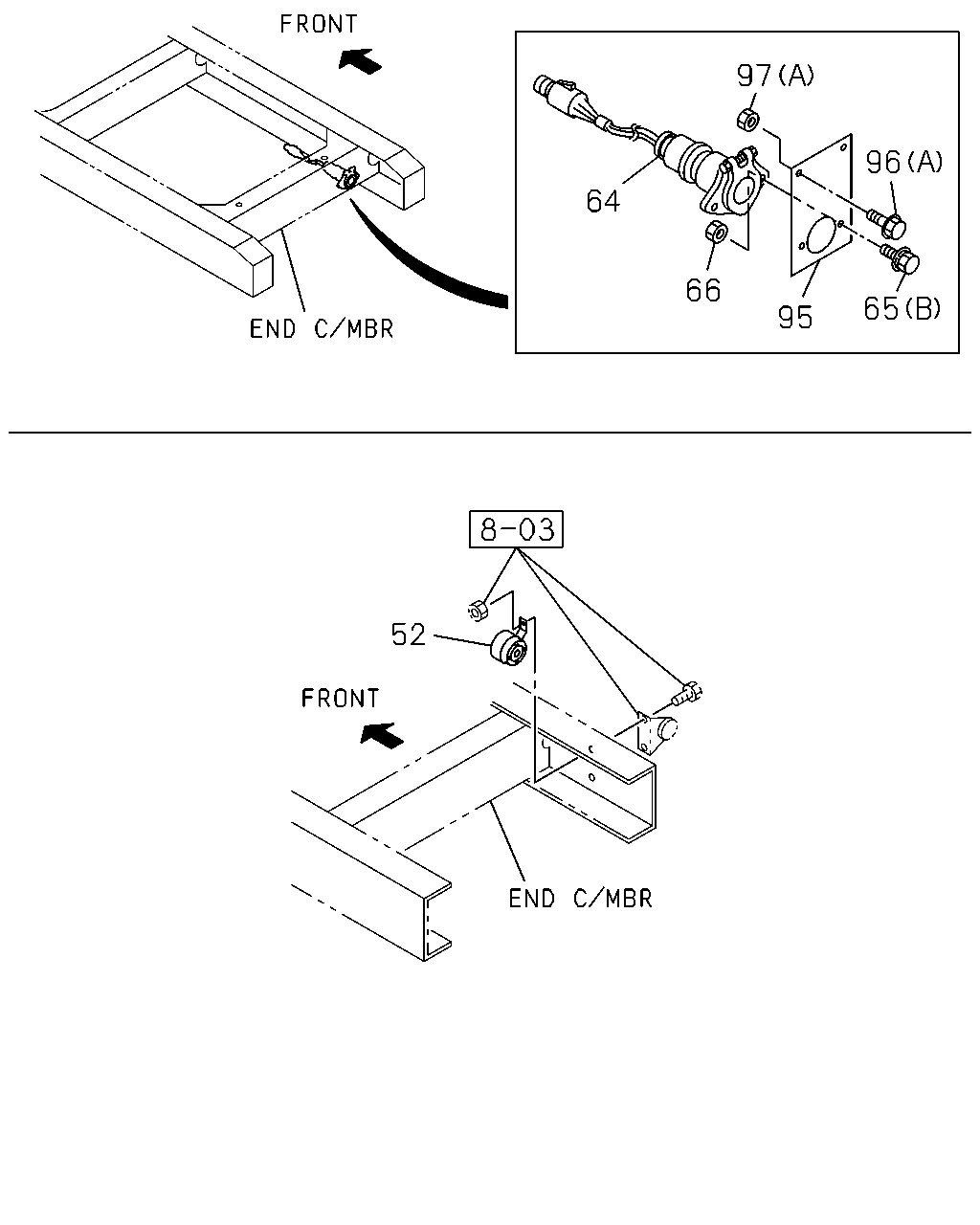

97 96 64 66 65 95 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> METRO DENSO	1-83460-083-0	01	1	0308-	●	●
64	SOCKET; TRAILER FULL TRACTOR TRUCK<RD6> 7P	1-82523-014-0	01	1	0308-	●	●
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28080-616-0	02	1	0308-0512	●	●
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-	●	●
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28680-830-0	02	1	0308-0512	●	●
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
66	NUT; SOCKET FIX FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91150-108-0	02	1	0308-0407	●	●
66	NUT; SOCKET FIX FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91150-108-0	05	1	0408-0602	●	●
66	NUT; SOCKET FIX FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
95	BRACKET; SOCKET,TRAILER FULL TRACTOR TRUCK<RD6>	1-82699-387-0	01	1	0308-	●	●
96	BOLT; BRKT FIX (B) M8X20 FLANGE	0-28680-820-0	05	1	0308-0512	●	●
96	BOLT; BRKT FIX (B) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●
96	BOLT; BRKT FIX (C) M10X25 FLANGE	0-28681-025-0	01	1	0308-0512	●	●
96	BOLT; BRKT FIX (C) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8X25 FLANGE	0-28680-825-0	02	1	0308-0512	●	●
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
97	NUT; BRKT FIX (A) M8 FLANGE	0-91150-108-0	05	1	0308-0602	●	●
97	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
97	NUT; BRKT FIX (B) M10 FLANGE	0-91150-210-0	01	1	0308-0602	●	●
97	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8 FLANGE	0-91150-108-0	02	1	0308-0602	●	●
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●

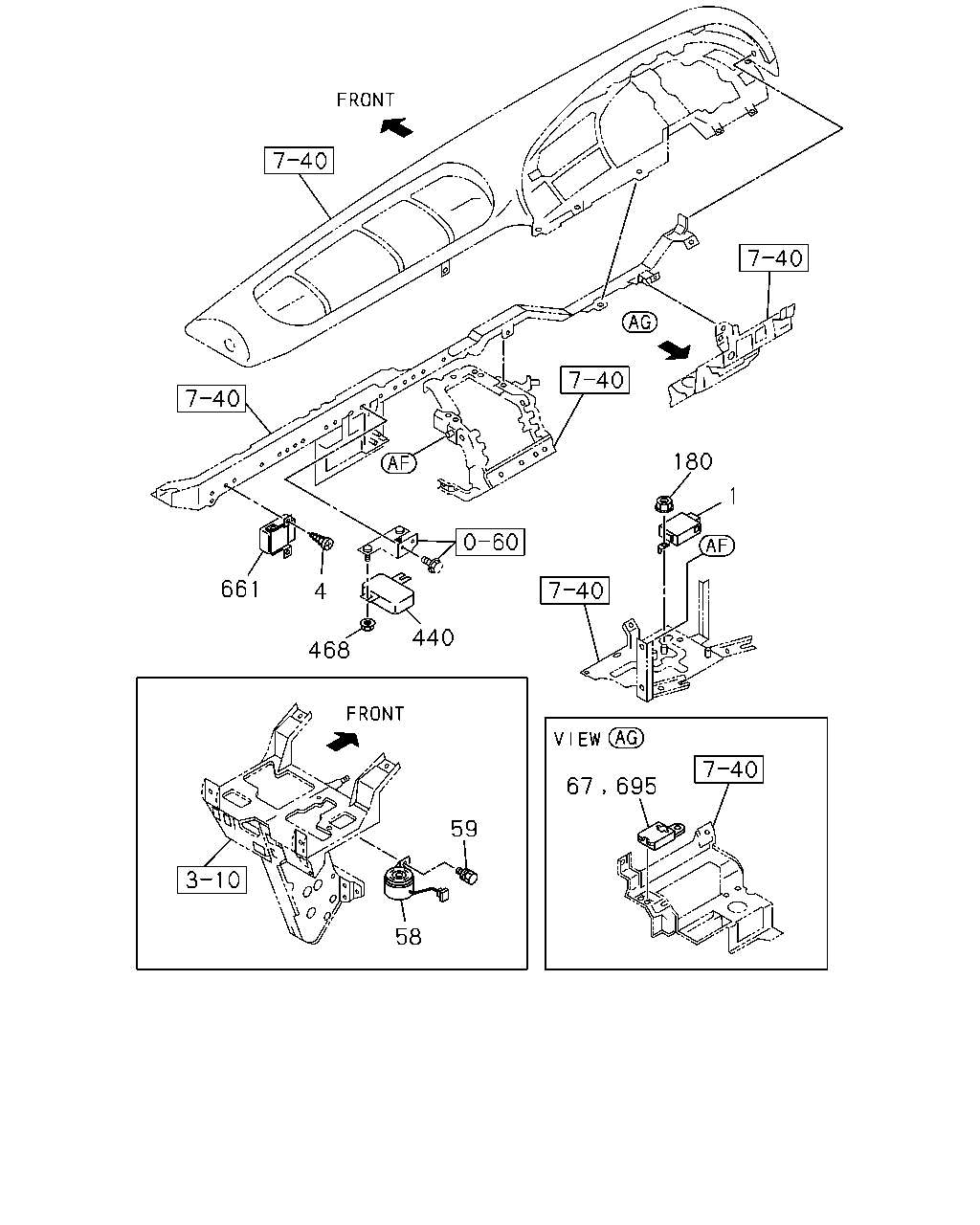

180 1 661 4 440 468 67 695 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER FULL TRACTOR TRUCK<RD6>	1-83470-062-1	01	1	0308-	●	●
1	UNIT; FLASHER EXC. FULL TRACTOR TRUCK<RD6>	1-83470-060-1	01	1	0308-	●	●
4	SCREW; FLASHER UNIT FULL TRACTOR TRUCK<RD6> M5X14	8-94279-325-0	01	1	0308-	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-075-0	01	1	0308-	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0308-	●	●
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0308-0312	●	●
67	BUZZER; ENG OVERRUN HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-83460-051-1	01	1	0401-	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0308-0602	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
440	MODULE; INFORMATION,ABS FULL TRACTOR TRUCK<RD6>	1-81510-701-0	01	1	0308-	●	●
468	NUT; MODULE FULL TRACTOR TRUCK<RD6> M6 FLANGE	0-91150-106-0	02	1	0308-0602	●	●
468	NUT; MODULE FULL TRACTOR TRUCK<RD6> M6 FLANGE	0-91180-106-0	02	1	0603-	●	●
661	CONTROL UNIT; FLASHER FULL TRACTOR TRUCK<RD6>	1-83470-066-1	01	1	0308-	●	●
695	ALARM; OVER HEAT EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-83460-051-1	01	1	0401-	●	●

449 499 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0308-0604	●	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-	●	●
449	SWITCH; OIL PRESS,CLUTCH BRAKE SYSTEM HSA<SLD>	1-82410-143-1	01	1	0308-	●	●
499	CLIP; SWITCH BRAKE SYSTEM HSA<SLD> OD=9 H=6	1-09709-178-0	01	1	0308-	●	●

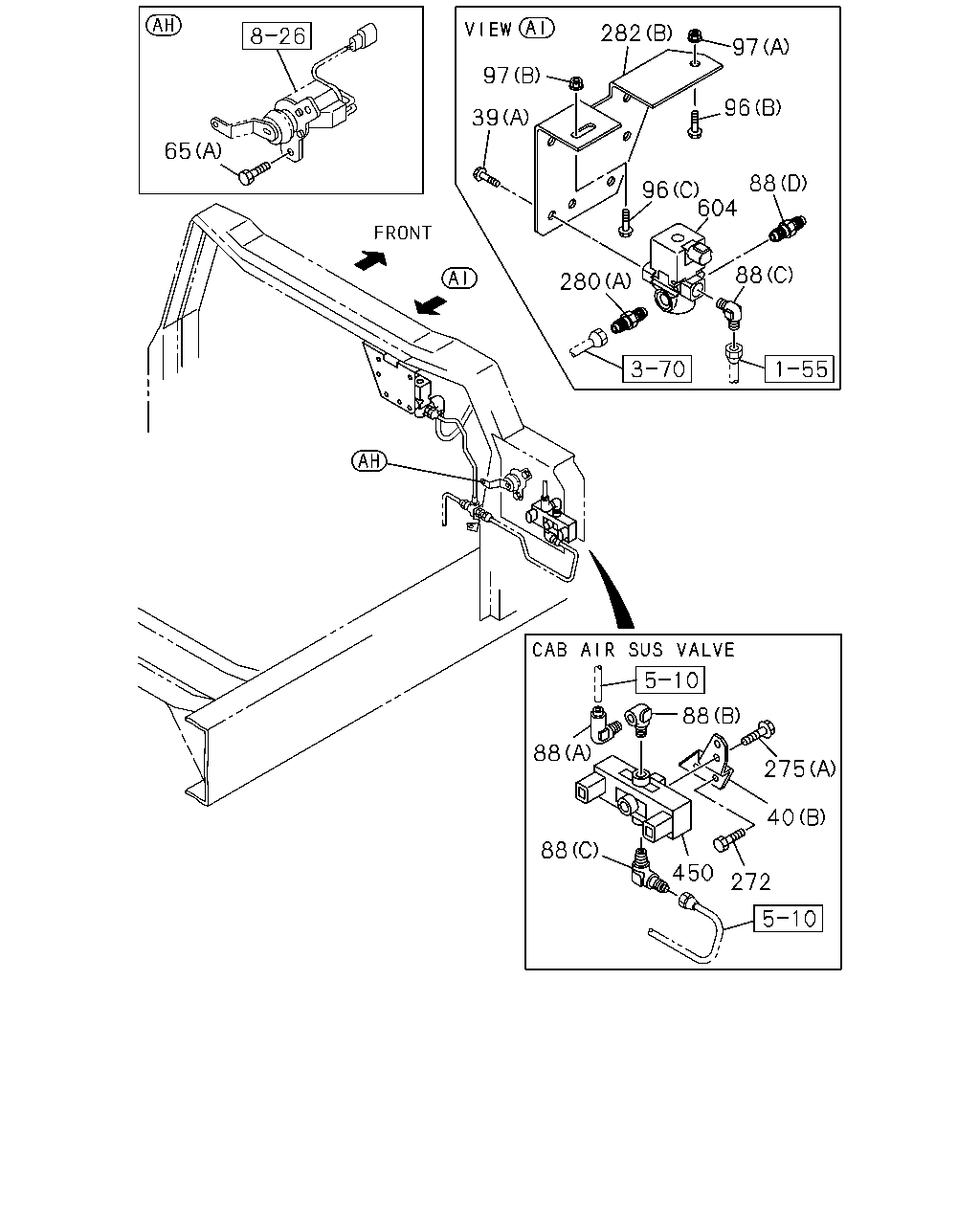

282 97 97 96 39 65 88 96 604 88 280 88 88 275 40 88 450 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0308-0512	●	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0308-0512	●	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE	0-28680-825-0	02	1	0308-0512	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
40	BRACKET; MAG VLV (A)	1-53457-117-0	01	1	0308-	●	●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0308-	●	●
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28080-616-0	02	1	0308-0512	●	●
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-	●	●
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28680-830-0	02	1	0308-0512	●	●
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0308-	●	●
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0308-	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0308-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0308-	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0308-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0308-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0308-	●	●
96	BOLT; BRKT FIX (B) M8X20 FLANGE	0-28680-820-0	05	1	0308-0512	●	●
96	BOLT; BRKT FIX (B) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●
96	BOLT; BRKT FIX (C) M10X25 FLANGE	0-28681-025-0	01	1	0308-0512	●	●
96	BOLT; BRKT FIX (C) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8X25 FLANGE	0-28680-825-0	02	1	0308-0512	●	●
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
97	NUT; BRKT FIX (A) M8 FLANGE	0-91150-108-0	05	1	0308-0602	●	●
97	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
97	NUT; BRKT FIX (B) M10 FLANGE	0-91150-210-0	01	1	0308-0602	●	●
97	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8 FLANGE	0-91150-108-0	02	1	0308-0602	●	●
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
272	BOLT; MAG VLV M10X20 FLANGE	0-28681-020-0	02	1	0308-0512	●	●
272	BOLT; MAG VLV M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●
275	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	03	1	0308-0309	●	●
275	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0308-0309	●	●
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0308-	●	●
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0308-	●	●
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0308-	●	●
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	0308-	●	●
282	BRACKET; MAG VLV (D)	1-82569-290-0	01	1	0308-	●	●
282	BRACKET; MAG VLV (A)	1-82569-358-0	01	1	0308-	●	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47479-364-1	01	1	0308-	●	●
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0308-	●	●
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	0308-	●	●
604	VALVE; MAG,ENG CONT	1-82563-871-2	02	1	0308-	●	●

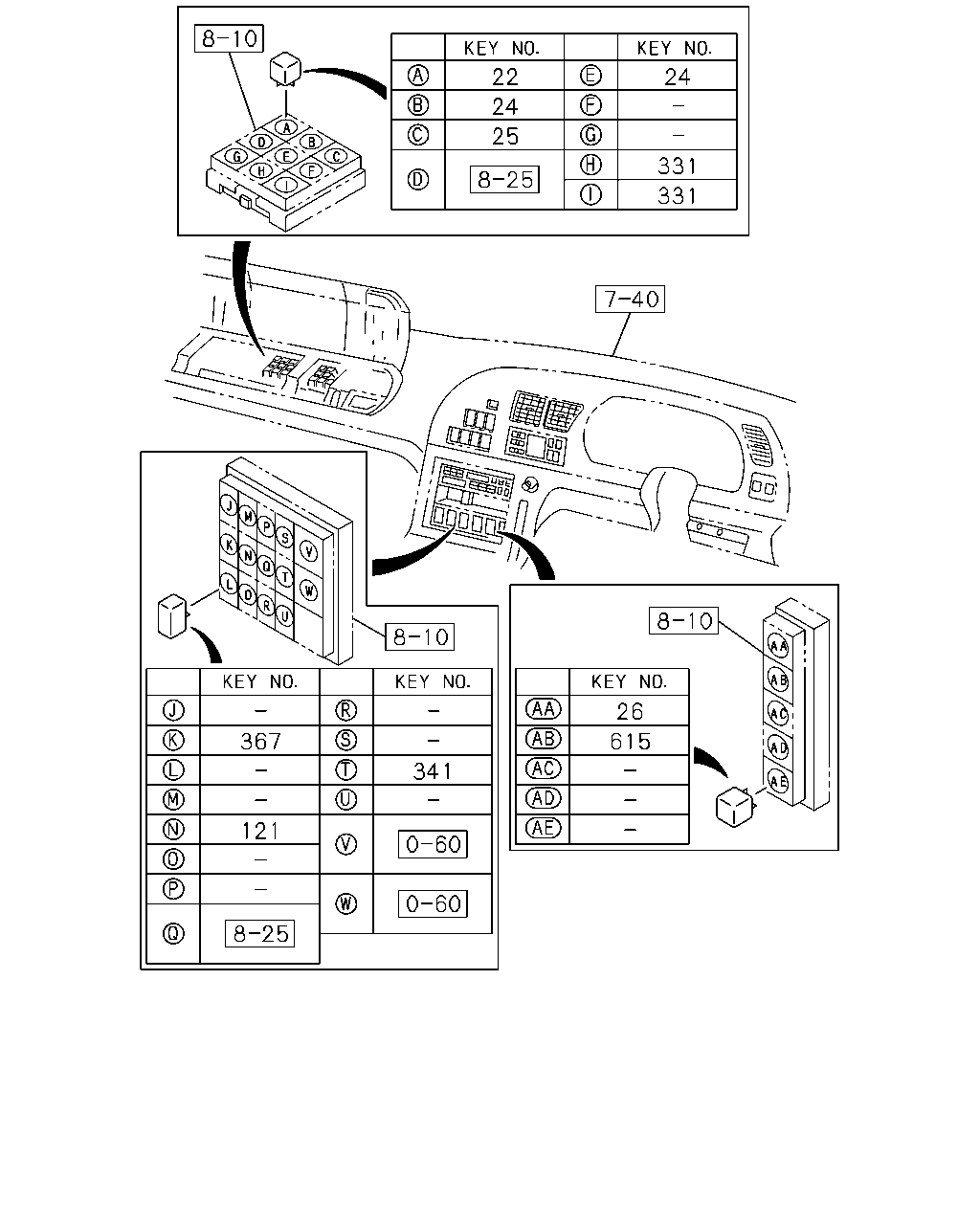

22 24 24 25 331 331 26 367 615 341 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC	8-97262-933-0	02	1	0308-	●	●
22	RELAY; STOP LAMP EXC. FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0308-	●	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0308-	●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0308-	●	●
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0308-	●	●
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0308-	●	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0308-	●	●
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	0308-	●	●
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0308-	●	●
615	RELAY; TRAILER FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0308-	●	●

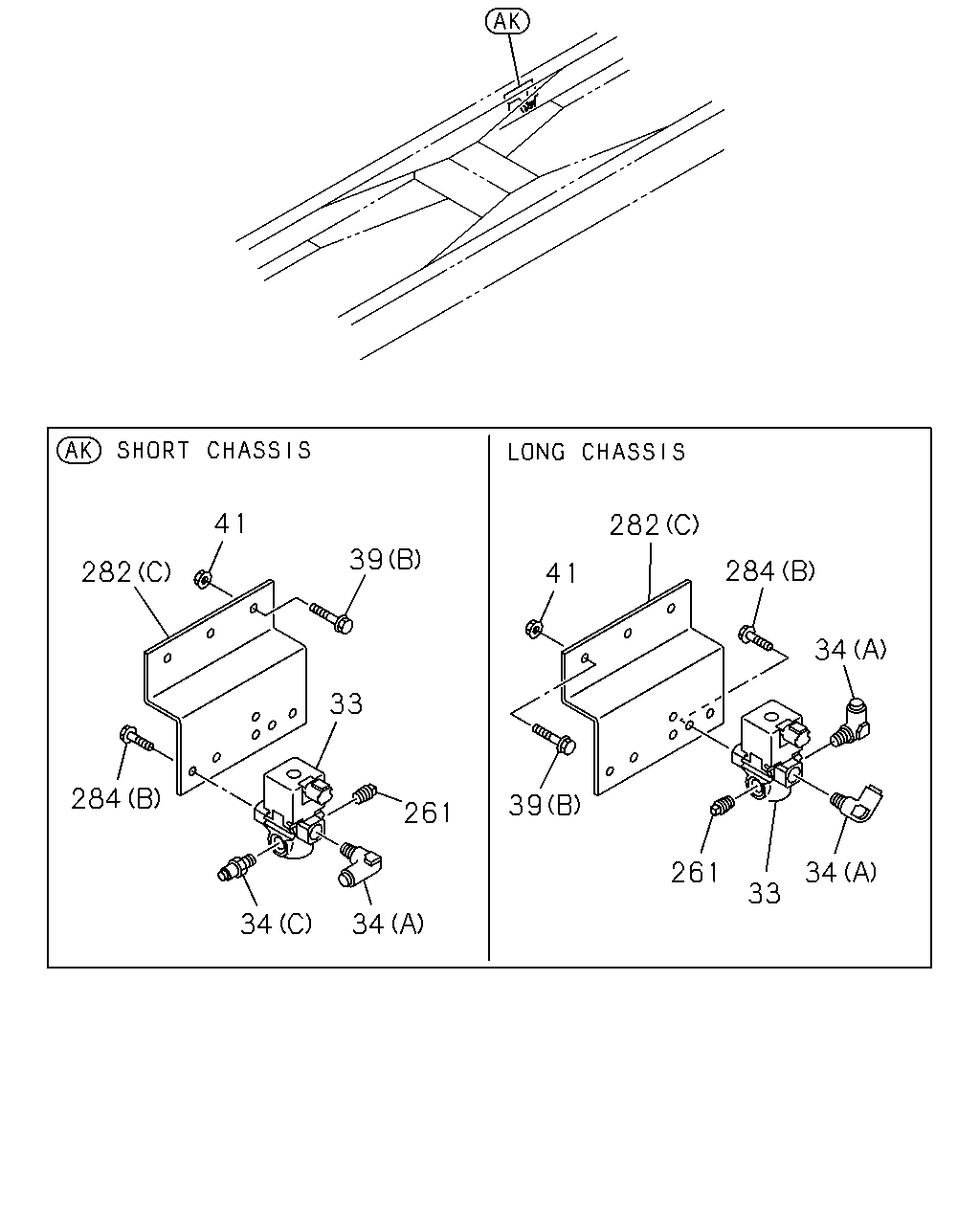

91 284 34 282 89 34 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0308-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0308-	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0308-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0308-	●
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	01	1	0308-	●	●
91	NUT; MAG VLV M8 FLANGE	0-91150-108-0	02	1	0308-0602	●	●
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0308-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0308-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0308-	●	●
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	0308-	●	●
282	BRACKET; MAG VLV (D)	1-82569-290-0	01	1	0308-	●	●
282	BRACKET; MAG VLV (A)	1-82569-358-0	01	1	0308-	●	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47479-364-1	01	1	0308-	●	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28080-650-0	01	1	0308-0512	●	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	0601-	●	●
284	BOLT; MAG VLV (B) M8X20 FLANGE	0-28680-820-0	02	1	0308-0512	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE	0-28680-820-0	02	1	0308-0512	●	●
284	BOLT; MAG VLV (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●

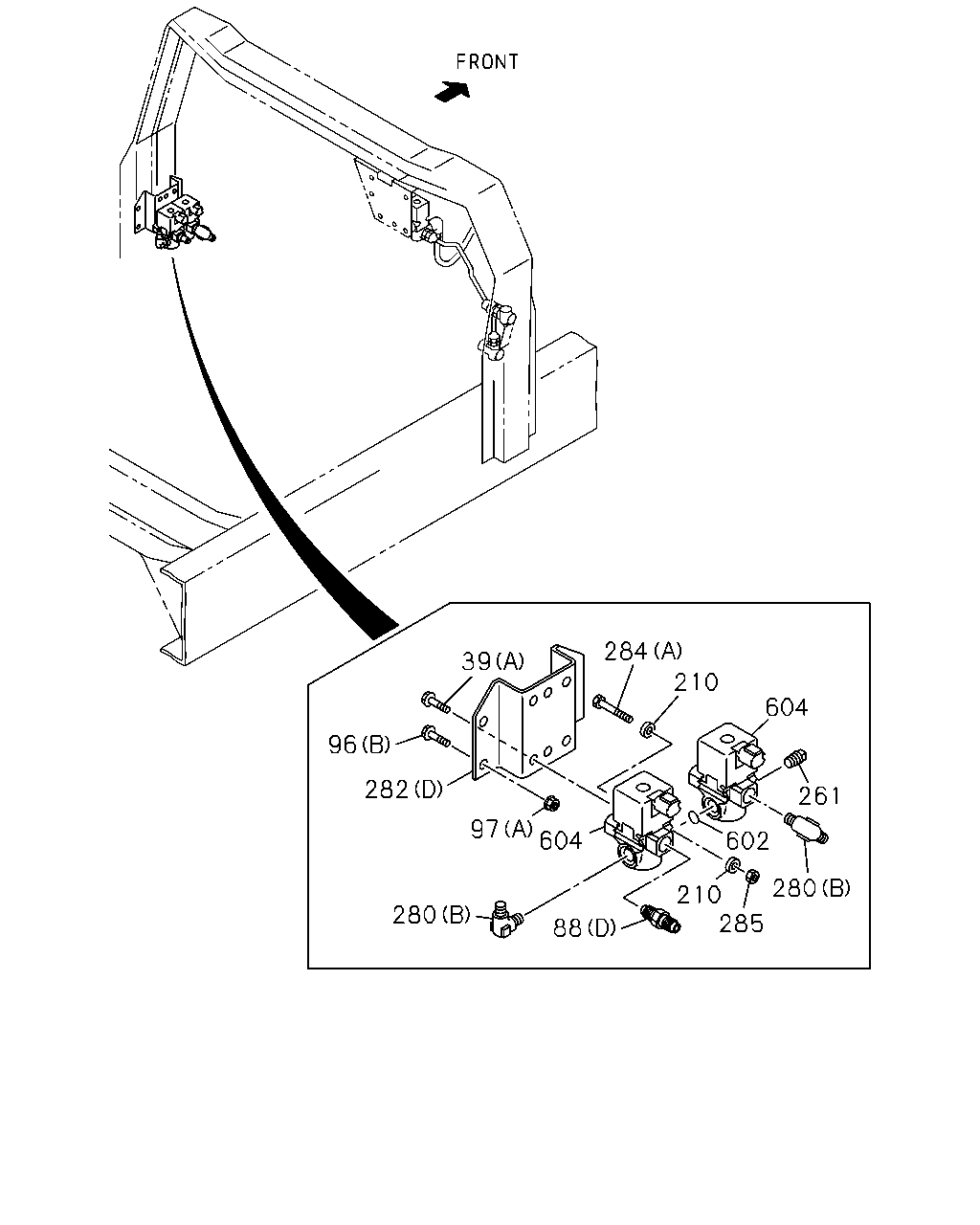

284 39 210 604 96 282 261 97 604 602 280 210 285 280 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0308-0512	●	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0308-0512	●	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE	0-28680-825-0	02	1	0308-0512	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0308-	●	●
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0308-	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0308-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0308-	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0308-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0308-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0308-	●	●
96	BOLT; BRKT FIX (B) M8X20 FLANGE	0-28680-820-0	05	1	0308-0512	●	●
96	BOLT; BRKT FIX (B) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●
96	BOLT; BRKT FIX (C) M10X25 FLANGE	0-28681-025-0	01	1	0308-0512	●	●
96	BOLT; BRKT FIX (C) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8X25 FLANGE	0-28680-825-0	02	1	0308-0512	●	●
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
97	NUT; BRKT FIX (A) M8 FLANGE	0-91150-108-0	05	1	0308-0602	●	●
97	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●
97	NUT; BRKT FIX (B) M10 FLANGE	0-91150-210-0	01	1	0308-0602	●	●
97	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8 FLANGE	0-91150-108-0	02	1	0308-0602	●	●
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0308-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0308-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0308-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0308-	●	●
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0308-	●	●
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0308-	●	●
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	0308-	●	●
282	BRACKET; MAG VLV (D)	1-82569-290-0	01	1	0308-	●	●
282	BRACKET; MAG VLV (A)	1-82569-358-0	01	1	0308-	●	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47479-364-1	01	1	0308-	●	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28080-650-0	01	1	0308-0512	●	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	0601-	●	●
284	BOLT; MAG VLV (B) M8X20 FLANGE	0-28680-820-0	02	1	0308-0512	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE	0-28680-820-0	02	1	0308-0512	●	●
284	BOLT; MAG VLV (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0308-0602	●	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0308-	●	●
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	0308-	●	●
604	VALVE; MAG,ENG CONT	1-82563-871-2	02	1	0308-	●	●

41 282 39 284 282 41 34 33 284 39 261 261 34 33 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0308-	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0308-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0308-	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0308-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0308-	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0308-0512	●	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0308-0512	●	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE	0-28680-825-0	02	1	0308-0512	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	0308-0602	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0308-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0308-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0308-	●	●
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	0308-	●	●
282	BRACKET; MAG VLV (D)	1-82569-290-0	01	1	0308-	●	●
282	BRACKET; MAG VLV (A)	1-82569-358-0	01	1	0308-	●	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47479-364-1	01	1	0308-	●	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28080-650-0	01	1	0308-0512	●	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	0601-	●	●
284	BOLT; MAG VLV (B) M8X20 FLANGE	0-28680-820-0	02	1	0308-0512	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE	0-28680-820-0	02	1	0308-0512	●	●
284	BOLT; MAG VLV (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
