◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10929 - CXZ RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#25536) — 49 parça

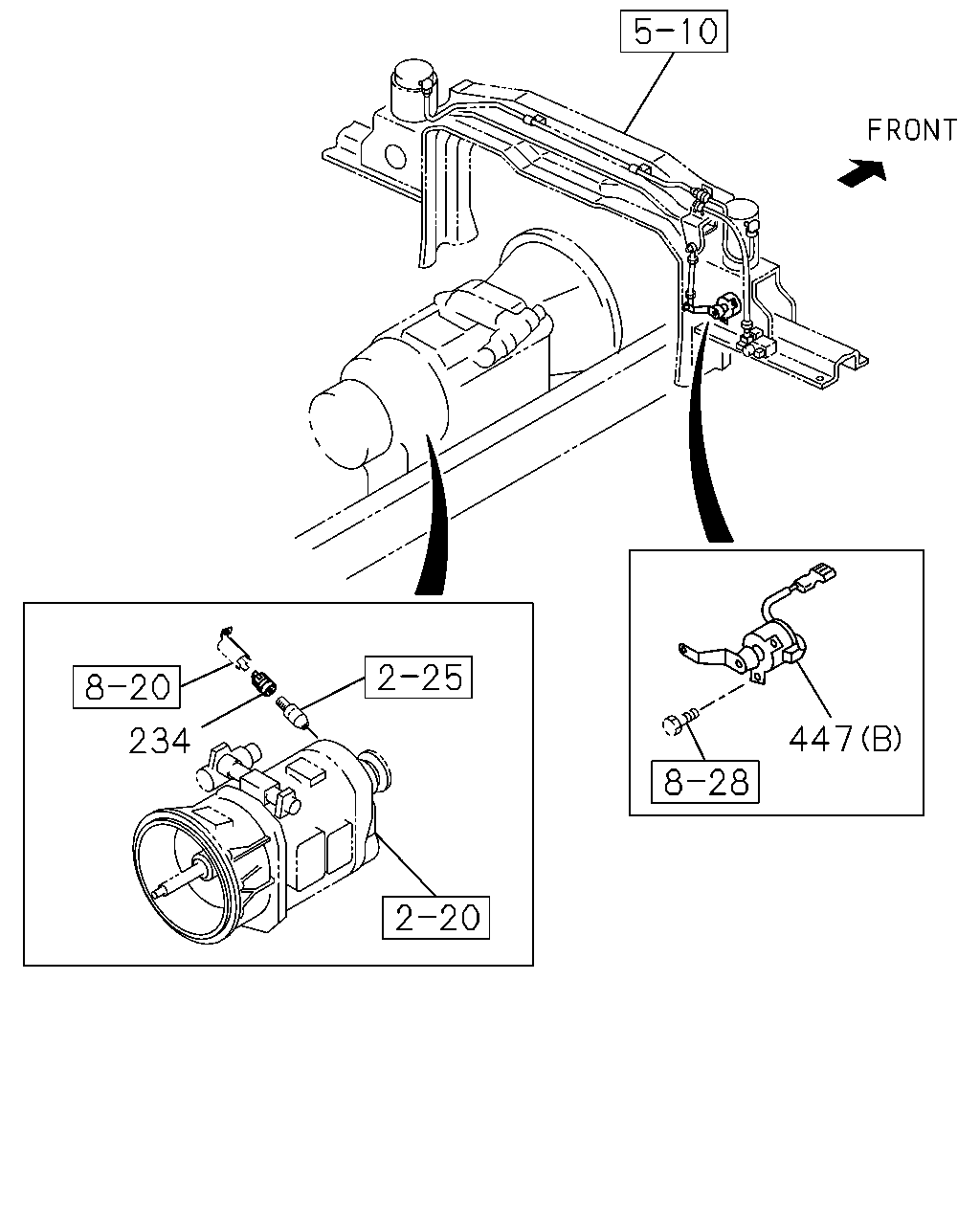

çizim 25214
447 234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
25 PULSE 		1-80240-029-0 01 1 0308- ● ●
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0308- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-80250-011-1 01 1 0308- ● ●

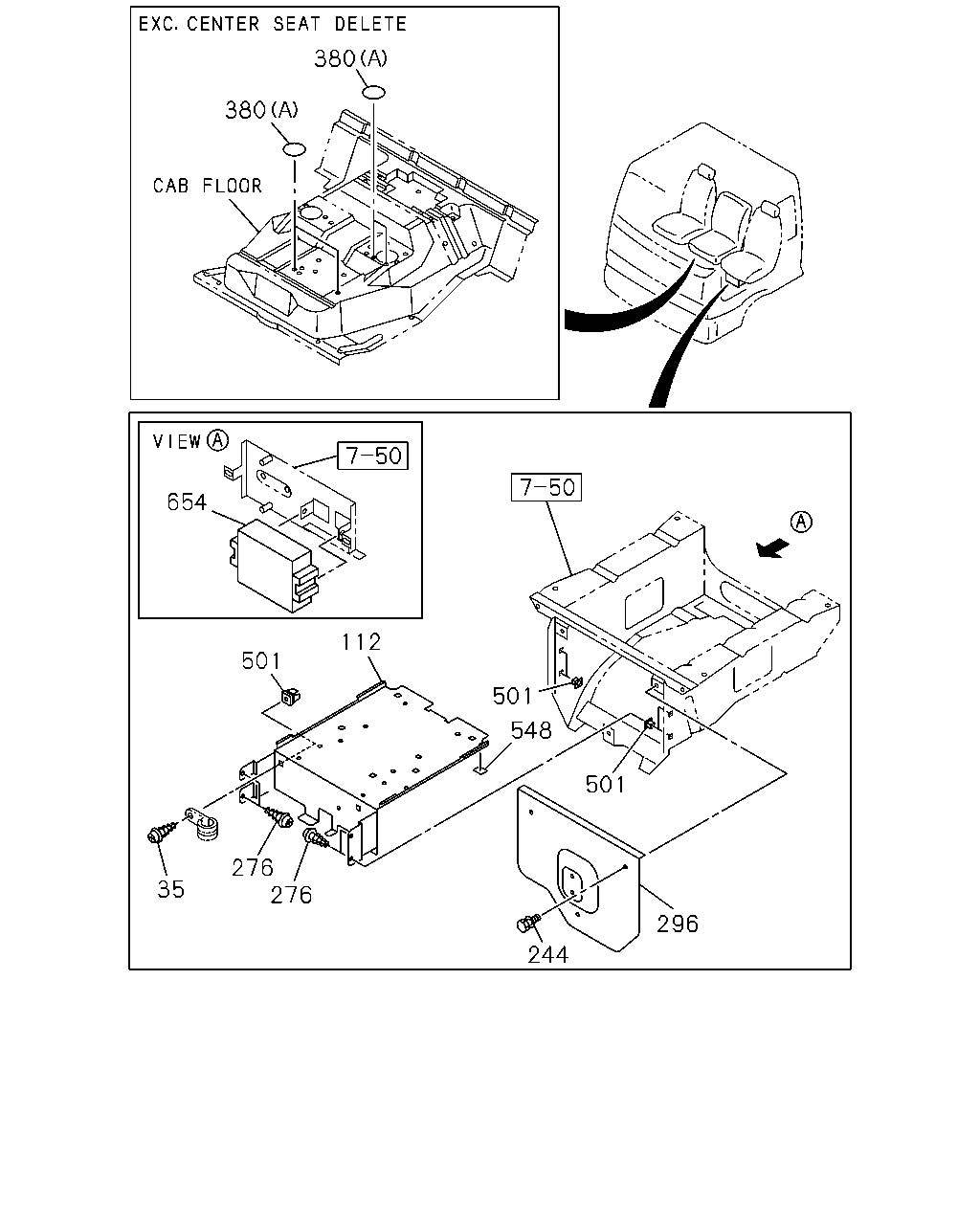

çizim 82257
380 380 654 112 501 501 548 501 276 276 35 296 244
BalonParca AdiParca NoAdetTipApplied Date A B
35 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0308- ● ●
112 BRACKET; CONT UNIT 1-75558-598-3 01 1 0308- ● ●
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0308- ● ●
276 SCREW; BRKT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0308- ● ●
296 COVER; CONT UNIT 1-75558-556-1 01 1 0308- ● ●
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0308- ● ●
380 SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK 		1-76798-019-0 04 1 0308- ● ●
380 SEAL
FULL FLOATING CAB(W16) (B) 450X350 		1-76770-008-0 01 1 0308- ● ●
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 0308- ● ●
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0308- ● ●
548 SEAL; NOISE
30X30 		8-97866-626-0 03 1 0308-0309 ● ●
548 SEAL; NOISE
30X30 		1-74998-128-1 03 1 0310- ● ●
654 CONTROL UNIT; EXH & RETARDER 1-80150-118-0 01 1 0308- ● ●

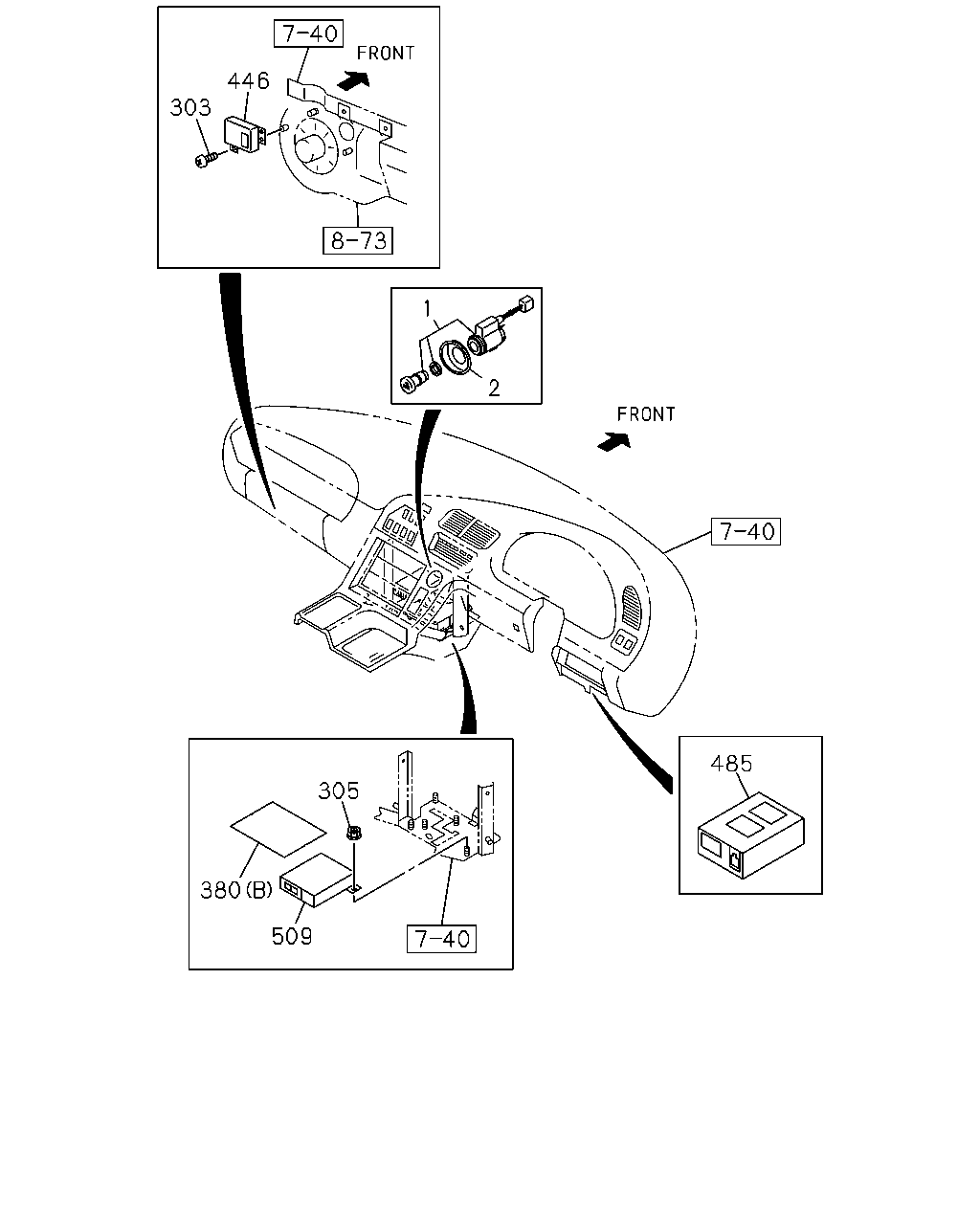

çizim 83555
446 303 1 2 485 305 380 509
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0308- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0308- ● ●
303 SCREW; CONT UNIT
BRAKE SYSTEM HSA<SLD> M5X14 		8-94279-325-0 03 1 0308- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 04 1 0308-0602 ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91150-106-0 02 1 0308-0602 ● ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0308- ● ●
380 SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK 		1-76798-019-0 04 1 0308- ● ●
380 SEAL
FULL FLOATING CAB(W16) (B) 450X350 		1-76770-008-0 01 1 0308- ● ●
446 CONTROL UNIT; HSA
BRAKE SYSTEM HSA<SLD> 		1-80110-289-2 01 1 0308-0405 ● ●
446 CONTROL UNIT; HSA
BRAKE SYSTEM HSA<SLD> 		1-80111-116-1 01 1 0406- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0308- ● ●
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-042-1 01 1 0308- ● ●

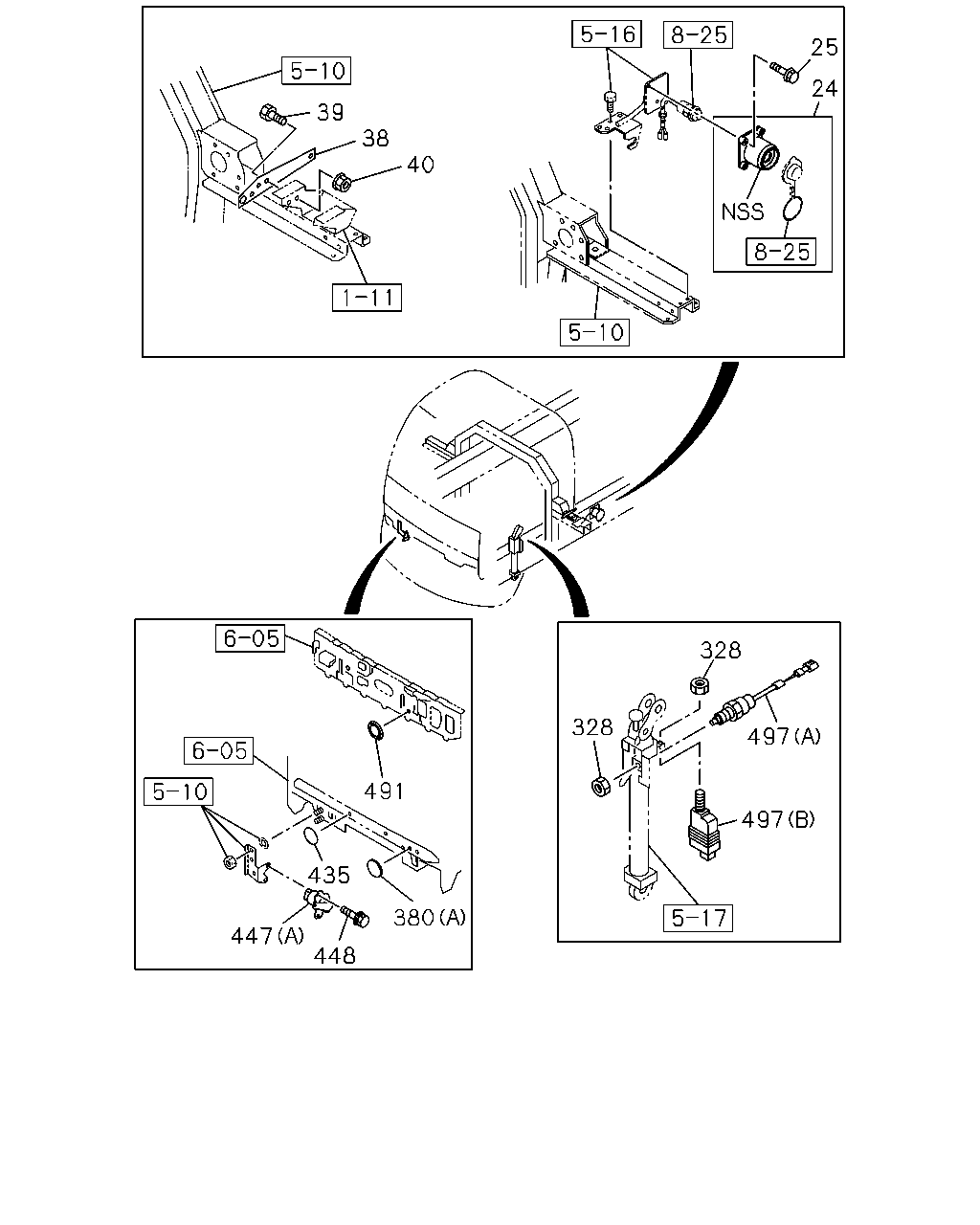

çizim 85257
25 24 39 38 40 328 328 497 491 497 435 380 447 448
BalonParca AdiParca NoAdetTipApplied Date A B
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 0308- ● ●
25 BOLT; SW BOX
M6X16 FLANGE 		0-28080-616-0 02 1 0308-0512 ● ●
25 BOLT; SW BOX
M6X16 FLANGE 		0-28050-616-0 02 1 0601- ● ●
38 BRACKET; SW,STARTER SUB 1-82699-741-0 01 1 0308-0404 ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 0308-0404 ● ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 0308-0404 ● ●
328 NUT
M16 		9-99111-416-0 02 1 0308-0512 ● ●
328 NUT
M16 		0-91111-516-0 02 1 0601- ● ●
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0308- ● ●
380 SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK 		1-76798-019-0 04 1 0308- ● ●
380 SEAL
FULL FLOATING CAB(W16) (B) 450X350 		1-76770-008-0 01 1 0308- ● ●
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 0308- ● ●
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0308- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-80250-011-1 01 1 0308- ● ●
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0308-0407 ● ●
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0408- ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0308- ● ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 0308- ● ●
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 0308- ● ●
