8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#25535) — 51 parça

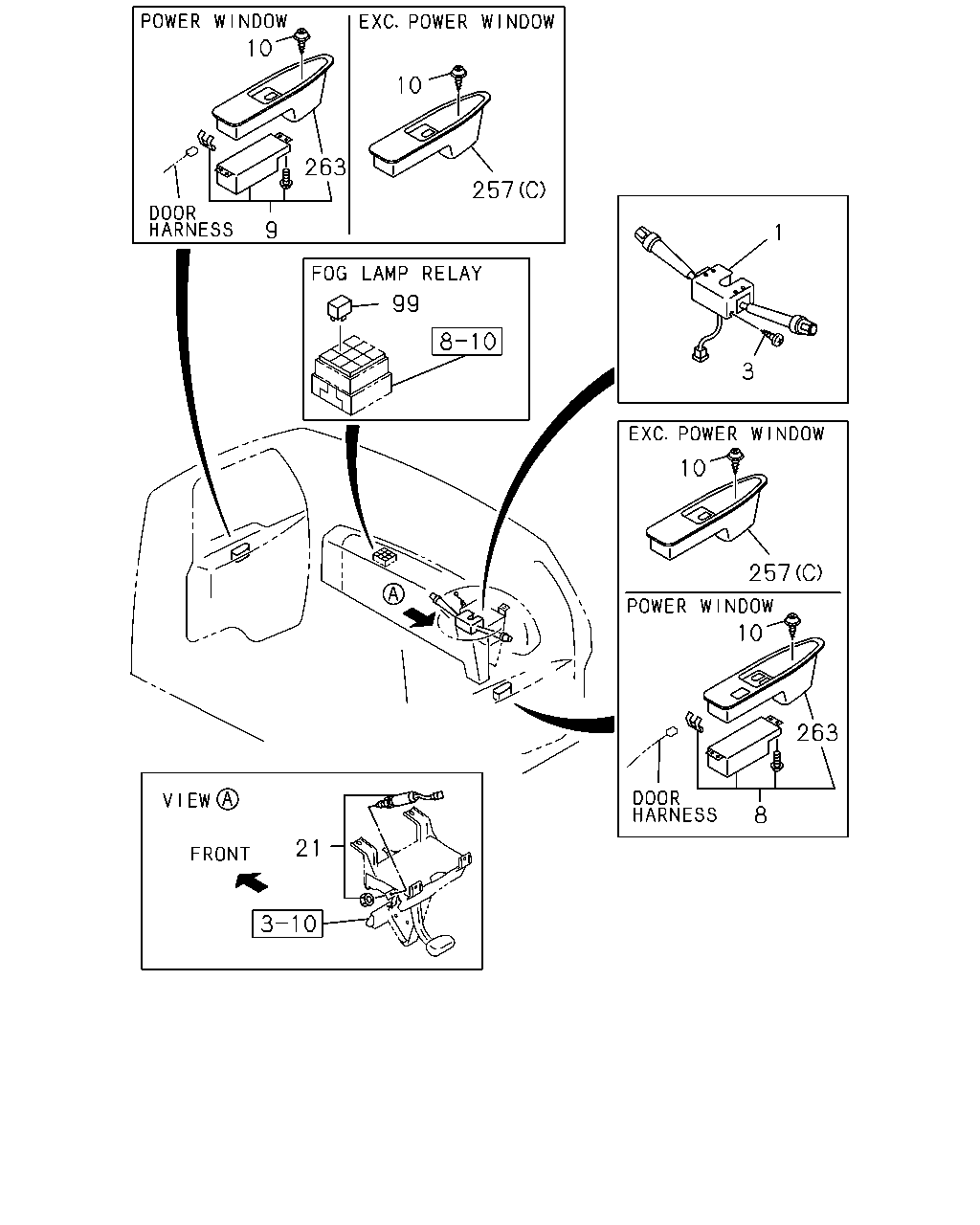

çizim 79821
10 10 263 257 9 1 99 3 10 257 10 263 8 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 1-82360-619-0 01 1 0308-0312 ● ●
1 SWITCH; COMB 1-82360-715-0 01 1 0401- ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0308-0604 ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605- ● ●
8 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> DRIVER SIDE 		1-82380-166-1 01 1 0308- ● ●
9 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> PASSENGER SIDE 		1-82380-167-1 01 1 0308- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0308-0604 ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605- ● ●
21 SWITCH; CLU 1-82380-114-3 01 1 0308- ● ●
99 RELAY; FOG LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0308- ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 0308- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-011-2 01 1 0308- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-012-2 01 1 0308- ● ●
257 COVER; HOLE,SW
EXC. BRAKE SYSTEM HSA<SLD> (B) 		8-94229-914-1 01 1 0308- ● ●
263 COVER; SW
AUTO DOOR LOCK<AU4> DRIVER SIDE 		1-82385-005-2 01 1 0308- ● ●
263 COVER; SW
AUTO DOOR LOCK<AU4> PASSENGER SIDE 		1-82385-006-3 01 1 0308- ● ●

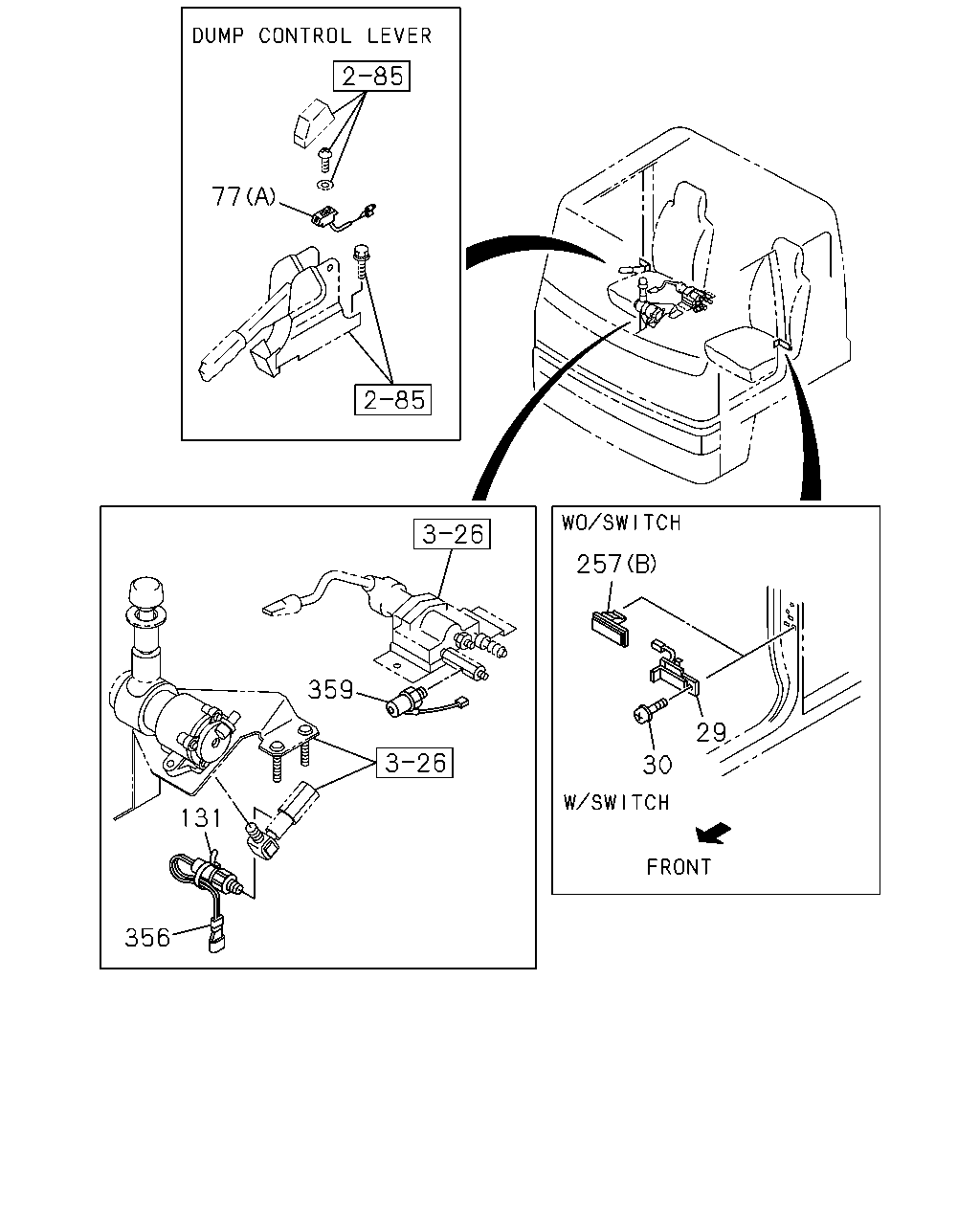

çizim 79986
77 257 359 29 30 131 356
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
BRAKE SYSTEM HSA<SLD> 		8-97855-032-3 02 1 0308- ● ●
29 SWITCH; DOOR
EXC. BRAKE SYSTEM HSA<SLD> 		8-97855-032-3 01 1 0308- ● ●
30 SCREW; DOOR SW
BRAKE SYSTEM HSA<SLD> M5X11 		1-09981-536-1 02 1 0308- ● ●
30 SCREW; DOOR SW
EXC. BRAKE SYSTEM HSA<SLD> M5X11 		1-09981-536-1 01 1 0308- ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (B) 		1-82340-413-0 01 1 0308- ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82340-413-0 01 1 0308- ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (A) 		1-82380-112-0 01 1 0308- ● ●
131 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) FULL TRACTOR TRUCK<RD6> L=180 		1-09707-162-1 01 1 0308- ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 0308- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-011-2 01 1 0308- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-012-2 01 1 0308- ● ●
257 COVER; HOLE,SW
EXC. BRAKE SYSTEM HSA<SLD> (B) 		8-94229-914-1 01 1 0308- ● ●
356 SWITCH; TRAILER,LOW PRESS
HONG KONG EQUIPMENT(PQ1) FULL TRACTOR TRUCK<RD6> 		1-48340-057-1 01 1 0308-0312 ● ●
356 SWITCH; TRAILER,LOW PRESS
HONG KONG EQUIPMENT(PQ1) FULL TRACTOR TRUCK<RD6> 		1-48340-068-0 01 1 0401- ● ●
359 SWITCH; TRAILER BRAKE
FULL TRACTOR TRUCK<RD6> GREEN 		1-82410-176-0 01 1 0308-0508 ● ●
359 SWITCH; TRAILER BRAKE
TRAILER BRAKE HAND CONTROL<NLG> GREEN 		1-82410-176-1 01 1 0509- ● ●

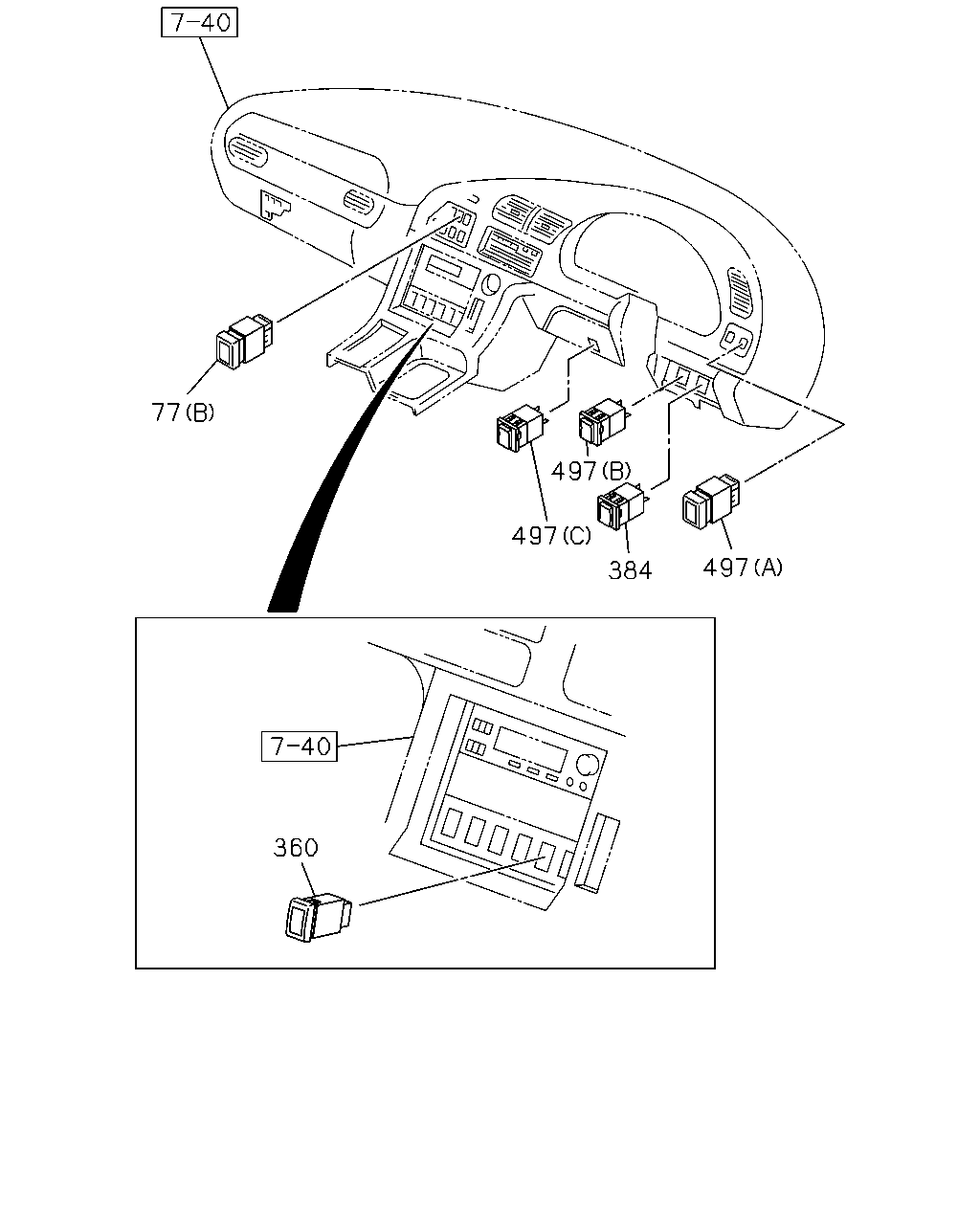

çizim 83722
77 497 497 497 384 360
BalonParca AdiParca NoAdetTipApplied Date A B
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (B) 		1-82340-413-0 01 1 0308- ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82340-413-0 01 1 0308- ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (A) 		1-82380-112-0 01 1 0308- ● ●
360 SWITCH ASM; DIFF LK 1-82340-677-0 01 1 0308- ● ●
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 0308- ● ●
497 SWITCH; HSA
BRAKE SYSTEM HSA<SLD> (A) HSA OFF 		1-82340-408-1 01 1 0308- ● ●
497 SWITCH; HSA
BRAKE SYSTEM HSA<SLD> (B) HSA ADJUST 		1-82350-237-2 01 1 0308- ● ●
497 SWITCH; HSA
BRAKE SYSTEM HSA<SLD> (C) HSA RESET 		8-97076-356-0 01 1 0308- ● ●

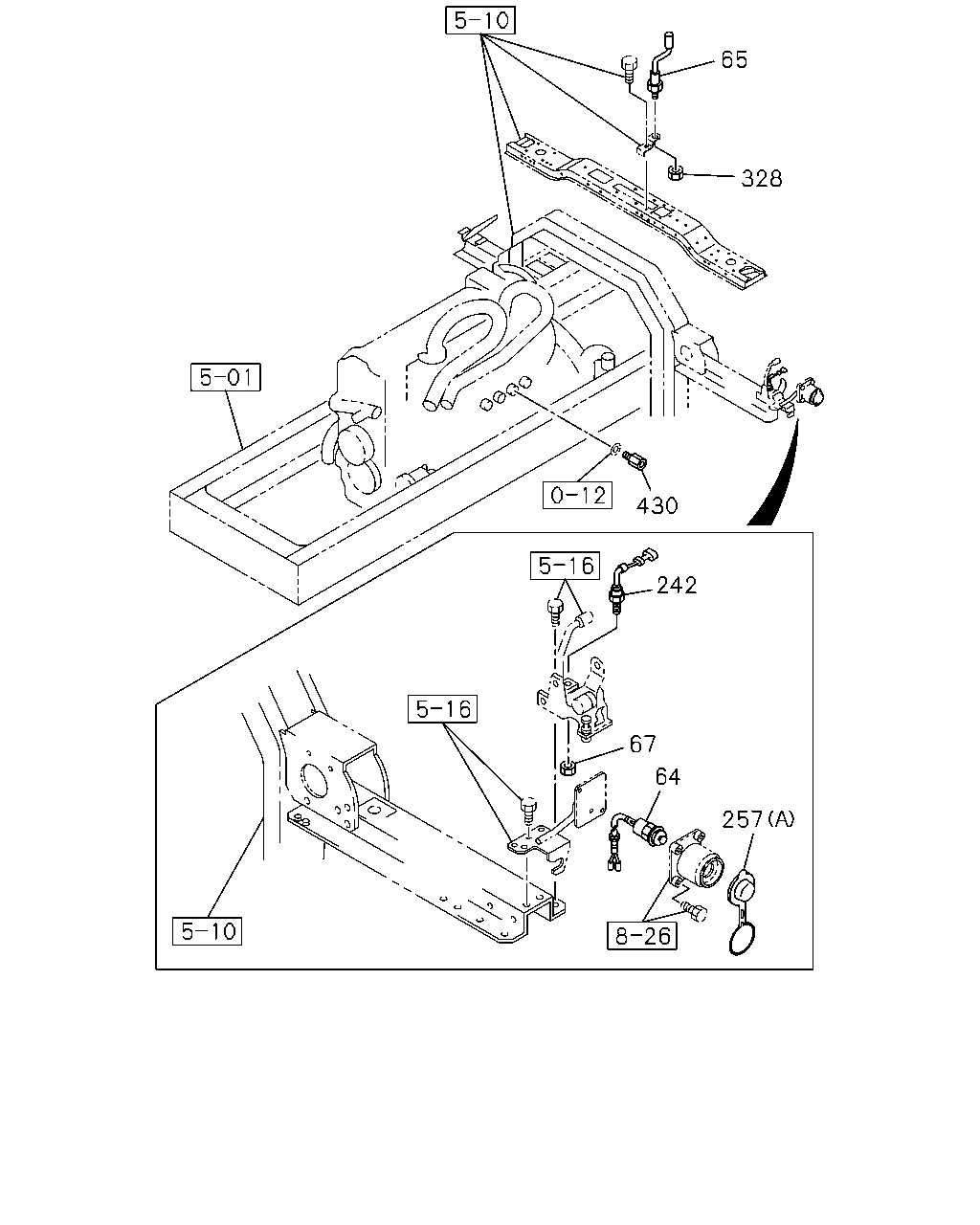

çizim 84773
65 328 430 242 67 64 257
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 0308- ● ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0308- ● ●
67 NUT; SW,CAB TILT
M16 H=18.5 		1-09409-013-0 01 1 0308- ● ●
242 SWITCH
STAMP NO 		1-82380-126-0 01 1 0308- ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 0308- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-011-2 01 1 0308- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-012-2 01 1 0308- ● ●
257 COVER; HOLE,SW
EXC. BRAKE SYSTEM HSA<SLD> (B) 		8-94229-914-1 01 1 0308- ● ●
328 NUT; SW
M16 		9-99110-416-0 01 1 0308-0512 ● ●
328 NUT; SW
M16 		0-91110-516-0 01 1 0601- ● ●
430 ADAPTER; SW
M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0308- ● ●
