◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10929 - CXZ RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#25532) — 393 parça

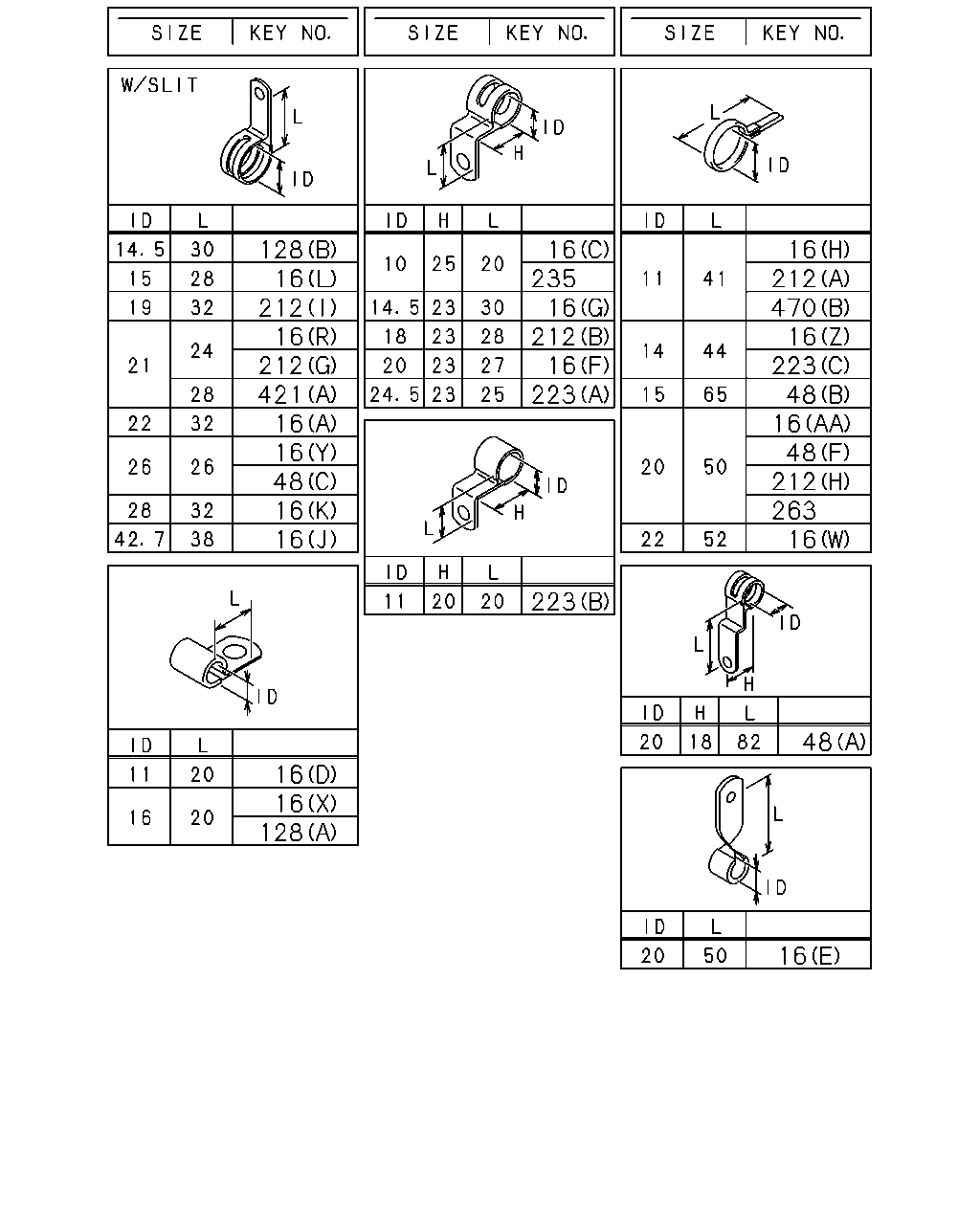

çizim 23991
128 16 212 16 212 421 16 16 48 16 16 16 235 16 212 16 223 16 212 470 16 223 48 16 48 212 263 16 223 48 16 16 128 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(B) ID=18-24 L=18 		1-09709-294-0 03 1 0308-0309 ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F01> (B) ID=18-24 L=18 		1-09709-294-0 01 1 0310- ●
16 CLIP; HARNESS
(B) ID=18-24 L=18 		1-09709-294-0 04 1 0308-0309 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F01> (AC) ID=18-24 L=26 		1-09709-296-0 01 1 0310- ●
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0308- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 0308- ● ●
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0308- ● ●
16 CLIP; HARNESS
(C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0308-0407 ● ●
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09700-583-1 01 1 0308-0402 ● ●
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0403- ● ●
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0308- ● ●
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0308- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0308-0403 ● ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 11 1 0404- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 0308-0403 ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0404- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0404- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0404- ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0308- ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0308- ● ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0308- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 08 1 0308-0312 ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 07 1 0401- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0308- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 06 1 0308-0407 ● ●
16 CLIP; HARNESS
(P) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0308- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 0308- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0308- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 05 1 0308- ● ●
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 01 1 0308- ● ●
16 CLIP; HARNESS
(S) ID=13-18 L=18 		1-09709-291-0 02 1 0308-0309 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0310-0403 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 0404- ● ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0308-0407 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0308-0403 ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0308-0403 ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0404- ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0308-0309 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0308-0309 ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 04 1 0308- ● ●
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0308- ● ●
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0308- ● ●
16 CLIP; HARNESS
(R) ID=21 L=24 		8-94176-807-1 01 1 0308- ● ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0308-0606 ● ●
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-032-0 01 1 0607- ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0308-0606 ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0308- ● ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 14 1 0308-0403 ● ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 03 1 0404- ● ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 01 1 0308- ● ●
16 CLIP; HARNESS
(W) ID=22 L=52 		9-09917-431-0 01 1 0308- ● ●
16 CLIP; HARNESS
(Y) ID=26 L=26 		1-09701-236-0 01 1 0308-0407 ● ●
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (H) ID=11 L=41 		1-09700-403-0 01 1 0308- ● ●
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (O) L=180 		1-09707-162-1 01 1 0308-0312 ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0401- ● ●
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (O) L=180 		1-09707-162-1 01 1 0401- ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (B) ID=18-24 L=18 		1-09709-294-0 05 1 0308- ●
16 CLIP; HARNESS
WHEEL BASE 6100MM(61W) (B) ID=18-24 L=18 		1-09709-294-0 06 1 0308- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (B) ID=18-24 L=18 		1-09709-294-0 07 1 0308- ●
48 CLIP; FRAME HARNESS
(B) ID=15 L=65 		1-09700-466-0 01 1 0308- ● ●
48 CLIP; FRAME HARNESS
(C) ID=26 L=26 		1-09701-236-0 01 1 0308- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 H=18 L=82 		1-09701-288-0 01 1 0308- ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 15 1 0308- ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 06 1 0308- ● ●
48 CLIP; FRAME HARNESS
(F) ID=20 L=50 		9-09917-430-0 02 1 0308- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0308-0606 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0308- ● ●
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0308- ● ●
212 CLIP; HORN HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0308- ● ●
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0308-0504 ● ●
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0308- ● ●
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0308- ● ●
212 CLIP; HORN HARNESS
(G) ID=21 L=24 		8-94176-807-1 01 1 0308-0403 ● ●
212 CLIP; HORN HARNESS
(I) ID=19 L=32 		1-09701-235-0 01 1 0404- ● ●
212 CLIP; HORN HARNESS
(H) ID=20 L=50 		9-09917-430-0 03 1 0308- ● ●
212 CLIP; HORN HARNESS
CAB UP +110MM<TGG> (D) L=350 		1-09707-183-0 01 1 0308-0504 ● ●
212 CLIP; HORN HARNESS
(D) L=350 		1-09707-183-0 01 1 0505- ● ●
212 CLIP; HORN HARNESS
CAB UP +110MM<TGG> (D) L=350 		1-09707-183-0 01 1 0505- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0308- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		5-09700-351-0 03 1 0308- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0308- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=10 H=25 L=20 		1-09700-519-0 01 1 0408- ● ●
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0308- ● ●
421 CLIP; FLOOR HARNESS
(A) ID=21 L=28 		1-09700-673-1 02 1 0308- ● ●
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0308- ● ●
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) L=140 		5-09707-031-1 01 1 0308- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0308- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0308- ● ●
çizim 80080
119 64 524 219 294 340 515 255 423
BalonParca AdiParca NoAdetTipApplied Date A B
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0404- ● ●
119 SCREW; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0308- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 10 1 0408-0602 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 10 1 0603- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0408-0602 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 12 1 0308-0407 ● ●
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0308-0604 ● ●
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74365-620-0 02 1 0605- ● ●
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ● ●
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ● ●
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
294 NUT
POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> M8 FLANGE 		0-91150-108-0 05 1 0308-0602 ● ●
294 NUT
POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
340 NUT; HARNESS CAB TO FRAME
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ● ●
340 NUT; HARNESS CAB TO FRAME
CAB UP +110MM<TGG> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 05 1 0308- ● ●
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0308-0602 ● ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0308-0602 ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
çizim 80183
530 224 1 1 178 178 178 510 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0308- ● ●
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 L=50 		5-09360-835-0 01 1 0308- ● ●
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0308- ● ●
178 GROMMET; HARNESS
(C) 		1-82699-891-0 01 1 0308- ● ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0308- ● ●
178 GROMMET; HARNESS
SINGAPORE EQUIPMENT(WQ3) (B) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0308- ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0308- ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0308- ● ●
224 SLEEVE; RUBBER,HARNESS
ID=6 L=30 		5-09360-352-0 01 1 0308- ● ●
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 01 1 0404- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0308- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 08 1 0308- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 01 1 0308- ● ●
530 SEAL; HARNESS
BRAKE SYSTEM HSA<SLD> 180X40 		1-72498-019-1 03 1 0308- ● ●
çizim 82865
16 51 81 104 171 206 212 305 421 16 48 111 171 212 205 194 212 16 48 194 212 16 51 142 162 194 208
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(B) ID=18-24 L=18 		1-09709-294-0 03 1 0308-0309 ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F01> (B) ID=18-24 L=18 		1-09709-294-0 01 1 0310- ●
16 CLIP; HARNESS
(B) ID=18-24 L=18 		1-09709-294-0 04 1 0308-0309 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F01> (AC) ID=18-24 L=26 		1-09709-296-0 01 1 0310- ●
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0308- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 0308- ● ●
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0308- ● ●
16 CLIP; HARNESS
(C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0308-0407 ● ●
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09700-583-1 01 1 0308-0402 ● ●
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0403- ● ●
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0308- ● ●
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0308- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0308-0403 ● ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 11 1 0404- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 0308-0403 ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0404- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0404- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0404- ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0308- ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0308- ● ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0308- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 08 1 0308-0312 ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 07 1 0401- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0308- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 06 1 0308-0407 ● ●
16 CLIP; HARNESS
(P) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0308- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 0308- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0308- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 05 1 0308- ● ●
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 01 1 0308- ● ●
16 CLIP; HARNESS
(S) ID=13-18 L=18 		1-09709-291-0 02 1 0308-0309 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0310-0403 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 0404- ● ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0308-0407 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0308-0403 ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0308-0403 ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0404- ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0308-0309 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0308-0309 ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 04 1 0308- ● ●
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0308- ● ●
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0308- ● ●
16 CLIP; HARNESS
(R) ID=21 L=24 		8-94176-807-1 01 1 0308- ● ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0308-0606 ● ●
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-032-0 01 1 0607- ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0308-0606 ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0308- ● ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 14 1 0308-0403 ● ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 03 1 0404- ● ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 01 1 0308- ● ●
16 CLIP; HARNESS
(W) ID=22 L=52 		9-09917-431-0 01 1 0308- ● ●
16 CLIP; HARNESS
(Y) ID=26 L=26 		1-09701-236-0 01 1 0308-0407 ● ●
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (H) ID=11 L=41 		1-09700-403-0 01 1 0308- ● ●
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (O) L=180 		1-09707-162-1 01 1 0308-0312 ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0401- ● ●
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (O) L=180 		1-09707-162-1 01 1 0401- ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (B) ID=18-24 L=18 		1-09709-294-0 05 1 0308- ●
16 CLIP; HARNESS
WHEEL BASE 6100MM(61W) (B) ID=18-24 L=18 		1-09709-294-0 06 1 0308- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (B) ID=18-24 L=18 		1-09709-294-0 07 1 0308- ●
48 CLIP; FRAME HARNESS
(B) ID=15 L=65 		1-09700-466-0 01 1 0308- ● ●
48 CLIP; FRAME HARNESS
(C) ID=26 L=26 		1-09701-236-0 01 1 0308- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 H=18 L=82 		1-09701-288-0 01 1 0308- ● ●
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 15 1 0308- ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 06 1 0308- ● ●
48 CLIP; FRAME HARNESS
(F) ID=20 L=50 		9-09917-430-0 02 1 0308- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 0308- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0308- ● ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0308- ● ●
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 0308- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 08 1 0308- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) L=140 		5-09707-031-1 02 1 0308- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=21 L=47.5 		8-94178-108-0 02 1 0308- ● ●
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 0308- ● ●
142 CLIP; HARNESS,ENG
L=180 		1-09707-162-1 01 1 0308- ● ●
162 CLIP; SW HARNESS
CAB UP +110MM<TGG> L=180 		1-09707-162-1 01 1 0308- ●
171 CLIP; STARTER HARNESS
(A) L=250 		5-09707-030-1 03 1 0308- ● ●
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 06 1 0308- ● ●
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0308-0504 ● ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0308- ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 03 1 0308-0504 ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 04 1 0505- ● ●
205 CLIP; BACK LAMP HARNESS
(B) ID=13-18 L=18 		1-09709-291-0 02 1 0308-0309 ●
205 CLIP; BACK LAMP HARNESS
SINGAPORE EQUIPMENT(WQ3) (A) OD=9 H=9.5 		1-09709-179-0 01 1 0308- ● ●
205 CLIP; BACK LAMP HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 0308- ● ●
205 CLIP; BACK LAMP HARNESS
SINGAPORE EQUIPMENT(WQ3) (C) L=250 		5-09707-030-1 05 1 0308-0309 ● ●
205 CLIP; BACK LAMP HARNESS
(B) ID=13-18 L=18 		1-09709-291-0 01 1 0308-0309 ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0308- ● ●
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0310- ● ●
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0308- ● ●
212 CLIP; HORN HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0308- ● ●
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0308-0504 ● ●
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0308- ● ●
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0308- ● ●
212 CLIP; HORN HARNESS
(G) ID=21 L=24 		8-94176-807-1 01 1 0308-0403 ● ●
212 CLIP; HORN HARNESS
(I) ID=19 L=32 		1-09701-235-0 01 1 0404- ● ●
212 CLIP; HORN HARNESS
(H) ID=20 L=50 		9-09917-430-0 03 1 0308- ● ●
212 CLIP; HORN HARNESS
CAB UP +110MM<TGG> (D) L=350 		1-09707-183-0 01 1 0308-0504 ● ●
212 CLIP; HORN HARNESS
(D) L=350 		1-09707-183-0 01 1 0505- ● ●
212 CLIP; HORN HARNESS
CAB UP +110MM<TGG> (D) L=350 		1-09707-183-0 01 1 0505- ● ●
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 0308- ● ●
421 CLIP; FLOOR HARNESS
(A) ID=21 L=28 		1-09700-673-1 02 1 0308- ● ●
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0308- ● ●
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) L=140 		5-09707-031-1 01 1 0308- ● ●

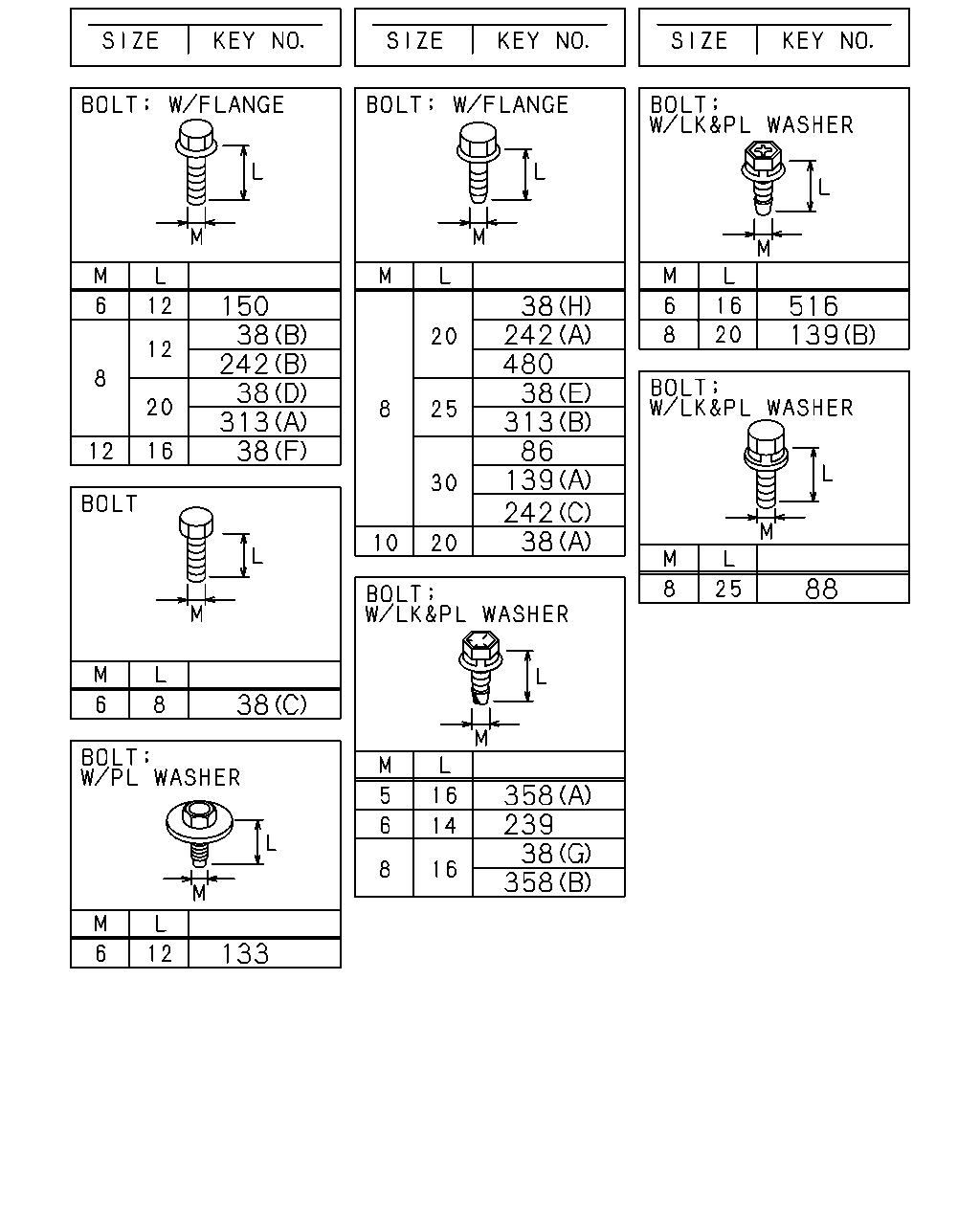

çizim 84585
150 38 242 38 313 38 38 242 480 38 313 86 139 242 38 516 139 88 38 358 239 38 358 133
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0408-0512 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0408-0512 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 07 1 0308-0403 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 06 1 0404-0407 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 04 1 0408-0512 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(C) M6X8 		0-20800-608-0 01 1 0308- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0308-0403 ● ●
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0407 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 02 1 0408-0512 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28080-820-0 01 1 0308-0512 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28050-820-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28680-825-0 02 1 0308-0512 ● ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(A) M10X20 FLANGE 		0-28781-020-0 01 1 0308-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M10X20 FLANGE 		0-28751-020-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		1-09044-079-0 01 1 0308- ● ●
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0308- ● ●
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0308-0512 ● ●
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
88 BOLT; DOOR HARNESS EARTH
EXC. AUTO DOOR LOCK<AU4> M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0404- ● ●
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0308-0312 ● ●
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0401-0403 ● ●
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0404- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0308- ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 04 1 0308-0512 ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 04 1 0601- ● ●
139 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0308- ● ●
150 BOLT; CLIP
M6X12 FLANGE 		0-28080-612-0 01 1 0308-0512 ● ●
150 BOLT; CLIP
M6X12 FLANGE 		0-28050-612-0 01 1 0601- ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0308- ● ●
242 BOLT; BRKT,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 01 1 0308-0512 ● ●
242 BOLT; BRKT,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0308-0512 ● ●
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0308-0512 ● ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0601- ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0308-0512 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
313 BOLT; BRKT
CAB UP +110MM<TGG> (A) M8X20 FLANGE 		0-28080-820-0 01 1 0308-0512 ● ●
313 BOLT; BRKT
CAB UP +110MM<TGG> (A) M8X20 FLANGE 		0-28050-820-0 01 1 0601- ● ●
313 BOLT; BRKT
POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> (B) M8X25 FLANGE 		0-28680-825-0 05 1 0308-0512 ● ●
313 BOLT; BRKT
POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> (B) M8X25 FLANGE 		0-28650-825-0 05 1 0601- ● ●
358 BOLT; EARTH
(A) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0308- ● ●
358 BOLT; EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0308- ● ●
480 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0308-0512 ● ●
480 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0308- ● ●

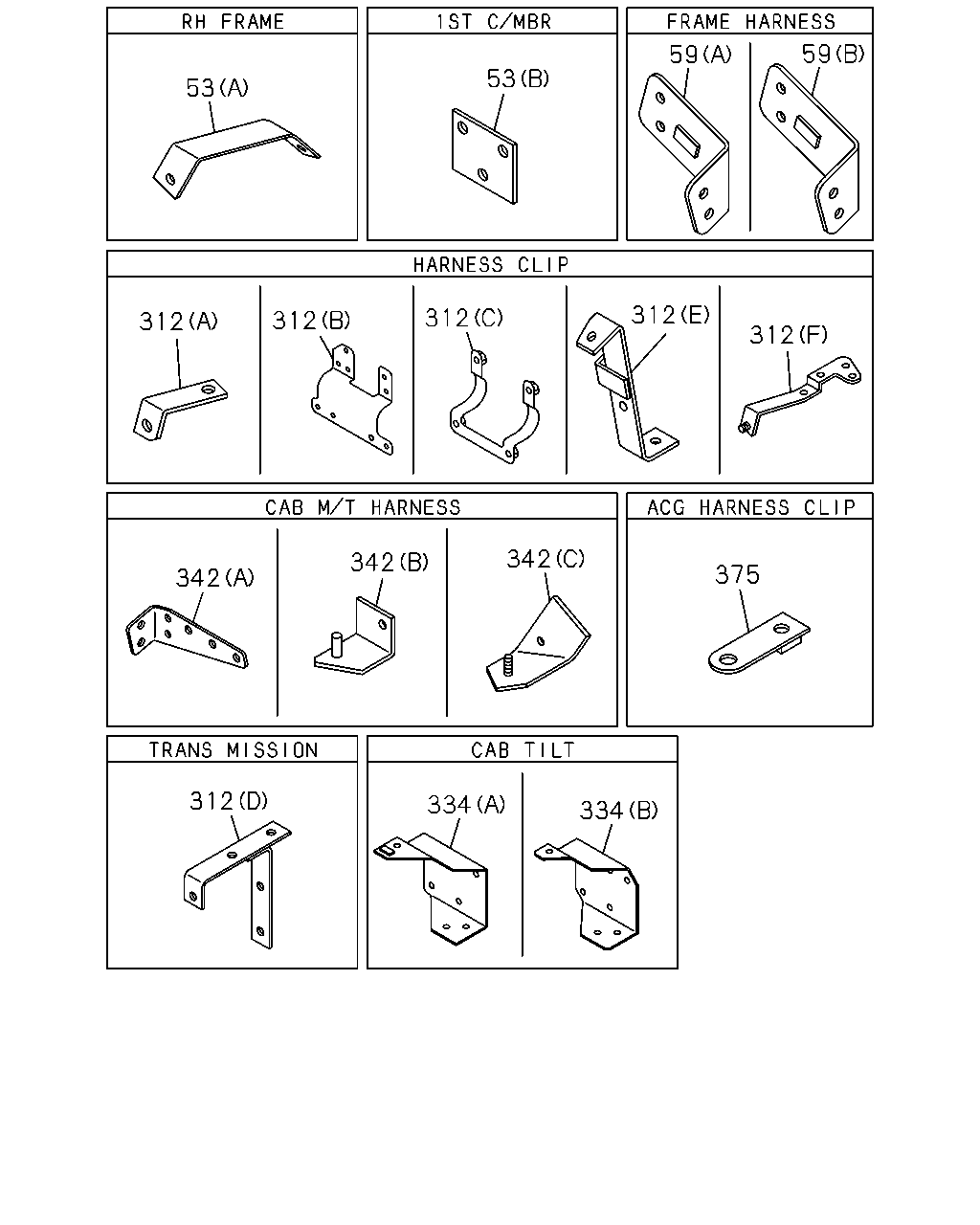

çizim 84871
59 59 53 53 312 312 312 312 312 342 342 375 342 312 334 334
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
CAB UP +110MM<TGG> (B) 		1-82698-469-0 01 1 0308- ● ●
53 BRACKET; HARNESS
POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> (A) 		1-47479-537-0 04 1 0308- ● ●
53 BRACKET; HARNESS
POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> (A) 		1-47479-537-0 05 1 0308- ● ●
59 BRACKET; FRAME HARNESS
(A) 		1-82698-402-1 01 1 0308-0311 ● ●
59 BRACKET; FRAME HARNESS
(B) 		1-82698-531-0 01 1 0312- ● ●
312 BRACKET; CLIP HARNESS
(A) 		1-82698-440-0 01 1 0308- ● ●
312 BRACKET; CLIP HARNESS
(B) 		1-82698-284-0 01 1 0308- ● ●
312 BRACKET; CLIP HARNESS
(C) 		1-82698-285-0 01 1 0308- ● ●
312 BRACKET; CLIP HARNESS
(D) 		1-82698-479-0 01 1 0308- ● ●
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-82698-443-0 01 1 0308- ● ●
312 BRACKET; CLIP HARNESS
CAB UP +110MM<TGG> (E) L=195.5 		1-82698-502-0 01 1 0308- ● ●
334 BRACKET
(A) 		1-53457-106-0 01 1 0308-0309 ● ●
334 BRACKET
(B) 		1-53458-362-0 01 1 0310- ● ●
342 BRACKET; HARNESS CAB MTG
(B) 		1-47479-643-0 01 1 0308-0404 ● ●
342 BRACKET; HARNESS CAB MTG
(C) 		1-47479-974-0 01 1 0405- ● ●
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 0308- ● ●
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0308- ● ●

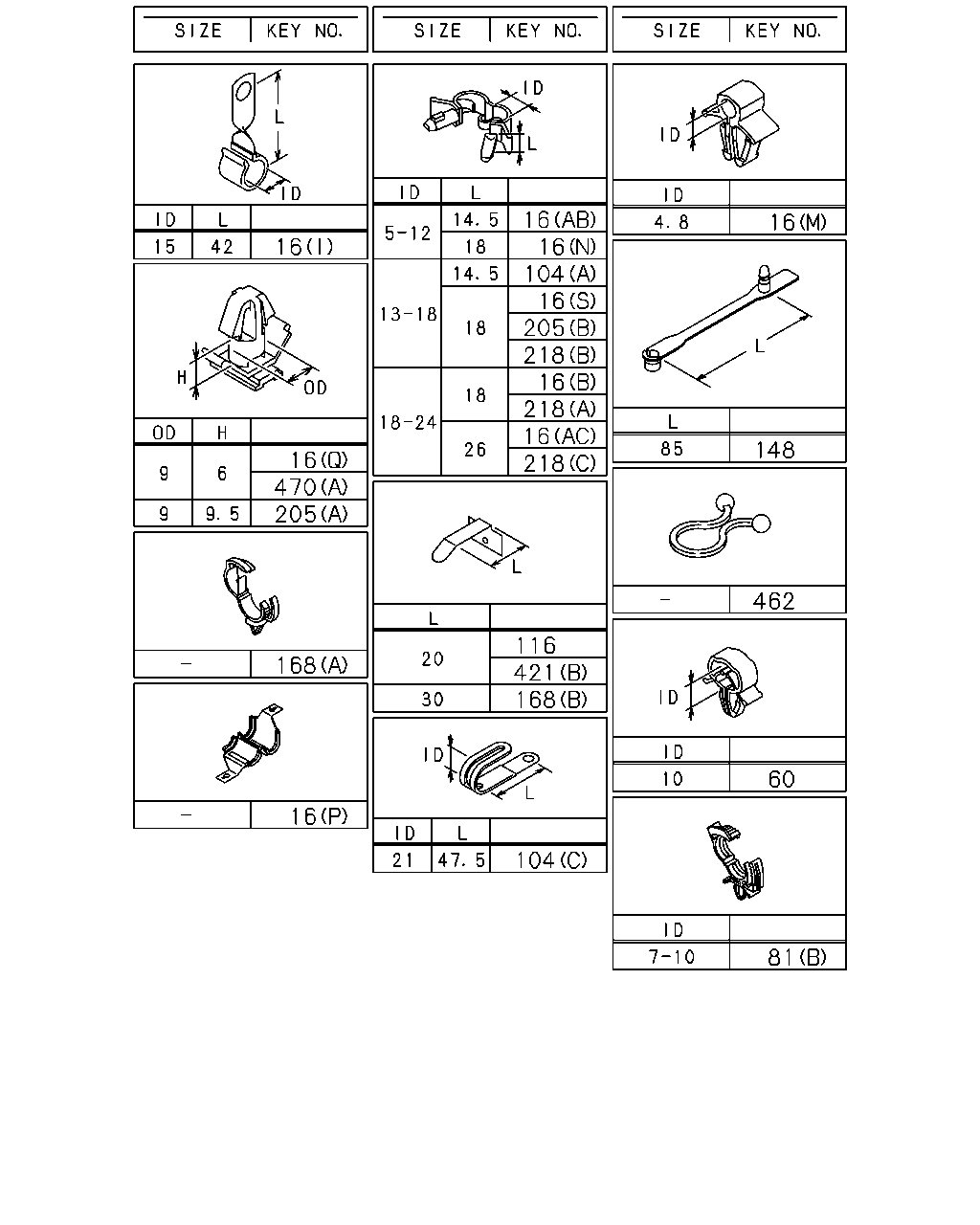

çizim 84954
16 16 104 16 205 218 16 218 16 218 16 16 148 16 470 205 462 116 421 168 168 60 16 104 81
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(B) ID=18-24 L=18 		1-09709-294-0 03 1 0308-0309 ●
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F01> (B) ID=18-24 L=18 		1-09709-294-0 01 1 0310- ●
16 CLIP; HARNESS
(B) ID=18-24 L=18 		1-09709-294-0 04 1 0308-0309 ●
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F01> (AC) ID=18-24 L=26 		1-09709-296-0 01 1 0310- ●
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0308- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 0308- ● ●
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0308- ● ●
16 CLIP; HARNESS
(C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0308-0407 ● ●
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09700-583-1 01 1 0308-0402 ● ●
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0403- ● ●
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0308- ● ●
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0308- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0308-0403 ● ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 11 1 0404- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 0308-0403 ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0404- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0404- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0404- ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0308- ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0308- ● ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0308- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 08 1 0308-0312 ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 07 1 0401- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0308- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 06 1 0308-0407 ● ●
16 CLIP; HARNESS
(P) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0308- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 0308- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0308- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 05 1 0308- ● ●
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 01 1 0308- ● ●
16 CLIP; HARNESS
(S) ID=13-18 L=18 		1-09709-291-0 02 1 0308-0309 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0310-0403 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 0404- ● ●
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0308-0407 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0308-0403 ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0308-0403 ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0404- ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0308-0309 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0308-0309 ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 04 1 0308- ● ●
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0308- ● ●
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0308- ● ●
16 CLIP; HARNESS
(R) ID=21 L=24 		8-94176-807-1 01 1 0308- ● ●
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0308-0606 ● ●
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-032-0 01 1 0607- ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0308-0606 ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0308- ● ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 14 1 0308-0403 ● ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 03 1 0404- ● ●
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 01 1 0308- ● ●
16 CLIP; HARNESS
(W) ID=22 L=52 		9-09917-431-0 01 1 0308- ● ●
16 CLIP; HARNESS
(Y) ID=26 L=26 		1-09701-236-0 01 1 0308-0407 ● ●
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (H) ID=11 L=41 		1-09700-403-0 01 1 0308- ● ●
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (O) L=180 		1-09707-162-1 01 1 0308-0312 ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0401- ● ●
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (O) L=180 		1-09707-162-1 01 1 0401- ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (B) ID=18-24 L=18 		1-09709-294-0 05 1 0308- ●
16 CLIP; HARNESS
WHEEL BASE 6100MM(61W) (B) ID=18-24 L=18 		1-09709-294-0 06 1 0308- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (B) ID=18-24 L=18 		1-09709-294-0 07 1 0308- ●
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 0308-0312 ● ●
60 CLIP; CONSOLE HARNESS,SW PTO
ID=10 		8-94450-392-0 01 1 0401-0403 ● ●
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 0404- ● ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0308- ● ●
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 0308- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 08 1 0308- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) L=140 		5-09707-031-1 02 1 0308- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=21 L=47.5 		8-94178-108-0 02 1 0308- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0308- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0308-0403 ● ●
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 01 1 0404- ● ●
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 0308- ● ●
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0308- ● ●
205 CLIP; BACK LAMP HARNESS
(B) ID=13-18 L=18 		1-09709-291-0 02 1 0308-0309 ●
205 CLIP; BACK LAMP HARNESS
SINGAPORE EQUIPMENT(WQ3) (A) OD=9 H=9.5 		1-09709-179-0 01 1 0308- ● ●
205 CLIP; BACK LAMP HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 0308- ● ●
205 CLIP; BACK LAMP HARNESS
SINGAPORE EQUIPMENT(WQ3) (C) L=250 		5-09707-030-1 05 1 0308-0309 ● ●
205 CLIP; BACK LAMP HARNESS
(B) ID=13-18 L=18 		1-09709-291-0 01 1 0308-0309 ●
218 CLIP; BAND,RR COMB
FRAME EQUIPMENT HEAVY DUTY<F01> (C) ID=18-24 L=26 		1-09709-296-0 01 1 0310- ●
218 CLIP; BAND,RR COMB
EXC. FRAME EQUIPMENT HEAVY DUTY<F01> (A) ID=18-24 L=18 		1-09709-294-0 08 1 0310- ●
218 CLIP; BAND,RR COMB
(B) ID=13-18 L=18 		1-09709-291-0 03 1 0308-0309 ●
218 CLIP; BAND,RR COMB
(B) ID=13-18 L=18 		1-09709-291-0 02 1 0310- ●
218 CLIP; BAND,RR COMB
(A) ID=18-24 L=18 		1-09709-294-0 02 1 0308-0309 ●
218 CLIP; BAND,RR COMB
FRAME EQUIPMENT HEAVY DUTY<F01> (A) ID=18-24 L=18 		1-09709-294-0 07 1 0310- ●
218 CLIP; BAND,RR COMB
(A) ID=18-24 L=18 		1-09709-294-0 04 1 0308- ●
421 CLIP; FLOOR HARNESS
(A) ID=21 L=28 		1-09700-673-1 02 1 0308- ● ●
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0308- ● ●
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) L=140 		5-09707-031-1 01 1 0308- ● ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		1-09709-068-0 02 1 0308- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0308- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0308- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
