◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10929 - CXZ RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#25530) — 33 parça
çizim 24707
3 24 34 33 35 25 27 35
BalonParca AdiParca NoAdetTipApplied Date A B
3 LENS; ROOM LAMP
EXC. ROOM LAMP FLUORESCENT<NGG> 		1-82145-020-0 01 1 0308- ● ●
24 LAMP; STEP 1-82140-052-1 01 1 0308- ● ●
25 BULB; STEP LAMP
24V 5W 		1-82194-042-0 01 1 0308- ● ●
27 LENS; STEP LAMP 1-82145-019-0 01 1 0308- ● ●
33 GROMMET; SCREW,LAMP
M4 		5-09470-002-0 02 1 0308- ● ●
34 COVER; STEP LAMP
EXC. CORNERING LAMP<TDS> 		1-71907-444-0 02 1 0308- ● ●
35 SCREW; STEP LAMP
(A) M4X20 		1-82149-006-0 02 1 0308- ● ●
35 SCREW; STEP LAMP
EXC. CORNERING LAMP<TDS> (B) M4X20 TAPPING W/PL WASHER 		0-74310-420-0 04 1 0308-0604 ● ●
35 SCREW; STEP LAMP
EXC. CORNERING LAMP<TDS> (B) M4X20 TAPPING W/PL WASHER 		0-74360-420-0 04 1 0605- ● ●

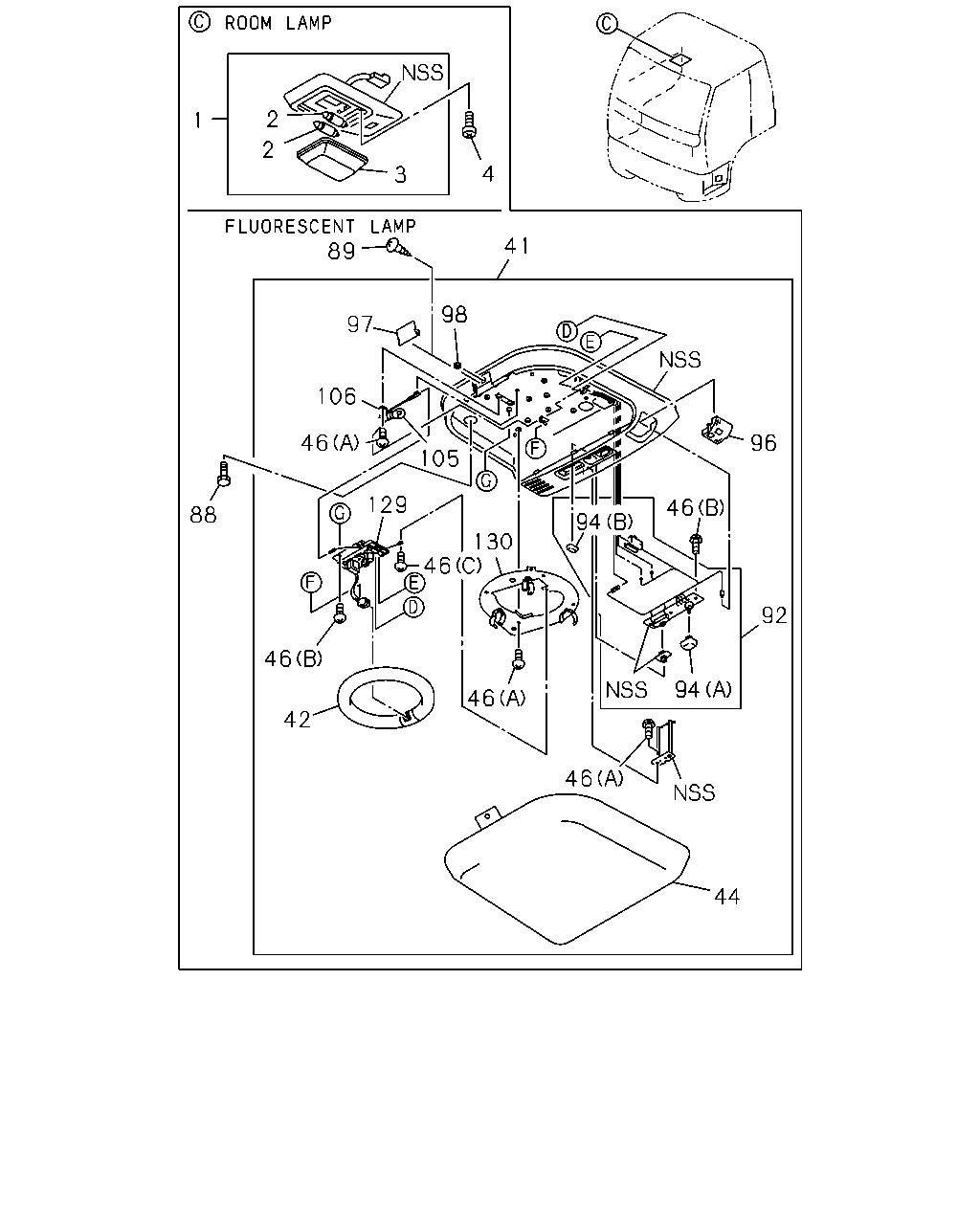

çizim 84152
2 1 2 4 3 89 41 98 97 106 46 96 105 129 46 88 94 130 46 92 46 94 46 42 46 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; ROOM
EXC. ROOM LAMP FLUORESCENT<NGG> 		1-82140-050-1 01 1 0308- ● ●
2 BULB; ROOM LAMP
EXC. ROOM LAMP FLUORESCENT<NGG> 24V 10W 		1-82195-001-0 02 1 0308- ● ●
3 LENS; ROOM LAMP
EXC. ROOM LAMP FLUORESCENT<NGG> 		1-82145-020-0 01 1 0308- ● ●
4 SCREW; ROOM LAMP
EXC. ROOM LAMP FLUORESCENT<NGG> M5X20 TAPPING 		9-07066-520-0 03 1 0308-0603 ● ●
4 SCREW; ROOM LAMP
EXC. ROOM LAMP FLUORESCENT<NGG> M5X20 TAPPING 		0-71040-520-0 03 1 0604- ● ●
41 LAMP ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> 		1-86830-315-2 01 1 0308- ● ●
42 LAMP; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> 		1-86830-094-1 01 1 0308- ● ●
44 LENS; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-092-0 01 1 0308- ● ●
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING 		1-86830-095-0 08 1 0308- ● ●
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (B) M4X12 		1-86830-202-0 07 1 0308- ● ●
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING 		1-86830-336-0 01 1 0308- ● ●
88 BOLT; LAMP
ROOM LAMP FLUORESCENT<NGG> M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 0308- ● ●
89 SCREW; LENS,FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING 		9-07076-510-0 01 1 0308-0603 ● ●
89 SCREW; LENS,FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING 		0-71240-510-0 01 1 0604- ● ●
92 SWITCH ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> 		1-86830-341-0 01 1 0308- ● ●
94 KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (A) 		1-86830-312-0 01 1 0308- ● ●
94 KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (B) 		1-86830-313-0 01 1 0308- ● ●
96 CAP; SPOT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-337-0 01 1 0308- ● ●
97 CAP; LENS FIX
ROOM LAMP FLUORESCENT<NGG> 		1-86830-311-0 01 1 0308- ● ●
98 GROMMET; SCREW,LENS FIX
ROOM LAMP FLUORESCENT<NGG> 		1-86830-102-0 01 1 0308- ● ●
105 BULB; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 28V 20W 		1-86830-200-0 01 1 0308- ● ●
106 SOCKET; BULB
ROOM LAMP FLUORESCENT<NGG> 		1-86830-201-0 01 1 0308- ● ●
129 INVERTER ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-338-0 01 1 0308- ● ●
130 PLATE ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-339-0 01 1 0308- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
