8-05 — INTERIOR LAMP (#2553) — 29 parça

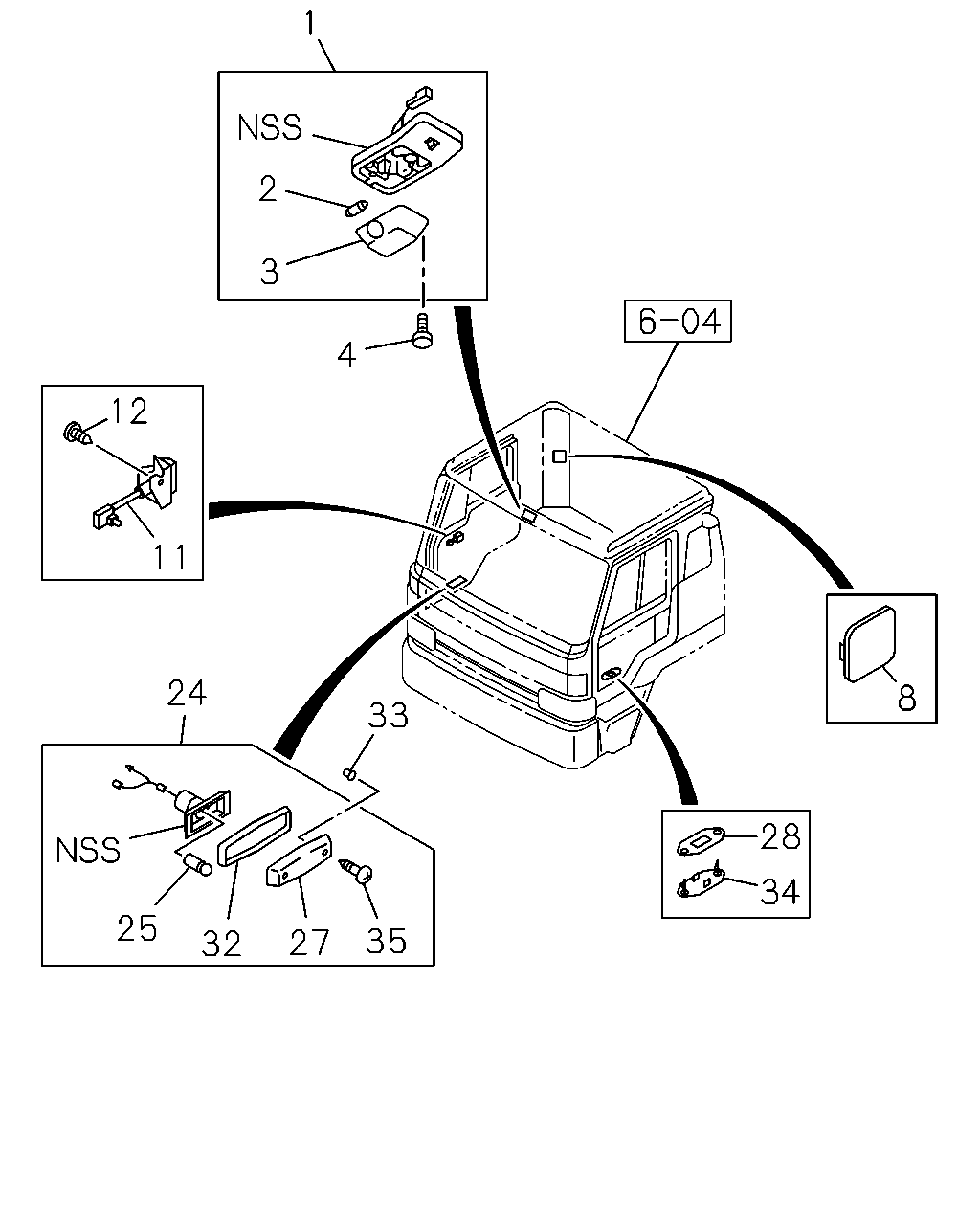

çizim 95394
1 2 3 4 12 11 24 8 33 28 34 25 35 27 32
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; ROOM 1-82140-039-0 01 1 9002-9306
1 LAMP ASM; ROOM 1-82140-042-1 01 1 9307-
2 BULB; ROOM LAMP
24V 10W 		1-82195-001-0 02 1 9002-
3 LENS; ROOM LAMP 1-82145-002-0 01 1 9002-9306
3 LENS; ROOM LAMP 8-94206-208-0 01 1 9307-
4 SCREW; ROOM LAMP
M5X20 TAPPING 		9-07066-520-0 03 1 9002-
8 COVER; BED ROOM LAMP
EXC. INTERIOR FULL TRIM<WM3> WHITE 		1-73347-433-2 01 1 9002-
11 LAMP ASM; ASH TRAY
POWER WINDOW<A30> 		1-76457-039-2 01 1 9205-9306
11 LAMP ASM; ASH TRAY 1-76457-039-2 01 1 9307-
12 SCREW; LAMP,ASH TRAY
POWER WINDOW<A30> M4X12 TAPPING 		9-07076-412-0 01 1 9205-9306
12 SCREW; LAMP,ASH TRAY
M4X12 TAPPING 		9-07076-412-0 01 1 9307-
24 LAMP; STEP
COURTESY LAMP<C97> 		1-82140-023-0 01 1 9002-9301
24 LAMP; STEP
COURTESY LAMP<C97> EXC. POWER WINDOW<A30> 		1-82140-023-0 01 1 9302-9306
24 LAMP; STEP
POWER WINDOW<A30> COURTESY LAMP<C97> 		1-82140-044-0 01 1 9302-9306
24 LAMP; STEP
COURTESY LAMP<C97> 		1-82140-044-0 01 1 9307-
25 BULB; STEP LAMP
COURTESY LAMP<C97> 24V 12W 		1-82194-004-0 01 1 9002-
27 LENS; STEP LAMP
COURTESY LAMP<C97> 		1-87550-003-0 01 1 9002-
28 GASKET; STEP LAMP
COURTESY LAMP<C97> 		1-74997-030-1 01 1 9002-9306
28 GASKET; STEP LAMP
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74997-030-1 01 1 9002-9306
28 GASKET; STEP LAMP
EXC. COURTESY LAMP<C97>,DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74997-030-1 02 1 9002-9306
28 GASKET; STEP LAMP
COURTESY LAMP<C97> 		1-74997-030-1 01 1 9307-
28 GASKET; STEP LAMP
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74997-030-1 01 1 9307-
28 GASKET; STEP LAMP
EXC. COURTESY LAMP<C97>,DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74997-030-1 02 1 9307-
32 GASKET; HSG
COURTESY LAMP<C97> 		1-82146-004-0 01 1 9002-
33 GROMMET; SCREW,LAMP
COURTESY LAMP<C97> M4 		5-09470-002-0 02 1 9002-
34 COVER; STEP LAMP
COURTESY LAMP<C97> 		1-74997-029-2 01 1 9002-
34 COVER; STEP LAMP
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74997-029-2 01 1 9002-
34 COVER; STEP LAMP
EXC. COURTESY LAMP<C97>,DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74997-029-2 02 1 9002-
35 SCREW; STEP LAMP
COURTESY LAMP<C97> 		1-82149-002-0 02 1 9002-
