8-80 — WINDSHIELD WIPER AND WASHER (#25527) — 146 parça

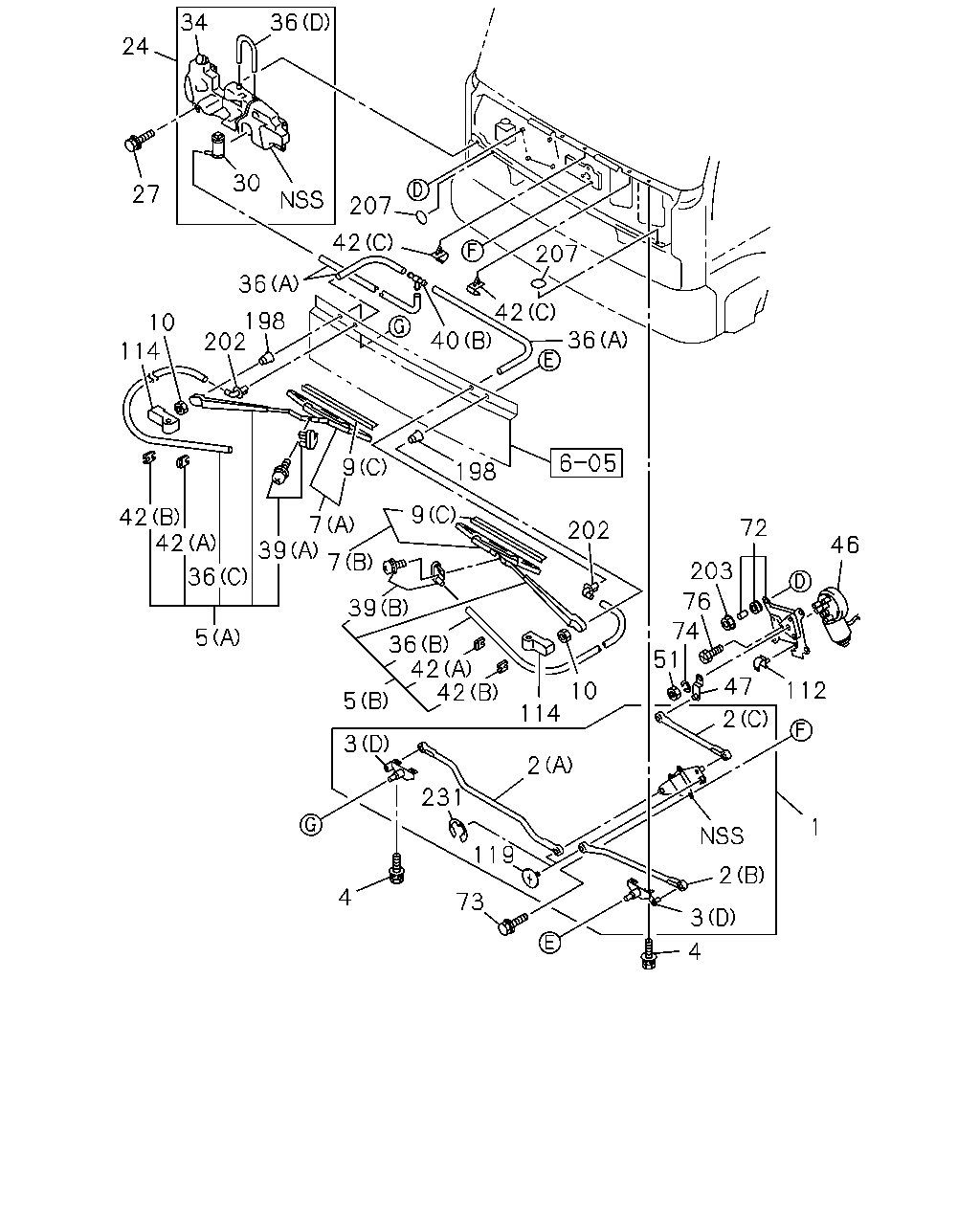

çizim 105498
34 36 24 30 27 207 207 42 36 42 40 198 202 10 114 36 198 9 9 42 42 7 7 72 202 46 39 36 203 76 39 74 51 5 36 42 42 47 112 10 5 114 2 3 2 231 1 119 2 4 73 3 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINK ASM; FRT WIPER 1-83312-139-2 01 1 0609- ●
1 LINK ASM; FRT WIPER 1-83312-137-2 01 1 0609- ●
2 LINK; FRT WIPER
(B) 		1-83312-144-1 01 1 0609- ●
2 LINK; FRT WIPER
(A) 		1-83312-145-1 01 1 0609- ●
2 LINK; FRT WIPER
(C) 		1-86810-070-1 01 1 0609- ●
2 LINK; FRT WIPER
(B) 		1-83312-142-1 01 1 0609- ●
2 LINK; FRT WIPER
(A) 		1-83312-143-1 01 1 0609- ●
2 LINK; FRT WIPER
(C) 		1-86810-066-1 01 1 0609- ●
3 PIVOT ASM; FRT WIPER
(B) 		1-83313-111-2 01 1 0609- ●
3 PIVOT ASM; FRT WIPER
(A) 		1-86810-071-1 01 1 0609- ●
3 PIVOT ASM; FRT WIPER
(C) 		1-86810-073-1 01 1 0609- ●
3 PIVOT ASM; FRT WIPER
(D) 		1-86810-067-1 02 1 0609- ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0609-0904 ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0609-0904 ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ●
5 ARM; WIPER
(A) 		1-86810-025-1 01 1 0609- ●
5 ARM; WIPER
(B) 		1-86810-027-1 02 1 0609- ●
5 ARM; WIPER
(B) 		1-83315-087-0 01 1 0609- ●
5 ARM; WIPER
(A) 		1-83315-089-0 01 1 0609- ●
7 BLADE; WIPER
(A) 		1-83315-047-2 01 1 0609- ●
7 BLADE; WIPER
(B) 		1-83315-048-2 02 1 0609- ●
7 BLADE; WIPER
(A) 		1-83315-045-2 01 1 0609- ●
7 BLADE; WIPER
(B) 		1-83315-046-2 01 1 0609- ●
9 RUBBER; FRT WIPER BLADE
(A) L=500 		1-83355-015-0 01 1 0609- ●
9 RUBBER; FRT WIPER BLADE
(B) L=475 		1-83355-016-0 02 1 0609- ●
9 RUBBER; FRT WIPER BLADE
(C) L=550 		1-83355-014-0 02 1 0609- ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 0609- ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 0609- ●
24 TANK ASM; WASHER 1-86815-013-7 01 1 0609- ● ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0609- ● ●
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-1 01 1 0609- ● ●
34 CAP; WASHER TANK 1-86815-018-0 01 1 0609- ● ●
36 HOSE; WASHER
(C) L=680 		1-86810-036-0 01 1 0609- ●
36 HOSE; WASHER
(F) L=735 		1-86810-039-0 02 1 0609- ●
36 HOSE; WASHER
(E) SERVICED BY L=10000 		9-09914-906-0 01 1 0609- ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 0609- ● ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-94389-303-0 01 1 0609- ● ●
36 HOSE; WASHER
(B) L=660 		1-86810-037-0 01 1 0609- ●
36 HOSE; WASHER
(C) L=670 		1-86810-147-0 01 1 0609- ●
39 NOZZLE; WINDSHIELD WASHER
(C) 		1-86810-042-0 03 1 0609- ●
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-83315-085-0 01 1 0609- ●
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-83315-086-0 01 1 0609- ●
40 JOINT; WASHER HOSE
(A) 3WAY 		5-83363-033-0 01 1 0609- ●
40 JOINT; WASHER HOSE
(B) 3WAY 		1-83338-005-0 01 1 0609- ● ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 03 1 0609- ●
42 CLIP; WASHER HOSE
(C) 		1-09987-247-0 05 1 0609- ● ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 0609- ●
42 CLIP; WASHER HOSE
(B) 		1-86810-045-0 02 1 0609- ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-076-1 01 1 0609- ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-149-0 01 1 0609- ●
47 ARM; CRANK,WIPER MOTOR 1-86810-077-0 01 1 0609- ●
47 ARM; CRANK,WIPER MOTOR 1-86810-060-0 01 1 0609- ●
51 NUT; WIPER MOTOR LINK 1-86810-078-0 01 1 0609- ●
51 NUT; WIPER MOTOR LINK 1-83319-012-0 01 1 0609- ●
72 BRACKET; WIPER MOTOR 1-86810-075-0 01 1 0609- ●
72 BRACKET; WIPER MOTOR 1-86810-150-0 01 1 0609- ●
73 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0609-0904 ●
73 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
74 WASHER; ARM TO MOTOR 1-86810-079-0 01 1 0609- ●
74 WASHER; ARM TO MOTOR 1-83319-011-0 01 1 0609- ●
76 SCREW; BRKT TO WIPER MOTOR 1-86810-062-0 03 1 0609- ●
76 SCREW; BRKT TO WIPER MOTOR 1-83319-043-0 03 1 0609- ●
112 CLIP; HARNESS,WIPER MOTOR 1-86810-061-0 01 1 0609- ●
114 COVER; FRT WIPER ARM 1-86810-028-0 03 1 0609- ●
114 COVER; FRT WIPER ARM 1-86810-144-0 02 1 0609- ●
119 STOPPER; WIPER LINK 1-86810-074-0 02 1 0609-0805 ● ●
198 COVER; PIVOT,WIPER 1-86810-018-3 03 1 0609- ●
198 COVER; PIVOT,WIPER 1-86810-016-3 02 1 0609- ●
202 GROMMET; WIPER 1-86815-003-2 03 1 0609- ●
202 GROMMET; WIPER 1-86815-003-2 02 1 0609- ●
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0609- ● ●
207 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0609- ● ●
231 RING; STOPPER 8-98120-195-0 02 1 0806- ● ●

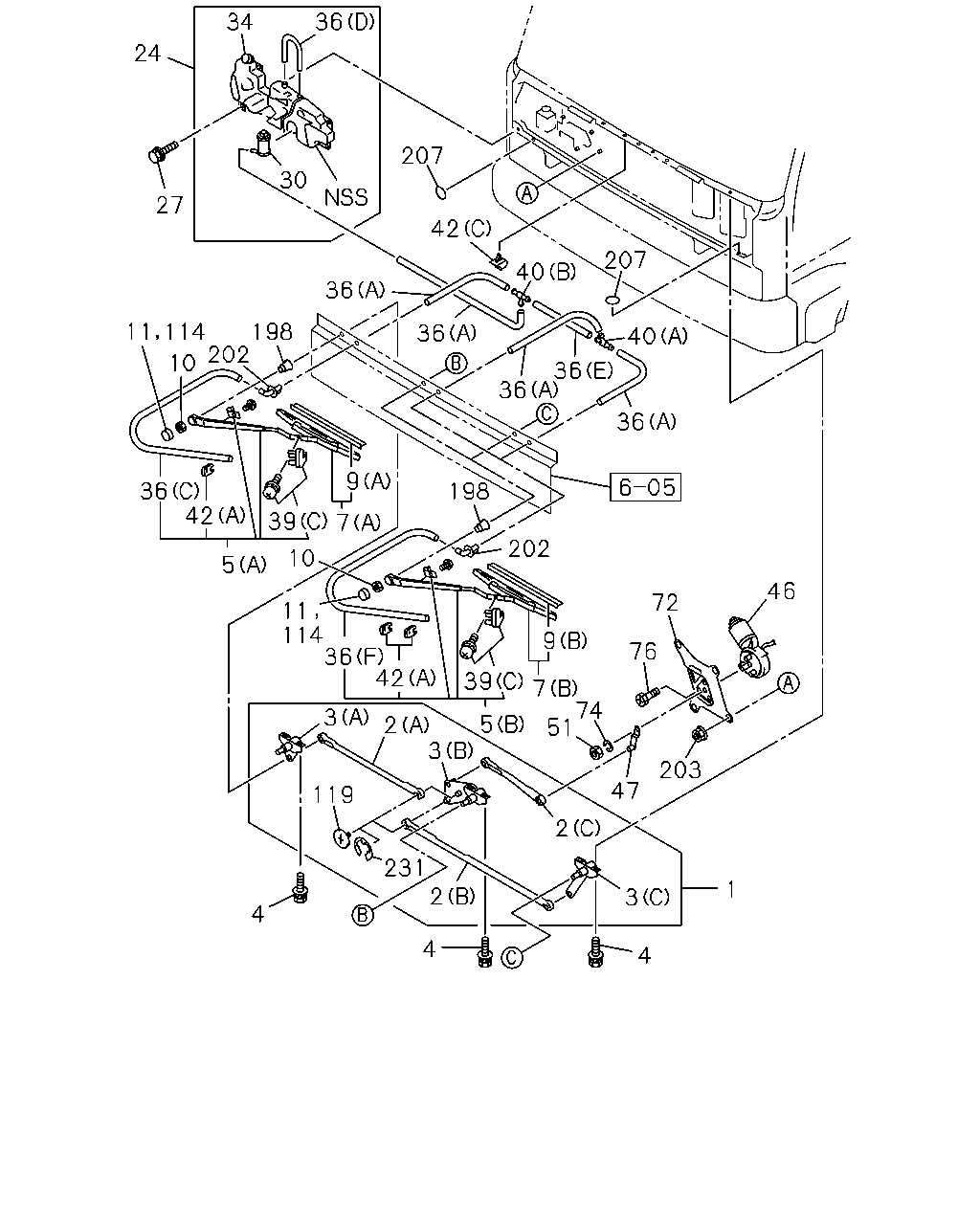

çizim 106558
34 36 24 207 30 27 42 207 40 36 11 114 198 202 36 40 10 36 36 36 9 36 42 198 202 10 5 46 11 114 36 42 72 9 76 39 7 74 51 3 5 3 2 203 47 119 2 231 2 1 3 4 4 4 39 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINK ASM; FRT WIPER 1-83312-139-2 01 1 0609- ●
1 LINK ASM; FRT WIPER 1-83312-137-2 01 1 0609- ●
2 LINK; FRT WIPER
(B) 		1-83312-144-1 01 1 0609- ●
2 LINK; FRT WIPER
(A) 		1-83312-145-1 01 1 0609- ●
2 LINK; FRT WIPER
(C) 		1-86810-070-1 01 1 0609- ●
2 LINK; FRT WIPER
(B) 		1-83312-142-1 01 1 0609- ●
2 LINK; FRT WIPER
(A) 		1-83312-143-1 01 1 0609- ●
2 LINK; FRT WIPER
(C) 		1-86810-066-1 01 1 0609- ●
3 PIVOT ASM; FRT WIPER
(B) 		1-83313-111-2 01 1 0609- ●
3 PIVOT ASM; FRT WIPER
(A) 		1-86810-071-1 01 1 0609- ●
3 PIVOT ASM; FRT WIPER
(C) 		1-86810-073-1 01 1 0609- ●
3 PIVOT ASM; FRT WIPER
(D) 		1-86810-067-1 02 1 0609- ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0609-0904 ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0609-0904 ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ●
5 ARM; WIPER
(A) 		1-86810-025-1 01 1 0609- ●
5 ARM; WIPER
(B) 		1-86810-027-1 02 1 0609- ●
5 ARM; WIPER
(B) 		1-83315-087-0 01 1 0609- ●
5 ARM; WIPER
(A) 		1-83315-089-0 01 1 0609- ●
7 BLADE; WIPER
(A) 		1-83315-047-2 01 1 0609- ●
7 BLADE; WIPER
(B) 		1-83315-048-2 02 1 0609- ●
7 BLADE; WIPER
(A) 		1-83315-045-2 01 1 0609- ●
7 BLADE; WIPER
(B) 		1-83315-046-2 01 1 0609- ●
9 RUBBER; FRT WIPER BLADE
(A) L=500 		1-83355-015-0 01 1 0609- ●
9 RUBBER; FRT WIPER BLADE
(B) L=475 		1-83355-016-0 02 1 0609- ●
9 RUBBER; FRT WIPER BLADE
(C) L=550 		1-83355-014-0 02 1 0609- ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 0609- ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 0609- ●
11 COVER; WIPER ARM 1-86810-028-0 03 1 0609- ●
24 TANK ASM; WASHER 1-86815-013-7 01 1 0609- ● ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0609- ● ●
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-1 01 1 0609- ● ●
34 CAP; WASHER TANK 1-86815-018-0 01 1 0609- ● ●
36 HOSE; WASHER
(C) L=680 		1-86810-036-0 01 1 0609- ●
36 HOSE; WASHER
(F) L=735 		1-86810-039-0 02 1 0609- ●
36 HOSE; WASHER
(E) SERVICED BY L=10000 		9-09914-906-0 01 1 0609- ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 0609- ● ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-94389-303-0 01 1 0609- ● ●
36 HOSE; WASHER
(B) L=660 		1-86810-037-0 01 1 0609- ●
36 HOSE; WASHER
(C) L=670 		1-86810-147-0 01 1 0609- ●
39 NOZZLE; WINDSHIELD WASHER
(C) 		1-86810-042-0 03 1 0609- ●
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-83315-085-0 01 1 0609- ●
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-83315-086-0 01 1 0609- ●
40 JOINT; WASHER HOSE
(A) 3WAY 		5-83363-033-0 01 1 0609- ●
40 JOINT; WASHER HOSE
(B) 3WAY 		1-83338-005-0 01 1 0609- ● ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 03 1 0609- ●
42 CLIP; WASHER HOSE
(C) 		1-09987-247-0 05 1 0609- ● ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 0609- ●
42 CLIP; WASHER HOSE
(B) 		1-86810-045-0 02 1 0609- ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-076-1 01 1 0609- ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-149-0 01 1 0609- ●
47 ARM; CRANK,WIPER MOTOR 1-86810-077-0 01 1 0609- ●
47 ARM; CRANK,WIPER MOTOR 1-86810-060-0 01 1 0609- ●
51 NUT; WIPER MOTOR LINK 1-86810-078-0 01 1 0609- ●
51 NUT; WIPER MOTOR LINK 1-83319-012-0 01 1 0609- ●
72 BRACKET; WIPER MOTOR 1-86810-075-0 01 1 0609- ●
72 BRACKET; WIPER MOTOR 1-86810-150-0 01 1 0609- ●
74 WASHER; ARM TO MOTOR 1-86810-079-0 01 1 0609- ●
74 WASHER; ARM TO MOTOR 1-83319-011-0 01 1 0609- ●
76 SCREW; BRKT TO WIPER MOTOR 1-86810-062-0 03 1 0609- ●
76 SCREW; BRKT TO WIPER MOTOR 1-83319-043-0 03 1 0609- ●
114 COVER; FRT WIPER ARM 1-86810-028-0 03 1 0609- ●
114 COVER; FRT WIPER ARM 1-86810-144-0 02 1 0609- ●
119 STOPPER; WIPER LINK 1-86810-074-0 02 1 0609-0805 ● ●
198 COVER; PIVOT,WIPER 1-86810-018-3 03 1 0609- ●
198 COVER; PIVOT,WIPER 1-86810-016-3 02 1 0609- ●
202 GROMMET; WIPER 1-86815-003-2 03 1 0609- ●
202 GROMMET; WIPER 1-86815-003-2 02 1 0609- ●
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0609- ● ●
207 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0609- ● ●
231 RING; STOPPER 8-98120-195-0 02 1 0806- ● ●
