Sayfa 8-60 - Isuzu EPC

8-60 — HEATER UNIT; FRONT (#25522) — 152 parça

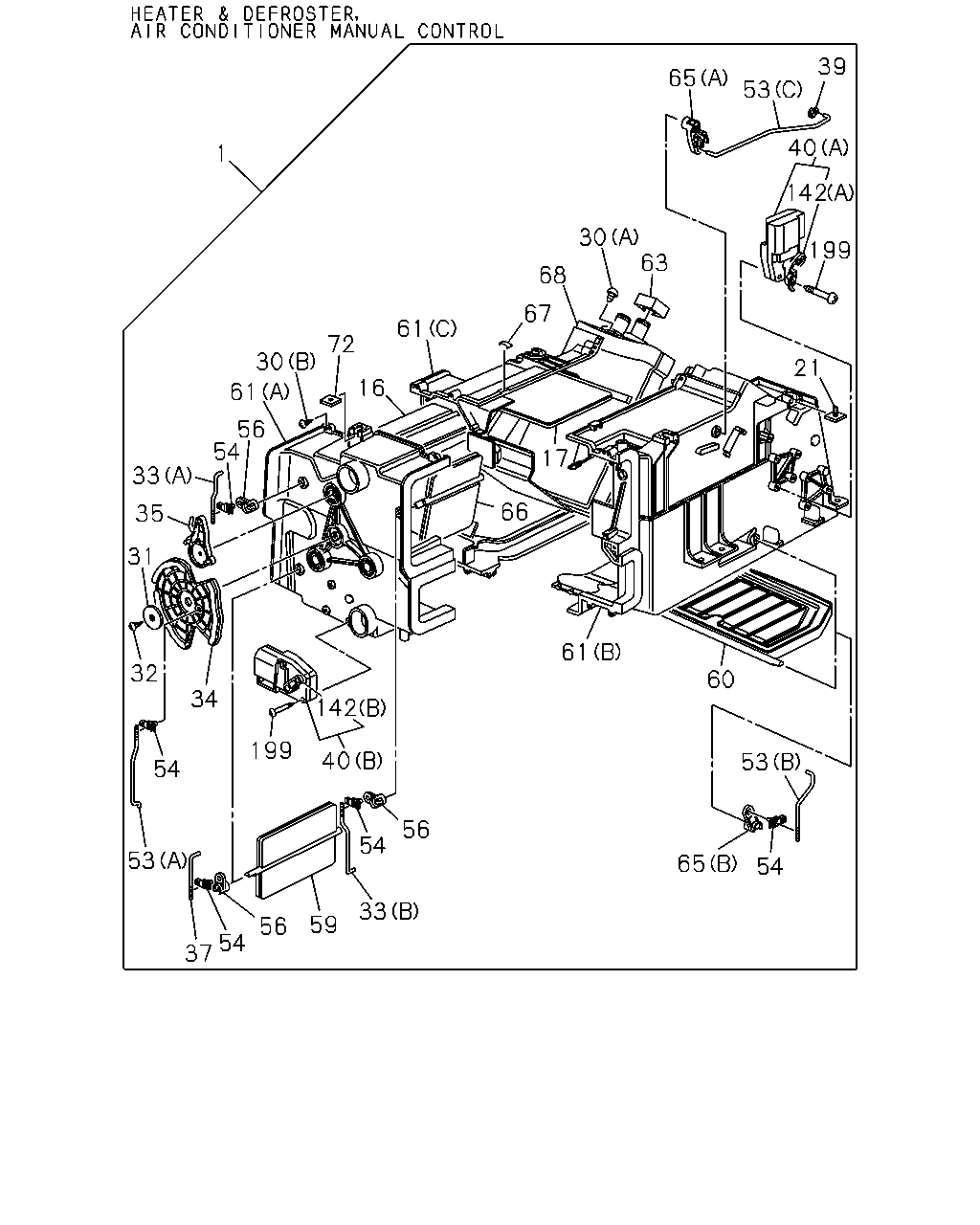

39 65 53 40 1 30 63 199 68 67 61 72 30 21 16 61 56 54 17 33 66 35 31 61 32 60 34 199 40 53 54 56 54 53 65 54 33 59 56 54 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83511-139-3	01	1	0609-	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83511-175-1	01	1	0609-		●
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83511-175-1	01	1	0609-	●
16	SHUTTER; HTR UNIT,CENTER UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-625-1	01	1	0609-		●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-625-1	01	1	0609-	●
17	SHUTTER; HTR UNIT,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-628-1	01	1	0609-		●
17	SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-628-1	01	1	0609-	●
21	BOLT; CASE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-657-2	02	1	0609-		●
21	BOLT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	02	1	0609-	●
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16	8-94324-850-0	11	1	0609-	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B) M4X16	8-94324-850-0	12	1	0609-		●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M4X16	8-94324-850-0	12	1	0609-	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X20	9-09829-324-1	01	1	0609-		●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X20	9-09829-324-1	01	1	0609-	●
31	WASHER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-94129-950-0	01	1	0609-		●
31	WASHER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94129-950-0	01	1	0609-	●
32	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	02	1	0609-	●
32	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	0609-		●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	0609-	●
33	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-619-0	01	1	0609-		●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-619-0	01	1	0609-	●
33	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-621-0	01	1	0609-		●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-621-0	01	1	0609-	●
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-326-0	01	1	0609-		●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-326-0	01	1	0609-	●
35	LEVER; SHUTTER,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94389-502-1	02	1	0609-	●
35	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-94389-502-1	03	1	0609-		●
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94389-502-1	03	1	0609-	●
37	ROD; LEVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-620-1	01	1	0609-		●
37	ROD; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-620-1	01	1	0609-	●
39	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-136-0	01	1	0609-		●
39	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-136-0	01	1	0609-	●
40	ACTUATOR; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-649-1	01	1	0609-		●
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-649-1	01	1	0609-	●
40	ACTUATOR; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-650-1	01	1	0609-		●
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-650-1	01	1	0609-	●
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-622-0	01	1	0609-		●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-622-0	01	1	0609-	●
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-623-0	01	1	0609-		●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-623-0	01	1	0609-	●
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-624-0	01	1	0609-		●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-624-0	01	1	0609-	●
54	CLIP; SHUTTER LEVER VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94248-794-0	03	1	0609-	●
54	CLIP; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	05	1	0609-		●
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	05	1	0609-	●
56	LEVER; SHUTTER,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-325-0	02	1	0609-	●
56	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-325-0	03	1	0609-		●
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-325-0	03	1	0609-	●
59	SHUTTER; HTR UNIT,SIDE AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-626-2	01	1	0609-		●
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-626-2	01	1	0609-	●
60	DOOR; MIX,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83578-084-0	01	1	0609-		●
60	DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83578-084-0	01	1	0609-	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-346-3	01	1	0609-		●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-346-3	01	1	0609-	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-401-0	01	1	0609-		●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-401-0	01	1	0609-	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-402-0	01	1	0609-		●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-402-0	01	1	0609-	●
63	LINING; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83578-033-0	01	1	0609-	●
63	LINING; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-557-0	02	1	0609-		●
63	LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-557-0	02	1	0609-	●
65	LEVER; MIX,DOOR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-327-0	01	1	0609-		●
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-327-0	01	1	0609-	●
65	LEVER; MIX,DOOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-328-1	01	1	0609-		●
65	LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-328-1	01	1	0609-	●
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-627-0	01	1	0609-		●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-627-0	01	1	0609-	●
67	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-148-0	01	1	0609-		●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83574-148-0	01	1	0609-	●
68	CORE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-078-1	01	1	0609-		●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-078-1	01	1	0609-	●
72	NUT; CASE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-659-4	02	1	0609-		●
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-659-4	02	1	0609-	●
199	SCREW; ACTUATOR VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	0609-	●
199	SCREW; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	04	1	0609-		●
199	SCREW; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	04	1	0609-	●

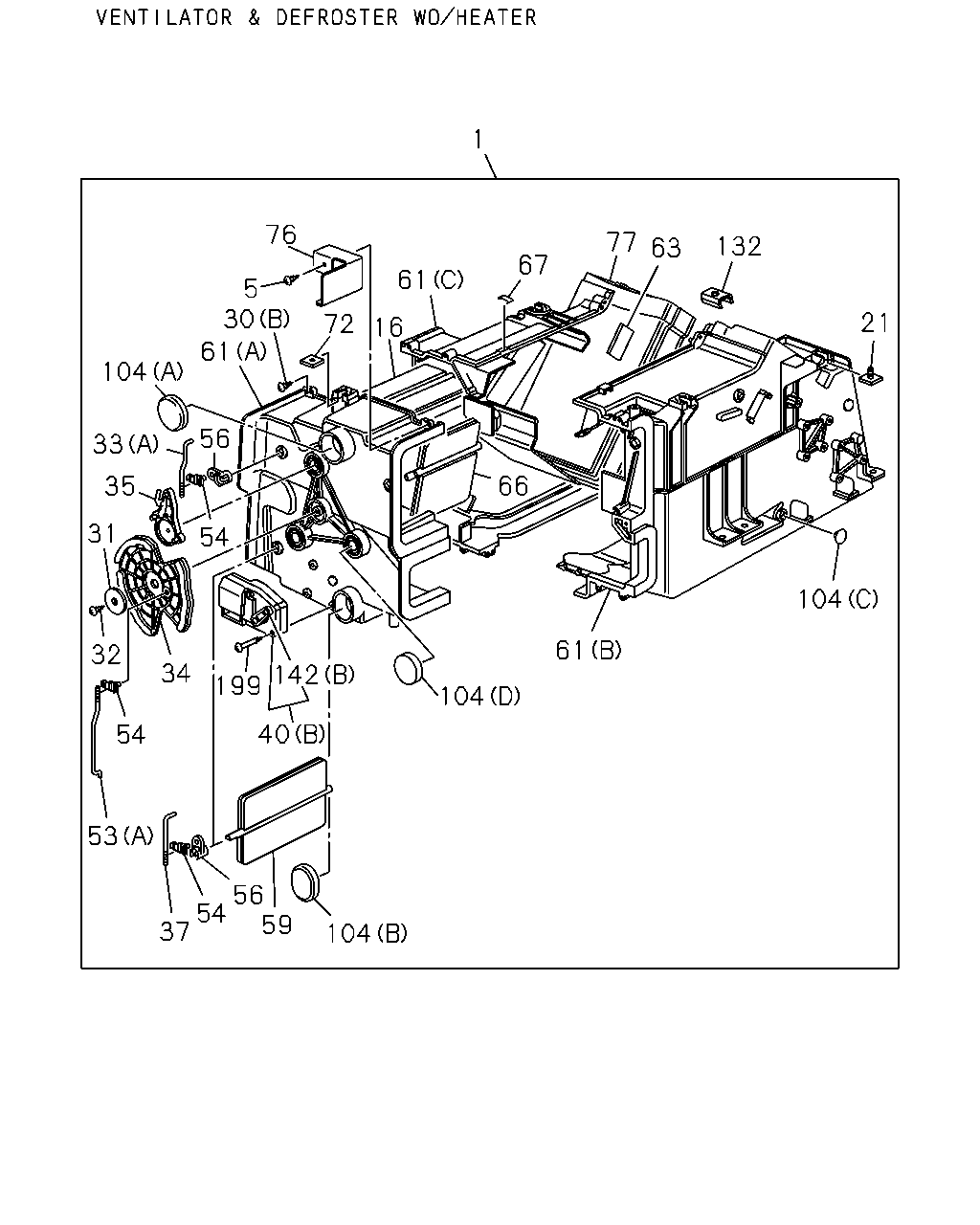

1 76 77 132 63 67 61 5 30 21 72 16 61 104 56 33 35 66 31 54 104 61 32 34 142 199 104 40 54 53 56 54 59 37 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83511-139-3	01	1	0609-	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83511-175-1	01	1	0609-		●
1	HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83511-175-1	01	1	0609-	●
5	SCREW; BRKT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	01	1	0609-	●
16	SHUTTER; HTR UNIT,CENTER UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-625-1	01	1	0609-		●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-625-1	01	1	0609-	●
21	BOLT; CASE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-657-2	02	1	0609-		●
21	BOLT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	02	1	0609-	●
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M4X16	8-94324-850-0	11	1	0609-	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B) M4X16	8-94324-850-0	12	1	0609-		●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M4X16	8-94324-850-0	12	1	0609-	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X20	9-09829-324-1	01	1	0609-		●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X20	9-09829-324-1	01	1	0609-	●
31	WASHER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-94129-950-0	01	1	0609-		●
31	WASHER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94129-950-0	01	1	0609-	●
32	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	02	1	0609-	●
32	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	0609-		●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	0609-	●
33	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-619-0	01	1	0609-		●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-619-0	01	1	0609-	●
33	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-621-0	01	1	0609-		●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-621-0	01	1	0609-	●
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-326-0	01	1	0609-		●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-326-0	01	1	0609-	●
35	LEVER; SHUTTER,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94389-502-1	02	1	0609-	●
35	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-94389-502-1	03	1	0609-		●
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94389-502-1	03	1	0609-	●
37	ROD; LEVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-620-1	01	1	0609-		●
37	ROD; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-620-1	01	1	0609-	●
40	ACTUATOR; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-649-1	01	1	0609-		●
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-649-1	01	1	0609-	●
40	ACTUATOR; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-650-1	01	1	0609-		●
40	ACTUATOR; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-650-1	01	1	0609-	●
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-622-0	01	1	0609-		●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-622-0	01	1	0609-	●
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-623-0	01	1	0609-		●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-623-0	01	1	0609-	●
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-624-0	01	1	0609-		●
53	ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-624-0	01	1	0609-	●
54	CLIP; SHUTTER LEVER VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94248-794-0	03	1	0609-	●
54	CLIP; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	05	1	0609-		●
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	05	1	0609-	●
56	LEVER; SHUTTER,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-325-0	02	1	0609-	●
56	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-325-0	03	1	0609-		●
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-325-0	03	1	0609-	●
59	SHUTTER; HTR UNIT,SIDE AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-626-2	01	1	0609-		●
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-626-2	01	1	0609-	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-346-3	01	1	0609-		●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-346-3	01	1	0609-	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-401-0	01	1	0609-		●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-401-0	01	1	0609-	●
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-402-0	01	1	0609-		●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-402-0	01	1	0609-	●
63	LINING; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83578-033-0	01	1	0609-	●
63	LINING; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-557-0	02	1	0609-		●
63	LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-557-0	02	1	0609-	●
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-627-0	01	1	0609-		●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-627-0	01	1	0609-	●
67	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-148-0	01	1	0609-		●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83574-148-0	01	1	0609-	●
72	NUT; CASE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-659-4	02	1	0609-		●
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-659-4	02	1	0609-	●
76	BRACKET; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83573-194-0	01	1	0609-	●
77	COVER; HTR CASE VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97102-661-0	01	1	0609-	●
104	CAP; CASE,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-617-0	01	1	0609-	●
104	CAP; CASE,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-618-0	01	1	0609-	●
104	CAP; CASE,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-94328-657-0	04	1	0609-	●
104	CAP; CASE,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-94387-703-0	01	1	0609-	●
132	BRACKET; HTR CORE VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83573-195-0	01	1	0609-	●
142	LEVER; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-345-1	01	1	0609-		●
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-345-1	01	1	0609-	●
142	LEVER; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-414-0	01	1	0609-		●
142	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-414-0	01	1	0609-	●
199	SCREW; ACTUATOR VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	0609-	●
199	SCREW; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	04	1	0609-		●
199	SCREW; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	04	1	0609-	●
