8-52 — PIPING; AIR CONDITIONING
(#25521) — 45 parça
Tümü
A - FVR5FF
B - FVR5MF
◀

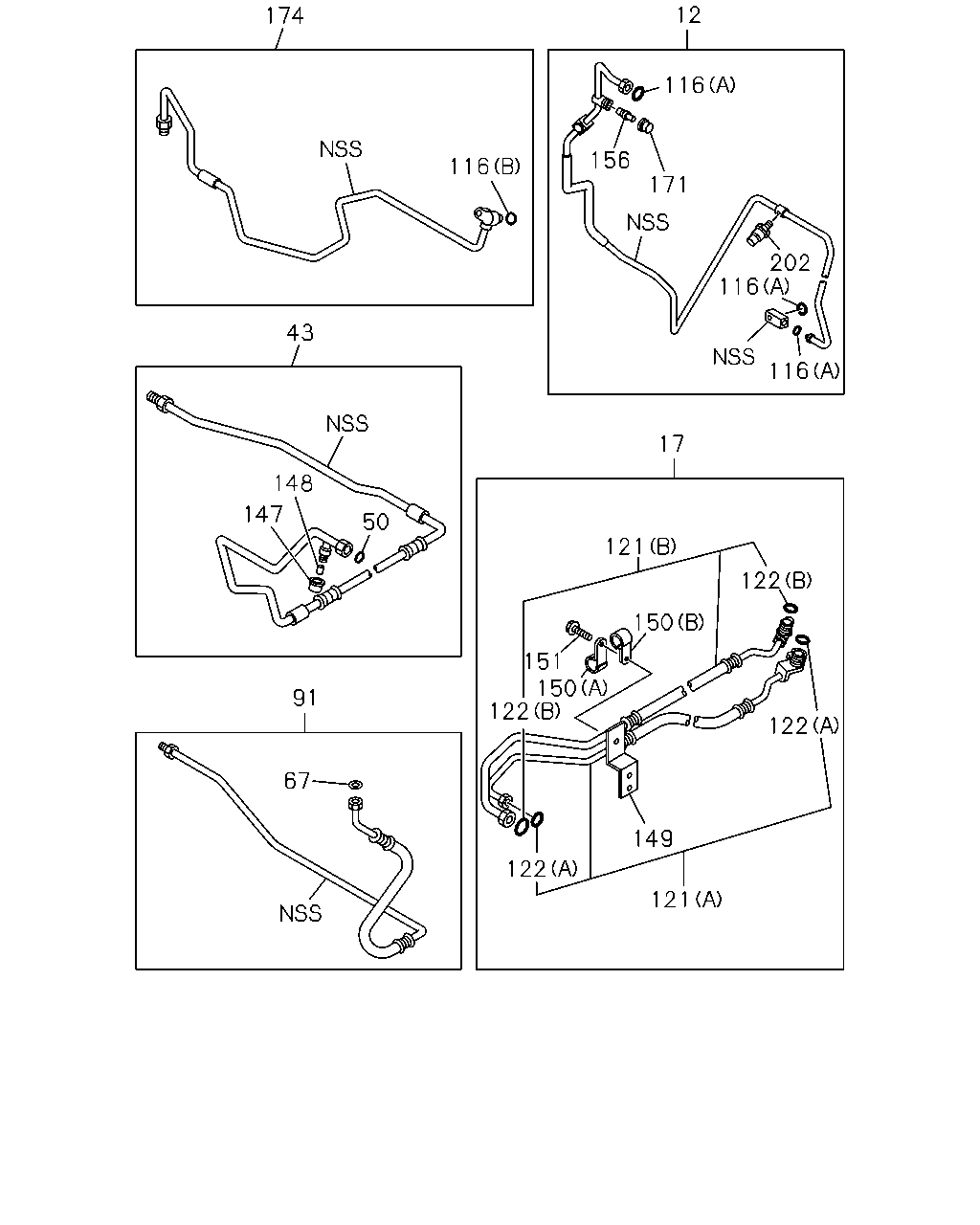

[852A] NO.3 (23 parça)

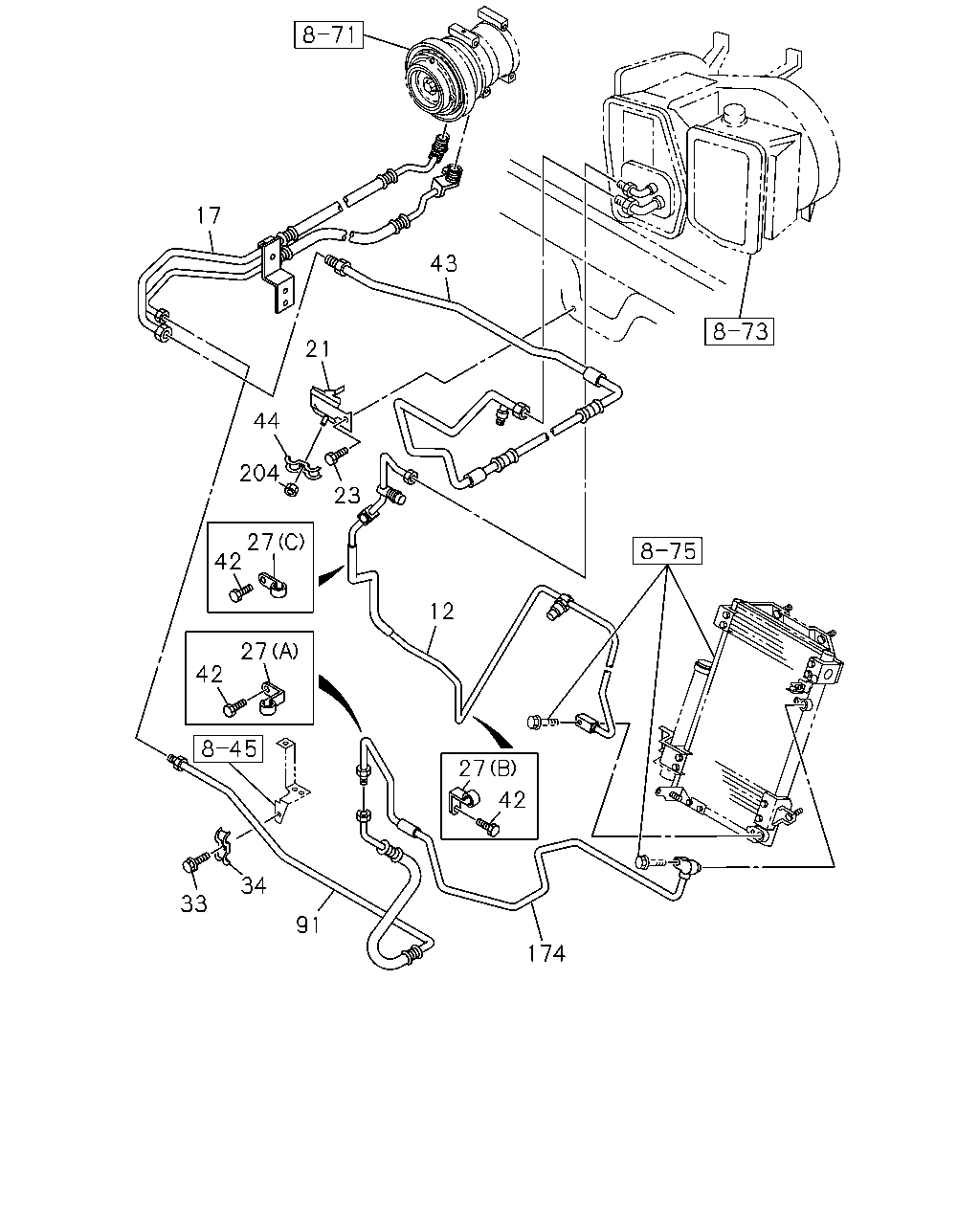

[852A] NO.2 (18 parça)

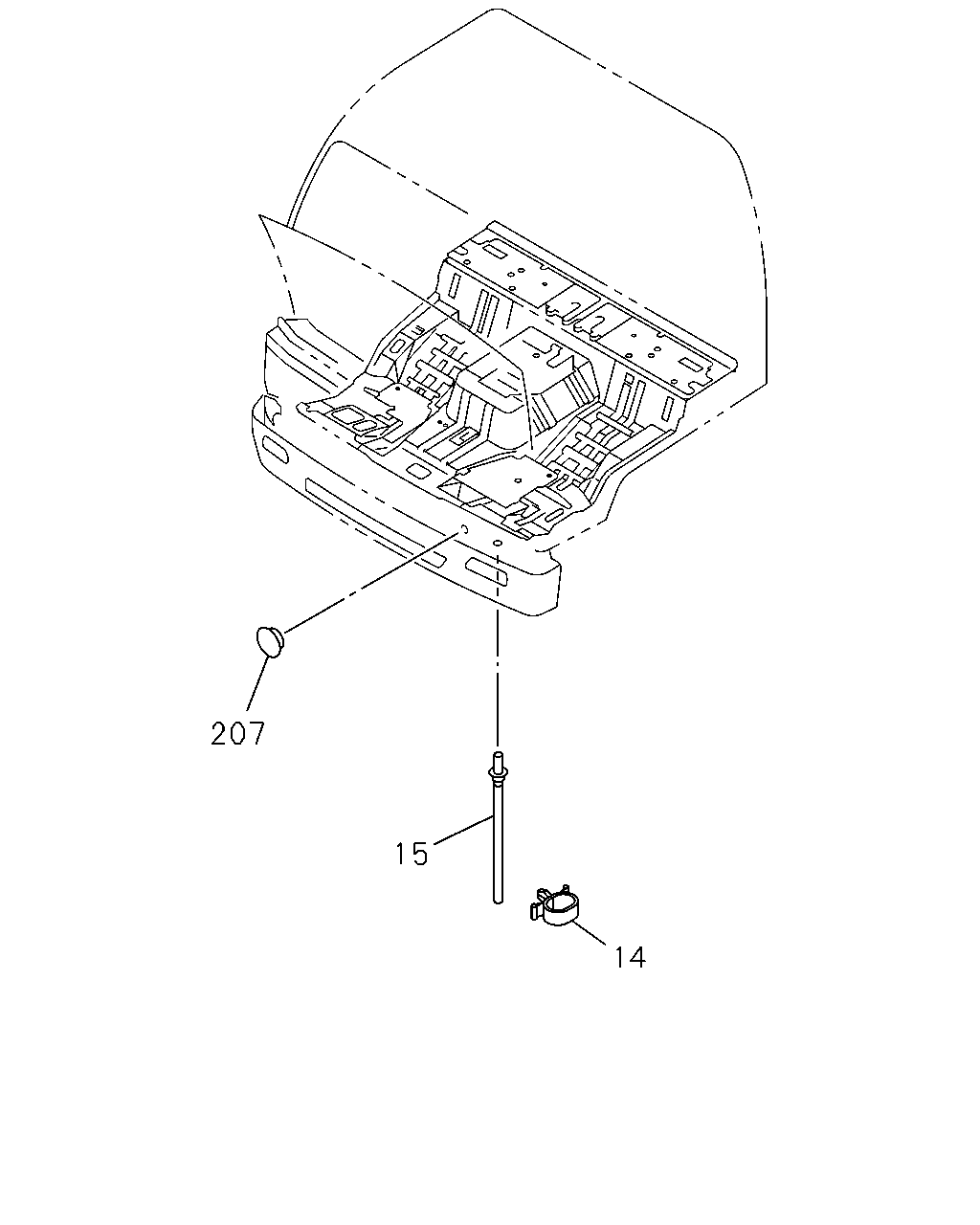

[852A] NO.1 (4 parça)
▶
12
174
116
156
116
171
202
116
43
116
17
148
147
50
121
122
150
151
150
122
91
122
67
149
122
121
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60)
1-83567-853-2
01
1
0609-
●
●
17
HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83577-057-0
01
1
0609-
●
●
43
HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83577-080-0
01
1
0609-
●
43
HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83577-029-0
01
1
0609-
●
50
GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5
8-97095-908-0
01
1
0609-
●
●
67
GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7
8-97095-907-0
01
1
0609-
●
●
91
HOSE; FLEX,CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83577-027-0
01
1
0609-
●
●
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4
8-97095-906-0
03
1
0609-
●
●
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7
8-97095-907-0
01
1
0609-
●
●
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83577-050-0
01
1
0609-
●
●
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83577-051-0
01
1
0609-
●
●
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7
8-97095-907-0
02
1
0609-
●
●
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5
8-97095-908-0
02
1
0609-
●
●
147
CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L
8-97095-910-0
01
1
0609-
●
●
148
VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97095-909-0
01
1
0609-
●
●
149
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83573-294-0
01
1
0609-
●
●
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83574-289-0
01
1
0609-
●
●
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83574-290-0
01
1
0609-
●
●
151
BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-328-0
01
1
0609-
●
●
156
VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97095-909-0
01
1
0609-
●
●
171
CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H
8-97095-911-0
01
1
0609-
●
●
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83567-855-0
01
1
0609-
●
●
202
SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83564-391-0
01
1
0609-
●
●
17
43
21
44
204
23
27
42
12
27
42
27
42
34
33
91
174
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60)
1-83567-853-2
01
1
0609-
●
●
17
HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83577-057-0
01
1
0609-
●
●
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83571-831-4
01
1
0609-
●
●
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE
0-28650-820-0
01
1
0609-
●
●
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20
0-95235-235-0
01
1
0609-
●
●
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20
1-09700-813-0
01
1
0609-
●
●
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20
5-09700-351-0
01
1
0609-0707
●
●
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20
8-98033-780-0
01
1
0708-
●
●
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE
0-28650-820-0
01
1
0609-
●
●
34
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2
1-83574-190-0
01
1
0609-
●
●
42
SCREW; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER
8-94279-208-0
03
1
0609-0904
●
●
42
SCREW; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER
8-98059-720-0
03
1
0905-
●
●
43
HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83577-080-0
01
1
0609-
●
43
HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83577-029-0
01
1
0609-
●
44
CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2
1-83574-190-0
01
1
0609-
●
●
91
HOSE; FLEX,CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83577-027-0
01
1
0609-
●
●
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83567-855-0
01
1
0609-
●
●
204
NUT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
0609-
●
●
207
15
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
14
CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20
8-94410-200-0
01
1
0609-
●
●
15
HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60)
1-83572-635-0
01
1
0609-
●
●
15
HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
1-83572-412-0
01
1
0609-
●
207
SEAL; FLEX HOSE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK
1-76798-019-0
01
1
0609-
●
●
