8-50 — AIR CONDITIONING SYSTEM; FRONT (#25520) — 25 parça

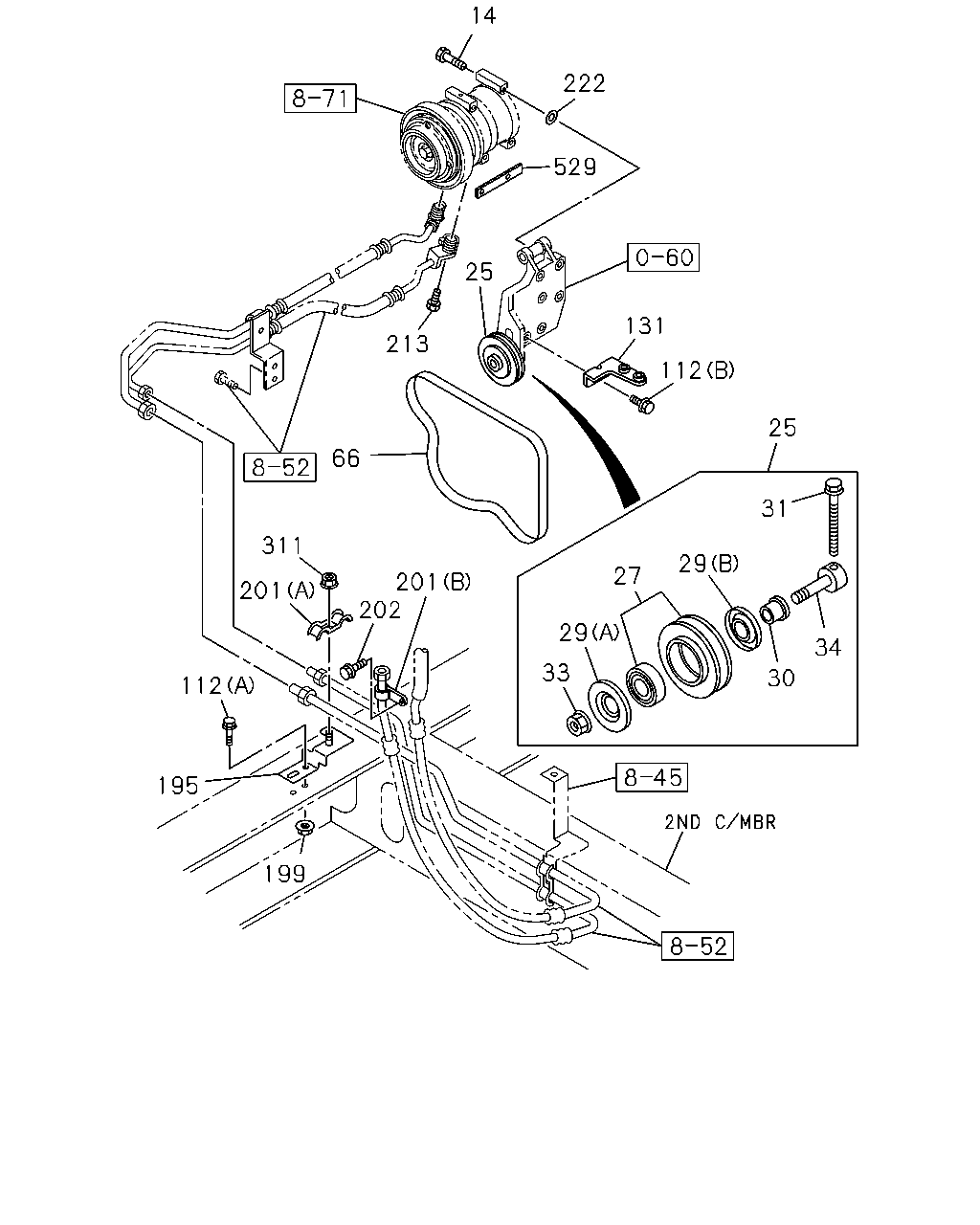

çizim 90334
14 222 529 25 131 213 112 25 66 31 311 29 27 201 202 201 29 34 33 30 112 195 199
BalonParca AdiParca NoAdetTipApplied Date A B
14 BOLT; CMPR
M8X80 FLANGE 		0-28050-880-0 04 1 0609-0609 ●
14 BOLT; CMPR
M8X78 W/LK WASHER 		5-09000-228-1 04 1 0610- ●
25 PULLEY ASM; IDLER,CMPR 8-97605-079-0 01 1 0609- ●
27 PULLEY; IDLE,A/C 8-97605-323-0 01 1 0609- ●
29 COVER; DUST,IDLE PULLEY
(A) 		8-97605-329-0 01 1 0609- ●
29 COVER; DUST,IDLE PULLEY
(B) 		8-97605-330-0 01 1 0609- ●
30 COLLAR; IDLE PULLEY 8-97605-328-0 01 1 0609- ●
31 BOLT; ADJ,IDLE PULLEY 8-97605-325-0 01 1 0609- ●
33 NUT; IDLER PULLEY 8-97605-326-0 01 1 0609- ●
34 SHAFT; IDLE PULLEY 8-97605-327-0 01 1 0609- ●
66 BELT; A/C CMPR
L=1114 		8-97605-102-0 01 1 0609- ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0609- ● ●
112 BOLT; STAY
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0609- ● ●
131 STAY; CMPR BRKT 8-94393-451-0 01 1 0609- ● ●
195 STAY; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-172-0 01 1 0609- ● ●
199 NUT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 02 1 0609-0610 ● ●
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20 		0-95235-836-0 01 1 0609- ● ●
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 0609- ● ●
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE 		0-28650-825-0 01 1 0609- ● ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 0609- ● ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE 		0-28650-825-0 02 1 0609- ● ●
222 GASKET; CONNECTOR
ID=8.4 OD=19 		5-11779-001-0 02 1 0609-0609 ●
222 GASKET; CONNECTOR
ID=8.2 		8-94312-733-0 02 1 0610- ●
311 NUT; HOSE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0609- ● ●
529 SPACER 1-83573-271-0 01 1 0609- ●
