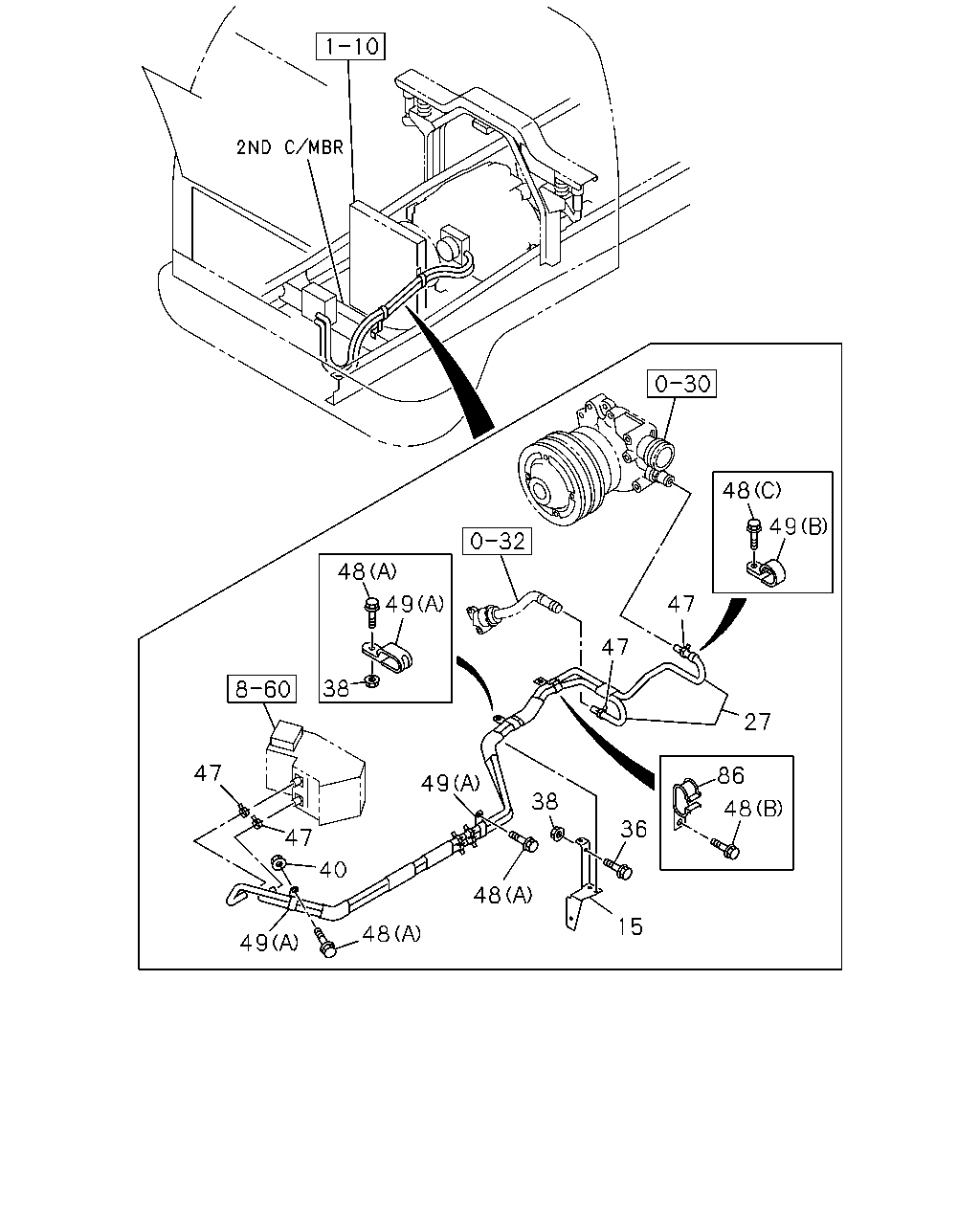

8-45 — HEATER PIPING (#25519) — 27 parça

48 49 48 49 47 38 47 27 47 86 49 38 48 36 47 40 48 15 48 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	BRACKET; WATER HOSE	1-83573-070-1	01	1	0609-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-849-1	01	1	0609-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-848-1	01	1	0609-		●
36	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0609-	●	●
38	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0609-	●	●
40	NUT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0609-	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0609-		●
47	CLAMP; WATER HOSE,HTR AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-94382-401-0	04	1	0609-0611	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-94382-401-0	04	1	0609-0611		●
47	CLAMP; WATER HOSE,HTR AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	0612-	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	0612-		●
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE	0-28050-816-0	01	1	0609-	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE	0-28050-816-0	01	1	0609-		●
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	01	1	0609-	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	01	1	0609-		●
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	03	1	0609-	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	03	1	0609-		●
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0609-	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0609-		●
49	CLIP; WATER HOSE,HTR AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	01	1	0609-	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	01	1	0609-		●
49	CLIP; WATER HOSE,HTR AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	03	1	0609-	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	03	1	0609-		●
49	CLIP; WATER HOSE,HTR AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=24 L=32	1-09700-766-1	01	1	0609-	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=24 L=32	1-09700-766-1	01	1	0609-		●
86	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-049-1	01	1	0609-	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-049-1	01	1	0609-		●
