8-40 — HEATER SYSTEM (#25518) — 61 parça

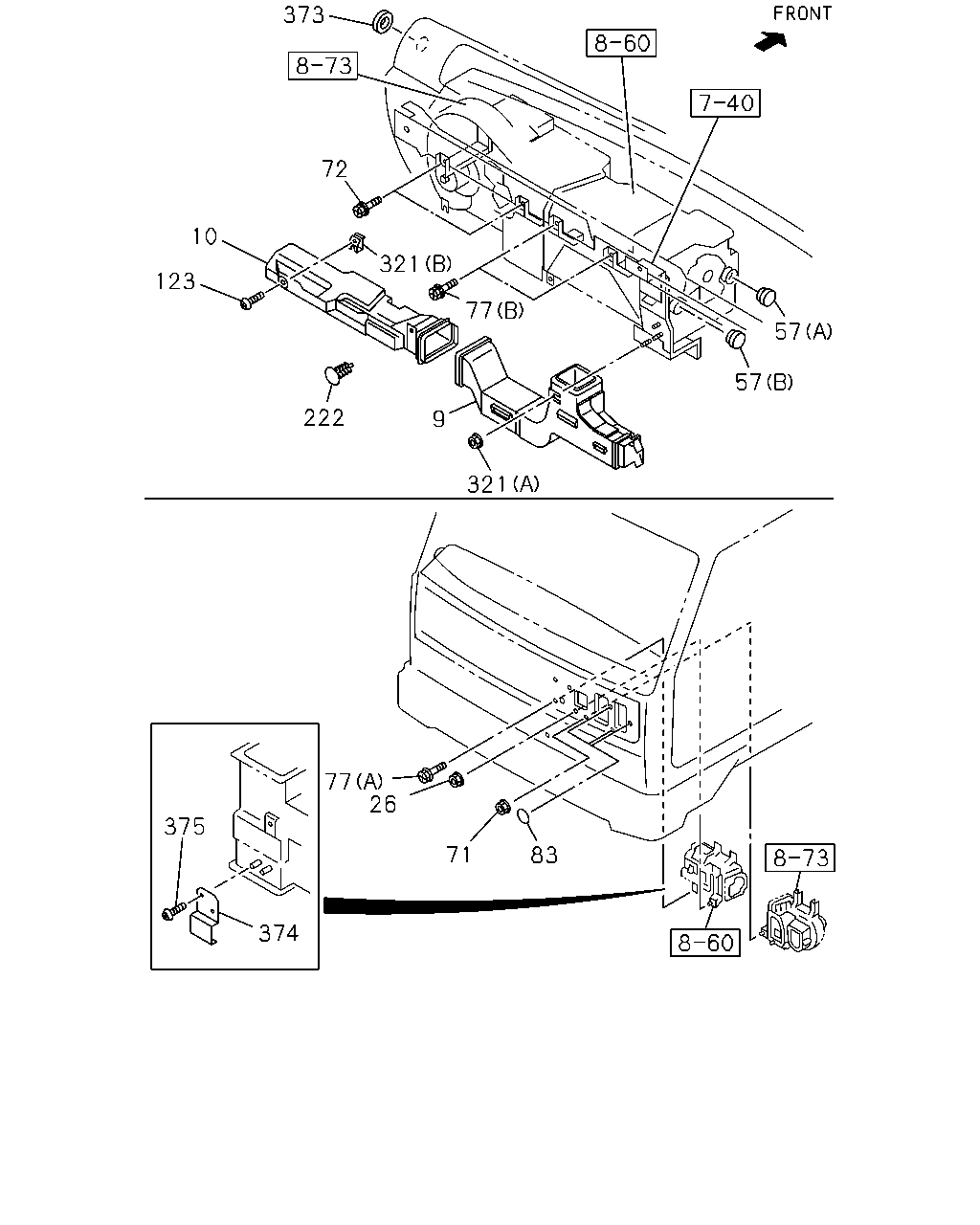

373 72 10 321 123 77 57 57 222 9 321 77 26 375 71 83 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	DUCT; HTR AIR,FOOT CENTER	1-76378-427-2	01	1	0609-	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-426-2	01	1	0609-		●
10	DUCT; HTR AIR,ASSIST FOOT AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-413-0	01	1	0609-	●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-413-0	01	1	0609-		●
26	NUT; HTR AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0609-	●
26	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0609-		●
57	COVER; INL DUCT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-617-0	02	1	0609-	●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-617-0	02	1	0609-		●
57	COVER; INL DUCT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-618-0	01	1	0609-	●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-618-0	01	1	0609-		●
71	NUT; BLOWER UNIT TO DASH AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0609-	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0609-		●
72	BOLT; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0609-	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0609-		●
77	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16	1-09980-598-1	02	1	0609-	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-1	02	1	0609-		●
77	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0609-	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0609-		●
83	SEAL; COVER,HTR HOLE OD=25 BLACK	1-76798-019-0	04	1	0609-	●
123	SCREW; DUCT AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0609-	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0609-		●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	0609-	●	●
222	FASTENER; DUCT AIR CONDITIONER MANUAL CONTROL(C60) ID=6 OD=16 L=18	8-94178-705-0	01	1	0609-	●
222	FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=6 OD=16 L=18	8-94178-705-0	01	1	0609-		●
321	NUT; DUCT FIX AIR CONDITIONER MANUAL CONTROL(C60) (A) M6 FLANGE	0-91180-106-0	02	1	0609-	●
321	NUT; DUCT FIX AIR CONDITIONER MANUAL CONTROL(C60) (B) M5	1-09984-196-0	01	1	0609-	●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5	1-09984-196-0	01	1	0609-		●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6 FLANGE	0-91180-106-0	01	1	0609-		●
373	RUBBER; JOINT	1-76378-291-0	02	1	0609-	●	●
374	HOLDER; DUCT AIR CONDITIONER MANUAL CONTROL(C60)	1-76398-012-1	01	1	0609-	●
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76398-012-1	01	1	0609-		●
375	SCREW; HOLDER AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0609-	●
375	SCREW; HOLDER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0609-		●

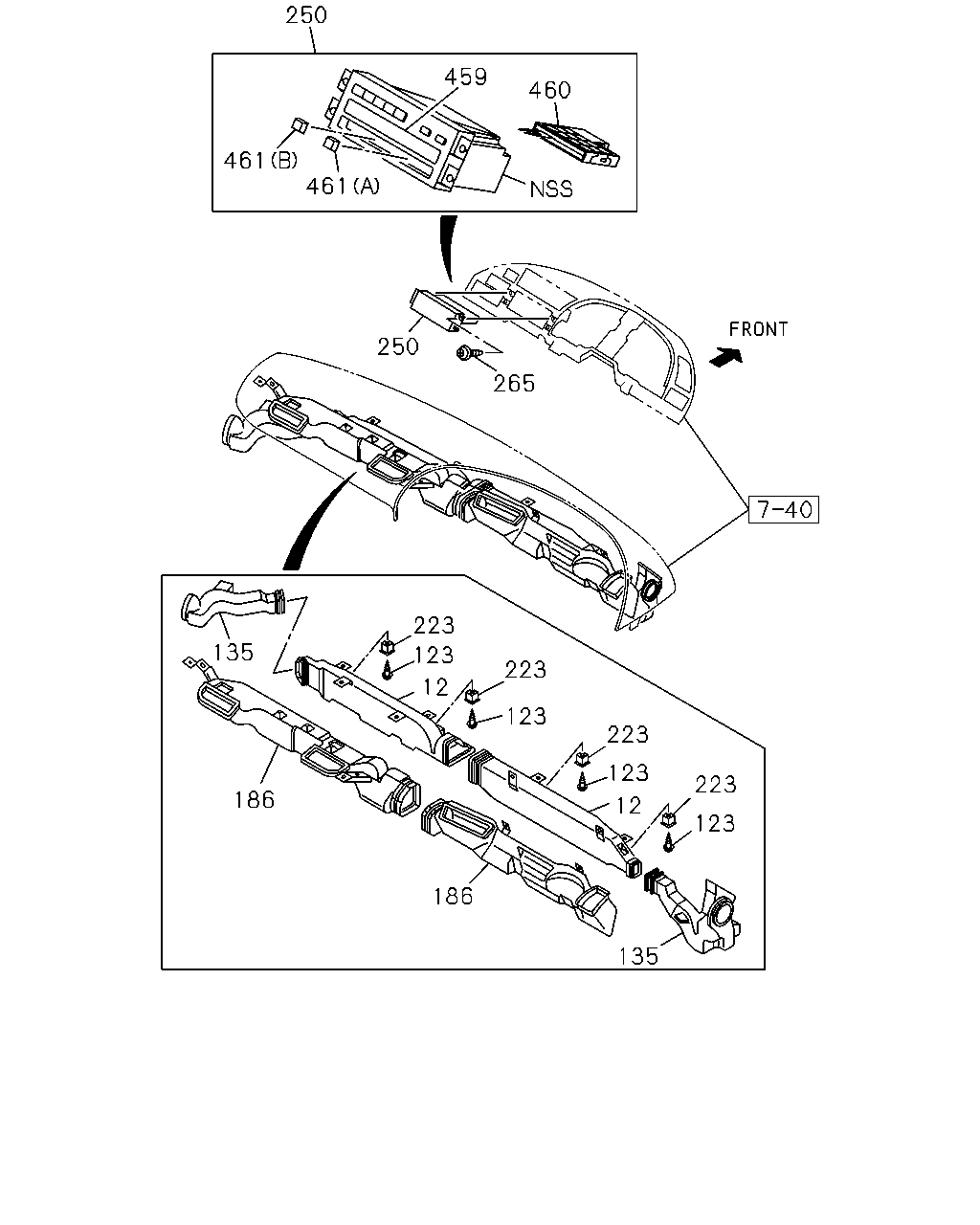

250 459 460 461 461 250 265 223 135 123 223 12 123 223 123 223 186 12 123 186 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NOZZLE; DEFROSTER	1-76378-289-6	01	1	0609-	●
12	NOZZLE; DEFROSTER	1-76377-172-7	01	1	0609-	●	●
12	NOZZLE; DEFROSTER	1-76378-321-6	01	1	0609-		●
123	SCREW; DUCT AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0609-	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0609-		●
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	0609-	●	●
135	HOSE; DEFROSTER	1-76378-252-7	01	1	0609-	●	●
135	HOSE; DEFROSTER	1-76378-253-4	01	1	0609-	●	●
186	DUCT; VENTILATOR	1-76378-290-9	01	1	0609-0610	●
186	DUCT; VENTILATOR	1-76378-446-1	01	1	0611-	●
186	DUCT; VENTILATOR	1-76377-173-6	01	1	0609-0710	●	●
186	DUCT; VENTILATOR	1-76377-246-0	01	1	0711-	●	●
186	DUCT; VENTILATOR	1-76378-418-0	01	1	0609-		●
223	GROMMET; SCREW D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0609-	●	●
250	CONTROL ASM; A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83543-034-1	01	1	0609-		●
250	CONTROL ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83543-050-0	01	1	0609-	●
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83543-050-0	01	1	0609-		●
265	SCREW; A/C CONT UNIT AIR CONDITIONER MANUAL CONTROL(C60) M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0609-	●
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0609-		●
459	PANEL; CONTROL ASM,A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83549-017-0	01	1	0609-		●
459	PANEL; CONTROL ASM,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83549-013-0	01	1	0609-	●
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83549-013-0	01	1	0609-		●
460	SWITCH; CONTROL ASM,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-82489-006-0	01	1	0609-	●
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82489-006-0	01	1	0609-		●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	0609-	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	0609-		●
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83549-016-0	01	1	0609-	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-016-0	01	1	0609-		●
