◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11030 - FVR(RHD) EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#25517) — 50 parça

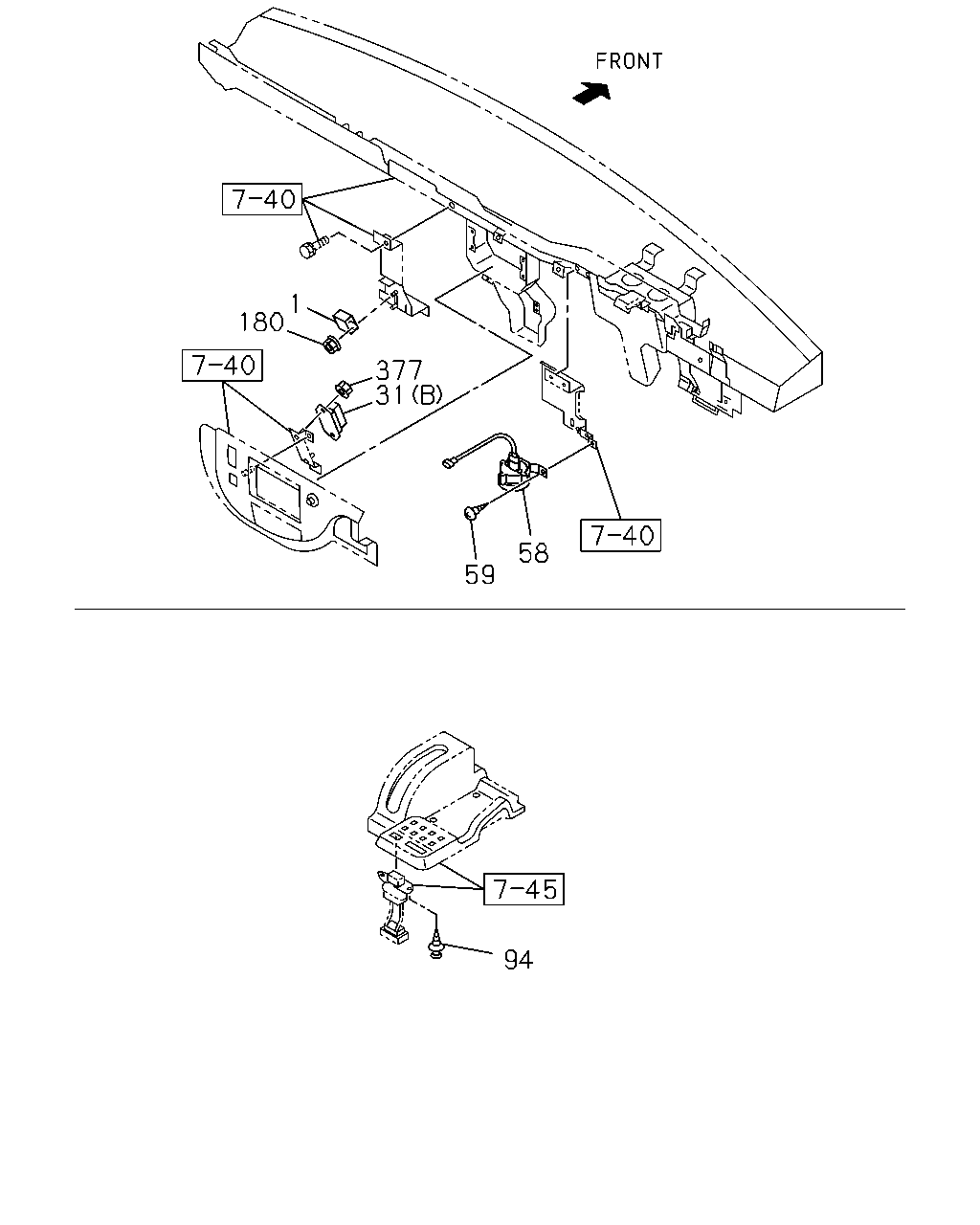

çizim 90191
1 180 377 31 58 59 94
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 1-83470-060-1 01 1 0609- ● ●
31 RELAY; PTO CONT
PTO CONTROL<SV6> (B) 24V 		1-82550-187-1 01 1 0609- ● ●
31 RELAY; PTO CONT
PTO CONTROL<SV6> (A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0609- ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-075-0 01 1 0609-0612 ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		8-98069-859-0 01 1 0701- ● ●
59 SCREW; BUZZER
M5X14 		8-94279-325-0 01 1 0609- ● ●
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0609- ● ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0609- ● ●
377 NUT; RELAY
PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 02 1 0609- ● ●

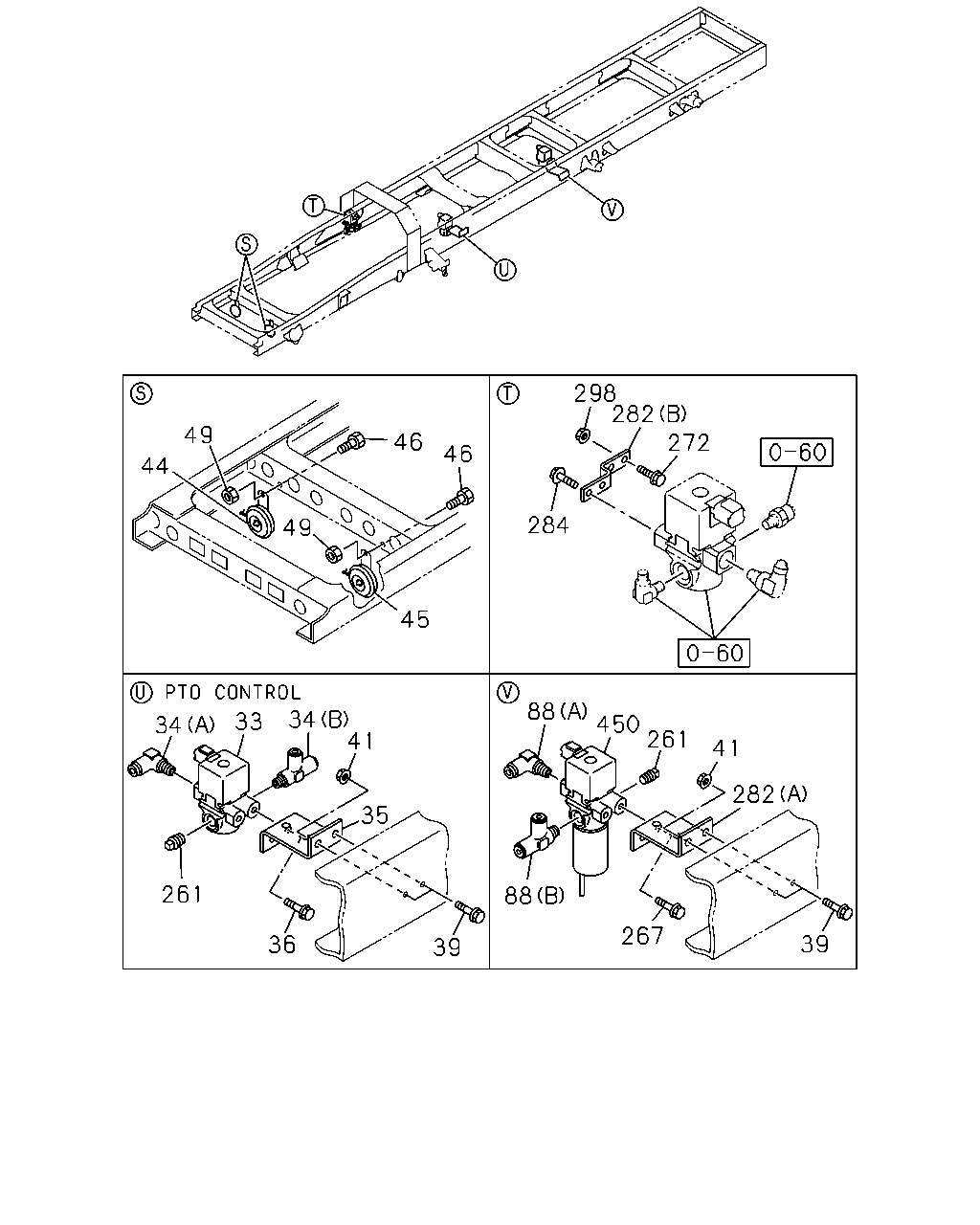

çizim 90201
298 282 272 49 46 46 44 284 49 45 34 41 88 450 261 33 34 41 282 35 261 88 267 39 36 39
BalonParca AdiParca NoAdetTipApplied Date A B
33 VALVE; MAG,PTO CONT
PTO CONTROL<SV6> 		1-82563-871-2 01 1 0609- ● ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0609- ● ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0609- ● ●
35 BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6> 		1-47471-374-1 01 1 0609-1004 ● ●
35 BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6> 		8-98154-633-0 01 1 1005- ● ●
36 BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 0609- ● ●
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 0609- ● ●
39 BOLT; BRKT,MAG VLV
M8X35 FLANGE 		0-28650-835-0 02 1 0609- ● ●
41 NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 0609- ● ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0609- ● ●
44 HORN; HIGH NOTE 1-83410-065-1 01 1 0609- ● ●
45 HORN; LOW NOTE 1-83410-064-1 01 1 0609- ● ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28650-825-0 02 1 0609- ● ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91180-108-0 02 1 0609- ● ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0609- ● ●
88 CONNECTOR; MAG VLV
(B) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0609- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0609- ● ●
261 PLUG; MAG VLV
PTO CONTROL<SV6> PT1/4 		9-99204-513-0 01 1 0609- ● ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0609- ● ●
272 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) M8X35 FLANGE 		0-28650-835-0 02 1 0609- ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) (B) 		1-82569-278-0 01 1 0609- ●
282 BRACKET; MAG VLV
(A) 		1-47471-374-1 01 1 0609-1004 ● ●
282 BRACKET; MAG VLV
(A) 		8-98154-633-0 01 1 1005- ● ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 02 1 0609- ●
298 NUT; MAG VLV
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 02 1 0609- ●
450 VALVE; MAG 8-97376-939-3 01 1 0609-0910 ● ●
450 VALVE; MAG 8-97633-075-0 01 1 0911- ● ●

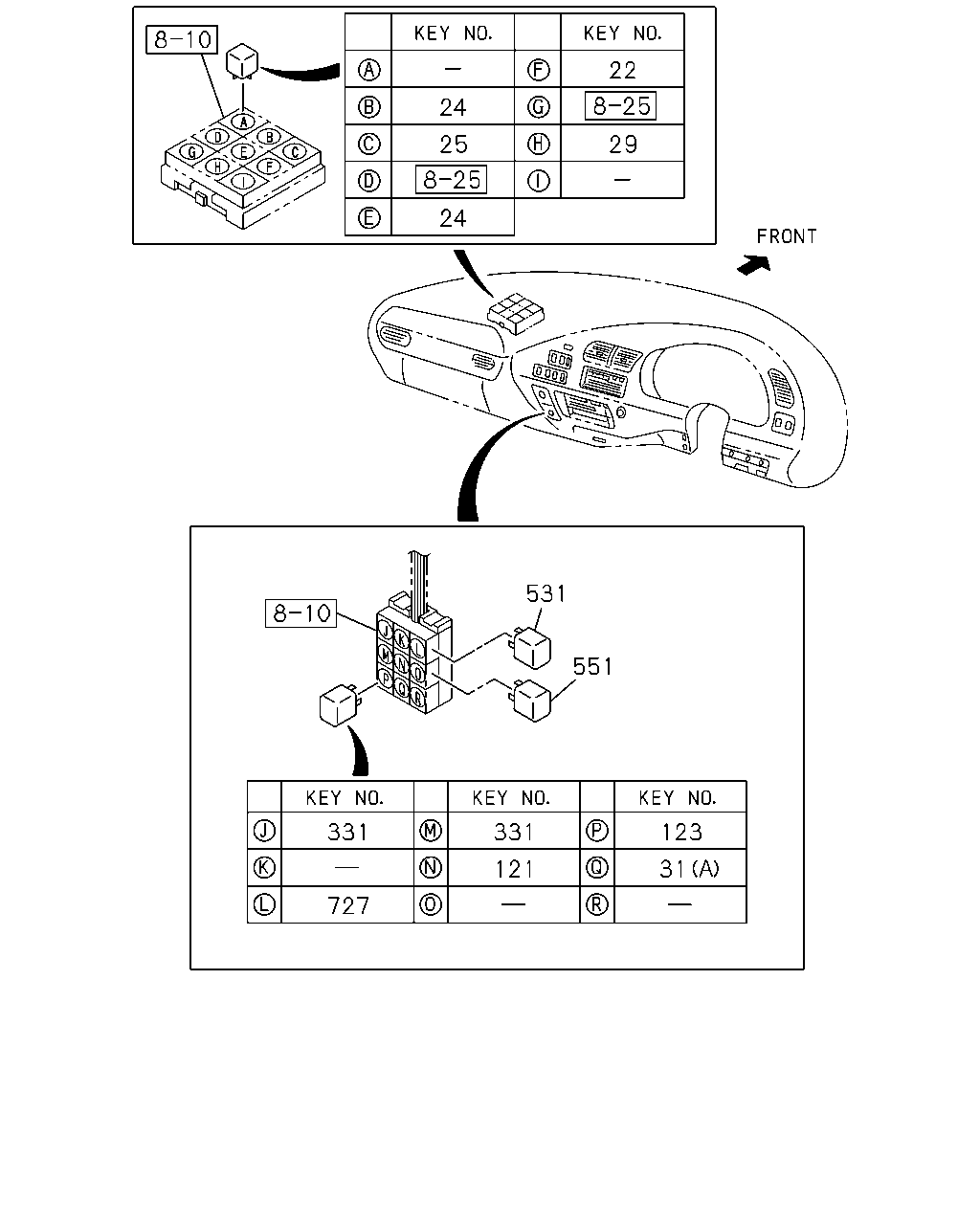

çizim 90202
22 24 29 24 531 551 331 331 123 31 121 727 25
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0609- ● ●
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0609- ● ●
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0609- ● ●
29 RELAY; HORN
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0609- ● ●
31 RELAY; PTO CONT
PTO CONTROL<SV6> (B) 24V 		1-82550-187-1 01 1 0609- ● ●
31 RELAY; PTO CONT
PTO CONTROL<SV6> (A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0609- ● ●
121 RELAY; PARKING BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0609- ● ●
123 RELAY; HTR
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0609- ●
123 RELAY; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0609- ●
331 RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0609- ● ●
531 RELAY; MAIN
24V 		1-82550-308-1 01 1 0609-1005 ● ●
531 RELAY; MAIN
24V 		8-98167-175-0 01 1 1006- ● ●
551 RELAY; TRANSMISSION
ZF9S1110 M/T(Y5E) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0609- ●
727 RELAY; START CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0609- ● ●
