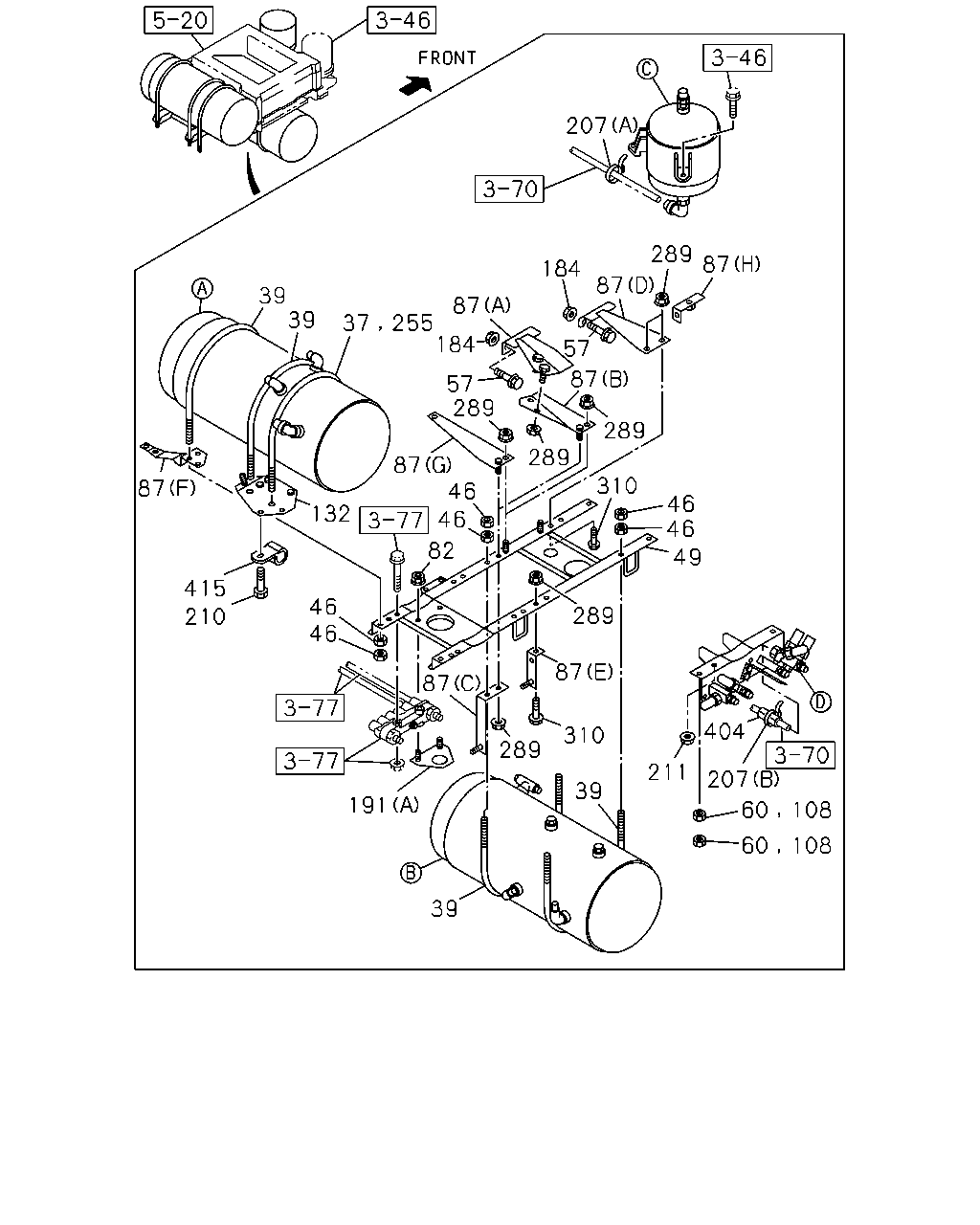

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	0308-0512	●	●
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	0601-	●	●

207 289 87 184 87 39 39 87 184 57 87 57 289 289 289 46 87 310 87 46 46 132 46 82 49 415 210 46 46 289 87 87 404 310 289 207 211 39 191 60 108 60 108 39 37 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	BOLT; AIR TANK L=303	1-48317-087-2	01	1	0308-0409	●	●
39	U-BOLT; AIR TANK L=303	1-48317-087-2	04	1	0308-	●	●
46	NUT; U-BOLT M8	9-09110-408-0	16	1	0308-0512	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	0601-	●	●
49	BRACKET; AIR TANK	1-48316-025-0	01	1	0308-0402	●	●
49	BRACKET; AIR TANK	1-48316-046-0	01	1	0403-0410	●	●
49	BRACKET; AIR TANK	1-48316-061-1	01	1	0411-	●	●
57	BOLT; BRKT,AIR TANK TO FRAME M10X25 FLANGE	0-28681-025-0	04	1	0308-0512	●	●
57	BOLT; BRKT,AIR TANK TO FRAME M10X25 FLANGE	0-28651-025-0	04	1	0601-	●	●
60	NUT; AIR TANK FIX M8	9-09110-408-0	04	1	0308-0409	●	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91150-208-0	02	1	0308-0308	●	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91150-108-0	02	1	0309-0602	●	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
87	BRACKET; AIR PIPE JOINT (D)	1-47479-690-0	01	1	0308-	●
87	BRACKET; AIR PIPE JOINT (A)	1-47479-706-0	01	1	0308-0310	●
87	BRACKET; AIR PIPE JOINT (A)	1-47479-944-0	01	1	0311-	●
87	BRACKET; AIR PIPE JOINT (B)	1-47479-707-0	01	1	0308-	●
87	BRACKET; AIR PIPE JOINT (H) L=60	1-47476-217-0	01	1	0308-	●	●
87	BRACKET; AIR PIPE JOINT (C)	1-47479-470-2	01	1	0308-	●	●
87	BRACKET; AIR PIPE JOINT (E)	1-47479-541-1	01	1	0308-	●	●
87	BRACKET; AIR PIPE JOINT (F)	1-47479-663-1	01	1	0308-0507	●	●
87	BRACKET; AIR PIPE JOINT (F)	1-47479-663-1	01	1	0508-		●
87	BRACKET; AIR PIPE JOINT (G)	1-47479-708-0	01	1	0308-		●
87	BRACKET; AIR PIPE JOINT (D)	1-47479-709-1	01	1	0308-		●
108	NUT; CONNECTOR M8	9-09110-408-0	04	1	0410-0512	●	●
108	NUT; CONNECTOR M8	0-91110-508-0	04	1	0601-	●	●
132	BRACKET; STRING GUIDE	1-47479-531-0	01	1	0308-	●	●
184	NUT; BRKT M12 FLANGE	0-91150-212-0	01	1	0403-0602	●
184	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	0603-	●
184	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0308-0602	●	●
184	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
191	BRACKET; STOPPER,AIR TANK (B)	1-48316-014-0	01	1	0403-	●
191	BRACKET; STOPPER,AIR TANK (A)	1-48316-015-1	01	1	0308-	●
191	BRACKET; STOPPER,AIR TANK (A)	1-48316-023-1	01	1	0308-		●
207	CLIP; AIR PIPE (B) L=350	1-09707-183-0	15	1	0308-0402	●
207	CLIP; AIR PIPE (B) L=350	1-09707-183-0	17	1	0403-	●	●
207	CLIP; AIR PIPE (B) L=350	1-09707-183-0	17	1	0308-0402		●
207	CLIP; AIR PIPE (B) L=350	1-09707-183-0	04	1	0308-0402	●
207	CLIP; AIR PIPE (A) L=256	1-09707-189-0	02	1	0308-	●	●
210	BOLT; STRING GUIDE M8X16 FLANGE	0-28080-816-0	01	1	0308-0512	●
210	BOLT; STRING GUIDE M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
211	NUT; STRING GUIDE M8 FLANGE	0-91150-108-0	02	1	0308-0602	●
211	NUT; STRING GUIDE M8 FLANGE	0-91180-108-0	02	1	0603-	●
211	NUT; STRING GUIDE M8 FLANGE	0-91150-108-0	03	1	0308-0602	●	●
211	NUT; STRING GUIDE M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
255	BOLT; CONN L=303	1-48317-087-2	01	1	0410-	●	●
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	08	1	0308-0308	●
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	09	1	0309-0602	●
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	09	1	0603-	●
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	07	1	0308-0602		●
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	07	1	0603-		●
310	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	04	1	0309-0512		●
310	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28050-816-0	04	1	0601-		●
310	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28680-830-0	01	1	0308-0512	●
310	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28650-830-0	01	1	0601-	●
310	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	05	1	0308-0308	●	●
310	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	05	1	0309-0512	●
310	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28050-816-0	05	1	0601-	●
404	SLEEVE; RUBBER ID=15 OD=19 L=50	1-09337-014-0	04	1	0403-		●
404	SLEEVE; RUBBER ID=15 OD=19 L=50	1-09337-014-0	04	1	0308-0402	●	●
404	SLEEVE; RUBBER ID=15 OD=19 L=50	1-09337-014-0	01	1	0403-	●
415	CLIP; STRING GUIDE ID=6 L=20	9-09524-535-0	01	1	0308-	●
415	CLIP; STRING GUIDE ID=16 L=20	9-09525-535-0	01	1	0308-0606	●
415	CLIP; STRING GUIDE ID=16 L=20	0-95235-535-0	01	1	0607-	●

207 39 39 289 184 87 87 87 57 87 184 87 57 289 132 289 310 46 46 39 82 49 39 31 415 210 32 117 289 191 46 46 87 28 87 310 289 80 28 191 28 404 46 46 207 211 60 108 184 60 108 37 255

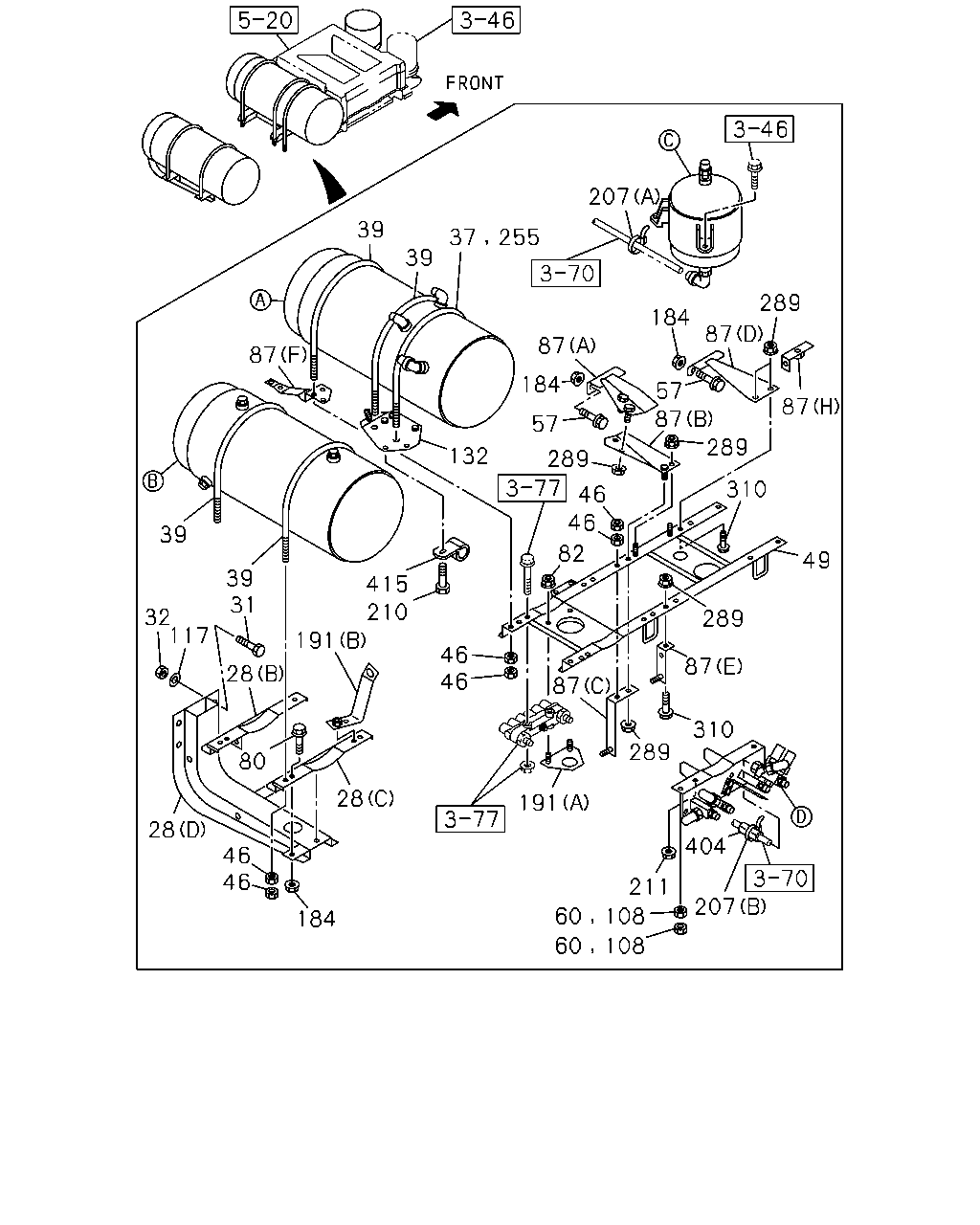

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	BRACKET; AIR TANK (D)	1-48316-024-3	01	1	0403-	●
28	BRACKET; AIR TANK (B)	1-48316-026-0	01	1	0403-	●
28	BRACKET; AIR TANK (C)	1-48317-994-2	01	1	0403-	●
28	BRACKET; AIR TANK (A)	1-47479-675-1	01	1	0308-	●	●
31	BOLT; BRKT TO FRAME M14X50	0-20801-450-0	04	1	0403-0512	●
31	BOLT; BRKT TO FRAME M14X50	0-20851-450-0	04	1	0601-	●
32	NUT; BRKT TO FRAME M14	9-99110-514-0	04	1	0403-0512	●
32	NUT; BRKT TO FRAME M14	0-91110-514-0	04	1	0601-	●
37	BOLT; AIR TANK L=303	1-48317-087-2	01	1	0308-0409	●	●
39	U-BOLT; AIR TANK L=303	1-48317-087-2	04	1	0308-	●	●
46	NUT; U-BOLT M8	9-09110-408-0	16	1	0308-0512	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	0601-	●	●
49	BRACKET; AIR TANK	1-48316-025-0	01	1	0308-0402	●	●
49	BRACKET; AIR TANK	1-48316-046-0	01	1	0403-0410	●	●
49	BRACKET; AIR TANK	1-48316-061-1	01	1	0411-	●	●
57	BOLT; BRKT,AIR TANK TO FRAME M10X25 FLANGE	0-28681-025-0	04	1	0308-0512	●	●
57	BOLT; BRKT,AIR TANK TO FRAME M10X25 FLANGE	0-28651-025-0	04	1	0601-	●	●
60	NUT; AIR TANK FIX M8	9-09110-408-0	04	1	0308-0409	●	●
80	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0403-0512	●
80	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
80	BOLT; BRKT M12X25 FLANGE	0-28681-225-0	04	1	0403-0512	●
80	BOLT; BRKT M12X25 FLANGE	0-28651-225-0	04	1	0601-	●
80	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0308-0512	●	●
80	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91150-208-0	02	1	0308-0308	●	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91150-108-0	02	1	0309-0602	●	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
87	BRACKET; AIR PIPE JOINT (D)	1-47479-690-0	01	1	0308-	●
87	BRACKET; AIR PIPE JOINT (A)	1-47479-706-0	01	1	0308-0310	●
87	BRACKET; AIR PIPE JOINT (A)	1-47479-944-0	01	1	0311-	●
87	BRACKET; AIR PIPE JOINT (B)	1-47479-707-0	01	1	0308-	●
87	BRACKET; AIR PIPE JOINT (H) L=60	1-47476-217-0	01	1	0308-	●	●
87	BRACKET; AIR PIPE JOINT (C)	1-47479-470-2	01	1	0308-	●	●
87	BRACKET; AIR PIPE JOINT (E)	1-47479-541-1	01	1	0308-	●	●
87	BRACKET; AIR PIPE JOINT (F)	1-47479-663-1	01	1	0308-0507	●	●
87	BRACKET; AIR PIPE JOINT (F)	1-47479-663-1	01	1	0508-		●
87	BRACKET; AIR PIPE JOINT (G)	1-47479-708-0	01	1	0308-		●
87	BRACKET; AIR PIPE JOINT (D)	1-47479-709-1	01	1	0308-		●
108	NUT; CONNECTOR M8	9-09110-408-0	04	1	0410-0512	●	●
108	NUT; CONNECTOR M8	0-91110-508-0	04	1	0601-	●	●
117	WASHER; LK,BRKT ID=14.2	9-09150-514-0	04	1	0403-0603	●
117	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	0604-	●
132	BRACKET; STRING GUIDE	1-47479-531-0	01	1	0308-	●	●
184	NUT; BRKT M12 FLANGE	0-91150-212-0	01	1	0403-0602	●
184	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	0603-	●
184	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0308-0602	●	●
184	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
191	BRACKET; STOPPER,AIR TANK (B)	1-48316-014-0	01	1	0403-	●
191	BRACKET; STOPPER,AIR TANK (A)	1-48316-015-1	01	1	0308-	●
191	BRACKET; STOPPER,AIR TANK (A)	1-48316-023-1	01	1	0308-		●
207	CLIP; AIR PIPE (B) L=350	1-09707-183-0	15	1	0308-0402	●
207	CLIP; AIR PIPE (B) L=350	1-09707-183-0	17	1	0403-	●	●
207	CLIP; AIR PIPE (B) L=350	1-09707-183-0	17	1	0308-0402		●
207	CLIP; AIR PIPE (B) L=350	1-09707-183-0	04	1	0308-0402	●
207	CLIP; AIR PIPE (A) L=256	1-09707-189-0	02	1	0308-	●	●
210	BOLT; STRING GUIDE M8X16 FLANGE	0-28080-816-0	01	1	0308-0512	●
210	BOLT; STRING GUIDE M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
211	NUT; STRING GUIDE M8 FLANGE	0-91150-108-0	02	1	0308-0602	●
211	NUT; STRING GUIDE M8 FLANGE	0-91180-108-0	02	1	0603-	●
211	NUT; STRING GUIDE M8 FLANGE	0-91150-108-0	03	1	0308-0602	●	●
211	NUT; STRING GUIDE M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
255	BOLT; CONN L=303	1-48317-087-2	01	1	0410-	●	●
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	08	1	0308-0308	●
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	09	1	0309-0602	●
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	09	1	0603-	●
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	07	1	0308-0602		●
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	07	1	0603-		●
310	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	04	1	0309-0512		●
310	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28050-816-0	04	1	0601-		●
310	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28680-830-0	01	1	0308-0512	●
310	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28650-830-0	01	1	0601-	●
310	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	05	1	0308-0308	●	●
310	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	05	1	0309-0512	●
310	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28050-816-0	05	1	0601-	●
404	SLEEVE; RUBBER ID=15 OD=19 L=50	1-09337-014-0	04	1	0403-		●
404	SLEEVE; RUBBER ID=15 OD=19 L=50	1-09337-014-0	04	1	0308-0402	●	●
404	SLEEVE; RUBBER ID=15 OD=19 L=50	1-09337-014-0	01	1	0403-	●
415	CLIP; STRING GUIDE ID=6 L=20	9-09524-535-0	01	1	0308-	●
415	CLIP; STRING GUIDE ID=16 L=20	9-09525-535-0	01	1	0308-0606	●
415	CLIP; STRING GUIDE ID=16 L=20	0-95235-535-0	01	1	0607-	●

5 10 10 5 1 5 5 5 5 7 7 6 6 6 1 6 8 11 2 126 13 203 180 282 124 10 124 203 180 203 104 344 10 180 11 28 282 124 126 282 80 124 136 282 10 10 124 10

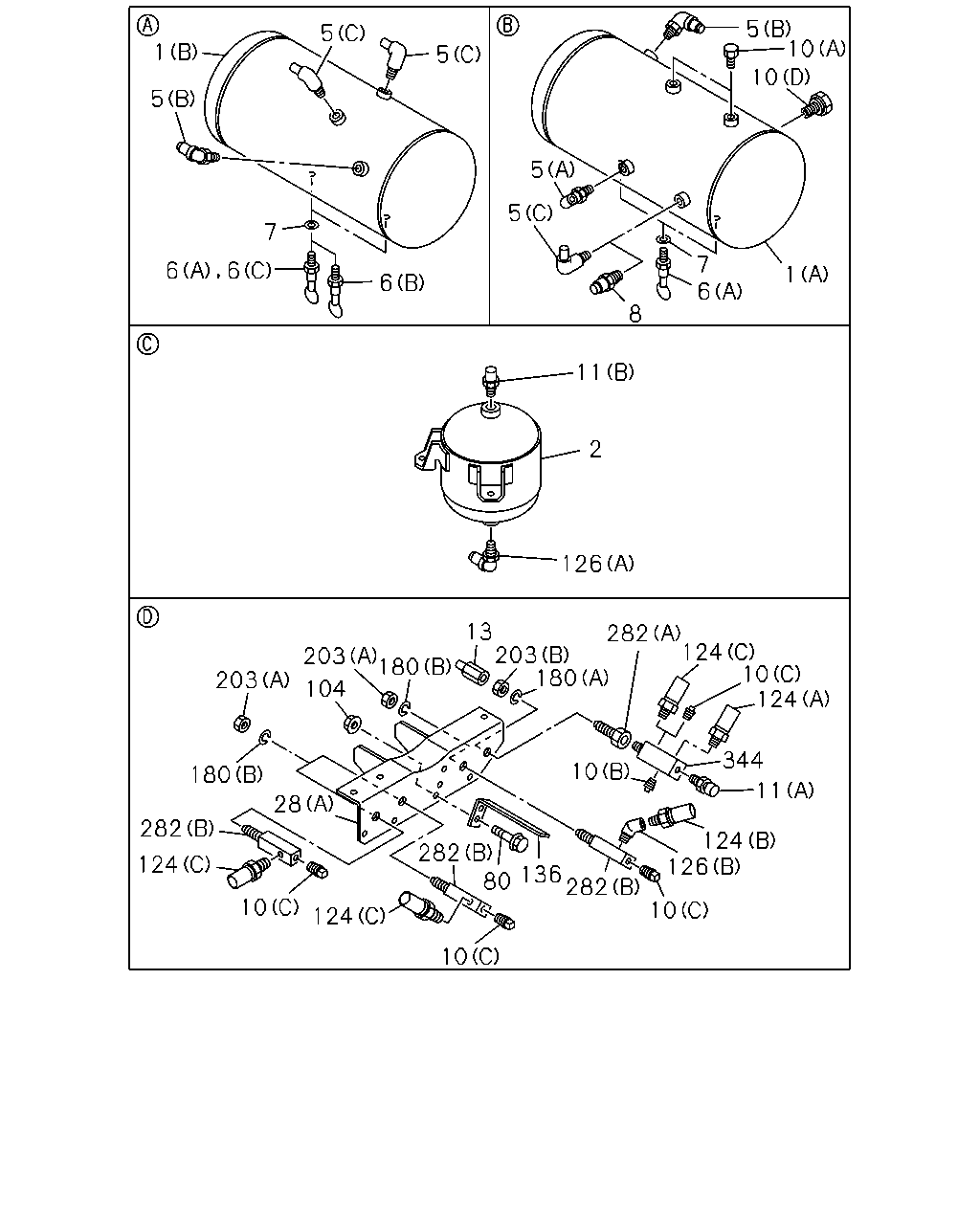

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (A)	1-48371-226-3	01	1	0308-	●	●
1	TANK ASM; AIR (B)	1-48371-227-4	01	1	0308-	●	●
2	TANK; AIR	1-48371-166-3	01	1	0308-	●	●
5	UNION; AIR TANK (B) DIN12 & M22 ELBOW	1-09661-497-0	01	1	0403-		●
5	UNION; AIR TANK (B) DIN12 & M22 ELBOW	1-09661-497-0	01	1	0403-		●
5	UNION; AIR TANK (A) DIN8 & M22 ELBOW	1-09661-495-0	01	1	0308-0402	●	●
5	UNION; AIR TANK (A) DIN8 & M22 ELBOW	1-09661-495-0	01	1	0403-		●
5	UNION; AIR TANK (B) DIN12 & M22 ELBOW	1-09661-497-0	01	1	0308-0402	●	●
5	UNION; AIR TANK (B) DIN12 & M22 ELBOW	1-09661-497-0	01	1	0308-0402	●	●
5	UNION; AIR TANK (B) DIN12 & M22 ELBOW	1-09661-497-0	02	1	0403-	●
5	UNION; AIR TANK (C)	1-09661-550-0	01	1	0308-0402	●	●
5	UNION; AIR TANK (C)	1-09661-550-0	01	1	0403-		●
5	UNION; AIR TANK (C)	1-09661-550-0	02	1	0308-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	0404-		●
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-2	01	1	0308-0402	●
6	COCK; DRAIN,AIR TANK (C)	1-48312-015-0	01	1	0403-	●
6	COCK; DRAIN,AIR TANK (B)	1-48312-006-1	01	1	0308-	●
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-2	02	1	0308-0403	●	●
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-2	02	1	0308-0403		●
6	COCK; DRAIN,AIR TANK (A) W/COVER	1-48312-004-2	02	1	0404-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0403-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0403-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0308-0402	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0308-0402	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0403-	●
8	CONNECTOR; AIR TANK DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0403-	●
10	PLUG; AIR TANK (D) M22	1-09661-502-0	01	1	0403-	●
10	PLUG; AIR TANK (A)	1-09661-569-0	02	1	0308-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0308-	●	●
10	PLUG; AIR TANK FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	03	1	0308-	●	●
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	04	1	0308-	●	●
11	VALVE; SAFETY,AIR TANK (A)	1-48320-012-2	01	1	0308-	●	●
11	VALVE; SAFETY,AIR TANK (B)	1-48320-047-2	01	1	0308-	●	●
13	ADAPTER; NYLON TUBE DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0308-	●	●
28	BRACKET; AIR TANK (D)	1-48316-024-3	01	1	0403-	●
28	BRACKET; AIR TANK (B)	1-48316-026-0	01	1	0403-	●
28	BRACKET; AIR TANK (C)	1-48317-994-2	01	1	0403-	●
28	BRACKET; AIR TANK (A)	1-47479-675-1	01	1	0308-	●	●
80	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0403-0512	●
80	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
80	BOLT; BRKT M12X25 FLANGE	0-28681-225-0	04	1	0403-0512	●
80	BOLT; BRKT M12X25 FLANGE	0-28651-225-0	04	1	0601-	●
80	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0308-0512	●	●
80	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0308-0602	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
124	SWITCH; AIR PRESSURE (A)	1-48340-064-1	01	1	0308-0312	●	●
124	SWITCH; AIR PRESSURE (A)	1-48340-067-0	01	1	0401-	●	●
124	SWITCH; AIR PRESSURE (B)	1-48340-065-0	01	1	0308-	●	●
124	SWITCH; AIR PRESSURE FULL FLOATING CAB(W16) (C)	1-48340-066-0	03	1	0308-	●	●
124	SWITCH; AIR PRESSURE EXC. FULL FLOATING CAB(W16) (C)	1-48340-066-0	02	1	0308-	●	●
126	CONNECTOR; ELBOW (A) DIN8 & M22 ELBOW	1-09661-495-0	01	1	0308-	●	●
126	CONNECTOR; ELBOW (B) R1/4 & RC1/4	1-09664-211-0	01	1	0308-	●	●
136	BRACKET; CLIP	1-47479-674-0	01	1	0308-	●	●
180	WASHER; LK (A) ID=16.2	9-09150-516-0	01	1	0308-0603	●	●
180	WASHER; LK (A) ID=16.2	0-91510-516-0	01	1	0604-	●	●
180	WASHER; LK (B) ID=18.2	9-09150-518-0	03	1	0308-0603	●	●
180	WASHER; LK (B) ID=18.2	0-91510-518-0	03	1	0604-	●	●
203	NUT (B) M16	9-99110-516-0	01	1	0308-0512	●	●
203	NUT (B) M16	0-91110-516-0	01	1	0601-	●	●
203	NUT (A) M18	9-99110-518-0	03	1	0308-0512	●	●
203	NUT (A) M18	0-91110-518-0	03	1	0601-	●	●
282	UNION; 2 WAY (A)	1-09650-222-1	01	1	0308-	●	●
282	UNION; 2 WAY (B)	1-09661-593-0	03	1	0308-	●	●
344	CONNECTOR; 4WAY	1-09660-521-2	01	1	0308-	●	●

318 223 223 223 223 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
223	UNION BRAKE SYSTEM HSA<SLD> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0308-	●	●
223	UNION BRAKE SYSTEM HSA<SLD> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	0308-	●	●
223	UNION BRAKE SYSTEM HSA<SLD> (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0308-	●	●
318	BRACKET; HSA VLV WHEEL BASE 4900MM(49W) BRAKE SYSTEM HSA<SLD>	1-46366-249-0	01	1	0309-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
