3-01 — FRONT WHEEL BRAKE (#25511) — 53 parça

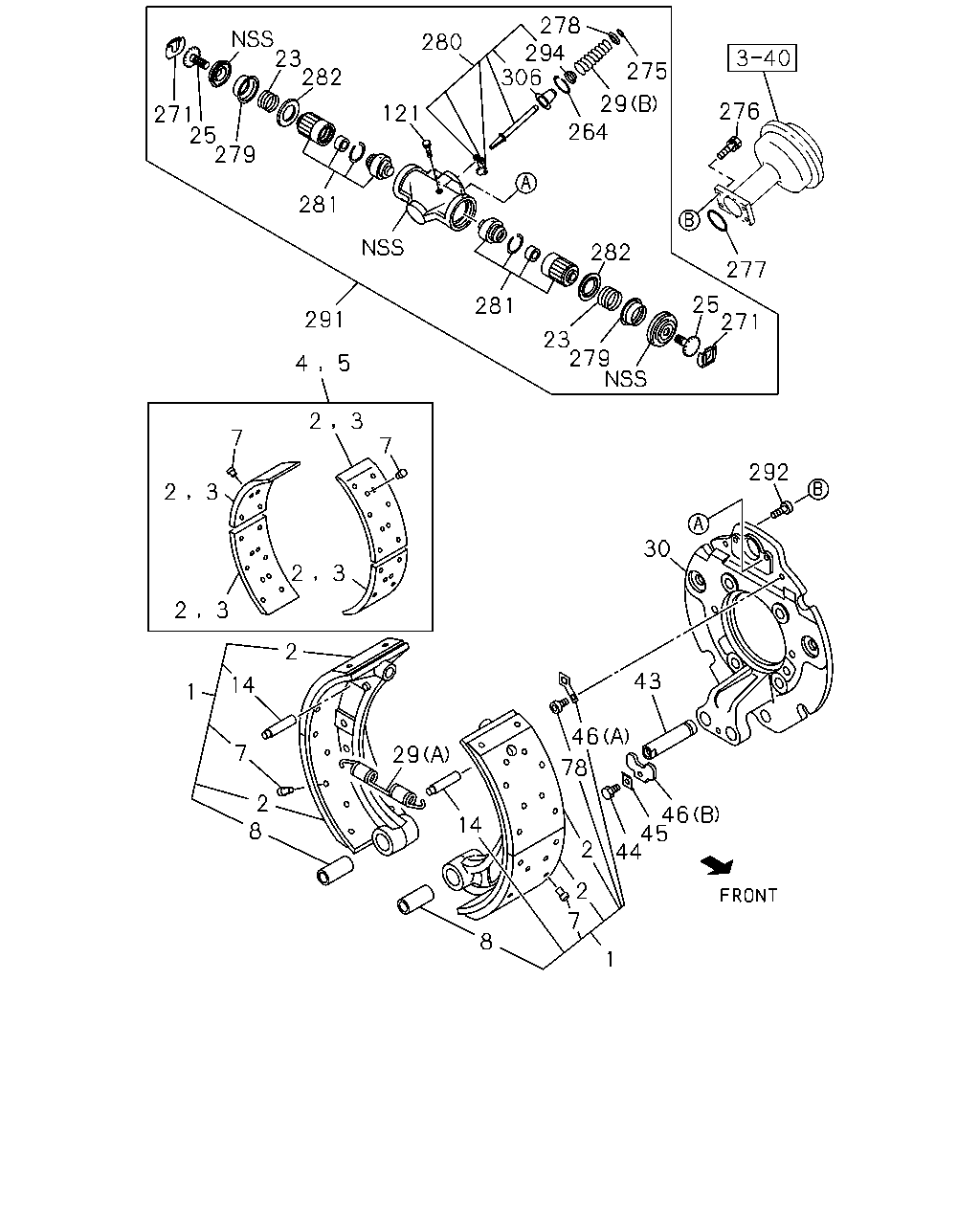

çizim 25326
278 294 306 23 282 280 275 29 276 121 271 25 279 264 281 282 277 25 271 281 291 23 279 5 4 2 3 7 7 292 2 3 2 30 3 3 2 2 43 14 1 46 7 29 78 2 8 46 45 44 14 2 2 7 8 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
LEADING 		1-47170-250-0 01 1 0308- ● ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-251-0 01 1 0308- ● ●
1 SHOE; BRK,FRT
LEADING 		1-47170-248-0 01 1 0308- ● ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-249-0 01 1 0308- ● ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-661-0 08 1 0308- ● ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-663-0 08 1 0308- ● ●
4 LINING SET; FRT BRK,STANDARD 1-88311-254-0 02 1 0308- ● ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-257-0 02 1 0308- ● ●
7 RIVET; LINING,FRT BRK
L=15.5 		1-09732-053-0 80 1 0308- ● ●
8 BUSHING; BRK SHOE 1-47112-020-0 04 1 0308- ● ●
14 PIN; SHOE RETURN SPR 1-47119-035-0 04 1 0308- ● ●
23 SPRING; COIL 1-47629-196-0 04 1 0308- ● ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47623-035-1 04 1 0308- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 02 1 0308- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 0308- ● ●
30 BRACKET; ANCHOR,FRT 1-47137-512-0 02 1 0308- ● ●
43 PIN; ANCHOR
L=115.5 		1-47131-044-0 04 1 0308- ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20801-016-0 02 1 0308-0512 ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20851-016-0 02 1 0601- ● ●
45 WASHER; LK 1-47133-011-0 02 1 0308- ● ●
46 PLATE; LOCK
(A) 		1-47119-152-0 04 1 0308- ● ●
46 PLATE; LOCK
(B) 		1-47133-010-0 02 1 0308- ● ●
78 BOLT; LK,PLATE 1-47119-153-0 04 1 0308- ● ●
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 0308- ● ●
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 0308- ● ●
271 CLIP; ADJ 1-47621-017-0 04 1 0308- ● ●
275 RING; RETAINER 1-47649-031-0 02 1 0308- ● ●
276 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50051-045-0 08 1 0308-0309 ● ●
276 BOLT; CHAMBER
M10X42.5 		1-47139-163-0 08 1 0310- ● ●
277 RING; CHAMBER 1-48259-231-0 02 1 0308- ● ●
278 RETAINER; SPRING 1-47649-020-0 02 1 0308- ● ●
279 CAGE; SPRING 1-47629-192-0 04 1 0308- ● ●
280 WEDGE; FRT WHEEL CYL 1-47640-012-0 02 1 0308- ● ●
281 SLEEVE 1-47629-247-0 04 1 0308- ● ●
282 RING; DRIVE 1-47629-200-0 04 1 0308- ● ●
291 EXPANDER 1-47601-087-0 02 1 0308- ● ●
292 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0308- ● ●
294 BOOT; WEDGE 1-47649-042-0 02 1 0308- ● ●
306 CAP; EXPANDER 1-47649-044-0 02 1 0308- ● ●
çizim 79465
304 278 294 306 23 282 275 29 121 271 264 279 282 271 23 279 305 271 271
BalonParca AdiParca NoAdetTipApplied Date A B
23 SPRING; COIL 1-47629-196-0 04 1 0308- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-09583-365-1 02 1 0308- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47649-041-0 02 1 0308- ● ●
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 0308- ● ●
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 0308- ● ●
271 CLIP; ADJ 1-47621-017-0 04 1 0308- ● ●
275 RING; RETAINER 1-47649-031-0 02 1 0308- ● ●
278 RETAINER; SPRING 1-47649-020-0 02 1 0308- ● ●
279 CAGE; SPRING 1-47629-192-0 04 1 0308- ● ●
282 RING; DRIVE 1-47629-200-0 04 1 0308- ● ●
294 BOOT; WEDGE 1-47649-042-0 02 1 0308- ● ●
304 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 0308- ● ●
305 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 0308- ● ●
306 CAP; EXPANDER 1-47649-044-0 02 1 0308- ● ●
