Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#2551) — 240 parça

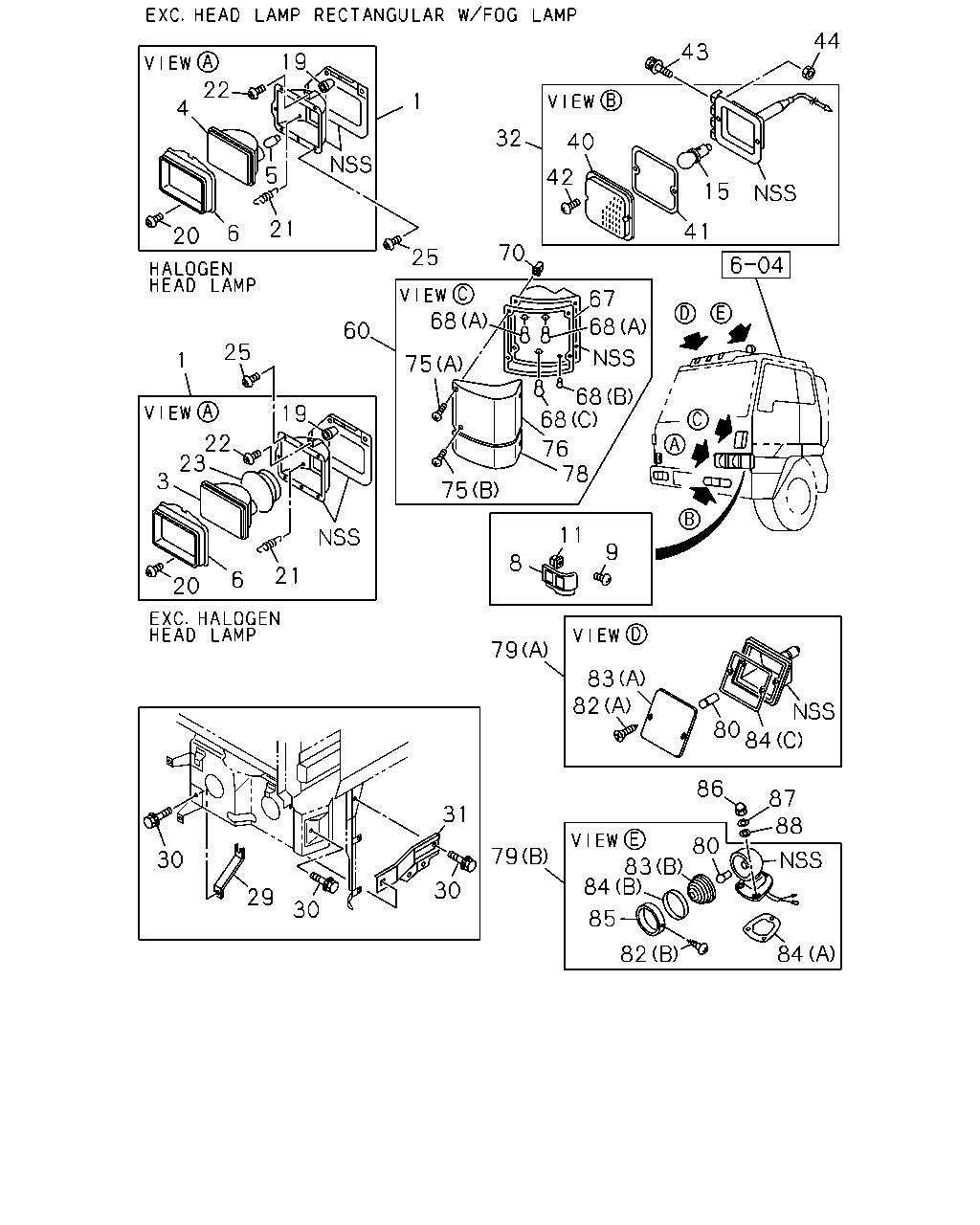

44 43 19 22 1 4 32 40 5 42 15 21 41 6 20 70 25 68 67 68 60 25 1 75 68 68 19 22 23 76 78 3 75 11 9 8 21 6 20 79 83 82 80 84 86 87 88 31 83 84 80 79 30 30 29 30 85 82 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> INNER TYPE 1 24V 70W	1-82110-257-1	01	1	9002-9306
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> OUTER TYPE 2 24V 75/70W	1-82110-260-1	01	1	9002-9306
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> INNER TYPE 1 24V 70W	1-82110-256-1	01	1	9002-9306
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> OUTER TYPE 2 24V 75/70W	1-82110-258-1	01	1	9002-9306
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> INNER TYPE 1 24V 70W	1-82110-257-2	01	1	9307-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> OUTER TYPE 2 24V 75/70W	1-82110-260-2	01	1	9307-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> INNER TYPE 1 24V 70W	1-82110-256-2	01	1	9307-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> OUTER TYPE 2 24V 75/70W	1-82110-258-2	01	1	9307-
1	LAMP ASM; HEAD EXC. HALOGEN HEADLAMPS<TT5> INNER TYPE 1 24V 55W	1-82110-251-2	01	1	9002-9306
1	LAMP ASM; HEAD EXC. HALOGEN HEADLAMPS<TT5> OUTER 24V 50/65W	1-82110-254-3	01	1	9002-9306
1	LAMP ASM; HEAD EXC. HALOGEN HEADLAMPS<TT5> INNER TYPE 1 24V 55W	1-82110-250-2	01	1	9002-9306
1	LAMP ASM; HEAD EXC. HALOGEN HEADLAMPS<TT5> OUTER 24V 50/65W	1-82110-252-3	01	1	9002-9306
1	LAMP ASM; HEAD HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> TYPE 1 24V5W	1-82110-301-3	01	1	9307-
1	LAMP ASM; HEAD HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> TYPE 1 24V5W	1-82110-300-3	01	1	9307-
1	LAMP ASM; HEAD EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5> INNER TYPE 1 24V 55W	1-82110-251-3	01	1	9307-
1	LAMP ASM; HEAD EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5> OUTER 24V 50/65W	1-82110-254-4	01	1	9307-
1	LAMP ASM; HEAD EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5> INNER TYPE 1 24V 55W	1-82110-250-3	01	1	9307-
1	LAMP ASM; HEAD EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5> OUTER 24V 50/65W	1-82110-252-4	01	1	9307-
3	SEALED BEAM; HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5> INNER 24V55W	1-82191-023-0	02	1	9002-
3	SEALED BEAM; HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5> OUTER 24V50/65W	1-82191-042-0	02	1	9002-
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> OUTER 24V 70W	1-82191-031-0	02	1	9002-
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> INNER 24V 70W	1-82191-032-0	02	1	9002-
4	HEADLAMP UNIT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 75/70W	1-82119-108-0	01	1	9307-
4	HEADLAMP UNIT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 75/70W	1-82119-107-0	01	1	9307-
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> OUTER 24V 75/70W	1-82193-006-0	02	1	9002-
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> INNER 24V 70W	1-82193-007-0	02	1	9002-
5	BULB; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 75/70W	1-82194-063-0	02	1	9307-
6	RIM; HEADLAMP INNER 24V 70W	1-82114-018-0	02	1	9002-9306
6	RIM; HEADLAMP OUTER 24V 75/70W	1-82114-019-0	02	1	9002-9306
6	RIM; HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> INNER 24V 70W	1-82114-018-0	02	1	9307-
6	RIM; HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> OUTER 24V 75/70W	1-82114-019-0	02	1	9307-
8	RIM; HEADLAMP HEAD LAMP GUARD<SJC>	1-71117-148-0	01	1	9002-
8	RIM; HEADLAMP HEAD LAMP GUARD<SJC>	1-71117-147-0	01	1	9002-
8	RIM; HEADLAMP EXC. HEAD LAMP GUARD<SJC>	1-71117-124-2	01	1	9002-9306
8	RIM; HEADLAMP EXC. HEAD LAMP GUARD<SJC>	1-71117-123-2	01	1	9002-9306
8	RIM; HEADLAMP EXC. HEAD LAMP GUARD<SJC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71117-124-2	01	1	9307-
8	RIM; HEADLAMP EXC. HEAD LAMP GUARD<SJC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71117-123-2	01	1	9307-
8	RIM; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71117-178-1	01	1	9307-
8	RIM; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71117-177-1	01	1	9307-
9	SCREW; HEADLAMP RIM M5X20	1-09164-019-0	08	1	9002-
11	GROMMET; SCREW,HEADLAMP RIM	1-09983-081-0	08	1	9002-
15	BULB; FOG LAMP 24V 40W	1-82194-024-0	02	1	9002-9306
15	BULB; FOG LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 55W	1-82194-079-0	02	1	9307-
15	BULB; FOG LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 40W	1-82194-024-0	02	1	9307-
19	NUT; HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-056-0	08	1	9002-
20	SCREW; HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-090-0	16	1	9002-9205
20	SCREW; HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-104-0	16	1	9206-
21	SPRING; ADJ HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-021-0	04	1	9002-
22	SCREW; ADJ,HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-030-0	08	1	9002-9205
22	SCREW; ADJ,HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-095-0	08	1	9206-
23	COVER; BULB,HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-069-0	02	1	9307-
23	COVER; BULB,HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5>	1-82119-013-0	04	1	9002-
25	SCREW; LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20	8-97030-365-0	08	1	9307-9401
25	SCREW; LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20	8-97030-365-0	07	1	9402-
25	SCREW; LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X28 W/LK&PL WASHER	1-09980-543-0	01	1	9402-
25	SCREW; LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M5X12 W/LK&PL WASHER	1-09981-464-0	16	1	9002-
29	STAY ASM; HD LAMP PANEL FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-407-1	01	1	9307-
29	STAY ASM; HD LAMP PANEL FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-406-1	01	1	9307-
29	STAY ASM; HD LAMP PANEL FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-005-0	02	1	9002-
30	BOLT; STAY HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-497-0	10	1	9307-9307
30	BOLT; STAY HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-586-0	10	1	9308-
30	BOLT; STAY EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9002-
30	BOLT; STAY EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-497-0	06	1	9002-9306
30	BOLT; STAY EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9307-
31	STAY ASM; HD LAMP PANEL RR HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-383-0	01	1	9307-
31	STAY ASM; HD LAMP PANEL RR HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-382-0	01	1	9307-
31	STAY ASM; HD LAMP PANEL RR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65670-731-2	01	1	9002-
31	STAY ASM; HD LAMP PANEL RR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65670-730-2	01	1	9002-
32	LAMP ASM; FOG 24V 40W	1-82110-290-0	01	1	9002-9306
32	LAMP ASM; FOG 24V 40W	1-82110-289-0	01	1	9002-9306
32	LAMP ASM; FOG EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 24V 40W	1-82110-298-0	01	1	9307-
32	LAMP ASM; FOG EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 24V 40W	1-82110-297-0	01	1	9307-
40	LENS; FOG LAMP	1-82235-007-0	02	1	9002-9306
40	LENS; FOG LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82235-007-0	02	1	9307-
41	GASKET; LENS,FOG LAMP	1-82236-006-0	02	1	9002-9306
41	GASKET; LENS,FOG LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82236-006-0	02	1	9307-
42	SCREW; LENS,FOG LAMP	1-82119-058-0	04	1	9002-9306
42	SCREW; LENS,FOG LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82119-058-0	04	1	9307-
43	BOLT; FOG LAMP M8X20 W/LK&PL WASHER	9-01960-820-0	04	1	9002-9204
43	BOLT; FOG LAMP M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9205-9306
43	BOLT; FOG LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	04	1	9307-
44	NUT; FOG LAMP M8 FLANGE	5-09440-005-0	04	1	9002-9306
44	NUT; FOG LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8 FLANGE	5-09440-005-0	04	1	9307-
60	LAMP ASM; FRT COMB DECAL ISUZU FRONT PANEL<TAM> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82210-190-0	01	1	9307-
60	LAMP ASM; FRT COMB DECAL ISUZU FRONT PANEL<TAM> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82210-189-0	01	1	9307-
60	LAMP ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DECAL ISUZU FRONT PANEL<TAM>	1-82210-201-0	01	1	9307-
60	LAMP ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DECAL ISUZU FRONT PANEL<TAM>	1-82210-200-0	01	1	9307-
60	LAMP ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82210-166-0	01	1	9002-
60	LAMP ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82210-165-0	01	1	9002-
60	LAMP ASM; FRT COMB EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DECAL ISUZU FRONT PANEL<TAM>	1-82210-163-0	01	1	9002-
60	LAMP ASM; FRT COMB EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DECAL ISUZU FRONT PANEL<TAM>	1-82210-164-0	01	1	9002-
67	GASKET; FRT COMB LAMP DECAL ISUZU FRONT PANEL<TAM>	1-82216-030-0	01	1	9307-
67	GASKET; FRT COMB LAMP DECAL ISUZU FRONT PANEL<TAM>	1-82216-029-0	01	1	9307-
67	GASKET; FRT COMB LAMP EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82216-010-0	01	1	9002-
67	GASKET; FRT COMB LAMP EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82216-009-0	01	1	9002-
68	BULB; FRT COMB LAMP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) 24V 21W	1-82194-036-0	04	1	9002-
68	BULB; FRT COMB LAMP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) 24V 5W	1-82194-039-0	02	1	9002-
68	BULB; FRT COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) 24V 25W	9-82691-347-0	04	1	9002-
68	BULB; FRT COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) 24V 3W	9-82691-603-0	02	1	9002-
68	BULB; FRT COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 24V 10/4W	9-82691-607-0	02	1	9002-
70	GROMMET; SCREW,FRT COMB LAMP	8-94279-039-0	08	1	9002-
75	SCREW; FRT COMB LAMP (A)	1-82219-001-0	08	1	9002-
75	SCREW; FRT COMB LAMP (B)	1-82219-002-0	04	1	9002-
76	LENS; FRT COMB LAMP	1-82215-038-0	01	1	9002-
76	LENS; FRT COMB LAMP	1-82215-037-0	01	1	9002-
78	LENS ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82215-034-0	01	1	9002-
78	LENS ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82215-035-0	01	1	9002-
78	LENS ASM; FRT COMB EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82215-028-0	01	1	9002-
78	LENS ASM; FRT COMB EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82215-029-0	01	1	9002-
79	LAMP; MARKER,ROOF NEW ZEALAND EQUIPMENT(PK5) (A)	1-82210-122-0	02	1	9106-
79	LAMP; MARKER,ROOF NEW ZEALAND EQUIPMENT(PK5) (B)	1-82210-123-0	02	1	9106-
80	BULB; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) 24V 12W	1-82194-004-0	04	1	9106-
82	SCREW; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (B)	1-82219-003-0	04	1	9106-
82	SCREW; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (A)	1-82259-004-0	04	1	9106-
83	LENS; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (B)	1-82215-031-0	02	1	9106-
83	LENS; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (A)	1-82215-036-0	02	1	9106-
84	GASKET; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (A)	1-82216-012-0	02	1	9106-
84	GASKET; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (C)	1-82256-002-0	02	1	9106-
84	GASKET; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (B)	9-82611-717-0	02	1	9106-
85	RIM; FRT COMB NEW ZEALAND EQUIPMENT(PK5)	1-82219-004-0	02	1	9106-
86	NUT; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5>	1-09984-072-0	06	1	9002-
87	WASHER; PL,MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> ID=8.4	1-09985-106-0	06	1	9002-
88	WASHER; LK,MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> ID=8 OD=15	1-09985-115-0	06	1	9002-

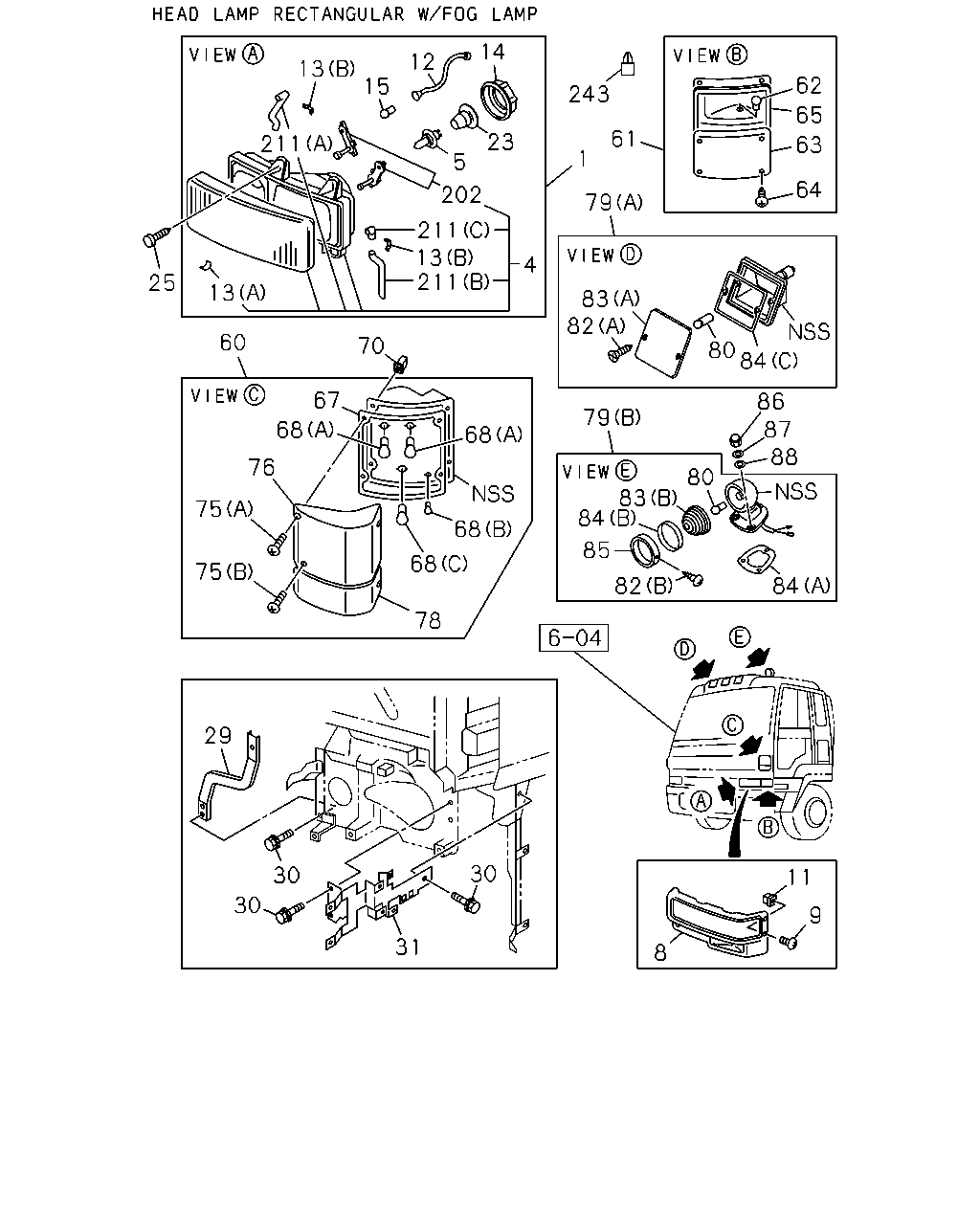

14 12 13 62 15 243 65 61 23 211 63 1 5 64 202 79 211 13 211 4 25 13 83 82 60 70 80 84 67 86 87 88 79 68 68 76 83 84 80 75 68 85 68 75 82 84 78 29 30 30 11 30 9 31 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> INNER TYPE 1 24V 70W	1-82110-257-1	01	1	9002-9306
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> OUTER TYPE 2 24V 75/70W	1-82110-260-1	01	1	9002-9306
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> INNER TYPE 1 24V 70W	1-82110-256-1	01	1	9002-9306
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> OUTER TYPE 2 24V 75/70W	1-82110-258-1	01	1	9002-9306
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> INNER TYPE 1 24V 70W	1-82110-257-2	01	1	9307-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> OUTER TYPE 2 24V 75/70W	1-82110-260-2	01	1	9307-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> INNER TYPE 1 24V 70W	1-82110-256-2	01	1	9307-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> OUTER TYPE 2 24V 75/70W	1-82110-258-2	01	1	9307-
1	LAMP ASM; HEAD EXC. HALOGEN HEADLAMPS<TT5> INNER TYPE 1 24V 55W	1-82110-251-2	01	1	9002-9306
1	LAMP ASM; HEAD EXC. HALOGEN HEADLAMPS<TT5> OUTER 24V 50/65W	1-82110-254-3	01	1	9002-9306
1	LAMP ASM; HEAD EXC. HALOGEN HEADLAMPS<TT5> INNER TYPE 1 24V 55W	1-82110-250-2	01	1	9002-9306
1	LAMP ASM; HEAD EXC. HALOGEN HEADLAMPS<TT5> OUTER 24V 50/65W	1-82110-252-3	01	1	9002-9306
1	LAMP ASM; HEAD HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> TYPE 1 24V5W	1-82110-301-3	01	1	9307-
1	LAMP ASM; HEAD HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> TYPE 1 24V5W	1-82110-300-3	01	1	9307-
1	LAMP ASM; HEAD EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5> INNER TYPE 1 24V 55W	1-82110-251-3	01	1	9307-
1	LAMP ASM; HEAD EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5> OUTER 24V 50/65W	1-82110-254-4	01	1	9307-
1	LAMP ASM; HEAD EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5> INNER TYPE 1 24V 55W	1-82110-250-3	01	1	9307-
1	LAMP ASM; HEAD EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5> OUTER 24V 50/65W	1-82110-252-4	01	1	9307-
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> OUTER 24V 70W	1-82191-031-0	02	1	9002-
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> INNER 24V 70W	1-82191-032-0	02	1	9002-
4	HEADLAMP UNIT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 75/70W	1-82119-108-0	01	1	9307-
4	HEADLAMP UNIT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 75/70W	1-82119-107-0	01	1	9307-
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> OUTER 24V 75/70W	1-82193-006-0	02	1	9002-
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> INNER 24V 70W	1-82193-007-0	02	1	9002-
5	BULB; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 75/70W	1-82194-063-0	02	1	9307-
8	RIM; HEADLAMP HEAD LAMP GUARD<SJC>	1-71117-148-0	01	1	9002-
8	RIM; HEADLAMP HEAD LAMP GUARD<SJC>	1-71117-147-0	01	1	9002-
8	RIM; HEADLAMP EXC. HEAD LAMP GUARD<SJC>	1-71117-124-2	01	1	9002-9306
8	RIM; HEADLAMP EXC. HEAD LAMP GUARD<SJC>	1-71117-123-2	01	1	9002-9306
8	RIM; HEADLAMP EXC. HEAD LAMP GUARD<SJC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71117-124-2	01	1	9307-
8	RIM; HEADLAMP EXC. HEAD LAMP GUARD<SJC>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71117-123-2	01	1	9307-
8	RIM; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71117-178-1	01	1	9307-
8	RIM; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71117-177-1	01	1	9307-
9	SCREW; HEADLAMP RIM M5X20	1-09164-019-0	08	1	9002-
11	GROMMET; SCREW,HEADLAMP RIM	1-09983-081-0	08	1	9002-
12	HARNESS; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82118-011-0	02	1	9307-
13	CLIP; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	1-82119-074-0	10	1	9307-
13	CLIP; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-82119-084-0	04	1	9307-
14	CAP; BULB,LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-070-0	02	1	9307-
15	BULB; FOG LAMP 24V 40W	1-82194-024-0	02	1	9002-9306
15	BULB; FOG LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 55W	1-82194-079-0	02	1	9307-
15	BULB; FOG LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 40W	1-82194-024-0	02	1	9307-
23	COVER; BULB,HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82119-069-0	02	1	9307-
23	COVER; BULB,HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,HALOGEN HEADLAMPS<TT5>	1-82119-013-0	04	1	9002-
25	SCREW; LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20	8-97030-365-0	08	1	9307-9401
25	SCREW; LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20	8-97030-365-0	07	1	9402-
25	SCREW; LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X28 W/LK&PL WASHER	1-09980-543-0	01	1	9402-
25	SCREW; LAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M5X12 W/LK&PL WASHER	1-09981-464-0	16	1	9002-
29	STAY ASM; HD LAMP PANEL FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-407-1	01	1	9307-
29	STAY ASM; HD LAMP PANEL FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-406-1	01	1	9307-
29	STAY ASM; HD LAMP PANEL FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-005-0	02	1	9002-
30	BOLT; STAY HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-497-0	10	1	9307-9307
30	BOLT; STAY HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-586-0	10	1	9308-
30	BOLT; STAY EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9002-
30	BOLT; STAY EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-497-0	06	1	9002-9306
30	BOLT; STAY EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9307-
31	STAY ASM; HD LAMP PANEL RR HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-383-0	01	1	9307-
31	STAY ASM; HD LAMP PANEL RR HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-382-0	01	1	9307-
31	STAY ASM; HD LAMP PANEL RR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65670-731-2	01	1	9002-
31	STAY ASM; HD LAMP PANEL RR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65670-730-2	01	1	9002-
60	LAMP ASM; FRT COMB DECAL ISUZU FRONT PANEL<TAM> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82210-190-0	01	1	9307-
60	LAMP ASM; FRT COMB DECAL ISUZU FRONT PANEL<TAM> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82210-189-0	01	1	9307-
60	LAMP ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DECAL ISUZU FRONT PANEL<TAM>	1-82210-201-0	01	1	9307-
60	LAMP ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DECAL ISUZU FRONT PANEL<TAM>	1-82210-200-0	01	1	9307-
60	LAMP ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82210-166-0	01	1	9002-
60	LAMP ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82210-165-0	01	1	9002-
60	LAMP ASM; FRT COMB EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DECAL ISUZU FRONT PANEL<TAM>	1-82210-163-0	01	1	9002-
60	LAMP ASM; FRT COMB EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DECAL ISUZU FRONT PANEL<TAM>	1-82210-164-0	01	1	9002-
61	LAMP ASM; CORNERING HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82210-179-1	01	1	9307-
61	LAMP ASM; CORNERING HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82210-178-1	01	1	9307-
62	BULB; CORNERING LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 24V 30W	8-97010-179-0	02	1	9307-
63	LENS; CORNERING LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82215-062-0	01	1	9307-
63	LENS; CORNERING LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82215-061-0	01	1	9307-
64	SCREW; CORNERING LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82219-025-0	08	1	9307-
65	GASKET; CORNERING LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-82216-031-0	02	1	9307-
67	GASKET; FRT COMB LAMP DECAL ISUZU FRONT PANEL<TAM>	1-82216-030-0	01	1	9307-
67	GASKET; FRT COMB LAMP DECAL ISUZU FRONT PANEL<TAM>	1-82216-029-0	01	1	9307-
67	GASKET; FRT COMB LAMP EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82216-010-0	01	1	9002-
67	GASKET; FRT COMB LAMP EXC. DECAL ISUZU FRONT PANEL<TAM>	1-82216-009-0	01	1	9002-
68	BULB; FRT COMB LAMP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) 24V 21W	1-82194-036-0	04	1	9002-
68	BULB; FRT COMB LAMP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) 24V 5W	1-82194-039-0	02	1	9002-
68	BULB; FRT COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) 24V 25W	9-82691-347-0	04	1	9002-
68	BULB; FRT COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) 24V 3W	9-82691-603-0	02	1	9002-
68	BULB; FRT COMB LAMP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 24V 10/4W	9-82691-607-0	02	1	9002-
70	GROMMET; SCREW,FRT COMB LAMP	8-94279-039-0	08	1	9002-
75	SCREW; FRT COMB LAMP (A)	1-82219-001-0	08	1	9002-
75	SCREW; FRT COMB LAMP (B)	1-82219-002-0	04	1	9002-
76	LENS; FRT COMB LAMP	1-82215-038-0	01	1	9002-
76	LENS; FRT COMB LAMP	1-82215-037-0	01	1	9002-
78	LENS ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82215-034-0	01	1	9002-
78	LENS ASM; FRT COMB NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82215-035-0	01	1	9002-
78	LENS ASM; FRT COMB EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82215-028-0	01	1	9002-
78	LENS ASM; FRT COMB EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-82215-029-0	01	1	9002-
79	LAMP; MARKER,ROOF NEW ZEALAND EQUIPMENT(PK5) (A)	1-82210-122-0	02	1	9106-
79	LAMP; MARKER,ROOF NEW ZEALAND EQUIPMENT(PK5) (B)	1-82210-123-0	02	1	9106-
80	BULB; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) 24V 12W	1-82194-004-0	04	1	9106-
82	SCREW; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (B)	1-82219-003-0	04	1	9106-
82	SCREW; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (A)	1-82259-004-0	04	1	9106-
83	LENS; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (B)	1-82215-031-0	02	1	9106-
83	LENS; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (A)	1-82215-036-0	02	1	9106-
84	GASKET; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (A)	1-82216-012-0	02	1	9106-
84	GASKET; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (C)	1-82256-002-0	02	1	9106-
84	GASKET; MARKER LAMP NEW ZEALAND EQUIPMENT(PK5) (B)	9-82611-717-0	02	1	9106-
85	RIM; FRT COMB NEW ZEALAND EQUIPMENT(PK5)	1-82219-004-0	02	1	9106-
86	NUT; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5>	1-09984-072-0	06	1	9002-
87	WASHER; PL,MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> ID=8.4	1-09985-106-0	06	1	9002-
88	WASHER; LK,MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> ID=8 OD=15	1-09985-115-0	06	1	9002-
202	GEAR UNIT; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=62.5	1-82119-076-0	01	1	9307-
202	GEAR UNIT; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=30	1-82119-078-0	01	1	9307-
202	GEAR UNIT; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=62.5	1-82119-075-0	01	1	9307-
202	GEAR UNIT; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=30	1-82119-077-0	01	1	9307-
211	TUBE; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-82119-081-0	02	1	9307-
211	TUBE; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	1-82119-080-1	01	1	9307-
211	TUBE; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-82119-083-0	01	1	9307-
211	TUBE; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	1-82119-079-1	01	1	9307-
211	TUBE; HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-82119-082-0	01	1	9307-
243	GROMMET; SCREW,CORNERING LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-09983-081-0	08	1	9307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
