2-53 — TRANSMISSION OIL COOLER SYSTEM (#25508) — 63 parça

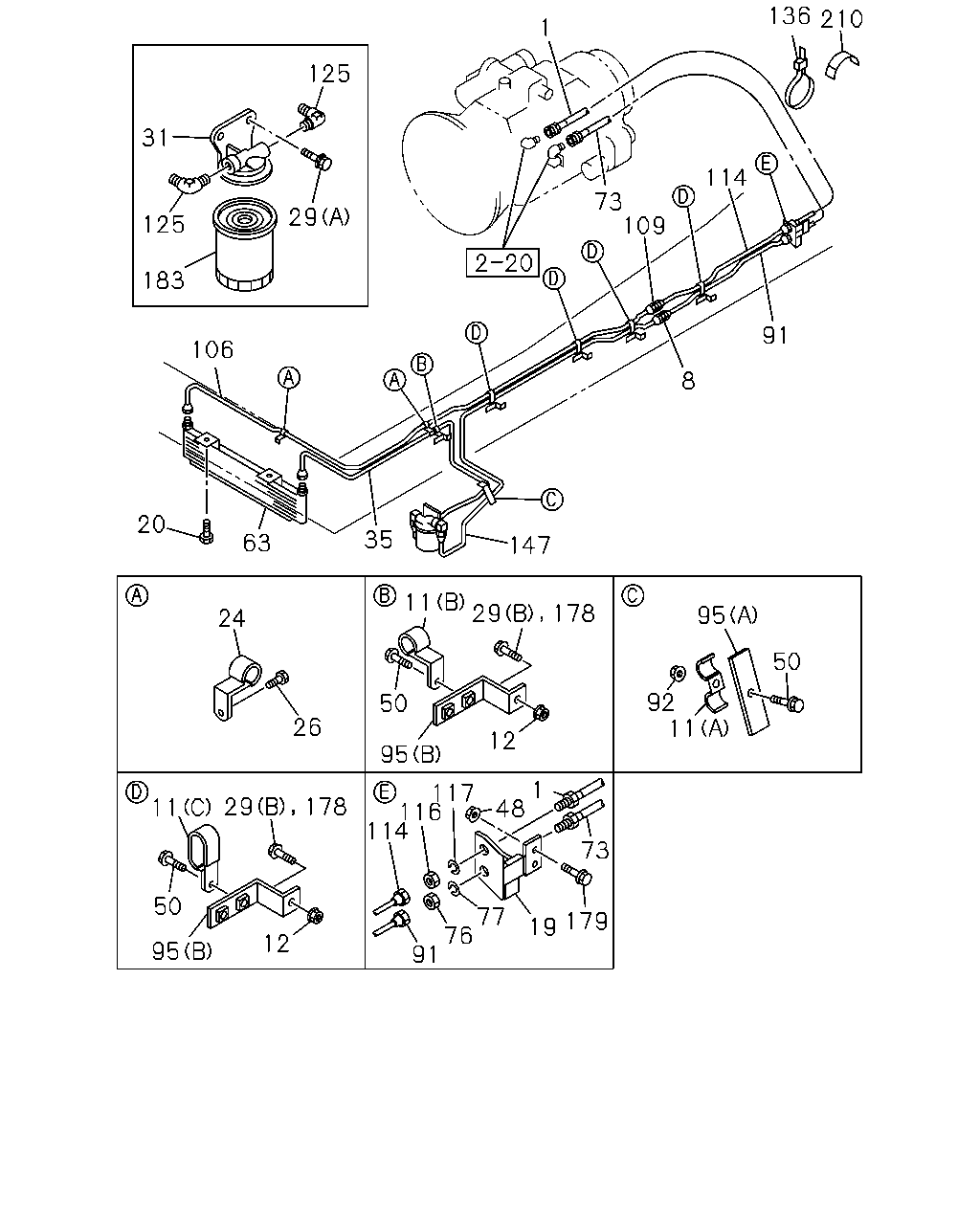

çizim 25388
136 210 1 125 31 114 73 109 29 125 183 91 106 8 20 35 63 147 11 29 178 95 24 50 92 11 50 26 12 95 1 48 117 116 114 29 178 11 73 50 77 76 91 179 19 12 95
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; ATF
L=430 		1-09364-872-0 01 1 0308- ● ●
8 UNION
M16 L=42 		9-09233-010-1 01 1 0308-0607 ● ●
8 UNION
M16 L=42 		0-92123-010-0 01 1 0608- ● ●
11 CLIP; PIPE
(A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0308- ● ●
11 CLIP; PIPE
(B) ID=11 H=20 L=20 		5-09700-351-0 01 1 0308- ● ●
11 CLIP; PIPE
(C) ID=11X2 L=20 		9-09535-036-0 05 1 0308-0401 ● ●
11 CLIP; PIPE
(C) ID=11X2 L=20 		9-09535-036-0 04 1 0402- ● ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0308-0602 ● ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
19 BRACKET; FLEX HOSE 1-47479-559-0 01 1 0308- ● ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28081-020-0 02 1 0308-0512 ● ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28051-020-0 02 1 0601- ● ●
24 CLIP; OIL PIPE
ID=11 H=20 L=20 		5-09700-351-0 02 1 0308- ● ●
26 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0308-0512 ● ●
26 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
29 BOLT; FILTER TO BRKT
(B) M8X30 FLANGE 		0-28680-830-0 04 1 0308-0512 ● ●
29 BOLT; FILTER TO BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0601- ● ●
29 BOLT; FILTER TO BRKT
(A) M10X30 FLANGE 		0-28681-030-0 02 1 0308-0512 ● ●
29 BOLT; FILTER TO BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
31 BRACKET; OIL FILTER 1-33119-222-0 01 1 0308- ● ●
35 PIPE; OIL,OIL COOLER TO FILTER
L=1321 SERVICED BY L=1400 		1-47428-878-0 01 1 0308-0409 ● ●
35 PIPE; OIL,OIL COOLER TO FILTER
L=1327 		1-49167-390-0 01 1 0410- ● ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0308-0602 ● ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
50 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0402-0512 ● ●
50 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 04 1 0308-0512 ● ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28050-820-0 04 1 0601- ● ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0308-0512 ● ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 05 1 0308-0401 ● ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 03 1 0402-0512 ● ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ●
63 COOLER; OIL 1-21700-290-0 01 1 0308- ● ●
73 HOSE; FLEX,TRANS
L=430 		1-09364-872-0 01 1 0308- ● ●
76 NUT; FLEX HOSE
M16 		9-99111-416-0 01 1 0308-0512 ● ●
76 NUT; FLEX HOSE
M16 		0-91111-516-0 01 1 0601- ● ●
77 WASHER; LK
ID=16.2 		9-09150-516-0 01 1 0308-0603 ● ●
77 WASHER; LK
ID=16.2 		0-91510-516-0 01 1 0604- ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=876 		1-49166-710-0 01 1 0308- ● ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ● ●
92 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
95 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 0308- ● ●
95 BRACKET; CLIP
(B) 		1-47479-482-0 05 1 0308- ● ●
106 PIPE ASM; OIL,COOLER TO UNION
L=2341 SERVICED BY L=2500 		1-47428-883-0 01 1 0308- ● ●
109 UNION
M16 L=42 		9-09233-010-1 01 1 0308-0607 ● ●
109 UNION
M16 L=42 		0-92123-010-0 01 1 0608- ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=831 SERVICED BY L=900 		1-47428-788-0 01 1 0308- ● ●
116 NUT; BRKT,FLEX HOSE
M16 		9-99111-416-0 01 1 0308-0512 ● ●
116 NUT; BRKT,FLEX HOSE
M16 		0-91111-516-0 01 1 0601- ● ●
117 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 01 1 0308-0603 ● ●
117 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 01 1 0604- ● ●
125 CONNECTOR; OIL FILTER
M16 & PT1/4 ELBOW 		1-09650-434-0 02 1 0308-0607 ● ●
125 CONNECTOR; OIL FILTER
M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0608- ● ●
136 CLIP; FLEX HOSE
L=350 		1-09707-183-0 01 1 0308- ● ●
147 PIPE; OIL,UNION TO FILTER
L=1736 SERVICED BY L=1900 		1-47428-881-0 01 1 0308-0409 ● ●
147 PIPE; OIL,UNION TO FILTER
L=1739 SERVICED BY L=1900 		1-47428-881-0 01 1 0410- ● ●
178 BOLT; BRKT,CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0308-0512 ● ●
178 BOLT; BRKT,CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0308-0512 ● ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
183 CARTRIDGE; OIL FILTER 8-94459-700-1 01 1 0308- ● ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0308- ● ●
