Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#25505) — 59 parça

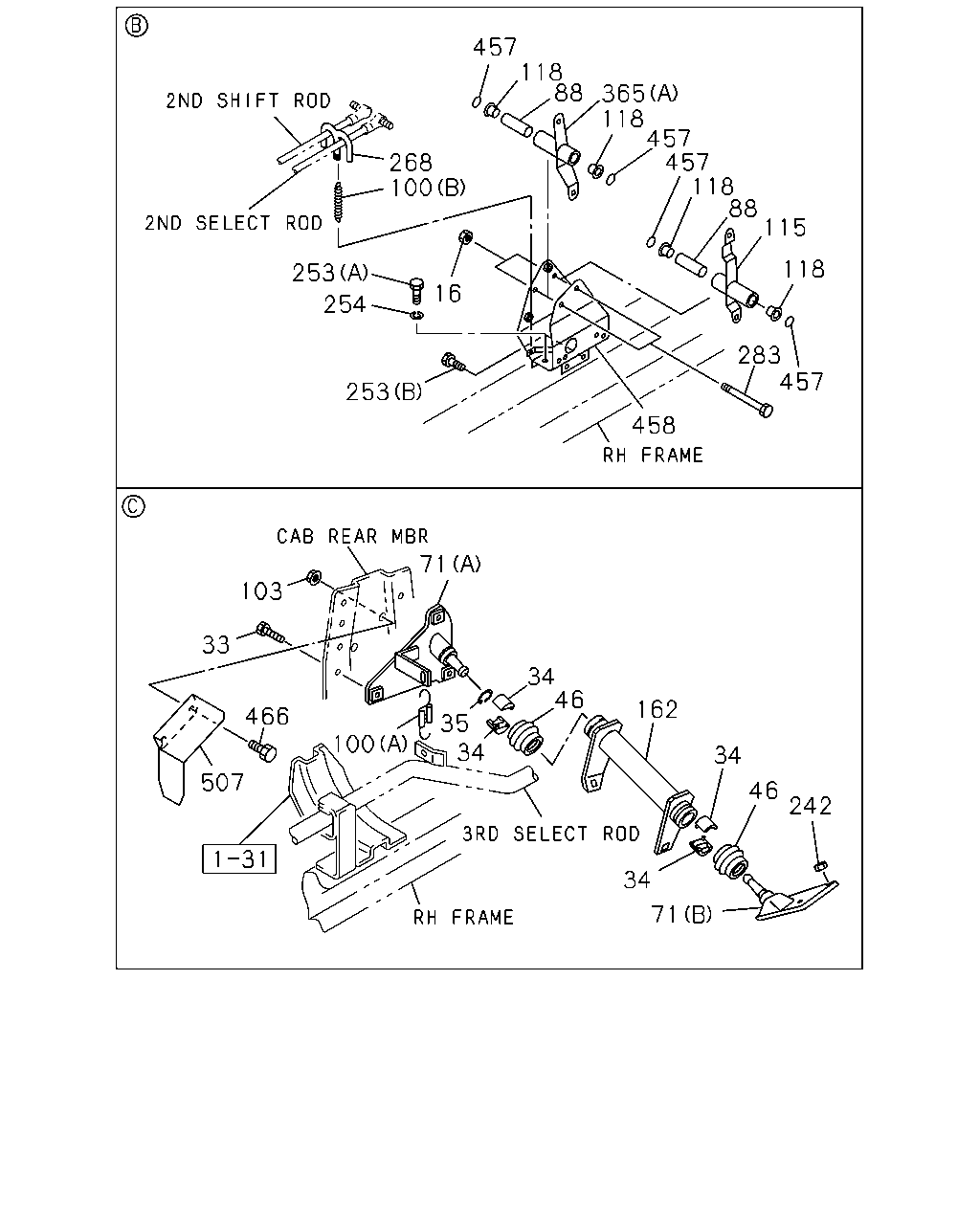

457 118 88 365 118 457 457 118 88 115 268 100 118 253 16 254 283 457 253 458 71 103 33 34 46 162 466 35 34 100 34 507 46 242 34 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	0308-0602	●	●
16	NUT; RELAY LEVER M10 FLANGE	0-91180-110-0	02	1	0603-	●	●
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28681-030-0	03	1	0308-0512	●	●
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28651-030-0	03	1	0601-	●	●
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	0308-	●	●
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	0308-	●	●
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	0308-0503	●	●
46	SEAL; DUST,RELAY LEVER	1-33659-248-0	02	1	0504-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	0308-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-706-0	01	1	0308-	●	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	0308-	●	●
100	SPRING (A)	1-09583-319-0	01	1	0308-	●	●
100	SPRING (B)	1-09583-351-0	01	1	0308-	●	●
103	NUT M8 FLANGE	0-91150-108-0	01	1	0308-0602	●	●
103	NUT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-769-1	01	1	0308-	●	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	0308-	●	●
162	LEVER; RELAY	1-33651-625-1	01	1	0308-	●	●
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	0308-0602	●	●
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91180-212-0	03	1	0603-	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	0308-	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X25 FLANGE	0-28081-025-0	02	1	0308-0512	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X25 FLANGE	0-28051-025-0	02	1	0601-	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	0308-0603	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	0-91510-614-0	02	1	0604-	●	●
268	BRACKET; LINK ROD	1-33657-216-0	01	1	0308-	●	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	0308-	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-790-1	01	1	0308-	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-805-1	01	1	0308-	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	0308-	●	●
457	GASKET	1-09623-594-0	04	1	0308-	●	●
458	BRACKET; 2ND RELAY LEVER CAB UP +110MM<TGG>	1-33657-664-1	01	1	0308-	●	●
458	BRACKET; 2ND RELAY LEVER CAB UP +50MM<W60>	1-33657-583-1	01	1	0308-	●	●
466	BOLT; FIX M8X20 FLANGE	0-28680-820-0	02	1	0308-0512	●	●
466	BOLT; FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
507	PROTECTOR; HEAT	1-14181-287-1	01	1	0308-	●	●

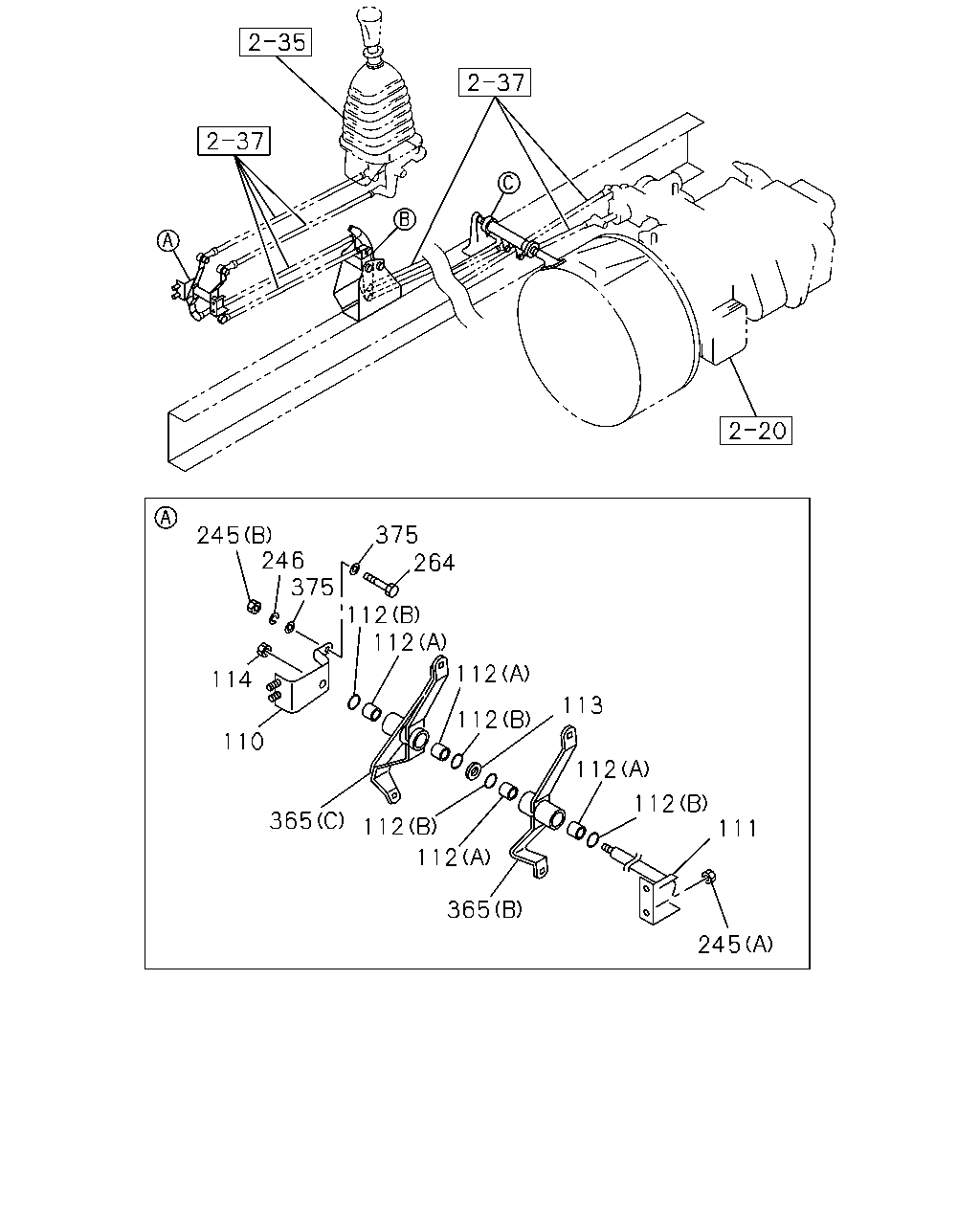

375 264 245 246 375 112 112 112 114 113 112 110 112 112 365 112 111 112 365 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
110	BRACKET; RELAY LEVER,1ST	1-33657-598-0	01	1	0308-	●	●
111	SHAFT; RELAY LEVER,1ST	1-33619-468-1	01	1	0308-	●	●
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	0308-	●	●
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	0308-	●	●
113	WASHER; RELAY LEVER ID=17	9-09160-516-0	01	1	0308-0605	●	●
113	WASHER; RELAY LEVER ID=17 OD=30	0-91610-516-0	01	1	0606-	●	●
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	0308-0602	●	●
114	NUT; RELAY LEVER M10 FLANGE	0-91180-110-0	01	1	0603-	●	●
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91150-210-0	02	1	0308-0602	●	●
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	0308-	●	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	0308-	●	●
264	BOLT; BRKT,RELAY LEVER M10X105	1-79198-008-1	01	1	0308-	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-790-1	01	1	0308-	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-805-1	01	1	0308-	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	0308-	●	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0308-	●	●

496 465 192 509 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
192	COVER	1-79907-090-0	01	1	0308-	●	●
465	BRACKET; CONNECTOR	1-47478-772-1	01	1	0308-	●	●
468	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0308-	●	●
496	FASTENER D8X13.5	1-09987-248-1	02	1	0308-	●	●
509	SEAL; BRKT	1-47477-825-2	01	1	0308-0401	●	●
509	SEAL; BRKT	1-47479-978-0	01	1	0402-	●	●
