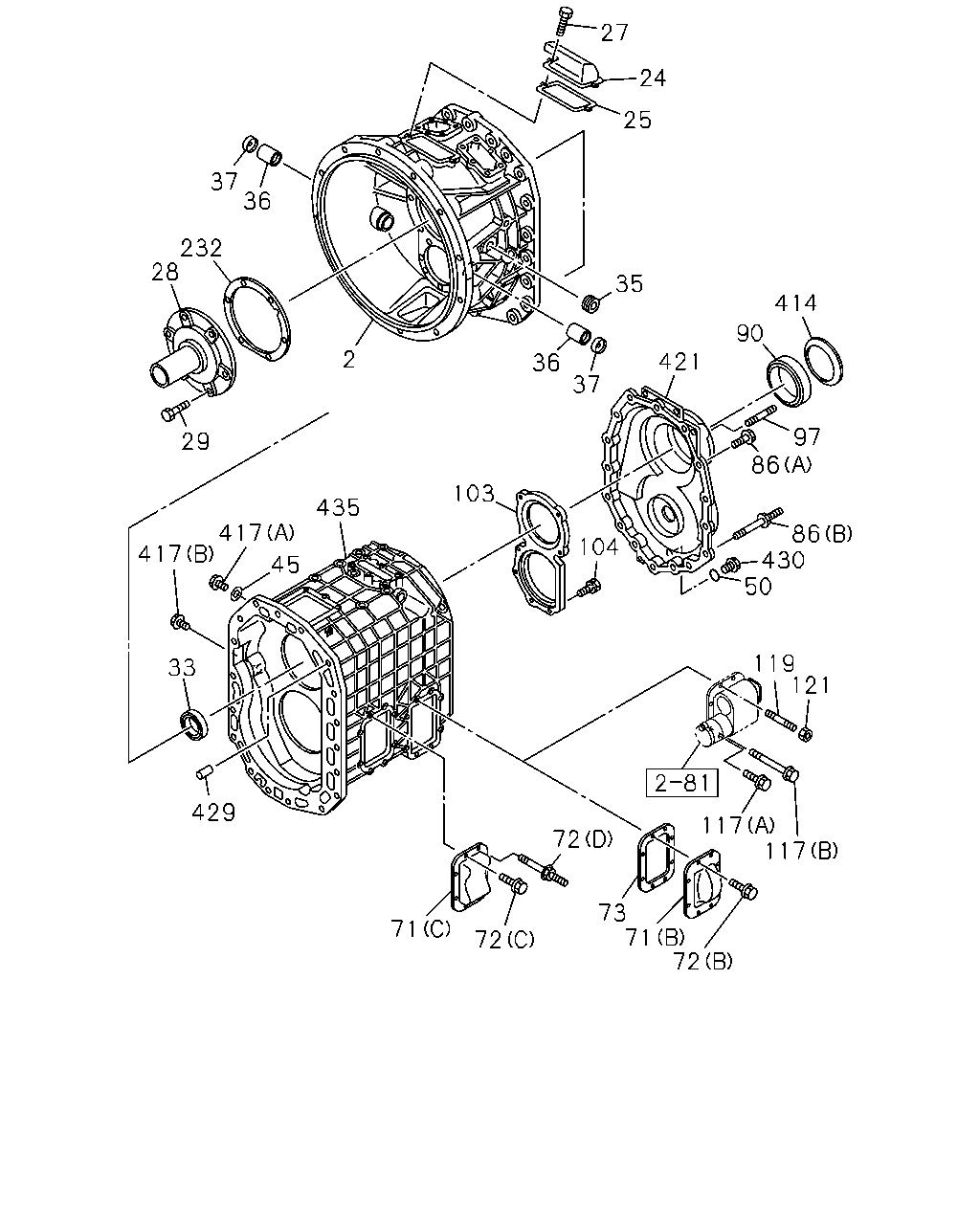

2-20 — MANUAL TRANSMISSION ASM AND CASE (#25500) — 75 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

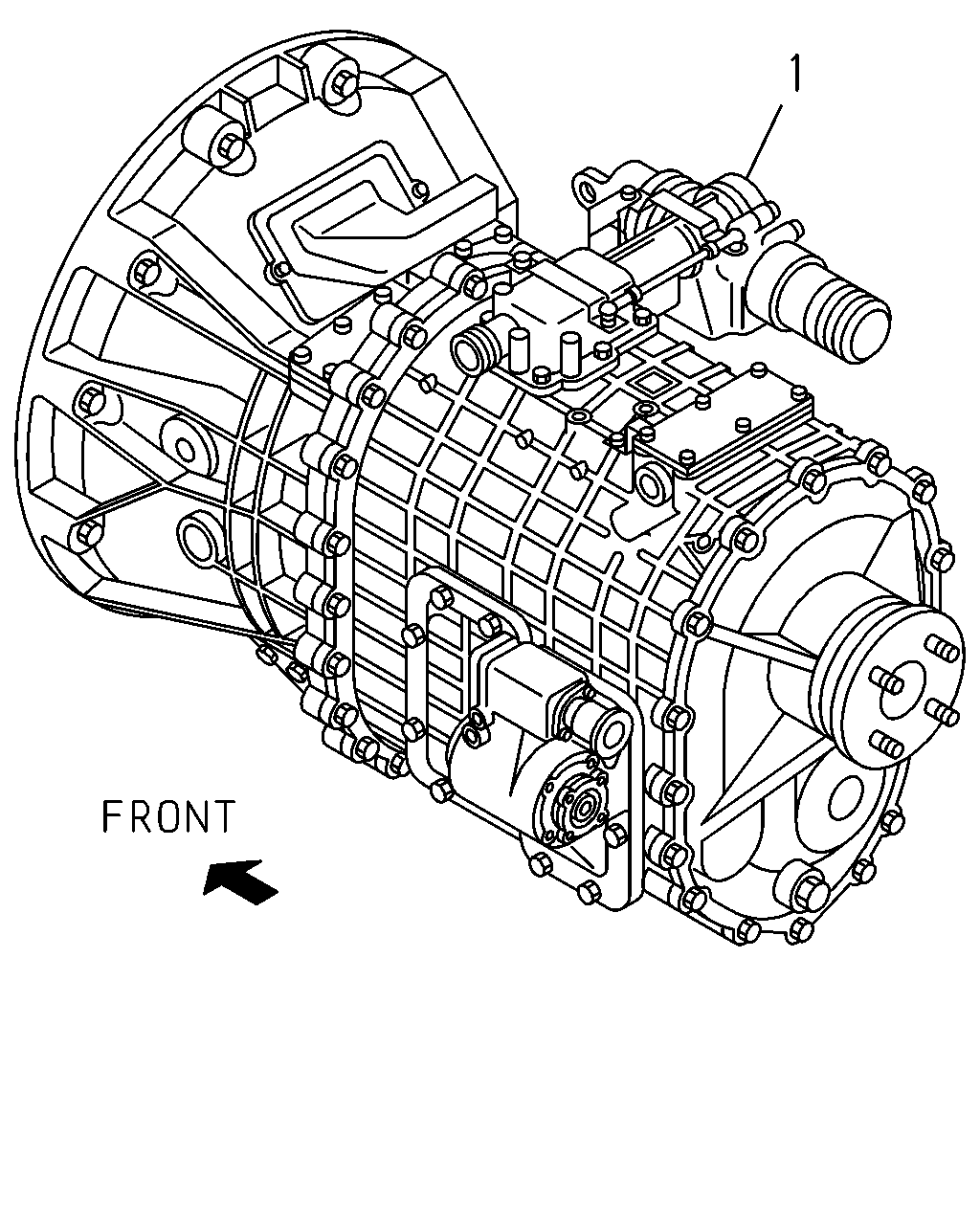

1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33042-343-0	01	1	0308-0505
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-967-0	01	1	0506-
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33042-343-0	01	1	0308-0505
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-967-0	01	1	0506-

27 24 25 37 36 232 28 35 414 90 2 421 36 37 97 86 29 103 435 104 417 417 86 430 50 45 119 121 33 429 117 117 72 73 71 72 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	1-31111-200-0	01	1	0308-
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0308-
25	GASKET; COVER	1-31139-008-0	01	1	0308-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0308-0512
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0601-
28	COVER; FRT,TRANS CASE	1-33121-158-2	01	1	0308-
29	BOLT; FRT COVER M10X40 FLANGE	0-28181-040-0	06	1	0308-0512
29	BOLT; FRT COVER M10X40 FLANGE	0-28151-040-0	06	1	0601-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0308-
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	0308-
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0308-
37	SEAL; DUST,CLU HSG	1-09625-003-0	02	1	0308-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0308-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0308-
71	COVER; SIDE,TRANS CASE (A)	1-33141-057-1	01	1	0308-
71	COVER; SIDE,TRANS CASE (C)	1-33141-058-0	01	1	0308-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	0308-
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	0503-
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28181-030-0	04	1	0308-0512
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	0601-
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28181-240-0	08	1	0308-0502
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28181-240-0	07	1	0503-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30	0-28781-230-0	08	1	0308-0512
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	0601-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	0308-
86	BOLT; RR COVER (A) M12X40 FLANGE	0-28181-240-0	14	1	0308-
86	BOLT; RR COVER (B) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	0308-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0308-
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0308-
103	RETAINER; BRG	1-33151-059-0	01	1	0308-
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0308-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12X35 FLANGE	0-28181-235-0	02	1	0308-0512
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12X35 FLANGE	0-28151-235-0	02	1	0601-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X130 FLANGE	0-28196-213-0	02	1	0308-0512
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X130 FLANGE	0-28166-213-0	02	1	0601-
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	9-94411-225-0	04	1	0308-0604
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	0605-
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91150-212-0	04	1	0308-0602
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	0603-
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	0308-
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	0308-
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0308-
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0308-
421	COVER; RR,TRANS	1-33131-243-1	01	1	0308-
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	06	1	0308-
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0308-
435	CASE; TRANS	1-33111-308-1	01	1	0308-0410
435	CASE; TRANS	1-33111-358-0	01	1	0411-0505
435	CASE; TRANS	1-33111-359-0	01	1	0506-

260 410 329 264 410 38 71 27 496 72 332 264

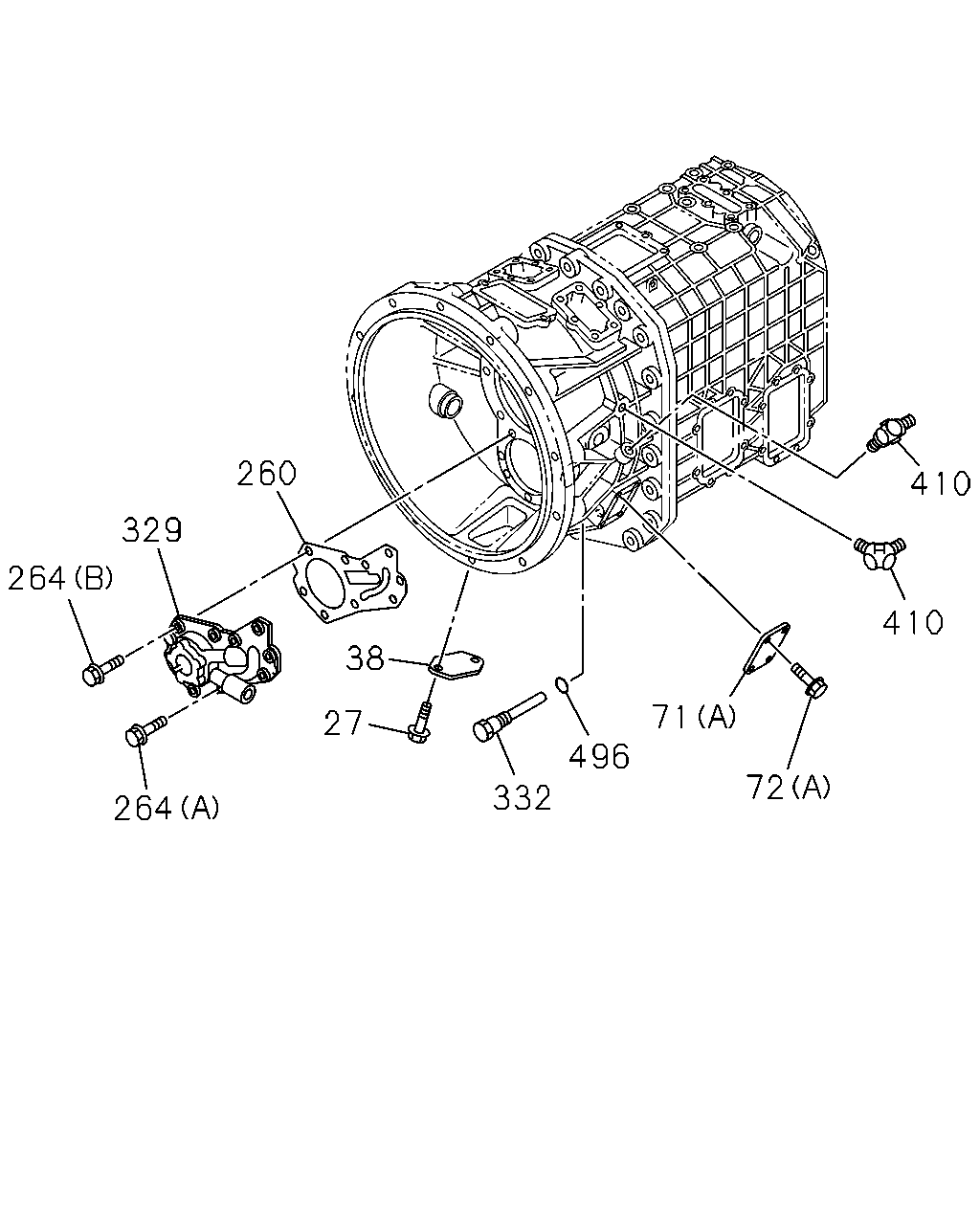

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0308-0512
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0601-
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0308-
71	COVER; SIDE,TRANS CASE (A)	1-33141-057-1	01	1	0308-
71	COVER; SIDE,TRANS CASE (C)	1-33141-058-0	01	1	0308-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	0308-
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	0503-
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28181-030-0	04	1	0308-0512
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	0601-
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28181-240-0	08	1	0308-0502
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28181-240-0	07	1	0503-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30	0-28781-230-0	08	1	0308-0512
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	0601-
260	GASKET; OIL PUMP	1-34142-031-0	01	1	0308-
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28181-040-0	09	1	0308-0512
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28151-040-0	09	1	0601-
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	0308-0512
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28151-070-0	01	1	0601-
329	PUMP ASM; OIL	1-34150-112-0	01	1	0308-
332	FILTER; OIL	1-34159-050-1	01	1	0308-
410	UNION; OIL PIPE R1/4 & M16 ELBOW	1-09660-800-1	02	1	0308-
496	GASKET; OIL FILTER ID=24.2	1-09630-090-0	01	1	0308-
