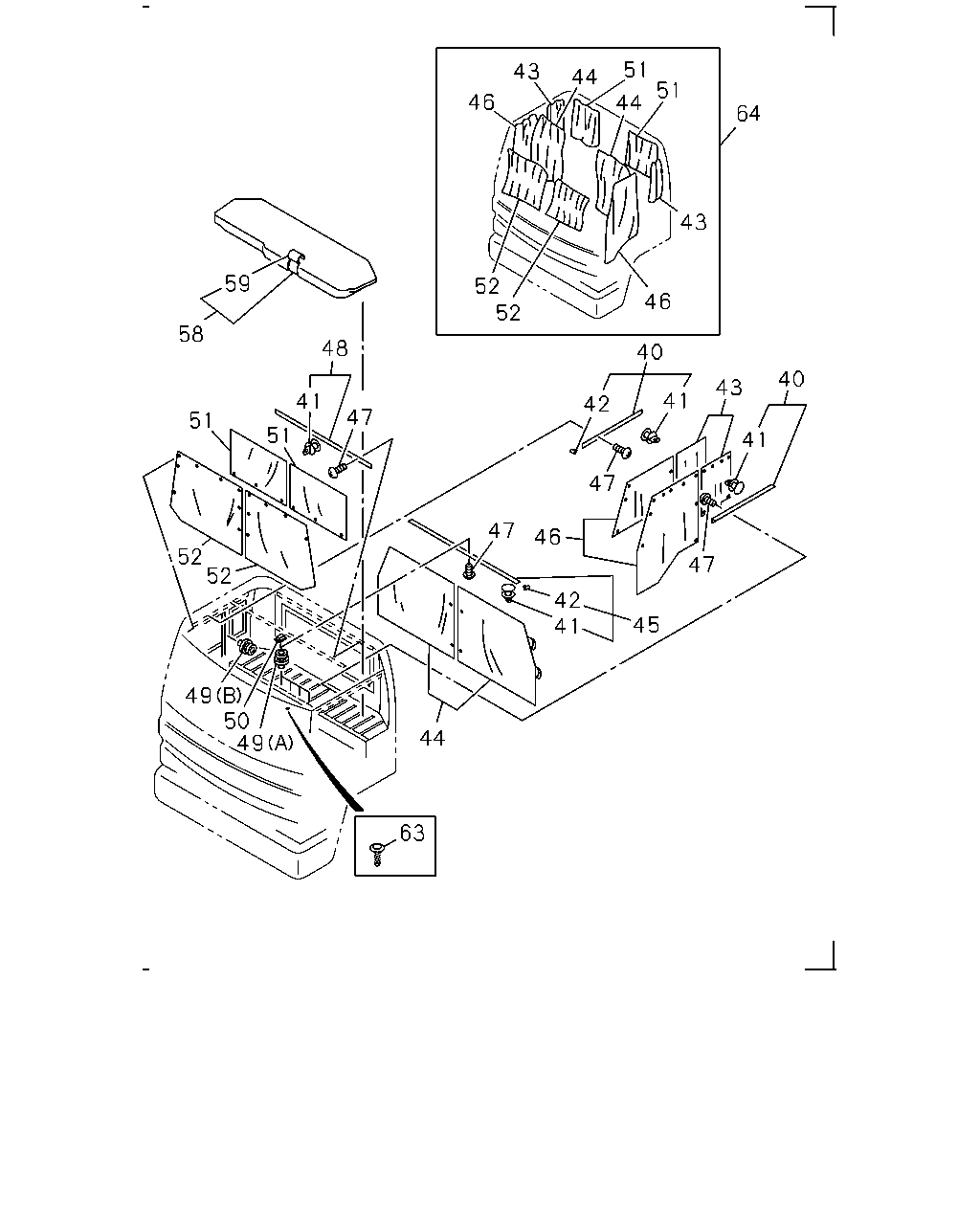

7-70 — SEPARATER AND BED (#2550) — 77 parça

51 43 44 51 46 44 64 43 59 52 52 46 58 48 40 40 43 41 41 42 47 51 51 41 47 47 46 52 52 47 42 41 45 49 50 49 44 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-154-0	01	1	9002-9306
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-334-0	01	1	9307-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-153-0	01	1	9002-9306
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-333-0	01	1	9307-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73997-940-0	02	1	9002-9306
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-182-0	02	1	9307-
41	HOOK; CURTAIN RAIL GRAY MATT FINISH	1-73997-980-0	28	1	9002-9306
41	HOOK; CURTAIN RAIL GRAY	1-73907-245-0	26	1	9307-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> GRAY MATT FINISH	1-73997-980-0	14	1	9002-9306
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> GRAY	1-73907-245-0	14	1	9307-
41	HOOK; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> GRAY MATT FINISH	1-73997-980-0	06	1	9002-9306
41	HOOK; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> GRAY	1-73907-245-0	06	1	9307-
42	STOPPER; CURTAIN RAIL CENTER	1-73997-982-0	01	1	9002-9306
42	STOPPER; CURTAIN RAIL CENTER	1-73907-250-0	01	1	9307-
42	STOPPER; CURTAIN RAIL CENTER	1-73997-981-0	01	1	9002-9306
42	STOPPER; CURTAIN RAIL CENTER	1-73907-249-0	01	1	9307-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> SIDE	1-73907-163-0	01	1	9002-9306
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> SIDE	1-73907-340-0	01	1	9307-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> SIDE	1-73907-162-0	01	1	9002-9306
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> SIDE	1-73907-339-0	01	1	9307-
43	CURTAIN ASM; QUARTER WINDOW MATTRESS SLEEPER CAB<E40> EXC. WINDOW CURTAIN ROUND<BW4>	1-73997-991-0	01	1	9002-9211
43	CURTAIN ASM; QUARTER WINDOW MATTRESS SLEEPER CAB<E40>	1-73997-991-0	01	1	9212-9306
43	CURTAIN ASM; QUARTER WINDOW MATTRESS SLEEPER CAB<E40>	1-73907-254-0	01	1	9307-
43	CURTAIN ASM; QUARTER WINDOW MATTRESS SLEEPER CAB<E40> EXC. WINDOW CURTAIN ROUND<BW4>	1-73997-990-0	01	1	9002-9211
43	CURTAIN ASM; QUARTER WINDOW MATTRESS SLEEPER CAB<E40>	1-73997-990-0	01	1	9212-9306
43	CURTAIN ASM; QUARTER WINDOW MATTRESS SLEEPER CAB<E40>	1-73907-253-0	01	1	9307-
44	CURTAIN ASM; CABIN CENTER MATTRESS SLEEPER CAB<E40> EXC. WINDOW CURTAIN ROUND<BW4>	1-73997-989-0	01	1	9002-9211
44	CURTAIN ASM; CABIN CENTER MATTRESS SLEEPER CAB<E40>	1-73997-989-1	01	1	9212-9306
44	CURTAIN ASM; CABIN CENTER MATTRESS SLEEPER CAB<E40>	1-73907-242-2	01	1	9307-
44	CURTAIN ASM; CABIN CENTER MATTRESS SLEEPER CAB<E40> EXC. WINDOW CURTAIN ROUND<BW4>	1-73997-988-0	01	1	9002-9211
44	CURTAIN ASM; CABIN CENTER MATTRESS SLEEPER CAB<E40>	1-73997-988-1	01	1	9212-9306
44	CURTAIN ASM; CABIN CENTER MATTRESS SLEEPER CAB<E40>	1-73907-240-2	01	1	9307-
45	RAIL; CURTAIN,FRT	1-73997-939-0	01	1	9002-9306
45	RAIL; CURTAIN,FRT	1-73907-180-1	01	1	9307-
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-167-0	01	1	9212-9306
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-346-0	01	1	9307-
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-166-0	01	1	9212-9306
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-345-0	01	1	9307-
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> M4X16 TAPPING	1-09981-475-0	24	1	9002-9207
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> M4X16 TAPPING	1-09981-477-0	24	1	9208-9306
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> M4X16 TAPPING	1-09981-477-0	22	1	9307-
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> M4X16 TAPPING	1-09981-475-0	16	1	9002-9207
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> M4X16 TAPPING	1-09981-477-0	16	1	9208-
48	RAIL; CURTAIN,BACK	1-73997-941-0	01	1	9002-9306
48	RAIL; CURTAIN,BACK	1-73907-181-0	01	1	9307-
49	HOOK; CURTAIN MATTRESS SLEEPER CAB<E40> EXC. WINDOW CURTAIN ROUND<BW4>,INTERIOR FULL TRIM<WM3> (B)	1-09981-286-0	02	1	9002-
49	HOOK; CURTAIN INTERIOR FULL TRIM<WM3> EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-09981-286-0	02	1	9002-
49	HOOK; CURTAIN WINDOW CURTAIN ROUND<BW4> (B)	1-09981-286-0	06	1	9002-
49	HOOK; CURTAIN WINDOW CURTAIN ROUND<BW4> (A) NYLON 6	8-94291-778-0	07	1	9203-
50	GROMMET; SCREW,CURTAIN RAIL M4	5-09470-002-0	01	1	9002-
51	CURTAIN; BACK MATTRESS SLEEPER CAB<E40> EXC. WINDOW CURTAIN ROUND<BW4>	1-73997-993-0	01	1	9002-9211
51	CURTAIN; BACK MATTRESS SLEEPER CAB<E40>	1-73997-993-0	01	1	9212-9306
51	CURTAIN; BACK MATTRESS SLEEPER CAB<E40>	1-73907-256-0	01	1	9307-
51	CURTAIN; BACK MATTRESS SLEEPER CAB<E40> EXC. WINDOW CURTAIN ROUND<BW4>	1-73997-992-0	01	1	9002-9211
51	CURTAIN; BACK MATTRESS SLEEPER CAB<E40>	1-73997-992-0	01	1	9212-9306
51	CURTAIN; BACK MATTRESS SLEEPER CAB<E40>	1-73907-255-0	01	1	9307-
52	CURTAIN ASM; FRT WINDOW WINDOW CURTAIN ROUND<BW4>	1-73907-165-0	01	1	9212-9306
52	CURTAIN ASM; FRT WINDOW WINDOW CURTAIN ROUND<BW4>	1-73907-344-0	01	1	9307-
52	CURTAIN ASM; FRT WINDOW WINDOW CURTAIN ROUND<BW4>	1-73907-164-0	01	1	9212-9306
52	CURTAIN ASM; FRT WINDOW WINDOW CURTAIN ROUND<BW4>	1-73907-343-0	01	1	9307-
58	BED; MAT DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED<WX9>	1-75117-561-3	01	1	9002-9306
58	BED; MAT DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED<WX9>	1-75117-750-0	01	1	9307-
58	BED; MAT MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14)	1-75117-615-1	01	1	9002-9306
58	BED; MAT PASSENGER SEAT MULTI USED<WX9>	1-75117-615-1	01	1	9002-9306
58	BED; MAT MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14)	1-75117-724-1	01	1	9307-
58	BED; MAT PASSENGER SEAT MULTI USED<WX9>	1-75117-724-1	01	1	9307-
59	COVER ASM; TRIM,BED MAT DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED<WX9>	1-75117-565-0	01	1	9002-9306
59	COVER ASM; TRIM,BED MAT DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED<WX9>	1-75117-769-0	01	1	9307-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14)	1-75117-664-0	01	1	9002-9306
59	COVER ASM; TRIM,BED MAT PASSENGER SEAT MULTI USED<WX9>	1-75117-664-0	01	1	9002-9306
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14)	1-75117-739-1	01	1	9307-
59	COVER ASM; TRIM,BED MAT PASSENGER SEAT MULTI USED<WX9>	1-75117-739-1	01	1	9307-
63	PLUG; SUPPORT D4.7X11	1-76378-154-0	01	1	9002-
64	CURTAIN KIT MATTRESS SLEEPER CAB<E40> EXC. WINDOW CURTAIN ROUND<BW4>	1-73997-987-1	01	1	9002-9306
64	CURTAIN KIT MATTRESS SLEEPER CAB<E40> EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-238-2	01	1	9307-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73907-150-1	01	1	9002-9306
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73907-332-1	01	1	9307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
