2-05 — CLUTCH PIPING (#25496) — 111 parça
çizim 24893
24 153 167 56 104 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,CLU CONT
CAB UP +110MM<TGG> L=520 		1-09364-948-1 01 1 0308-0312 ● ●
1 HOSE; FLEX,CLU CONT
L=520 		1-09364-948-1 01 1 0401- ● ●
1 HOSE; FLEX,CLU CONT
EXC. CAB UP +110MM<TGG> L=430 		1-09364-859-1 01 1 0308- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 0308- ● ●
56 BRACKET; FLEX HOSE 1-47478-300-1 01 1 0308- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1535 SERVICED BY L=1550 		1-47428-766-0 01 1 0308- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=464 		1-47424-530-2 01 1 0308- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2060 SERVICED BY L=2150 		1-47428-770-0 01 1 0308-0402 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2044 SERVICED BY L=2150 		1-47428-770-0 01 1 0403- ● ●
167 BRACKET; UNION 1-71117-183-3 01 1 0308- ● ●

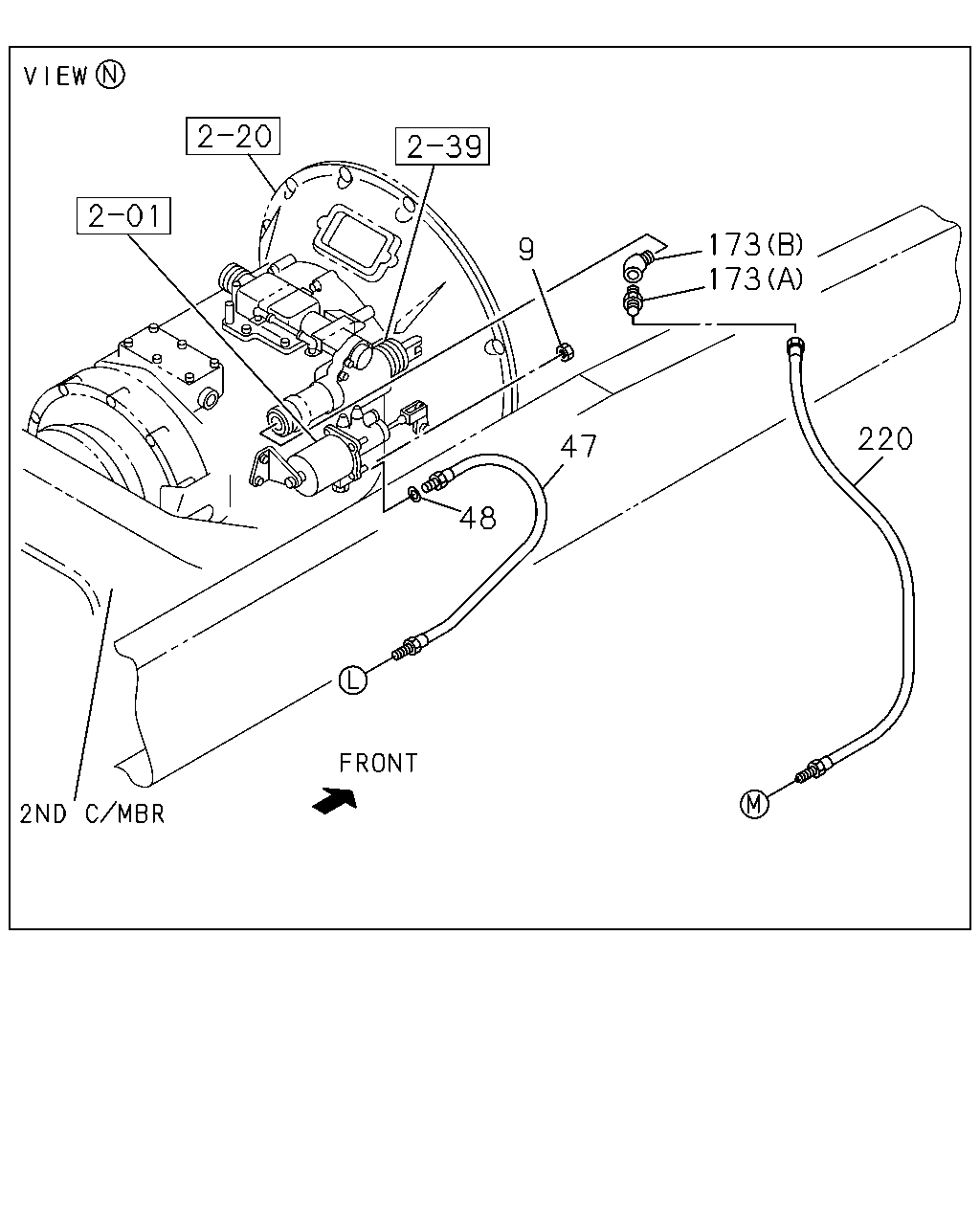

çizim 25325
173 173 9 220 47 48
BalonParca AdiParca NoAdetTipApplied Date A B
9 NUT; BRKT,FLEX HOSE
M10 FLANGE 		0-91150-210-0 02 1 0308-0602 ● ●
9 NUT; BRKT,FLEX HOSE
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
47 HOSE; FLEX,CLU CONT
L=600 		1-09364-705-0 01 1 0308- ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 0308- ● ●
173 CONNECTOR
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0308- ● ●
173 CONNECTOR
(B) R1/4 & RC1/4 		1-09664-211-0 01 1 0308- ● ●
220 HOSE; FLEX,POWER ASSIST
L=350 		1-09363-624-0 01 1 0308- ● ●

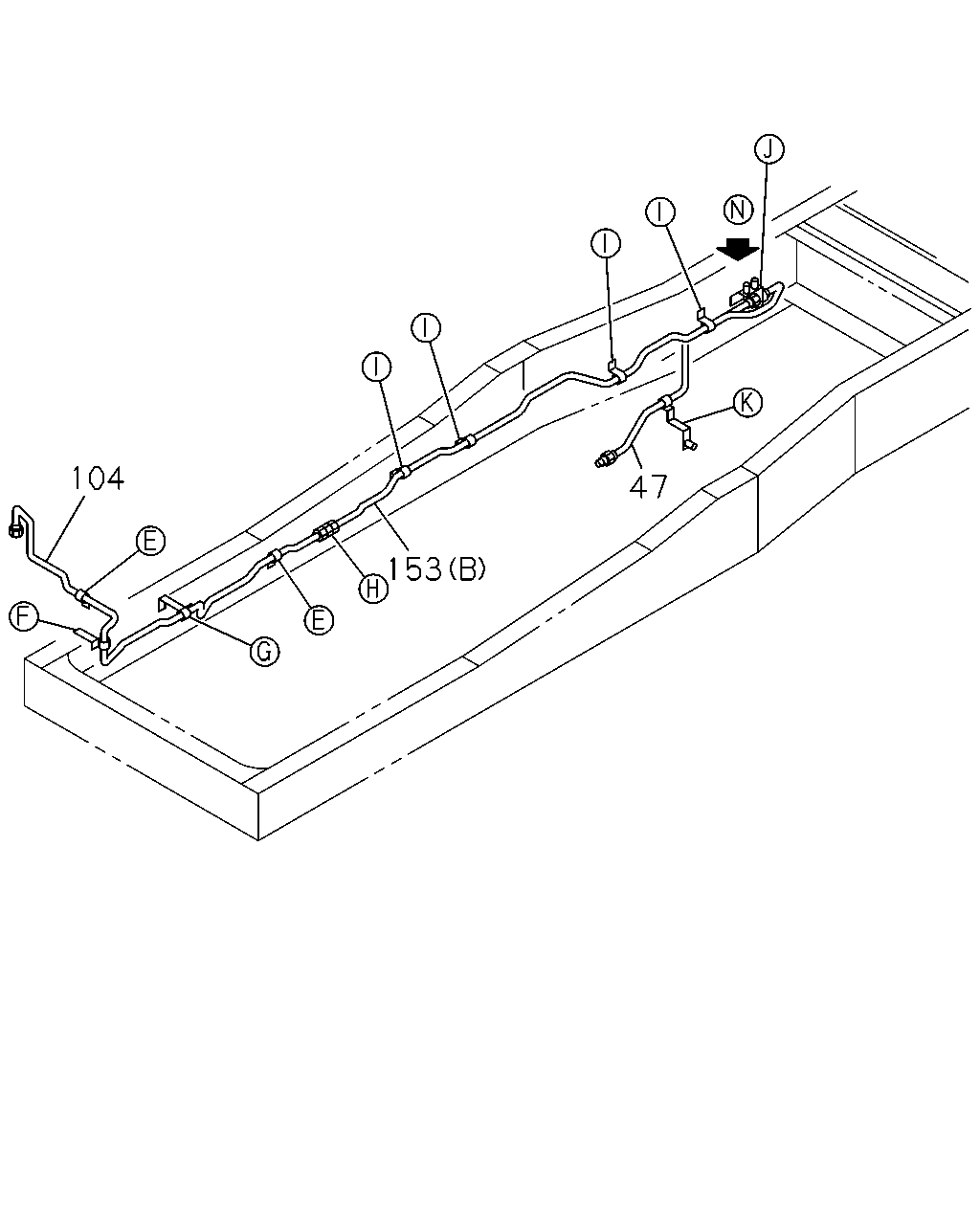

çizim 25422
104 47 153
BalonParca AdiParca NoAdetTipApplied Date A B
47 HOSE; FLEX,CLU CONT
L=600 		1-09364-705-0 01 1 0308- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1535 SERVICED BY L=1550 		1-47428-766-0 01 1 0308- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=464 		1-47424-530-2 01 1 0308- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2060 SERVICED BY L=2150 		1-47428-770-0 01 1 0308-0402 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2044 SERVICED BY L=2150 		1-47428-770-0 01 1 0403- ● ●
çizim 82815
27 29 29 25 28 28 28 26 27 25 30 30 26 29 26 106 45 46 42 44 115 116 34 33 35 43 117 4 36 37
BalonParca AdiParca NoAdetTipApplied Date A B
4 CLIP; FLEX HOSE,CLU CONT
ID=16 H=25 L=25 		1-09701-162-0 01 1 0308- ● ●
25 BRACKET; OIL PIPE
(B) L=55 		1-47475-304-0 01 1 0308- ● ●
25 BRACKET; OIL PIPE
(A) 		1-47477-406-0 01 1 0308- ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 04 1 0308-0602 ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
27 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 0308-0602 ● ●
27 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0308-0602 ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
27 NUT; BRKT
(C) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 0308- ● ●
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 0308- ● ●
28 CLIP; OIL PIPE
(B) ID=9 L=20 		9-09524-835-0 02 1 0308-0606 ● ●
28 CLIP; OIL PIPE
(B) ID=9 L=20 		0-95234-835-0 02 1 0607- ● ●
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 03 1 0308-0512 ● ●
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 03 1 0601- ● ●
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 01 1 0308-0512 ● ●
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
30 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0308-0512 ● ●
30 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
30 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 01 1 0308-0512 ● ●
30 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ● ●
33 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 03 1 0308- ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 03 1 0308-0512 ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 0308-0602 ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
36 BRACKET; CLIP
(B) 		1-47475-689-0 01 1 0308- ● ●
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 0308- ● ●
37 BOLT; CLIP BRKT
M10X18 FLANGE 		0-28181-018-0 01 1 0308- ● ●
42 BRACKET; FLEX HOSE,CLU CONT 1-47479-626-0 01 1 0308- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28680-835-0 02 1 0308-0512 ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 0308-0602 ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 0308- ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		9-09150-512-0 01 1 0308-0603 ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		0-91510-512-0 01 1 0604- ● ●
106 UNION; OIL PIPE
M14 STRAIGHT 		9-09223-008-1 01 1 0308-0607 ● ●
106 UNION; OIL PIPE
M14 STRAIGHT 		0-92113-008-0 01 1 0608- ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 0308-0512 ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0601- ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 0308-0603 ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
117 BOLT; CLIP,FLEX HOSE
M8X16 FLANGE 		0-28080-816-0 01 1 0308-0512 ● ●
117 BOLT; CLIP,FLEX HOSE
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●

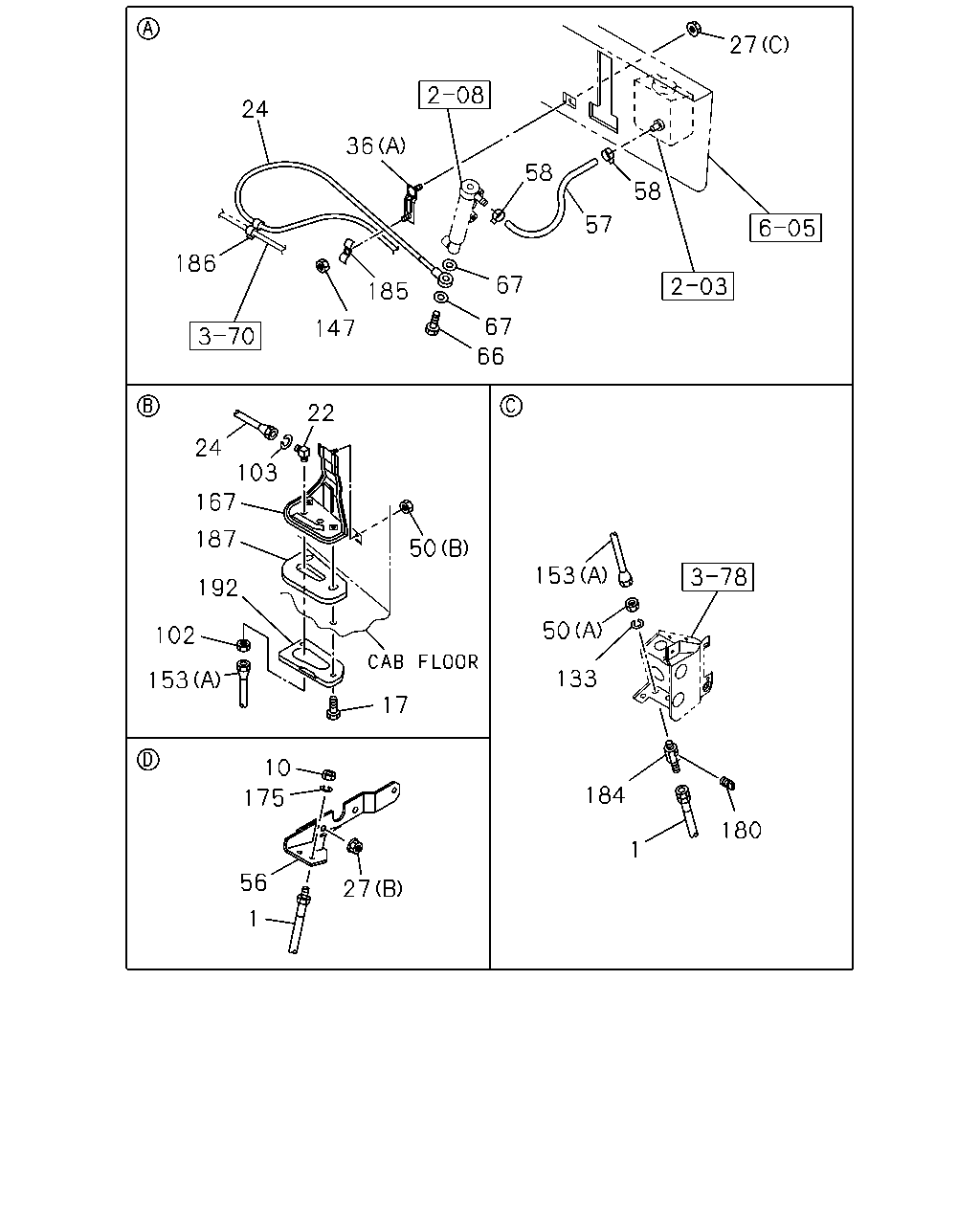

çizim 85179
27 24 36 58 58 57 186 67 185 67 147 66 22 24 103 167 187 50 153 192 50 102 133 153 17 10 184 175 180 1 56 27 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,CLU CONT
CAB UP +110MM<TGG> L=520 		1-09364-948-1 01 1 0308-0312 ● ●
1 HOSE; FLEX,CLU CONT
L=520 		1-09364-948-1 01 1 0401- ● ●
1 HOSE; FLEX,CLU CONT
EXC. CAB UP +110MM<TGG> L=430 		1-09364-859-1 01 1 0308- ● ●
10 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 0308-0512 ● ●
10 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0601- ● ●
17 BOLT; BRKT
M8X20 W/LK&PL WASHER 		8-94279-216-0 02 1 0308- ● ●
22 UNION; CLU PIPE
M14 		9-09225-208-1 01 1 0308-0607 ● ●
22 UNION; CLU PIPE
M14 ELBOW 		0-92125-208-0 01 1 0608- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 0308- ● ●
27 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 0308-0602 ● ●
27 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0308-0602 ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
27 NUT; BRKT
(C) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 0308- ● ●
36 BRACKET; CLIP
(B) 		1-47475-689-0 01 1 0308- ● ●
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 0308- ● ●
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0308- ● ●
50 NUT; UNION
(A) M14 		9-99111-414-0 01 1 0308-0512 ● ●
50 NUT; UNION
(A) M14 		0-91111-514-0 01 1 0601- ● ●
56 BRACKET; FLEX HOSE 1-47478-300-1 01 1 0308- ● ●
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 0308- ● ●
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 0308- ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 0308- ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0308- ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 0308-0512 ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0601- ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 0308-0603 ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 0308-0603 ● ●
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0308- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=464 		1-47424-530-2 01 1 0308- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2060 SERVICED BY L=2150 		1-47428-770-0 01 1 0308-0402 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2044 SERVICED BY L=2150 		1-47428-770-0 01 1 0403- ● ●
167 BRACKET; UNION 1-71117-183-3 01 1 0308- ● ●
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 0308-0603 ● ●
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
180 PLUG; PIPE
EXC. BRAKE SYSTEM HSA<SLD> 		9-09204-510-0 01 1 0308- ● ●
184 UNION; FLEX HOSE
STRAIGHT 		1-09656-679-0 01 1 0308- ● ●
185 CLIP; BRKT
ID=9 L=20 		9-09545-108-0 01 1 0308-0606 ● ●
185 CLIP; BRKT
ID=9 L=20 		0-95405-308-0 01 1 0607- ● ●
186 HOLDER; CLIP
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94107-710-0 02 1 0308- ● ●
187 SEAL; BRKT 1-71117-222-0 01 1 0308- ● ●
192 PLATE 1-71117-221-0 01 1 0308- ● ●
