2-01 — CLUTCH
(#25494) — 39 parça
◀

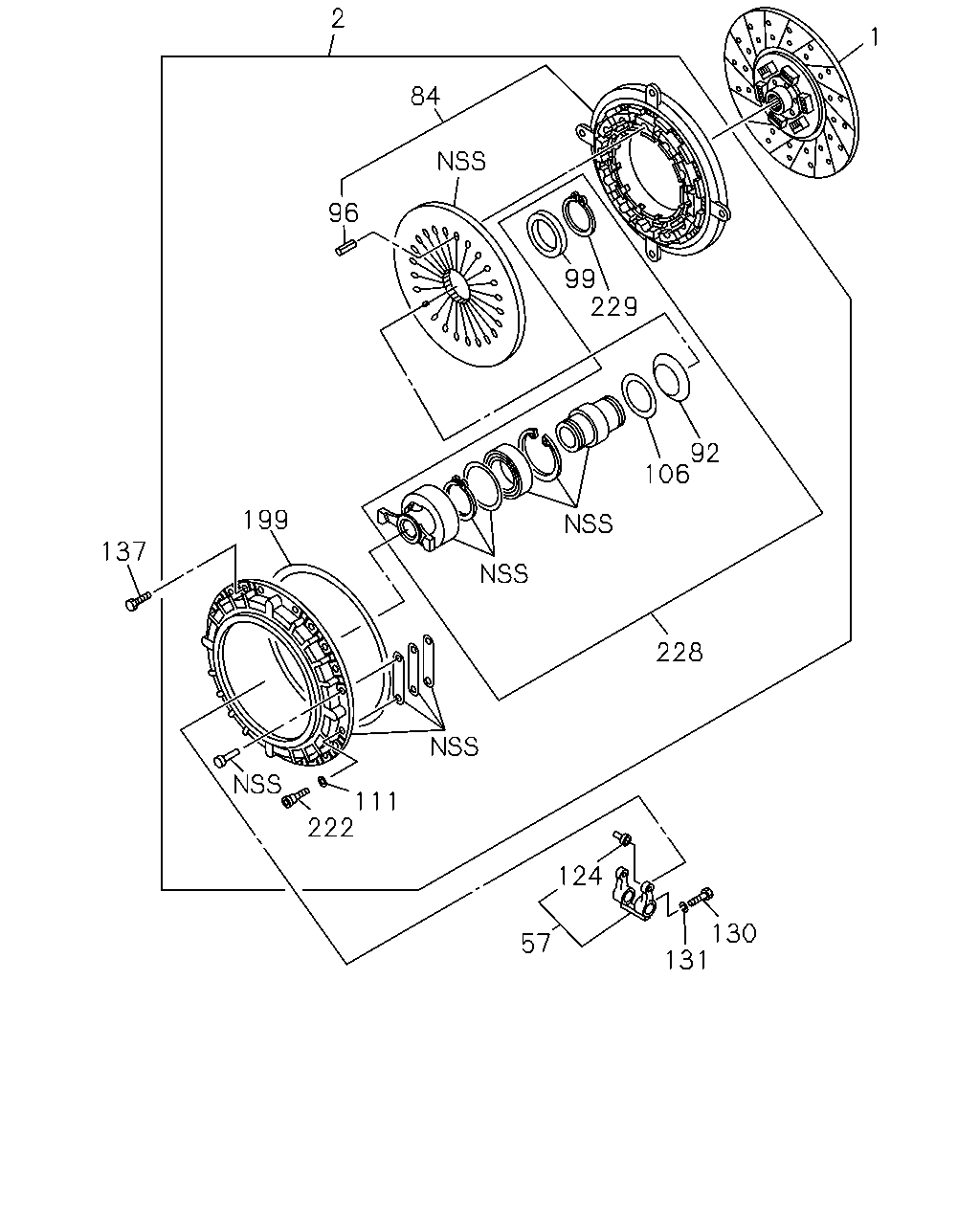

[201A] DISC AND PLATE (20 parça)

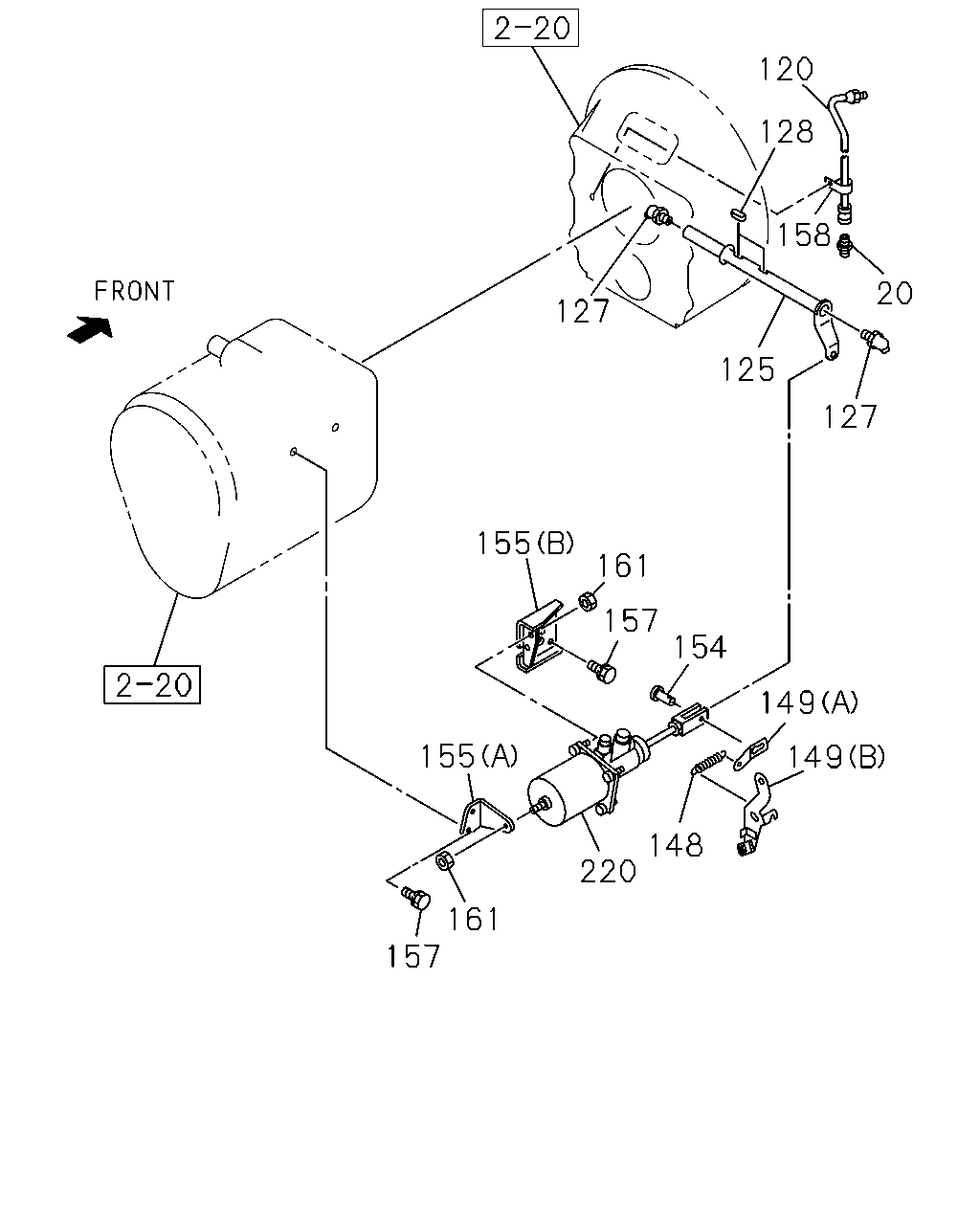

[201A] BOOSTER AND BRACKET (19 parça)
▶
2
1
84
96
99
229
92
106
199
137
228
111
222
124
130
131
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
17"
1-31240-864-0
01
1
0308-
2
PLATE ASM; PRESSURE,CLU
1-31220-400-1
01
1
0308-
57
FORK; SHIFT,CLU
1-31340-062-0
01
1
0308-
84
PLATE; PRESSURE
1-31221-125-0
01
1
0308-
92
SPRING; CLU
1-31239-052-0
01
1
0308-
96
PIN; RELEASE LEVER
1-31239-055-0
03
1
0308-
99
PLATE; RELEASE LEVER
1-31239-065-0
01
1
0308-
106
PLATE; LK,LEVER SUPPORT
1-31239-042-0
01
1
0308-
111
WASHER; PL,STRAP
ID=13
1-31239-038-0
04
1
0308-
124
BEARING; CAM,SHIFT FORK
1-31349-011-1
02
1
0308-
130
SCREW; SHIFT FORK
M8X14
9-06120-814-0
01
1
0308-0512
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
0601-
131
WASHER; LK,SHIFT FORK
ID=8.2
9-09150-508-0
01
1
0308-0603
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
0604-
137
BOLT; CLU COVER
M12X30
0-28781-230-0
12
1
0308-0512
137
BOLT; CLU COVER
M12X30 FLANGE
0-28751-230-0
12
1
0601-
199
RING; WIRE,DIAPH,CLU
1-31239-036-0
01
1
0308-
222
BOLT; STRAP
1-31239-037-0
04
1
0308-
228
BEARING; RELEASE
1-31310-014-0
01
1
0308-
229
RING
1-31239-064-0
01
1
0308-
120
128
158
20
127
125
127
155
161
157
154
149
155
149
148
220
161
157
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
NIPPLE; GREASE
PT1/8 STRAIGHT
9-09031-010-0
01
1
0308-0512
20
NIPPLE; GREASE
PT1/8 STRAIGHT
0-90301-410-0
01
1
0601-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=500
1-09364-651-0
01
1
0308-
125
SHAFT; CLU
1-31342-290-1
01
1
0308-
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
9-09031-210-0
02
1
0308-0512
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
0601-
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
0308-
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
0308-
149
EYE; SPRING,RETURN SPRING
(A)
1-31426-052-0
01
1
0308-
149
EYE; SPRING,RETURN SPRING
(B)
1-31426-056-0
01
1
0308-
154
PIN; JAW JOINT
1-31424-009-0
01
1
0308-
155
BRACKET; MINIPACK
(A)
1-31429-350-0
01
1
0308-
155
BRACKET; MINIPACK
(B)
1-31429-391-0
01
1
0308-
157
BOLT; BRKT
M10X25 FLANGE
0-28181-025-0
03
1
0308-0512
157
BOLT; BRKT
M10X25 FLANGE
0-28151-025-0
03
1
0601-
158
CLIP; FLEX HOSE
9-09917-576-0
01
1
0308-
161
NUT; BRKT
M10 FLANGE
0-91150-210-0
03
1
0308-0602
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
0603-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-474-1
01
1
0308-
