Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#25491) — 417 parça

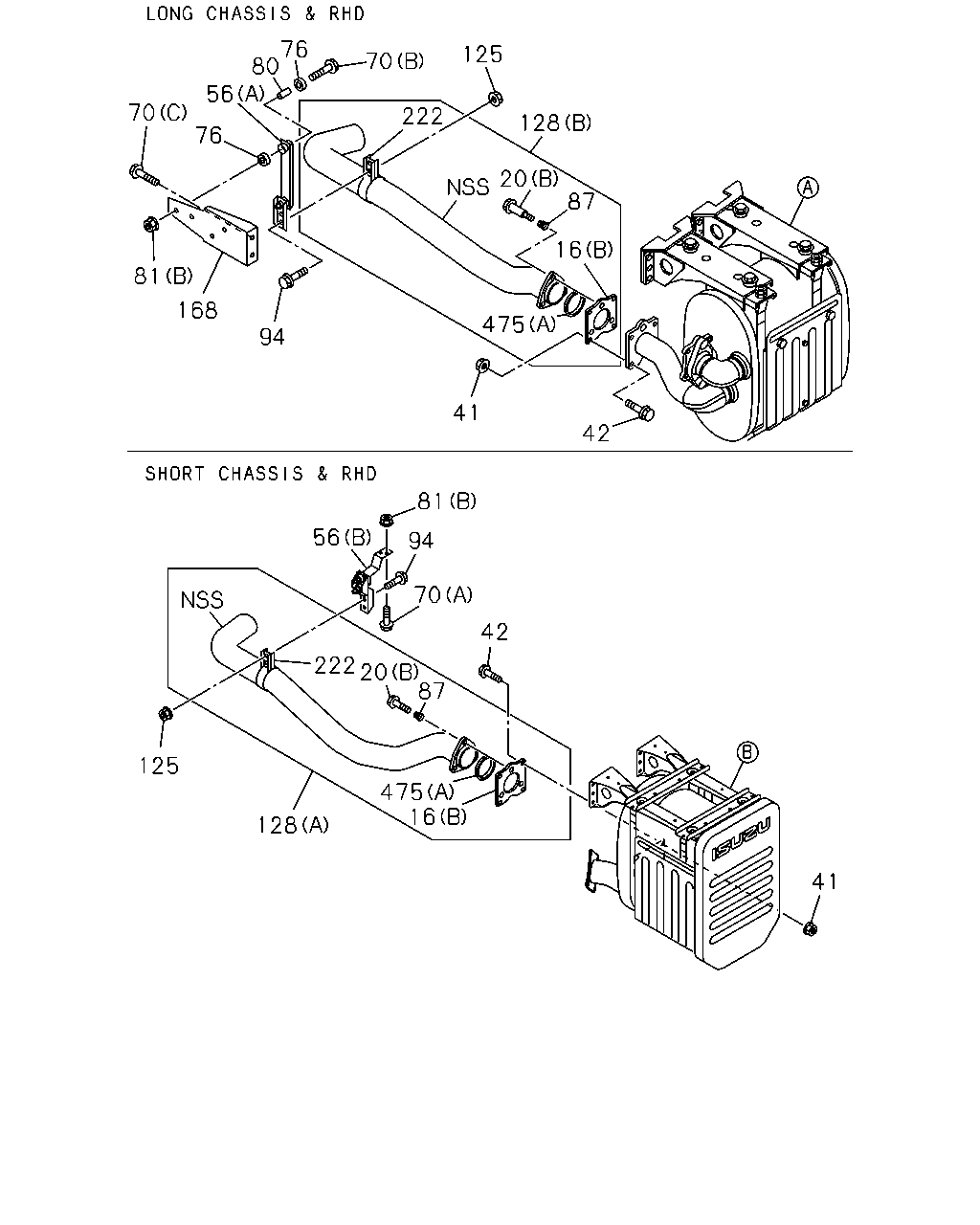

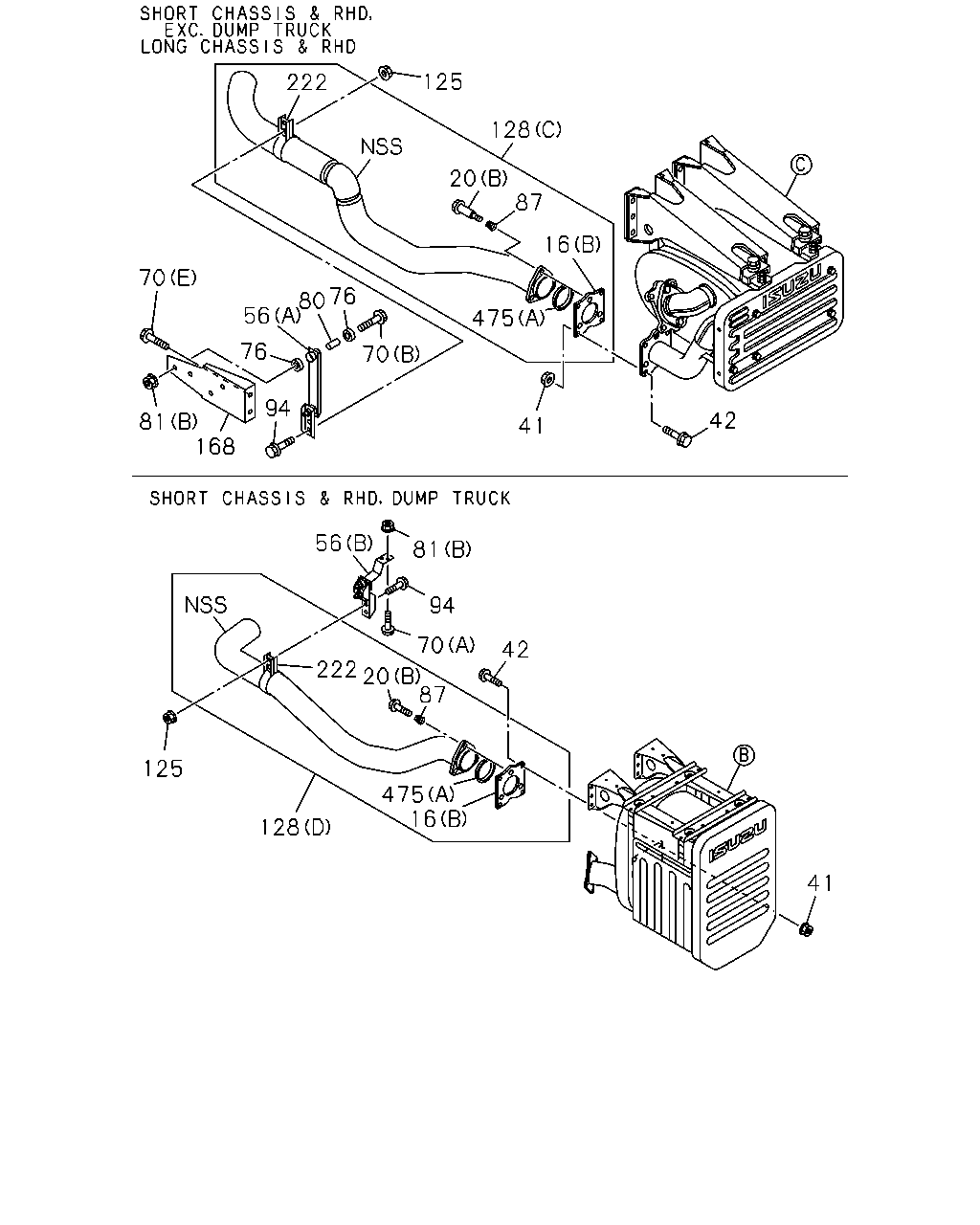

76 80 56 125 70 70 76 222 128 20 87 16 81 475 168 94 41 42 81 56 94 70 42 222 20 87 125 475 16 128 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	FLANGE; EXH PIPE (A)	1-22115-148-1	01	1	0308-0312	●
16	FLANGE; EXH PIPE DUMP TRUCK<RA1> (A)	1-22115-148-1	01	1	0401-0402	●
16	FLANGE; EXH PIPE (B)	1-22115-229-0	01	1	0308-0402	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	02	1	0308-0312	●
20	BOLT; FLANGE,EXH PIPE DUMP TRUCK<RA1> (A) M10X51.4	1-09009-167-0	02	1	0401-0402	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	02	1	0403-0412	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	0501-	●	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	1-09009-167-0	03	1	0308-0402	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	1-09009-167-0	03	1	0403-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	05	1	0308-0402		●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	0308-0512	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	08	1	0601-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0308-	●	●
56	BRACKET; CLAMP,EXH PIPE (B)	1-22151-976-2	01	1	0308-	●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22151-812-0	01	1	0308-0312		●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-070-0	01	1	0401-0402		●
56	BRACKET; CLAMP,EXH PIPE EXC. DUMP TRUCK<RA1> (A)	1-22152-074-1	01	1	0403-	●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-074-1	01	1	0403-		●
70	BOLT; BRKT (D) M10X20 FLANGE	0-28681-020-0	04	1	0308-0312	●
70	BOLT; BRKT DUMP TRUCK<RA1> (D) M10X20 FLANGE	0-28681-020-0	04	1	0401-0402	●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28681-035-0	04	1	0403-0512	●	●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●	●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	02	1	0308-0512	●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	04	1	0308-0512	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	04	1	0601-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	01	1	0308-0512		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0601-		●
70	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	06	1	0308-0402		●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28681-035-0	02	1	0403-0512		●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
76	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	0308-		●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	0308-		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0308-0402	●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	08	1	0308-0402	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	12	1	0403-0602	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	12	1	0603-	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0308-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0603-		●
87	SPRING; PRE SILENCER	8-94141-851-0	03	1	0308-	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28680-840-0	02	1	0308-0512	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	0308-0602	●	●
125	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
128	PIPE; EXH,RR (A)	1-22126-399-0	01	1	0308-0402	●
128	PIPE; EXH,RR EXC. DUMP TRUCK<RA1> (C)	1-22126-542-1	01	1	0403-	●
128	PIPE; EXH,RR (C)	1-22126-542-1	01	1	0403-		●
128	PIPE; EXH,RR (B)	1-22126-422-0	01	1	0308-0402		●
128	PIPE; EXH,RR DUMP TRUCK<RA1> (D)	1-22126-557-1	01	1	0403-	●
168	BRACKET; EXH PIPE,FRT	1-22131-971-0	01	1	0308-0402		●
168	BRACKET; EXH PIPE,FRT EXC. DUMP TRUCK<RA1>	1-22134-126-0	01	1	0403-	●
168	BRACKET; EXH PIPE,FRT	1-22134-126-0	01	1	0403-		●
222	CLAMP; EXH PIPE	1-22133-276-0	01	1	0308-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0308-0312	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE DUMP TRUCK<RA1> (B) OD=112	1-22119-294-0	01	1	0401-0402	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0401-0402		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0403-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	01	1	0308-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0308-	●	●

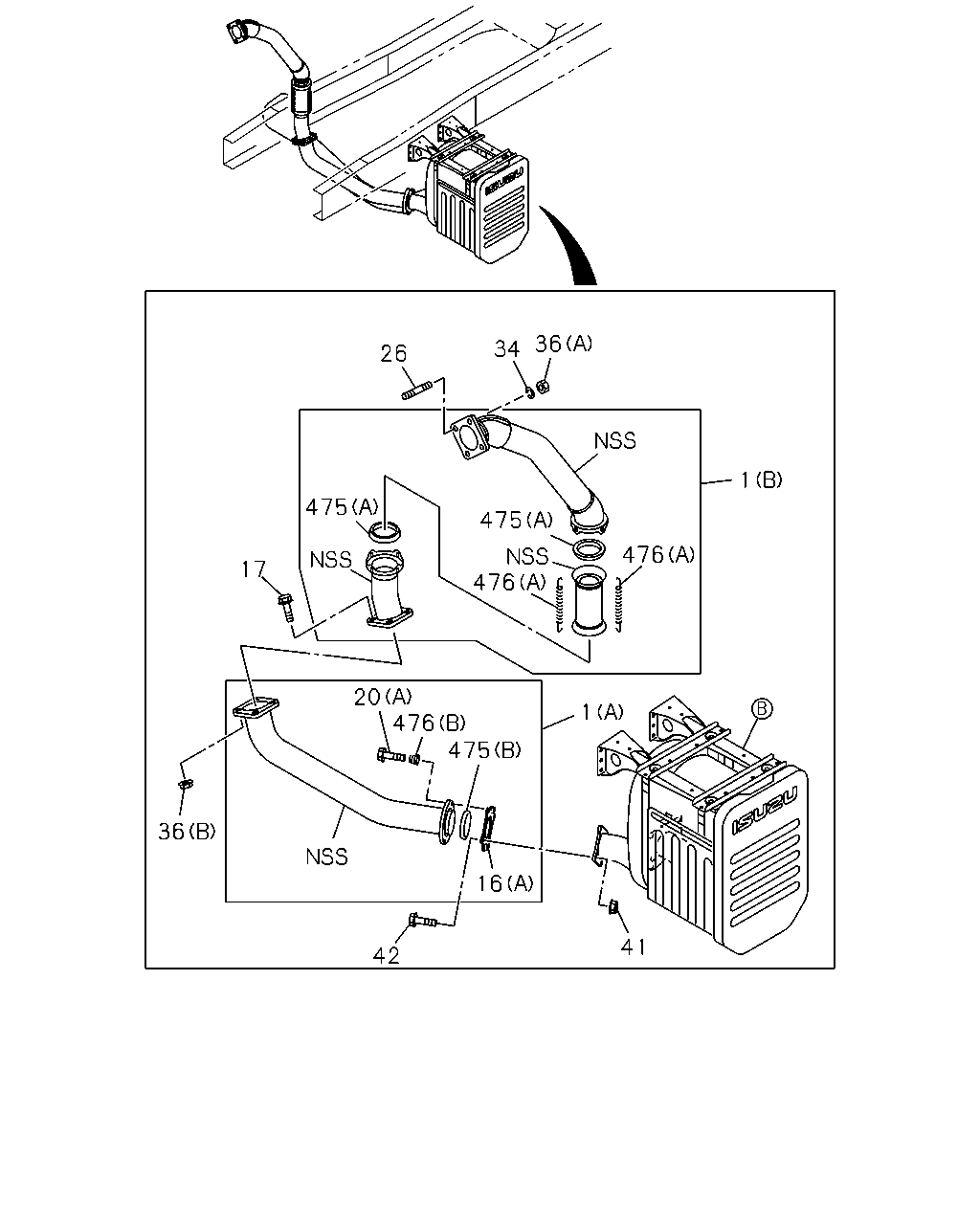

36 34 26 1 475 475 476 476 17 20 476 475 1 36 16 41 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (A)	1-22123-573-0	01	1	0308-0402	●
1	PIPE; EXH (D)	1-22123-762-1	01	1	0403-	●	●
1	PIPE; EXH (B)	1-22123-646-0	01	1	0308-0402	●	●
1	PIPE; EXH (E)	1-22123-773-2	01	1	0403-0606	●	●
1	PIPE; EXH (E)	1-22124-033-0	01	1	0607-	●	●
1	PIPE; EXH (C)	1-22123-571-0	01	1	0308-0402		●
16	FLANGE; EXH PIPE (A)	1-22115-148-1	01	1	0308-0312	●
16	FLANGE; EXH PIPE DUMP TRUCK<RA1> (A)	1-22115-148-1	01	1	0401-0402	●
16	FLANGE; EXH PIPE (B)	1-22115-229-0	01	1	0308-0402	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	0308-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	02	1	0308-0312	●
20	BOLT; FLANGE,EXH PIPE DUMP TRUCK<RA1> (A) M10X51.4	1-09009-167-0	02	1	0401-0402	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	02	1	0403-0412	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	0501-	●	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	1-09009-167-0	03	1	0308-0402	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	1-09009-167-0	03	1	0403-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	05	1	0308-0402		●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	0308-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0308-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	0308-	●	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	0308-0512	●	●
36	NUT; EXH PIPE (B) M12	0-91110-512-0	04	1	0601-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	0308-0512	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	08	1	0601-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0308-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0308-0312	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE DUMP TRUCK<RA1> (B) OD=112	1-22119-294-0	01	1	0401-0402	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0401-0402		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0403-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	01	1	0308-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0308-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0308-0312	●	●
476	SPRING; VIBNON,EXH PIPE DUMP TRUCK<RA1> (B)	8-94141-851-0	02	1	0401-0402	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0401-0402		●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0403-	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	0308-	●	●

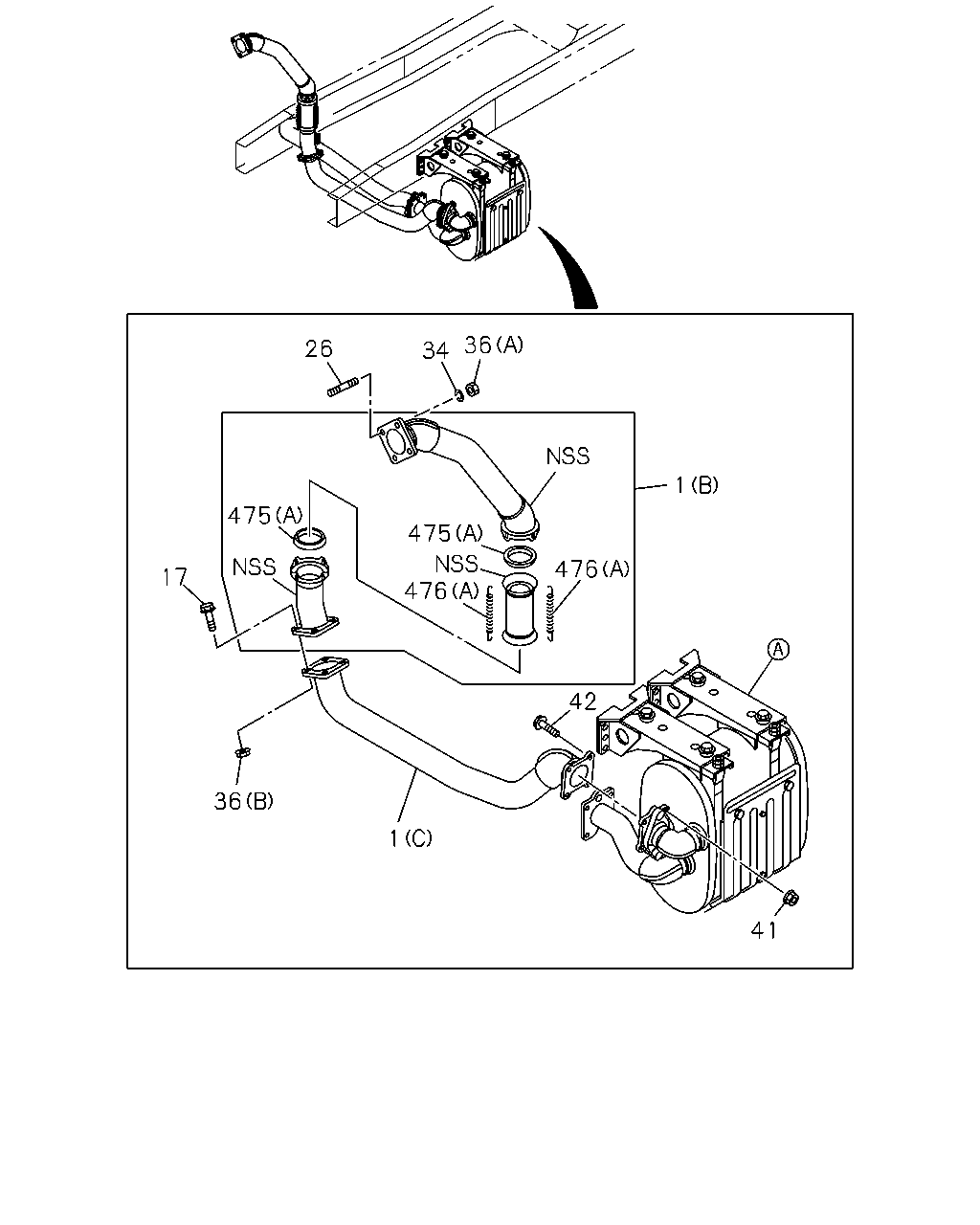

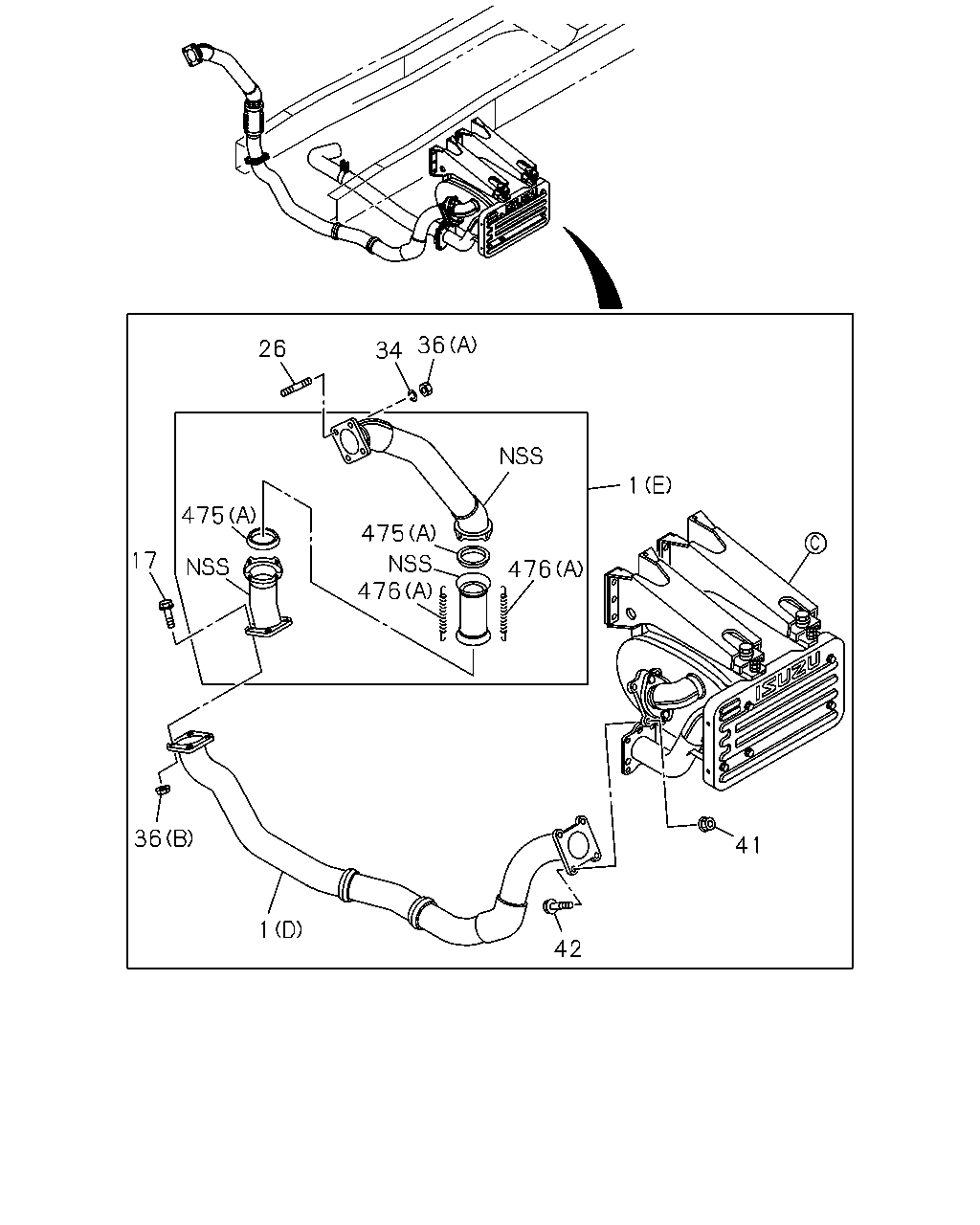

36 26 34 1 475 475 476 476 17 42 36 1 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (A)	1-22123-573-0	01	1	0308-0402	●
1	PIPE; EXH (D)	1-22123-762-1	01	1	0403-	●	●
1	PIPE; EXH (B)	1-22123-646-0	01	1	0308-0402	●	●
1	PIPE; EXH (E)	1-22123-773-2	01	1	0403-0606	●	●
1	PIPE; EXH (E)	1-22124-033-0	01	1	0607-	●	●
1	PIPE; EXH (C)	1-22123-571-0	01	1	0308-0402		●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	0308-	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	0308-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0308-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	0308-	●	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	0308-0512	●	●
36	NUT; EXH PIPE (B) M12	0-91110-512-0	04	1	0601-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	0308-0512	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	08	1	0601-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0308-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0308-0312	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE DUMP TRUCK<RA1> (B) OD=112	1-22119-294-0	01	1	0401-0402	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0401-0402		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0403-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	01	1	0308-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0308-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0308-0312	●	●
476	SPRING; VIBNON,EXH PIPE DUMP TRUCK<RA1> (B)	8-94141-851-0	02	1	0401-0402	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0401-0402		●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0403-	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	0308-	●	●

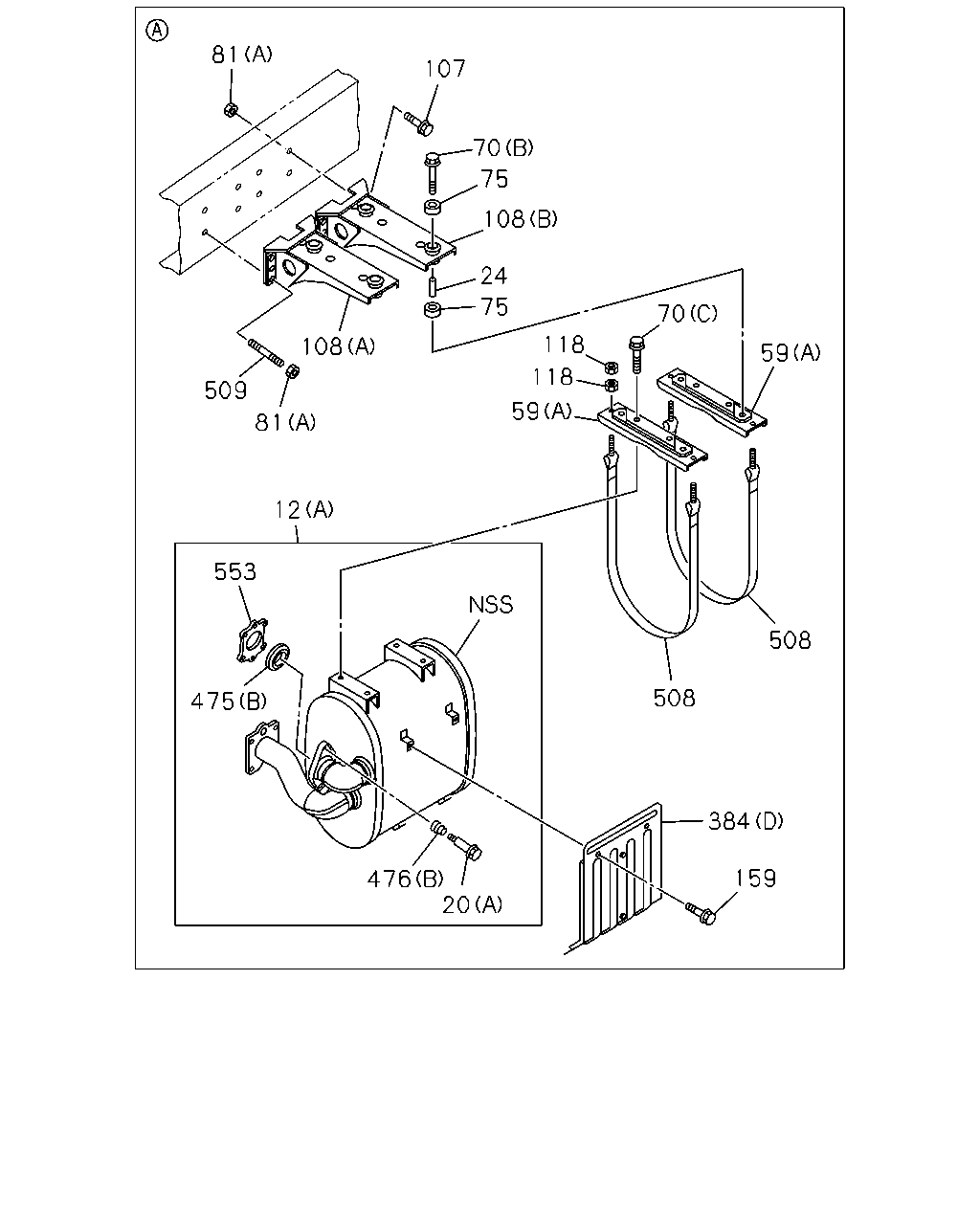

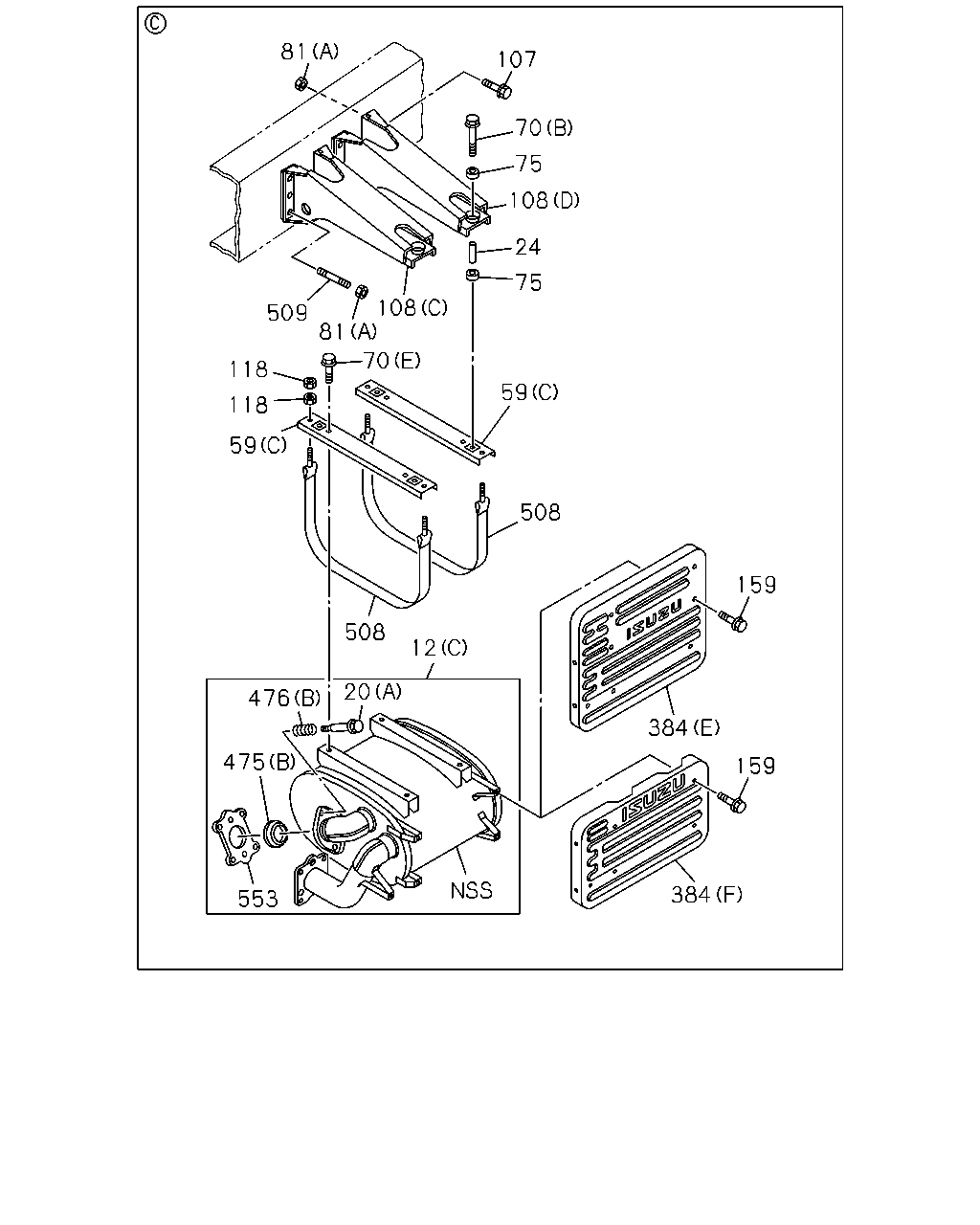

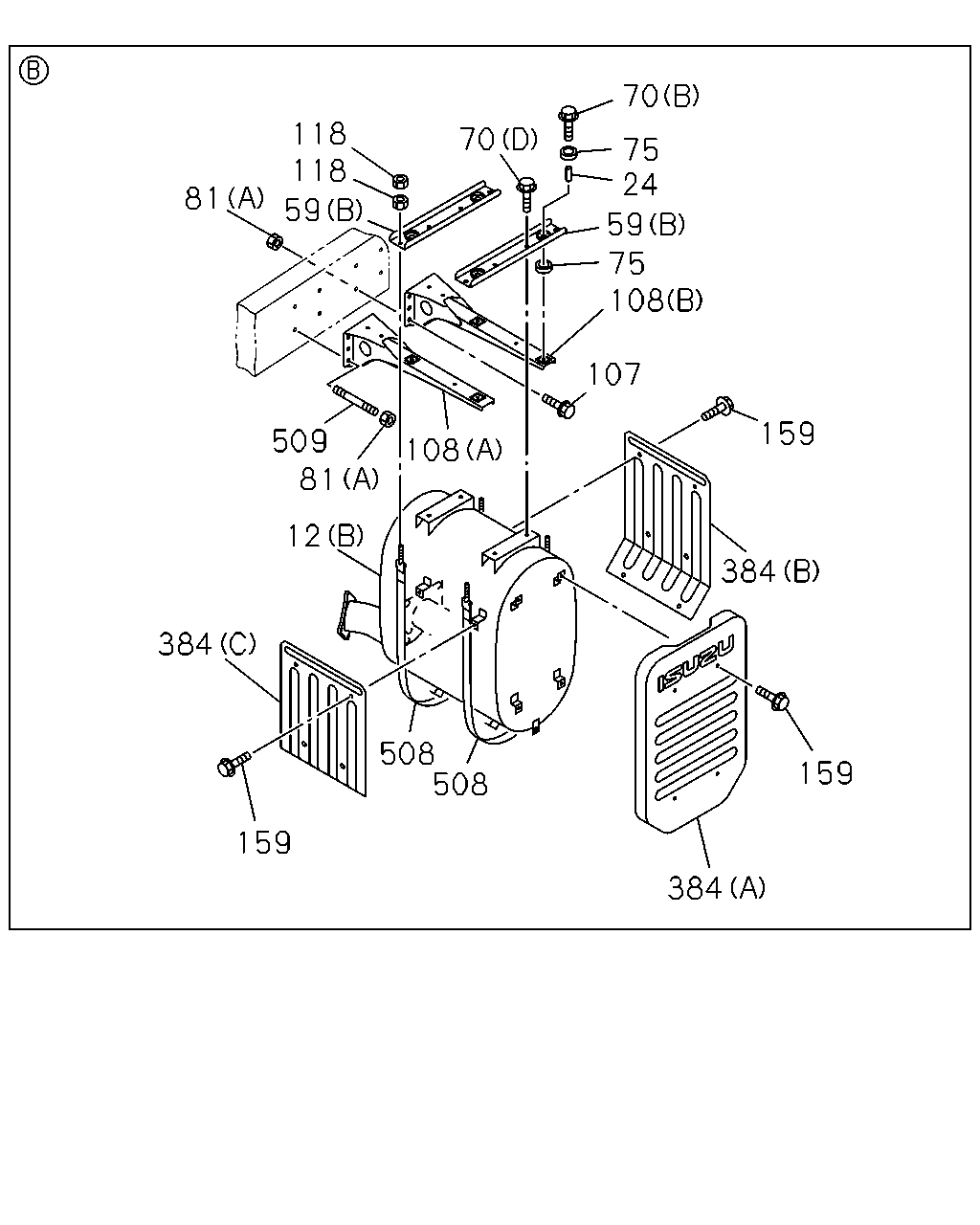

81 107 70 75 108 24 75 70 118 108 59 118 509 59 81 12 553 508 508 475 384 159 476 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH (B)	1-22141-048-3	01	1	0308-0402	●
12	SILENCER ASM; EXH (C)	1-22141-127-2	01	1	0403-	●	●
12	SILENCER ASM; EXH (A)	1-22141-020-4	01	1	0308-0402		●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	02	1	0308-0312	●
20	BOLT; FLANGE,EXH PIPE DUMP TRUCK<RA1> (A) M10X51.4	1-09009-167-0	02	1	0401-0402	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	02	1	0403-0412	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	0501-	●	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	1-09009-167-0	03	1	0308-0402	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	1-09009-167-0	03	1	0403-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	05	1	0308-0402		●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	0308-	●	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-710-1	02	1	0308-0312	●
59	BRACKET; EXH SILENCER,FRT DUMP TRUCK<RA1> (B)	1-22151-710-1	02	1	0401-0402	●
59	BRACKET; EXH SILENCER,FRT (C)	1-22134-147-1	02	1	0403-	●	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-984-1	02	1	0308-0402		●
70	BOLT; BRKT (D) M10X20 FLANGE	0-28681-020-0	04	1	0308-0312	●
70	BOLT; BRKT DUMP TRUCK<RA1> (D) M10X20 FLANGE	0-28681-020-0	04	1	0401-0402	●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28681-035-0	04	1	0403-0512	●	●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●	●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	02	1	0308-0512	●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	04	1	0308-0512	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	04	1	0601-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	01	1	0308-0512		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0601-		●
70	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	06	1	0308-0402		●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28681-035-0	02	1	0403-0512		●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	0308-	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0308-0402	●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	08	1	0308-0402	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	12	1	0403-0602	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	12	1	0603-	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0308-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0603-		●
107	BOLT; BRKT M12X35 FLANGE	0-28681-235-0	04	1	0308-0402	●	●
107	BOLT; BRKT M12X40 FLANGE	0-28081-240-0	06	1	0403-0512	●	●
107	BOLT; BRKT M12X40 FLANGE	0-28051-240-0	06	1	0601-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-774-3	01	1	0308-0402	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (C)	1-22134-145-0	01	1	0403-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22131-775-3	01	1	0308-0402	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (D)	1-22134-146-0	01	1	0403-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-893-2	01	1	0308-0402		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22131-899-1	01	1	0308-0402		●
118	NUT; SILENCER MTG BRKT M10	9-09110-510-0	08	1	0308-0512	●	●
118	NUT; SILENCER MTG BRKT M10	0-91110-510-0	08	1	0601-	●	●
159	BOLT; HEAT PROTECTOR M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0308-0402	●
159	BOLT; HEAT PROTECTOR M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	0403-	●	●
159	BOLT; HEAT PROTECTOR M8X22 W/LK&PL WASHER	1-09030-042-0	04	1	0308-0402		●
384	PROTECTOR; HEAT SILENCER MTG (B)	1-22119-341-3	01	1	0308-0402	●
384	PROTECTOR; HEAT SILENCER MTG (A)	1-22119-378-3	01	1	0308-0312	●
384	PROTECTOR; HEAT SILENCER MTG DUMP TRUCK<RA1> (A)	1-22119-378-3	01	1	0401-0402	●
384	PROTECTOR; HEAT SILENCER MTG DUMP TRUCK<RA1> (E)	1-22119-557-1	01	1	0403-	●
384	PROTECTOR; HEAT SILENCER MTG (C)	1-22119-527-0	01	1	0308-0312	●
384	PROTECTOR; HEAT SILENCER MTG DUMP TRUCK<RA1> (C)	1-22119-527-0	01	1	0401-0402	●
384	PROTECTOR; HEAT SILENCER MTG (D)	1-22119-379-1	01	1	0308-0402		●
384	PROTECTOR; HEAT SILENCER MTG EXC. DUMP TRUCK<RA1> (F)	1-22119-556-0	01	1	0403-	●
384	PROTECTOR; HEAT SILENCER MTG (F)	1-22119-556-0	01	1	0403-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0308-0312	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE DUMP TRUCK<RA1> (B) OD=112	1-22119-294-0	01	1	0401-0402	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0401-0402		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0403-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	01	1	0308-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0308-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0308-0312	●	●
476	SPRING; VIBNON,EXH PIPE DUMP TRUCK<RA1> (B)	8-94141-851-0	02	1	0401-0402	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0401-0402		●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0403-	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	0308-	●	●
508	BAND; EXHAUST SILENCER	1-22159-369-0	02	1	0308-0312	●	●
508	BAND; EXHAUST SILENCER	1-22159-264-1	02	1	0401-0402	●	●
508	BAND; EXHAUST SILENCER	1-22159-381-1	02	1	0403-0408	●	●
508	BAND; EXHAUST SILENCER	1-22159-384-0	02	1	0409-	●	●
509	STUD; BRKT M12X40 L=56	1-09300-123-0	04	1	0308-0402	●	●
509	STUD; BRKT M12X40 L=56	1-09300-123-0	06	1	0403-	●	●
553	FLANGE; SILENCER	1-22115-217-0	01	1	0308-0402		●
553	FLANGE; SILENCER	1-22115-148-1	01	1	0403-	●	●

36 26 34 1 475 475 17 476 476 36 41 1 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (A)	1-22123-573-0	01	1	0308-0402	●
1	PIPE; EXH (D)	1-22123-762-1	01	1	0403-	●	●
1	PIPE; EXH (B)	1-22123-646-0	01	1	0308-0402	●	●
1	PIPE; EXH (E)	1-22123-773-2	01	1	0403-0606	●	●
1	PIPE; EXH (E)	1-22124-033-0	01	1	0607-	●	●
1	PIPE; EXH (C)	1-22123-571-0	01	1	0308-0402		●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	0308-	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	0308-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0308-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	0308-	●	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	0308-0512	●	●
36	NUT; EXH PIPE (B) M12	0-91110-512-0	04	1	0601-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	0308-0512	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	08	1	0601-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0308-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0308-0312	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE DUMP TRUCK<RA1> (B) OD=112	1-22119-294-0	01	1	0401-0402	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0401-0402		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0403-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	01	1	0308-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0308-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0308-0312	●	●
476	SPRING; VIBNON,EXH PIPE DUMP TRUCK<RA1> (B)	8-94141-851-0	02	1	0401-0402	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0401-0402		●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0403-	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	0308-	●	●

81 107 70 75 108 24 75 108 509 81 70 118 59 118 59 508 159 508 12 20 476 384 475 159 384 553

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH (B)	1-22141-048-3	01	1	0308-0402	●
12	SILENCER ASM; EXH (C)	1-22141-127-2	01	1	0403-	●	●
12	SILENCER ASM; EXH (A)	1-22141-020-4	01	1	0308-0402		●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	02	1	0308-0312	●
20	BOLT; FLANGE,EXH PIPE DUMP TRUCK<RA1> (A) M10X51.4	1-09009-167-0	02	1	0401-0402	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	02	1	0403-0412	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	0501-	●	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	1-09009-167-0	03	1	0308-0402	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	1-09009-167-0	03	1	0403-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	05	1	0308-0402		●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	0308-	●	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-710-1	02	1	0308-0312	●
59	BRACKET; EXH SILENCER,FRT DUMP TRUCK<RA1> (B)	1-22151-710-1	02	1	0401-0402	●
59	BRACKET; EXH SILENCER,FRT (C)	1-22134-147-1	02	1	0403-	●	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-984-1	02	1	0308-0402		●
70	BOLT; BRKT (D) M10X20 FLANGE	0-28681-020-0	04	1	0308-0312	●
70	BOLT; BRKT DUMP TRUCK<RA1> (D) M10X20 FLANGE	0-28681-020-0	04	1	0401-0402	●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28681-035-0	04	1	0403-0512	●	●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●	●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	02	1	0308-0512	●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	04	1	0308-0512	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	04	1	0601-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	01	1	0308-0512		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0601-		●
70	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	06	1	0308-0402		●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28681-035-0	02	1	0403-0512		●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	0308-	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0308-0402	●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	08	1	0308-0402	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	12	1	0403-0602	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	12	1	0603-	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0308-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0603-		●
107	BOLT; BRKT M12X35 FLANGE	0-28681-235-0	04	1	0308-0402	●	●
107	BOLT; BRKT M12X40 FLANGE	0-28081-240-0	06	1	0403-0512	●	●
107	BOLT; BRKT M12X40 FLANGE	0-28051-240-0	06	1	0601-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-774-3	01	1	0308-0402	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (C)	1-22134-145-0	01	1	0403-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22131-775-3	01	1	0308-0402	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (D)	1-22134-146-0	01	1	0403-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-893-2	01	1	0308-0402		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22131-899-1	01	1	0308-0402		●
118	NUT; SILENCER MTG BRKT M10	9-09110-510-0	08	1	0308-0512	●	●
118	NUT; SILENCER MTG BRKT M10	0-91110-510-0	08	1	0601-	●	●
159	BOLT; HEAT PROTECTOR M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0308-0402	●
159	BOLT; HEAT PROTECTOR M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	0403-	●	●
159	BOLT; HEAT PROTECTOR M8X22 W/LK&PL WASHER	1-09030-042-0	04	1	0308-0402		●
384	PROTECTOR; HEAT SILENCER MTG (B)	1-22119-341-3	01	1	0308-0402	●
384	PROTECTOR; HEAT SILENCER MTG (A)	1-22119-378-3	01	1	0308-0312	●
384	PROTECTOR; HEAT SILENCER MTG DUMP TRUCK<RA1> (A)	1-22119-378-3	01	1	0401-0402	●
384	PROTECTOR; HEAT SILENCER MTG DUMP TRUCK<RA1> (E)	1-22119-557-1	01	1	0403-	●
384	PROTECTOR; HEAT SILENCER MTG (C)	1-22119-527-0	01	1	0308-0312	●
384	PROTECTOR; HEAT SILENCER MTG DUMP TRUCK<RA1> (C)	1-22119-527-0	01	1	0401-0402	●
384	PROTECTOR; HEAT SILENCER MTG (D)	1-22119-379-1	01	1	0308-0402		●
384	PROTECTOR; HEAT SILENCER MTG EXC. DUMP TRUCK<RA1> (F)	1-22119-556-0	01	1	0403-	●
384	PROTECTOR; HEAT SILENCER MTG (F)	1-22119-556-0	01	1	0403-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0308-0312	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE DUMP TRUCK<RA1> (B) OD=112	1-22119-294-0	01	1	0401-0402	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0401-0402		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0403-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	01	1	0308-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0308-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0308-0312	●	●
476	SPRING; VIBNON,EXH PIPE DUMP TRUCK<RA1> (B)	8-94141-851-0	02	1	0401-0402	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0401-0402		●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0403-	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	0308-	●	●
508	BAND; EXHAUST SILENCER	1-22159-369-0	02	1	0308-0312	●	●
508	BAND; EXHAUST SILENCER	1-22159-264-1	02	1	0401-0402	●	●
508	BAND; EXHAUST SILENCER	1-22159-381-1	02	1	0403-0408	●	●
508	BAND; EXHAUST SILENCER	1-22159-384-0	02	1	0409-	●	●
509	STUD; BRKT M12X40 L=56	1-09300-123-0	04	1	0308-0402	●	●
509	STUD; BRKT M12X40 L=56	1-09300-123-0	06	1	0403-	●	●
553	FLANGE; SILENCER	1-22115-217-0	01	1	0308-0402		●
553	FLANGE; SILENCER	1-22115-148-1	01	1	0403-	●	●

125 222 128 20 87 16 70 76 80 475 56 76 70 94 42 81 168 41 56 81 94 70 42 222 20 87 125 475 16 128 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	FLANGE; EXH PIPE (A)	1-22115-148-1	01	1	0308-0312	●
16	FLANGE; EXH PIPE DUMP TRUCK<RA1> (A)	1-22115-148-1	01	1	0401-0402	●
16	FLANGE; EXH PIPE (B)	1-22115-229-0	01	1	0308-0402	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	02	1	0308-0312	●
20	BOLT; FLANGE,EXH PIPE DUMP TRUCK<RA1> (A) M10X51.4	1-09009-167-0	02	1	0401-0402	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	02	1	0403-0412	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	0501-	●	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	1-09009-167-0	03	1	0308-0402	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	1-09009-167-0	03	1	0403-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	05	1	0308-0402		●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	0308-0512	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	08	1	0601-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0308-	●	●
56	BRACKET; CLAMP,EXH PIPE (B)	1-22151-976-2	01	1	0308-	●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22151-812-0	01	1	0308-0312		●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-070-0	01	1	0401-0402		●
56	BRACKET; CLAMP,EXH PIPE EXC. DUMP TRUCK<RA1> (A)	1-22152-074-1	01	1	0403-	●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-074-1	01	1	0403-		●
70	BOLT; BRKT (D) M10X20 FLANGE	0-28681-020-0	04	1	0308-0312	●
70	BOLT; BRKT DUMP TRUCK<RA1> (D) M10X20 FLANGE	0-28681-020-0	04	1	0401-0402	●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28681-035-0	04	1	0403-0512	●	●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●	●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	02	1	0308-0512	●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	04	1	0308-0512	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	04	1	0601-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	01	1	0308-0512		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0601-		●
70	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	06	1	0308-0402		●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28681-035-0	02	1	0403-0512		●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
76	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	0308-		●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	0308-		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0308-0402	●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	08	1	0308-0402	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	12	1	0403-0602	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	12	1	0603-	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0308-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0603-		●
87	SPRING; PRE SILENCER	8-94141-851-0	03	1	0308-	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28680-840-0	02	1	0308-0512	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	0308-0602	●	●
125	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
128	PIPE; EXH,RR (A)	1-22126-399-0	01	1	0308-0402	●
128	PIPE; EXH,RR EXC. DUMP TRUCK<RA1> (C)	1-22126-542-1	01	1	0403-	●
128	PIPE; EXH,RR (C)	1-22126-542-1	01	1	0403-		●
128	PIPE; EXH,RR (B)	1-22126-422-0	01	1	0308-0402		●
128	PIPE; EXH,RR DUMP TRUCK<RA1> (D)	1-22126-557-1	01	1	0403-	●
168	BRACKET; EXH PIPE,FRT	1-22131-971-0	01	1	0308-0402		●
168	BRACKET; EXH PIPE,FRT EXC. DUMP TRUCK<RA1>	1-22134-126-0	01	1	0403-	●
168	BRACKET; EXH PIPE,FRT	1-22134-126-0	01	1	0403-		●
222	CLAMP; EXH PIPE	1-22133-276-0	01	1	0308-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0308-0312	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE DUMP TRUCK<RA1> (B) OD=112	1-22119-294-0	01	1	0401-0402	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0401-0402		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	0403-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	01	1	0308-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0308-	●	●

70 118 118 70 75 24 81 59 59 75 108 107 108 159 509 81 12 384 384 508 508 159 159 384

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH (B)	1-22141-048-3	01	1	0308-0402	●
12	SILENCER ASM; EXH (C)	1-22141-127-2	01	1	0403-	●	●
12	SILENCER ASM; EXH (A)	1-22141-020-4	01	1	0308-0402		●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	0308-	●	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-710-1	02	1	0308-0312	●
59	BRACKET; EXH SILENCER,FRT DUMP TRUCK<RA1> (B)	1-22151-710-1	02	1	0401-0402	●
59	BRACKET; EXH SILENCER,FRT (C)	1-22134-147-1	02	1	0403-	●	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-984-1	02	1	0308-0402		●
70	BOLT; BRKT (D) M10X20 FLANGE	0-28681-020-0	04	1	0308-0312	●
70	BOLT; BRKT DUMP TRUCK<RA1> (D) M10X20 FLANGE	0-28681-020-0	04	1	0401-0402	●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28681-035-0	04	1	0403-0512	●	●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●	●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	02	1	0308-0512	●
70	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	04	1	0308-0512	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	04	1	0601-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	01	1	0308-0512		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0601-		●
70	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	06	1	0308-0402		●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28681-035-0	02	1	0403-0512		●
70	BOLT; BRKT (E) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	0308-	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0308-0402	●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	08	1	0308-0402	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91150-212-0	12	1	0403-0602	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	12	1	0603-	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	01	1	0308-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0603-		●
107	BOLT; BRKT M12X35 FLANGE	0-28681-235-0	04	1	0308-0402	●	●
107	BOLT; BRKT M12X40 FLANGE	0-28081-240-0	06	1	0403-0512	●	●
107	BOLT; BRKT M12X40 FLANGE	0-28051-240-0	06	1	0601-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-774-3	01	1	0308-0402	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (C)	1-22134-145-0	01	1	0403-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22131-775-3	01	1	0308-0402	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (D)	1-22134-146-0	01	1	0403-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-893-2	01	1	0308-0402		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22131-899-1	01	1	0308-0402		●
118	NUT; SILENCER MTG BRKT M10	9-09110-510-0	08	1	0308-0512	●	●
118	NUT; SILENCER MTG BRKT M10	0-91110-510-0	08	1	0601-	●	●
159	BOLT; HEAT PROTECTOR M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0308-0402	●
159	BOLT; HEAT PROTECTOR M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	0403-	●	●
159	BOLT; HEAT PROTECTOR M8X22 W/LK&PL WASHER	1-09030-042-0	04	1	0308-0402		●
384	PROTECTOR; HEAT SILENCER MTG (B)	1-22119-341-3	01	1	0308-0402	●
384	PROTECTOR; HEAT SILENCER MTG (A)	1-22119-378-3	01	1	0308-0312	●
384	PROTECTOR; HEAT SILENCER MTG DUMP TRUCK<RA1> (A)	1-22119-378-3	01	1	0401-0402	●
384	PROTECTOR; HEAT SILENCER MTG DUMP TRUCK<RA1> (E)	1-22119-557-1	01	1	0403-	●
384	PROTECTOR; HEAT SILENCER MTG (C)	1-22119-527-0	01	1	0308-0312	●
384	PROTECTOR; HEAT SILENCER MTG DUMP TRUCK<RA1> (C)	1-22119-527-0	01	1	0401-0402	●
384	PROTECTOR; HEAT SILENCER MTG (D)	1-22119-379-1	01	1	0308-0402		●
384	PROTECTOR; HEAT SILENCER MTG EXC. DUMP TRUCK<RA1> (F)	1-22119-556-0	01	1	0403-	●
384	PROTECTOR; HEAT SILENCER MTG (F)	1-22119-556-0	01	1	0403-		●
508	BAND; EXHAUST SILENCER	1-22159-369-0	02	1	0308-0312	●	●
508	BAND; EXHAUST SILENCER	1-22159-264-1	02	1	0401-0402	●	●
508	BAND; EXHAUST SILENCER	1-22159-381-1	02	1	0403-0408	●	●
508	BAND; EXHAUST SILENCER	1-22159-384-0	02	1	0409-	●	●
509	STUD; BRKT M12X40 L=56	1-09300-123-0	04	1	0308-0402	●	●
509	STUD; BRKT M12X40 L=56	1-09300-123-0	06	1	0403-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
