1-41 — FUEL PIPING; CHASSIS (#25489) — 56 parça

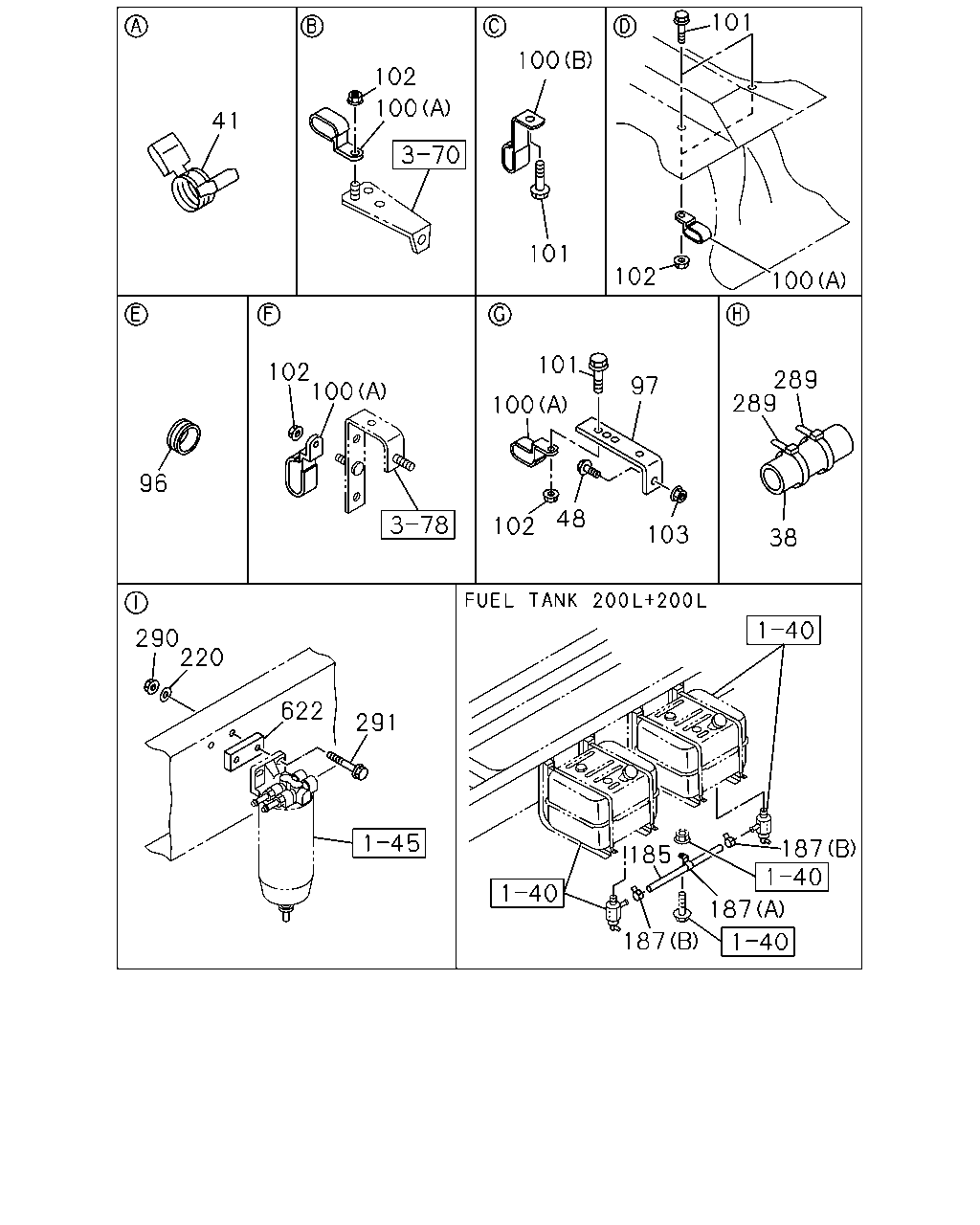

101 100 102 100 41 101 102 100 101 102 100 289 289 97 100 96 48 102 103 38 290 220 622 291 185 187 187 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 300L<RF5> L=600	9-09912-734-1	01	1	0308-0310	●	●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 300L<RF5> L=600	9-09912-734-1	01	1	0311-	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0308-0309		●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 200L+200L<NF7> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0310-		●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	0308-	●	●
48	BOLT; BRKT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> M8X30 FLANGE	0-28680-830-0	02	1	0308-0309		●
96	GROMMET; PIPE,FUEL TANK FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> ID=28 OD=35 T=25	1-09332-011-1	01	1	0308-0309	●	●
96	GROMMET; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0310-	●	●
96	GROMMET; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	02	1	0308-0309		●
97	BRACKET; CLIP FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>	1-82698-358-0	02	1	0308-0309		●
100	CLIP; FUEL PIPE FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (B) ID=20 L=70	1-09701-033-0	01	1	0308-0309		●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0308-0309		●
100	CLIP; FUEL PIPE (A) ID=14X29 H=15 L=20	1-09700-744-0	04	1	0308-0309	●	●
100	CLIP; FUEL PIPE FUEL TANK 200L FRAME SIDE<N20> (A) ID=14X29 H=15 L=20	1-09700-744-0	04	1	0308-0309	●
100	CLIP; FUEL PIPE FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A) ID=14X29 H=15 L=20	1-09700-744-0	04	1	0308-0309		●
100	CLIP; FUEL PIPE (A) ID=14X29 H=15 L=20	1-09700-744-0	04	1	0310-	●	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 200L FRAME SIDE<N20> M8X20 FLANGE	0-28680-820-0	03	1	0308-0309	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> M8X20 FLANGE	0-28680-820-0	03	1	0308-0309		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> M8X20 FLANGE	0-28680-820-0	01	1	0308-0309		●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28680-820-0	04	1	0308-0512	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
102	NUT; CLIP,FUEL PIPE FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91150-108-0	06	1	0308-0309		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	04	1	0308-0602	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
103	NUT; BRKT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91150-108-0	02	1	0308-0309		●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L<NF7> L=900 SERVICED BY L=3000	0-01262-300-0	01	1	0308-		●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (B) ID=17.1	8-94122-679-0	02	1	0308-		●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (A) ID=19 H=25 L=25	9-09917-035-0	02	1	0308-		●
220	WASHER; PL ID=10.5 OD=26	9-09164-710-0	02	1	0310-0605	●	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	0606-	●	●
289	CLIP; BAND,HOSE FUEL TANK 200L+200L<NF7> L=250	5-09707-030-1	06	1	0310-		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	0308-0309	●	●
289	CLIP; BAND,HOSE FUEL TANK 300L<RF5> L=250	5-09707-030-1	03	1	0310-0310	●	●
289	CLIP; BAND,HOSE FUEL TANK 300L<RF5> L=250	5-09707-030-1	03	1	0311-	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91150-110-0	02	1	0308-0402	●	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91150-210-0	02	1	0403-0602	●	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
291	BOLT; FILER TO BRKT M10X50 FLANGE	0-28081-050-0	02	1	0308-0309	●	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28081-060-0	02	1	0310-0512	●	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	0601-	●	●
622	SPACER; BRKT	1-53168-492-0	01	1	0308-	●	●

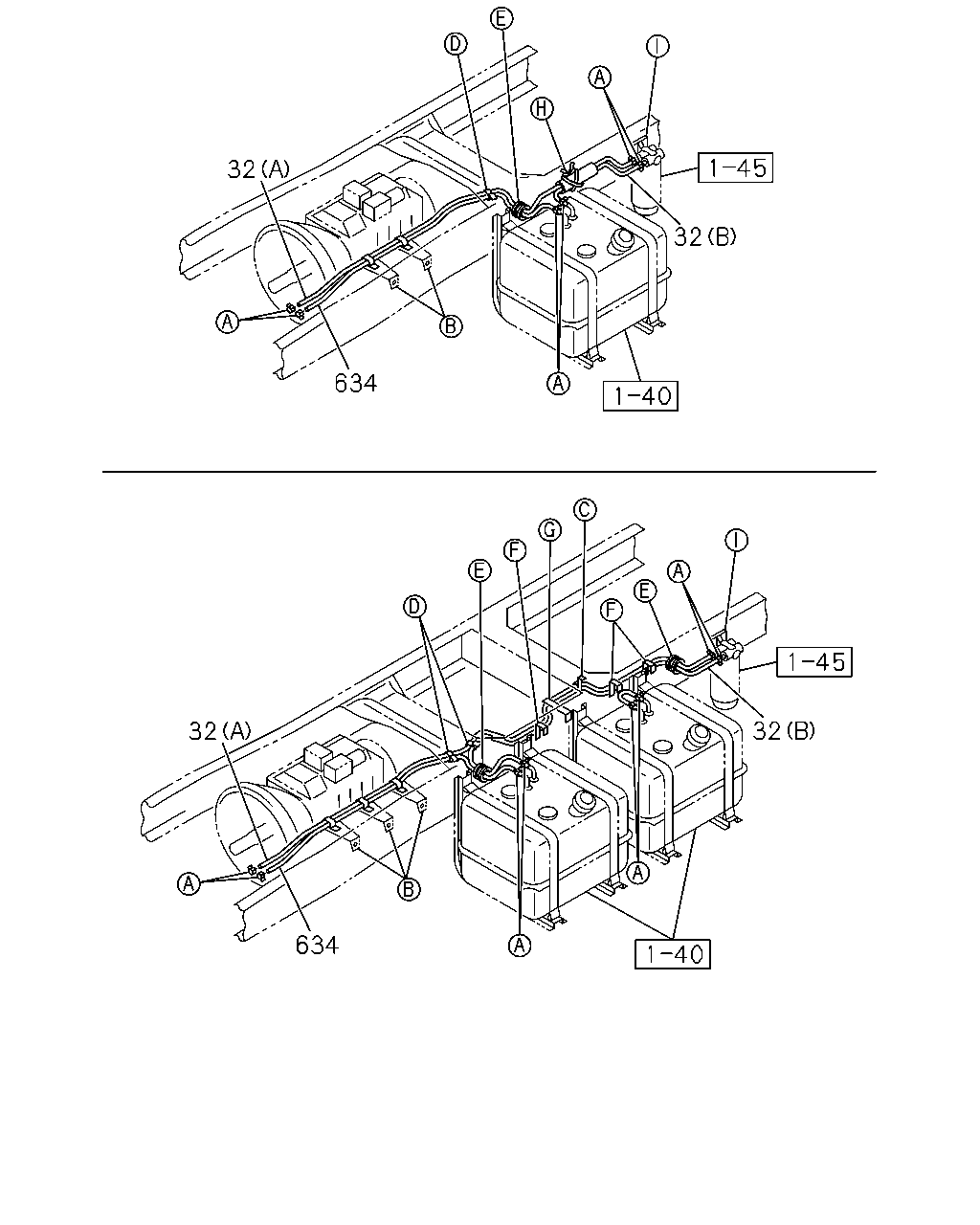

32 32 634 32 32 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=2050 SERVICED BY L=3000	0-01260-300-0	01	1	0308-0309	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A) L=2050 SERVICED BY L=3000	0-01260-300-0	01	1	0308-0309		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L+200L<NF7> (A) L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	0310-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	0308-0309	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (B) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	0308-0309		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L+200L<NF7> (B) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0310-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0308-0310	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0311-	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (B) L=2300 SERVICED BY L=3000	0-01260-300-0	01	1	0308-0310	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (B) L=2300 SERVICED BY L=3000	0-01260-300-0	01	1	0311-	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20> L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	0308-0309	●
634	HOSE; RUBBER RETURN FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	0308-0309		●
634	HOSE; RUBBER RETURN FUEL TANK 200L+200L<NF7> L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0310-		●
634	HOSE; RUBBER RETURN FUEL TANK 300L<RF5> L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0308-0310	●	●
634	HOSE; RUBBER RETURN FUEL TANK 300L<RF5> L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0311-	●
