1-40 — FUEL TANK (#25488) — 138 parça

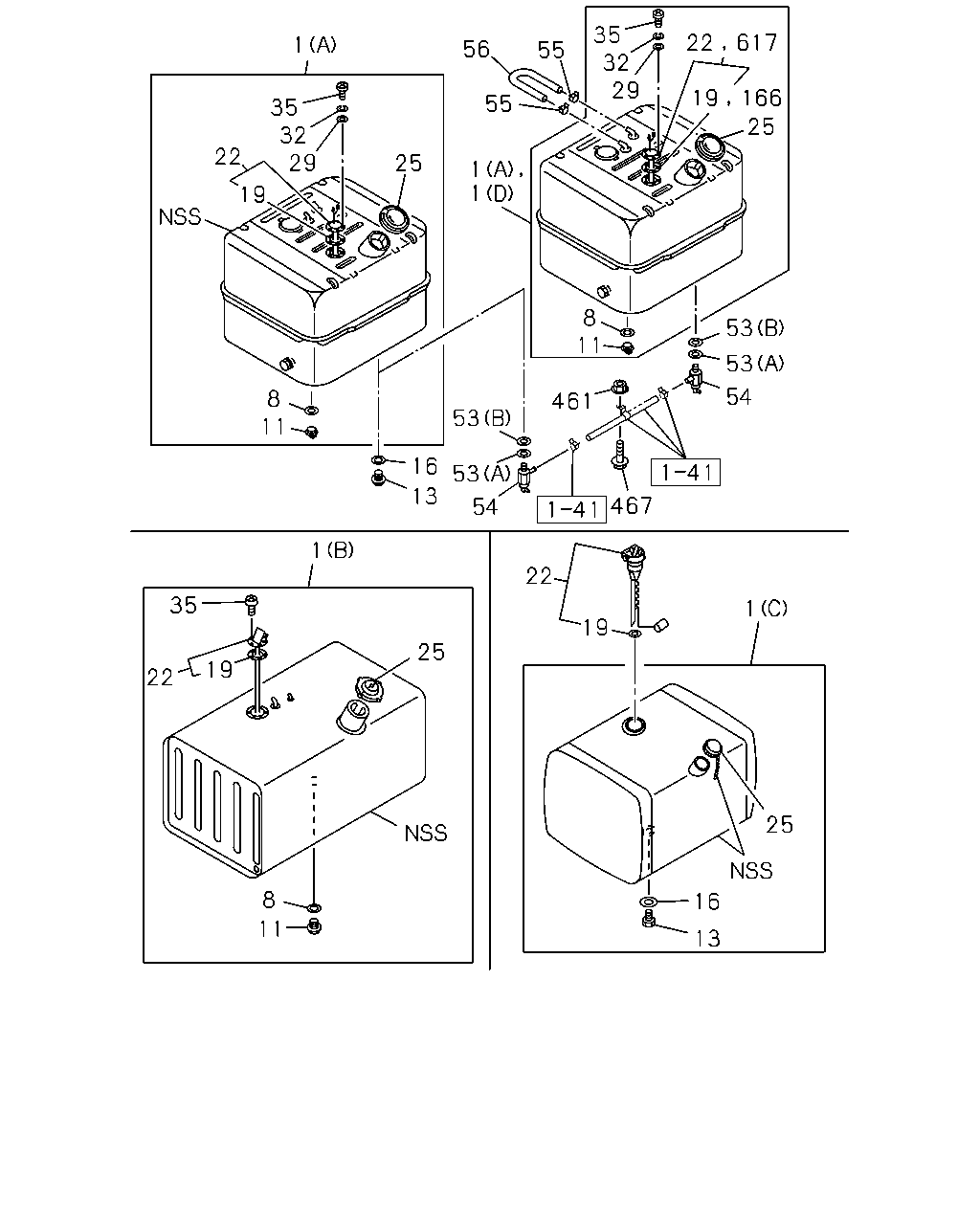

35 32 29 22 617 1 56 55 19 166 55 35 32 29 25 22 25 1 1 19 8 11 53 53 54 8 11 461 53 16 53 13 467 54 1 22 35 1 19 25 19 22 25 8 16 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 400L<SDH> (C) 1020X680X625 400L	1-87411-168-0	01	1	0308-	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22401-190-0	01	1	0308-0404	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22401-190-1	01	1	0405-	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22401-190-1	01	1	0405-		●
1	TANK; FUEL FUEL TANK 300L<RF5> (B) 880X649X549 300L	1-22401-108-2	01	1	0308-0310	●	●
1	TANK; FUEL FUEL TANK 300L<RF5> (B) 880X649X549 300L	1-22401-108-2	01	1	0311-	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> (A) 720X610X496 200L	1-22401-190-0	02	1	0308-0404		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> (D) 720X610X496 200L	1-22401-212-0	01	1	0405-		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> ID=14.2 OD=23.0	9-09572-014-0	01	1	0308-0310	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> ID=14.2 OD=23.0	9-09572-014-0	01	1	0311-0404	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> ID=14.2 OD=23.0	9-09572-014-0	01	1	0311-0404		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> ID=14.2 OD=23.0	9-09572-014-0	01	1	0405-	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> ID=14.2 OD=23.0	9-09572-014-0	01	1	0405-		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	01	1	0405-		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	02	1	0308-0404		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> M14X14	9-09862-156-0	01	1	0308-0310	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> M14X14	9-09862-156-0	01	1	0311-0404	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M14X14	9-09862-156-0	01	1	0311-0404		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> M14X14	9-09862-156-0	01	1	0405-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> M14X14	9-09862-156-0	01	1	0405-		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	01	1	0405-		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	02	1	0308-0404		●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L FRAME SIDE<N20> M14X14	9-09862-156-0	01	1	0308-	●	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> M18X12	9-99202-318-0	01	1	0308-0606	●	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> M18X12	0-92002-418-0	01	1	0607-	●	●
16	GASKET; PLUG FUEL TANK 200L FRAME SIDE<N20> ID=14.2 OD=23.0	9-09572-014-0	01	1	0308-	●	●
16	GASKET; PLUG FUEL TANK 400L<SDH> T=1.60	1-22416-001-0	01	1	0308-0509	●	●
16	GASKET; PLUG FUEL TANK 400L<SDH> ID=18.2 T=1.6	8-98030-453-0	01	1	0510-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=42 OD=71	5-83148-001-0	02	1	0308-0404		●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L<RF5> ID=45 OD=67	1-83149-003-0	01	1	0308-0310	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L<RF5> ID=45 OD=67	1-83149-003-0	01	1	0311-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0308-0404	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0405-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0405-		●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	0308-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	0308-0404	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	0405-	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>	1-83141-124-0	01	1	0405-		●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-118-0	01	1	0308-0310	●	●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-118-0	01	1	0311-	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	0308-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>	1-83141-124-0	02	1	0308-0404		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-070-0	01	1	0308-0404	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L<RF5>	1-22440-046-1	01	1	0308-0310	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L<RF5>	1-22440-046-1	01	1	0311-0404	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5>	1-22440-046-1	01	1	0405-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>	1-22440-046-1	01	1	0405-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7>	1-22440-046-1	01	1	0405-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-056-0	01	1	0308-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7>	1-22440-070-0	02	1	0308-0404		●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	0308-0404	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	0405-0605	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	0405-0605		●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.3	9-09160-505-0	01	1	0405-0605		●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	0-91610-505-0	01	1	0606-	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> ID=5.3	0-91610-505-0	01	1	0606-		●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.3	0-91610-505-0	01	1	0606-		●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.3	9-09160-505-0	02	1	0308-0404		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	0308-0404	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	0405-0603	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	0405-0603		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.1	9-09150-505-0	05	1	0405-0603		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	0-91510-505-0	05	1	0604-	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> ID=5.1	0-91510-505-0	05	1	0604-		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.1	0-91510-505-0	05	1	0604-		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.1	9-09150-505-0	10	1	0308-0404		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	0308-0404	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	0405-0604	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	0405-0604		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	05	1	0405-0604		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	0-34218-510-0	05	1	0605-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> M5X10	0-34218-510-0	05	1	0605-		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> M5X10	0-34218-510-0	05	1	0605-		●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L<RF5> M4X10 W/PL WASHER	9-03900-410-0	05	1	0308-0310	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L<RF5> M4X10 W/PL WASHER	9-03900-410-0	05	1	0311-0604	●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L<RF5> M4X10 W/PL WASHER	0-36210-410-0	05	1	0605-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	0308-0404		●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (A) ID=14.2	8-94462-114-0	02	1	0308-		●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0308-		●
54	COCK ASM; FUEL TANK FUEL TANK 200L+200L<NF7>	1-09680-072-0	02	1	0308-		●
55	CLIP; FUEL PIPE FUEL TANK 200L+200L<NF7> ID=14	1-09704-102-0	02	1	0308-		●
56	PIPE; FUEL SHUTTER FUEL TANK 200L+200L<NF7> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0308-		●
166	GASKET FUEL TANK 200L+200L<NF7>	8-94366-904-0	01	1	0405-		●
461	NUT; CLIP,FUEL PIPE FUEL TANK 200L+200L<NF7> M8 FLANGE	0-91150-108-0	02	1	0308-0602		●
461	NUT; CLIP,FUEL PIPE FUEL TANK 200L+200L<NF7> M8 FLANGE	0-91180-108-0	02	1	0603-		●
467	BOLT FUEL TANK 200L+200L<NF7> M8X25 FLANGE	0-28680-825-0	02	1	0308-0512		●
467	BOLT FUEL TANK 200L+200L<NF7> M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
617	PLATE FUEL TANK 200L+200L<NF7>	1-22419-021-0	01	1	0405-		●

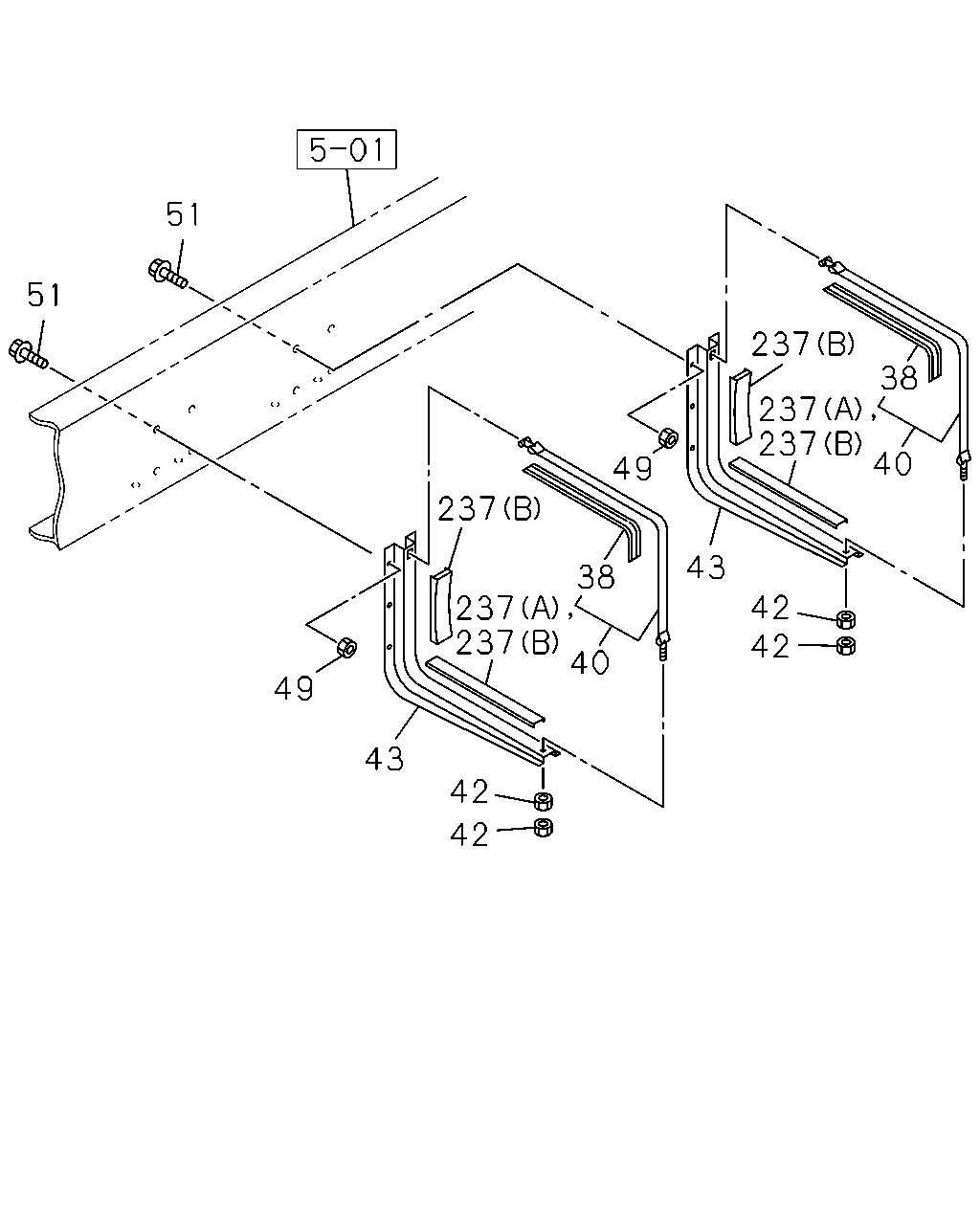

51 51 237 38 237 237 40 49 237 43 38 42 42 237 237 40 49 43 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=650	1-22553-022-1	02	1	0308-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 300L<RF5> L=1000	1-22553-028-1	02	1	0308-0310	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 300L<RF5> L=1000	1-22553-028-1	02	1	0311-	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	0308-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> L=650	1-22553-022-1	04	1	0308-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	0308-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5> L=1125	1-22550-225-2	02	1	0308-0310	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5> L=1125	1-22550-225-2	02	1	0311-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1210	1-22550-261-0	02	1	0308-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	04	1	0308-		●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	0405-0512		●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	08	1	0601-		●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0308-0404	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0405-0512	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> M10	9-09110-510-0	04	1	0405-0512		●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> M10	0-91110-510-0	04	1	0601-		●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	02	1	0308-	●	●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5>	1-53461-435-1	02	1	0308-0310	●	●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5>	1-53461-435-1	02	1	0311-	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0308-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>	1-53461-279-4	04	1	0308-		●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	9-99110-512-0	12	1	0406-0512	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> M12	9-99110-512-0	12	1	0406-0512		●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	0-91110-512-0	12	1	0601-	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> M12	0-91110-512-0	12	1	0601-		●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	24	1	0308-0512		●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	0-91110-512-0	24	1	0601-		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> ,FUEL TANK 400L<SDH> M12	9-99110-512-0	12	1	0308-0310	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> ,FUEL TANK 400L<SDH> M12	9-99110-512-0	12	1	0311-0405	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> M12	9-99110-512-0	12	1	0311-0405		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> M12	9-99110-512-0	08	1	0406-0512	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> M12	0-91110-512-0	08	1	0601-	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28081-240-0	12	1	0406-0512		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28051-240-0	12	1	0601-		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	12	1	0308-0309	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28081-240-0	12	1	0310-0405	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28081-240-0	08	1	0406-0512	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28051-240-0	08	1	0601-	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	24	1	0308-0309		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28081-240-0	24	1	0310-0512		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28051-240-0	24	1	0601-		●
51	BOLT; BRKT TO FRAME FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	08	1	0308-0310	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	08	1	0311-0512	●
51	BOLT; BRKT TO FRAME FUEL TANK 300L<RF5> M12X50 FLANGE	0-28051-250-0	08	1	0601-	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L<SDH> M12X45 FLANGE	0-28081-245-0	12	1	0308-0512	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L<SDH> M12X45 FLANGE	0-28051-245-0	12	1	0601-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=580	1-22553-003-0	02	1	0308-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH> (B)	1-22553-037-0	04	1	0308-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> (A) L=580	1-22553-003-0	04	1	0308-		●
