Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#2548) — 235 parça

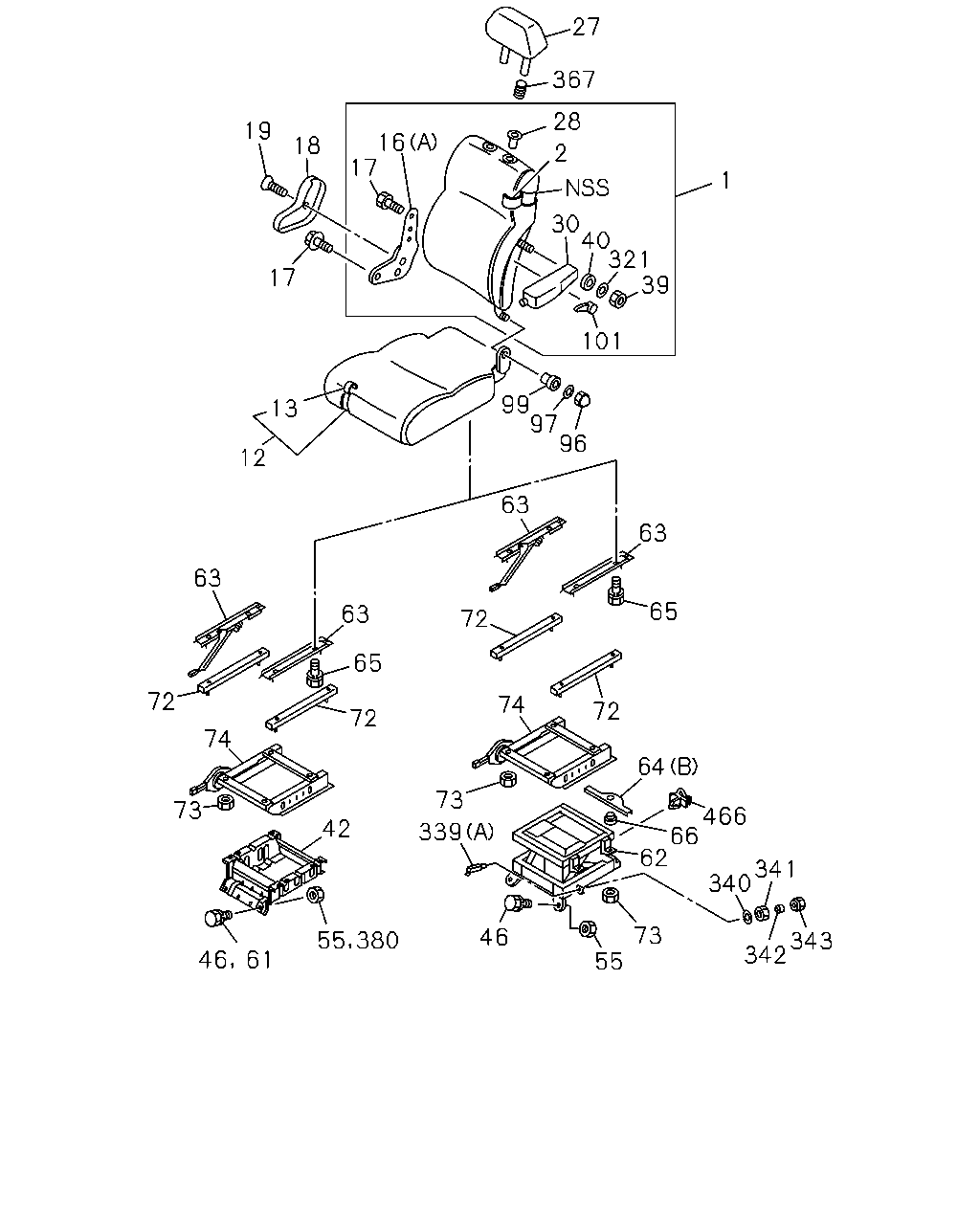

27 367 28 19 16 17 18 2 1 30 40 321 39 17 101 99 97 96 13 12 63 63 63 65 63 72 65 72 74 72 72 74 64 73 73 466 66 62 42 339 341 340 73 46 343 342 46 61 55 55 380

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT EXC. DELUXE SEAT<PQ8>,DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75027-332-0	01	1	9307-
1	BACK ASM; SEAT EXC. DELUXE SEAT<PQ8>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75027-176-0	01	1	9002-9306
1	BACK ASM; SEAT DRIVER SEAT AIR SUSP W/ARM REST(SGP)	1-75027-338-0	01	1	9307-
1	BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75027-177-0	01	1	9002-9306
1	BACK ASM; SEAT DELUXE SEAT<PQ8> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75027-177-0	01	1	9002-9306
1	BACK ASM; SEAT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75027-330-0	01	1	9307-
1	BACK ASM; SEAT DELUXE SEAT<PQ8> EXC. DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEATW/SEAT BELT ANCHORAGE<WN5>	1-75027-330-0	01	1	9307-
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE SEAT<PQ8>,DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75117-782-0	01	1	9307-
2	COVER; TRIM,FRT SEAT,BACK EXC. DELUXE SEAT<PQ8>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75117-634-0	01	1	9002-9306
2	COVER; TRIM,FRT SEAT,BACK DRIVER SEAT AIR SUSP W/ARM REST(SGP)	1-75117-786-0	01	1	9307-
2	COVER; TRIM,FRT SEAT,BACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75117-635-0	01	1	9002-9306
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT<PQ8> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75117-635-0	01	1	9002-9306
2	COVER; TRIM,FRT SEAT,BACK SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75117-747-0	01	1	9307-
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT<PQ8> EXC. DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEATW/SEAT BELT ANCHORAGE<WN5>	1-75117-747-0	01	1	9307-
12	CUSHION; SEAT,FRT DELUXE SEAT<PQ8> EXC. DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEATW/SEAT BELT ANCHORAGE<WN5>	1-75028-423-1	01	1	9307-
12	CUSHION; SEAT,FRT DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75028-423-1	01	1	9307-
12	CUSHION; SEAT,FRT EXC. DELUXE SEAT<PQ8>,DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75027-327-0	01	1	9307-
12	CUSHION; SEAT,FRT NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT<PQ8>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75027-165-0	01	1	9002-9306
12	CUSHION; SEAT,FRT NEW ZEALAND EQUIPMENT(PK5) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75027-166-0	01	1	9002-9306
12	CUSHION; SEAT,FRT NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT<PQ8> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75027-166-0	01	1	9002-9306
12	CUSHION; SEAT,FRT EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT<PQ8>, SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75027-164-0	01	1	9002-9306
12	CUSHION; SEAT,FRT SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75027-167-0	01	1	9002-9306
12	CUSHION; SEAT,FRT DELUXE SEAT<PQ8> EXC. NEW ZEALAND EQUIPMENT(PK5),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75027-167-0	01	1	9002-9306
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT<PQ8> EXC. DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEATW/SEAT BELT ANCHORAGE<WN5>	1-75117-734-0	01	1	9307-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75117-734-0	01	1	9307-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. DELUXE SEAT<PQ8>,DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75117-778-0	01	1	9307-
13	COVER; TRIM,FRT SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT<PQ8>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75117-623-0	01	1	9002-9306
13	COVER; TRIM,FRT SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75117-624-0	01	1	9002-9306
13	COVER; TRIM,FRT SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT<PQ8> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75117-624-0	01	1	9002-9306
13	COVER; TRIM,FRT SEAT,CUSHION EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT<PQ8>, SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75117-622-0	01	1	9002-9306
13	COVER; TRIM,FRT SEAT,CUSHION SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75117-625-0	01	1	9002-9306
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT<PQ8> EXC. NEW ZEALAND EQUIPMENT(PK5),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75117-625-0	01	1	9002-9306
16	ADJUSTER ASM; RECLINING (A) DRIVER	1-75418-014-2	01	1	9002-
16	ADJUSTER ASM; RECLINING (B) MULTI	1-75417-042-4	01	1	9002-
16	ADJUSTER ASM; RECLINING (B) MULTI	1-75417-064-0	01	1	9002-
17	BOLT; RECLINING M8X20	1-09980-438-0	04	1	9002-
18	COVER; RECLINING	8-94266-789-0	01	1	9002-9306
18	COVER; RECLINING	1-75418-042-0	01	1	9307-
19	SCREW; COVER M6X6	1-09981-499-0	01	1	9002-
27	REST; HD,FRT SEAT	1-75657-017-0	01	1	9002-9306
27	REST; HD,FRT SEAT	1-75657-023-0	01	1	9307-
28	HOLDER; GUIDE,HD REST W/LOCK LIGHT BLUE	8-94477-444-0	02	1	9002-9306
28	HOLDER; GUIDE,HD REST WO/LOCK LIGHT BLUE	8-94477-441-0	02	1	9002-9306
28	HOLDER; GUIDE,HD REST GRAY	8-94477-446-0	02	1	9307-
28	HOLDER; GUIDE,HD REST WO/LOCK GRAY	8-94477-443-0	02	1	9307-
30	REST ASM; ARM,FRT SEAT DRIVER SEAT AIR SUSP W/ARM REST(SGP)	1-75117-725-0	01	1	9307-
39	NUT; ARM REST DRIVER SEAT AIR SUSP W/ARM REST(SGP)	8-94279-521-0	01	1	9307-
40	SPACER; ARM REST DRIVER SEAT AIR SUSP W/ARM REST(SGP)	8-94285-921-0	01	1	9307-
42	STAND; DRIVER SEAT EXC. DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEATW/SEAT BELT ANCHORAGE<WN5>	1-75557-405-0	01	1	9002-
46	BOLT; STAND TO FLOOR	1-09980-566-0	02	1	9002-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M8 FLANGE	8-94279-504-1	02	1	9002-
61	BOLT; SEAT TO STAND EXC. PASSENGER SEAT MULTI USED<WX9>	1-09980-566-0	04	1	9505-
62	DAMPER ASM; SEAT SUSP DRIVER SEAT AIR SUSP W/ARM REST(SGP)	1-75537-226-1	01	1	9307-
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-212-1	01	1	9002-
63	ADJUSTER; SEAT SLIDE	1-75518-020-1	01	1	9002-
63	ADJUSTER; SEAT SLIDE	1-75518-019-1	01	1	9002-
64	STOPPER; LWR,SUSPENSION DEVICE DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-09987-123-0	02	1	9002-
64	STOPPER; LWR,SUSPENSION DEVICE DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75537-194-0	01	1	9002-
65	SCREW; ADJ TO SEAT M8X23 W/LK WASHER	8-94254-743-0	04	1	9002-
66	RUBBER; LWR STOPPER DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-130-0	01	1	9002-
72	SPACER; SEAT ADJ	1-75537-189-2	02	1	9002-
73	NUT; ADJ,HEIGHT CONT DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	12	1	9002-
73	NUT; ADJ,HEIGHT CONT EXC. DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEATW/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	5-09440-005-0	08	1	9002-
73	NUT; ADJ,HEIGHT CONT EXC. DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEATW/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	8-94279-518-0	04	1	9505-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75517-013-7	01	1	9002-
96	NUT; LK,HINGE M8	1-09984-109-0	01	1	9002-
97	WASHER; PL,RECLINING ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9002-
99	BUSHING; SEAT BACK	1-75508-004-0	01	1	9002-
101	LEVER ASM; LUMBAR DRIVER	1-75508-002-0	01	1	9002-
321	WASHER; PL,ARM REST DRIVER SEAT AIR SUSP W/ARM REST(SGP) ID=8.4 OD=22	9-09164-708-0	01	1	9307-
339	UNION; DRIVER SEAT DRIVER SEAT AIR SUSP W/ARM REST(SGP) (A)	1-09664-219-0	01	1	9307-
339	UNION; DRIVER SEAT DRIVER SEAT AIR SUSP W/ARM REST(SGP) (B)	1-75537-221-0	01	1	9307-
339	UNION; DRIVER SEAT DRIVER SEAT AIR SUSP W/ARM REST(SGP) (C)	1-75537-222-0	01	1	9307-
339	UNION; DRIVER SEAT DRIVER SEAT AIR SUSP W/ARM REST(SGP) (D)	1-75537-224-0	01	1	9307-
340	WASHER; UNION DRIVER SEAT AIR SUSP W/ARM REST(SGP) ID=12.2	9-09150-512-0	01	1	9307-
341	NUT; UNION DRIVER SEAT AIR SUSP W/ARM REST(SGP)	1-09487-022-0	01	1	9307-
342	SLEEVE DRIVER SEAT AIR SUSP W/ARM REST(SGP) ID=6.50 OD=9.12 L=7.49	1-09666-046-0	01	1	9307-
343	NUT; SLEEVE DRIVER SEAT AIR SUSP W/ARM REST(SGP)	1-09660-305-0	01	1	9307-
367	BOOT; HD REST	8-94412-828-0	04	1	9002-
380	NUT; DRIVER SEAT EXC. DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEATW/SEAT BELT ANCHORAGE<WN5> M8 FLANGE	8-94279-504-1	04	1	9002-9504
466	CLIP; CABLE DRIVER SEAT AIR SUSP W/ARM REST(SGP) ID=6.5	5-09709-117-0	01	1	9307-

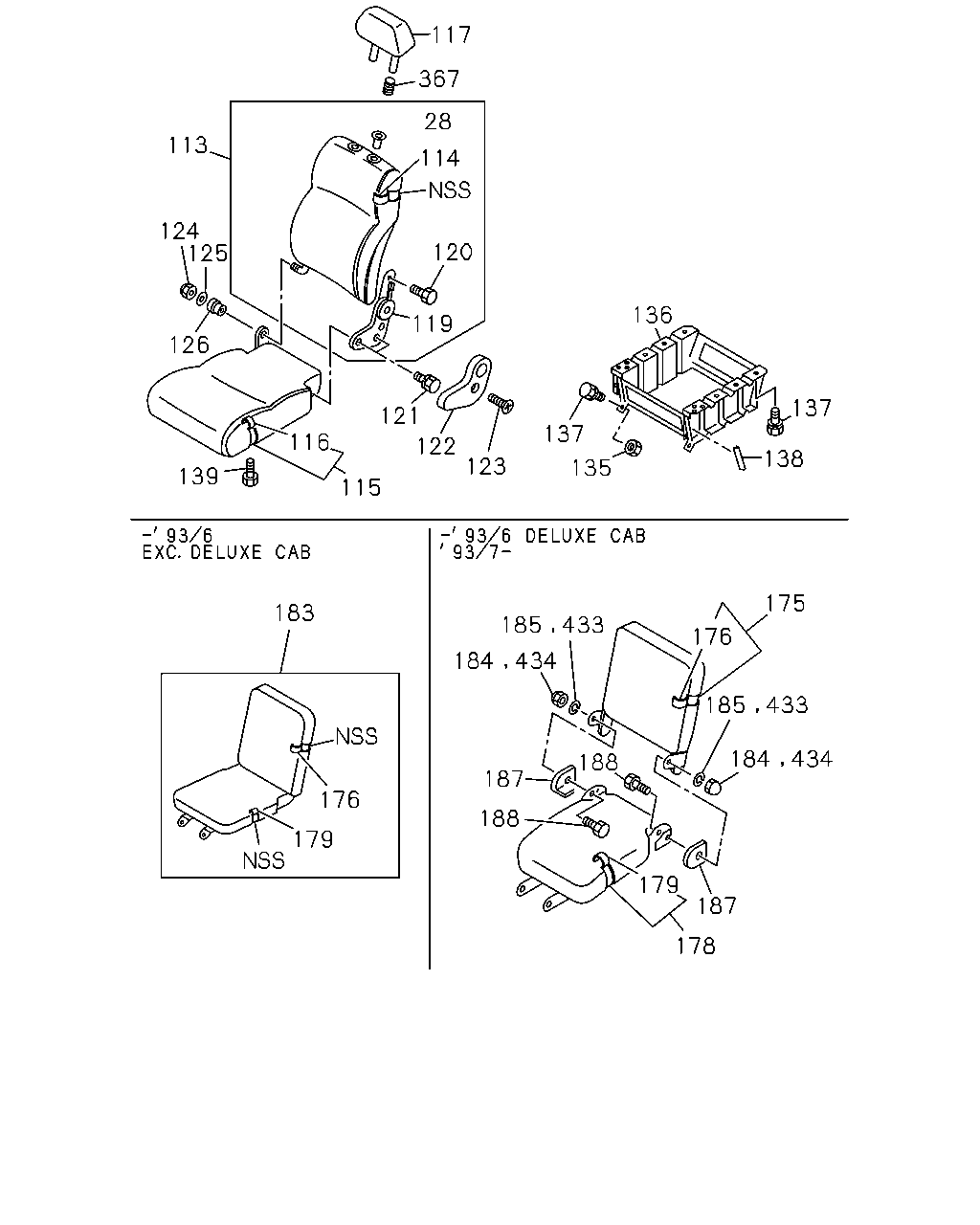

117 367 28 113 114 124 125 120 136 119 126 137 121 137 116 122 138 123 135 139 115 175 183 185 433 176 184 434 185 433 184 434 188 187 176 188 179 179 187 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	HOLDER; GUIDE,HD REST W/LOCK LIGHT BLUE	8-94477-444-0	02	1	9002-9306
28	HOLDER; GUIDE,HD REST WO/LOCK LIGHT BLUE	8-94477-441-0	02	1	9002-9306
28	HOLDER; GUIDE,HD REST GRAY	8-94477-446-0	02	1	9307-
28	HOLDER; GUIDE,HD REST WO/LOCK GRAY	8-94477-443-0	02	1	9307-
113	BACK ASM; SEAT DELUXE SEAT<PQ8>	1-75027-192-0	01	1	9002-9306
113	BACK ASM; SEAT DELUXE SEAT<PQ8>	1-75027-247-0	01	1	9307-
113	BACK ASM; SEAT EXC. DELUXE SEAT<PQ8>,PASSENGER SEAT MULTI USED<WX9>	1-75027-186-0	01	1	9002-9306
113	BACK ASM; SEAT EXC. DELUXE SEAT<PQ8>,PASSENGER SEAT MULTI USED<WX9>	1-75027-331-0	01	1	9307-
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT<PQ8>	1-75117-696-0	01	1	9307-
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT<PQ8> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75117-642-0	01	1	9002-9306
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. DELUXE SEAT<PQ8>,PASSENGER SEAT MULTI USED<WX9>	1-75117-642-0	01	1	9002-9306
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. DELUXE SEAT<PQ8>,PASSENGER SEAT MULTI USED<WX9>	1-75117-781-0	01	1	9307-
114	COVER; TRIM,PASSENGER SEAT,BACK NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT<PQ8>	1-75117-644-0	01	1	9002-9306
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT<PQ8>	1-75027-244-1	01	1	9307-
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT<PQ8> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75027-173-0	01	1	9002-9306
115	CUSHION ASM; PASSENGER SEAT EXC. DELUXE SEAT<PQ8>,PASSENGER SEAT MULTI USED<WX9>	1-75027-329-0	01	1	9307-
115	CUSHION ASM; PASSENGER SEAT NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT<PQ8>	1-75027-175-0	01	1	9002-9306
115	CUSHION ASM; PASSENGER SEAT NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT<PQ8>,PASSENGER SEAT MULTI USED<WX9>	1-75027-174-0	01	1	9002-9306
115	CUSHION ASM; PASSENGER SEAT EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT<PQ8>, PASSENGER SEAT MULTI USED<WX9>	1-75027-170-0	01	1	9002-9306
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT<PQ8>	1-75117-688-0	01	1	9307-
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT<PQ8> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-75117-631-0	01	1	9002-9306
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. DELUXE SEAT<PQ8>,PASSENGER SEAT MULTI USED<WX9>	1-75117-780-0	01	1	9307-
116	COVER; TRIM,PASSENGER SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT<PQ8>	1-75117-633-0	01	1	9002-9306
116	COVER; TRIM,PASSENGER SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT<PQ8>,PASSENGER SEAT MULTI USED<WX9>	1-75117-632-0	01	1	9002-9306
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT<PQ8>, PASSENGER SEAT MULTI USED<WX9>	1-75117-628-0	01	1	9002-9306
117	REST; HD	1-75657-017-0	01	1	9002-9306
117	REST; HD	1-75657-023-0	01	1	9307-
119	ADJ; SEAT RECLINING,ASSIST SIDE EXC. PASSENGER SEAT MULTI USED<WX9>	1-75418-015-0	01	1	9002-
120	BOLT; RECLINING ADJ EXC. PASSENGER SEAT MULTI USED<WX9> M8X20	1-09980-438-0	02	1	9002-9306
120	BOLT; RECLINING ADJ EXC. PASSENGER SEAT MULTI USED<WX9> M8X20	1-09980-438-0	04	1	9307-
121	BOLT; COVER,RECLINING EXC. PASSENGER SEAT MULTI USED<WX9> M8X20	1-09980-438-0	02	1	9002-9306
122	COVER; ADJ,RECLINING EXC. PASSENGER SEAT MULTI USED<WX9> BLACK	8-94266-795-0	01	1	9002-9306
122	COVER; ADJ,RECLINING EXC. PASSENGER SEAT MULTI USED<WX9>	1-75418-046-0	01	1	9307-
123	SCREW; COVER,RECLINING EXC. PASSENGER SEAT MULTI USED<WX9> M6X6	8-94216-303-0	01	1	9002-9306
123	SCREW; COVER,RECLINING EXC. PASSENGER SEAT MULTI USED<WX9> M6X6	1-09981-499-0	01	1	9307-
124	NUT; CAP,RECLINING EXC. PASSENGER SEAT MULTI USED<WX9> M8	1-09984-109-0	01	1	9002-
125	WASHER; PL,RECLINING EXC. PASSENGER SEAT MULTI USED<WX9> ID=8.5 OD=18 BLACK	5-09985-056-0	01	1	9002-
126	BUSHING; HINGE,RECLINING EXC. PASSENGER SEAT MULTI USED<WX9>	1-75508-004-0	01	1	9002-
135	NUT; SEAT STAND M8 FLANGE	8-94279-504-1	02	1	9002-
136	STAND; PASSENGER SEAT	1-75557-391-8	01	1	9002-9306
136	STAND; PASSENGER SEAT PASSENGER SEAT MULTI USED<WX9>	1-75557-391-8	01	1	9307-
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED<WX9>	1-75558-294-4	01	1	9307-
137	BOLT; STAND	1-09980-566-0	02	1	9002-
137	BOLT; STAND PASSENGER SEAT MULTI USED<WX9>	1-09980-566-0	04	1	9002-
138	PROTECTOR; SEAT STAND SERVICED BY L=500	1-79937-746-0	01	1	9002-
139	BOLT; PASSENGER SEAT	1-09980-566-0	02	1	9002-9306
139	BOLT; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED<WX9>	1-09980-566-0	04	1	9002-9306
139	BOLT; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED<WX9>	1-09980-566-0	06	1	9307-9504
139	BOLT; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED<WX9>	1-09980-566-0	02	1	9505-
175	BACK ASM; PASSENGER CENTER SEAT DELUXE CAB(W14) EXC. NEW ZEALAND EQUIPMENT(PK5),PASSENGER SEAT MULTI USED<WX9>	1-75027-086-2	01	1	9002-9306
175	BACK ASM; PASSENGER CENTER SEAT NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED<WX9>	1-75027-196-0	01	1	9002-9306
175	BACK ASM; PASSENGER CENTER SEAT EXC. PASSENGER SEAT MULTI USED<WX9>	1-75027-255-1	01	1	9307-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE CAB(W14) EXC. NEW ZEALAND EQUIPMENT(PK5),PASSENGER SEAT MULTI USED<WX9>	1-75117-558-1	01	1	9002-9306
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE SEAT<PQ8> EXC. DELUXE CAB(W14)	1-75117-653-0	01	1	9002-9306
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. DELUXE SEAT<PQ8>,PASSENGER SEAT MULTI USED<WX9>	1-75117-652-0	01	1	9002-9306
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED<WX9>	1-75117-657-0	01	1	9002-9306
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. PASSENGER SEAT MULTI USED<WX9>	1-75117-715-1	01	1	9307-
178	CUSHION ASM; PASSENGER CENTER SEAT DELUXE CAB(W14) EXC. NEW ZEALAND EQUIPMENT(PK5),PASSENGER SEAT MULTI USED<WX9>	1-75027-085-1	01	1	9002-9306
178	CUSHION ASM; PASSENGER CENTER SEAT NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED<WX9>	1-75027-198-0	01	1	9002-9306
178	CUSHION ASM; PASSENGER CENTER SEAT EXC. PASSENGER SEAT MULTI USED<WX9>	1-75027-254-1	01	1	9307-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE CAB(W14) EXC. NEW ZEALAND EQUIPMENT(PK5),PASSENGER SEAT MULTI USED<WX9>	1-75117-559-0	01	1	9002-9306
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE SEAT<PQ8> EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE CAB(W14)	1-75117-647-0	01	1	9002-9306
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5) DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED<WX9>	1-75117-659-0	01	1	9002-9306
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT<PQ8> EXC. DELUXE CAB(W14)	1-75117-651-0	01	1	9002-9306
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT<PQ8>,PASSENGER SEAT MULTI USED<WX9>	1-75117-650-0	01	1	9002-9306
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT<PQ8>, PASSENGER SEAT MULTI USED<WX9>	1-75117-646-0	01	1	9002-9306
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. PASSENGER SEAT MULTI USED<WX9>	1-75117-714-1	01	1	9307-
183	SEAT ASM; PASSENGER CENTER DELUXE SEAT<PQ8> EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE CAB(W14)	1-75027-137-0	01	1	9002-9306
183	SEAT ASM; PASSENGER CENTER NEW ZEALAND EQUIPMENT(PK5) DELUXE SEAT<PQ8> EXC. DELUXE CAB(W14)	1-75027-138-0	01	1	9002-9306
183	SEAT ASM; PASSENGER CENTER NEW ZEALAND EQUIPMENT(PK5) EXC. DELUXE SEAT<PQ8>,PASSENGER SEAT MULTI USED<WX9>	1-75027-136-0	01	1	9002-9306
183	SEAT ASM; PASSENGER CENTER EXC. NEW ZEALAND EQUIPMENT(PK5),DELUXE SEAT<PQ8>, PASSENGER SEAT MULTI USED<WX9>	1-75027-135-0	01	1	9002-9306
184	NUT; CAP,CENTER SEAT DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED<WX9>	8-94279-505-0	02	1	9002-9306
185	WASHER; LK,CAP NUT DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED<WX9> ID=8.2	9-09150-508-0	02	1	9002-9306
187	COVER; CENTER SEAT DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED<WX9>	1-75417-063-0	01	1	9002-9306
187	COVER; CENTER SEAT DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED<WX9>	1-75417-062-0	01	1	9002-9306
187	COVER; CENTER SEAT EXC. PASSENGER SEAT MULTI USED<WX9>	1-75417-063-0	01	1	9307-
187	COVER; CENTER SEAT EXC. PASSENGER SEAT MULTI USED<WX9>	1-75417-062-0	01	1	9307-
188	BOLT; BACK TO CUSHION DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED<WX9>	1-09980-577-0	02	1	9002-9306
188	BOLT; BACK TO CUSHION EXC. PASSENGER SEAT MULTI USED<WX9>	1-09980-577-0	02	1	9307-
367	BOOT; HD REST	8-94412-828-0	04	1	9002-
433	WASHER; BRKT TO CENTER SEAT EXC. PASSENGER SEAT MULTI USED<WX9> ID=8.2	9-09150-508-0	02	1	9307-
434	NUT; BRKT EXC. PASSENGER SEAT MULTI USED<WX9>	8-94279-505-0	02	1	9307-

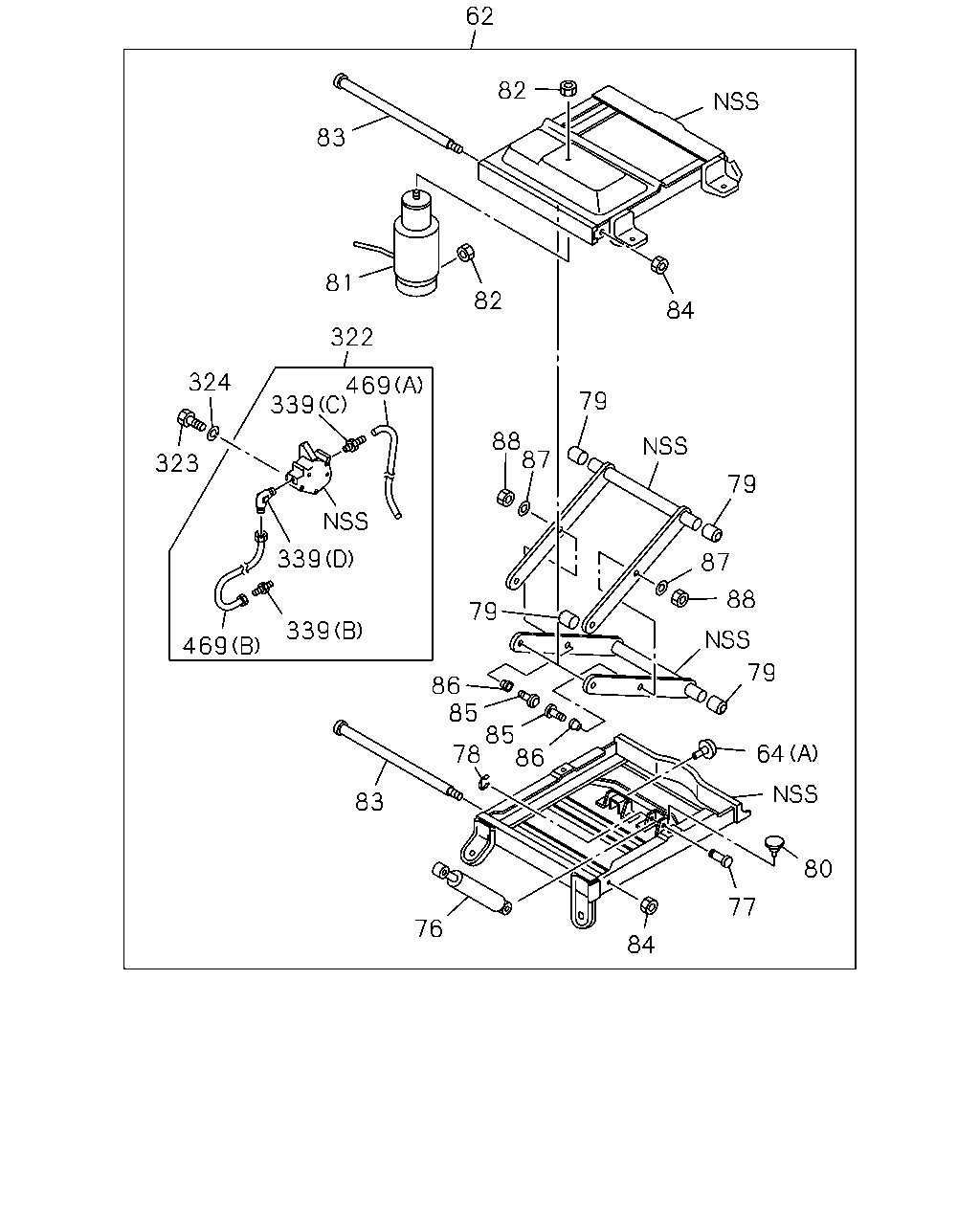

62 82 83 81 82 84 322 324 469 339 79 88 87 323 79 339 87 88 79 339 469 79 86 85 85 78 86 64 83 80 77 76 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP DRIVER SEAT AIR SUSP W/ARM REST(SGP)	1-75537-226-1	01	1	9307-
62	DAMPER ASM; SEAT SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-212-1	01	1	9002-
64	STOPPER; LWR,SUSPENSION DEVICE DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A)	1-09987-123-0	02	1	9002-
64	STOPPER; LWR,SUSPENSION DEVICE DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)	1-75537-194-0	01	1	9002-
76	DAMPER; AIR SUSP DRIVER SEAT AIR SUSP W/ARM REST(SGP)	1-75537-205-0	01	1	9307-
76	DAMPER; AIR SUSP SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-197-0	01	1	9002-
77	PIN; DAMPER DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-08201-035-0	02	1	9002-
78	RING; SNAP DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=8	9-09185-008-0	02	1	9002-
79	ROLLER ASM; AIR SUSP DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-119-0	04	1	9002-
80	RUBBER; STOPPER DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	9-61468-039-0	02	1	9002-
81	SPRING; AIR DRIVER SEAT AIR SUSP W/ARM REST(SGP)	1-75538-117-0	01	1	9307-
81	SPRING; AIR SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75537-192-0	01	1	9002-
82	NUT; AIR SUSP DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-09984-096-0	02	1	9002-
83	PIN; LOW & UPR DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-016-0	02	1	9002-
84	NUT; AIR SUSP DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75530-014-0	02	1	9002-
85	BOLT; AIR SUSP DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75538-118-0	02	1	9002-
86	BUSHING; GUIDE DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-75148-153-0	02	1	9002-
87	WASHER; AIR SUSP DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=10.5 OD=26	9-09160-710-0	02	1	9002-
88	NUT; AIR SUSP DRIVER SEAT AIR SUSP W/ARM REST(SGP),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M10	8-94279-519-0	02	1	9002-
322	VALVE; AIR SPRING DRIVER SEAT AIR SUSP W/ARM REST(SGP)	1-75537-218-0	01	1	9307-
323	SCREW; VALVE DRIVER SEAT AIR SUSP W/ARM REST(SGP) M6X35	9-03490-635-0	02	1	9307-
324	WASHER; LK,VALVE DRIVER SEAT AIR SUSP W/ARM REST(SGP) ID=6.1	9-09150-506-0	02	1	9307-
339	UNION; DRIVER SEAT DRIVER SEAT AIR SUSP W/ARM REST(SGP) (A)	1-09664-219-0	01	1	9307-
339	UNION; DRIVER SEAT DRIVER SEAT AIR SUSP W/ARM REST(SGP) (B)	1-75537-221-0	01	1	9307-
339	UNION; DRIVER SEAT DRIVER SEAT AIR SUSP W/ARM REST(SGP) (C)	1-75537-222-0	01	1	9307-
339	UNION; DRIVER SEAT DRIVER SEAT AIR SUSP W/ARM REST(SGP) (D)	1-75537-224-0	01	1	9307-
469	HOSE; AIR DRIVER SEAT AIR SUSP W/ARM REST(SGP) (A)	1-75537-223-0	01	1	9307-
469	HOSE; AIR DRIVER SEAT AIR SUSP W/ARM REST(SGP) (B)	1-75537-225-0	01	1	9307-

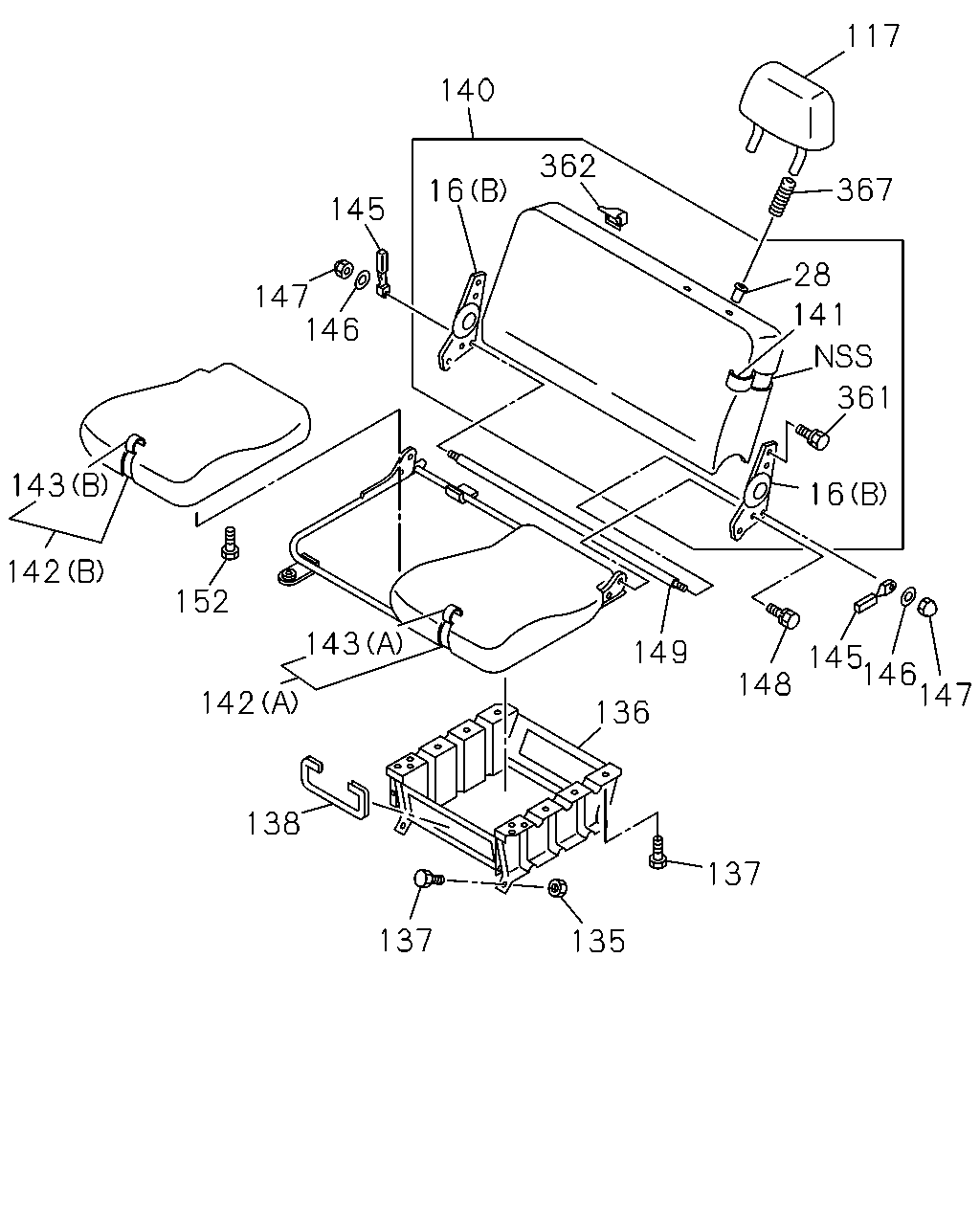

117 140 362 367 16 145 28 147 146 141 361 143 16 142 152 143 149 145 146 147 148 142 136 138 137 137 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING (A) DRIVER	1-75418-014-2	01	1	9002-
16	ADJUSTER ASM; RECLINING (B) MULTI	1-75417-042-4	01	1	9002-
16	ADJUSTER ASM; RECLINING (B) MULTI	1-75417-064-0	01	1	9002-
28	HOLDER; GUIDE,HD REST W/LOCK LIGHT BLUE	8-94477-444-0	02	1	9002-9306
28	HOLDER; GUIDE,HD REST WO/LOCK LIGHT BLUE	8-94477-441-0	02	1	9002-9306
28	HOLDER; GUIDE,HD REST GRAY	8-94477-446-0	02	1	9307-
28	HOLDER; GUIDE,HD REST WO/LOCK GRAY	8-94477-443-0	02	1	9307-
117	REST; HD	1-75657-017-0	01	1	9002-9306
117	REST; HD	1-75657-023-0	01	1	9307-
135	NUT; SEAT STAND M8 FLANGE	8-94279-504-1	02	1	9002-
136	STAND; PASSENGER SEAT	1-75557-391-8	01	1	9002-9306
136	STAND; PASSENGER SEAT PASSENGER SEAT MULTI USED<WX9>	1-75557-391-8	01	1	9307-
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT MULTI USED<WX9>	1-75558-294-4	01	1	9307-
137	BOLT; STAND	1-09980-566-0	02	1	9002-
137	BOLT; STAND PASSENGER SEAT MULTI USED<WX9>	1-09980-566-0	04	1	9002-
138	PROTECTOR; SEAT STAND SERVICED BY L=500	1-79937-746-0	01	1	9002-
140	SEAT ASM; BACK,BENCH SEAT PASSENGER SEAT MULTI USED<WX9>	1-75027-194-0	01	1	9002-9306
140	SEAT ASM; BACK,BENCH SEAT PASSENGER SEAT MULTI USED<WX9>	1-75028-436-1	01	1	9307-
141	COVER; TRIM,BENCH SEAT,BACK PASSENGER SEAT MULTI USED<WX9>	1-75117-669-0	01	1	9002-9306
141	COVER; TRIM,BENCH SEAT,BACK PASSENGER SEAT MULTI USED<WX9>	1-75117-700-1	01	1	9307-
142	CUSHION ASM; SIDE,BENCH SEAT (A)	1-75027-250-0	01	1	9307-
142	CUSHION ASM; SIDE,BENCH SEAT NEW ZEALAND EQUIPMENT(PK5) PASSENGER SEAT MULTI USED<WX9> (A)	1-75027-193-1	01	1	9002-9306
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED<WX9> (B)	1-75027-084-0	01	1	9002-9002
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED<WX9> (B)	1-75027-204-0	01	1	9003-9306
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED<WX9> (B)	1-75027-251-0	01	1	9307-
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED<WX9> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-75027-082-0	01	1	9002-9002
142	CUSHION ASM; SIDE,BENCH SEAT PASSENGER SEAT MULTI USED<WX9> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-75027-203-1	01	1	9003-9306
143	COVER; TRIM,BENCH SEAT,CUSHION (B)	1-75117-594-0	01	1	9002-9002
143	COVER; TRIM,BENCH SEAT,CUSHION (B)	1-75117-675-0	01	1	9003-9306
143	COVER; TRIM,BENCH SEAT,CUSHION (A)	1-75117-710-0	01	1	9307-
143	COVER; TRIM,BENCH SEAT,CUSHION (B)	1-75117-711-0	01	1	9307-
143	COVER; TRIM,BENCH SEAT,CUSHION NEW ZEALAND EQUIPMENT(PK5) PASSENGER SEAT MULTI USED<WX9> (A)	1-75117-656-1	01	1	9002-9306
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED<WX9> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-75117-591-0	01	1	9002-9002
143	COVER; TRIM,BENCH SEAT,CUSHION PASSENGER SEAT MULTI USED<WX9> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-75117-670-1	01	1	9003-9306
145	LEVER; SHAFT PASSENGER SEAT MULTI USED<WX9>	1-75418-024-0	01	1	9002-
145	LEVER; SHAFT PASSENGER SEAT MULTI USED<WX9>	1-75418-030-0	01	1	9002-
146	WASHER; LK,SHAFT PASSENGER SEAT MULTI USED<WX9>	5-09985-015-0	02	1	9002-
147	NUT; CAP,SHAFT PASSENGER SEAT MULTI USED<WX9>	1-09984-031-0	02	1	9002-
148	BOLT; LEVER PASSENGER SEAT MULTI USED<WX9> M10X16 FLANGE	1-75198-053-0	04	1	9002-
149	SHAFT; CUSHION TO BACK PASSENGER SEAT MULTI USED<WX9>	1-75418-025-0	01	1	9002-
152	BOLT; BENCH SEAT PASSENGER SEAT MULTI USED<WX9>	1-09980-566-0	01	1	9307-
361	BOLT; ADJ,RECLINING PASSENGER SEAT MULTI USED<WX9> M10X16 FLANGE	1-75198-053-0	04	1	9002-
362	CAP; HD REST PASSENGER SEAT MULTI USED<WX9>	1-75658-036-1	01	1	9002-
367	BOOT; HD REST	8-94412-828-0	04	1	9002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
