◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10929 - CXZ RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#25475) — 177 parça

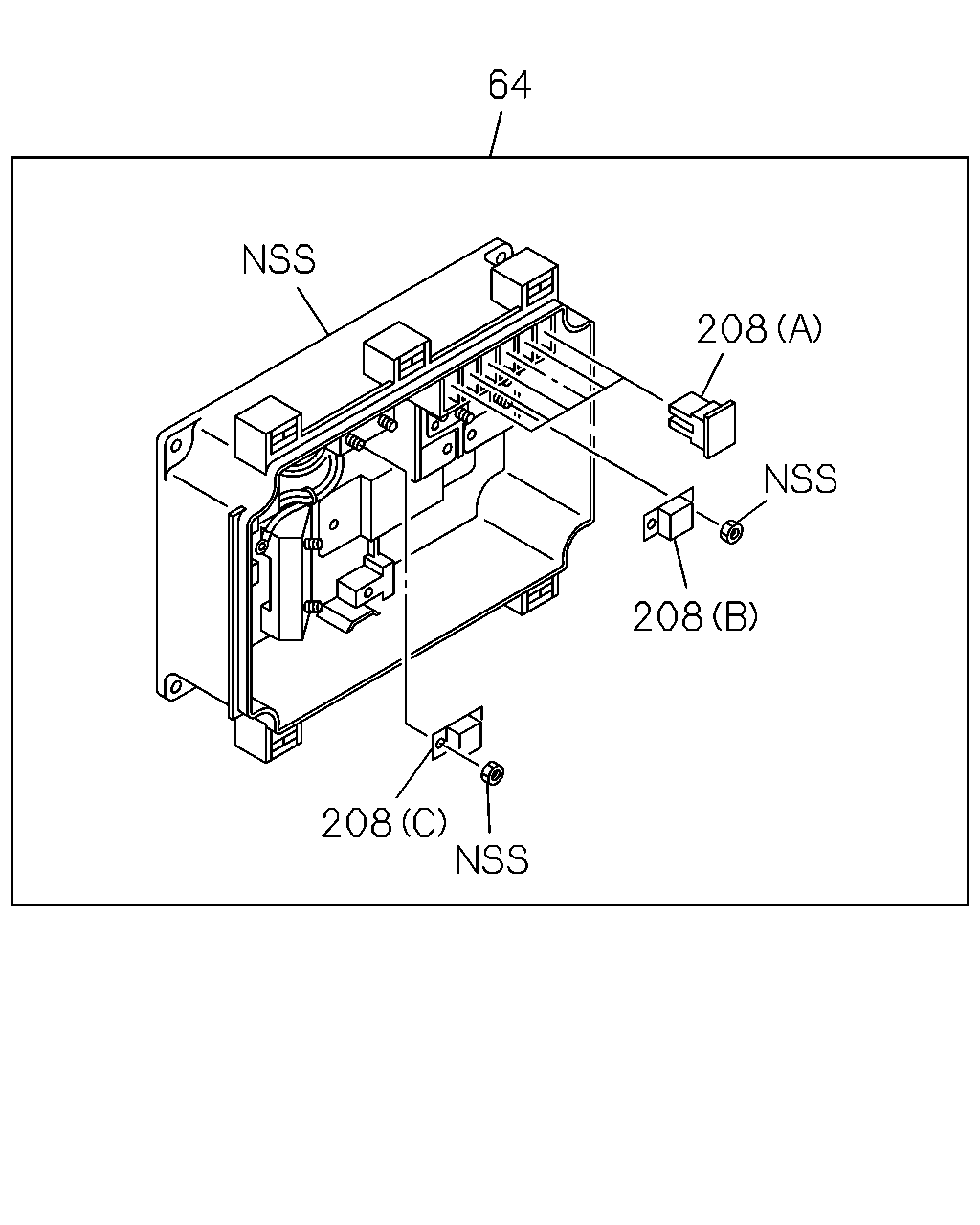

çizim 23739
64 208 208 208
BalonParca AdiParca NoAdetTipApplied Date A B
64 BOX; BATTERY RELAY
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-82510-648-0 01 1 0505- ● ●
64 BOX; BATTERY RELAY 1-82510-506-4 01 1 0308-0504 ● ●
64 BOX; BATTERY RELAY
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-82510-506-4 01 1 0505- ● ●
208 FUSE
(C) 80A 		1-82516-031-0 01 1 0308- ● ●
208 FUSE
(B) 100A 		1-82516-032-0 01 1 0308- ● ●
208 FUSE
(A) 40A GREEN 		8-94468-662-0 05 1 0308- ● ●

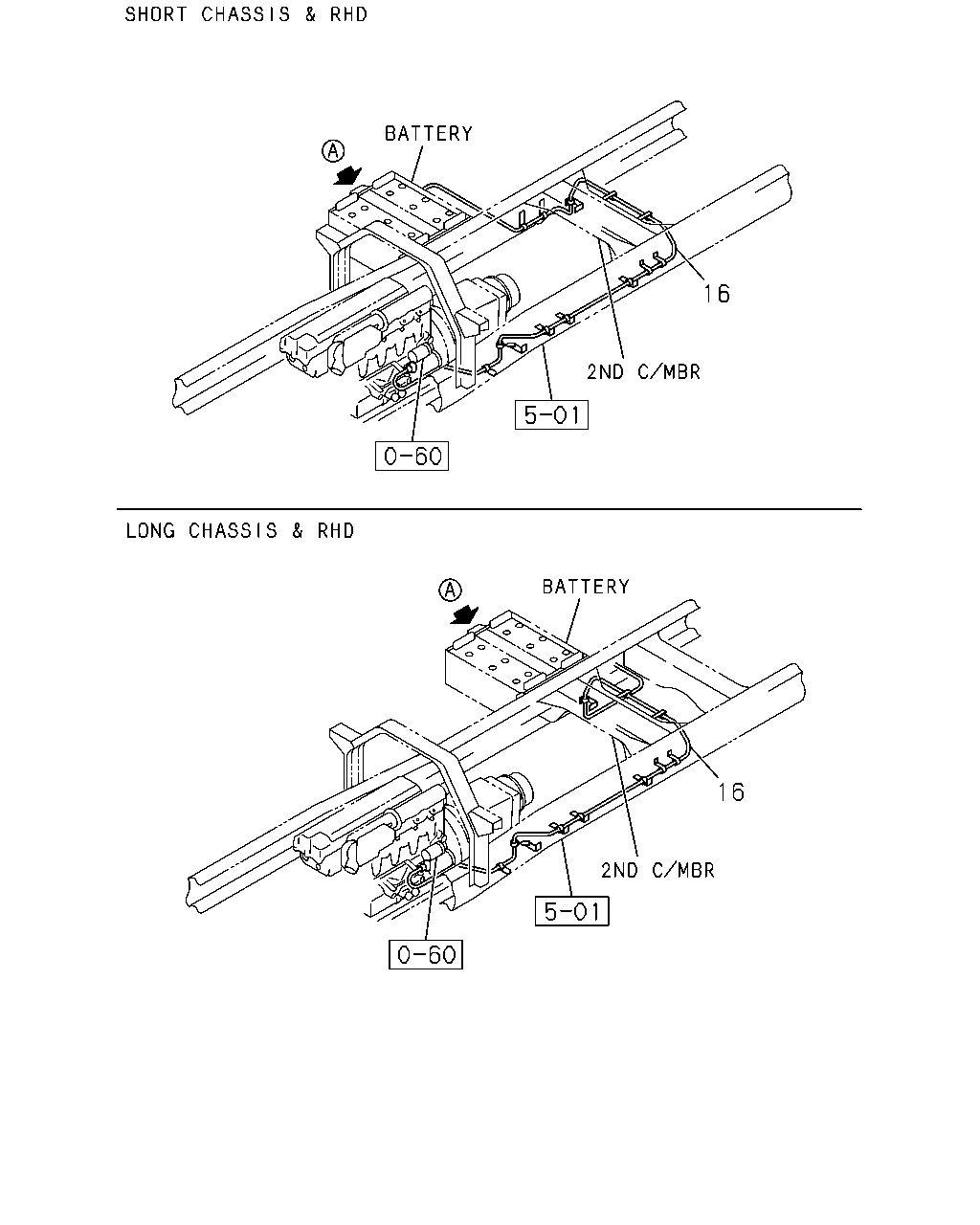

çizim 24659
16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CABLE; STARTER TO RELAY
L=5230 		1-82652-849-1 01 1 0308-0402 ●
16 CABLE; STARTER TO RELAY
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=5740 		1-82652-901-1 01 1 0403- ●
16 CABLE; STARTER TO RELAY
L=5000 		1-82652-850-1 01 1 0308- ●

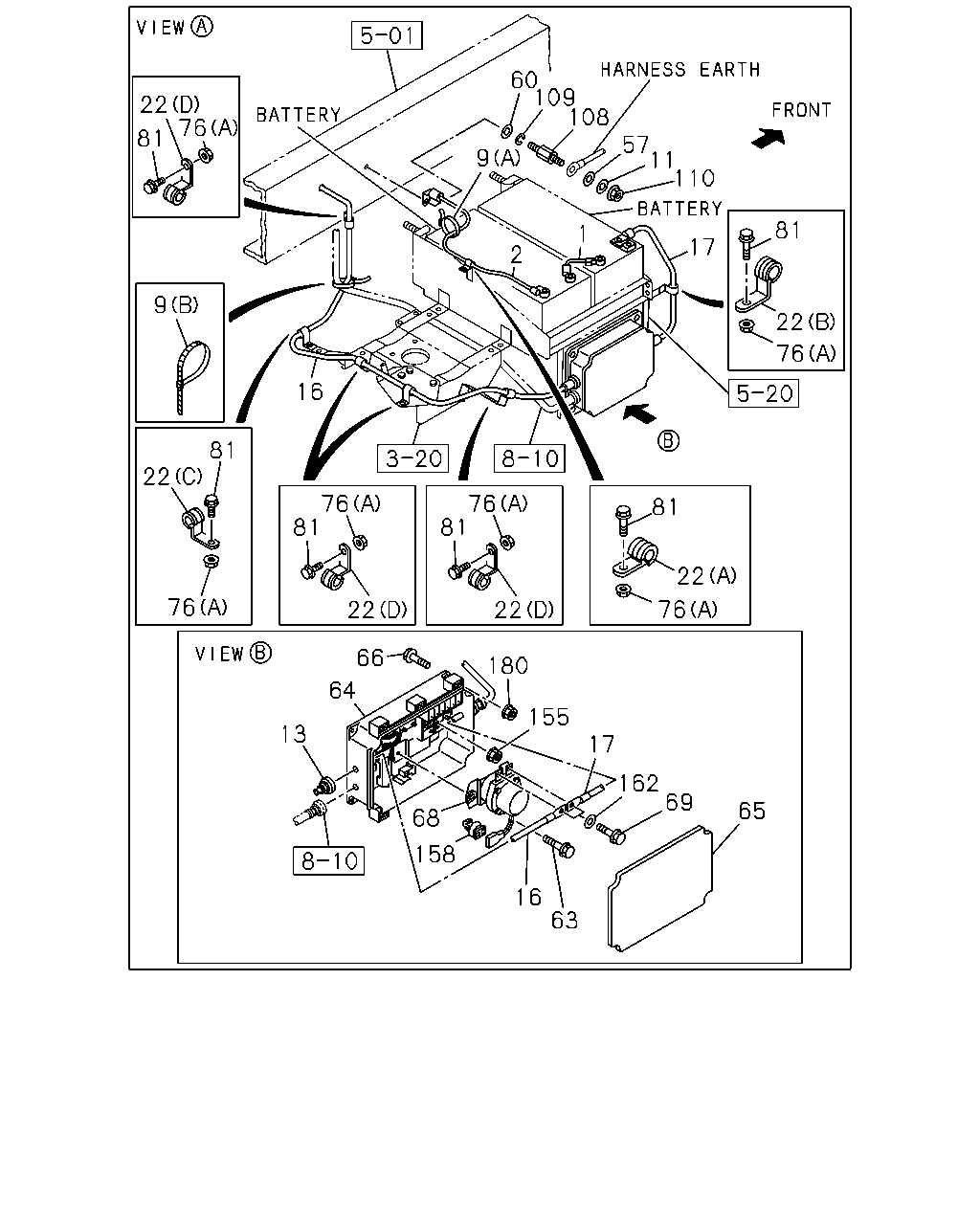

çizim 25299
60 109 108 22 76 81 57 11 110 9 81 1 17 2 9 22 76 16 81 22 76 81 76 81 81 22 76 76 22 22 66 180 64 155 13 17 162 69 65 68 158 16 63
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
BATTERY 115F51 N120<SJ3> L=265 		1-82650-388-1 01 1 0308- ● ●
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8> L=450 		1-82650-389-1 01 1 0308- ● ●
2 CABLE; BATTERY
L=720 		1-82650-384-1 01 1 0308- ●
2 CABLE; BATTERY
L=680 		1-82650-385-1 01 1 0308- ●
9 CLIP; BATTERY CABLE
(B) L=350 		1-09707-183-0 02 1 0308- ● ●
9 CLIP; BATTERY CABLE
(A) L=250 		5-09707-030-1 01 1 0308- ● ●
9 CLIP; BATTERY CABLE
(C) ID=20 L=50 		1-09700-679-1 01 1 0308- ● ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 02 1 0308- ● ●
9 CLIP; BATTERY CABLE
(E) ID=19 L=28 		9-09525-856-0 01 1 0308-0606 ● ●
9 CLIP; BATTERY CABLE
(E) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 0308-0605 ● ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 0606- ● ●
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 0308- ● ●
16 CABLE; STARTER TO RELAY
L=5230 		1-82652-849-1 01 1 0308-0402 ●
16 CABLE; STARTER TO RELAY
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=5740 		1-82652-901-1 01 1 0403- ●
16 CABLE; STARTER TO RELAY
L=5000 		1-82652-850-1 01 1 0308- ●
17 CABLE; BATTERY (+) TO RELAY
L=640 		1-82652-760-3 01 1 0308- ● ●
22 CLIP; BATTERY CABLE
(D) ID=20 H=23 L=27 		1-09700-861-0 06 1 0308-0402 ●
22 CLIP; BATTERY CABLE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) ID=20 H=23 L=27 		1-09700-861-0 07 1 0403-0407 ●
22 CLIP; BATTERY CABLE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) ID=20 H=23 L=27 		1-09700-861-0 08 1 0408- ●
22 CLIP; BATTERY CABLE
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0308- ● ●
22 CLIP; BATTERY CABLE
(A) ID=25 L=50 		1-09701-019-0 01 1 0308- ● ●
22 CLIP; BATTERY CABLE
(D) ID=20 H=23 L=27 		1-09700-861-0 04 1 0308-0407 ●
22 CLIP; BATTERY CABLE
(D) ID=20 H=23 L=27 		1-09700-861-0 05 1 0408- ●
22 CLIP; BATTERY CABLE
(C) ID=18 L=25 H=50 		1-09701-096-0 01 1 0308-0407 ●
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 0308- ● ●
60 WASHER; LK,BATTERY CABLE
ID=6.1 		9-09150-606-0 01 1 0308-0603 ● ●
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 0604- ● ●
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0308-0512 ● ●
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ● ●
64 BOX; BATTERY RELAY
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-82510-648-0 01 1 0505- ● ●
64 BOX; BATTERY RELAY 1-82510-506-4 01 1 0308-0504 ● ●
64 BOX; BATTERY RELAY
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-82510-506-4 01 1 0505- ● ●
65 COVER; BATTERY RELAY
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-82510-654-1 01 1 0505- ● ●
65 COVER; BATTERY RELAY 1-82510-505-2 01 1 0308-0504 ● ●
65 COVER; BATTERY RELAY
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-82510-505-2 01 1 0505- ● ●
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0308-0512 ● ●
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0601- ● ●
68 RELAY; BATTERY 1-82550-313-0 01 1 0308- ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0308-0512 ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0601- ● ●
76 NUT; BATTERY CABLE
(A) M8 FLANGE 		0-91150-108-0 08 1 0308-0402 ●
76 NUT; BATTERY CABLE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8 FLANGE 		0-91150-108-0 08 1 0403-0602 ●
76 NUT; BATTERY CABLE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8 FLANGE 		0-91180-108-0 08 1 0603- ●
76 NUT; BATTERY CABLE
(A) M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ● ●
76 NUT; BATTERY CABLE
(A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
76 NUT; BATTERY CABLE
(B) M10 FLANGE 		0-91150-210-0 02 1 0308-0602 ● ●
76 NUT; BATTERY CABLE
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
76 NUT; BATTERY CABLE
(A) M8 FLANGE 		0-91150-108-0 07 1 0308-0407 ●
76 NUT; BATTERY CABLE
(A) M8 FLANGE 		0-91150-108-0 05 1 0408-0602 ●
76 NUT; BATTERY CABLE
(A) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28680-825-0 08 1 0308-0402 ●
81 BOLT; BATTERY CABLE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE 		0-28680-825-0 09 1 0403-0407 ●
81 BOLT; BATTERY CABLE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE 		0-28680-825-0 10 1 0408-0512 ●
81 BOLT; BATTERY CABLE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE 		0-28650-825-0 10 1 0601- ●
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28680-825-0 07 1 0308-0512 ●
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 07 1 0601- ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 0308- ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 0308-0603 ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 0604- ● ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 0308- ● ●
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ● ●
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 0308- ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 0308-0605 ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 0606- ● ●
180 NUT; COVER
M8 FLANGE 		0-91150-108-0 02 1 0308-0602 ● ●
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
çizim 83054
78 23 23 78 78 78 21 10 26 100 66 63 108 110 12 76 27 101 155 180 57 11 162 60 109 14 69 24 81 15 28 12 76
BalonParca AdiParca NoAdetTipApplied Date A B
10 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28680-820-0 04 1 0308-0512 ● ●
10 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 0308-0605 ● ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 0606- ● ●
12 NUT; BATTERY CABLE CLIP
(B) M10 FLANGE 		0-91150-210-0 01 1 0308-0602 ● ●
12 NUT; BATTERY CABLE CLIP
(B) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
12 NUT; BATTERY CABLE CLIP
(A) M8 FLANGE 		0-91150-108-0 04 1 0308-0602 ● ●
12 NUT; BATTERY CABLE CLIP
(A) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
14 BOLT; BRKT CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE 		0-28080-820-0 04 1 0403-0512 ●
14 BOLT; BRKT CLIP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE 		0-28050-820-0 04 1 0601- ●
14 BOLT; BRKT CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0308-0512 ●
14 BOLT; BRKT CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
15 NUT; BRKT CLIP
M8 FLANGE 		0-91150-108-0 02 1 0408-0602 ●
15 NUT; BRKT CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
15 NUT; BRKT CLIP
M8 FLANGE 		0-91150-108-0 02 1 0308-0402 ●
15 NUT; BRKT CLIP
M8 FLANGE 		0-91150-108-0 02 1 0403-0407 ● ●
15 NUT; BRKT CLIP
M8 FLANGE 		0-91150-108-0 04 1 0408-0602 ●
15 NUT; BRKT CLIP
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
21 BOLT; CLIP CABLE
M8X16 FLANGE 		0-28080-816-0 02 1 0308-0512 ● ●
21 BOLT; CLIP CABLE
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=112 		1-47475-694-1 01 1 0308- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) L=95 		1-82699-085-0 03 1 0308- ● ●
24 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28680-825-0 04 1 0308-0512 ● ●
24 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0308-0407 ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0308-0407 ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 04 1 0308-0407 ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 01 1 0308-0407 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 04 1 0308-0602 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 0308- ● ●
60 WASHER; LK,BATTERY CABLE
ID=6.1 		9-09150-606-0 01 1 0308-0603 ● ●
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 0604- ● ●
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0308-0512 ● ●
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ● ●
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0308-0512 ● ●
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0601- ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0308-0512 ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0601- ● ●
76 NUT; BATTERY CABLE
(A) M8 FLANGE 		0-91150-108-0 08 1 0308-0402 ●
76 NUT; BATTERY CABLE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8 FLANGE 		0-91150-108-0 08 1 0403-0602 ●
76 NUT; BATTERY CABLE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8 FLANGE 		0-91180-108-0 08 1 0603- ●
76 NUT; BATTERY CABLE
(A) M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ● ●
76 NUT; BATTERY CABLE
(A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
76 NUT; BATTERY CABLE
(B) M10 FLANGE 		0-91150-210-0 02 1 0308-0602 ● ●
76 NUT; BATTERY CABLE
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
76 NUT; BATTERY CABLE
(A) M8 FLANGE 		0-91150-108-0 07 1 0308-0407 ●
76 NUT; BATTERY CABLE
(A) M8 FLANGE 		0-91150-108-0 05 1 0408-0602 ●
76 NUT; BATTERY CABLE
(A) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
78 BRACKET; CLIP BATTERY
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) H=27 		1-33659-142-0 01 1 0403-0404 ●
78 BRACKET; CLIP BATTERY
(C) H=27 		1-33659-142-0 01 1 0405- ●
78 BRACKET; CLIP BATTERY
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) H=57 		1-33659-243-0 01 1 0403-0404 ●
78 BRACKET; CLIP BATTERY
(C) H=57 		1-33659-243-0 01 1 0405- ●
78 BRACKET; CLIP BATTERY
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=117 		1-47478-116-0 02 1 0403-0404 ●
78 BRACKET; CLIP BATTERY
(D) L=117 		1-47478-116-0 02 1 0405- ●
78 BRACKET; CLIP BATTERY
(A) L=90 B=25 		1-47476-630-0 01 1 0308- ●
78 BRACKET; CLIP BATTERY
(B) 		8-97304-944-0 01 1 0308- ●
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28680-825-0 08 1 0308-0402 ●
81 BOLT; BATTERY CABLE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE 		0-28680-825-0 09 1 0403-0407 ●
81 BOLT; BATTERY CABLE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE 		0-28680-825-0 10 1 0408-0512 ●
81 BOLT; BATTERY CABLE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE 		0-28650-825-0 10 1 0601- ●
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28680-825-0 07 1 0308-0512 ●
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 07 1 0601- ●
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28680-825-0 04 1 0308-0512 ● ●
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 05 1 0308-0602 ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 0308- ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 0308-0603 ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 0604- ● ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 0308- ● ●
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ● ●
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 0308-0605 ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 0606- ● ●
180 NUT; COVER
M8 FLANGE 		0-91150-108-0 02 1 0308-0602 ● ●
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
çizim 83716
22 9 9 22 99 18 9 18 9 9 158 25 99 22 25 22 99
BalonParca AdiParca NoAdetTipApplied Date A B
9 CLIP; BATTERY CABLE
(B) L=350 		1-09707-183-0 02 1 0308- ● ●
9 CLIP; BATTERY CABLE
(A) L=250 		5-09707-030-1 01 1 0308- ● ●
9 CLIP; BATTERY CABLE
(C) ID=20 L=50 		1-09700-679-1 01 1 0308- ● ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 02 1 0308- ● ●
9 CLIP; BATTERY CABLE
(E) ID=19 L=28 		9-09525-856-0 01 1 0308-0606 ● ●
9 CLIP; BATTERY CABLE
(E) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ●
18 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 0308- ● ●
18 CLIP; BATTERY CABLE
(B) ID=18 L=54 		1-09701-106-0 01 1 0308- ● ●
22 CLIP; BATTERY CABLE
(D) ID=20 H=23 L=27 		1-09700-861-0 06 1 0308-0402 ●
22 CLIP; BATTERY CABLE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) ID=20 H=23 L=27 		1-09700-861-0 07 1 0403-0407 ●
22 CLIP; BATTERY CABLE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) ID=20 H=23 L=27 		1-09700-861-0 08 1 0408- ●
22 CLIP; BATTERY CABLE
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0308- ● ●
22 CLIP; BATTERY CABLE
(A) ID=25 L=50 		1-09701-019-0 01 1 0308- ● ●
22 CLIP; BATTERY CABLE
(D) ID=20 H=23 L=27 		1-09700-861-0 04 1 0308-0407 ●
22 CLIP; BATTERY CABLE
(D) ID=20 H=23 L=27 		1-09700-861-0 05 1 0408- ●
22 CLIP; BATTERY CABLE
(C) ID=18 L=25 H=50 		1-09701-096-0 01 1 0308-0407 ●
25 CLIP; BATTERY CABLE TO BRKT
(B) ID=19 L=50 		9-09525-886-0 03 1 0308-0407 ●
25 CLIP; BATTERY CABLE TO BRKT
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 0308-0407 ● ●
99 CLIP; BATTERY CABLE
(C) ID=18 L=25 H=50 		1-09701-096-0 02 1 0308- ● ●
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 02 1 0308- ● ●
99 CLIP; BATTERY CABLE
(B) ID=19 L=50 		9-09525-886-0 01 1 0308-0606 ● ●
99 CLIP; BATTERY CABLE
(B) ID=19 L=50 		0-95235-886-0 01 1 0607- ● ●
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 0308- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
