0-50 — OIL COOLER AND OIL FILTER
(#25470) — 142 parça
◀

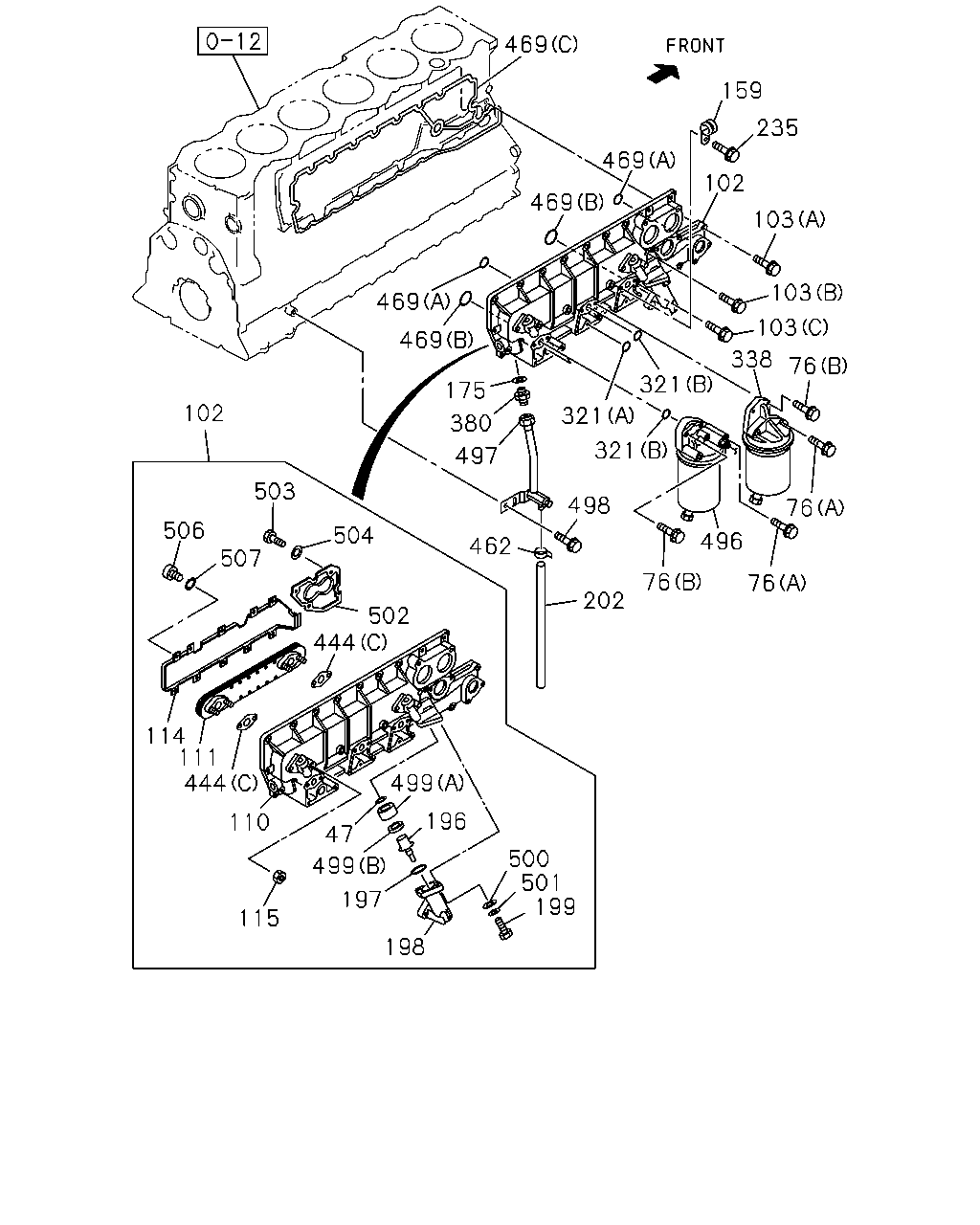

[050A] -'05/1 OIL COOLER ASM AND OTHER PARTS (54 parça)

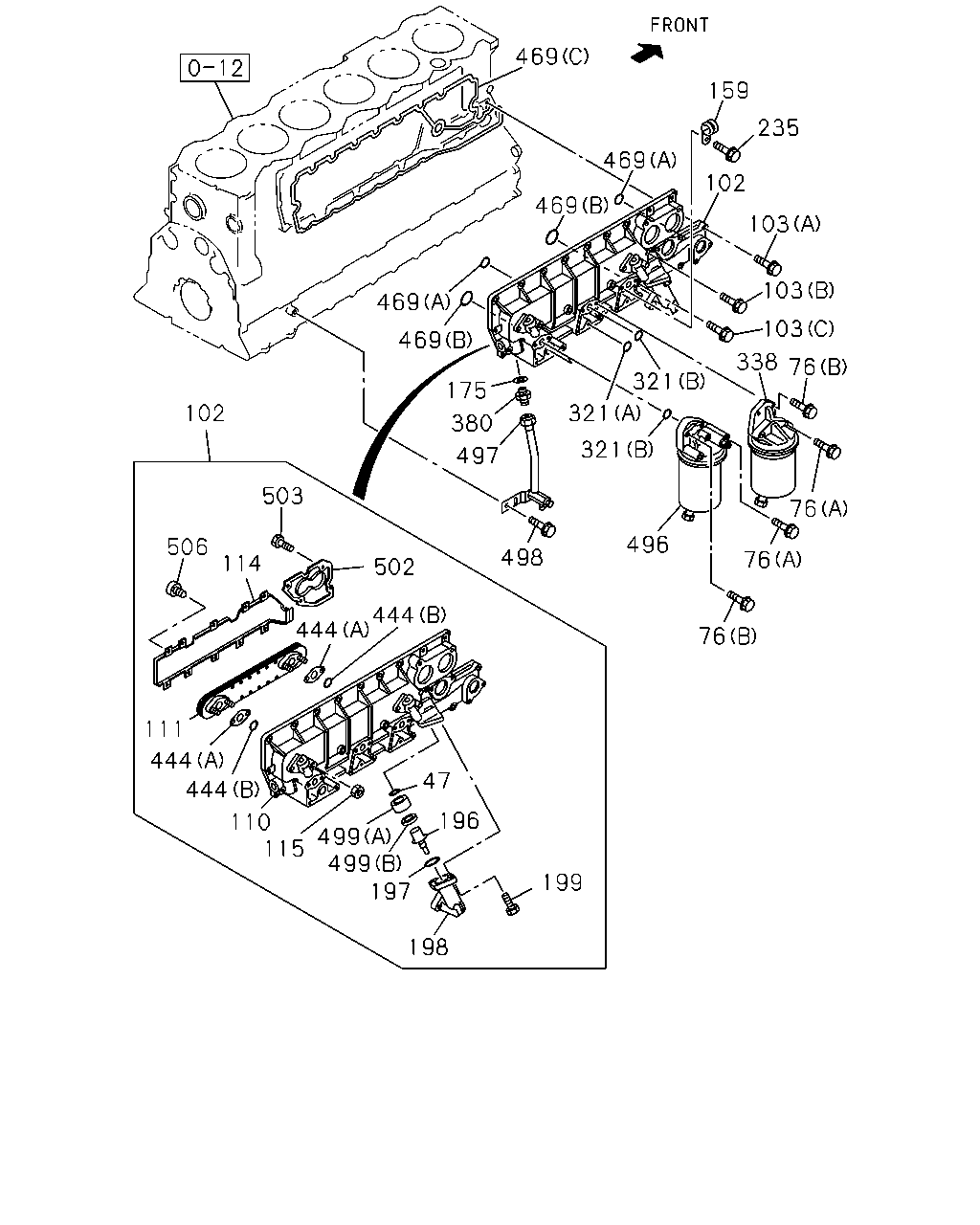

[050A] '05/2- OIL COOLER ASM AND OTHER PARTS (48 parça)
[050A] PARTIAL FILTER (20 parça)
[050A] MAIN FILTER (20 parça)
▶
469
159
235
469
102
469
103
103
469
103
469
338
76
321
175
102
321
380
321
497
503
498
76
506
504
496
462
507
76
76
202
502
444
114
111
444
499
196
110
47
500
501
199
499
197
115
198
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
RING; SEAL,THERMO VLV
1-21779-001-0
01
1
0308-
76
BOLT; OIL FILTER
(A) M10X100 FLANGE
0-28181-000-0
04
1
0308-0512
76
BOLT; OIL FILTER
(A) M10X100 FLANGE
0-28151-000-0
04
1
0601-
76
BOLT; OIL FILTER
(B) M10X50 FLANGE
0-28181-050-0
04
1
0308-0512
76
BOLT; OIL FILTER
(B) M10X50 FLANGE
0-28151-050-0
04
1
0601-
102
COOLER ASM; OIL
1-21700-320-2
01
1
0308-0501
102
COOLER ASM; OIL
8-97604-716-1
01
1
0502-
103
BOLT; OIL COOLER
(A) M10X30 FLANGE
0-28181-030-0
17
1
0308-0512
103
BOLT; OIL COOLER
(A) M10X30 FLANGE
0-28151-030-0
17
1
0601-
103
BOLT; OIL COOLER
(C) M10X110 FLANGE
0-28186-011-0
01
1
0308-0512
103
BOLT; OIL COOLER
(C) M10X110 FLANGE
0-28156-011-0
01
1
0601-
103
BOLT; OIL COOLER
(B) M10X65 FLANGE
8-94344-540-1
08
1
0308-
110
BODY; CASE,OIL COOLER
1-21721-091-3
01
1
0308-
111
CORE; OIL COOLER
1-21723-053-1
01
1
0308-0501
111
CORE; OIL COOLER
8-97606-643-0
01
1
0502-
114
PLATE; BAFFLE,OIL COOLER
1-21729-086-1
01
1
0308-
115
NUT; ELEMENT
M10 FLANGE
0-91150-110-0
04
1
0308-0501
115
NUT; ELEMENT
M10 FLANGE
0-91180-110-0
04
1
0502-
159
CLIP; CABLE HARNESS,OIL COOLER
L=20 H=31
1-09700-770-0
01
1
0308-
175
GASKET; DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4
1-09630-087-0
01
1
0308-
196
THERMOSTAT; OIL COOLER
1-21770-004-0
01
1
0308-
197
GASKET; THERMOSTAT
1-09623-419-0
01
1
0308-
198
JOINT; THERMOSTAT
1-21726-053-2
01
1
0308-
199
BOLT; JOINT,THERMOSTAT
M10X35
0-20801-035-0
02
1
0308-0501
199
BOLT; JOINT,THERMOSTAT
M10X35 W/LK&PL WASHER
0-50641-035-0
02
1
0502-
202
HOSE; WATER,WATER DRAIN
L=310 SERVICED BY L=3000
0-03559-300-0
01
1
0308-0401
235
BOLT; CLIP TO OIL COOLER
M10X20 FLANGE
0-28181-020-0
01
1
0308-0512
235
BOLT; CLIP TO OIL COOLER
M10X20 FLANGE
0-28151-020-0
01
1
0601-
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8
1-09623-478-0
01
1
0308-
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2
1-09623-479-0
03
1
0308-
338
FILTER ASM; OIL PARTIAL
1-13200-990-1
01
1
0308-
380
CONNECTOR; WATER
1-09660-011-1
01
1
0308-
444
GASKET; ELEMENT TO BODY
(A)
8-97606-641-0
02
1
0502-
444
GASKET; ELEMENT TO BODY
(C)
1-21729-093-1
02
1
0308-0501
444
GASKET; ELEMENT TO BODY
(B)
8-97606-640-0
02
1
0502-
462
CLIP; HOSE,DRAIN
ID=14
5-09707-004-1
01
1
0308-0401
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8
1-09623-478-0
02
1
0308-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2
1-09623-479-0
02
1
0308-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C)
1-11219-205-0
01
1
0308-
496
FILTER ASM; OIL
1-13200-989-4
01
1
0308-
497
PIPE; WATER DRAIN
W/COCK
1-13721-496-3
01
1
0308-
498
BOLT; WATER PIPE
M10X20 FLANGE
0-28181-020-0
01
1
0308-0512
498
BOLT; WATER PIPE
M10X20 FLANGE
0-28151-020-0
01
1
0601-
499
SUPPORT; THERMOSTAT
(A)
1-21729-085-4
01
1
0308-
499
SUPPORT; THERMOSTAT
(B)
1-21729-094-1
01
1
0308-
500
WASHER; PL,JOINT
ID=10.5 OD=22
9-09160-610-0
02
1
0308-0501
501
WASHER; LK,JOINT
ID=10.2
9-09150-510-0
02
1
0308-0501
502
COVER; THERMOSTAT
1-21722-040-0
01
1
0308-
503
BOLT; COVER
1-21729-089-0
04
1
0308-0501
503
BOLT; COVER
8-98014-763-0
04
1
0502-
504
WASHER; PL,COVER
1-21729-090-0
04
1
0308-0501
506
SCREW; BAFFLE
M6X10
9-03486-608-0
10
1
0308-0501
506
SCREW; BAFFLE
1-09030-036-0
10
1
0502-
507
WASHER; LK,BAFFLE
1-21729-092-0
10
1
0308-0501
469
159
235
469
102
469
103
103
469
103
469
338
76
321
175
102
321
380
321
497
503
76
496
506
498
76
114
502
444
444
76
111
444
444
47
196
110
115
499
499
197
199
198
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
RING; SEAL,THERMO VLV
1-21779-001-0
01
1
0308-
76
BOLT; OIL FILTER
(A) M10X100 FLANGE
0-28181-000-0
04
1
0308-0512
76
BOLT; OIL FILTER
(A) M10X100 FLANGE
0-28151-000-0
04
1
0601-
76
BOLT; OIL FILTER
(B) M10X50 FLANGE
0-28181-050-0
04
1
0308-0512
76
BOLT; OIL FILTER
(B) M10X50 FLANGE
0-28151-050-0
04
1
0601-
102
COOLER ASM; OIL
1-21700-320-2
01
1
0308-0501
102
COOLER ASM; OIL
8-97604-716-1
01
1
0502-
103
BOLT; OIL COOLER
(A) M10X30 FLANGE
0-28181-030-0
17
1
0308-0512
103
BOLT; OIL COOLER
(A) M10X30 FLANGE
0-28151-030-0
17
1
0601-
103
BOLT; OIL COOLER
(C) M10X110 FLANGE
0-28186-011-0
01
1
0308-0512
103
BOLT; OIL COOLER
(C) M10X110 FLANGE
0-28156-011-0
01
1
0601-
103
BOLT; OIL COOLER
(B) M10X65 FLANGE
8-94344-540-1
08
1
0308-
110
BODY; CASE,OIL COOLER
1-21721-091-3
01
1
0308-
111
CORE; OIL COOLER
1-21723-053-1
01
1
0308-0501
111
CORE; OIL COOLER
8-97606-643-0
01
1
0502-
114
PLATE; BAFFLE,OIL COOLER
1-21729-086-1
01
1
0308-
115
NUT; ELEMENT
M10 FLANGE
0-91150-110-0
04
1
0308-0501
115
NUT; ELEMENT
M10 FLANGE
0-91180-110-0
04
1
0502-
159
CLIP; CABLE HARNESS,OIL COOLER
L=20 H=31
1-09700-770-0
01
1
0308-
175
GASKET; DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4
1-09630-087-0
01
1
0308-
196
THERMOSTAT; OIL COOLER
1-21770-004-0
01
1
0308-
197
GASKET; THERMOSTAT
1-09623-419-0
01
1
0308-
198
JOINT; THERMOSTAT
1-21726-053-2
01
1
0308-
199
BOLT; JOINT,THERMOSTAT
M10X35
0-20801-035-0
02
1
0308-0501
199
BOLT; JOINT,THERMOSTAT
M10X35 W/LK&PL WASHER
0-50641-035-0
02
1
0502-
235
BOLT; CLIP TO OIL COOLER
M10X20 FLANGE
0-28181-020-0
01
1
0308-0512
235
BOLT; CLIP TO OIL COOLER
M10X20 FLANGE
0-28151-020-0
01
1
0601-
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8
1-09623-478-0
01
1
0308-
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2
1-09623-479-0
03
1
0308-
338
FILTER ASM; OIL PARTIAL
1-13200-990-1
01
1
0308-
380
CONNECTOR; WATER
1-09660-011-1
01
1
0308-
444
GASKET; ELEMENT TO BODY
(A)
8-97606-641-0
02
1
0502-
444
GASKET; ELEMENT TO BODY
(C)
1-21729-093-1
02
1
0308-0501
444
GASKET; ELEMENT TO BODY
(B)
8-97606-640-0
02
1
0502-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8
1-09623-478-0
02
1
0308-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2
1-09623-479-0
02
1
0308-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C)
1-11219-205-0
01
1
0308-
496
FILTER ASM; OIL
1-13200-989-4
01
1
0308-
497
PIPE; WATER DRAIN
W/COCK
1-13721-496-3
01
1
0308-
498
BOLT; WATER PIPE
M10X20 FLANGE
0-28181-020-0
01
1
0308-0512
498
BOLT; WATER PIPE
M10X20 FLANGE
0-28151-020-0
01
1
0601-
499
SUPPORT; THERMOSTAT
(A)
1-21729-085-4
01
1
0308-
499
SUPPORT; THERMOSTAT
(B)
1-21729-094-1
01
1
0308-
502
COVER; THERMOSTAT
1-21722-040-0
01
1
0308-
503
BOLT; COVER
1-21729-089-0
04
1
0308-0501
503
BOLT; COVER
8-98014-763-0
04
1
0502-
506
SCREW; BAFFLE
M6X10
9-03486-608-0
10
1
0308-0501
506
SCREW; BAFFLE
1-09030-036-0
10
1
0502-
338
390
2
282
282
269
292
280
287
132
287
284
290
290
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
ELEMENT; OIL FILTER
(A) MAIN
1-13240-233-0
01
1
0308-
2
ELEMENT; OIL FILTER
(B) PARTIAL
1-13240-234-0
01
1
0308-0402
2
ELEMENT; OIL FILTER
(B) PARTIAL
1-13240-241-0
01
1
0403-
132
PLUG; PARTIAL OIL FILTER
1-13219-347-0
01
1
0308-
269
WASHER; ELEMENT,OIL FILTER
1-13234-007-0
01
1
0308-
280
CASE ASM; OIL FILTER
(A)
1-13211-282-0
01
1
0308-
280
CASE ASM; OIL FILTER
(B)
1-13211-283-0
01
1
0308-
282
GASKET; BODY TO CASE
(A)
1-09623-643-0
01
1
0308-
282
GASKET; BODY TO CASE
(B)
1-09623-644-0
01
1
0308-
284
BOLT; CENTER,OIL FILTER
(A)
1-13219-348-0
01
1
0308-
284
BOLT; CENTER,OIL FILTER
(B)
1-13219-349-0
01
1
0308-
287
GASKET; CENTER BOLT
(A)
1-09623-647-0
01
1
0308-
287
GASKET; CENTER BOLT
(B)
1-09623-648-0
01
1
0308-
290
GASKET; PLUG,OIL DRAIN
(A)
1-09623-645-0
01
1
0308-
290
GASKET; PLUG,OIL DRAIN
(B)
1-09623-646-0
01
1
0308-
292
SPRING; ELEMENT
(A)
1-09580-562-0
01
1
0308-
292
SPRING; ELEMENT
(B)
1-09580-563-0
01
1
0308-
338
FILTER ASM; OIL PARTIAL
1-13200-990-1
01
1
0308-
390
BODY; OIL FILTER,PARTIAL
(A)
1-13211-284-2
01
1
0308-
390
BODY; OIL FILTER,PARTIAL
(B)
1-13211-285-0
01
1
0308-
496
2
390
509
282
282
508
292
290
287
290
287
288
284
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
ELEMENT; OIL FILTER
(A) MAIN
1-13240-233-0
01
1
0308-
2
ELEMENT; OIL FILTER
(B) PARTIAL
1-13240-234-0
01
1
0308-0402
2
ELEMENT; OIL FILTER
(B) PARTIAL
1-13240-241-0
01
1
0403-
282
GASKET; BODY TO CASE
(A)
1-09623-643-0
01
1
0308-
282
GASKET; BODY TO CASE
(B)
1-09623-644-0
01
1
0308-
284
BOLT; CENTER,OIL FILTER
(A)
1-13219-348-0
01
1
0308-
284
BOLT; CENTER,OIL FILTER
(B)
1-13219-349-0
01
1
0308-
287
GASKET; CENTER BOLT
(A)
1-09623-647-0
01
1
0308-
287
GASKET; CENTER BOLT
(B)
1-09623-648-0
01
1
0308-
288
PLUG; OIL DRAIN
1-13219-346-0
01
1
0308-
290
GASKET; PLUG,OIL DRAIN
(A)
1-09623-645-0
01
1
0308-
290
GASKET; PLUG,OIL DRAIN
(B)
1-09623-646-0
01
1
0308-
292
SPRING; ELEMENT
(A)
1-09580-562-0
01
1
0308-
292
SPRING; ELEMENT
(B)
1-09580-563-0
01
1
0308-
390
BODY; OIL FILTER,PARTIAL
(A)
1-13211-284-2
01
1
0308-
390
BODY; OIL FILTER,PARTIAL
(B)
1-13211-285-0
01
1
0308-
496
FILTER ASM; OIL
1-13200-989-4
01
1
0308-
508
CHAMBER ASM; SW,FILTER
1-13260-113-1
01
1
0308-0410
508
CHAMBER ASM; SW,FILTER
1-13260-117-0
01
1
0411-
509
GASKET; SW
8-98013-480-0
01
1
0308-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
