◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#2547) — 18 parça

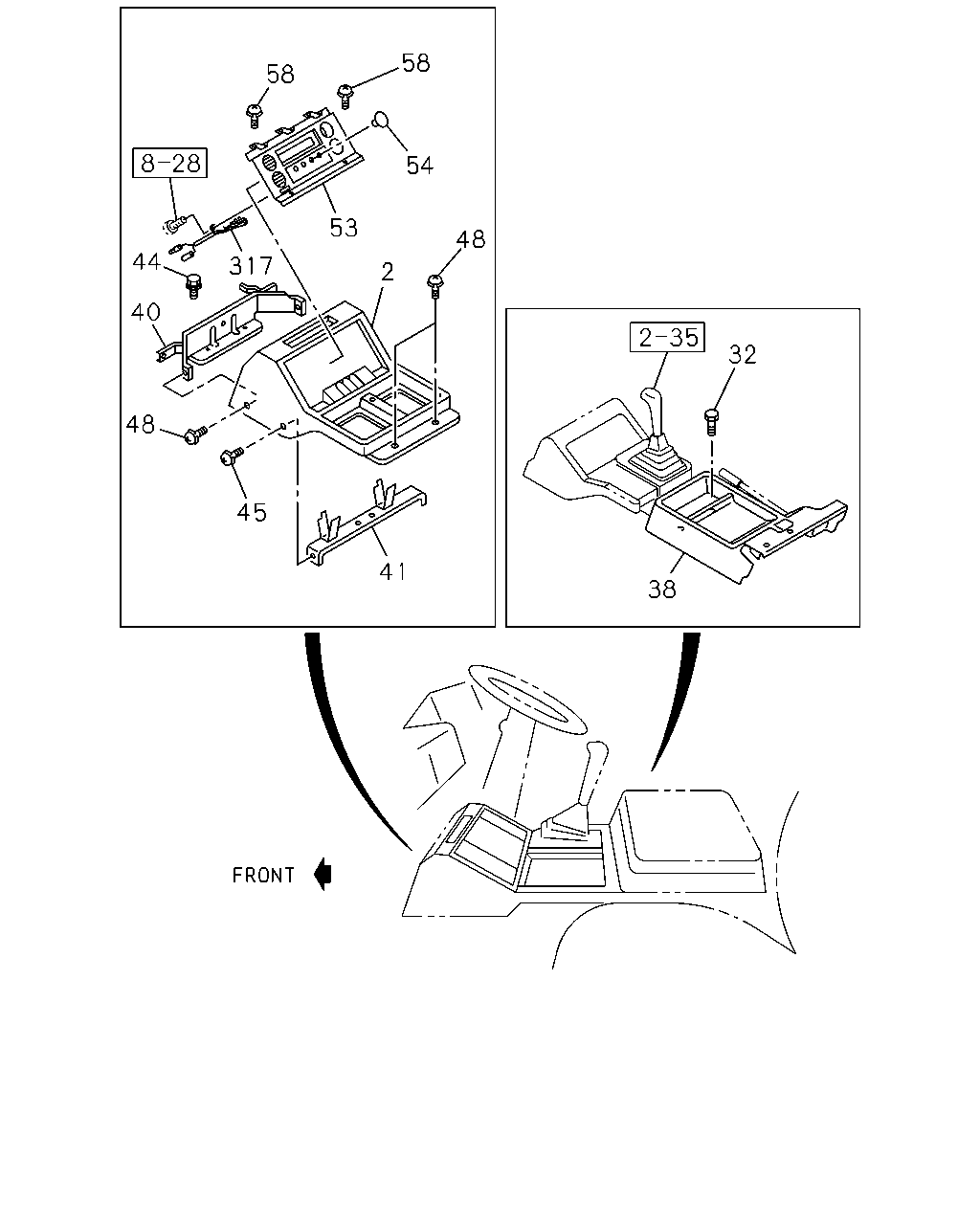

çizim 95189
58 58 54 53 48 317 44 2 40 32 48 45 41 38
BalonParca AdiParca NoAdetTipApplied Date
2 CONSOLE; CENTER 1-72447-417-1 01 1 9002-9306
2 CONSOLE; CENTER 1-72447-538-1 01 1 9307-
32 SCREW; PARCEL BOX
M6X20 W/PL WASHER 		5-09981-023-0 04 1 9002-
38 TRAY; PARCEL,PIPING COVER 1-72497-036-2 01 1 9002-9306
38 TRAY; PARCEL,PIPING COVER 1-72497-055-0 01 1 9307-
40 BRACKET; SUPPORT,CENTER CONSOLE 1-65670-614-4 01 1 9002-
41 STRUT ASM; CENTER CONSOLE 1-65670-599-2 01 1 9002-
44 BOLT; SUPPORT,CTR CONSOLE
M6X16 W/LK&PL WASHER 		1-09980-497-0 02 1 9002-9301
44 BOLT; SUPPORT,CTR CONSOLE
M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9302-
45 SCREW; STRUT,CENTER CONSOLE
M6X16 W/LK&PL WASHER 		1-09981-367-0 02 1 9002-
48 SCREW; BRKT,CENTER CONSOLE
M6X16 W/LK&PL WASHER 		1-09981-367-0 04 1 9002-
53 PANEL; SW,CENTER CONSOLE 1-72447-362-6 01 1 9002-9205
53 PANEL; SW,CENTER CONSOLE
EXC. RADIO AM & TAPE PLAYER(UM1) 		1-72447-362-6 01 1 9206-
53 PANEL; SW,CENTER CONSOLE
RADIO AM & TAPE PLAYER(UM1) 		1-72447-588-0 01 1 9206-
54 BUTTON; CLIP,CTR CONSOLE 1-72447-390-0 01 1 9002-9502
54 BUTTON; CLIP,CTR CONSOLE
EXC. EXH HEAT WARNING<W50> 		1-72447-390-0 01 1 9503-
58 SCREW; SW PNL
M5X14 W/PL WASHER 		5-09981-050-0 05 1 9002-
317 CONSENT 1-82523-011-3 01 1 9002-
