0-39 — AIR COMPRESSOR; BRAKE (#25466) — 108 parça

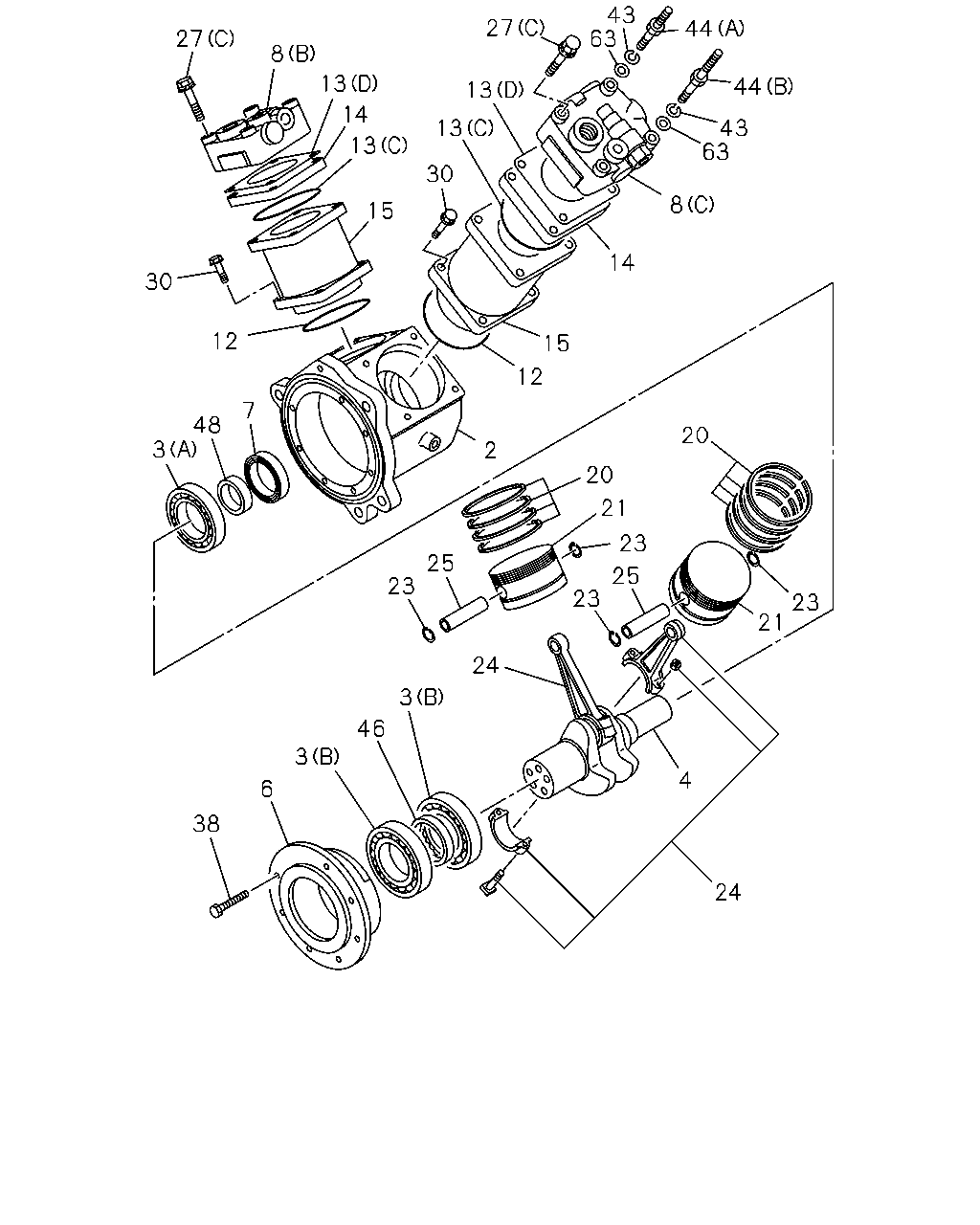

43 63 27 44 27 8 13 44 13 14 13 43 63 13 30 8 15 14 30 12 15 12 7 48 20 3 2 20 21 23 25 25 23 23 23 21 24 3 46 3 4 6 38 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-269-6	01	1	0308-
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-286-3	01	1	0308-
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09800-232-0	01	1	0308-
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-09800-246-0	02	1	0308-0310
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	0311-
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	8-98171-672-0	01	1	0308-
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (D)	1-09800-281-0	02	1	0308-0310
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-088-0	01	1	0308-
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-080-0	01	1	0308-
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-068-1	01	1	0308-
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-079-1	01	1	0308-
7	SEAL; OIL,BRG COVER,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-534-0	01	1	0308-
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-619-0	01	1	0308-
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19110-073-0	01	1	0308-
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19110-074-0	01	1	0308-
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19110-072-0	01	1	0308-
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19623-539-0	02	1	0308-
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09623-651-1	01	1	0308-
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-09623-615-0	02	1	0308-
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (D)	1-19115-012-0	02	1	0308-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09623-650-1	01	1	0308-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19139-019-0	01	1	0308-
14	PLATE; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19130-008-0	02	1	0308-
14	PLATE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19110-064-1	01	1	0308-
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-067-0	02	1	0308-
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-065-0	01	1	0308-
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-058-0	02	1	0308-
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-064-0	01	1	0308-
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-026-0	02	1	0308-
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-023-0	01	1	0308-
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19169-001-0	02	1	0308-
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-19168-003-0	04	1	0308-
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19173-006-0	02	1	0308-
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-078-0	01	1	0308-
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-006-0	02	1	0308-
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-004-0	01	1	0308-
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) M10X80	1-19119-024-0	06	1	0308-
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09044-071-0	01	1	0308-
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M10X80	1-19119-024-0	04	1	0308-
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X25	9-01911-025-0	08	1	0308-
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X30	1-19119-026-0	04	1	0308-
38	BOLT; COVER FIX AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19159-016-0	07	1	0308-
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8X30	0-20800-830-0	07	1	0308-
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=10.2	9-09150-610-0	02	1	0308-
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19119-025-0	01	1	0308-
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19119-038-0	01	1	0308-
46	SPACER; BRG AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-016-0	01	1	0308-
46	SPACER; BRG EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-029-0	01	1	0308-
48	SLEEVE; CR/SHF AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-018-0	01	1	0308-
48	SLEEVE; CR/SHF EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-027-0	01	1	0308-
63	WASHER; PL,STUD AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=10.5 OD=18	9-09160-510-0	02	1	0308-

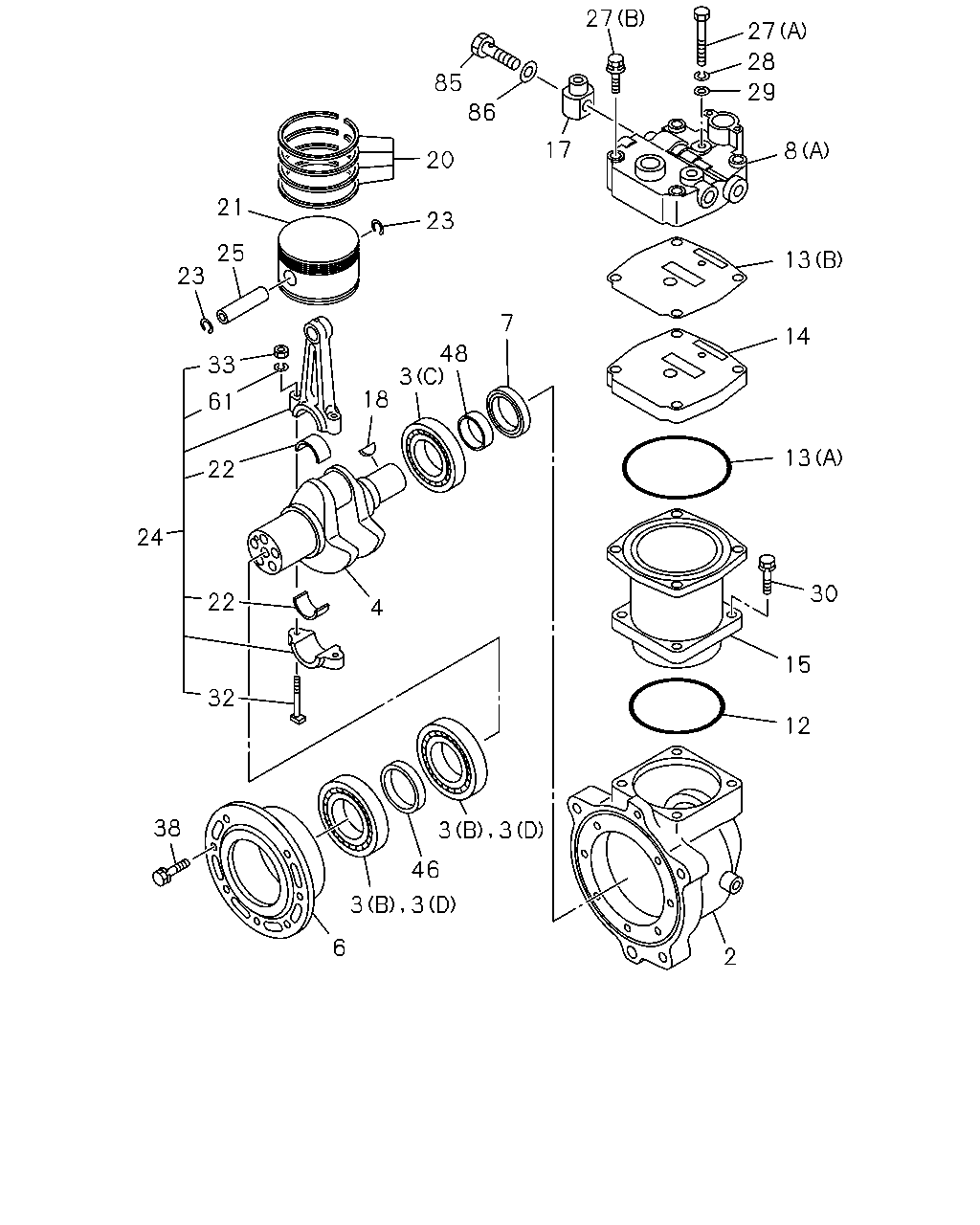

27 27 28 85 29 86 17 8 20 21 23 25 13 23 7 14 48 3 33 18 61 13 22 24 30 22 4 15 32 12 38 46 6 2 3 3 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-269-6	01	1	0308-
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-286-3	01	1	0308-
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09800-232-0	01	1	0308-
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-09800-246-0	02	1	0308-0310
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	0311-
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	8-98171-672-0	01	1	0308-
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (D)	1-09800-281-0	02	1	0308-0310
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-088-0	01	1	0308-
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-080-0	01	1	0308-
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-068-1	01	1	0308-
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-079-1	01	1	0308-
7	SEAL; OIL,BRG COVER,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-534-0	01	1	0308-
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-619-0	01	1	0308-
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19110-073-0	01	1	0308-
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19110-074-0	01	1	0308-
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19110-072-0	01	1	0308-
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19623-539-0	02	1	0308-
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09623-651-1	01	1	0308-
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-09623-615-0	02	1	0308-
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (D)	1-19115-012-0	02	1	0308-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09623-650-1	01	1	0308-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19139-019-0	01	1	0308-
14	PLATE; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19130-008-0	02	1	0308-
14	PLATE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19110-064-1	01	1	0308-
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-067-0	02	1	0308-
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-065-0	01	1	0308-
17	ADAPTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19119-034-1	01	1	0308-
18	KEY; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-08055-622-0	01	1	0308-
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-058-0	02	1	0308-
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-064-0	01	1	0308-
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-026-0	02	1	0308-
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-023-0	01	1	0308-
22	METAL; CONNROD,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-025-0	02	1	0308-
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19169-001-0	02	1	0308-
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-19168-003-0	04	1	0308-
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19173-006-0	02	1	0308-
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-078-0	01	1	0308-
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-006-0	02	1	0308-
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-004-0	01	1	0308-
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) M10X80	1-19119-024-0	06	1	0308-
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09044-071-0	01	1	0308-
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M10X80	1-19119-024-0	04	1	0308-
28	WASHER; LK,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=8.2	9-09150-508-0	01	1	0308-
29	WASHER; PL,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=8.4	9-09160-508-0	01	1	0308-
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X25	9-01911-025-0	08	1	0308-
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X30	1-19119-026-0	04	1	0308-
32	BOLT; CONNROD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-021-0	02	1	0308-
33	NUT; CONNROD BOLT EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-026-0	02	1	0308-
38	BOLT; COVER FIX AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19159-016-0	07	1	0308-
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8X30	0-20800-830-0	07	1	0308-
46	SPACER; BRG AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-016-0	01	1	0308-
46	SPACER; BRG EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-029-0	01	1	0308-
48	SLEEVE; CR/SHF AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-018-0	01	1	0308-
48	SLEEVE; CR/SHF EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-027-0	01	1	0308-
61	WASHER; LK,CONNROD BOLT EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-022-0	02	1	0308-
85	BOLT; ADAPTER EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X39 FLANGE	1-09675-089-0	01	1	0308-
86	GASKET; ADAPTER EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0308-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
