0-35 — ENGINE CONTROL VALVE AND LEVER (#25462) — 17 parça

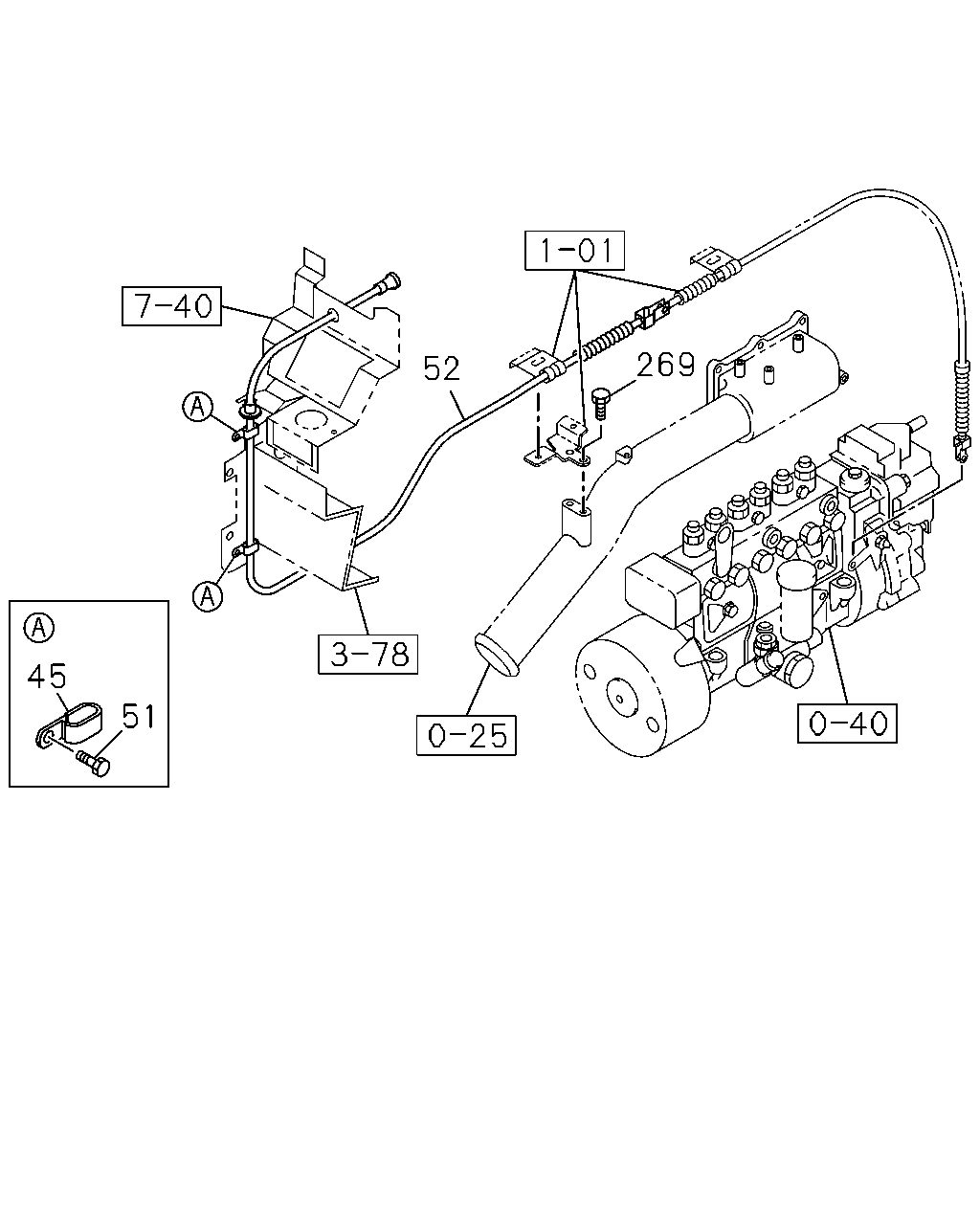

269 52 45 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	CLIP; FUEL CUT CABLE ID=11 L=20	9-09525-035-0	02	1	0308-0606
45	CLIP; FUEL CUT CABLE ID=11 L=20	0-95235-035-0	02	1	0607-
51	BOLT; CLIP,FUEL CUT CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0308-
52	CABLE; FUEL CUT L=3479	1-73907-677-0	01	1	0308-0404
52	CABLE; FUEL CUT L=3479	1-73907-720-0	01	1	0405-
269	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0308-0512
269	BOLT; BRKT FIX M10X20 FLANGE	0-28151-020-0	02	1	0601-

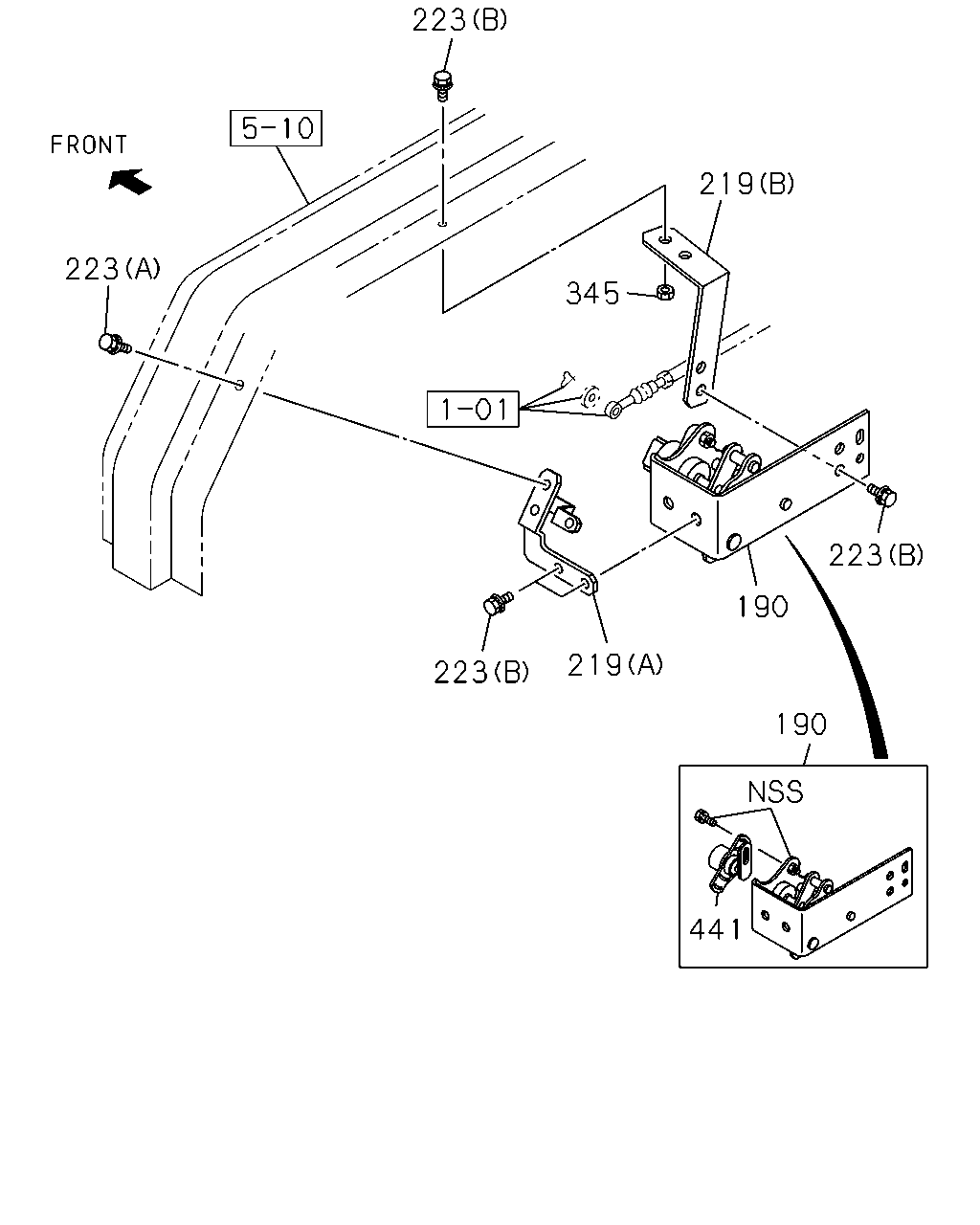

223 219 223 345 223 190 219 223 190 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ>	8-97219-466-3	01	1	0308-
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (A)	1-23335-580-0	01	1	0308-
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (B)	1-23335-581-0	01	1	0308-
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE	0-28680-820-0	05	1	0308-0512
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE	0-28650-820-0	05	1	0601-
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE	0-28680-825-0	02	1	0308-0512
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91150-108-0	01	1	0308-0602
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91180-108-0	01	1	0603-
441	SENSOR; THROTTLE POSITION PTO CONTROL OPERATION CAB BACK<TBZ>	8-97200-308-0	01	1	0308-
