7-43 — SUN VISOR AND ASSIST GRIP (#2546) — 68 parça

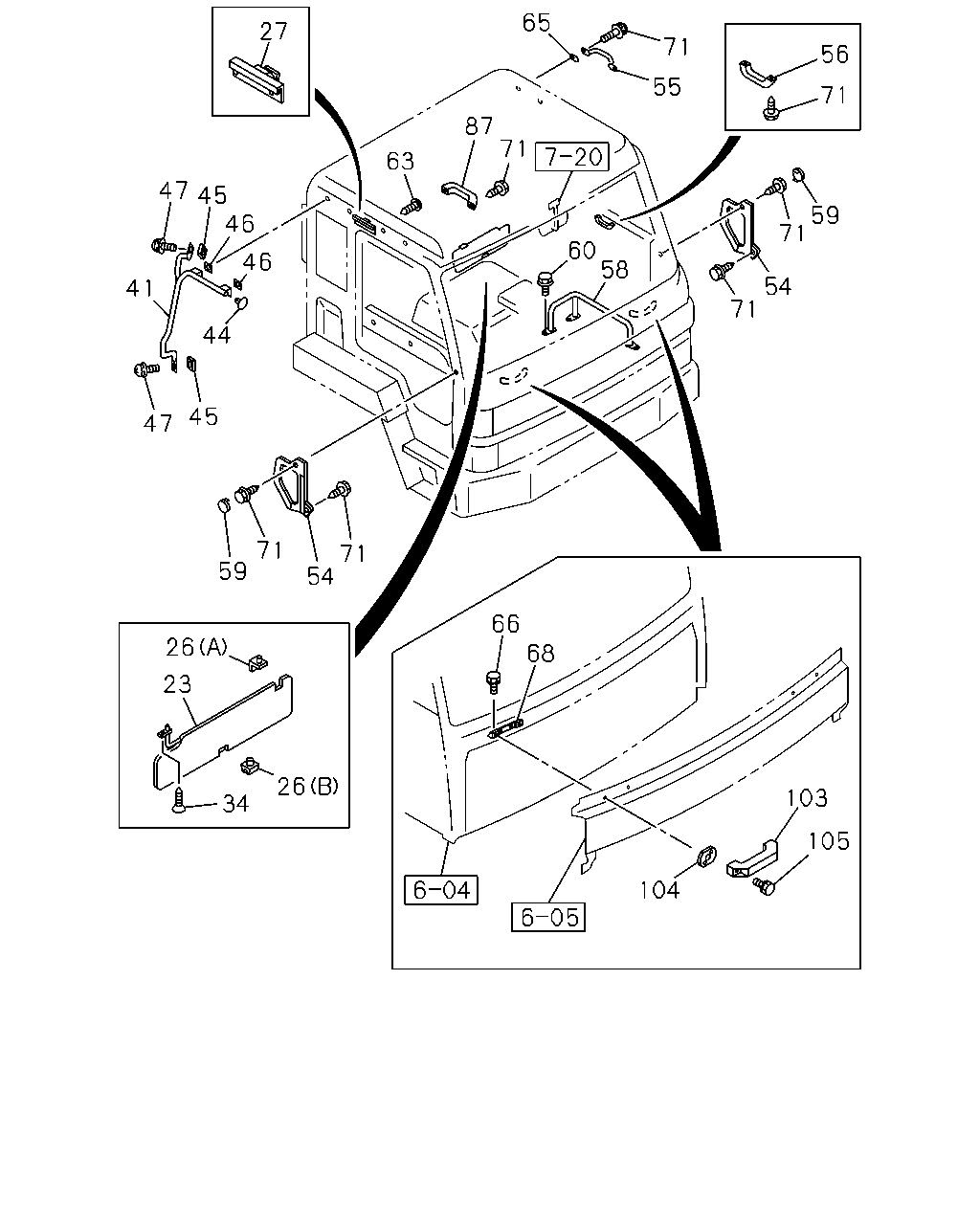

65 27 71 56 55 71 87 71 63 47 45 46 59 71 60 58 46 54 41 71 44 45 47 71 59 71 54 66 68 26 23 26 103 34 105 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	SUN VISOR	1-73137-151-0	01	1	9002-9306
23	SUN VISOR	1-73137-169-0	01	1	9307-
23	SUN VISOR	1-73137-149-0	01	1	9002-9306
23	SUN VISOR	1-73137-155-0	01	1	9307-
26	HOLDER; SUN VISOR (A)	1-73137-141-0	02	1	9002-9306
26	HOLDER; SUN VISOR (A)	1-73137-156-0	02	1	9307-
26	HOLDER; SUN VISOR (B)	1-73137-150-0	02	1	9002-9306
26	HOLDER; SUN VISOR (B)	1-73137-157-0	02	1	9307-
27	HOLDER; SUN VISOR WINDOW CURTAIN ROUND<BW4>	1-73137-154-0	01	1	9002-9306
27	HOLDER; SUN VISOR WINDOW CURTAIN ROUND<BW4>	1-73137-172-0	01	1	9307-
27	HOLDER; SUN VISOR WINDOW CURTAIN ROUND<BW4>	1-73137-153-0	01	1	9002-9306
27	HOLDER; SUN VISOR WINDOW CURTAIN ROUND<BW4>	1-73137-171-0	01	1	9307-
34	SCREW; SUN VISOR M6X20	1-09981-365-0	02	1	9002-
34	SCREW; SUN VISOR M6X20	1-09981-310-0	02	1	9002-
41	GRIP; ASSIST,BACK SIDE WHITE	1-71997-542-2	01	1	9002-
44	CAP; ASSIST GRIP GRIP OUT SIDE<W52>	1-75997-018-1	01	1	9002-
45	SHEET; ASSIST GRIP,BACK SIDE GRIP OUT SIDE<W52>	1-71997-548-0	02	1	9002-
46	SEAL; ASSIST GRIP,BACK SIDE GRIP OUT SIDE<W52>	1-71997-691-1	02	1	9002-
47	SCREW; ASSIST GRIP,BACK SIDE GRIP OUT SIDE<W52> M8X20 W/LK&PL WASHER	1-09981-466-0	02	1	9002-
54	GRIP; ASSIST,QUARTER SIDE	1-73617-055-1	01	1	9002-9306
54	GRIP; ASSIST,QUARTER SIDE	1-73907-187-0	01	1	9307-
54	GRIP; ASSIST,QUARTER SIDE	1-73617-054-1	01	1	9002-9306
54	GRIP; ASSIST,QUARTER SIDE	1-73907-186-0	01	1	9307-
55	GRIP; ASSIST,CAB SIDE UPR	1-71997-477-0	01	1	9002-
56	GRIP; ASSIST,SIDE SILL WHITE	1-71998-131-0	02	1	9002-
58	GRIP; ASSIST,ENG HOOD	1-75147-579-0	01	1	9002-
59	COVER; ASSIST GRIP	1-73617-056-0	02	1	9002-9306
59	COVER; ASSIST GRIP	1-73617-060-0	02	1	9307-
60	BOLT; ASSIST GRIP,ENG HOOD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9002-9112
60	BOLT; ASSIST GRIP,ENG HOOD M6X25	1-09980-544-0	02	1	9201-
60	BOLT; ASSIST GRIP,ENG HOOD M8X20 W/LK&PL WASHER	1-09980-496-0	01	1	9002-9112
60	BOLT; ASSIST GRIP,ENG HOOD M8X25	1-09980-491-0	01	1	9201-
63	PLUG; ASSIST GRIP,HOLE EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	9002-9306
63	PLUG; ASSIST GRIP,HOLE EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	9307-
63	PLUG; ASSIST GRIP,HOLE PASSENGER SEAT MULTI USED<WX9> OD=15 L=14.5	1-76378-157-0	01	1	9307-
65	SHEET; ASSIST GRIP,CAB SIDE UPR GRIP OUT SIDE<W52>	1-71997-478-1	02	1	9002-
66	BOLT; ASSIST GRIP BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9307-
66	BOLT; ASSIST GRIP BRKT DOOR MIRROR<D32> M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9002-9306
66	BOLT; ASSIST GRIP BRKT EXC. DOOR MIRROR<D32> M6X20 W/LK&PL WASHER	1-09980-493-0	05	1	9002-9306
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-192-0	02	1	9002-
71	SCREW M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9002-
71	SCREW M6X37 W/PL WASHER	1-09981-460-0	04	1	9002-
71	SCREW EXC. WINDOW CURTAIN ROUND<BW4> M6X35 W/PL WASHER	1-09981-422-0	02	1	9002-
87	GRIP; ASSIST,CANT RAIL SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73618-156-0	01	1	9002-9306
87	GRIP; ASSIST,CANT RAIL SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73618-161-0	01	1	9307-
103	GRIP; ASSIST,FRT PNL WHITE	1-71998-131-0	02	1	9002-
104	SPACER; ASSIST GRIP	1-71997-529-2	04	1	9002-
105	SCREW; ASSIST GRIP M6X30 W/PL WASHER M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9002-

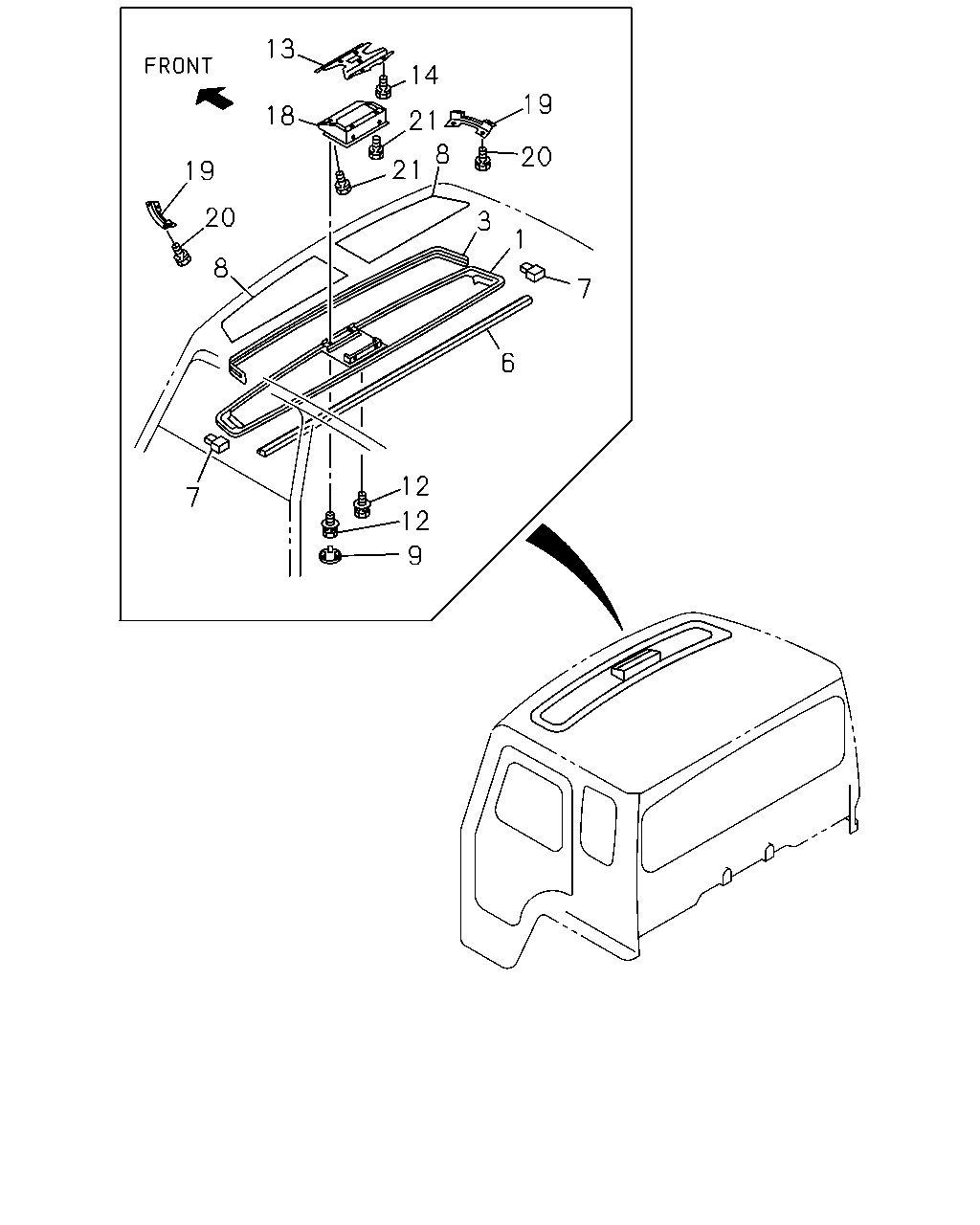

13 14 19 18 21 8 20 21 19 20 3 1 8 7 6 12 7 12 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF WINDOW CURTAIN ROUND<BW4>	1-73317-263-0	01	1	9002-9306
1	BOARD; HEADER SHELF WINDOW CURTAIN ROUND<BW4>	1-73317-312-0	01	1	9307-
1	BOARD; HEADER SHELF EXC. WINDOW CURTAIN ROUND<BW4>	1-73317-262-0	01	1	9002-9306
1	BOARD; HEADER SHELF EXC. WINDOW CURTAIN ROUND<BW4>	1-73317-304-0	01	1	9307-
3	FINISHER; HEADER SHELF,FRT	1-73317-146-1	01	1	9002-
6	FINISHER; HEADER SHELF,REAR	1-73317-147-2	01	1	9002-
7	FINISHER; HEADER SHELF,CORNER	1-73317-165-2	01	1	9002-
7	FINISHER; HEADER SHELF,CORNER	1-73317-164-2	01	1	9002-
8	MAT; HD SHELF	1-73317-144-1	02	1	9002-
9	COVER; HOLE,HEADER SHELF CENTER	1-73317-231-0	06	1	9002-9306
9	COVER; HOLE,HEADER SHELF CENTER	1-73317-271-0	06	1	9307-
12	SCREW; HEADER SHELF M6X20 W/LK&PL WASHER	1-09981-312-0	08	1	9002-
13	BRACKET ASM; ROOF CTR FRT	1-73317-149-2	01	1	9002-
14	SCREW; BRKT M6X16 W/LK WASHER	9-03910-616-0	05	1	9002-
18	SUPPORT; HEADER SHELF CENTER	1-73317-232-2	01	1	9002-9306
18	SUPPORT; HEADER SHELF CENTER	1-73317-267-0	01	1	9307-
19	SUPPORT ASM; HEADER SHELF	1-73317-155-3	01	1	9002-
19	SUPPORT ASM; HEADER SHELF	1-73317-154-3	01	1	9002-
20	SCREW; SUPPORT,HEADER SHELF M6X16 W/LK WASHER	9-03910-616-0	04	1	9002-
21	SCREW; SUPPORT,HEADER SHELF CENTER M6X20 W/LK&PL WASHER	1-09981-312-0	04	1	9002-
