0-31 — THERMOSTAT AND HOUSING (#25459) — 21 parça

52 60 60 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	BOLT; OUTLET PIPE (B) M10X85 FLANGE	8-94397-359-1	02	1	0308-0606
50	BOLT; OUTLET PIPE (B) M10X90 FLANGE	0-28151-090-0	02	1	0607-
50	BOLT; OUTLET PIPE (A) M10X55 FLANGE	8-94399-863-1	02	1	0308-
52	BOLT; JOINT,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	0308-0512
52	BOLT; JOINT,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	0601-
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6	1-09623-452-0	01	1	0308-
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6	1-09623-505-0	01	1	0308-

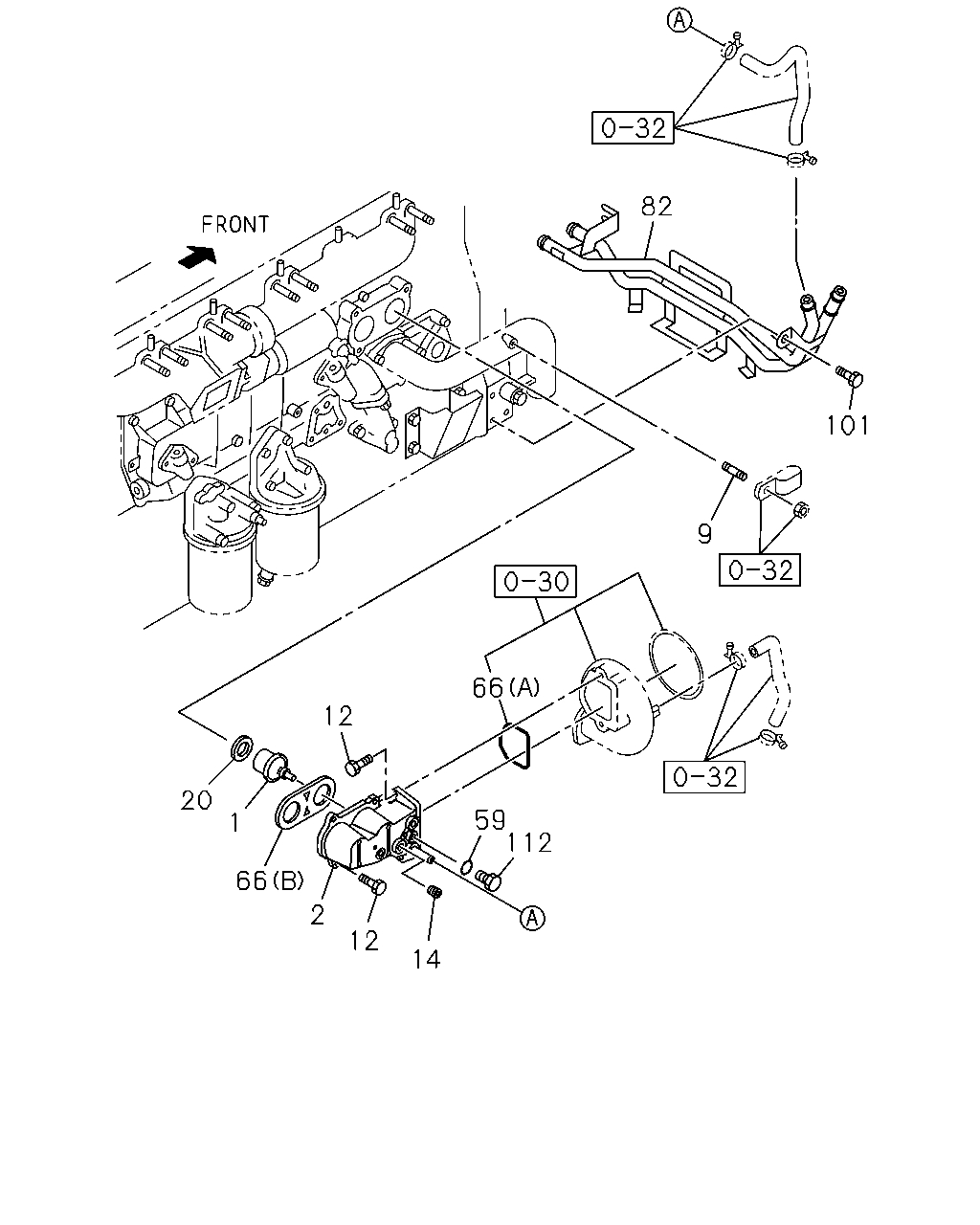

82 101 9 66 12 20 59 112 1 66 2 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	THERMOSTAT 82 CELSIUS	8-98271-161-0	02	1	0308-
2	HOUSING; THERMOSTAT	1-13710-550-0	01	1	0308-
9	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	01	1	0308-0512
12	BOLT; HSG M10X25 FLANGE	0-28181-025-0	05	1	0308-0512
12	BOLT; HSG M10X25 FLANGE	0-28151-025-0	05	1	0601-
14	PLUG; SW PT3/8	8-94475-259-0	01	1	0308-
20	RING; SEAL ID=59 OD=66.1	1-13779-011-0	02	1	0308-
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	01	1	0308-
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6	1-09623-247-0	01	1	0308-
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-13743-036-1	01	1	0308-
82	PIPE; WATER,HTR	1-13722-039-0	01	1	0308-
101	BOLT; PIPE M10X20 FLANGE	0-28081-020-0	01	1	0308-0512
101	BOLT; PIPE M10X20 FLANGE	0-28051-020-0	01	1	0601-
112	PLUG M12X9	1-09604-095-0	01	1	0308-
