Isuzu WW
▶
TRUCKS
▶
FVR
▶
11030 - FVR(RHD) EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20B - MANUAL TRANSMISSION ASM AND CASE
▶
2-20B — MANUAL TRANSMISSION ASM AND CASE
(#25450) — 118 parça
◀
[220B] NYLON TUBE AND BRACKET,CLIP (14 parça)
[220B] HOUSING (49 parça)
[220B] CASE AND OTHER PARTS (31 parça)
[220B] COVER (23 parça)
[220B] ASM (1 parça)
▶
303
265
265
353
290
439
353
271
406

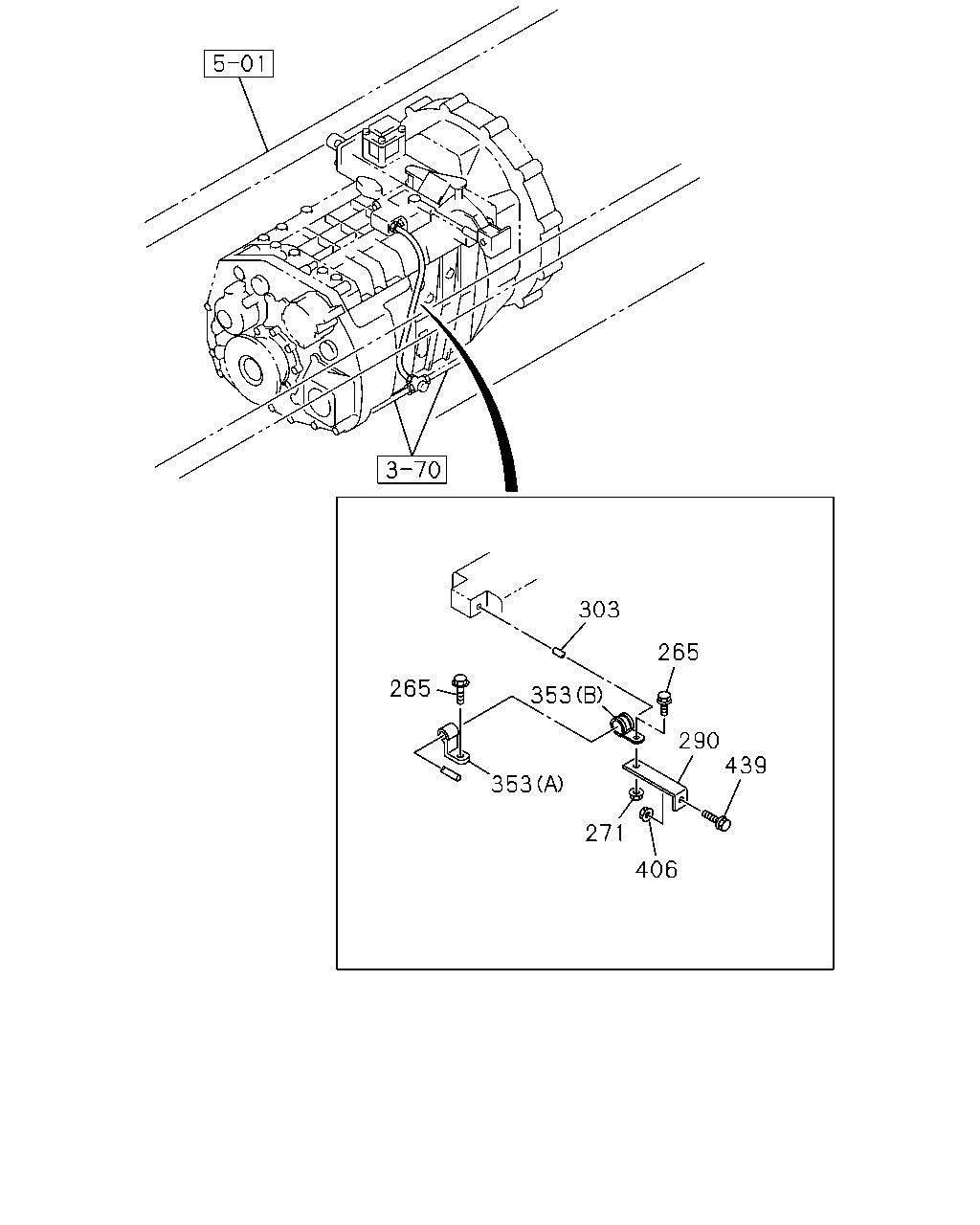

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
265
BOLT; CLIP
M8X20 FLANGE
0-28050-820-0
01
1
0609-
265
BOLT; CLIP
M8X14 FLANGE
0-28080-814-0
01
1
0609-
265
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
02
1
0609-
265
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0609-
271
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0609-
271
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0609-
290
BRACKET; CLIP
L=95
1-82699-085-0
01
1
0609-
303
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
02
1
0609-
353
CLIP; NYLON TUBE
(B) ID=11 L=20
0-95235-035-0
02
1
0609-
353
CLIP; NYLON TUBE
(A) ID=11 H=20 L=25
1-09700-848-0
01
1
0609-
353
CLIP; NYLON TUBE
(B) ID=18 L=28
1-09701-067-0
01
1
0609-
353
CLIP; NYLON TUBE
(B) ID=18 L=28
1-09701-067-0
02
1
0609-
406
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0609-
439
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
0609-
468
329
82
186
245
478
477
29
27
561
314
561
24
435
33
113
330
315
28
463
413
561
36
36
37
2
561
343
412

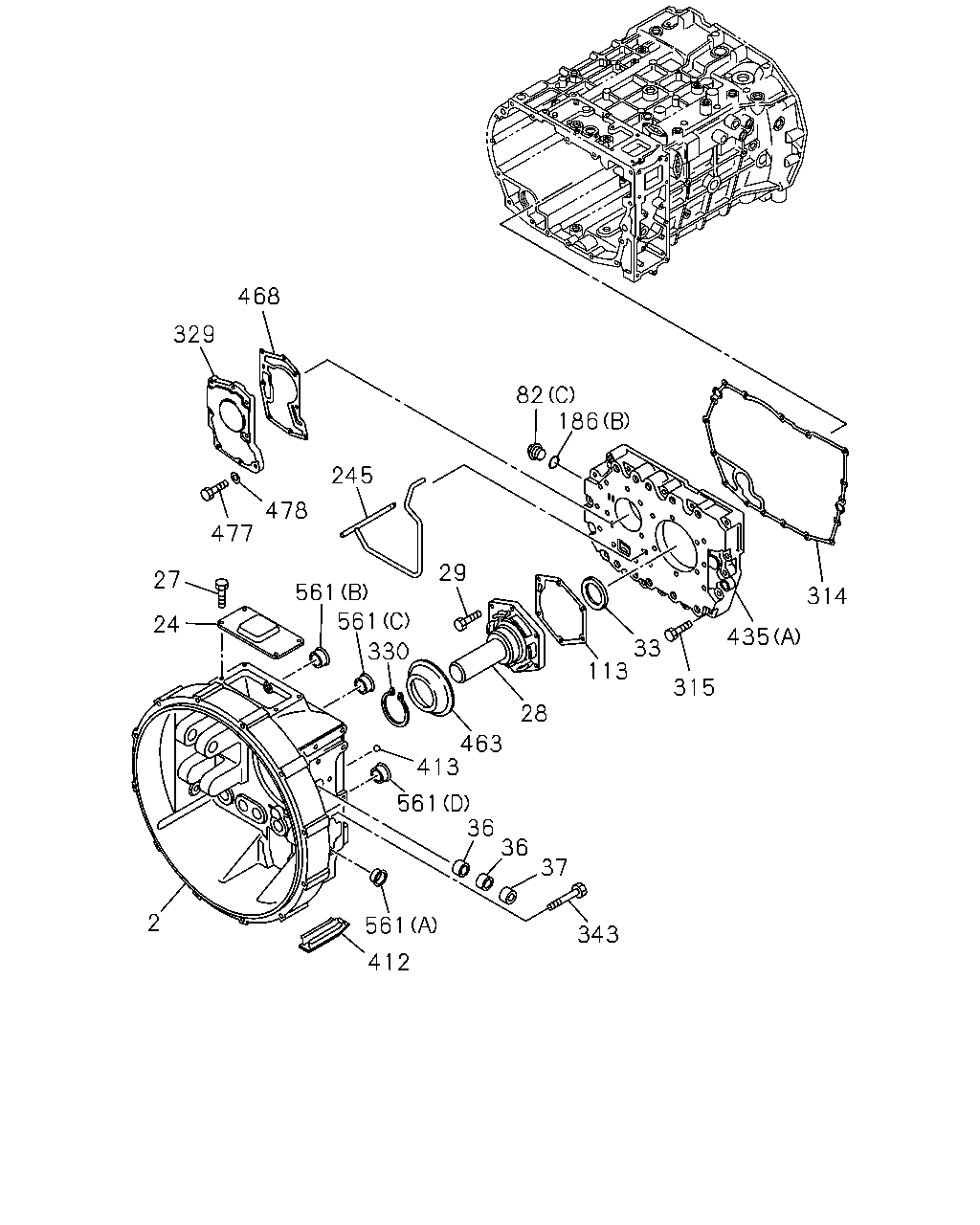

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOUSING; CLU
1-31111-183-0
01
1
0609-
24
COVER; CHECK HOLE,DUST
1-31119-024-0
01
1
0609-1305
24
COVER; CHECK HOLE,DUST
1-31119-059-0
01
1
1306-
27
BOLT; COVER TO CLU HSG
1-31119-025-0
04
1
0609-1305
27
BOLT; COVER TO CLU HSG
1-31119-058-0
04
1
1306-
28
COVER; FRT,TRANS CASE
1-33121-166-0
01
1
0609-
29
BOLT; FRT COVER
M8X30
1-33549-172-0
06
1
0609-1305
29
BOLT; FRT COVER
M8X30
1-33549-581-0
06
1
1306-
33
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
1-33219-321-0
01
1
0609-
36
BEARING; NEEDLE,CLU HSG
1-09811-396-0
04
1
0609-
37
SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-002-0
02
1
0609-
82
PLUG; SCREW,CASE
(A)
1-33119-171-0
01
1
0609-1305
82
PLUG; SCREW,CASE
(A)
1-33119-619-0
01
1
1306-
82
PLUG; SCREW,CASE
(B)
1-33119-268-0
01
1
0609-1305
82
PLUG; SCREW,CASE
(B)
1-33119-620-0
02
1
1306-
82
PLUG; SCREW,CASE
(C)
1-33119-285-0
02
1
0609-1305
82
PLUG; SCREW,CASE
(C)
1-33119-618-0
02
1
1306-
82
PLUG; SCREW,CASE
(D)
1-33119-376-0
01
1
0609-1305
113
GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
1-33122-023-0
01
1
0609-1305
113
GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
1-33122-024-0
01
1
1306-
186
RING; SEAL
(A)
1-33119-249-0
01
1
0609-
186
RING; SEAL
(B)
1-33119-286-0
02
1
0609-
186
RING; SEAL
(C)
1-33119-435-0
02
1
0609-
245
PIPE; OIL
1-33119-517-0
01
1
0609-
314
GASKET; CASE
1-33112-052-0
01
1
0609-
315
BOLT; CASE
M10X70 M10X70
1-33119-518-0
17
1
0609-1305
315
BOLT; CASE
M10X70
1-33119-616-0
17
1
1306-
329
PUMP ASM; OIL
1-34150-120-0
01
1
0609-1305
329
PUMP ASM; OIL
1-34150-123-0
01
1
1306-
330
RING; RET
1-33129-005-0
01
1
0609-
343
BOLT; CLU HSG TO PLATE
M10X75 FLANGE
8-94399-669-1
01
1
0609-
412
CAP; CLU HSG
1-31119-026-0
01
1
0609-
413
BALL; CLU HSG
1-31119-014-0
04
1
0609-
435
CASE; TRANS
(A)
1-33111-368-0
01
1
0609-1305
435
CASE; TRANS
(B)
1-33111-371-0
01
1
1306-
435
CASE; TRANS
(B)
1-33111-369-0
01
1
0609-1305
435
CASE; TRANS
(A)
1-33111-380-0
01
1
1306-
463
COVER; DUST,FRT COVER
1-33129-004-0
01
1
0609-1305
463
COVER; DUST,FRT COVER
1-33129-018-0
01
1
1306-
468
GASKET; OIL PUMP
1-34159-063-0
01
1
0609-1305
468
GASKET; OIL PUMP
1-34159-122-0
01
1
1306-
477
BOLT; OIL PUMP
M8X30
1-33549-172-0
08
1
0609-1305
477
BOLT; OIL PUMP
M8X30
1-33549-581-0
08
1
1306-
478
WASHER; LK,OIL PUMP
1-36129-007-0
08
1
0609-1305
478
WASHER; LK,OIL PUMP
1-33549-583-0
08
1
1306-
561
PLUG
(A)
1-31119-044-0
02
1
0609-1305
561
PLUG
(B)
1-31119-045-0
03
1
0609-1305
561
PLUG
(C)
1-31119-046-0
02
1
0609-1305
561
PLUG
(D)
1-31119-047-0
01
1
0609-1305
322
82
186
321
446
437
83
82
321
186
435
332
186
82
50
73
430
71
72

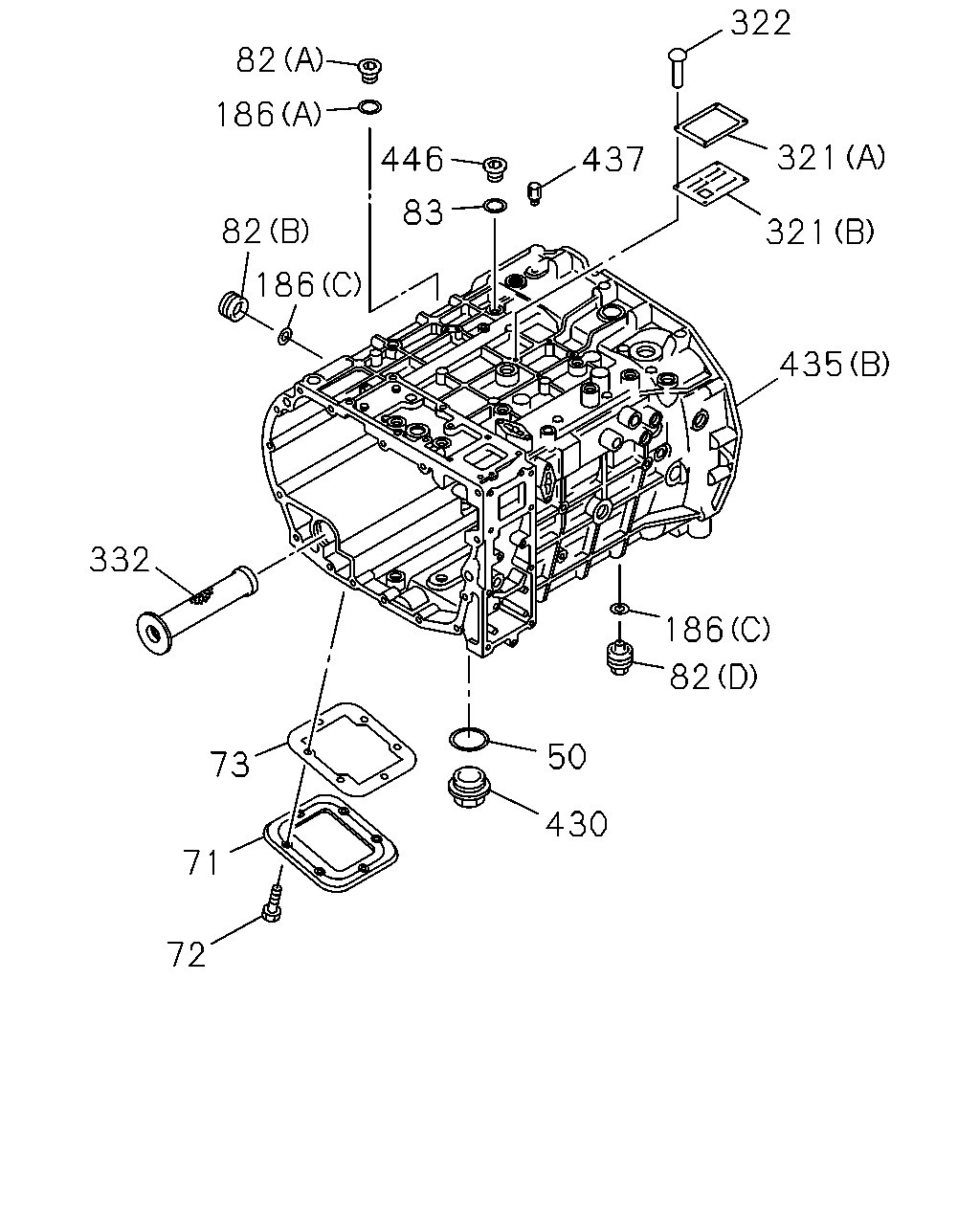

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
1-33119-293-0
01
1
0609-
71
COVER; SIDE,TRANS CASE
1-33119-407-0
01
1
0609-1305
71
COVER; SIDE,TRANS CASE
1-33119-622-0
01
1
1306-
72
BOLT; SIDE COVER
M10X22
1-36129-014-1
06
1
0609-1305
72
BOLT; SIDE COVER
M10X22
1-33119-592-0
06
1
1306-
73
GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
1-33119-237-0
01
1
0609-
82
PLUG; SCREW,CASE
(A)
1-33119-171-0
01
1
0609-1305
82
PLUG; SCREW,CASE
(A)
1-33119-619-0
01
1
1306-
82
PLUG; SCREW,CASE
(B)
1-33119-268-0
01
1
0609-1305
82
PLUG; SCREW,CASE
(B)
1-33119-620-0
02
1
1306-
82
PLUG; SCREW,CASE
(C)
1-33119-285-0
02
1
0609-1305
82
PLUG; SCREW,CASE
(C)
1-33119-618-0
02
1
1306-
82
PLUG; SCREW,CASE
(D)
1-33119-376-0
01
1
0609-1305
83
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T).
1-33119-249-0
01
1
0609-1305
186
RING; SEAL
(A)
1-33119-249-0
01
1
0609-
186
RING; SEAL
(B)
1-33119-286-0
02
1
0609-
186
RING; SEAL
(C)
1-33119-435-0
02
1
0609-
321
PLATE; NAME
(A)
1-33119-519-0
01
1
0609-
321
PLATE; NAME
(B)
1-33119-520-0
01
1
0609-
322
RIVET; NAME PLATE
1-33119-398-0
04
1
0609-1305
322
RIVET; NAME PLATE
1-33119-617-0
04
1
1306-
332
FILTER; OIL
1-33119-437-0
01
1
0609-
430
PLUG; OIL DRAIN
1-33119-156-0
01
1
0609-1305
430
PLUG; OIL DRAIN
1-33119-621-0
01
1
1306-
435
CASE; TRANS
(A)
1-33111-368-0
01
1
0609-1305
435
CASE; TRANS
(B)
1-33111-371-0
01
1
1306-
435
CASE; TRANS
(B)
1-33111-369-0
01
1
0609-1305
435
CASE; TRANS
(A)
1-33111-380-0
01
1
1306-
437
BREATHER; TRANS
1-36122-004-0
01
1
0609-1305
437
BREATHER; TRANS
1-36122-006-0
01
1
1306-
446
PLUG; CASE,TRANS
1-33119-171-0
01
1
0609-1305
327
421
86
427
427
25
415
86
519
86
86
421
123
123
62
86
86
86
86
86

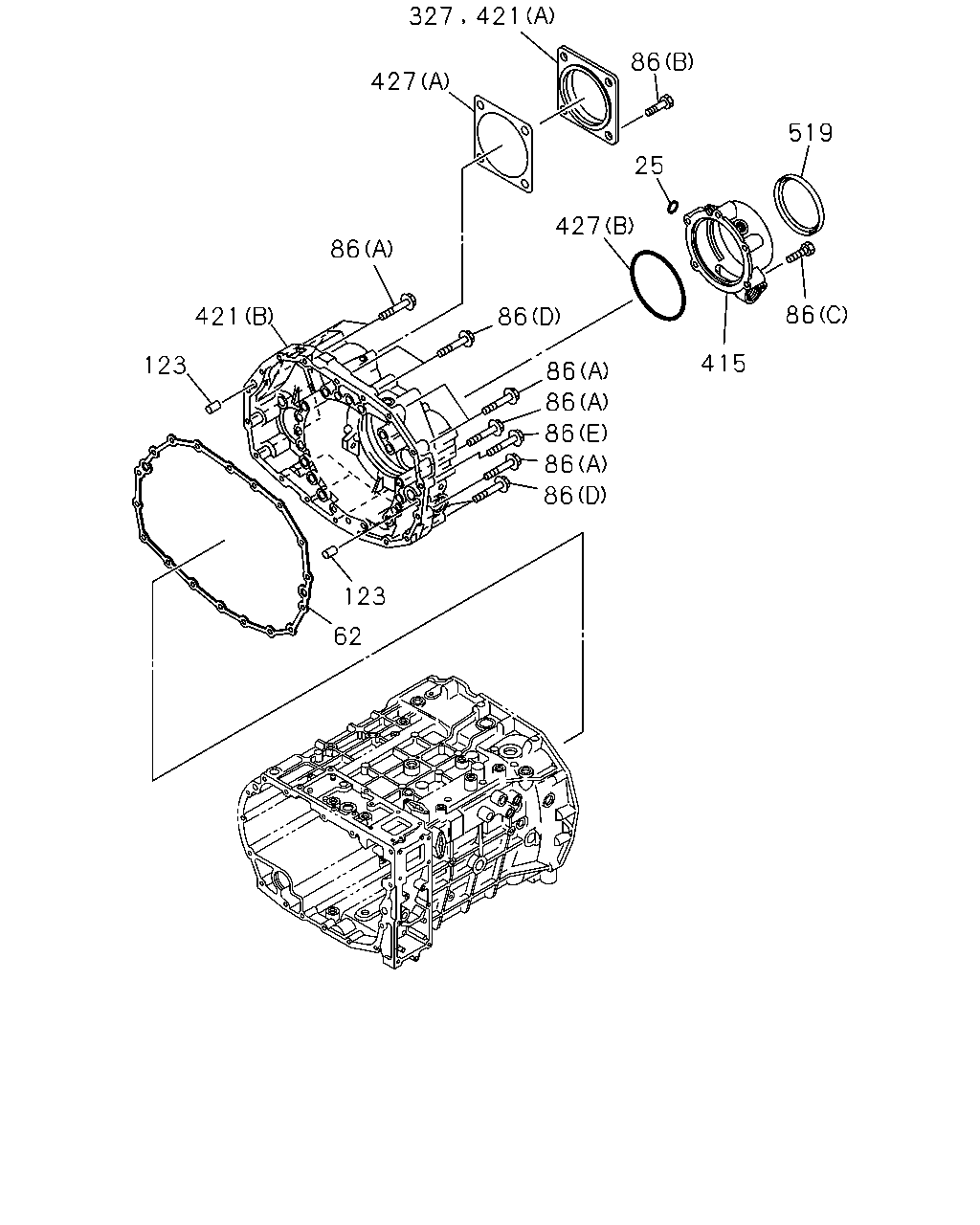

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T).
1-33139-060-0
01
1
0609-
62
GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
1-33132-087-0
01
1
0609-
86
BOLT; RR COVER
(A) M10X70
1-33119-518-0
12
1
0609-1305
86
BOLT; RR COVER
(A) M10X70
1-33119-616-0
12
1
1306-
86
BOLT; RR COVER
(B) M12X28
1-33139-051-0
04
1
0609-1305
86
BOLT; RR COVER
(D) M10X110
1-33139-235-0
05
1
1306-
86
BOLT; RR COVER
(C) M10X60
1-33139-118-0
05
1
0609-1305
86
BOLT; RR COVER
(C) M10X60
1-33139-237-0
05
1
1306-
86
BOLT; RR COVER
(D) M10X110
1-33139-210-0
05
1
0609-1305
86
BOLT; RR COVER
(E) M10X50
1-33139-236-0
01
1
1306-
86
BOLT; RR COVER
(E) M10X50
1-33139-211-0
01
1
0609-1305
86
BOLT; RR COVER
(E) M12X25
1-33119-594-0
04
1
1306-
123
DOWEL; TRANS CASE
1-33119-292-0
04
1
0609-
327
COVER; RR,COUNTER
1-33131-273-0
01
1
1306-
415
COVER; BRG
1-33131-260-0
01
1
0609-1305
415
COVER; BRG
1-33131-269-0
01
1
1306-
421
COVER; RR,TRANS
(A)
1-33131-165-0
01
1
0609-1305
421
COVER; RR,TRANS
(B)
1-33131-275-0
01
1
1306-
421
COVER; RR,TRANS
(B)
1-33131-214-0
01
1
0609-1305
427
GASKET; RR COVER
(A)
1-33132-054-0
01
1
0609-
427
GASKET; RR COVER
(B)
1-33132-078-0
01
1
0609-1305
427
GASKET; RR COVER
(B)
1-33132-088-0
01
1
1306-
519
GASKET; SHAFT
1-33139-059-0
01
1
0609-
1

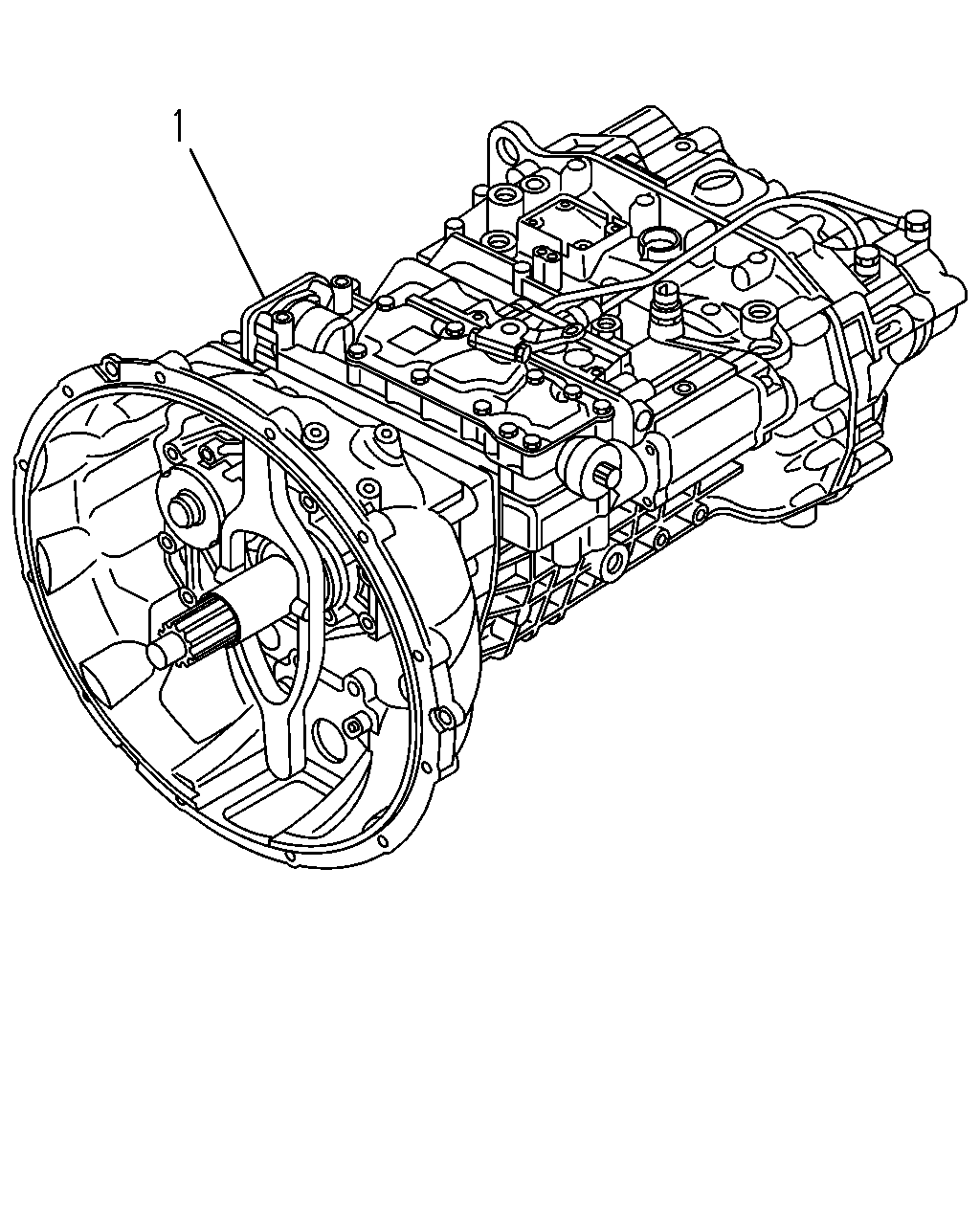

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSMISSION ASM; MANUAL
1-33043-933-1
01
1
0609-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
