2-07C — CLUTCH BOOSTER; MINIPACK (#25445) — 51 parça

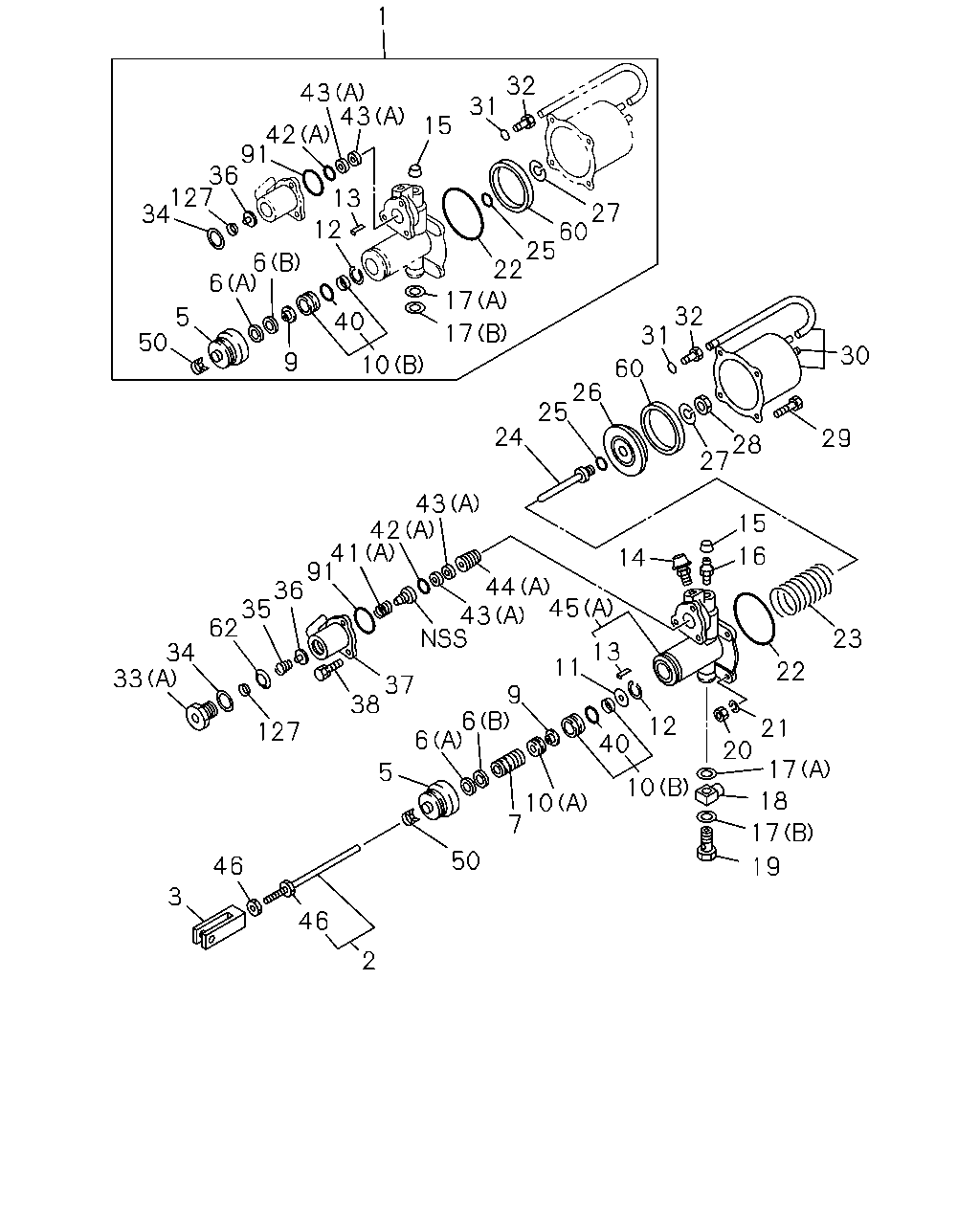

çizim 105579
1 32 43 43 31 15 42 91 36 127 34 13 27 60 25 22 12 6 6 17 32 31 5 50 40 17 30 9 10 60 26 25 24 29 28 27 43 42 41 91 36 35 62 15 16 14 44 43 45 23 13 34 11 22 33 37 38 9 6 12 21 20 127 6 40 17 5 18 10 7 7 50 46 19 3 46 2
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-543-0 01 1 0609-
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 0609-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 0609-
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0609-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0609-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0609-
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0609-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 0609-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 0609-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 0609-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0609-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0609-
13 PIN; SPR 1-31829-109-0 01 1 0609-
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0609-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0609-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0609-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0609-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0609-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0609-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0609-
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0609-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0609-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 0609-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0609-
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 0609-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0609-
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 0609-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0609-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0609-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0609-
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 0609-
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0609-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0609-
33 CONNECTOR; UPR,VLV,CLU BOOSTER
(A) 		1-31829-214-0 01 1 0609-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0609-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0609-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0609-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0609-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0609-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0609-
41 SPRING; DIAPH,CLU BOOSTER
(A) 		1-31829-545-0 01 1 0609-
42 GASKET; FITTING,CLU BOOSTER
(A) 		1-31829-143-0 01 1 0609-
43 GASKET; UPR VLV,CLU BOOSTER
(A) 		1-31829-060-0 02 1 0609-
44 PISTON; UPR VLV,CLU BOOSTER
(A) 		1-31821-087-0 01 1 0609-
45 PLATE; END,CLU BOOSTER
(A) 		1-31811-060-0 01 1 0609-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0609-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0609-
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 0609-
62 RETAINER; POPPET 1-31829-489-0 01 1 0609-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0609-
127 FILTER; POPPET 1-31829-495-0 01 1 0609-
