2-07A — CLUTCH BOOSTER; MINIPACK (#25443) — 52 parça

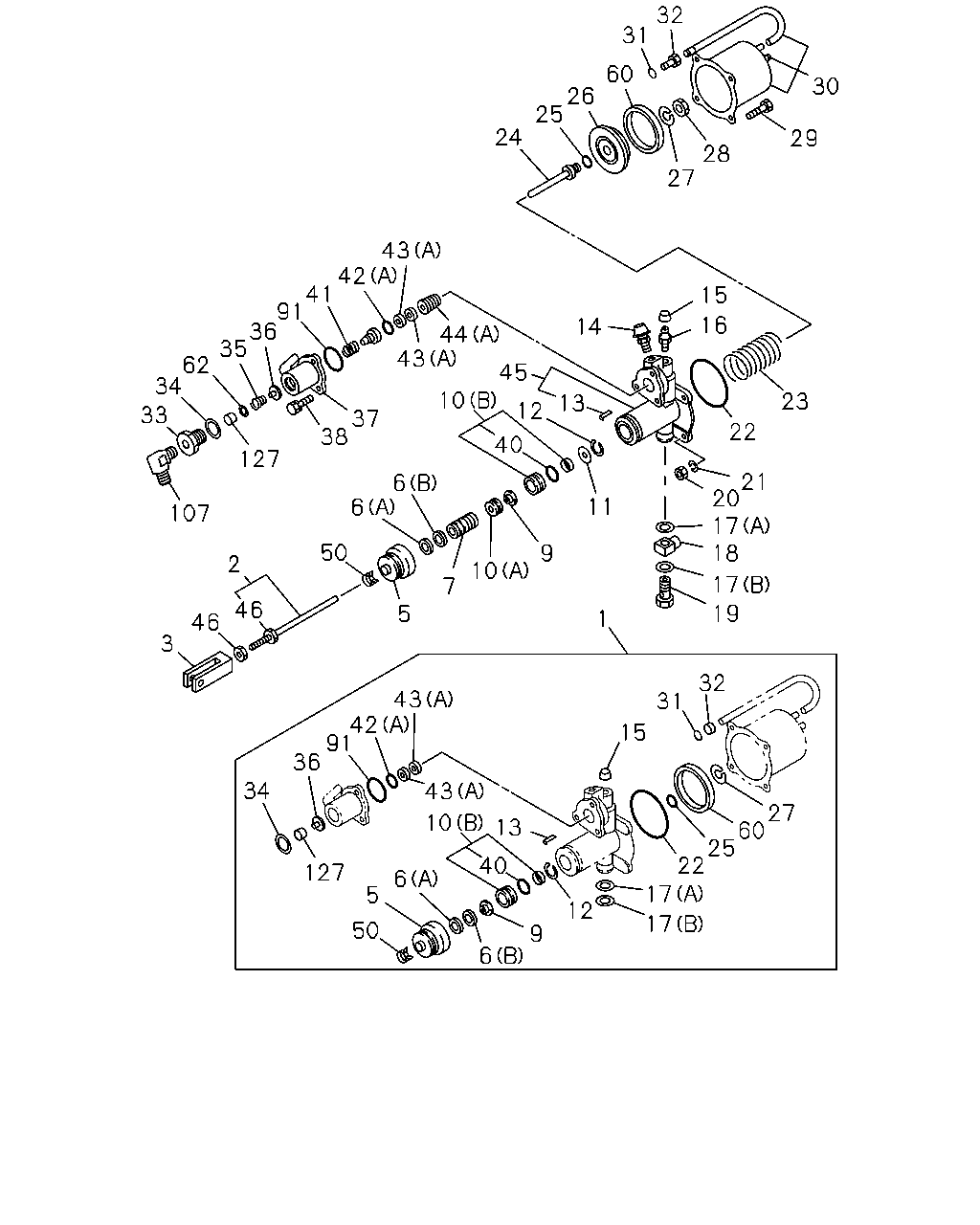

çizim 105669
32 31 60 30 26 25 24 29 28 27 43 42 41 91 36 35 62 34 15 16 14 44 43 45 10 23 13 12 33 37 38 22 40 127 21 20 17 18 6 11 6 107 50 9 2 10 17 7 46 19 5 1 46 3 32 43 42 91 36 31 15 43 34 27 60 25 22 17 10 13 40 127 6 12 5 17 50 9 6
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-539-0 01 1 0609-
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 0609-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 0609-
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0609-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0609-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0609-
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0609-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 0609-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 0609-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 0609-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0609-
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 0609-
13 PIN; SPR 1-31829-109-0 01 1 0609-
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0609-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0609-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0609-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0609-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0609-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0609-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0609-
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 0609-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 0609-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 0609-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0609-
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 0609-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0609-
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0609-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0609-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0609-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 0609-
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0609-
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 0609-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 0609-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-212-0 01 1 0609-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0609-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0609-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0609-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-138-0 01 1 0609-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0609-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0609-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0609-
42 GASKET; FITTING,CLU BOOSTER
(A) 		1-31829-143-0 01 1 0609-
43 GASKET; UPR VLV,CLU BOOSTER
(A) 		1-31829-060-0 02 1 0609-
44 PISTON; UPR VLV,CLU BOOSTER
(A) 		1-31821-087-0 01 1 0609-
45 PLATE; END,CLU BOOSTER 1-31811-081-0 01 1 0609-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0609-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-168-0 01 1 0609-
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0609-
62 RETAINER; POPPET 1-31829-489-0 01 1 0609-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0609-
107 CONNECTOR; ELBOW 1-09650-358-1 01 1 0609-
127 FILTER; POPPET 1-31829-495-0 01 1 0609-
