2-05 — CLUTCH PIPING (#25442) — 139 parça

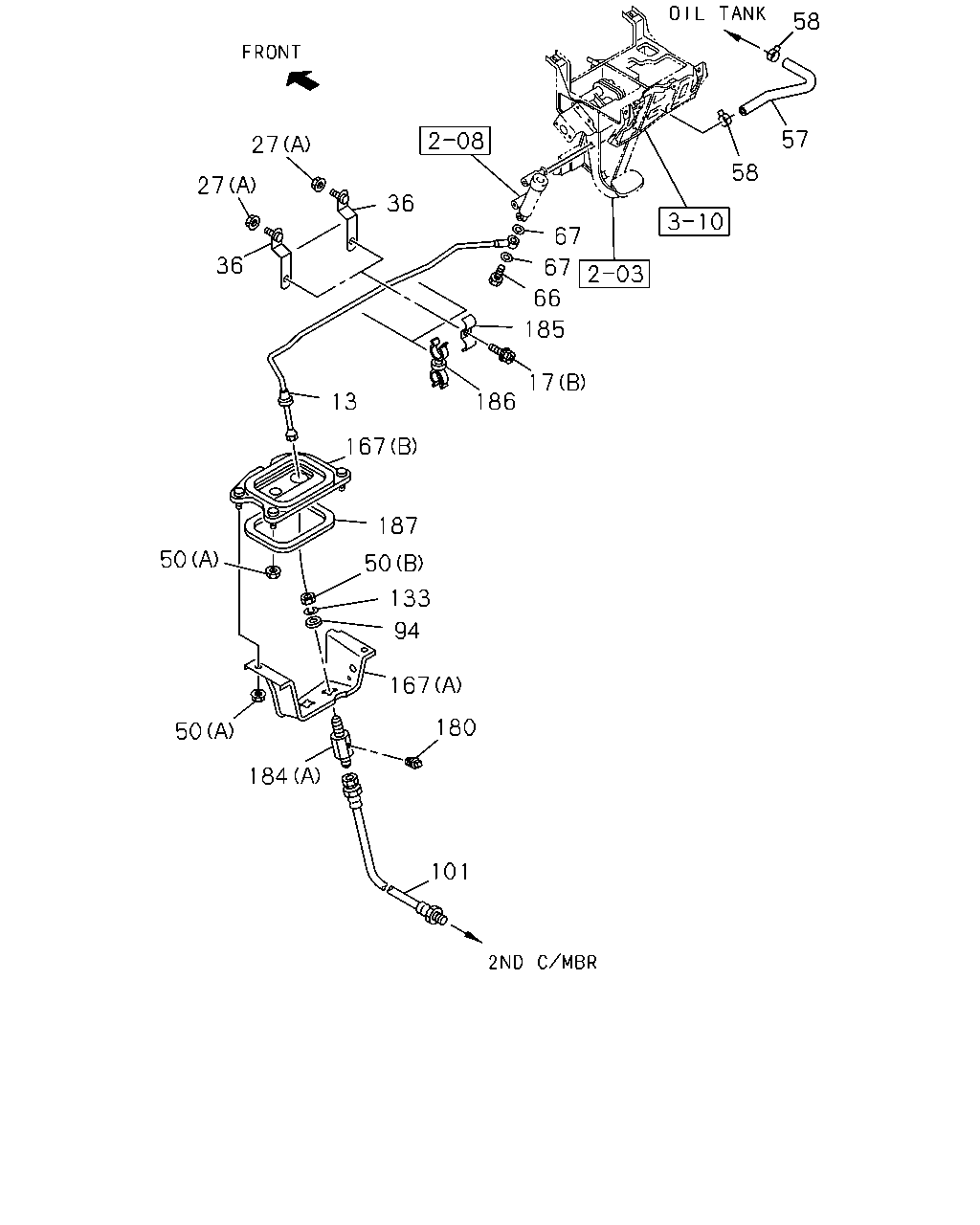

58 57 27 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 94 167 180 50 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47424-110-4	01	1	0609-	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0609-		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0609-	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0609-	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0609-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0609-	●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	0609-	●	●
50	NUT; UNION NISSAN DIESEL MPS62B M/T(Y2Z) (C) M12	9-09840-280-0	01	1	0609-	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	0609-		●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0609-	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0609-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0609-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0609-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0609-0805	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0609-1312	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0609-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0609-0703	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●
133	WASHER; LK,UNION NISSAN DIESEL MPS62B M/T(Y2Z) ID=12.2	0-91510-512-0	01	1	0609-	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0609-	●	●
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0609-	●	●
167	BRACKET; UNION (A)	1-79738-847-2	01	1	0609-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0609-0804	●	●
184	UNION; FLEX HOSE NISSAN DIESEL MPS62B M/T(Y2Z) (B) M12 3WAY	0-92138-706-0	01	1	0609-	●
184	UNION; FLEX HOSE (A) 3WAY	1-09656-679-0	01	1	0609-0804	●	●
184	UNION; FLEX HOSE (A) STRAIGHT	1-09654-435-0	01	1	0805-	●	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0609-	●	●
186	HOLDER; CLIP ID=6 & 4.8	8-94313-325-0	02	1	0609-	●	●
187	SEAL; BRKT	1-79738-190-0	01	1	0609-	●	●

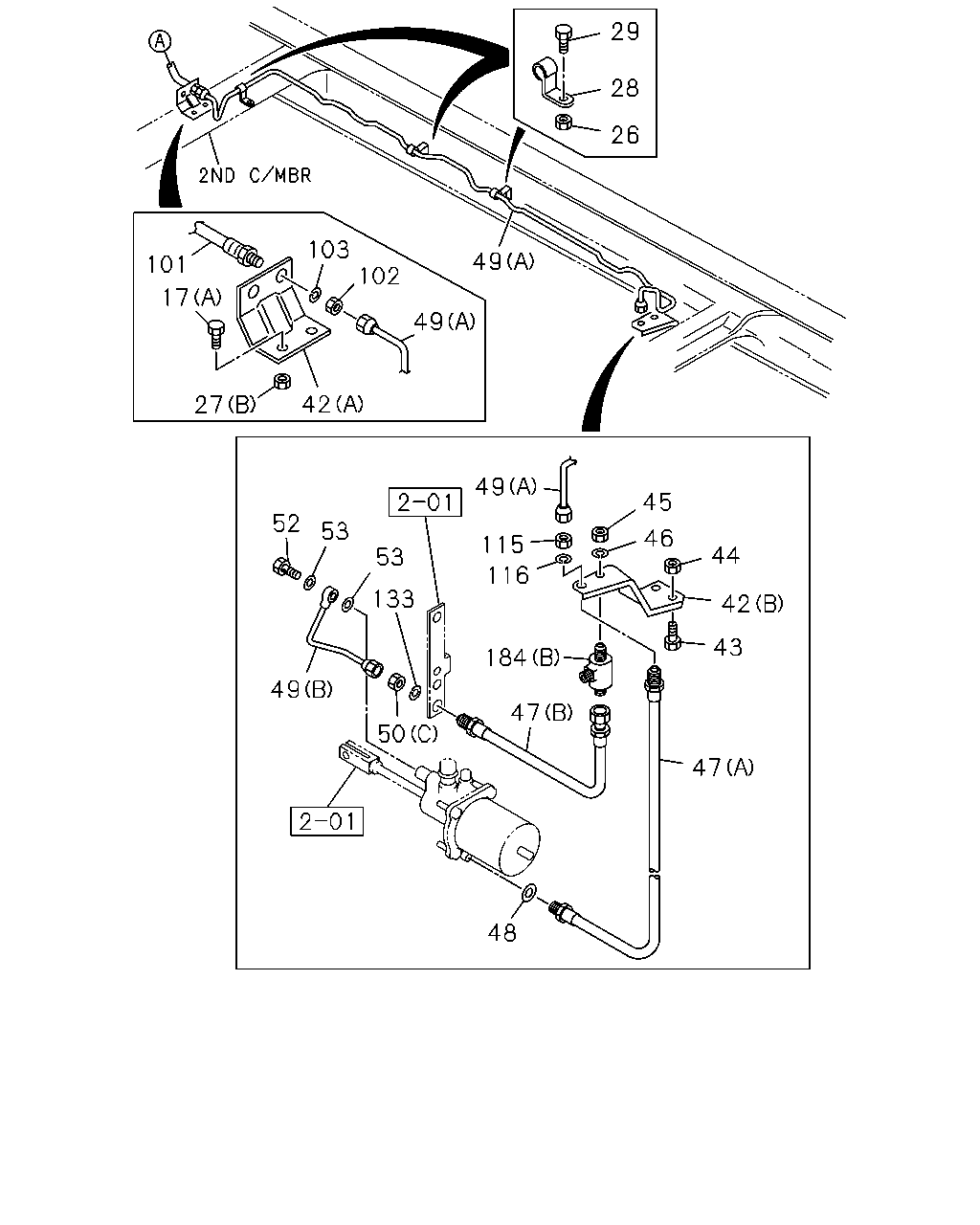

29 28 26 103 49 101 102 17 49 42 27 49 45 52 53 46 115 44 53 116 133 42 43 184 49 47 50 47 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0609-	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0609-	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	06	1	0609-	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0609-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0609-	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	06	1	0609-	●	●
29	BOLT; CLIP,OIL PIPE NISSAN DIESEL MPS62B M/T(Y2Z) M8X25 FLANGE	0-28650-825-0	01	1	0609-	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0609-		●
29	BOLT; CLIP,OIL PIPE NISSAN DIESEL MPS62B M/T(Y2Z) M8X30 FLANGE	0-28650-830-0	05	1	0609-	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	05	1	0609-		●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	06	1	0609-	●
42	BRACKET; FLEX HOSE,CLU CONT NISSAN DIESEL MPS62B M/T(Y2Z) (B)	1-47471-220-0	01	1	0609-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) (B)	1-47477-944-0	01	1	0609-	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0609-		●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0609-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0609-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0609-	●	●
45	NUT; FLEX HOSE,CLU CONT NISSAN DIESEL MPS62B M/T(Y2Z) M12	9-09840-280-0	01	1	0609-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0609-		●
45	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0609-	●
46	WASHER; LK,FLEX HOSE,CLU CONT NISSAN DIESEL MPS62B M/T(Y2Z) ID=12.2	0-91510-512-0	01	1	0609-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0609-		●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	0609-	●
47	HOSE; FLEX,CLU CONT NISSAN DIESEL MPS62B M/T(Y2Z) (A) L=470	1-09363-682-0	01	1	0609-	●
47	HOSE; FLEX,CLU CONT NISSAN DIESEL MPS62B M/T(Y2Z) (B) L=500	1-09364-329-0	01	1	0609-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) OD=12.7 L=450	1-09363-630-0	01	1	0609-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=415	1-09364-490-0	01	1	0609-	●
47	HOSE; FLEX,CLU CONT (A) L=520	1-09363-634-1	01	1	0609-		●
47	HOSE; FLEX,CLU CONT (B) L=520	1-09364-583-0	01	1	0609-		●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0609-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) (A) L=2855 SERVICED BY L=3000	1-47426-397-0	01	1	0609-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER NISSAN DIESEL MPS62B M/T(Y2Z) (B)	1-47495-700-1	01	1	0609-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER NISSAN DIESEL MPS62B M/T(Y2Z) (A) L=3293 SERVICED BY L=3300	1-47426-398-0	01	1	0609-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) (B) L=232	1-49124-795-0	01	1	0609-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=204	1-49117-400-0	01	1	0609-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=3077 SERVICED BY L=3300	1-47426-398-0	01	1	0609-		●
50	NUT; UNION NISSAN DIESEL MPS62B M/T(Y2Z) (C) M12	9-09840-280-0	01	1	0609-	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	0609-		●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0609-	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0609-	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0609-	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0609-1312	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0609-0703	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0609-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0609-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0609-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0609-	●	●
133	WASHER; LK,UNION NISSAN DIESEL MPS62B M/T(Y2Z) ID=12.2	0-91510-512-0	01	1	0609-	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0609-	●	●
184	UNION; FLEX HOSE NISSAN DIESEL MPS62B M/T(Y2Z) (B) M12 3WAY	0-92138-706-0	01	1	0609-	●
184	UNION; FLEX HOSE (A) 3WAY	1-09656-679-0	01	1	0609-0804	●	●
184	UNION; FLEX HOSE (A) STRAIGHT	1-09654-435-0	01	1	0805-	●	●

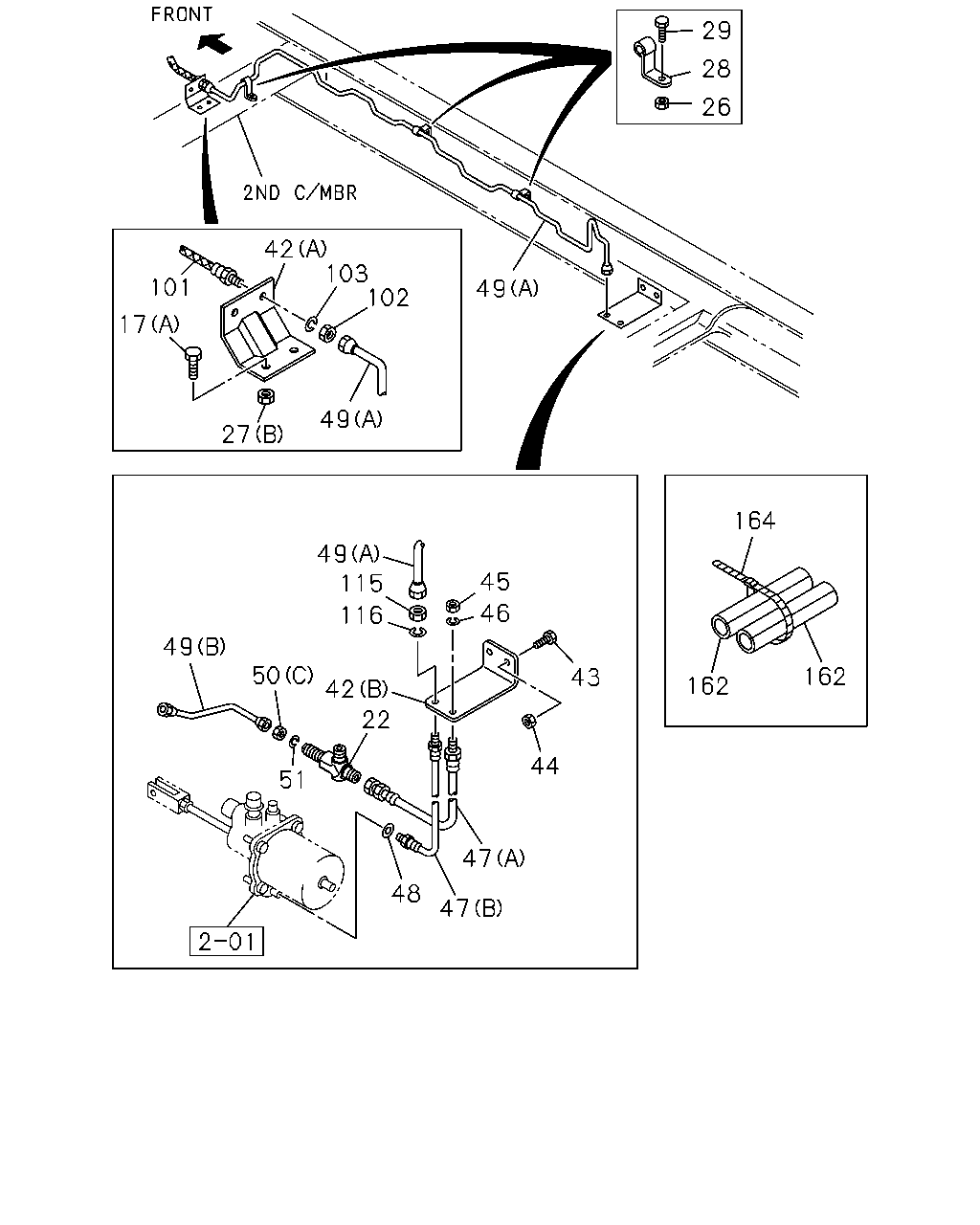

29 28 26 42 103 102 101 49 17 49 27 164 49 115 45 46 116 49 50 162 43 162 42 22 44 51 47 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0609-	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0609-	●	●
22	UNION; CLU PIPE M12 3WAY	0-92138-706-0	01	1	0609-		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	06	1	0609-	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0609-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0609-	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	06	1	0609-	●	●
29	BOLT; CLIP,OIL PIPE NISSAN DIESEL MPS62B M/T(Y2Z) M8X25 FLANGE	0-28650-825-0	01	1	0609-	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0609-		●
29	BOLT; CLIP,OIL PIPE NISSAN DIESEL MPS62B M/T(Y2Z) M8X30 FLANGE	0-28650-830-0	05	1	0609-	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	05	1	0609-		●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	06	1	0609-	●
42	BRACKET; FLEX HOSE,CLU CONT NISSAN DIESEL MPS62B M/T(Y2Z) (B)	1-47471-220-0	01	1	0609-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) (B)	1-47477-944-0	01	1	0609-	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0609-		●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0609-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0609-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0609-	●	●
45	NUT; FLEX HOSE,CLU CONT NISSAN DIESEL MPS62B M/T(Y2Z) M12	9-09840-280-0	01	1	0609-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0609-		●
45	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0609-	●
46	WASHER; LK,FLEX HOSE,CLU CONT NISSAN DIESEL MPS62B M/T(Y2Z) ID=12.2	0-91510-512-0	01	1	0609-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0609-		●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	0609-	●
47	HOSE; FLEX,CLU CONT NISSAN DIESEL MPS62B M/T(Y2Z) (A) L=470	1-09363-682-0	01	1	0609-	●
47	HOSE; FLEX,CLU CONT NISSAN DIESEL MPS62B M/T(Y2Z) (B) L=500	1-09364-329-0	01	1	0609-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) OD=12.7 L=450	1-09363-630-0	01	1	0609-	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=415	1-09364-490-0	01	1	0609-	●
47	HOSE; FLEX,CLU CONT (A) L=520	1-09363-634-1	01	1	0609-		●
47	HOSE; FLEX,CLU CONT (B) L=520	1-09364-583-0	01	1	0609-		●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0609-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) (A) L=2855 SERVICED BY L=3000	1-47426-397-0	01	1	0609-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER NISSAN DIESEL MPS62B M/T(Y2Z) (B)	1-47495-700-1	01	1	0609-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER NISSAN DIESEL MPS62B M/T(Y2Z) (A) L=3293 SERVICED BY L=3300	1-47426-398-0	01	1	0609-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) (B) L=232	1-49124-795-0	01	1	0609-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=204	1-49117-400-0	01	1	0609-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=3077 SERVICED BY L=3300	1-47426-398-0	01	1	0609-		●
50	NUT; UNION NISSAN DIESEL MPS62B M/T(Y2Z) (C) M12	9-09840-280-0	01	1	0609-	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	0609-		●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0609-	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0609-	●	●
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	0609-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0609-0703	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0609-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0609-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0609-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0609-	●	●
162	COVER; RUBBER,FLEX HOSE ZF9S1110 M/T(Y5E) ID=17 OD=21 L=40	1-09337-012-0	01	1	0609-	●
162	COVER; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	0609-		●
162	COVER; RUBBER,FLEX HOSE ZF9S1110 M/T(Y5E) ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	0609-	●
162	COVER; RUBBER,FLEX HOSE ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	0609-		●
164	CLIP; BAND,FLEX HOSE ZF9S1110 M/T(Y5E) L=140	5-09707-031-1	01	1	0609-	●
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0609-		●
