Isuzu WW
▶
TRUCKS
▶
FVR
▶
11030 - FVR(RHD) EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

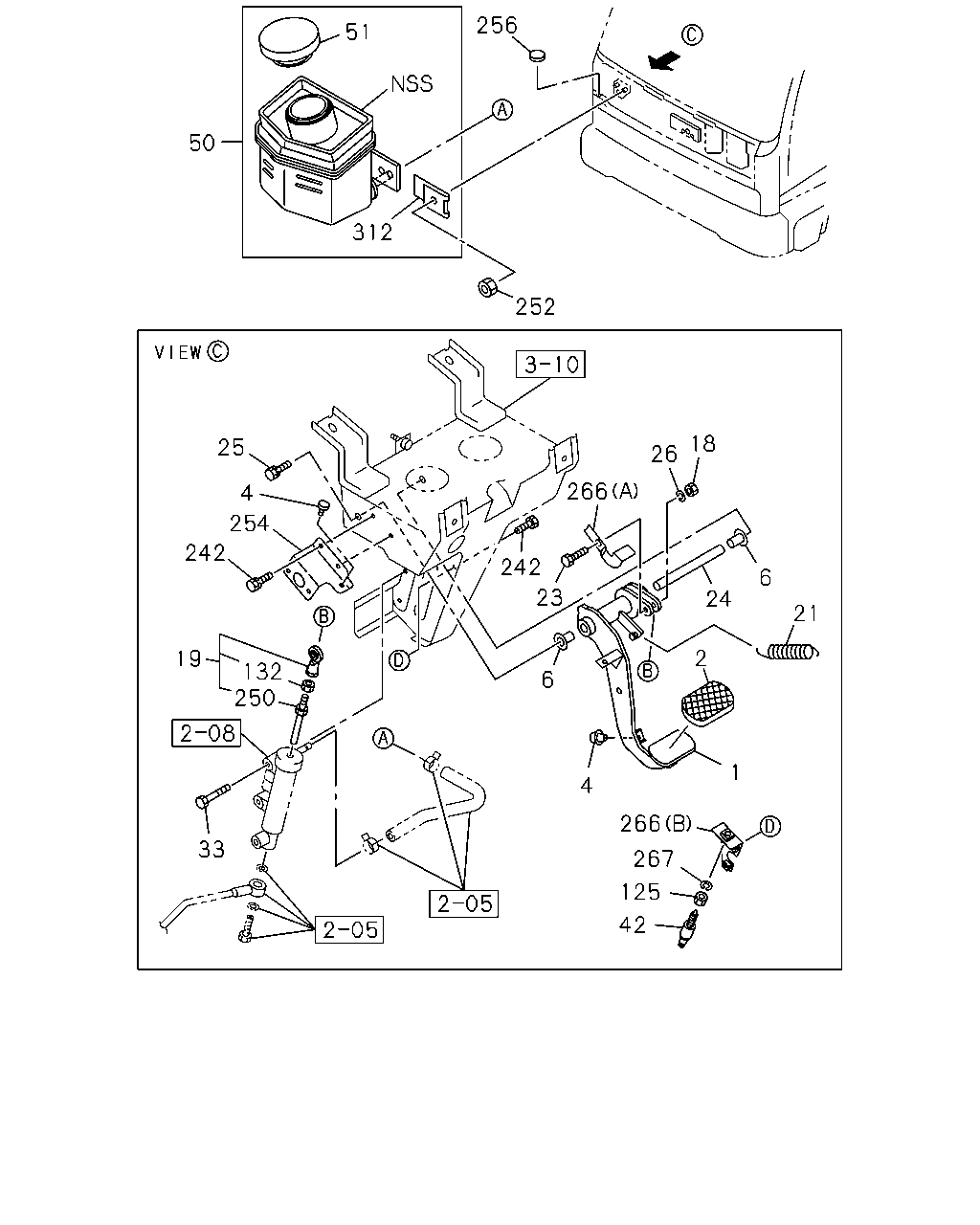

2-03 — CLUTCH PEDAL AND CONTROL
(#25441) — 28 parça
Tümü
A - FVR5FF
B - FVR5MF
256
51
50
312
252
18
25
26
266
4
254
242
242
6
23
24
21
2
19
132
250
6
1
4
266
33
267
125
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PEDAL; CLU
1-73908-171-3
01
1
0609-
●
●
2
COVER; CLU PEDAL
8-97893-618-1
01
1
0609-
●
●
4
STOPPER; CLU PEDAL
1-47319-014-1
04
1
0609-
●
●
6
BUSHING; CLU PEDAL
1-09330-045-0
02
1
0609-
●
●
18
NUT; PUSH ROD
M8
0-91110-508-0
01
1
0609-
●
●
19
ROD ASM; PUSH,CLU
1-73996-144-1
01
1
0609-
●
●
21
SPRING; RETURN,CLU PEDAL
1-73908-265-0
01
1
0609-
●
●
23
BOLT; PUSH ROD
M8X35
0-10960-835-0
01
1
0609-
●
●
24
SHAFT; CLU PEDAL
1-73998-936-1
01
1
0609-
●
●
25
BOLT; PEDAL
M10X25 W/LK WASHER
0-50051-025-0
02
1
0609-
●
●
26
WASHER; LK,PUSH ROD
ID=8.2
0-91510-608-0
01
1
0609-
●
●
33
BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE
0-28051-060-0
02
1
0609-
●
●
42
SWITCH; CLU
ZF9S1110 M/T(Y5E)
1-82440-094-2
01
1
0609-
●
50
TANK; OIL,CLU
1-47530-182-0
01
1
0609-
●
●
51
CAP; OIL TANK,CLU
8-94136-483-1
01
1
0609-
●
●
125
NUT; CLU SWITCH
ZF9S1110 M/T(Y5E) M10
0-91110-510-0
01
1
0609-
●
132
NUT; LK,PUSH ROD
M8
0-91110-508-0
01
1
0609-
●
●
242
BOLT; BRKT,CLUTCH
NISSAN DIESEL MPS62B M/T(Y2Z) M6X16 W/LK WASHER
0-50540-616-0
02
1
0609-
●
242
BOLT; BRKT,CLUTCH
MLD6W M/T(Y2C) M6X16 W/LK WASHER
0-50540-616-0
02
1
0609-
●
242
BOLT; BRKT,CLUTCH
ZF9S1110 M/T(Y5E) M6X16 W/LK WASHER
0-50540-616-0
04
1
0609-
●
250
ROD; PUSH,CLU
1-73996-219-0
01
1
0609-
●
●
252
NUT; OIL TANK
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0609-
●
●
254
BRACKET; CLU SENSOR
1-73998-979-5
01
1
0609-
●
●
256
SEAL; HOLE
OD=25 BLACK
1-76798-019-0
01
1
0609-
●
●
266
BRACKET; CLU SWITCH
ZF9S1110 M/T(Y5E) (A)
1-73907-395-1
01
1
0609-
●
266
BRACKET; CLU SWITCH
ZF9S1110 M/T(Y5E) (B)
1-73908-354-0
01
1
0609-
●
267
WASHER; LK,CLU SWITCH
ZF9S1110 M/T(Y5E) ID=10.2
0-91510-510-0
01
1
0609-
●
312
PLATE; OIL TANK,CLU
1-21249-007-1
01
1
0609-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
