7-41 — UNDER COVER; INSTRUMENT (#2544) — 14 parça

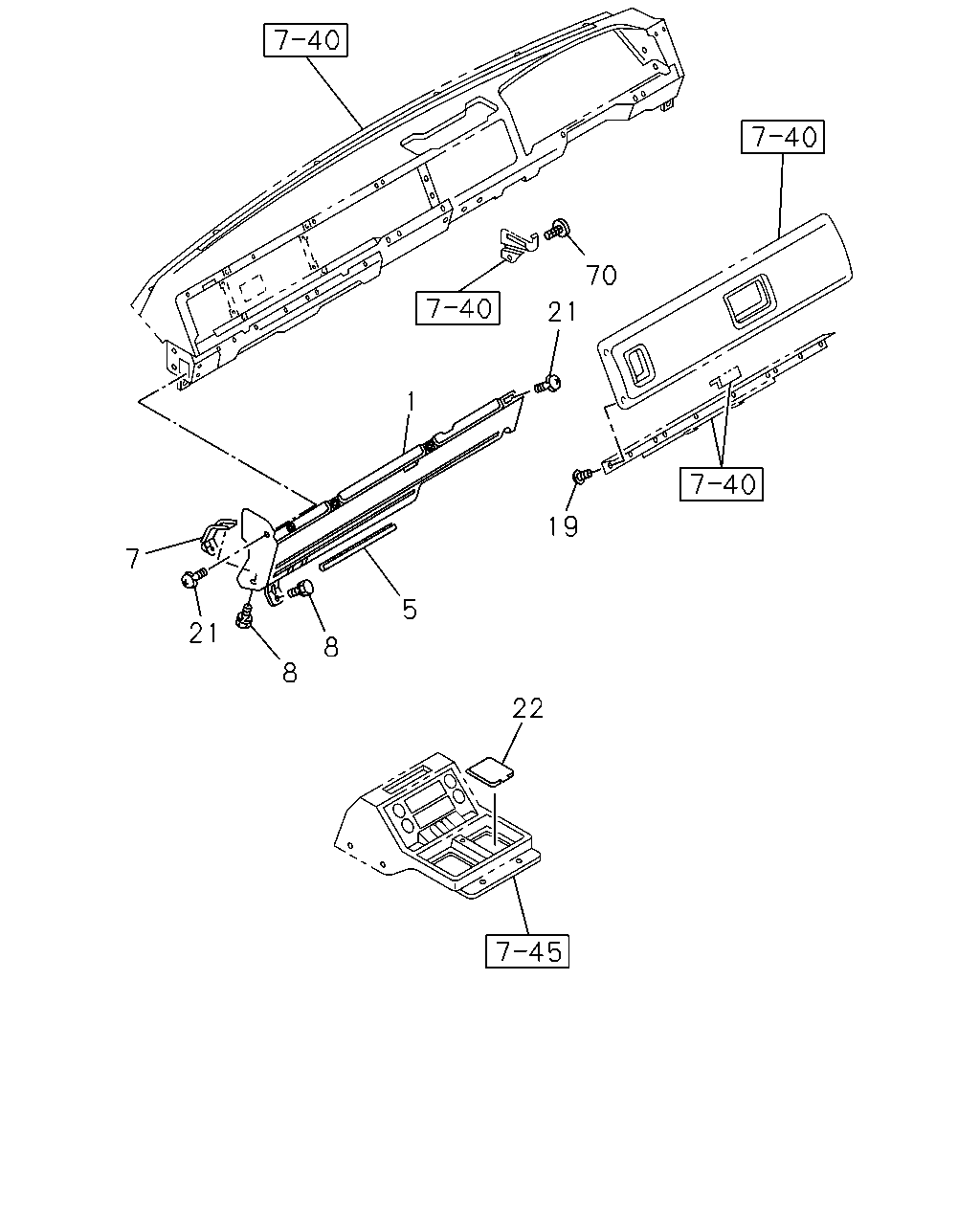

çizim 96455
70 21 1 19 7 5 21 8 8 22
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; COMPARTMENT,A/C UNIT 1-65671-328-0 01 1 9002-9306
1 PANEL; COMPARTMENT,A/C UNIT 1-65671-533-0 01 1 9307-
5 FINISHER; COMPARTMENT PANEL,A/C UNIT
L=880 		1-73948-003-0 01 1 9002-
5 FINISHER; COMPARTMENT PANEL,A/C UNIT
INTAKE HEATER<SL2> L=190 		1-71998-300-0 01 1 9002-
7 STAY ASM; BLIND PANEL A/C 1-65670-589-2 01 1 9002-
8 BOLT; STAY,BLIND PANEL
M6X16 W/LK&PL WASHER 		1-09980-458-0 01 1 9002-9307
8 BOLT; STAY,BLIND PANEL
M6X16 W/LK&PL WASHER 		1-09980-586-0 01 1 9308-
8 BOLT; STAY,BLIND PANEL
M6X14 W/LK&PL WASHER 		1-09980-549-0 01 1 9002-
19 SCREW; FASTENER,SIDE CLUSTER BEZEL
M5X14 TAPPING 		1-72548-072-0 17 1 9002-
21 BOLT; BLIND PANEL,A/C
M6X14 W/LK&PL WASHER 		1-09980-549-0 05 1 9002-
21 BOLT; BLIND PANEL,A/C
M6X20 		1-09980-550-0 01 1 9002-
22 COVER; TRANS CONT 1-72447-472-0 01 1 9305-9306
22 COVER; TRANS CONT 1-72447-540-0 01 1 9307-
70 FASTENER; UNDER COVER
BLACK 		8-94104-935-0 01 1 9407-
